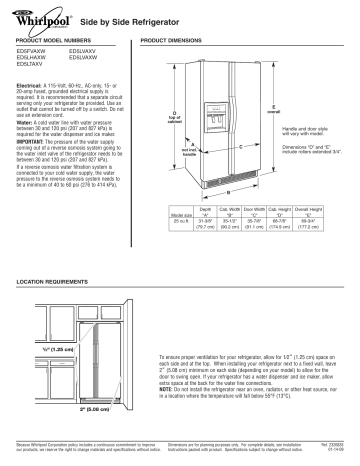

Whirlpool Ed5lhaxws Quick Specs
®
Side by Side Refrigerator
PRODUCT MODEL NUMBERS
ED5FVAXW
ED5LHAXW
ED5LTAXV
PRODUCT DIMENSIONS
ED5LVAXV
ED5LVAXW
1
Electrical: A 115-Volt, 60-Hz., AC-only, 15- or
20-amp fused, grounded electrical supply is
required. It is recommended that a separate circuit
serving only your refrigerator be provided. Use an
outlet that cannot be turned off by a switch. Do not
use an extension cord.
Water: A cold water line with water pressure
between 30 and 120 psi (207 and 827 kPa) is
required for the water dispenser and ice maker.
IMPORTANT: The pressure of the water supply
coming out of a reverse osmosis system going to
the water inlet valve of the refrigerator needs to be
between 30 and 120 psi (207 and 827 kPa).
If a reverse osmosis water filtration system is
connected to your cold water supply, the water
pressure to the reverse osmosis system needs to
be a minimum of 40 to 60 psi (276 to 414 kPa).
E
overall
D
top of
cabinet
Handle and door style
will vary with model.
A
C
not incl.
handle
Dimensions “D” and “E”
include rollers extended 3/4".
B
Model size
25 cu.ft.
Depth
"A"
31-3/8"
(79.7 cm)
Cab. Width Door Width Cab. Height Overall Height
"B"
"C"
"D"
"E"
35-1/2"
35-7/8"
68-7/8"
69-3/4"
(90.2 cm) (91.1 cm) (174.9 cm)
(177.2 cm)
LOCATION REQUIREMENTS
12
/ " (1.25 cm)
To ensure proper ventilation for your refrigerator, allow for 1⁄2” (1.25 cm) space on
each side and at the top. When installing your refrigerator next to a fixed wall, leave
2” (5.08 cm) minimum on each side (depending on your model) to allow for the
door to swing open. If your refrigerator has a water dispenser and ice maker, allow
extra space at the back for the water line connections.
NOTE: Do not install the refrigerator near an oven, radiator, or other heat source, nor
in a location where the temperature will fall below 55°F (13°C).
2" (5.08 cm)
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref. 2326835
01-14-09
