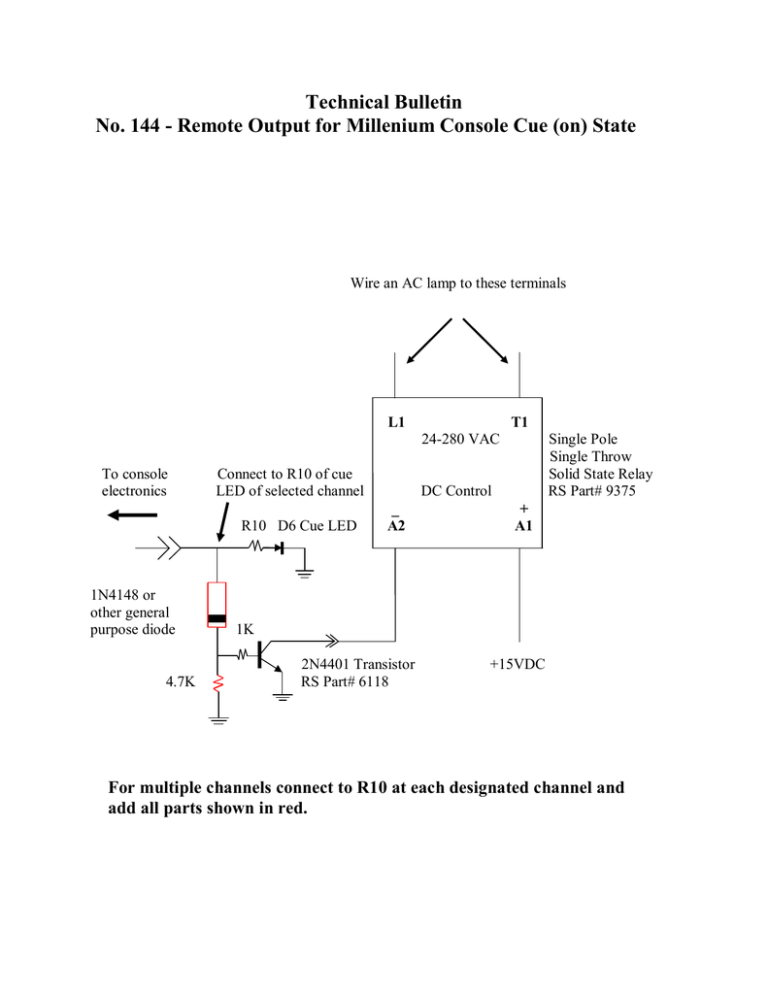

No. 144 - Remote Output for Millenium Console Cue (on) State
Wire an AC lamp to these terminals
L1
T1
24-280 VAC
To console
electronics
Connect to R10 of cue
LED of selected channel
R10 D6 Cue LED
1N4148 or
other general
purpose diode
4.7K
Single Pole
Single Throw
Solid State Relay
RS Part# 9375
DC Control
_
A2
+
A1
1K
2N4401 Transistor
RS Part# 6118
+15VDC
For multiple channels connect to R10 at each designated channel and
add all parts shown in red.
