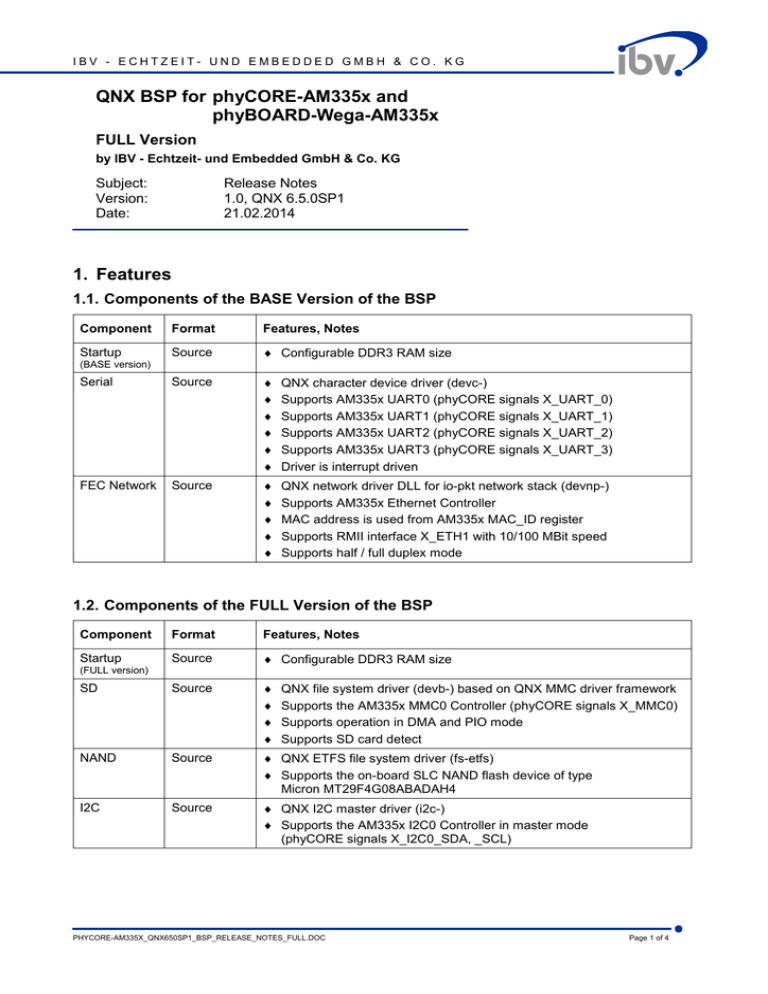

IBV - ECHTZEIT- UND EMBEDDED GMBH & CO. KG
QNX BSP for phyCORE-AM335x and
phyBOARD-Wega-AM335x
FULL Version
by IBV - Echtzeit- und Embedded GmbH & Co. KG
Subject:
Version:
Date:
Release Notes
1.0, QNX 6.5.0SP1
21.02.2014
1. Features
1.1. Components of the BASE Version of the BSP
Component
Format
Features, Notes
Startup
Source
♦ Configurable DDR3 RAM size
Serial
Source
♦
♦
♦
♦
♦
♦
QNX character device driver (devc-)
Supports AM335x UART0 (phyCORE signals X_UART_0)
Supports AM335x UART1 (phyCORE signals X_UART_1)
Supports AM335x UART2 (phyCORE signals X_UART_2)
Supports AM335x UART3 (phyCORE signals X_UART_3)
Driver is interrupt driven
FEC Network
Source
♦
♦
♦
♦
♦
QNX network driver DLL for io-pkt network stack (devnp-)
Supports AM335x Ethernet Controller
MAC address is used from AM335x MAC_ID register
Supports RMII interface X_ETH1 with 10/100 MBit speed
Supports half / full duplex mode
(BASE version)
1.2. Components of the FULL Version of the BSP
Component
Format
Features, Notes
Startup
Source
♦ Configurable DDR3 RAM size
SD
Source
♦
♦
♦
♦
NAND
Source
♦ QNX ETFS file system driver (fs-etfs)
♦ Supports the on-board SLC NAND flash device of type
Micron MT29F4G08ABADAH4
I2C
Source
♦ QNX I2C master driver (i2c-)
♦ Supports the AM335x I2C0 Controller in master mode
(phyCORE signals X_I2C0_SDA, _SCL)
(FULL version)
QNX file system driver (devb-) based on QNX MMC driver framework
Supports the AM335x MMC0 Controller (phyCORE signals X_MMC0)
Supports operation in DMA and PIO mode
Supports SD card detect
PHYCORE-AM335X_QNX650SP1_BSP_RELEASE_NOTES_FULL.DOC
Page 1 of 4
IBV - ECHTZEIT- UND EMBEDDED GMBH & CO. KG
USB
Binary
♦ QNX USB driver DLL for io-usb USB stack (devu-)
♦ Supports the AM335x USB0 Controller in USB Host mode (phyCORE
signals X_USB0)
♦ Supports the AM335x USB1 Controller in USB Host mode (phyCORE
signals X_USB1)
Driver is shipped as original binary as provided by the operating
system vendor in the original AM335x reference BSP and without
support.
SPI
Source
♦ QNX SPI master driver based on QNX SPI Framework
♦ Supports the AM335x McSPI0 Controller in master mode
(phyCORE signals X_SPI0_...)
♦ QNX SPI master API library is shipped as binary without support
♦ The driver works interrupt driven optionally with DMA support
CAN
Source
♦ QNX CAN driver based on QNX CAN Framework
♦ Supports the AM335x DCAN Controller
(phyCORE signals X_CAN0_... and X_CAN1_...)
♦ Supported baud rates:
5K, 10K, 20K, 25K, 50K, 100K, 125K, 250K, 500K, 1M
♦ Extension for transmission of CAN frames with payload sizes other
than eight and remote frames
®
♦ Ready for use with EMBRICS ioCAN
RTC
Source
♦ QNX RTC utility for setting and reading system time
♦ Supports on-board RTC U2 (RV-4162-C7)
GRAPHICS
Source
♦ QNX graphics driver DLL for io-display (devg-)
♦ Supports the AM335x graphic controller for applications working with
the QNX GF interface and QNX Photon
♦ Supported display interface: 24-bit parallel LCD display *)
♦ Frame buffer access (no hardware acceleration)
♦ Configuration file for display parameters,
parameters for display of PHYTEC Development Kit prepared
♦ Supported pixel formats: ARGB8888, RGB888, RGB565
Limitations:
♦ Only one graphics layer is supported
♦ There is no support for alpha-blending or chroma-keying
*) HDMI interface on phyBOARD-Wega-AM335x supported on request
PHYCORE-AM335X_QNX650SP1_BSP_RELEASE_NOTES_FULL.DOC
Page 2 of 4
IBV - ECHTZEIT- UND EMBEDDED GMBH & CO. KG
1.3. Optional Driver Modules (not part of FULL Version of the BSP)
GPIO
on request
TOUCH
on request
AUDIO
on request
ETHERCAT
EtherCAT Master and EtherCAT Slave (on TI AM335x PRU-ICSS)
on request
1.4. Further BSPs for PHYTEC Boards
A complete list of all available QNX Board Support Packages for embedded boards by PHYTEC
Messtechnik GmbH is available at:
http://www.ibv-augsburg.net/media/pdf/QNX_BSP_Overview_PHYTEC.pdf
2. General Information
2.1. Features of the BSP
The features of this Board Support Package and the Application Programming Interface (API) are defined
and limited by the underlying QNX reference BSPs. Changes in the target system and/or peripheral
components may require an adaption of the BSP. Therefore the BSP is provided in source code.
3. Target System
This BSP supports the following PHYTEC boards:
3.1. phyCORE-AM335x Module on Carrier Board PCM-953
♦ Phytec CPU Module phyCORE-AM335x (PCB#1358.3):
♦ Texas Instruments AM335x ARM Cortex™-A8 Microprocessor, Silicon Revision 2.1
♦ 512 MB DDR3 RAM (size configurable)
♦ 512 MB NAND Flash
♦ Phytec Baseboard phyCORE Carrier Board PCM-953 (PCB#1359.3)
♦ Phytec Development Kit, LCD 800x480
♦ Operating system QNX 6.5.0 with SP1
♦ Boot loader barebox 2013.07.0-PD13.1.0 #1 Tue Sep 17 10:24:22 CEST 2013
3.2. phyBOARD-Wega-AM335x
♦ Phytec phyBOARD Wega-AM335x (PCB#1405.0) with
♦ Phytec CPU Module phyCORE-AM335x (PCB#1358.3):
♦ Texas Instruments AM335x ARM Cortex™-A8 Microprocessor, Silicon Revision 2.1
♦ 256 MB DDR3 RAM (size configurable)
♦ 128 MB NAND Flash
♦ Phytec Eval-Board for phyBOARD-Wega (PCB#1413.0)
♦ Operating system QNX 6.5.0 with SP1
♦ Boot loader barebox 2013.11.0-PD13.0.0 phyBOARD-WEGA #1 Wed Nov 20 16:11:37 CET 2013
PHYCORE-AM335X_QNX650SP1_BSP_RELEASE_NOTES_FULL.DOC
Page 3 of 4
IBV - ECHTZEIT- UND EMBEDDED GMBH & CO. KG
4. Host Development System
♦ QNX Software Development Platform 6.5.0SP1
♦ Terminal emulation program (Qtalk, Momentics IDE Terminal, tip, HyperTerminal, etc.)
♦ RS-232 serial port or a USB-to-serial adapter, and a straight-through serial cable
♦ Ethernet link
5. Known Issues for this BSP
♦
Network driver does not support RGMII interface X_ETH2 (Gigabit).
♦
SD card driver does not support the SD write protect signal (pin multiplexing of carrier board does not
support this).
♦
USB OTG needs host socket adapter connected when driver starts. When the USB host controller driver
is loaded, any USB port which does not have the ID pin set to act as a host port will not have the PHY
powered and so devices connected will not be powered and enumerated. Ensure that all USB ports
required for use have a USB OTG host cable (A port to micro B plug) connected which will set the ID pin
correctly, before the driver is loaded (i.e. at boot time).
♦
There is an Errata of the AM335x whereby in RGB888 / ARGB8888 mode the red and blue channels are
swapped. Different LCD adaptations are necessary for displaying the correct colours in 16 bit mode resp.
24/32bit mode (see also TI AM335x Silicon Errata “LCD: Color Assignments of LCD_DATA Terminals”).
6. Change History
6.1. Revision 1.0
♦
Adapted for phyBOARD-Wega-AM335x board
♦
Adapted for phyCORE-AM335x board
♦
CAN driver extended:
♦ Supports transmission of CAN frames with payload sizes other than eight
♦ Support of remote frames
♦ API distinguishes 11bit (CAN 2.0A) and 29bit (CAN 2.0B) identifiers
®
CAN driver ready for use with EMBRICS ioCAN
I2C driver:
♦ Bugfix in reset handling
♦ Support of I2C multi-master communication
♦
♦
7. Sales / Technical Support
To get this BSP or to obtain technical support for the BSP, please contact:
IBV - Echtzeit- und Embedded GmbH & Co. KG
Keltenstrasse 2
D-86343 Koenigsbrunn
GERMANY
Phone: +49 8231 9586-041
Fax:
+49 8231 9586-049
Email: [email protected]
Web:
http://www.ibv-augsburg.net
PHYCORE-AM335X_QNX650SP1_BSP_RELEASE_NOTES_FULL.DOC
Page 4 of 4
