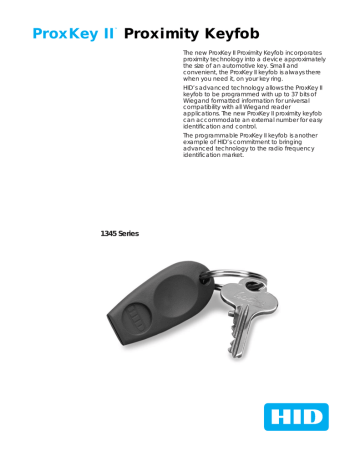

ProxKey II Proximity Keyfob

ProxKey II Proximity Keyfob
ProxKey II Proximity Keyfob
™
The new ProxKey II Proximity Keyfob incorporates
proximity technology into a device approximately
the size of an automotive key. Small and
convenient, the ProxKey II keyfob is always there
when you need it, on your key ring.
HID’s advanced technology allows the ProxKey II
keyfob to be programmed with up to 37 bits of
Wiegand formatted information for universal
compatibility with all Wiegand reader
applications. The new ProxKey II proximity keyfob
can accommodate an external number for easy
identification and control.
The programmable ProxKey II keyfob is another
example of HID’s commitment to bringing
advanced technology to the radio frequency
identification market.
1345 Series
Specifications
Typical read range:
MiniProx™ reader
ThinLine II™ reader
ProxPro™ reader
MaxiProx™ reader
Features
up to 2” (5 cm)
up to 2” (5 cm)
up to 3” (7.5 cm)
up to 12” (30 cm)
Dimensions:
1.9” x 0.9” x 0.345” max.
(4.83 x 2.29 x 0.88 cm)
Proven, reliable technology: The read range of the
ProxKey II™ keyfob is extremely consistent. It is not
affected by body shielding or variable
environmental conditions, even when close to
keys and coins.
Small and convenient: Carry it with your keys in
your pocket or handbag.
Operating humidity:
5-95% relative humidity (noncondensing)
Cross-reference: A cross-reference list correlating
the external number and the programmed ID
number is provided for easy system administration.
External numbers matching the encoded numbers
are available.
Weight:
0.26 oz. (7.3 gm)
Security: The ProxKey II keyfobs offer over 137
billion unique codes.
Warranty:
The ProxKey II proximity keyfobs are provided
with a lifetime warranty against defects in
materials and workmanship. (See complete
warranty policy for details.)
Long life: ProxKey II keyfobs offer a passive, nobattery design allowing an infinite number of
reads.
Operating temperature:
-50° to 160° F (-45° to 70° C)
Specifications subject to change without notice.
5365 9/96, supersedes 8/95
Printed in the U.S.A.
Durability: The ProxKey II keyfob package is strong
for resistance to cracking and breaking.
Part number
Base Part No.: 1345
.900"
(2.29 cm)
Description:
125 kHz, Charcoal Gray, External
Number does not match Encoded
ID Number.
Option:
• External Card Numbering
(Please see “How to Order” guide for a description
of the options and associated part numbers.)
1.90"
(4.3 cm)
.550"
(1.4 cm)
0.160"
(0.41 cm)
9292 Jeronimo Road, Irvine, California 92618-1905 U.S.A.
Tel: (714) 598-1600 (800) 237-7769 Fax: (714) 598-1690
Internet Address: http://www.prox.com
