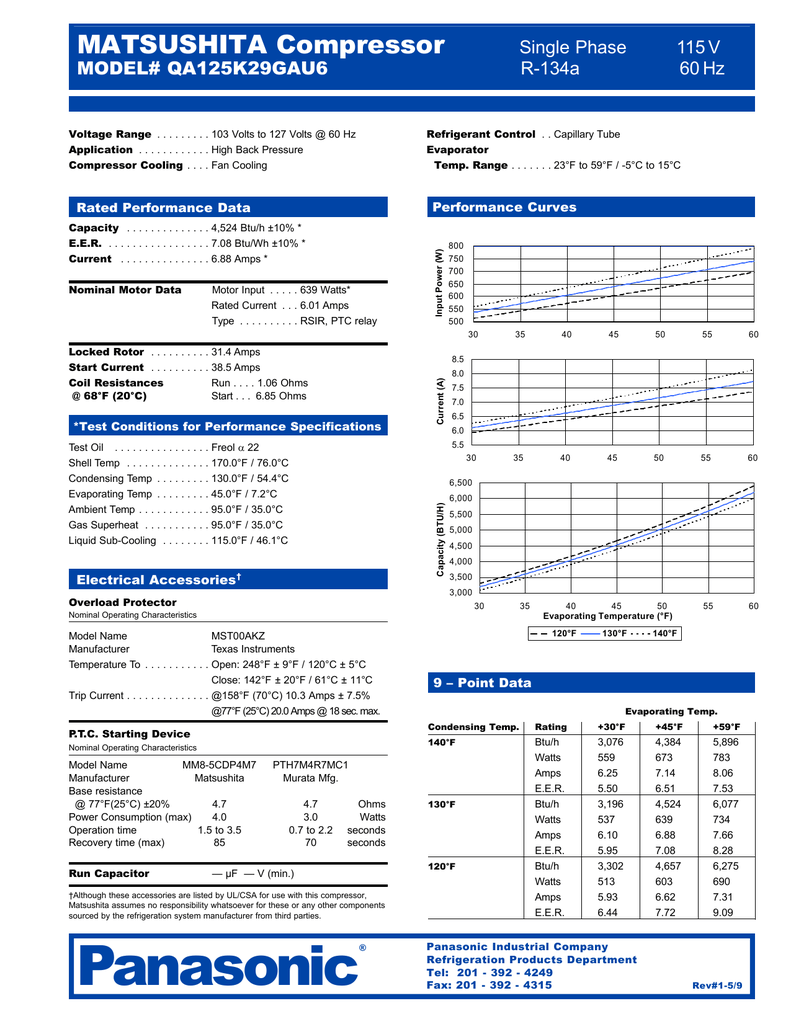

Panasonic QA125K29GAU6 Specification Sheet

MATSUSHITA Compressor
Single Phase
R-134a
MODEL# QA125K29GAU6
Refrigerant Control . . Capillary Tube
Evaporator
Temp. Range . . . . . . . 23°F to 59°F / -5°C to 15°C
Voltage Range . . . . . . . . . 103 Volts to 127 Volts @ 60 Hz
Application . . . . . . . . . . . . High Back Pressure
Compressor Cooling . . . . Fan Cooling
Motor Input . . . . . 639 Watts*
Rated Current . . . 6.01 Amps
Type . . . . . . . . . . RSIR, PTC relay
Locked Rotor . . . . . . . . . . 31.4 Amps
Start Current . . . . . . . . . . 38.5 Amps
Coil Resistances
Run . . . . 1.06 Ohms
@ 68°F (20°C)
Start . . . 6.85 Ohms
. Freol α 22
. 170.0°F / 76.0°C
. 130.0°F / 54.4°C
. 45.0°F / 7.2°C
. 95.0°F / 35.0°C
. 95.0°F / 35.0°C
. 115.0°F / 46.1°C
Electrical Accessories
30
35
40
45
50
55
60
30
35
40
45
50
55
60
55
60
Current (A)
8.0
7.5
7.0
6.5
6.0
5.5
6,500
Capacity (BTU/H)
.
.
.
.
.
.
.
800
750
700
650
600
550
500
8.5
*Test Conditions for Performance Specifications
Test Oil . . . . . . . . . . . . . .
Shell Temp . . . . . . . . . . . .
Condensing Temp . . . . . . .
Evaporating Temp . . . . . . .
Ambient Temp . . . . . . . . . .
Gas Superheat . . . . . . . . .
Liquid Sub-Cooling . . . . . .
Input Power (W)
Performance Curves
Rated Performance Data
Capacity . . . . . . . . . . . . . . 4,524 Btu/h ±10% *
E.E.R. . . . . . . . . . . . . . . . . . 7.08 Btu/Wh ±10% *
Current . . . . . . . . . . . . . . . 6.88 Amps *
Nominal Motor Data
†
6,000
5,500
5,000
4,500
4,000
3,500
3,000
Overload Protector
30
35
Nominal Operating Characteristics
Model Name
MST00AKZ
Manufacturer
Texas Instruments
Temperature To . . . . . . . . . . . Open: 248°F ± 9°F / 120°C ± 5°C
Close: 142°F ± 20°F / 61°C ± 11°C
Trip Current . . . . . . . . . . . . . . @158°F (70°C) 10.3 Amps ± 7.5%
@77°F (25°C) 20.0 Amps @ 18 sec. max.
P.T.C. Starting Device
Nominal Operating Characteristics
Model Name
MM8-5CDP4M7
Manufacturer
Matsushita
Base resistance
@ 77°F(25°C) ±20%
4.7
Power Consumption (max)
4.0
Operation time
1.5 to 3.5
Recovery time (max)
85
Run Capacitor
115 V
60 Hz
120°F
Ohms
Watts
seconds
seconds
†Although these accessories are listed by UL/CSA for use with this compressor,
Matsushita assumes no responsibility whatsoever for these or any other components
sourced by the refrigeration system manufacturer from third parties.
Panasonic
®
140°F
Evaporating Temp.
Condensing Temp.
Rating
+30°F
+45°F
+59°F
140°F
Btu/h
Watts
Amps
E.E.R.
Btu/h
Watts
Amps
E.E.R.
Btu/h
Watts
Amps
E.E.R.
3,076
559
6.25
5.50
3,196
537
6.10
5.95
3,302
513
5.93
6.44
4,384
673
7.14
6.51
4,524
639
6.88
7.08
4,657
603
6.62
7.72
5,896
783
8.06
7.53
6,077
734
7.66
8.28
6,275
690
7.31
9.09
130°F
120°F
— µF — V (min.)
130°F
9 – Point Data
PTH7M4R7MC1
Murata Mfg.
4.7
3.0
0.7 to 2.2
70
40
45
50
Evaporating Temperature (°F)
Panasonic Industrial Company
Refrigeration Products Department
Tel: 201 - 392 - 4249
Fax: 201 - 392 - 4315
Rev#1-5/9
MATSUSHITA Compressor
Single Phase
R-134a
MODEL# QA125K29GAU6
115 V
60 Hz
205.1mm (8.07")
165.1mm (6.50")
4 holes
19mm (0.75") DIA
101.6mm
(4.00")
131.6mm
(5.18")
89mm
(3.50")
54mm
(2.13")
84mm
(3.50")
88mm
(3.46")
Process or
Suction Tube
Discharge
Tube
88mm
(3.46")
~
R.S.I.R.
1
2
3
Motor Protector
C
Process or
Suction Tube
125mm
(4.92")
S
184mm DIA
(7.24")
M
Compressor
Motor
B
2
PTC Relay
A
F
E D
C
12.2mm (0.48")
Dimensions*
mm
A
B
C
D
E
F
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. 208.6
. 92.8 .
. 115.8
. 77.0 .
. 62.2 .
. 77.0 .
inches
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. 8.21
. 3.65
. 4.56
. 3.03
. 2.45
. 3.03
* All dimensions are for reference only
This document sets forth certain operational parameters and conditions for
operation of this product. If this product is operated outside of the parameters
and conditions stated herein, buyer assumes sole and full responsibility and
shall indemnify seller with respect to all product failures and all consequences
thereof. Operation of the product outside of the parameters and conditions
specified herein shall serve to invalidate all seller warranties, if any, with respect
to the product. This document is for reference only. For specifications, please
contact Panasonic’s engineering department.
Panasonic
®
Tubes
Tube O.D.
Wall
Suction . . . . . . . . . . 0.39 in. / 10 mm 0.035 in. / 0.9 mm
Process . . . . . . . . . 0.39 in. / 10 mm 0.035 in. / 0.9 mm
Discharge . . . . . . . . 0.33 in. / 8.3 mm 0.035 in. / 0.9 mm
Material
Copper
Copper
Copper
U.L. File # . . . . . . . . . SA 4615
C.S.A. File #’s . . . . . . LR - 34080
LR - 36593
LR - 100738
General Data Oil Charge . . 250 cc ± 5 cc / 15.3 cu.in. ± 0.3 cu.in.
Net Weight With Oil . . . . . . . . . . . 22.2 lbs, 10.1 kg
Approved Oils . . . . . . . . . . . . . . . . . . FREOL α 22
Residual Moisture . . . . . . . . . . . . . . . 120 mg max.
Impurities . . . . . . . . . . . . . . . . . . . . . . 10 mg max.
Displacement . . . . . . . . . . 12.50 cc. / 0.763 cu. in.
Panasonic Industrial Company
Refrigeration Products Department
Tel: 201 - 392 - 4249
Fax: 201 - 392 - 4315
Rev#1-5/9
