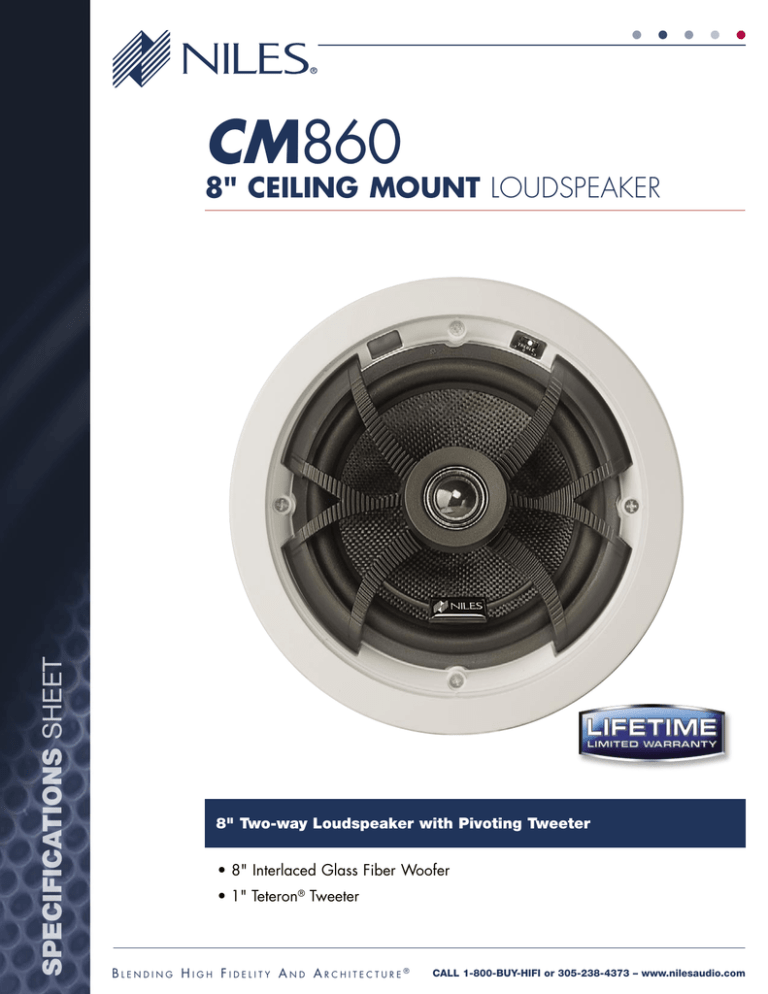

CM860
SPECIFICATIONS SHEET
8" CEILING MOUNT LOUDSPEAKER
8" Two-way Loudspeaker with Pivoting Tweeter
• 8" Interlaced Glass Fiber Woofer
• 1" Teteron® Tweeter
BLENDING HIGH FIDELITY AND ARCHITECTURE®
CALL 1-800-BUY-HIFI or 305-238-4373 – www.nilesaudio.com
8
INCH DIRECTED SOUNDFIELD CEILING MOUNT LOUDSPEAKER
8" Two-way Loudspeaker
with Pivoting Tweeter
CM860
Features
■ Integrated woofer/baffle design delivers greater low frequency response by employing an 8" woofer
■ Interlaced glass fiber cone is lightweight yet extremely rigid for deep, powerful bass response
■ Butyl rubber surround damps resonance and provides exceptional durability
■ 1" fluid-cooled Teteron® dome tweeter offers enhanced dispersion and silky-smooth high frequency
response
Stock Number
■ Proprietary bridge-mounted tweeter pivot mechanism focuses the high frequency sound in any
direction up to 20° without diffraction
FG01481
■ Three-position tweeter level control for precise matching to room acoustics
■ Includes flush-mount MicroPerf™ aluminum grille for a clean and unobtrusive look
■ Weather resistant construction reduces installation limitations and provides unique solutions in moist
environments like bathrooms or outdoors under eaves
Specifications
■ Frequency response: 49Hz to 21kHz +/-3dB
■ Impedance: 8 ohm nominal; 6 ohm minimum
■ Recommended amplifier power: 10 to 150 watts
■ Frame dimensions: 10 5/8" diameter (27 cm)
■ Hole cutout dimensions: 9 1/2" diameter (24 cm)
■ Depth behind ceiling: 4 3/8" (11 cm)
Warranty: Lifetime Limited
P RODUCT CONSTRUCTION AND ACCESSORIES
4-3/8" (11 cm) Depth
SPECIFICATIONS SHEET
9-1/2" (24 cm)
Hole
Cutout
10-5/8" (27 cm)
Frame Outer
Diameter
Loudspeaker Model
Model
Stock Number
CM860
FG01481
9-1/2" (24 cm)
Hole
Cutout
Works With
Previous Bracket
CM8 Series
Bracket Kit
FG00656
New Bracket
Metal Enclosure
Hole Cover
CM80O BKT
CE 8
CM800
Hole Cover
FG01487
FG00946
FG01488
NILES AUDIO CORPORATION 12331 SW 130 Street, Miami, FL 33186 1-800-BUY-HIFI or 305-238-4373 – www.nilesaudio.com
©2007 Niles Audio Corporation. All Rights Reserved. Niles, Blending High Fidelity and Architecture and the Niles logo are registered trademarks of Niles Audio Corporation. MicroPerf is a
trademark of Niles Audio Coporation. CS0059
