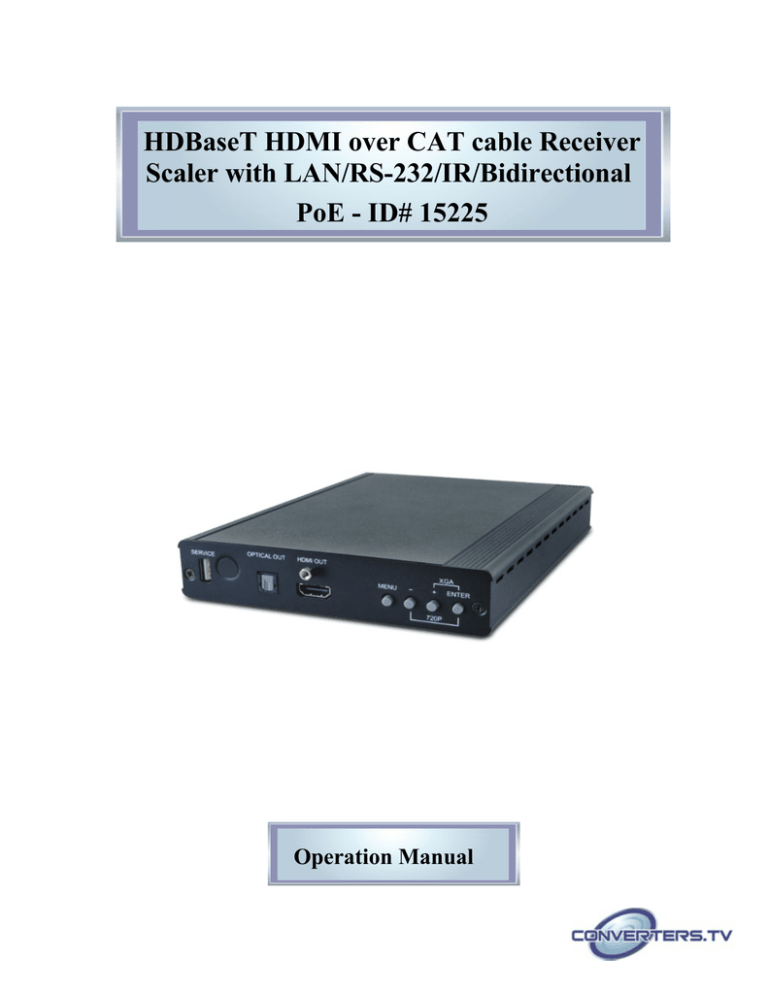

HDBaseT HDMI over CAT cable Receiver

Scaler with LAN/RS-232/IR/Bidirectional

PoE - ID# 15225

Operation Manual

Introduction

The HDBaseT HDMI over CAT cable Receiver Scaler with LAN/RS-

232/IR/Bidirectional PoE is an HDBaseT™ Receiver Scaler designed to scale the incoming video signal first, before outputting to its HDMI port.

There is an Optical port providing additional audio extraction feature.

Besides video and audio from the Transmitter, it also takes in 2-way IR, RS-

232 and bidirectional LAN serving, over a single run of CAT5e/6/7 cable at a distance up to 100 meters. Control is via on-panel buttons or IR remote control and there is an On-screen Display (OSD) providing selection and system information. The device provides a full range of output resolutions, up to 1080p and WUXGA (RB). The bidirectional Power over Ethernet

(PoE) function provides greater flexibility in installations.

Features

Applications

System Requirements

Supports HDMI scaling to a wide range of HDTV or PC resolutions up to 1080p and WUXGA (RB)

Reception of uncompressed data over a single CAT5e/6/7 cable up to 100m/328ft

HDBaseT™ 5Play convergence: uncompressed high definition

Video and Audio, LAN serving, Bidirectional Power over Ethernet

(PoE) and controls (IR & RS-232 bypass)

Supports IR, Remote control, RS-232 (bypass) and on-panel controls

Provides bidirectional 24V DC power to or receive from compatible

PoE Transmitter through CAT5e/6/7 cable

Supports Ethernet transmission rates up to 100 Mbps

Supports HDMI, Optical (S/PDIF) audio sampling rates up to 48kHz

Supports HDMI and Optical (S/PDIF) audio up to LPCM 2CH

Note:

1.

2.

3.

This system was tested with CAT6/23AWG cables, results may vary with cables of a different specification.

The PoE function is designed for powering compatible Transmitter units only—non-PoE Transmitters will need their own power supply.

Transmitters from other brands may not be compatible.

DO NOT connect the LAN connection to the CAT5e/6/7 port.

Doing so may cause a power shutdown and may damage the device.

Up-scale HDMI output to HDTV/PC resolutions

Up-scale standard definition video to High-Definition TVs/displays

Extend the operating distance of an HDMI signal

Lecture room/Showroom/Meeting room/Classroom display and control

HDBaseT compatible Transmitter (input) and output to display with an HDMI input connection.

Operation Controls and Functions

Front Panel

.

1.

SERVICE:

Reserved for manufacturer use only.

2.

IR RECEIVER WINDOW:

Receives only the IR signal from the supplied remote control

3.

OPTICAL OUT:

Connect to an amplifier or active speakers with an optical cable.

4.

HDMI OUT:

Connect to an HDMI TV/Monitor

5.

MENU:

Press this button to enter the On-Screen Display (OSD) menu.

6. −

/+:

Use these buttons to navigate down and up in the on-screen menu

7.

ENTER:

Press this button to confirm the selection.

Note:

Pressing '−' (MINUS) and ENTER simultaneously will immediately switch the output resolution of the device to 720p60.

Pressing '+' (PLUS) and ENTER simultaneously will immediately switch the output resolution of the device to XGA (1024×768)

Back Panel

1.

POWER LED:

This LED will illuminate when the device is connected to an active power supply.

2.

DC 24V:

Connect the 24V DC power supply to the unit and plug the adaptor into an

AC outlet. Only one unit requires powering if both the Transmitter and

Receiver are both PoE compatible.

3.

RS-232 OUT:

Connect to the device that is to be controlled (via D-Sub 9 pin female cable) by RS-232 commands

4.

LAN:

Connect to an active network for LAN serving. When any compatible LAN equipped receivers are connected, this allows the network access (including internet access if available) to be shared between any connected LAN equipped receivers. Connect any Ethernet equipped device e.g. a Smart TV or games console to the LAN port of a receiver for that device to share the network/internet access

Warning: DO NOT connect the LAN connection to the CAT5e/6/7 port. Doing so may cause a power shutdown and may damage the device.

5.

IR Blaster:

Connect the supplied IR Blaster cable for IR signal transmission. Place the

IR Blaster in direct line-of-sight of the equipment to be controlled.

6.

IR Extender:

Connect to the supplied IR Receiver cables for IR signal reception. Ensure that remote being used is within the direct line-of-sight of the IR Extender.

7.

CAT5e/6/7 IN:

Connect to the Transmitter unit with a Single CAT5e/6 cable for receiving all data signals.

MODE LED:

This LED will illuminate when the power is connected.

LINK LED:

This LED will illuminate when connected to a Transmitter unit that is connected to a source that is outputting a signal.

Remote Control

1.

INPUT:

Press this button to toggle between the CV or PC input.

2. EXIT:

Press this button to exit the menu or the current selection in the on-screen menu.

3. MENU:

Press this button to enter into the

OSD menu.

4. RESET:

Press this button to return the device to the factory default settings.

5. AUTO ADJUST:

Press this button to optimize the positioning of the picture

(picture centering) on the screen.

6. OK & ▲▼◄►:

Press 'OK' to confirm the selection or use the directional buttons to navigate the on-screen menus.

IR Cable Pin Assignment

RS-232 Protocols

RS-232 & Telnet

Commands

6

7

4

5

PIN

1

2

3

DEFINITION

N/C

TxD

RxD

N/C

GND

N/C

N/C

8

9

Baud Rate: 9600bps

Data Bit: 8 bits

Parity: None

Flow Control: None

Stop Bit: 1

N/C

N/C

6

7

4

5

PIN

1

2

3

8

9

DEFINITION

N/C

RxD

TxD

N/C

GND

N/C

N/C

N/C

N/C

Command

S OUTPUT 0~25

R OURPUT

S SIZE 0~6

R SIZE

Description

0=Native 12=1600×1200

1=640×480 13=1920×1080

2=800×600 16=1920×1200

3=1024×768 17=480p

5=1360×768 [email protected]

6=1280×720 [email protected]

7=1280×800 [email protected]

8=1280×1024 22=576p

9=1440×900 [email protected]

10=1400×1050 [email protected]

11=1680×1050 [email protected]

Reports the numerical equivalent for the

SOURCE setting (as listed above)

OVERSCAN 4=LETTER BOX

1=FULL 5=UNDER 2

2=BEST FIT 6=UNDER 1

3=PAN SCAN

Reports the numerical equivalent for the

OUTPUT setting (as listed above)

S CONTRAST 0~60

R CONTRAST

S BRIGHTNESS 0~60

R BRIGHTNESS

S HUE 0~60

R HUE

S SATURATION 0~60

R SATURATION

S SHARPNESS 0~30

R SHARPNESS

Sets the numerical value for the CONTRAST setting (0~60)

Reports the numerical value for the

CONTRAST setting (0~60)

Sets the numerical value for the

BRIGHTNESS setting (0~60)

Reports the numerical value for the

BRIGHTNESS setting (0~60)

Sets the numerical value for the HUE setting

((0~60)

Reports the numerical value for the HUE setting (0~60)

Sets the numerical value for the

SATURATION setting (0~60)

Reports the numerical value for the

SATURATION setting (0~60)

Sets the numerical value for SHARPNESS setting (0~30)

Reports the numerical value for the

SHARPNESS setting (0~30)

S NR 0~3

R NR

S AUDIO DELAY 0~3

R AUDIO DELAY

0=OFF 2=MIDDLE

1=LOW 3=HIGH

Reports the numerical equivalent for the

NOISE REDUCTION setting (as listed above)

0=OFF 2=110ms

1=40ms 3=150ms

Reports the numerical equivalent for the

AUDIO DELAY setting (as listed above)

S AUDIO MUTE 0/1

R AUDIO MUTE

S KEY LOCK 0/1

R KEY LOCK

0=ON 1=MUTE

Reports the numerical equivalent for the

AUDIO MUTE setting (as above)

0=ENABLE 1=DISABLE

Reports the numeric equivalent for the KEY

LOCK setting (as listed above)

Checks the FIRMWARE version FW

S RESET 1 Sets the numerical equivalent for the RESET setting (as left)

Note:

1.

RS-232 commands will not execute unless followed by a carriage return and LF (Line Feed).

2. Commands are not case-sensitive.

OSD Menu

3. Resolutions 1~16 are RGB encoded and 17~25 are YUV encoded

4.

Digital audio supports LPCM 2CH only, please ensure the source input audio is set to send LPCM 2CH audio in order to avoid unwanted audio noise.

1 st

Layer

Display

2 nd

Layer

Output

Size Size

3 rd

Layer

Native

640x480 60

800x600 60

1024x768 60

1360x768 60

1280x720 60

1280x800 60

1280x1024 60

1440x900 60

1400x1050 60

1680x1050 60

1600x1200 60

1920x1080 60

1920x1200 60

720x480P 60

1280x720P 60

1920x1080I 60

1920x1080P 60

720x576P 50

1280x720P 50

1920x1080I 50

1920x1080P 50

Overscan

Full

Aspect Ratio

Pan Scan

Letter Box

Audio

Mode Info

Colour

Contrast

Brightness

Hue

Saturation

Sharpness

NR.

Volume

Delay

Setup

Sound

Factory Reset

Key Lock

Information Input

Output

High

0~100

Off

40ms

110ms

150ms

On

Mute

No

Yes

Off

On

G

B

Off

R

Under1

Under 2

Info

On

R Offset

G Offset

B Offset

0~60

0~60

0~600~60

0~60

0~60

Off

Low

Middle

Revision

Note: Items in Bold are the default settings

Input Resolutions

Support

Input Resolution

480i/576i

480p/576p

[email protected]/60 Hz

[email protected]/60 Hz

[email protected]/60 Hz

[email protected]/72/75 Hz

[email protected]/60/72/75 Hz

[email protected]/70/75 Hz

[email protected]/75 Hz

[email protected] Hz

1280×[email protected] Hz

1680×[email protected] Hz (RB)

1920×[email protected] Hz

HDMI

Specifications

Ethernet Speed

Input Video Bandwidth

Output Video Bandwidth

Input Ports

Output Ports

CAT5e/6/7 Output Cable

Distance

HDMI Resolutions Support

Audio Sampling Rate

CAT5e/6/7 Resolutions

Support

IR Frequency

ESD Protection

Dimensions

Weight

Chassis Material

Color

Operating Temperature

Storage Temperature

Relative Humidity

Power Consumption

100 Mbps

300MHz / 10.2Gbps

165MHz / 1.65Gbps

1×CAT5e/6/7, 1×IR Extender

1×HDMI, 1×IR Blaster, 1×Optical,

1×RS-232, 1×LAN

Up to 100 Meters

HD: Up to [email protected] Hz

PC: Up to WUXGA (RB)

Up to 48 kHz or LCPM 2CH

HD: Up to [email protected] Hz

PC: Up to WUXGA (RB)

30~50 kHz

Human body model:

±8kV (air-gap discharge)

±4kV (contact discharge)

145 mm (W)×192 mm (D)×30 mm (H)/

Jacks Excluded

145 mm (W)×202.75 mm (D)×30 mm(H)/Jacks Included

608 g

Aluminum

Black

0 ̊C~40 ̊C / 32 ̊F~104 ̊F

− 20 ̊C ~ 60 ̊C / −4 ̊F ~ 140 ̊F

20 ~ 90 % RH (non-condensing)

14W

CAT5e/6/7 Cable

Specification

Cable Type Range Pixel Clock

Rate

Video

Data Rate

CAT5e/6/7 100 m ≤225 MHz ≤

5.3 Gbps

(HD Video)

Supported Video

Up to 1080p, 60 Hz,

36 bits, 3D (data rates lower than 5.3

Gbps or below 225

MHz TMDS clock).

Connection Diagram
