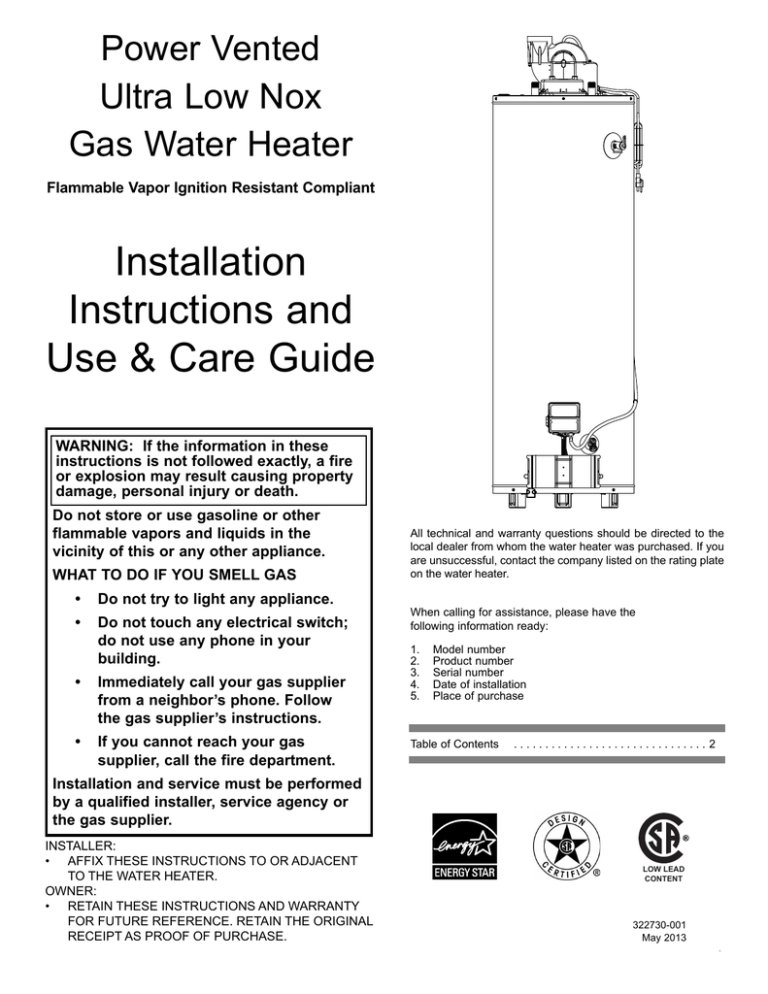

Installation Instructions and Use & Care Guide Power Vented

Installation Instructions and Use & Care Guide Power Vented

Power Vented

Ultra Low Nox

Gas Water Heater

Flammable Vapor Ignition Resistant Compliant

Installation

Instructions and

Use & Care Guide

WARNING: If the information in these instructions is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your

building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service agency or the gas supplier.

INSTALLER:

• AFFIX THESE INSTRUCTIONS TO OR ADJACENT

TO THE WATER HEATER.

OWNER:

• RETAIN THESE INSTRUCTIONS AND WARRANTY

FOR FUTURE REFERENCE. RETAIN THE ORIGINAL

RECEIPT AS PROOF OF PURCHASE.

All technical and warranty questions should be directed to the local dealer from whom the water heater was purchased. If you are unsuccessful, contact the company listed on the rating plate on the water heater.

When calling for assistance, please have the following information ready: number

2. Product

3. Serial

4. Date

5. Place installation

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

LOW LEAD

CONTENT

322730-001

May 2013

1

WATER HEATER SAFETY

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

2

DANGER

D A N G E R i n d i c a t e s a n i m m i n e n t l y hazardous situation which, if not avoided, will result in death or injury.

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or injury.

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.

CAUTION

CAUTION used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, could result in property damage.

Important Instructions

• Do not use this appliance if any part has been under water. Immediately call a qualified service technician. Water heaters subjected to flood conditions or any time the gas controls, main burner or pilot have been submerged in water require replacement of the entire water heater.

• Hydrogen gas can be produced in a hot water system that has not been used for a long period of time (generally two weeks or more). Hydrogen gas is extremely flammable and can ignite when exposed to a spark or flame. To prevent the possibility of injury under these conditions, we recommend the hot water faucet be opened for several minutes at the kitchen sink before using any electrical appliance which is connected to the hot water system. If hydrogen is present, there will probably be an unusual sound such as air escaping through the faucet as water begins to flow. Do not smoke or have any open flame near the faucet at the time it is open.

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the State of California to cause cancer, birth defects, or other reproductive harm, and requires businesses to warn of potential exposure to such substances.

• WARNING: This product contains a chemical known to the State of California to cause cancer, birth defects, or other reproductive harm.

• This appliance can cause low-level exposure to some of the substances listed in the Act.

This product is certified to comply with a maximum weighted average of 0.25% lead content as required in some areas.

Table Of Contents

PAGE

Water Heater Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Installing Your Gas Water Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17

Unpacking the Water Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Location Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

Gas Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Combustion Air Supply/Vent Pipe System. . . . . . . . . . . . . . . . . . 8-12

Outlet Terminations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Water System Piping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-16

Electrical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Special Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Installation Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Operating Your Water Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19-21

Lighting Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Operational Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Maintenance of Your Water Heater . . . . . . . . . . . . . . . . . . . . . . . . . 22-24

Troubleshooting Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-27

Repair Parts Illustration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28-29

INSTALLING YOUR GAS WATER HEATER

Consumer Information

Unpacking the Water Heater

This water heater is design-certified by CSA International as a Category IV, non-direct vented water heater which takes its combustion air either from the installation area or from air ducted to the unit from the outside.

This water heater must be installed according to all local and state codes or, in the absence of local and state codes, the “National Fuel Gas Code”, ANSI Z223.1(NFPA

54)-current edition.

CSA America, Inc.

8501 East Pleasant Valley Road

Cleveland, OH 44131

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02269

Check your phone listings for the local authorities having jurisdiction over your installation.

WARNING

Excessive Weight Hazard

Use two or more people to move and install water heater.

Failure to do can result in back or other injury.

IMPORTANT: Do not remove any permanent instructions, labels, or the data label from either the outside of the water heater or on the inside of water heater panels.

• Remove exterior packaging and place installation components aside.

• Inspect all parts for damage prior to installation and start-up.

Consumer Responsibilities

This manual has been prepared to acquaint you with the installation, operation, and maintenance of your gas water heater and provide important safety information in these areas.

Read all of the instructions thoroughly before attempting the installation or operation of this water heater.

Do not discard this manual. You or future users of this water heater will need it for future reference.

Service to the power vented system should only be performed by a qualified person.

• Completely read all instructions before attempting to assemble and install this product.

• After installation, dispose of/recycle all packaging materials.

Examples of a qualified person include: licensed plumbers, authorized gas company personnel, and authorized service personnel.

If you lack the necessary skills required to properly install this water heater, or you have difficulty following the instructions, you should not proceed but have a qualified person perform the installation of this water heater.

Massachusetts code requires this water heater to be installed in accordance with Massachusetts Plumbing and

Fuel Gas Code 248 CMR Section 2.00 and 5.00. See the following section in this manual: Installation Requirements

for the Commonwealth of Massachusetts.

A data plate identifying your water heater can be found next to the gas control valve/thermostat. When referring to your water heater, always have the information listed on the data plate readily available.

Retain your original receipt as proof of purchase.

3

4

INSTALLATION REQUIREMENTS FOR THE COMMONWEALTH OF MASSACHUSETTS

For all side wall terminated, horizontally vented power vent, direct vent, and power direct vent gas fueled water heaters installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above ¿ nished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satis¿ ed:

INSTALLATION OF CARBON MONOXIDE DETECTORS At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gas¿ tter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the À oor level where the gas equipment is to be installed. In addition, the installing plumber or gas¿ tter shall observe that a battery operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served by the sidewall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of quali¿ ed licensed professionals for the installation of hard wired carbon monoxide detectors.

In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon monoxide detector with alarm and battery back-up may be installed on the next adjacent À oor level.

In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of thirty (30) days to comply with the above requirements provided that during said thirty (30) day period, a battery operated carbon monoxide detector with an alarm shall be installed.

APPROVED CARBON MONOXIDE DETECTORS Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be ANSI/UL 2034 listed and CSA certi¿ ed.

SIGNAGE A metal or plastic identi¿ cation plate shall be permanently mounted to the exterior of the building at a minimum height of eight (8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The sign shall read, in print size no less than one-half (1/2) inch in size, “GAS VENT DIRECTLY BELOW.

KEEP CLEAR OF ALL OBSTRUCTIONS.”

INSPECTION The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR 5.08(2)(a) 1 through 4.

EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:

1. The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA 54 as adopted by the Board; and

2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building, or structure used in whole or in part for residential purposes.

MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED When the manufacturer of Product

Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the instructions provided by the manufacturer for installation of the equipment and the venting system shall include:

1. Detailed instructions for the installation of the venting system design or the venting system components; and

2. A complete parts list for the venting system design or venting system.

MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED When the manufacturer of a Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the À ue gases, but identi¿ es “special venting systems,” the following requirements shall be satis¿ ed by the manufacturer:

1. The referenced “special venting system” instructions shall be included with the appliance or equipment installation

instructions; and

2. The “special venting systems” shall be Product Approved by the Board, and the instructions for that system shall include a parts list and detailed installation instructions.

A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation.

WARNING

Figure 1A:

FV Sensor

FV Sensor

FLAMMABLES

Flammable Vapors

FIRE AND EXPLOSION HAZARD

Can result in serious injury or death

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

Storage of or use of gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance can result in serious injury or death.

Read and follow water heater warnings and instructions.

Do not use or store flammable products such as gasoline, solvents, or adhesives in the same room or area near the water heater. If such flammables must be used, all gas burning appliances in the vicinity must be shut off and their pilot lights extinguished. Open the doors and windows for ventilation while flammable substances are in use.

If flammable liquids or vapors have spilled or leaked in the area of the water heater, leave the area immediately and call the fire department from a neighbor’s home. Do not attempt to clean the spill until all ignition sources have been extinguished.

WARNING

Fire or Explosion Hazard

Read instruction manual before installing, using or servicing water heater.

Improper use may result in fire or explosion.

Maintain required clearances to combustibles.

Location Requirements

WARNING

Carbon Monoxide Poisoning Hazard

Do not install in a mobile home.

Doing so can result in death or carbon monoxide poisoning.

IMPORTANT: Do not install the water heater or venting system in a location that will exceed 140°F ambient temperature.

The FVIR System is designed to reduce the risk of flammable vapor-related fires. Flammable liquids (such as gasoline, solvents, propane, etc,) emit flammable vapors which can be ignited by a gas water heater’s hot surface igniter or main burner. The resulting flashback and fire can cause death or serious burns to anyone in the area.

This heater is equipped with an FV sensor for detecting the presence of flammable vapors (Figure 1A). When the sensor detects those vapors, the unit will shut down and not operate. Should this happen, please refer to the troubleshooting guide. Even though this water heater is a flammable vapors ignition resistant water heater and is designed to reduce the chances of flammable vapors being ignited, gasoline and other flammable substances should never be stored or used in the same vicinity or area containing a gas water heater or other open flame or spark producing appliance.

Keep combustibles such as boxes, magazines, clothes, etc. away from the water heater area.

Site Location

• Select a location near the center of the water piping system. The water heater must be installed indoors and in a vertical position on a level surface.

• Consider the exhaust vent system piping and combustion air supply requirements when selecting the water heater location. The venting system must be able to run from the water heater to the termination with a minimal length and number of elbows. The venting system must comply with the requirements set forth in the venting section of this manual.

• Locate the water heater near the existing gas piping. If installing a new gas line, locate the water heater to minimize the pipe length and elbows.

NOTE: This water heater must be installed according to all local and state codes or, in the absence of local and state codes, the “National Fuel Gas Code”, ANSI Z223.1(NFPA

54)-current edition.

5

6

CAUTION - PROPERTY DAMAGE HAZARD

The water heater should be located in an area where leakage of the tank or connections will not result in damage to the area adjacent to the water heater or to lower floors of the structure. Due to the normal corrosive action of the water, the tank will eventually leak after an extended period of time. Also any external plumbing leak, including those from improper installation, may cause early failure of the tank due to corrosion if not repaired. If the owner/operator is uncomfortable with making the repair, a qualified person should be contacted. A suitable metal drain pan should be installed under the water heater as shown below to help protect the property from damage which may occur from condensate formation or leaks in the piping connections or tank. The pan must limit the water level to a maximum depth of 1-3/4” and be two inches wider than the heater and piped to an adequate drain. NOTE: The pan must not restrict combustion air flow. Locate the water heater near a suitable indoor drain. Outside drains are subject to freezing temperatures which can obstruct the drain line. The piping should be at least 3/4” ID and pitched for proper drainage.

FIGURE 1B

Metal

Drain

Pan

Pipe to an adequate drain

1-3/4” max.

At least 2” greater than the water heater and the inlet air pipe.

• The water heater should be located in an area not subject to freezing temperatures. Water heaters located in unconditioned spaces (i.e., attics, basements, etc.) may require insulation of the water piping and drain piping to protect against freezing. The drain and controls must be easily accessible for operation and service. Maintain proper clearances as specified on the data plate.

• Do not locate the water heater near an air-moving device. The operation of air-moving devices such as exhaust fans, ventilation systems, clothes dryers, fireplaces, etc., can affect the proper operation of the water heater. Special attention must be given to conditions these devices may create. Flow reversal of flue gases may cause an increase of carbon monoxide inside of the dwelling.

Clearances and Accessibility

FIGURE 1C

Minimum Clearance

Locations

Vent

Top to ceiling

Back

Sides

Sides

Front

24” min.

for service

Top View

NOTE: Minimum clearances from combustible surfaces are stated on the data plate adjacent to the gas control valve/ thermostat of the water heater.

The water heater is certified for installation on a combustible floor.

• IMPORTANT: If installing over carpeting, the carpeting must be protected by a metal or wood panel beneath the water heater. The protective panel must extend beyond the full width and depth of the water heater by at least 3 inches (76.2mm) in any direction or if in a alcove or closet installation, the entire floor must be covered by the panel.

WARNING

Fire Hazard

For continued protection against the risk of fire:

Do not install water heater on carpeted floor.

Do not operate water heater if flood damaged.

• Figure 1C may be used as a reference guide to locate the specific clearance locations. A minimum of 24 inches of front clearance and 4 inches on each side should be provided for inspection and service.

State of California

NOTE: For California installation, this water heater must be braced, anchored, or strapped to avoid falling or moving during an earthquake. Correct installation procedure instructions may be obtained from California’s Office of the

State Architect, 1102 Q street, Suite 5100, Sacramento,

CA 95811. Instructions can also be downloaded to your computer at www.dsa.dgs.ca.gov/Pubs.

Gas Supply

WARNING

Figure 2

Gas Piping

Manual gas shut-off valve

Install a readily accessible manual shut-off valve in the gas supply line as recommended by the local utility.

Explosion Hazard

Use a new CSA approved gas supply line.

Install a shut-off valve.

Do not connect a natural gas water heater to an L.P. gas supply.

Do not connect an L.P. gas water heater to a natural gas supply.

Failure to follow these instructions can result in death, explosion, or carbon monoxide poisoning.

Gas Requirements

Read the data plate to be sure the water heater is made for the type of gas you will be using in your home. This information will be found on the data plate located near the gas control valve/thermostat. If the information does not agree with the type of gas available, do not install or light.

Call your dealer.

NOTE: An odorant is added by the gas supplier to the gas used by this water heater. This odorant may fade over an extended period of time. Do not depend upon this odorant as an indication of leaking gas.

Gas Piping

The gas piping must be installed according to all local and state codes or, in the absence of local and state codes, the

“National Fuel Gas Code”, ANSI Z223.1(NFPA 54)-current edition.

Table 1 on the following page provides a sizing reference for commonly used gas pipe materials. Consult the

“National Fuel Gas Code” for the recommended gas pipe size of other materials.

Refer to Figure 2

NOTE: When installing gas piping, apply approved pipe joint compound.

1. Install a readily accessible manual shut-off valve in the gas supply line as recommended by the local utility.

Know the location of this valve and how to turn off the gas to this unit.

2. Install a sediment trap (if not already incorporated as part of the water heater) as shown. The sediment trap must be no less than three inches long for the accumulation of dirt, foreign material, and water droplets.

3. Install a ground joint union between the gas control valve/thermostat and the manual shut-off valve. This is to allow easy removal of the gas control valve/thermostat.

4. Turn the gas supply on and check for leaks. Test all connections by brushing on an approved noncorrosive leak-detection solution. Bubbles will show a leak. Correct any leak found.

Sediment

Trap

Gas Pressure

IMPORTANT: The gas supply pressure must not exceed the maximum supply pressure as stated on the water heater’s data plate. The minimum supply pressure is for the purpose of input adjustment.

Gas Pressure Testing

IMPORTANT: This water heater and its gas connection must be leak tested before placing the appliance in operation.

• If the code requires the gas lines to be tested at a pressure exceeding 14” W.C., the water heater and its manual shut-off valve must be disconnected from the gas supply piping system and the line capped.

• If the gas lines are to be tested at a pressure less than 14” W.C., the water heater must be isolated from the gas supply piping system by closing its manual shut-off valve.

U.L. recognized fuel gas and carbon monoxide (CO) detectors are recommended in all applications and should be installed using the manufacturer’s instructions and local codes, rules, or regulations.

NOTE: Air may be present in the gas lines and could prevent the burner from lighting on initial start-up. The gas lines should be purged of air by a qualified person after installation of the gas piping system.

7

8

Combustion Air Supply and

Ventilation

WARNING

Carbon Monoxide Warning

Follow all the local and state codes or, in the absence of local and state codes, the

“National Fuel Gas Code”, ANSI Z223.1

(NFPA

54)- current edition to properly install vent system.

Failure to do so can result in death, explosion, or carbon monoxide poisoning.

Combustion Air Supply

This water heater takes its combustion air either from the installation area or from air ducted to the unit from the outside and all combustion products are discharged to the outdoors.

IMPORTANT: Air for combustion and ventilation must not come from a corrosive atmosphere. Any failure due to corrosive elements in the atmosphere is excluded from warranty coverage.

The following types of installation (not limited to the following) will require outdoor air for combustion due to chemical exposure and may reduce but not eliminate the presence of corrosive chemicals in the air:

• photo processing labs

• buildings with indoor pools

• water heaters installed in laundry, hobby, or craft rooms

• water heaters installed near chemical storage areas

Combustion air must be free of acid-forming chemicals such as sulfur, fluorine, and chlorine. These elements are found in aerosol sprays, detergents, bleaches, cleaning solvents, air fresheners, paint, and varnish removers, refrigerants, and many other commercial and household products. When burned, vapors from these products form highly corrosive acid compounds. These products should not be stored or used near the water heater or air inlet.

Combustion and ventilation air requirements are determined by the location of the water heater. The water heater may be located in either an open (unconfined) area or in a confined area or small enclosure such as a closet or small room. Confined spaces are areas with less than

50 cubic feet for each 1,000 BTUH of the total input for all gas-using appliances.

Unconfined Space

A water heater in an unconfined space uses indoor air for combustion and requires at least 50 cubic feet for each

1,000 BTUH of the total input for all gas appliances. The table below shows a few examples of the minimum square footage (area) required for various BTUH inputs.

Figure 3

Opening Locations

Confined Spaces

12” Max.

Table 2

BTUH

Input

30,000

45,000

60,000

75,000

90,000

105,000

120,000

135,000

Min. Sq. Feet with 8’ Ceiling

188

281

375

469

563

657

750

844

Typical Room with 8’ Ceiling

9 x 21

14 x 20

15 x 25

15 x 31

20 x 28

20 x 33

25 x 30

28 x 30

IMPORTANT:

• The area must be open and be able to provide the proper air requirements to the water heater. Areas that are being used for storage or contain large objects may not be suitable for water heater installation.

• Water heaters installed in open spaces in buildings with unusually tight construction may still require outdoor air to function properly. In this situation, outside air openings should be sized the same as for a confined space.

• Modern home construction usually requires supplying outside air into the water heater area.

Confined Space

For the correct and proper operation of this water heater, ample air must be supplied for the combustion, ventilation, and dilution of flue gases. Small enclosures and confined areas must have two permanent openings so that sufficient fresh air can be drawn from outside of the enclosure. One opening shall be within 12 inches of the top and one within 12 inches of the bottom of the enclosure as shown in Figure 3.

The size of each opening (free area) is determined by the total BTUH input of all gas utilization equipment (i.e., water heaters, furnaces, clothes dryers, etc.) and the method by which the air is provided. The BTUH input can be found on the water heater data plate. Additional air can be provided by two methods:

1. All air from inside the building.

2. All air from outdoors.

Permanent openings to the outside or additional rooms within the building

Figure 4

All Air From Inside Building

Confined Space Installation

Closet or other confined space

12” Max.

All Air from Inside the Building

When additional air is to be provided to the confined area from additional room(s) within the building, the total volume of the room(s) must be of sufficient size to properly provide the necessary amount of fresh air to the water heater and other gas utilization equipment in the area. If you are unsure that the structure meets this requirement, contact your local gas utility company or other qualified agency for a safety inspection.

Each of the two openings shall have a minimum free area of 1 square inch per 1,000 BTUH of the total input rating of all gas utilization equipment in the confined area, but not less than 100 square inches (Figure 4).

Confined

Space

Permanent

Openings

1 Square inch/1000

BTUH

(min. 100 sq. in.)

All Air from Outdoors

Outdoor fresh air can be provided to a confined area either directly or by the use of vertical and horizontal ducts. The fresh air can be taken from the outdoors or from crawl or attic spaces that freely communicate with the outdoors.

Attic or crawl spaces cannot be closed and must be properly ventilated to the outside.

Ductwork must be of the same cross-sectional area as the free area of the opening to which they connect. The minimum dimension of rectangular air ducts cannot be less than three inches.

9

The size of each of the two openings is determined by the method in which the air is to be provided. Refer to Table

3 to calculate the minimum free area for each opening.

Figures 5, 6, and 7 are typical examples of each method.

Louvers and Grilles

In calculating free area for ventilation and combustion air supply openings, consideration must be given to the blocking effect of protection louvers, grilles, and screens.

These devices can reduce airflow, which in turn may require larger openings to achieve the required minimum free area. Screens must not be smaller than 1/4” mesh. If the free area through a particular design of louver or grille is known, it should be used in calculating the specified free area of the opening. If the design and free area are not known, it can be assumed that most wood louvers will allow 20 - 25% of free area while metal louvers and grilles will allow 60 - 75% of free area.

Louvers and grilles must be locked open or interconnected with the equipment so that they are opened automatically during equipment operation.

Keep louvers and grilles clean and free of debris or other obstructions.

Table 3

Minimum Free Area of Permanent Openings for

Ventilation and Combustion Air Supply -

All Air from Outdoors Only

Based on the total BTUH input rating for all gas utilizing equipment within the confined space.

Opening Source

Minimum Free

Area Per Opening

(Sq. In.)

Directed to Outdoors* 1 sq. in. per 4000 BTUH

Reference

Drawing

Figure 5

Vertical Ducts

Horizontal Ducts

1 sq. in. per 4000 BTUH

1 sq. in. per 2000 BTUH

Figure 6

Figure 7

Single Opening 1 sq. in. per 3000 BTUH Figure 7A

Example: A water heater with an input rating of 50,000 BTUH using horizontal ducts would require each opening to have a minimum free area of 25 square inches.

Minimum free area = 50,000 BTUH x 1 sq. in. / 2000 BTUH = 25 sq. in.

*These openings connect directly with the outdoors through a ventilated attic, a ventilated crawl space, or through an outside wall.

Consult the local codes of your area for specific ventilation and combustion air requirements.

Figure 5

All Air From Outdoors: Inlet Air

From Ventilated Crawl Space/

Outlet Air to Vented Attic

Gable Vent to Outdoors

Install Above

Insulation

Figure 6

All Air from Outdoors

Through Ventilated Attic

Confined

Space

Figure 7

All Air From Outdoors

Using Horizontal Ducts

Confined

Space

Figure 7A

All Air From Outdoors

Using a Single

Permanent Opening

Confined

Space

Confined

Space

Outlet Air to the Attic

1 sq. in. per

4000 BTUH

Inlet Air from the

Crawl Space

Alternative

Air Inlet

1 sq. in. per

4000 BTUH

Open

Foundation

Vent

10

Gable Vent to Outdoors

Install Above

Insulation

1 sq. in. per

2000 BTUH

Outlet

Outdoor

Air Ducts

Inlet

1 sq. in. per

2000 BTUH

Alternative

Opening

Location

1 sq. in. per

3000 BTUH

Outlet Air to the Attic

1 sq. in. per

4000 BTUH

Inlet Air Duct

1 sq. in. per

4000 BTUH

12” Max.

Vent Pipe System

This water heater must be properly vented for removal of exhaust gases to the outside atmosphere. Correct installation of the vent pipe system is mandatory for the safe and efficient operation of this water heater and is an important factor in the life of the unit.

The vent pipe must be installed in accordance with state and local codes, or in the absence of such, the National

Fuel Gas Code, NFPA 54, ANSI Z223.1-current edition.

IMPORTANT: Check to make sure the vent pipe is not blocked in any way. NOTE: Do not common vent this water heater with any other appliance. Do not install in the same chase or chimney with a metal or high-temperature plastic from another gas or fuel burning appliance.

Vent Pipe Material

The following plastic materials may be used for both the combustion air inlet and exhaust outlet piping subject to state and local codes:

• 2 or 3 inch Schedule 40 PVC or ABS

• 2 or 3 inch Schedule 40 or 80 CPVC

• 2 or 3 inch Schedule 40 PVC, Cellular Core,

F891

• 2 or 3 inch Schedule 40 ABS DWV, Cellular Core,

F628

• DWV Pipe is acceptable

Plastic pipe and fittings are available through most plumbing suppliers. Always check the marking on the pipe to make sure you are using the correct material.

Vent Pipe Connection to Blower

A 3”x2” condensate drain coupler is supplied with every

40-42K BTU model to connect either 2” or 3” venting to the blower. The initial connection must be made with 2” vent pipe.

However, after the initial connection, you may use either 2” or 3” vent pipe. See Figure 8 and Table 4.

IMPORTANT: These connections must be properly sealed to prevent the leakage of the products of combustion into the living area. If needed, 3”x2” condensate drain couplers are available through the Parts Department for new installations or retrofits where condensate may run back to the blower.

Figure 8

Blower/Vent Pipe

Connections

Screws

(4 total)

Condensate

Drain

Coupler

2-Inch

Vent Pipe

Hook-up for

Condensate

Line

3-Inch

Vent Pipe

Reducer

Screws

(4 total)

Secure the vent pipe and drain coupler to the blower with four

(4) self-drilling screws as shown. Use two screws per joint

(one on each side).

Blower

2-Inch Vent Pipe

Connection

Blower

3-Inch Vent Pipe

Connection

Vent Pipe Installation

The following guidelines should be followed when installing the exhaust outlet piping:

• Venting should be as direct as possible with a minimum number of pipe fittings.

• Vent diameter must not be reduced unless specifically noted in the installation instructions.

Figure 8A

Correct and Incorrect

Pipe Fittings

CORRECT FITTINGS

Debris Screen w/ Restrictor

Mesh Metal

Rodent Screen

90° Medium

Sweep Elbow

45° Sweep

Elbow

90° Long

Sweep Elbow

INCORRECT FITTINGS

Tee Connector

45° Vent

Elbow

90° Vent

Elbow

• Support all horizontal pipe runs every four feet and all vertical pipe runs every six feet or according to local codes.

• Vents run through unconditioned spaces where below freezing temperatures are expected should be properly insulated to prevent freezing. For horizontal runs, wrap the vent pipe with self-regulating 3 or 5 watt heat tape. The heat tape must be U.L. listed and installed per the manufacturer’s instructions.

• Do not connect this venting system with an existing vent or chimney.

• Do not common vent with the vent pipe of any other water heater or appliance.

The exhaust outlet piping and termination may be installed in one of the following type terminations:

1.) Standard Horizontal; 2.) Vertical.

All pipe, fittings, pipe cement, primers and procedures must conform to American National Standard Institute and

American Society for Testing and Materials (ANSI/ASTM) standards in the United States. This water heater has been design certified by CSA International for use with the listed plastic vent pipe material. IMPORTANT: Do not use vent elbows in this vent pipe installation. See Figure 8A. All joints in the outlet piping must be properly cemented. Size and cut all piping before cementing.

1. Cut the pipe end square and remove all ragged edges and burrs. Make sure the inside of the pipe is clean and free of cuttings and loose dirt. Chamfer the end and apply primer to the fitting and pipe.

2. Using a suitable grade of pipe cement, apply a moderate, even coat inside the fitting. Apply a liberal amount of cement to the outside of the pipe to socket depth. NOTE: It is important to select the proper pipe cement for the type plastic pipe being used.

3. Assemble the parts quickly while the cement is still wet. Twist the pipe 1/4 turn during insertion and hold for 30 seconds.

Vent Pipe Length

Size the exhaust outlet as specified in Table 4. This table lists the maximum allowable length in feet of the exhaust outlet pipe as related to the number of required elbows and the termination. The specified maximum lengths are for exhaust pipe systems. Minimum pipe length is 3 feet with one elbow.

1. Determine termination type and pipe size.

2. Determine number of elbows in exhaust pipe. (Do not include elbows in the termination.) The corresponding number indicates the maximum length of exhaust pipe.

3. If the total length of vent pipe is less than 20 feet, it is recommended that you install the debris screen with restrictor (provided). See Figure 8A.

11

Pipe

Size

(in)

2

2

3

3

0

Table 4 - Maximum Allowable Length in Feet of

Exhaust Pipe - (42K BTU/Hr models only)

Number of 90° Elbows (medium or long sweep only)

1 2 3 4 5 6

Termination

Options

40

40

120

120

35

35

115

115

30

30

110

110

25

25

105

105

20

20

100

100

15

15

95

95

10

10

90

90

Std. Horizontal

Vertical

Std. Horizontal

Vertical

Notes:

1. N/A - Not Applicable

2. The above maximum lengths are for outlet pipe systems.

3. Maximum of 6 elbows may be used. Use only medium or long

sweep elbows. See figure 8 for details.

4. Two 45° elbows are considered equivalent to one 90° elbow.

5. Minimum length is 3 foot with 1 elbow.

6. Use schedule 40 or 80 CPVC, 40 ABS, or 40 PVC pipe and fittings.

Vent Termination Locations

The exhaust outlet must be installed with the following minimum clearances (see figure 9):

• Twelve inches above grade or maximum anticipated snow level.

• Twelve inch minimum clearance on top or four foot clearance below or to the side of door or window that may be open.

Figure 9

Minimum Termination Clearance for

Outlet Vent

• Four feet horizontally and vertically from gas or electric meters, gas regulators, dryer vents, vent hoods, bathroom fan exhaust, attic fans and turbines.

• Two feet from an inside corner formed by two exterior walls.

• Two feet from porches, decks, overhangs and other obstructions.

In addition to maintaining the minimum clearances, the vent should terminate according to the following guidelines:

1. Do not expose any reducers or bushings to outdoor ambient temperatures.

2. The exhaust outlet must not terminate under a patio, deck or any covered area.

3. Do not terminate the vent near walkways or into alleys or other publicly accessible areas.

4. Do not terminate the vent in an area where children or animals could block pipes.

5. Do not locate the vent terminal too close to shrubs or bushes.

6. Caulk all cracks, seams and joints within 6 feet horizontally above and below the vent.

12

US Installations

A. 12 in (30 cm) min. clearance above grade, veranda, porch, deck, balcony, or maximum anticipated snow level.

B. 12 in. (30 cm) min. clearance on top or 4 ft. clearance below or to the side of door or window that may be open.

C. Clearance to permanently closed window.**

D. 12 in (30 cm) min. vertical clearance to ventilated soffit located above the terminal within a horizontal distance of 2 ft (61 cm) from the center line of the terminal.

E. 12 in (30 cm) min. clearance to unventilated soffit.

F. Clearance to outside corner. **

G. 2 ft (61 cm) clearance to inside corner formed by two exterior walls.

H. 4 ft (122 cm) clearance to each side of center line extending above meter/regulator assembly.

I. 4 ft (122 cm) clearance to service regulator vent outlet.

J. 12 in (30 cm) clearance on top or 4 ft (122 cm) clearance below or to the side of nonmechanical air supply inlet to building or the combustion air inlet to any other appliance.

K. 3 ft (91 cm) above if within 10 ft (3 m) horizontally of mechanical air supply inlet.

**Clearance in accordance with local installation codes and the requirements of the gas supplier.

OUTLET VENT TERMINATIONS

Standard Horizontal Termination Vertical Termination

The standard horizontal exhaust outlet termination is a

2 inch or 3 inch pipe which terminates at least 12 inches above grade or anticipated snow levels. To prevent potential condensate from collecting in the venting system, slope the vent at a downward pitch of 1/8” per 5 ft. away from the water heater. See Figure 10.

Install the correct size coupling at the outside wall on the exhaust to prevent the termination from being pushed inward.

Follow all applicable code requirements.

NOTE: A rodent screen is available through the Parts

Department for installations where animals may be able to access the vent system.

The vertical exhaust outlet requires a return bend or two medium or long sweep radius 90° elbows to keep the exhaust outlet downward and prevent entry of rain. Do not include these elbows when calculating the maximum allowable vent pipe because they have already been considered in the vent tables. The vertical exhaust outlet termination is a 2 inch or 3 inch pipe which must be at least 12 inches above the roof line or anticipated snow levels. See Figure 11.

Follow all applicable code requirements.

NOTE: A rodent screen is available through the Parts

Department for installations where animals may be able to access the vent system.

Figure 10

Standard Horizontal Termination

Vent

Terminal

Outside Wall Vent Pipe

Vent pipe must slope downward toward wall: 1/8” per 5 ft. A Downward slope assists condensate drainage.

Figure 11

Vertical vent termination

12” Min.

Exhaust

Air

Outlet

Roof

12” Min. above grade or anticipated snow level.

Anticipated

Snow Level

12” Min.

13

WATER SYSTEM PIPING

Piping Installation

Figure 12

Typical water piping installation

Piping, fittings, and valves should be installed according to the installation drawing (Figure 12). If the indoor installation area is subject to freezing temperatures, the water piping must be protected by insulation.

Hot Water

Outlet

Water supply pressure should not exceed 80 psi. If this occurs, a pressure limiting valve with a bypass may need to be installed in the cold water inlet line. This should be placed on the supply to the entire house in order to maintain equal hot and cold water pressures.

IMPORTANT: Heat cannot be applied to the water fittings on the heater as they may contain nonmetallic parts. If solder connections are used, solder the pipe to the adapter before attaching the adapter to the hot and cold water fittings.

IMPORTANT: Always use a good grade of joint compound and be certain that all fittings are drawn up tight.

1. Install the water piping and fittings as shown in Figure

12. Connect the cold water supply (3/4” NPT) to the fitting marked “C”. Connect the hot water supply (3/4”

NPT) to the fitting marked “H”. IMPORTANT: Some models may contain energy saving heat traps to prevent the circulation of hot water within the pipes. Do not remove the inserts within the heat traps.

2. The installation of unions in both the hot and cold water supply lines is recommended for ease of removing the water heater for service or replacement.

3. The manufacturer of this water heater recommends installing a mixing valve or an anti-scald device in the domestic hot water line as shown in Figure 13. These valves reduce the point of use temperature of the water by mixing cold and hot water and are readily available for use. Point of use devices for reducing scald hazards that attach to faucets and shower heads are also available from plumbing supply houses.

Contact a licensed plumber or the local plumbing authority.

4. If installing the water heater in a closed water system, install an expansion tank in the cold water line as specified under “Closed System/Thermal Expansion”.

5. Install a shut-off valve in the cold water inlet line. It should be located close to the water heater and be easily accessible. Know the location of this valve and how to shut off the water to the heater.

6. A temperature and pressure relief valve must be installed in the opening marked “Temperature and

Pressure (T & P) Relief Valve” on the water heater.

Add a discharge line to the opening of the T & P relief valve. Follow the instructions under Temperature and

Pressure Relief Valve”.

1“ Min.

Metal Drain

Pan 1-3/4”

Depth Max.

FIGURE 13

Typical Mixing

Valve Installation

Mixing Valve

(set to 120°F

or lower)

Please note the following:

In a closed system use a thermal expansion tank

Cold Water

Inlet Valve

Pressure Reducing

Valve with Bypass

Cold Water Supply to Fixture

Temperature and

Pressure Relief Valve

Discharge Line 3/4” Min.

Do not cap or plug.

Discharge line

6” Max. above drain

Drain line 3/4”

ID Min.

Drain

Massachusetts:

Install a vacuum relief in cold water line per section 19 MGL 142

Cold

Water

Inlet

Tempered Water to fixtures

Main Water

Supply

• The system should be installed only with piping that is suitable for potable (drinkable) water such as copper,

CPVC, or polybutylene. This water heater must not be installed using iron piping or PVC water piping.

• Use only pumps, valves, or fittings that are compatible with potable water.

• Use only full flow ball or gate valves. The use of valves that may cause excessive restriction to water flow is not recommended.

• Use only 95/5 tin-antimony or other equivalent solder.

Any lead based solder must not be used.

• Piping that has been treated with chromates, boiler seal, or other chemicals must not be used.

• Chemicals that may contaminate the potable water supply must not be added to the piping system.

14

Closed System/Thermal Expansion

CAUTION - PROPERTY DAMAGE HAZARD

As water is heated, it expands (thermal expansion). In a closed system, the volume of water will increase. As the volume of water increases, there will be a corresponding increase in water pressure due to thermal expansion.

Thermal expansion can cause premature tank failure

(leakage). This type of failure is not covered under the limited warranty. Thermal expansion can also cause intermittent temperature-pressure relief valve operation: water discharged from the valve due to excessive pressure build up. The temperature-pressure relief valve is not intended for the constant relief of thermal expansion. This condition is not covered under the limited warranty.

A properly sized thermal expansion tank should be installed on all closed systems to control the harmful effects of thermal expansion. Contact a plumbing service agency or your retail supplier regarding the installation of a thermal expansion tank.

IMPORTANT: Only a new temperature and pressure relief valve should be used with your water heater. Do not use an old or existing valve as it may be damaged or not adequate for the working pressure of the new water heater. Do not place any valve between the relief valve and the tank.

Figure 14A

Temperature and Pressure

Relief Valve Installation

Drain Pan

Temperature and

Pressure Relief Valve

Discharge line 3/4” Min.

Do not cap or plug.

Temperature and Pressure

Relief Valve provided.

WARNING

Explosion Hazard

• Temperature-pressure relief valve must comply with ANSI Z21.22-CSA 4.4 and

ASME code.

• Properly sized temperature-pressure relief valve must be installed in opening

• Do not plug, block, or cap the discharge line.

• Failure to follow this warning can result in excessive tank pressure, serious injury or death.

For protection against excessive pressures and temperatures, a temperature and pressure relief valve must be installed in the opening marked “T & P RELIEF VALVE”

(see Figure 14A.) This valve must be design certifi ed by a nationally recognized testing laboratory that maintains periodic inspection of the production of listed equipment or materials as meeting the requirements for Relief

Valves for Hot Water Supply Systems, ANSI Z21.22. The function of the temperature and pressure relief valve is to discharge water in large quantities in the event of excessive temperature or pressure developing in the water heater.

The valve’s relief pressure must not exceed the working pressure of the water heater as stated on the data plate.

6” Max.

Drain

T&P Valve and Pipe Insulation

(Some Models)

1. Locate the temperature and pressure relief valve on the water heater (also known as the T&P relief valve). See

Figure 14B.

2. Locate the slit running the length of the insulation.

3. Spread this slit open and slip it over the T&P relief valve.

See Figure 14B. Apply gentle pressure to the insulation to ensure it is fully seated on the T&P relief valve. Once seated, secure the insulation with duct tape, electrical tape, or equivalent. IMPORTANT: The insulation or tape must not block the discharge opening or hinder access to the manual relief lever (Figure 14B). Ensure a discharge pipe is installed into the T&P valve discharge opening per the instructions in this manual.

4. Locate the hot water (outlet) & cold water (inlet) pipes to the water heater.

5. Select one of the sections of pipe insulation and locate the slit that runs the length of the insulation.

6. Spread the slit open at the base of the insulation and slip it over the cold water (inlet) pipe. Apply gentle pressure along the length of the insulation to ensure that it is fully seated around the cold water pipe. Also ensure that the base of insulation is flush with the water heater. Once seated secure the insulation with duct tape, electrical tape, or equivalent. Add additional sections of pipe insulation as needed.

7. Repeat steps 5 and 6 for the hot water (outlet) pipe.

Figure 14B

T&P Valve Insulation

T&P Insulation

Manual Relief Lever

T&P Valve

T&P Valve

Drain Line

15

The Temperature and Pressure Relief Valve:

• Shall not be in contact with any electrical part.

• Shall be connected to an adequate discharge line.

• Shall not be rated higher than the working pressure shown on the data plate of the water heater.

The Discharge Line:

• Shall not be smaller than the pipe size of the relief valve or have any reducing coupling installed in the

• Shall not be capped, blocked, plugged or contain any valve between the relief valve and the end of the line.

• Shall terminate a maximum of six inches above a fl oor drain or external to the building. In cold climates, it is recommended that the discharge pipe be terminated at an adequate drain inside the building.

• Shall be capable of withstanding 250°F (121°C) distortion.

• Shall be installed to allow complete drainage of both the valve and discharge line.

ELECTRICAL CONNECTIONS

IMPORTANT: Do not use an extension cord to connect the

WARNING

water heater to an electrical outlet.

• The water heater and the outlet are properly grounded.

Electric Shock Hazard

• Installed in accordance with prevailing provisions of local codes, or in the absence of such, National Electric

Disconnect power before

Code, ANSI/NFPA 70.

servicing.

NOTE: Always reference the wiring diagram for the correct electrical connections.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

After making all electrical connections, completely fill the tank with water and check all connections for leaks. Open the nearest hot water faucet and let it run for 3 minutes to purge the water lines of air and sediment and to ensure

Before plugging in the water heater, always make sure: complete filling of the tank. The electrical power may then be turned on. Verify proper operation after servicing.

• The voltage and frequency correspond to that specified on the water heater wiring diagram.

• The electrical outlet has the proper overload fuse or breaker protection.

WIRING DIAGRAM

Figure 14C

WHITE/BLACK TRACER

YELLOW/BLACK TRACER

PRESSURE

SWITCH

BLUE

GAS VALVE CONNECTOR

120V 60Hz.

WHITE

GREEN

BLACK

TEMP.

SWITCH

BLACK

YELLOW

GREEN

BLOWER GROUND

MOTOR

120V 60Hz.

16

SPECIAL APPLICATIONS

Combination Space Heating/Potable Water System

Some water heater models are equipped with inlet/outlet tappings for use with space heating applications.

Note: This water heater is suitable for combination water

(potable) heating and space heating and not suitable for space heating applications only. If this water heater is to be used to supply both space heating and domestic potable

(drinking) water, the instructions listed below must be followed.

• Be sure to follow the manual(s) shipped with the air handler system.

• This water heater is not to be used as a replacement for an existing boiler installation.

• Do not use with piping that has been treated with chromates, boiler seal or other chemicals and do not add any chemicals to the water heater piping.

• If the space heating system requires water temperatures in excess of 120°F, a mixing valve or an anti-scald device should be installed per its manufacturer’s instructions in the domestic (potable) hot water supply to limit the risk of scald injury.

• Pumps, valves, piping and fittings must be compatible with potable water.

• A properly installed flow control valve is required to prevent thermosiphoning. Thermosiphoning is the result of a continuous flow of water through the air handler circuit during the off cycle. Weeping (blow off) of the temperature and pressure relief valve (T & P) or higher than normal water temperatures are the first signs of thermosiphoning.

• The domestic hot water line from the water heater should be vertical past any mixing valve or supply line to the air handler to remove air bubbles from the system. Otherwise, these bubbles will be trapped in the air handler heat exchanger coil, reducing the efficiency.

• Do not connect the water heater to any system or components previously used with non-potable water heating appliances when used to supply potable water.

Some jurisdictions may require a backflow preventer in the incoming cold water line. This may cause the temperature and pressure relief valve on the water heater to discharge or weep due to expansion of the heated water. A diaphragm-type expansion tank suitable for potable water will normally eliminate this weeping condition. Please read and follow the manufacturer’s instructions for the installation of such tanks.

Also see “Water System Piping” section for additional instructions on the proper installation and operation of this water heater.

Solar Installation

If this water heater is used as a solar storage heater or as a backup for the solar system, the water supply temperatures to the water heater tank may be in excess of 120°F. A mixing valve or other temperature limiting valve must be installed in the water supply line to limit the supply temperature to 120°F.

NOTE: Solar water heating systems can often supply water with temperatures exceeding 180°F and may result in water heater malfunction.

Figure 14D

TYPICAL MIXING VALVE INSTALLATION

COMBINATION SPACE HEATING/POTABLE

WATER HEATING SYSTEM

EXPANSION TANK COLD WATER INLET

CHECK VALVE

(1/8” HOLE

DRILLED IN CLAPPER)

SHUT-OFF

VALVE

TEMPERED WATER

TO FIXTURES

(MUST MEET TEMPS LISTED

IN MASS. CODE 248 CMR † )

CHECK

VALVE †

VACUUM

RELIEF

VALVE

UNION UNION

PUMP

*

FLOW CONTROL

VA LV E

MUST BE VERTICAL TO

REMOVE A IR BUBBLES

TEMP/

PRESSURE

RELIEF

VALVE

OUT

IN

MIXING VALVE

(MUST BE INSTALLED BELOW

TOP OF WATER HEATER

AS PER MANUFACTURER’S

RECOMMENDATIONS)

HOT

WATER

OUT

GAS WATER

HEATER

SEE

NOTE ‡

TO

AIR

HANDLER

COIL

AIR

HANDLER

SHUT-OFF

VALVE

*

WATER HEATER ACCEPTED

BY THE BOARD FOR

INSTALLATION IN

MASSACHUSETTS.

50 FT. MAX. DEVELOPED

DISTANCE FROM WATER

HEATER TO FAN COIL

* MASSACHUSETTS INSTALLATION REQUIREMENTS:

1.) CONNECT ELECTRONICALLY-CONTROLLED TIMER TO AN ALL-BRONZE PUMP. PUMP MUST ACTIVATE EVERY 6 HOURS FOR 60 SECONDS.

TURN PUMP TIMER OFF BEFORE CLOSING PIPING LOOP SHUT-OFF VALVE.

2.) ALL WATER PIPING MUST BE INSTALLED AND INSULATED IN ACCORDANCE WITH MASSACHUSETTS CODE (248 CMR & 780 CMR).

3.) PIPING LOOP BETWEEN WATER HEATER AND AIR HANDLER MUST BE INSTALLED IN COMPLIANCE WITH 248 CMR.

† REQUIRED FOR MASSACHUSETTS.

‡ PIPING FROM THE TOP OF THE WATER HEATER WITH TEES IS ACCEPTABLE.

17

INSTALLATION CHECKLIST

Water Heater Location

• Acceptable size, length, and number of elbows on exhaust outlet pipe.

• Centrally located with the water piping system.

Located as close to the gas piping and vent pipe system as possible.

• Installed in accordance with prevailing provisions of local codes, or in the absence of such, National Fuel

Gas Code, NFPA 54, ANSI Z223.1-Current edition.

• Located indoors and in a vertical position. Protected from freezing temperatures.

• Slope 2” & 3” horizontal piping at a downward pitch of 1/8” per 5ft. away from the water heater. See

• Proper clearances from combustible surfaces maintained and not installed directly on a carpeted fl oor.

• Not obstructed in any way.

• Provisions made to protect the area from water damage. Drain pan installed and piped to an

Vent Termination

Horizontal

• Installation area free of corrosive elements and fl ammable materials.

• 12” Min. above grade/snow level.

• Slope 2” & 3” horizontal piping at a downward pitch of 1/8” per 5ft. away from the water heater. See

• Suffi cient room to service the water heater.

• Water heater not located near an air-moving device.

Gas Supply and Piping

• Gas supply is the same type as listed on the water heater data plate.

• Gas line equipped with shut-off valve, union, and trap.

• Approved pipe joint compound used.

• Adequate pipe size and of approved material.

• Chloride-free soap and water solution or other approved means used to check all connections and fi ttings for possible gas leaks.

• Away from corners, other vents, windows, etc.

Vertical

• Outlet - 12” Min. above roof/snow level.

Water System Piping

• Temperature and pressure relief valve properly installed with a discharge line run to an open drain and protected from freezing.

• All piping properly installed and free of leaks.

Combustion Air Supply/Vent Pipe System

• Sufficient fresh air supply for proper water heater

operation.

• Fresh air not taken from areas that contain negative pressure producing devices such as exhaust fans, fi replaces, etc.

• Closed system pressure build-up precautions

installed.

• Mixing valve installed per manufacturer’s

instructions.

Electrical Connections

• Unit connected to a dedicated power supply.

• Unit connected to a 120V electrical supply.

• Fresh air supply free of corrosive elements and flammable vapors.

• Fresh air openings sized correctly with consideration given to the blocking effect of louvers and grilles.

• Ductwork is the same cross-sectional area as the

openings.

• Vent pipe and fittings of approved material.

• Water heater properly grounded.

• Installed in accordance with prevailing provisions of local codes, or in the absence of such, the current edition of the National Electric Code, ANSI/NFPA 70.

18

OPERATING YOUR WATER HEATER

Lighting Instructions

WARNING

Read and understand these directions thoroughly before attempting to operate the water heater. Make sure the tank is completely filled with water before operating the water heater. Check the data plate near the gas control valve/thermostat for the correct gas. Do not use this water heater with any gas other than the one listed on the data plate. If you have any questions or doubts, consult your gas supplier or gas utility company.

Explosion Hazard

Replace viewport if glass is missing or damaged.

Failure to do so can result in death, explosion or fire.

FOR YOUR SAFETY READ BEFORE LIGHTING

WARNING:

If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

A. This appliance does not have a pilot. It is equipped with an ignition device which automatically lights the burner.

Do not try to light the burner by hand.

B. BEFORE LIGHTING smell all around the appliance area for gas. Be sure to smell next to the floor because some gas is heavier than air and will settle on the floor.

WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

C. Do not use this appliance if any part has been under water. Immediately call a qualified service technician to inspect the appliance. Water heaters subjected to flood conditions or anytime the gas controls, main burner or pilot have been submerged in water require replacement of the entire water heater.

OPERATING INSTRUCTIONS

1. STOP! Read the safety information above on this label.

2. Connect to a grounded 110/120 volt power supply.

3. Set the thermostat to the lowest setting by first pressing the COOLER and HOTTER buttons together and holding for 1 second. Then press the COOLER button until the WARM indicator light appears.

4. This appliance is equipped with a device which automatically lights the burner.

DO NOT TRY TO LIGHT THE BURNER BY HAND.

5. Wait five minutes to clear out any gas. If you then smell gas. STOP! Follow the “B” in the safety information above on this label. If you don’t smell gas, go to the next step.

6. Set the thermostat to the desired setting by first pressing the COOLER and HOTTER buttons together and holding for 1 second. Then press the HOTTER button.

7. WATER TEMPERATURE ADJUSTMENT is approximately 120°F.

CAUTION: Hotter water increases the risk of scald injury. Consult the instruction manual before changing the temperature.

8. If the appliance will not operate, follow the instructions “TO TURN OFF GAS APPLIANCE” and call a qualified person or gas supplier.

WARNING: TURN OFF ALL ELECTRIC POWER

BEFORE SERVICING.

TO TURN OFF GAS TO APPLIANCE

1. Set the thermostat to the lowest setting by first pressing the COOLER and HOTTER buttons together and holding for 1 second. Then press the COOLER button until the WARM indicator light appears.

2. Unplug electrical service to the appliance if service is to be performed.

19

Water Heater Operation

Figure 15 below shows the water heater’s sequence of operation when a call for heat is initiated. The ignition control module will attempt to light the burner three times. If the ignition control does not detect ignition it will enter lockout mode, indicated by a three flash error code.

Figure 15

Sequence of Operation

WARNING

CALL FOR

HEAT INDICATED

BY FAST FLASH

OF LED

CONTROL CHECKS TO ENSURE

PRESSURE SWITCH CLOSES,

INDICATING BLOWER OPERATING

AND THERE ARE NO VENTING

BLOCKAGES (INLET OR OUTLET)

CONTROL ENERGIZES MAIN

GAS VALVE ALLOWING THE

BURNER TO BE LIT BY HSI

WATER IN TANK IS HEATED BY

MAIN BURNER AND

TEMPERATURE REACHES

THERMOSTAT SETTING

MAIN VALVE DE-ENERGIZES

AND BLOWER CONTINUES FOR

A POST PURGE TIME OF

APPROX. 30 SECONDS

MAIN VALVE DE-ENERGIZES

AND BLOWER CONTINUES FOR

A POST PURGE TIME OF

APPROX. 5 SECONDS

HEATER RETURNS TO

STANDBY MODE

Burner Flames

Inspect the burner flames through the viewport. Flames should be very small with a blue haze and small amounts of yellow or orange at the edges. After several minutes of operation, the burner screen may glow red. If large flames are observed at any time, shut-off unit and call a qualified person.

Figure 16

Flame Characteristics

Correct flame soft blue

FLAME SENSE ROD DETECTS

FLAME OF MAIN BURNER

CONTROL CHECKS TO ENSURE

PRESSURE SWITCH IS OPEN

DRAFT INDUCER IS ENERGIZED

CONTROL ENERGIZES HOT

SURFACE IGNITER (HSI)

Water Temperature Regulation

Due to the nature of the typical gas water heater, the water temperature in certain situations may vary up to 30°F (16.7

°C) higher or lower at the point of use such as, bathtubs, showers, sink, etc.

HOTTER WATER CAN SCALD: Water heaters are intended to produce hot water. Water heated to a temperature which will satisfy space heating, clothes washing, dish washing, and other sanitizing needs can scald and permanently injure you upon contact. Some people are more likely to be permanently injured by hot water than others. These include the elderly, children, the infi rm, or physically/mentally handicapped. If anyone using hot water in your home fi ts into one of these groups or if there is a local code or state law requiring a certain temperature water at the hot water tap, then you must take special precautions. In addition to using the lowest possible temperature setting that satisfi es your hot water needs, a means such as a mixing valve should be used at the hot water taps used by these people or at the water heater.

Mixing valves are available at plumbing supply or hardware stores, see Figure 13. Follow manufacturer’s instructions for installation of the valves. Before changing the factory setting on the thermostat,

20

Water temperature over 125°F can cause severe burns instantly or death from scalds.

Children, disabled and elderly are at highest risk of being scalded.

Feel water before bathing or showering.

Temperature limiting valves are available.

see Figure 17 and the table below. Using the lowest hot water temperature that meets your needs will also provide the most energy effi cient operation of the water heater.

Never allow small children to use a hot water tap, or to draw their own bath water. Never leave a child or handicapped person unattended in a bathtub or shower.

Table 5:

Water

Temperature °F

Time for 1st

Degree Burn

(Less Severe Burns)

Time for

Permanent Burns

2nd & 3rd Degree

(Most Severe Burns)

110

116

116

122

131

140

149

154

(normal shower temp.)

(pain threshold)

35 minutes

1 minute

5 seconds

2 seconds

1 second instantaneous

45 minutes

5 minutes

25 seconds

5 seconds

2 seconds

1 second

(U.S. Government Memorandum, C.P.S.C., Peter L. Armstrong, Sept. 15,1978)

NOTE: A water temperature range of 120°F-140°F (49°C-60°C) is recommended by most dishwasher manufacturers.

The thermostat of this water heater has been factory set at its lowest position to reduce the risk of scald injury. It is adjustable and must be reset to the desired temperature setting.

The mark ( ) (on temperature setting of gas control valve/ thermostat) indicative of approximately 120°F is preferred starting point. Some states have a requirement for a lower setting. If you need hotter water, follow directions for temperature adjustment, but beware of the warnings in this section.

Pressing the “COOLER” button decreases temperature and pressing the “HOTTER” button increases the temperature.

To avoid any unintentional changes in water temperature settings, the control has a tamper resistant feature for changing the temperature setting. To change the temperature setting, follow these instructions:

1. “Wake Up” the temperature indicators by holding down both “COOLER” and “HOTTER” temperature adjustment buttons at the same time for one second (See

Figure 17). One or two of the temperature indicators will light up. These indicators will only remain on for

30 seconds if no further buttons are pressed. After 30 seconds the control will go back to “Sleep” mode.

2. Release both of the temperature adjustment buttons.

A. To decrease the temperature press and release the

“COOLER” button until the desired setting is reached.

B. To increase the temperature press and release the

“HOTTER” button until the desired setting is reached.

NOTE: Holding down the button will not continue to lower or raise the temperature setting. The button must be pressed and released for each temperature change desired.

Should overheating occur or the gas supply fail to shut off, turn off the manual gas control valve to the appliance.

NOTE: During low demand periods when hot water is not being used, a lower thermostat setting will reduce energy losses and may satisfy your normal hot water needs. If hot water use is expected to be more than normal, a higher thermostat setting may be required to meet the increased demand. When leaving your home for extended periods

(vacations, etc.) turn the temperature dial to its lowest setting. This will maintain the water at low temperatures with minimum energy losses and prevent the tank from freezing during cold weather.

Figure 17

Gas Valve/

Thermostat Settings

Temperature Setting

C - Flashing = approx. 160°F

C = approx. 150°F

B = approx. 140°F

A = approx. 130°F

= approx. 120°F

WARM = approx. 80°F

Display

A B C

Operational Conditions

Condensation

Moisture from the products of combustion condenses on the tank surface and the outside jacket of the water heater and forms drops of water which may fall onto the burner or other hot surfaces. This will produce a “sizzling” or “frying” noise. This condensation is normal and should not be confused with a leaking tank. Condensation may increase or decrease at different times of the year.

High effi cient energy saver water heaters will produce larger amounts of condensation on initial start-up or when a large amount of hot water is being used. Do not confuse this with a “tank leak”. Once the water reaches a temperature of 120°F (49°C) and the tank warms up

(usually 1-2 hours), the condensation will stop.

CAUTION - PROPERTY DAMAGE HAZARD

IMPORTANT: It is always recommended that a suitable metal drain pan be installed under the water heater to protect the area from water damage resulting from normal condensation production, a leaking tank or piping connections. Refer to “Location Requirements” section

Water Heater Sounds

During the normal operation of the water heater, sounds or noises may be heard. These noises are common and may result from the following:

1. Normal expansion and contraction of metal parts during periods of heat-up and cool-down.

2. Condensation causes sizzling and popping within the burner area and should be considered normal.

3. Sediment buildup in the tank bottom will create varying amounts of noise and may cause premature tank failure. Drain and fl ush the tank as directed under “Draining and Flushing”.

Smoke/Odor

The water heater may give off a small amount of smoke and odor during the initial start-up of the unit. This is due to the burning off of oil from metal parts of a new unit and will disappear after a few minutes of operation.

Safety Shut-off

This water heater is designed to automatically shut-off in the event of the following:

1. The water temperature exceeds 180°F (83°C.)

2. A blockage occurs in the combustion chamber air inlet, fl ue gas exhaust outlet, or both the inlet and outlet.

3. The blower fails to operate or operates improperly.

4. The ignition of fl ammable vapors.

A high temperature limit switch or ECO (Energy Cut Off) in the tank is used to shut off the unit if the water temperature exceeds 180°F (83°C.) The ECO is a single use switch and requires complete replacement of the entire thermostat.

If the ECO should actuate, the water heater cannot be used until the thermostat is replaced by a qualifi ed person.

Contact your local dealer for service information.

Anode Rod/Water Odor

Each water heater contains at least one anode rod, which will slowly deplete while protecting the glass-lined tank from corrosion and prolonging the life of the water heater.

Once the anode is depleted, the tank will start to corrode, eventually developing a leak. Certain water conditions will cause a reaction between this rod and the water. The most common complaint associated with the anode rod is a “rotten egg smell” produced from the presence of hydrogen sulfide gas dissolved in the water. IMPORTANT: Do not remove this rod permanently as it will void any warranties. The parts list includes a special anode that can be ordered if water odor or discoloration occurs. NOTE: This rod may reduce but not eliminate water odor problems. The water supply system may require special aeration or chlorination equipment from a water conditioning company to successfully eliminate all water odor problems.

The use of a water softener may decrease the life of the water heater tank. The anode rod should be inspected after a maximum of three years and annually thereafter until the condition of the anode rod dictates its replacement. NOTE:

Artifi cially softened water requires the anode rod to be inspected annually. The following are typical (but not all) signs of a depleted anode rod:

• The majority of the rods diameter is less than 3/8”.

• Signifi cant sections of the support wire (approx. 1/3 or more of the anode rod’s length) are visible.

If the anode rod show signs of either or both it should be replaced. NOTE: Whether re-installing or replacing the anode rod, check for any leaks and immediately correct if found.

In replacing the anode:

1. Turn off gas supply to the water heater.

2. Shut off the water supply and

Figure 18

Anode Rod Depletion open a nearby hot water faucet to depressurize the water tank.

3. Drain approximately 5 gallons of water from tank (Refer to the “Draining and Flushing” section for proper procedures). Close drain valve.

4. Remove old anode rod.

5. Use Tefl on

®

tape or approved pipe sealant on threads and install new anode rod.

6. Turn on water supply and open a nearby hot water faucet to purge air from water system. Check for any

Exposed

Support

Wire

Pitted

Anode

Rod leaks and correct immediately if found.

7. Restart the water heater as directed

Exposed

Support

Wire under the “Operating Your Water Heater” section. See the

“Repair Parts Illustration” section for anode rod location.

TEFLON ® is a registered trademark of E.I. Du Pont De Nemours and Company.

21

MAINTENANCE OF YOUR WATER HEATER

Draining and Flushing

It is recommended that the tank be drained and fl ushed every 6 months to remove sediment which may build up during operation. The water heater should be drained if being shut down during freezing temperatures. To drain the tank, perform the following steps:

Temperature and Pressure

Relief Valve

WARNING

1. Turn off the gas to the water heater at the manual gas shut-off valve.

2. Turn off the electrical supply to the water heater.

3. Open a nearby hot water faucet until the water is no longer hot.

4. Close the cold water inlet valve.

5. Connect a hose to the drain valve and terminate it to an adequate drain or external to the building.

6. Open the water heater drain valve and allow all the

water to drain from the tank. Flush the tank with water as needed to remove sediment.

7. Close the drain valve, refi ll the tank, and restart the heater as directed under “Operating Your Water Heater.”

If the water heater is going to be shut down for an extended period, the drain valve should be left open.

IMPORTANT: Condensation may occur when refi lling the tank and should not be confused with a tank leak.

Explosion Hazard

If the temperature and pressure relief valve is dripping or leaking, have a qualified person replace it.

Examples of a qualified person include: licensed plumbers, authorized gas company personnel, and authorized service personnel.

Do not plug valve.

Do not remove valve.

Routine Preventive

Maintenance

At least annually, a visual inspection should be made of the venting and air supply system, piping systems, main burner, and fl ame sense/hot surface igniter. Check the water heater for the following:

• Obstructions, damage, or deterioration in the venting system. Make sure the ventilation and combustion air supplies are not obstructed.

• Build up of soot and carbon on the main burner. Check for a soft blue fl ame. Discoloration is normal. Clean the burner as described in “Natural Gas Burner (Ultra

Low Nox).” Also, to clean the combustion chamber, follow these steps: 1.) Remove the burner door assembly as described in this manual; 2.) Remove loose debris from the combustion chamber with a vacuum cleaner/shop vac; 3.) Replace the burner door assembly as described in this manual.

• Dust or debris on the fl ame arrestor at the bottom of the combustion chamber. If needed, use compressed air to clear dust and debris from the fl ame arrestor.

• Leaking or damaged water and gas piping.

• Presence fl ammable or corrosive materials in the installation area.

• Presence of combustible materials near the water heater.

• Verify proper operation after servicing this water heater.

IMPORTANT: If you lack the necessary skills required to properly perform this visual inspection, you should not proceed, but get help from a qualifi ed person.

Failure to follow these instructions can result in death, or explosion.

Manually operate the temperature and pressure relief valve at least once a year to make sure it is working properly

(see Figure 19.) To prevent water damage, the valve must be properly connected to a discharge line which terminates at an adequate drain.

Standing clear of the

Figure 19

Temperature & Pressure Relief Valve

Temperature and Pressure

Relief Valve

Manual Relief

Valve outlet (discharged water may be hot), slowly lift and release the lever handle on the temperature and pressure relief valve to allow the valve to operate freely and

Discharge line to drain return to its closed position. If the valve fails to completely reset and continues to release water, immediately shut off the manual gas shut-off valve and the cold water inlet valve and call a qualifi ed person.

22

Replacement Parts

Replacement parts may be ordered through your plumber or the local distributor. Parts will be shipped at prevailing prices and billed accordingly. When ordering replacement parts, always have the following information ready:

1. model, serial, and product number

2. type of gas number description

See “Repair Parts” section.

IMPORTANT: If you lack the necessary skills to perform the procedures in this section, you should not proceed.

Get help from a qualifi ed person.

Removing the Burner Door Assembly

1. Turn off the gas to the water heater at the manual gas shut-off valve (See figure 2) and disconnect power to the water heater.

FIGURE 20A

Gas Valve/Thermostat

2. Remove the outer door.

3. Remove the two screws securing the burner door assembly to the skirt.

the surface igniter/flame sense wires and manifold tube at the gas control valve/thermostat. See

Figure 20A.

5. Remove both wire terminals from the FV sensor (Figure 20B).

Keep the FV sensor for later use.

Manifold

Tube

Hot Surface

Igniter/Flame

Sense Connector

NOTE: The FV sensor bracket is located at the bottom edge of the water heater (front). To remove the sensor from the bracket, simply open the bracket door and slide the assembly out.

Figure 20B

FIGURE 20C

Burner Door Assembly

Burner Door Gasket

Manifold Component Block

Burner

Hot Surface Igniter and Flame Sense Rod

Burner

FIGURE 21

Burner Cleaning

Burner Door Assembly

Viewport

Flame Sense/

Hot Surface

Igniter Wires

Manifold Tube

Natural Gas Burner (Ultra Low Nox)

Check the burner to see if it is dirty or clogged. The burner may be cleaned with soft paint brush (Figure 21). Do not use a wire brush or any tool that may damage the burner screen.

IMPORTANT: Do not use the burner if the burner screen is damaged. Damage may be rips or holes in the burner screen. Discoloration is normal.

See also “Routine Preventive Maintenance.”

Use a soft brush on this surface.

FV Sensor Bracket

Terminals (2)

FV Sensor

6. Grasp the manifold tube and push down slightly to free the manifold from the gas control valve/thermostat.

7. Carefully remove the burner door assembly from the burner compartment. Be sure not to damage internal parts.

8. Check the burner to see if it is dirty or clogged. See

“Natural Gas Burner (Ultra Low Nox).”

23

WARNING

Explosion Hazard

Tighten both burner door screws securely.

Remove any fiberglass between gasket and combustion chamber.

Replace viewport if glass is missing or damaged.

Replace manifold component block if missing or removed.

Replace door gasket if damaged.

Failure to follow these instructions can result in death, explosion, or fire.

Replacing the Burner Door Assembly

1. Check the door gasket for damage or imbedded debris prior to installation.

2. Inspect the viewport for damage and replace as required.

3. Insert the burner assembly into the burner compartment, making sure that the burner assembly sits firmly against the bracket inside the combustion chamber. See Figure 22.

FIGURE 22

Close-up inside view of the combustion chamber

Bracket

4. Inspect the door gasket and make sure there is no fiberglass insulation between the door gasket and the combustion chamber.

5. Replace the two screws that secure the burner door assembly to the combustion chamber and tighten them securely. Once the burner door assembly is secured, visually inspect the gasket between the door and the combustion chamber for spaces or gaps that would prevent a seal. IMPORTANT: Do not operate the water heater if the burner door gasket does not create a seal between the door and the combustion chamber.

6. Reconnect the manifold tubing to the gas control

24 valve/thermostat. Do not cross-thread or apply any thread sealant to the manifold tubing.

7. Reconnect the Flame Sense/Hot Surface Igniter wires to the thermostat (Figure 20A).

8. Connect both wire terminals to the FV sensor as shown in Figure 20B, then place the sensor inside the bracket. Ensure that the terminals are secure and that the bracket door is closed securely.

9. Turn gas supply on and refer to the Lighting Instructions.

10. Check for leaks by brushing on an approved noncorrosive leak detection solution. If such a solution is not available, use a mixture of dish washing soap and water (one part soap to 15 parts water) or children’s soap bubble solution. Bubbles will show a leak. Correct any leak found.

11. Replace the outer door, then verify correct operation.

Removing and Replacing the Gas

Control Valve/Thermostat

IMPORTANT: Use only factory authorized replacement parts.

Removing the Gas Control Valve/Thermostat:

1. Set the gas control valve/thermostat to its lowest setting by first depressing the COOLER and

HOTTER buttons together and hold for 1 second.

Then press the COOLER button until the WARM indicator light appears. (Figure 17).

2. Unplug the water heater from the wall outlet.

3. Turn off the gas at the manual shut-off valve on the gas supply pipe (Figure 2).

4. Drain the water heater. Refer to the “Draining and

Flushing” section and follow the procedure.

5. Disconnect the flame sense/hot surface igniter wire from the thermostat. Disconnect the manifold tube at the gas control valve/thermostat (Figure 20A).

6. Refer to “Gas Piping” (Figure 2) and disconnect the ground joint union in the gas piping. Disconnect the remaining pipe from the gas control valve/thermostat.

7. To remove the gas control valve/thermostat, thread a correctly sized pipe into the inlet and use it to turn the gas control valve/thermostat (counterclockwise.) Do not use pipe wrench or equivalent to grip body. Damage may result, causing leaks. Do not insert any sharp objects into the inlet or outlet connections. Damage to the gas control valve/thermostat may result.

Replacing the Gas Control Valve/Thermostat:

To replace the gas control valve/thermostat, reassemble in reverse order. Use only factory authorized replacement parts.

• Be sure to use approved Teflon

®

tape or pipe joint compound on the gas piping connections and fitting on the back of the gas control valve/thermostat that screws into tank.

• Turn gas supply on and check for leaks. Use a chloride-free soap and water solution (bubbles forming indicate a leak) or other approved method.

• Be sure tank is completely filled with water before lighting and activating the water heater. Follow the

Lighting Instructions.

• If additional information is required, contact

Residential Technical Assistance.

TEFLON® is a registered trademark of E.I. Du Pont De Nemours and Company.

TROUBLESHOOTING

Please check the guidelines below. For your safety, water heater service should be performed only by a qualifi ed person.

#

1

2

3

4

5

6

LED STATUS PROBLEM

Inadequate or no earth ground.

High resistance to earth ground or reversed polarity in the 120 VAC power supply.

SOLUTION

1 Ensure the wall outlet (power supply) is properly grounded.

2 Ensure all ground connections/wires on the water heater are securely connected.

1 Ensure that the water heater is securely connected to earth ground.

2 Ensure that the wall outlet/power supply is properly wired.

Also, ensure that internal 120 VAC wiring connections and the wiring harness have no reversed wires. 120 VAC "hot" wire must connect to the on/off switch.

Pressure switch circuit remaining closed for more than 5 seconds after heating cycle begins.

1 Ensure air pressure switch circuit wiring is correct and the air pressure switch is not jumpered.

2 Replace the air pressure switch.

Blower may not start in this condition.

Pressure switch circuit remains open longer than 5 seconds after the blower is energized.

1 Ensure the air pressure switch sensing tube is properly connected at both ends and is not kinked or damaged.

2 Ensure the correct size of vent and intake air pipe (direct vent products) was used per the installation instructions that came with the water heater.

Blower may run continuously in this condition.

3 Ensure the maximum number of elbows or maximum equivalent feet of vent or intake air pipe have not been exceeded per the installation instructions that came with the water heater.

Open hot surface igniter circuit.

Ignition/fl ame failure.

The gas control valve/thermostat has reached the maximum number of retries (3) for ignition and is currently locked out for one hour.

Cycle the power to the water heater off and on to reset.

4 Ensure there are no obstructions in the vent or intake air pipe.

1 Check wiring to the hot surface igniter assembly - replace igniter assembly if wiring is damaged or worn.

2 Check resistance of the igniter at igniter assembly plug - should be between 11 and 18 ohms at room temperature

(77° F at plug end) - replace igniter if open or shorted.

3 Check igniter assembly plug and the socket on the gas control valve/thermostat for good connection. Replace igniter assembly if the plug is worn or damaged.

4 Replace the gas control valve/thermostat if the igniter assembly socket on the bottom of the control is worn or damaged.

1 Ensure fl ame sensor is making good contact with the burner fl ame and ensure fl ame is steady. Also ensure supply and manifold gas pressures are within the requirements in the installation manual.

2 Gas supply is turned off or gas pressure is too low. For low gas pressure, consult with your gas utility.

3 Ensure the fl ame sensor is clean - use fi ne steel wool to clean the fl ame sensor.

4 Check igniter assembly plug and the socket on the bottom of the gas control valve/thermostat for good connection. Replace igniter assembly if the plug is worn or damaged. Replace the gas control valve/thermostat if socket is worn or damaged.

5 Replace igniter assembly.

Continued on the next page.

25

7

8

9

TROUBLESHOOTING

cont.

# LED STATUS PROBLEM SOLUTION

Self diagnostic check has detected a problem with the gas valve driver circuit, internal microprocessor, or other internal circuits.

1 Turn the power off for 10-20 seconds, then on again to clear these error codes.

2 If any of these error codes persist or cannot be cleared, replace the gas control valve/thermostat.

10

11

12

13

14

15

1 Turn the power off for 10-20 seconds, then on again to clear these error codes.

Flame signal sensed out of proper sequence.

2 Replace the gas control valve/thermostat if this error code persists.

1 Turn the power off for 10-20 seconds, then on again to clear these error codes.

Water in the tank has exceeded the maximum allowable temperature, activating the ECO (energy cut off).

2 Replace the gas control valve/thermostat if the error code persists.

1 Press and release both temperature adjust buttons several times - cycle water heater power off and on.

One or both of the temperature adjust buttons are stuck.

The water temperature sensor

(located in the control valve's immersion probe) is either open or shorted.

The FV (fl ammable vapor) sensor is either open or shorted.

2 Replace the gas control valve/thermostat if the error code persists.

1 Turn the power off for 10-20 seconds, then on again to clear these error codes.

2 Replace the gas control valve/thermostat if the error code persists.

1 Turn off power to the water heater. Ensure all FV sensor wiring, the ignitor assembly plug, and the ignitor assembly socket on the bottom of the Intelli-Vent control are making good contact. Repair or replace any worn/damaged components that are not making good connection.

2 Replace the FV sensor.

1 Do not touch any electrical switch, do not use any phone in your building, and do not try to light any appliance.

Self diagnostic check has detected the presence of fl ammable vapors from the FV (fl ammable vapor) sensor.

2 Smell around the water heater to ensure there are no gas leaks at the gas control valve/thermostat, in the supply gas line(s), or any other type of fl ammable vapor(s) in the area.

3 Carefully inspect the area surrounding the water heater for any substances such as gasoline, paint, paint thinners, varnish, or cleaners that could emit fl ammable vapors.

Remove anything that can potentially emit fl ammable vapors from the area and store it properly in a different location.

4 Call the technical information support phone number shown on the water heater labeling for further assistance.

26

TROUBLESHOOTING

cont.

PROBLEM

NO HOT WATER

NOT ENOUGH

HOT WATER

VENT PIPE TOO HOT

YELLOW FLAME

CONDENSATION

WATER LEAKS

LEAKING T&P

CAUSE

Blower will not run.

A) Blower unplugged.

B) No power at outlet.

C) Thermostat defective.

D) High limit control circuit open.

E) Blower motor defective.

F) Pressure switch defective.

Thermostat problems.

A) Thermostat set too low.

B) Thermostat or ECO defective.

Others

A) Heater undersized.

B) Low gas pressure.

C) Incoming water is unusually cold.

D) Leaking hot water pipes or fixtures.

A) Defective air flow restrictor

B) Not enough dilution air to mix with flue gases in inlet elbow.

C) Dilution air too hot for mixing with flue gases.

D) Wrong burner orifice.

A) Dirt in burner ports.

B) Combustion air path restricted.

C) Not enough dilution air for proper combustion.

A) Water on the floor under heater.

B) Water dripping from blower assembly.

Reduce hot water use.

Contact dealer.

Allow more time for heater to reheat.

Have plumber check and repair leaks.

Take unit out of service immediately, call a qualified person to service the unit.

Proper dilution air must be provided for combustion and dilution of flue temp. See “Combustion Air

Supply/Vent Pipe System”, section.

Supply air is too hot. Check for heat sources around intake terminal and blockage of dilution air leg.

Install correct orifice.

Turn off heater and gas, clean burner head.

Check intake venting arrangements for obstructions.

Check intake venting arrangements for obstructions.

A) Improperly sealed, hot or cold supply connections, relief valve, drain valve or thermostat threads.

B) Leakage from other appliances or water lines.

C) Condensation of flue products.

A) Thermal expansion in closed water system.

B) Improperly seated valve.

See “OPERATIONAL CONDITIONS”, section.

Provide drip “TEE” to catch condensation from horizontal section of exhaust vent close to blower assembly.

Tighten threaded connections.

Inspect other appliances near water heater.

See “OPERATIONAL CONDITIONS”, section.

Install thermal expansion tank (DO NOT plug T&P valve).

Check relief valve for proper operation (DO NOT plug T&P valve).

Drain and flush heater thoroughly then refill.

HOT WATER ODORS

(See ANODE ROD/WATER

ODOR, Section)

A) High sulfate or mineral content in water supply.

B) Bacteria in water supply.

WATER TOO HOT

A) Thermostat set too high.

WATER HEATER SOUNDS

SIZZLING-RUMBLING

A) Condensation dripping on burner.

B) Sediment at bottom of heater tank.

A) Improper combustion.

SOOTING

HEATER LIGHTS BUT

GOES OUT IN 4-5

SECONDS

A) Outlet polarity is reversed.

SOLUTION

Plug blower back into 115 VAC. outlet.

Repair service to outlet.

Replace thermostat.

Replace ECO.

Replace Blower Assembly.

Replace Pressure Switch/Blower Assembly.

Set temperature control higher.

Replace thermostat or ECO as required.

Chlorinate water supply.

See “WATER TEMPERATURE REGULATION”, section.

See “OPERATIONAL CONDITIONS”, section.

See “MAINTENANCE OF YOUR WATER HEATER”, section.

See “Combustion Air Supply/Vent Pipe System”, section.

Test polarity and correct.

27

REPAIR PARTS ILLUSTRATION

When ordering repair parts always give the following information:

1. Model, serial and product number

2. Type of gas

3. Item number

4. Parts description

Repair Parts List

Item

No.

Parts Description

1 Blower

2 Pressure Switch (Not Pictured)

3 Flue Baffle

4 Heat Trap (Cold)

5 Heat Trap (Hot)

6 Cold Water Dip Tube

7 Anode Rod*

8 Temperature and Pressure Relief Valve

9 Drain Valve

10 Gas Control Valve/Thermostat

11 Flame Sensor/Hot Surface Igniter (HSI)**

12 FV Sensor**

13 FV Sensor Bracket**

14 Burner Door Assembly - Natural Gas / Ultra Low Nox**

15 Manifold Component Block w/Retainer Clip**

16 Viewport Assembly**

17 Burner Door Gasket**

18 Outer Door

19 Flexible Manifold Tube**

* Special anode rod available. See “Anode Rod/Water Odor” section.

** Pictured on next page.

10

7

1

5

13

18

14

9

8

4

6

3

28

Listed Parts Kits and Illustrations

Item 11: Flame Sense/Hot Surface Igniter Assembly.

Item 12: FV Sensor

Item 13: FV Sensor Bracket

Item 14: Burner door assembly (contains the manifold tube, gasket, manifold door, manifold component block with retainer clip, and flame sensor/hot surface igniter assembly). Natural Gas.

Item 15: Manifold component block with retainer clip.

Item 16: Viewport.

Item 17: Burner door gasket.

Item 19: Flexible manifold tube.

ITEM 11 ITEM 19

ITEM 12

ITEM 13

ITEM 14

ITEM 15

ITEM 17

ITEM 16

29

NOTES

30

NOTES

31

32

Copyright © 2013. All Rights Reserved. Printed in the U.S.A.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
