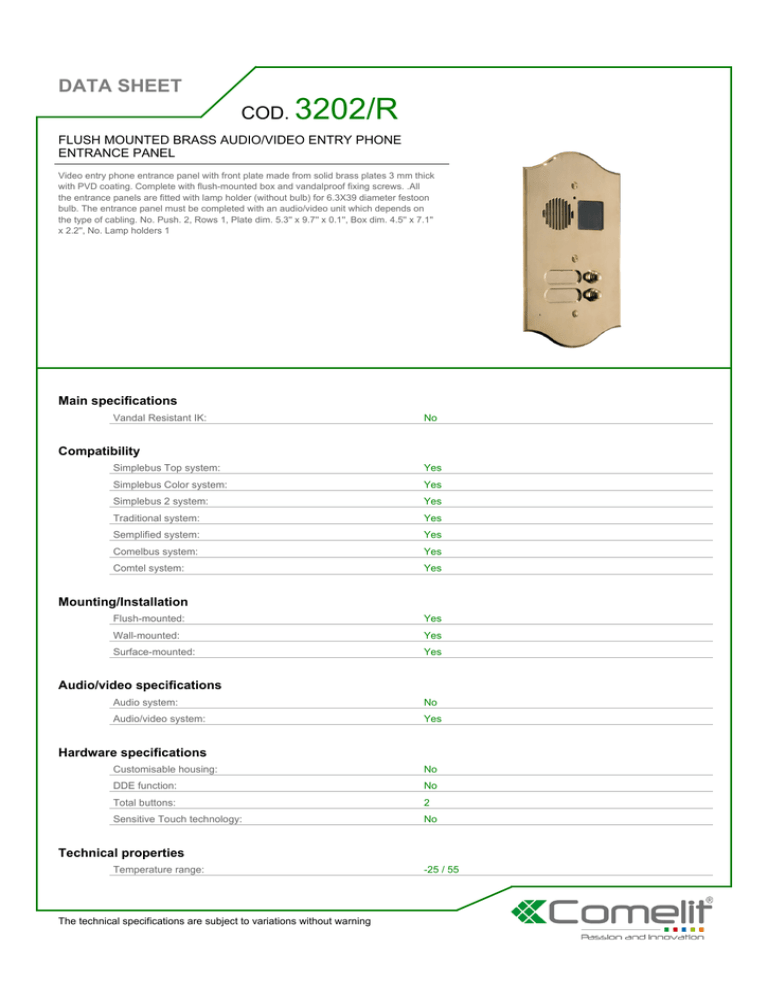

3202/R DATA SHEET COD. FLUSH MOUNTED BRASS AUDIO/VIDEO ENTRY PHONE

3202/R DATA SHEET COD. FLUSH MOUNTED BRASS AUDIO/VIDEO ENTRY PHONE
DATA SHEET
COD.
3202/R
FLUSH MOUNTED BRASS AUDIO/VIDEO ENTRY PHONE
ENTRANCE PANEL
Video entry phone entrance panel with front plate made from solid brass plates 3 mm thick
with PVD coating. Complete with flush-mounted box and vandalproof fixing screws. .All
the entrance panels are fitted with lamp holder (without bulb) for 6.3X39 diameter festoon
bulb. The entrance panel must be completed with an audio/video unit which depends on
the type of cabling. No. Push. 2, Rows 1, Plate dim. 5.3'' x 9.7'' x 0.1'', Box dim. 4.5'' x 7.1''
x 2.2'', No. Lamp holders 1
Main specifications
Vandal Resistant IK:
No
Compatibility
Simplebus Top system:
Yes
Simplebus Color system:
Yes
Simplebus 2 system:
Yes
Traditional system:
Yes
Semplified system:
Yes
Comelbus system:
Yes
Comtel system:
Yes
Mounting/Installation
Flush-mounted:
Yes
Wall-mounted:
Yes
Surface-mounted:
Yes
Audio/video specifications
Audio system:
No
Audio/video system:
Yes
Hardware specifications
Customisable housing:
No
DDE function:
No
Total buttons:
2
Sensitive Touch technology:
No
Technical properties
Temperature range:
The technical specifications are subject to variations without warning
-25 / 55
DATA SHEET
General info
EAN product code:
'8023903162783
Intrastat code:
85176920
Product height (mm):
247
Product width (mm):
135
Product depth (mm):
3
Product colour:
BRASS
Packaging
Single pack height (mm):
105
Single pack width (mm):
155
Single pack weight (g):
1500
Single pack depth (mm):
338
Single pack volume (dm3):
5,5
The technical specifications are subject to variations without warning
