DIMMER

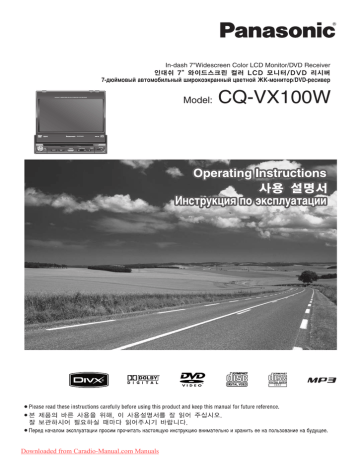

IN-DASH 7" WIDESCREEN COLOR LCD MONITOR / DVD RECEIVER

TILT CLOSE

In-dash 7"Widescreen Color LCD Monitor/DVD Receiver

인대쉬 7" 와이드스크린 컬러 LCD 모니터/DVD 리시버

7-‰˛ÈÏÓ‚˚È ‡‚ÚÓÏÓ·ËθÌ˚È ¯ËÓÍÓ˝Í‡ÌÌ˚È ˆ‚ÂÚÌÓÈ Üä-ÏÓÌËÚÓ/DVD-ÂÒË‚Â

Model:

CQ-VX100W

DIMMER DIM

VOL

CQ-VX100W

CQ-VD5005W

TILT OPEN

TEXT

AV1 IN

MUTE MAP

POWER

SOURCE

TUNE/TRACK

Downloaded from Caradio-Manual.com Manuals

TEXT

1

Safety Information

Read the operating instructions for the unit and all other components of your car audio system carefully before using the system. They contain instructions about how to use the system in a safe and effective manner. Panasonic assumes no responsibility for any problems resulting from failure to observe the instructions given in this manual.

This manual uses pictographs to show you how to use the product safely and to alert you to potential dangers resulting from improper connections and operations. The meanings of the pictographs are explained below. It is important that you fully understand the meanings of the pictographs in order to use this manual and the system properly.

Warning

This pictograph intends to alert you to the presence of important operating instructions and installation instructions. Failure to heed the instructions may result in severe injury or death.

Caution

This pictograph intends to alert you to the presence of important operating instructions and installation instructions. Failure to heed the instructions may result in injury or material damage.

Warning

Observe the following warnings when using this unit.

The driver should neither watch the display nor

operate the system while driving.

Watching the display or operating the system will distract the driver from looking ahead of the vehicle and can cause accidents. Always stop the vehicle in a safe location and use the parking brake before watching the display or operating the system.

Use the proper power supply.

This product is designed for operation with a negative grounded 12 V DC battery system. Never operate this product with other battery systems, especially a 24 V DC battery system.

Protect the Deck Mechanism.

Do not insert any foreign objects into the slot of this unit.

Do not disassemble or modify the unit.

Do not disassemble, modify the unit or attempt to repair the product yourself. If the product needs to be repaired, consult your dealer or an authorized Panasonic Service

Center.

Do not use the unit when it is out of order.

If the unit is out of order (no power, no sound) or in an abnormal state (has foreign objects in it, is exposed to water, is smoking, or smells), turn it off immediately and consult your dealer.

Refer fuse replacement to qualified service per-

sonnel.

When the fuse blows out, eliminate the cause and have it replaced with the fuse prescribed for this unit by a qualified service engineer. Incorrect replacement of the fuse may lead to smoke, fire, and damage to the product.

Observe the following warnings when installing.

Disconnect the lead from the negative (–) battery

terminal before installation.

Wiring and installation with the negative (–) battery terminal connected may cause electrical shock and injury due to a short circuit.

Some cars equipped with the electrical safety system have specific procedures of battery terminal disconnection.

FAILURE TO FOLLOW THE PROCEDURE MAY LEAD TO

THE UNINTENDED ACTIVATION OF THE ELECTRICAL

SAFETY SYSTEM RESULTING IN DAMAGE TO THE VEHI-

CLE AND PERSONAL INJURY OR DEATH.

Never use safety-related components for installa-

tion, grounding, and other such functions.

Do not use safety-related vehicle components (fuel tank, brake, suspension, steering wheel, pedals, airbag, etc.) for wiring or fixing the product or its accessories.

Installing the product on the air bag cover or in a

location where it interferes with airbag operation is prohibited.

Check for piping, gasoline tank, electric wiring,

and other items before installing the product.

If you need to open a hole in the vehicle chassis to attach or wire the product, first check where the wire harness, gasoline tank, and electric wiring are located. Then open the hole from outside if possible.

Never install the product in a location where it inter-

feres with your field of vision.

Never have the power cord branched to supply

other equipment with power.

After installation and wiring, you should check the

normal operation of other electrical equipment.

The continuation of their using in abnormal conditions may cause fire, electrical shock or a traffic accident.

In the case of installation to an airbag-equipping

car, confirm warnings and cautions of the vehicle manufacturer before installation.

Make sure the leads do not interfere with driving

or getting in and out of the vehicle.

Insulate all exposed wires to prevent short circuit-

ing.

2

Downloaded from Caradio-Manual.com Manuals

CQ-VX100W

Caution

Observe the following cautions when using this unit.

Keep the sound volume at an appropriate level.

Keep the volume level low enough to be aware of road and traffic conditions while driving.

Do not insert or allow your hand or fingers to be

caught in the unit.

To prevent injury, do not get your hand or fingers caught in moving parts or in the disc slot. Especially watch out for infants.

This unit is designed for use exclusively in auto-

mobiles.

Do not operate the unit for a prolonged period with

the engine turned off.

Operating the audio system for a long period of time with the engine turned off will drain the battery.

Do not expose the unit to direct sunlight or exces-

sive heat.

Otherwise these will raise the interior temperature of the unit, and it may lead to smoke, fire, or other damage to the unit.

Do not use the product where it will be exposed to

water, moisture, or dust.

Exposure of the unit to water, moisture, or dust may lead to smoke, fire, or other damage to the unit. Make especially sure that the unit does not get wet in car washes or on rainy days.

Set the volume level to low enough before the AUX

connection is completed.

Failure to observe this, the loud noise may come out and damage your speakers and your hearing. Direct connection of the speaker/headphone output of an external device without any attenuator may distort sound or damage the connected external device.

Observe the following cautions when installing.

Refer wiring and installation to qualified service

personnel.

Installation of this unit requires special skills and experience. For maximum safety, have it installed by your dealer.

Panasonic is not liable for any problems resulting from your own installation of the unit.

Follow the instructions to install and wire the prod-

uct.

Not following the instructions to properly install and wire the product could cause an accident or fire.

Take care not to damage the leads.

When wiring, take care not to damage the leads. Prevent them from getting caught in the vehicle chassis, screws, and moving parts such as seat rails. Do not scratch, pull, bend or twist the leads. Do not run them near heat sources or place heavy objects on them. If leads must be run over sharp metal edges, protect the leads by winding them with vinyl tape or similar protection.

Use the designated parts and tools for installation.

Use the supplied or designated parts and appropriate tools to install the product. The use of parts other than those supplied or designated may result in internal damage to the unit. Faulty installation may lead to an accident, a malfunction or fire.

Do not block the air vent or the cooling plate of the

unit.

Blocking these parts will cause the interior of the unit to overheat and will result in fire or other damage.

Do not install the product where it is exposed to

strong vibrations or is unstable.

Avoid slanted or strongly curved surfaces for installation. If the installation is not stable, the unit may fall down while driving and this can lead to an accident or injury.

Installation Angle

The product should be installed in a horizontal position with the front end up at a convenient angle, but not more than 30˚.

The user should bear in mind that in some areas there may be restrictions on how and where this unit must be installed. Consult your dealer for further details.

Wear gloves for safety. Make sure that wiring is

completed before installation.

To prevent damage to the unit, do not connect the

power connector until the whole wiring is completed.

Do not connect more than one speaker to one set

of speaker leads. (except for connecting to a tweeter)

2

CAUTION:

PLEASE FOLLOW THE LAWS AND REGULATIONS OF YOUR STATE, PROVINCE OR COUNTRY FOR WIRING,

INSTALLATION, AND USE OF THIS UNIT AND THE DEVICES TO BE CONNECTED.

Downloaded from Caradio-Manual.com Manuals

CQ-VX100W

3

3

Safety Information

(continued)

Caution

THIS PRODUCT IS A CLASS I LASER PRODUCT.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE

OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN

MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR BY YOUR-

SELF. REFER SERVICING TO QUALIFIED PERSONNEL.

This system is designed so that you cannot see moving pictures while you are driving.

¡Park your car in a safe place and pull the side brake (parking brake) lever before watching the monitor.

¡A rear monitor (option) displays moving pictures while driving.

Note:

¡

Be sure to connect the side brake (parking brake) connection lead. ( a

Installation

Instructions)

4

Downloaded from Caradio-Manual.com Manuals

CQ-VX100W

Notes on Use

Liquid Crystal Panel

¡Do not cause impact to the liquid crystal panel.

¡Usage temperature range: 0 °C to 40 °C

When the temperature is very cold or very hot, the image may not appear clearly or may move slowly.

Also, movement of the image may seem to be out of synchronization or the image quality may decline in such environments. Note that this is not a malfunction or problem.

¡In order to protect the liquid crystal panel, keep it out of direct sunlight while the unit is not in use.

¡Sudden changes in the temperature inside the car such as those which occur immediately after the car’s air conditioner or heater has been turned on may cause the inside of the liquid crystal panel to cloud over due to water vapor or it may cause condensation (droplets of water) to form and, as a result, the panel may not work properly. Do not use the unit while these symptoms are in evidence but leave the unit standing for about and hour, and then resume or start use

4

Before Reading These Instructions

Differences Among 3 Models

This operating instruction manual is for 3 models CQ-VX100W2/CQ-VX100W3 and

CQ-VX100W5.

The following table shows the playable region number for each model.

Example:

2

3 5

Model

CQ-VX100W2

CQ-VX100W3

CQ-VX100W5

Playable region number

2 (ALL)

3 (ALL)

5 (ALL)

2 3

4 5

ALL

“Before Disc Playback”

( a page 16)

Components

DIMMER

IN-DASH 7" WIDESCREEN COLOR LCD MONITOR / DVD RECEIVER

TILT CLOSE

DIMMER DIM

CQ-VX100W

CQ-VD5005W

TILT OPEN

TEXT

AV1 IN

VOL

PUSH

SEL MUTE MAP

POWER

SOURCE

TUNE/TRACK

XXXXXXXXXXXXXXX

XXXXXXXXXXXXXXXXX

XXXXXXXXXXXXXXXX

OO-OOOOO

XXXXXXXXXXXXXXX

XXXXXXXXXXXXXXXXX

XXXXXXXXXXXXXX

XXXXXXXXXXXXXXXX

OO-OOOOO

XXXXXXXXXXXXXXX

XXXXXXXXXXXXXXXXX

XXXXXXXXXXXXXX

XXXXXXXXXXXXXXXX

OO-OOOOO

1. Main Unit

(LCD monitor/DVD player)

Qty.: 1

2. Operating Instructions

<YFM264C059CA>

Qty.: 1

3. System Upgrade Guidebook

<YFM264C060CA>

Qty.: 1

4. Installation Instructions

<YFM294C125CA>

Qty.: 1

5. Installation Hardware (screws, cords, etc.)

( a

Installation Instructions)

Note:

¡The number in parenthesis underneath each accessory part name is the part number for maintenance and service.

¡Accessories and their parts numbers are subject to modification without prior notice due to improvements.

Downloaded from Caradio-Manual.com Manuals

CQ-VX100W

5

5

Features

Panasonic welcomes you to our constantly growing family of electronic products owners.

We endeavor to give you the advantages of precise electronic and mechanical engineering, manufactured with carefully selected components, and assembled by people who are proud of the reputation their work has built for our company.

We know this product will bring you many hours of enjoyment, and after you discover the quality, value and reliability we have built into it, you too will be proud to be a member of our family.

Please refer to the separate “System Upgrade Guidebook” for how to operate this unit when optional devices are connected.

No device is connected to this unit. a Basic operations are covered only by this book.

Optional devices are connected to this unit. a

Refer to the “System Upgrade Guidebook” in addition.

Simultaneous Multi-Device Connection

(with Expansion Module (hub unit))

You can connect the optional Expansion Module (hub unit) (CY-EM100N). Connection of the Expansion

Module allows you to simultaneously connect optional devices mentioned before as well as other

AV devices. For details, refer to the operating instructions for the Expansion Module.

Connectable devices

¡CD/DVD changer (max. 1)

¡iPod

®

(max. 2)

¡Hands Free Kit with Audio Streaming featuring

Bluetooth

®

technology (Bluetooth unit) (max. 1)

¡TV tuner (max. 1)

Note:

¡Market conditions regarding optional devices vary with countries and regions. For further information, consult your dealer.

¡If a non-Panasonic product is connected to this unit, we do not guarantee the operations of the product.

Integration of the monitor, FM/AM radio,

DVD Video/Video CD player and

CD/MP3/DivX player

Built-in AV Input/Output Terminals

For more convenient connection and setup, all terminals are now provided on the unit itself.

Note:

¡If a non-Panasonic product is connected to this unit, we do not guarantee the operations of the product.

SQ (Sound Quality)

You have 6 preset modes (Flat, Rock, Pop, Vocal,

Jazz, Club). You can customize your setting for these

(except Flat) and save them for instant recall.

SQ3 (3-Band Sound Quality)

Center frequency and level are adjustable in each of 3 bands. This lets you fine-tune sound quality for each genre to suit car-interior acoustics and your personal preferences. ( a page 33)

GUI (Graphic User Interface)

GUI displays various indications with colorful symbols to enhance visibility, enjoyment, and operability.

Disc type auto-detection

The signal auto-detection function of this unit allows users to be free from selection between PAL and

NTSC before use of your discs. (For output signal, set . )

Touch Panel Operation

Simply touch the screen lightly to operate virtually all functions. Easy-to-use menus and icons let you

“touch and choose” what you want, so you can start using your system from the very first day. That also means that while you drive, you can concentrate on the road.

DVD–R, DVD–RW Playback

( a page 16, 42 for details)

ID code

4-digit ID code for increased security.

Fill in the ID code memo ( a page 40).

6

Downloaded from Caradio-Manual.com Manuals

CQ-VX100W

Contents

English 2

한국어

46

êÛÒÒÍËÈ

90

Downloaded from Caradio-Manual.com Manuals

¢ Safety Information .......................... 2

¢ Notes on Use ................................................... 5

¢ Before Reading These Instructions .............. 5

¢ Components .................................................... 5

¢ Features ........................................................... 6

¢ Preparation...................................... 8

First time power on, other settings, symbols used in this manual

¢ Name of Controls and Functions ................ 10

¢ Anti-Theft System ......................................... 11

¢ Touch Panel Operation Overview................ 12

¢ General .......................................... 14

Power on/power off, display open/close, source selection, volume, mute, tilt angle, folding down the display temporarily

¢ Before Disc Playback..................... 16

¢ Disc Player..................................... 18

¢ Notes on MP3/DivX ....................................... 22

¢ Radio.............................................. 24

¢ AV1/AV2 ......................................... 26

¢ Settings ......................................... 28

Setup operation

Basic setting, screen, sound, disc, radio

¢ About DivX VOD Content ............................. 36

¢ Troubleshooting ........................... 37

¢ Maintenance .................................................. 41

¢ Notes on Discs .............................................. 42

¢ Language Code List...................................... 43

¢ Definition of Terms ....................................... 44

¢ Specifications................................................ 45

CQ-VX100W

7

7

Preparation

First Time Power On

When the power of this unit is turned on for the first time, the following screen appears. Perform the settings in accordance with the specifications of the car on which this unit is mounted.

On

Off

: sets to ON if your car has ACC position.

: sets to OFF if your car has no ACC position.

default:

On

Note:

¡For an ACC-equipped car, select ON. The following functions are available.

¡

The power is turned on automatically when inserting

¡ a disc or magazine.

Off selection disables turning on the power of the main unit through the remote control.

Caution

¡Be sure to select off when your car has no ACC

position in the ignition switch. Failure to do this could cause the battery to go dead.

OFF

ACC

IGN

Other Settings

Please refer to the separate “System Upgrade

Guidebook” for how to operate this unit when optional devices are connected.

Basic Setting

(basic settings) ( a page 30)

clock, ID code, input, memory clear, other

Screen

(screen settings) ( a page 32) dimmer, display, aspect

Sound

(sound settings) ( a page 33)

SQ3, bass/treble, balance/fader

Disc

(disc settings) ( a page 34) audio language, subtitle language, menu language, video setting, audio setting, DivX registration

Radio

FM setup

(radio settings) ( a page 35)

Note:

¡Refer to “Settings” ( a page 28) for further information about operations, settings, and others of the menu screen.

You may need to set the following depending on the devices to be connected.

AV1/AV2 (Camcorder, VCR, etc.)

Warning

¡When you connect external devices to this unit, be

sure to connect the side brake connection lead

(

a

Installation Instructions).

8

Downloaded from Caradio-Manual.com Manuals

CQ-VX100W

Symbols used in this manual

Pictographs

You can perform some operations of this unit in one or more methods with the touch panel or remote control.

This book explains such operations in tabular form as follows. Refer to the following for the pictographs located in the upper part of each table.

Compatible types of disc

The discs compatible with the targeted operation.

Compatible

Discs

Disc Marks

The following pictographs are used for the descriptions of disc operation. ( a page 17-21)

: DVD

: VCD (Video CD)

: CD

: CD-Rs/RWs containing MP3 files

: CD-Rs/RWs or DVD-Rs/RWs containing DivX files

8

Operation on the Touch Panel

END

Compatible

Discs

Operation on the Main Unit

You can use the Main Unit to perform the targeted opera-

Compatible

Discs

Discos compatibles

Compatible

Discs

Downloaded from Caradio-Manual.com Manuals

CQ-VX100W

9

9

Name of Controls and Functions

!0 [TILT]

(Display Raised)

DIMMER TILT CLOSE

o [OPEN] (CLOSE)

IN-DASH 7" WIDESCREEN COLOR LCD MONITOR / DVD RECEIVER

q [DIM] (DIMMER)

Display

Disc slot

w [VOL]

(PUSH SEL)

DIMMER DIM

CQ-VX100W

CQ-VD5005W

TILT OPEN

TEXT i AV1 IN e [MUTE] r [MAP]

(Display Closed)

AV1 IN

VOL

PUSH

SEL

MUTE MAP

TUNE/TRACK

POWER

SOURCE

t [SOURCE] (POWER) y [s] [d] (TUNE/TRACK) u [u]

!0 [TILT]

DIMMER

DIM

CQ-VX100W

TILT OPEN

o [OPEN] (CLOSE) q [DIM] (DIMMER)

AV1 IN

VOL

PUSH

SEL

MUTE MAP

TUNE/TRACK POWER

SOURCE

Remote control sensor

: This book refers to connections to the Panasonic car navigation system that will come onto the market in the future. Descriptions regarding the car navigation system are boxed with a dotted line.

q w

[DIM]

(DIMMER)

[VOL]

(PUSH SEL)

e [MUTE] r [MAP] t

[SOURCE]

(POWER)

¡The screen brightness is toggled between the set level and maximum luminance.

y

[s] [d]

(TUNE/TRACK)

¡Adjusts the sound volume.

¡Adjusts audio settings.

u [u]

¡Mutes the sound temporarily.

¡Switches navigation mode on and off.

(available in the future)

Note:

¡This button is available only when the

Panasonic Car Navigation System (available in the future) is connected to the RGB connector of this unit.

¡Switches on/off the power.

¡Changes the modes such as sound and picture. i

AV1 IN

o

[OPEN]

(CLOSE)

!0 [TILT]

¡Selects or searches for a track, file, station.

¡Fast forward/fast reverse.

¡Slow playback ([d]).

¡Ejects/reloads a disc.

Note:

¡Do not insert a disc when the eject button

[u] lights because a disc is already loaded.

¡From line output of external audio/video device. ( a Installation Instructions)

¡Opens/closes the monitor.

¡Adjusts the monitor position.

¡Tilts the monitor forward temporarily.

Downloaded from Caradio-Manual.com Manuals

10

CQ-VX100W

Anti-Theft System

This unit is equipped with a removable face plate.

Removing this face plate makes the unit totally inoperable.

Remove the Face Plate

q Switch off the power of the unit.

w Hold the top and bottom of the center part of the face plate and pull it down toward you.

e Pull the face plate toward you.

r Place the face plate into the case and take it with you when you leave the car.

w e

DIMMER

DIM

CQ-VX100W

TILT OPEN

AV1 IN

VOL

PUSH

SEL

MUTE MAP

TUNE/TRACK

POWER

SOURCE

Removable face plate

10

Install the Face Plate

q Engage the right and left concave parts (A) on the lower rear side of the face plate with the convex parts

(B) of the main unit.

w Raise and press the face plate toward the main unit until a click is heard while engaging (A) with (B).

q w

(B)

(A)

Detection switch

(B)

(A)

Face Plate Removal Alarm

This alarm sounds to warn you not to forget to remove the face plate before leaving your car.

This function is activated when

Security Alarm is set to

On

. ( a page 31)

Caution

¡ Be sure to follow the procedure mentioned above to mount the face plate appropriately. Improper mounting such as forcible mounting without engaging the concave parts with the convex parts may cause trouble.

¡ Use caution not to damage the detection switch while mounting the face plate. Failure to observe this may cause trouble.

¡ Use caution not to apply excessive force to the removed face plate when the plate is carried or stored. Failure to observe this may cause trouble.

¡ This face plate is not waterproof. Do not expose it to water or excessive moisture.

¡ Do not remove the face plate while driving your car.

¡ Do not place the face plate on the dashboard or nearby areas where the temperature rises high.

Downloaded from Caradio-Manual.com Manuals

CQ-VX100W

11

11

Touch Panel Operation Overview

Notes on the Touch Panel

Before operation

¡Clean the surface of the touch panel. ( a page 41)

Operation

¡Use only your fingers to operate the touch panel.

¡Do not press the panel forcefully.

¡Do not scratch the panel with fingernails or any hard objects.

¡Do not use a pen or other sharp implements to operate the touch panel.

¡Do not bump the front panel.

a Failure to observe the above may damage or break the glass on the surface of the touch panel.

The State of Operation Screen

Example: DVD mode

Note:

¡The following picture is partly darkened for explanation.

¡Displaying contents and their positions partly vary with each mode. Refer to the description of each mode for details.

Aspect Button

( a page 32)

(only for video source)

Screen Button

( a page 32)

(only for video source)

Prohibition

Input is not possible because the user has attempted to perform an operation which is not supported by the disc contents.

Sound Button ( a page 33)

Source Button

(Content varies with each source)

Displays the Source Selection Screen.

Source Selection Screen

Clock time

( a page 30)

Disc indicator ( a page 17)

(Lights when a disc is loaded)

Setup Button

Displays the Setup Screen.

Setup Screen

Source Selection Screen appears.

Touch desired source button.

Press [SOURCE] to change to desired source.

Note:

¡The screen above appears when no external device is connected to this unit.

Downloaded from Caradio-Manual.com Manuals

12

CQ-VX100W

Setup Screen appears. Select desired setting.

Setup menu, (

a

page 28)

Switching the Display

Please refer to the separate “System Upgrade Guidebook” for how to operate this unit when optional devices are connected.

Note:

¡ Refer to the instructions of each source.

¡ To switch Operation Screen on, touch the center of touch panel. (Touch to cancel)

¡ If no operation takes place for more than 10 seconds when Operation Screen is ON, Operation Screen is turned off.

Audio Source

CD

Touch

.

12

Operation Screen

MP3

Touch

.

List Screen

Touch

.

Touch

.

Operation Screen 1

(folder/file name)

Video Source

DVD

Touch

.

Operation Screen 2

(ID3 tag)

Touch

.

List Screen

Operation Screen 1

DivX

Touch

.

Operation Screen 2

Touch

.

Touch

.

Operation Screen 1

Touch

.

Operation Screen 2

Downloaded from Caradio-Manual.com Manuals

Touch

.

List Screen

CQ-VX100W

13

General

[VOL]

DIMMER DIM

[TILT]

CQ-VX100W

[OPEN]

13

VOL

PUSH

SEL

MAP

POWER TUNE/TRACK

AV1 IN

[MUTE]

[SOURCE] (POWER)

Preparation:

Turn your car’s ignition key to the ACC or ON position.

General Operations

Operations

Power

Power

ON :

[SOURCE ]

END

DVD VTR

RADIO CH-C

[SOURCE ]

OFF :

Display Open/Close

– [OPEN]

¡Press once to open. Press again to close.

Note:

¡When the display is opened or closed, a loud beep sounds three times.

¡If the unit stops halfway, press [OPEN] again to draw it all the way out.

¡Opening/closing the display can be done when the power is off.

Source selection

Note:

¡The sources AV1 and

AV2 provide the audio and video from the devices connected to

AV1 IN and AV2 IN of this unit respectively, and the source Ext. In provides the audio and video from the device connected to EXT

VIDEO IN of this unit via the expansion module

(CY-EM100N, option).

¡If there is no external sources connected,

AV1/AV2 mode can be set to skip. ( a page

31)

( a page 12)

[SOURCE ]

RADIO (AM/FM)

DVD (DVD/VCD (Video CD)/CD/MP3/DivX)

AV1

AV2

Sources connected to the Expansion

Module

(CY-EM100N)

When the Expansion

Module (CY-EM100N, option) is connected.

( a

System Upgrade

Guidebook)

Ext. In

HUB1

HUB2

HUB3

HUB4

( a page 24)

( a page 18)

( a page 26)

( a page 26)

( a System

Upgrade

Guidebook)

…… Touch/Press and hold for more than 2 seconds

Downloaded from Caradio-Manual.com Manuals

14

CQ-VX100W

General Operations (continued)

Operations

Volume

Note:

¡The sound level for each source is stored in memory.

Mute

Tilt Angle

or

DVD

w

RADIO

VTR

CH-C

END

q q Up w Down

Setting range: 0 to 40, default: 18

Note:

¡ The volume level can be set independently for each source and each disc format.

[MUTE]

[TILT]

Mutes the sound.

To cancel, press again.

q Press and hold for more than 2 seconds.

w Touch to adjust.

Setting range: 1 to 5 default: 5

14

1 5

Folding Down the

Display Temporarily

Auto

the monitor is opened automatically when turning ON ACC.

Manual

the monitor is not opened automatically.

default:

Manual

Warning

¡Do not touch the unit while the display is moving. Inserting hands, fingers or foreign objects into the unit can cause injuries and damage to the unit.

Note:

¡Vertical angle (TILT) is saved in the memory, so when the display is drawn out next, it is automatically set at the angle and in the position adjusted before.

¡After adjusting its angle, also adjust the brightness as well. ( a page 32)

¡The car model and installation conditions may impose some restrictions on the adjustment of the monitor's angle.

[TILT]

To raise the display, press again.

Note:

¡Even when the unit power is off, you can fold down the display temporarily.

Caution

¡Avoid physical shock to the monitor.

¡Do not place any object on the display, or subject it to undue force.

¡Do not move the display forcibly.

¡The monitor movable range may be limited by the type of car, the position where the display is mounted, etc.

Downloaded from Caradio-Manual.com Manuals

CQ-VX100W

15

Before Disc Playback

Discs that can be Played Back

15

Disc Type

DISC DVD

VCD

(Video CD)

CD CD-R/RW

Recordable

Mark/logo

ReWritable

TEXT

(IEC62107)

Disc Size

Video

Format

NTSC / PAL

12 cm

Audio

Format

LPCM,

MPEG1,

MPEG2,

Dolby

Digital

Region No.

2, 3, 5, ALL*

2

LPCM

1

(CD-DA*

MPEG1,

),

MPEG2

(SVCD)

LPCM (CD-DA*

1

MP3

),

*

1

CD-DA : A general music CD format.

Note:

¡Only discs with logos shown in the “Mark/logo” row of the table above are playable.

¡About CD-Rs and CD-RWs, refer to “Notes on CD-

Rs/RWs, DVD-Rs/RWs”. ( a page 42)

¡Some copy-protected music CDs are not playable.

¡Even if you play a dts DVD or a dts CD, analog sound cannot be reproduced.

Notes on DVD-Rs/RWs

¡Do not mix DVD-Video formatted data and other formatted data on the same disc.

¡Discs in the video recording (VR) format are

unplayable.

¡Unfinalized discs are unplayable.

¡Use disc-at-once recording for DVD-R DL (double-layer).

¡Some discs are unplayable depending on the disc itself, device, drive and software that are used for disc recording.

Discs not supported

The following discs are not played back on this product.

¡

DVD-Audio

¡

DVD-ROM

¡

DVD-RAM

¡

DVD+R

¡

VSD

¡

¡

DVD+RW

CVD

¡

CD-G

¡

CD-ROM (except MP3)

¡

CD-RW (except MP3/DivX and CD-DA)

¡

CD-R (except MP3/DivX and CD-DA)

¡

SACD

¡

Photo CD

¡

CDV

¡

Hybrid SACD (except CD-DA)

¡

CD-EXTRA (audio-only playback possible)

¡

DVDs with a region number other than “2”, “3”, “5” or “ALL”* 2

¡

Playing back a photo CD disc with this unit could damage the data that is recorded on the disc.

Downloaded from Caradio-Manual.com Manuals

16

CQ-VX100W

About DivX

¡DivX files recorded on CD-Rs/RWs and DVD-Rs/RWs are playable. Refer to “Notes on MP3/DivX” for further information. ( a page 22)

Symbols used on jackets

(Examples of such symbols include)

¡

2

: Number of subtitle languages

¡

¡

2

LB

: Number of audio tracks

¡

3

: Number of angles

The numbers indicate the number of languages, tracks, angles, etc., recorded on the disc.

Screen size (H:V aspect ratio)

¡

4:3

: 4:3 standard size

: Letterbox ( a page 34)

¡ 16:9 wide size

16:9

16:9

LB

PS

: Playback in letterbox format on a standard screen (4:3).

: Playback in

Pan & Scan

(pan and scan)

( a page 34) format on a standard screen

(4:3).

Note:

¡The size of the image that is displayed on the screen depends on the screen mode (

Aspect a page 32), and on the screen size for the content on the disc.

Region Management Information

This product is designed and manufactured to respond to the Region Management Information that is recorded on a DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this product, this product does not play the disc.

* 2 The Region number for this product is “2” (for CQ-

VX100W2),“3” (for CQ-VX100W3), “5” (for CQ-

VX100W5) or “ALL”.

Example:

2 3 5

2 3

4 5

ALL

Disc Insert/Eject

When a disc is in the player...

DIMMER TILT CLOSE

IN-DASH 7" WIDESCREEN COLOR LCD MONITOR / DVD RECEIVER

Printed side

16

Caution

¡When the disc is inserted or ejected, to prevent disc scratches never exert any downward force on the disc.

DIMMER DIM

CQ-VX100W

CQ-VD5005W

TILT OPEN

TEXT

AV1 IN

VOL

MUTE MAP

POWER

SOURCE

TUNE/TRACK

Do not insert a disc when the eject button because a disc is already loaded.

[u] (eject) lights.

lights

Disc Insert

CH-C

¡The mode that supports the disc is selected, and playback starts.

¡The audio format is automatically identified.

( a page 16)

¡When the menu screen appears, see “Chapter/title

Selection” on page 20.

When a disc is in the player, change to disc player mode (CD, MP3, DivX, DVD or VCD (Video CD)) and playback starts.

Note:

¡Do not insert a disc when the eject button

lights because a disc is already loaded.

¡The power will be turned on automatically when a disc is loaded.

¡You can play a disc even if the monitor is closed.

Disc Eject

Press [u] to stop playback and eject the disc.

(Press [u] again to reload the disc.)

CH-C

Note:

¡If you leave a disc in the slot for more than 30 seconds after its ejection, the disc will be automatically reloaded after loud beep is energized three times.

CH-C

¡Due to limitations of certain discs, some DVD and

VCD (Video CD) discs may not operate as described in this manual. Refer to the disc jacket for further details.

¡This unit does not support DVD and VCD (Video

CD) karaoke functions.

¡The sound may be interrupted for a few moments while the audio format is being identified.

Caution

¡Do not use irregularly shaped discs.

¡Do not insert foreign object into the disc slot.

¡This unit does not support 8-cm disc. In case of

load such a disc, eject and remove the disc from the slot immediately.

Downloaded from Caradio-Manual.com Manuals

CQ-VX100W

17

17

Disc Player

Source Selection

q Touch “Source Button”.

d w Touch

(Disc)

on the Source

Selection Screen.

Source Button

DIMMER

IN-DASH 7" WIDESCREEN COLOR LCD MONITOR / DVD RECEIVER

TILT CLOSE

DIMMER DIM

CQ-VX100W

CQ-VD5005W

TILT OPEN

TEXT

Press [SOURCE] to change to the desired mode.

To switch Operation Screen ON, touch the center of touch panel.

Video Mode Display

DVD

VOL

PUSH

SEL MUTE MAP

DivX

POWER

TUNE/TRACK

[SOURCE]

Repeat/random indicator

[s] [d]

VCD (Video CD)

AV1 IN

Source Button

Playing time

Source Button

Playing time

Source Button

Playing time

Operation Buttons

Audio Mode Display

MP3

Source Button

Playing time

Operation Buttons

Title/text scroll

Folder selection

Operation Buttons

Note:

¡Touch to change the display. ( a page 13)

CD

Current track

Source Button

Playing time

Operation Buttons

List (Folder/File/Track) Selection

(Example: MP3 mode)

: Folder

: MP3/DivX file q Touch

(folder name) to select a folder.

, : scrolls up/down the file list by 1 page.

, : scrolls up/down the file list

END

DVD

RADIO

VTR

CH-C

name) to play.

by 1 line.

w Touch (file

Note:

¡[s] and [d] of the main unit can scroll up and down the file list by 1 page, respectively, too.

¡It is not possible to display the whole tree and file list in a folder.

¡The displayed contents on the touch panel vary with circumstances.

Title/text scroll

Operation Buttons

Downloaded from Caradio-Manual.com Manuals

18

CQ-VX100W

Basic Operations

Operations

Track/file Selection

Fast Forward/

Fast Reverse

Folder Selection

Title/text Scroll

Stop

Operations

Compatible

Discs

Disques compatibles

Compatible

Discs

Compatible

Discs

[d] Next track/file

RADIO

VTR

CH-C

END

Beginning of the current track/file

Previous track/file (Touch/press twice.)

Note:

¡When playing a DVD, there are cases where it is not possible to return to the start of a chapter that spans 2 titles.

[

d

[s]

]

Fast forward

Release to resume playback.

Fast reverse

Release to resume playback.

The speeds of fast forward and fast reverse change incrementally in 4 steps every time the corresponding button is pressed.

Next folder

Previous folder

– Scrolls the title/text once

18

Pause

Slow Playback

Repeat Play

Compatible

Discs

To resume playback, touch .

To resume playback, touch again or touch

.

Discos compatibles

Compatible

Discs

¡Touch/press and hold in the pause mode.

[d]

Playback is at about 1/3 normal speed.

To resume normal playback, touch .

Note:

¡Reverse slow playback is not possible.

*

To cancel, touch again.

Repeat Play within the

Current Folder

Scan Play

*

To cancel, touch and hold for more than 2 seconds again.

– To cancel, touch again.

Random Play *

– To cancel, touch again.

Random Play within the

Current Folder

*

…… Touch/Press and hold

* Touch panel symbols will change to indicate these current mode.

To cancel, touch and hold again.

,

Downloaded from Caradio-Manual.com Manuals

CQ-VX100W

19

19

Disc Player

(continued)

To switch Operation Screen ON, touch the center of touch panel.

Chapter/title Selection

Operations

Operations

Showing menu and selecting an item

* 1

Note on VCD:

For VCD, touch instead of

Starting Playback from a specific chapter/title

.

Touch the numerical key to enter a number directly

Compatible

Discs

Discs

*

1

Disques compatibles

Compatible

or d d

*

*

1

2 –

DVD

RADIO

VTR

CH-C

END

q Menu appears.

– d w Select the desired item. (Touch when the direction buttons shown at left are not displayed.) d e Determine the setting.

Toggles the position of the buttons on the screen between upper and lower.

Returns to the previous display.

Compatible

Discs

Compatible

Discs

Discos compatibles

d to

– q Toggles “Chapter number input mode”, “Title number input mode” and “Number input mode”.

d w Input desired number.

d

– d e Playback starts.

Note:

¡For retrying selection during number entry, touch .

Note:

¡If no operation is performed for 8 seconds after you have touched , the operation buttons disappear.

¡If the title/chapter number is inputted and no operation is performed for 8 seconds, playback will start from the number of the title/chapter entered.

* 2

On-Screen Direct Operation (Only for DVD)

Some DVDs allow you to operate the DVD menu by touching the screen.

Downloaded from Caradio-Manual.com Manuals

20

CQ-VX100W

DVD

mode display

Chapter/title selection

Fast forward/fast reverse

Touch

.

Audio Language/

Angle/Subtitle Language

20

Stop/pause/play

DVD menu

Return

Touch

.

Repeat play

Useful Function

Operations

Operations

Subtitle Language

Compatible

Discs

– ¡Touch during playback.

END

DVD VTR

It is possible to change the subtitle language during play if multiple lan-

RADIO CH-C

guages are recorded on the disc.

Note:

¡There may be a brief delay before the subtitles appear.

Audio Language

Disques compatibles

¡Touch during playback.

It is possible to change the audio language during play if multiple audio languages are recorded on the disc.

Angle

Compatible

Discs

¡Touch during playback.

For DVDs which contain scenes which have been shot simultaneously from a number of different angles the same scene can be viewed from each of these different angles during play. (

Angle Mark a page 34)

Compatible

Discs

Stereo & Monaural

It is possible to switch the audio between stereo sound and monaural sound

(L or R).

Compatible

Discs

Discos compatibles

ST

d

L-ch

d

R-ch

: stereo sound

: the left channel audio is output on both the left and right speakers.

: the right channel audio is output on both the left and right speakers.

Note:

Compatible

Discs

¡If no operation is performed for 10 seconds or is touched , the operation buttons disappear.

¡It may not be possible to switch the language unless the unit is at the DVD menu ( a previous page) or is at the DVD settings. ( a page 34)

¡The language on the DVD settings takes priority when the power is turned on or the disc is loaded.

¡The number of languages and angles depend on the disc. Some discs have only one language/angle or have no lan-

CQ-VX100W

21

21

Notes on MP3/DivX

What is MP3/DivX?

MP3*:

MP3 (MPEG Audio Layer-3) is the compression format of digital audio. It is developed by MPEG (Motion Picture

Experts Group). Using this compression format, you can record the contents of about 10 music CDs on a single CD

(This figure refers to data recorded on a 650 MB CD-R or CD-

RW at a fixed bit rate of 128 kbps and a sampling frequency of

44.1 kHz).

Display Information (on the Main Unit)

Displayed items

¡ CD-TEXT

Disc title

Track title

¡ MP3/DivX

Folder name

File name

¡ MP3 (ID3 tag)

Album name

Title and artist name

*MPEG Layer-3 audio coding technology licensed form

Fraunhofer IIS and Thomson.

DivX:

The video compression format developed by DivX, Inc.

compresses video files without any considerable loss of video quality.

Note:

¡MP3/DivX encoding and CD writing software programs are not supplied with this unit.

Points to remember when making MP3/DivX files

Common

¡High bit rate and high sampling frequency are recommended for high quality sound.

¡Selecting VBR (Variable Bit Rate) is not recommended because playing time is not displayed properly and sound may be skipped.

¡The playback sound quality differs depending on the encoding circumstances. For details, refer to the instructions of your own encoding software and writing software.

MP3

¡ It is recommended to set the bit rate to “128 kbps or more” and “fixed”.

DivX

¡DivX files greater than 2GB or having no index may not play properly on this unit.

¡This unit supports all resolutions up to maximum of 720 x

480 (NTSC)/720 x 576 (PAL).

¡You can select up to 8 types of audios and subtitles on this unit.

¡ GMC (Global Motion Compensation) is not supported.

Displayable characters

¡Displayable length of file name/folder name: within 64 characters. (Unicoded file and folder names are reduced by half in the number of displayable characters.)

¡Name files and folders in accordance with the standard of each file system. Refer to the instructions of writing software for details.

¡ASCII character set can be displayed.

¡Some Cyrillic characters in the Unicode can be displayed.

ASCII character set

A to Z, a to z, digits 0 to 9, and the following symbols:

(space) ! ” # $ % & ’ ( ) * + , - . / : ; < = > ? @ [ \ ] ˆ _ ` { | } ~

Note:

¡With some software in which MP3/DivX format files have been encoded, the character information may not be displayed properly.

¡Undisplayable characters and symbols will be converted into an asterisk (

*

).

¡It is recommended that the length of the file name is less than 8 (excluding the file extension).

Caution

¡ Put only “.mp3” files on an MP3-formatted disc.

Put only “.DIVX”, “.divx”, “.AVI” and “.avi” files on an DivX-formatted disc. Otherwise, abnormal sound may be produced during play which can damage the speaker and your hearing.

Downloaded from Caradio-Manual.com Manuals

22

CQ-VX100W

¡ It is recommended not to use a disc holding two or more

different format types of files.

¡ If CD-DA files are on the same disc as MP3 or DivX files,

the songs and the movies may not play in the intended order, or some songs or movies may not play at all.

¡ When storing MP3 data and DivX data on the same disc,

use different folders for each data.

¡ Do not record files other than MP3/DivX files and unnecessary folder on a disc.

¡ The name of an MP3/DivX file should be added by rules as shown in the following descriptions and also comply with the rules of each file system.

¡ The file extension “.mp3” should be assigned to MP3 files.

¡ The file extension “.DIVX”, “.divx”, “.AVI” or “.avi” should be assigned to DivX files.

¡ You may encounter trouble in playing MP3/DivX files or displaying the information of MP3/DivX files recorded with certain writing software or CD/DVD recorders.

¡ This unit does not have a play list function.

¡ Although Multi-session recording is supported, the use of

Disc-at-Once is recommended.

Supported file systems

ISO 9660 Level 1/Level 2, Apple Extension to ISO 9660, Joliet,

Romeo

Note:

¡ Apple HFS, UDF 1.50, Mix CD and CD Extra are not supported.

22

Audio compression formats

( Recommendation: “Points to remember when making MP3/DivX files” on the previous page)

Compression method

MPEG 1 audio layer 3 (MP3)

MPEG 2 audio layer 3 (MP3)

DivX data created using ver.3.11, 4.x, 5.x*

Bit rate

32 k – 320 kbps

8 k – 160 kbps

8 k – 320 kbps

VBR

Yes

Yes

Yes

Sampling frequency

32, 44.1, 48 kHz

16, 22.05, 24 kHz

8 k – 48 kHz

* DivX video system/MP2, MP3

Note:

¡ VBR is not recommended.

Folder selection order/file playback order

Maximum number of files/folders

¡

Maximum number of files: 999

¡ Maximum number of files in one folder: 999

¡ Maximum depth of trees: 8

¡ Maximum number of folders: 255 (Root folder is included.)

Note:

¡

You can shorten the duration between data read and playback by decreasing the quantity of files or folders, or the depth of the hierarchy.

¡ This unit counts the number of folders irrespective of the presence or absence of an MP3/DivX file.

¡ If the selected folder does not contain any MP3/DivX files, the nearest MP3/DivX files in the order of playback will be played.

¡ Playback order may be different from other MP3/DivX players even if the same disc is used.

¡ “ROOT” appears when displaying the root folder name.

1

2

4

5

6

Root Folder

(Root Directory)

3 q

8 e

Tree 1

Tree 2

7 w

Folder Selection

In the order

1 – 8

File Selection

In the order q

– y r

Tree 3

t y

Tree 4 Tree 8

(Max.)

Copyright

It is prohibited by copyright laws to copy, distribute and deliver copyrighted materials such as music without the approval of copyright holder except enjoying yourself personally.

Downloaded from Caradio-Manual.com Manuals

No warranty

The above description complies with our investigations as of

December 2007. It has no warranty for reproducibility and displayability of MP3/DivX.

CQ-VX100W

23

23

Radio

Source Selection

q Touch “Source Button”.

d

Frequency w Touch

(Radio) on the

Source Selection

Screen.

Band selection

Tuning

*List selection

Preset stations

Auto presetting

Press [SOURCE] to change to the desired mode.

Source Button

DIMMER

Each indicator

/

All

TILT CLOSE

IN-DASH 7" WIDESCREEN COLOR LCD MONITOR / DVD RECEIVER

DIMMER DIM

CQ-VX100W

CQ-VD5005W

TILT OPEN

TEXT

AV1 IN

VOL

PUSH

SEL

MUTE MAP

POWER TUNE/TRACK

[SOURCE]

[

s ] [d]

* Appears only when

Setup e

Radio e

All

FM Setup is selected. ( a page 35) e

Auto Preset e

Each

/

All

Tuning

Operations

Band Selection

Each

FM 1

DVD

RADIO

VTR

CH-C

END

FM 2

All

FM

FM 3 AM

AM

List Selection

Refer to the next page.

Preparation:

Select .

Setup e

Radio e

FM Setup e

Auto Preset e

Each

/

All

FM 1 (list 1)

FM 2 (list 2) FM 3 (list 3)

Station

Selection

There are 6 stations in each list. You can call up next 6 stations by switching from one list to another.

[d]

Up

[s]

Down

Seek Tuning

[d]

Up

[s]

Down

Touch/press and hold for more than 0.5 second then release. Seeking starts.

…… Touch/press and hold

Downloaded from Caradio-Manual.com Manuals

24

CQ-VX100W

Preset Memory

Manual Preset Memory

Select a band and frequency.

Up to 6 stations can be preset in each band. to

– blinks once

Auto Preset Memory

¡Touch and hold for more than 2 seconds.

¡The frequency blinks once, and a receiving station is saved in the memory.

New stations overwrite existing saved stations.

Preparation:

Select .

Setup e

Radio e

FM Setup e

Auto Preset e

Each

Each

)

/

All

A

Each

Six stations are automatically preset in each band.

Select a band.

6 stations with first to 6th highest in signal strength of each band will be preset.

¡Touch and hold for more than 2 seconds.

¡Once set, the preset stations are sequentially scanned for 5 seconds each. (scanning)

New stations overwrite existing saved stations.

24

B

All

In total 18 FM stations are automatically preset.

Preparation:

Select .

Setup e

Radio e

FM Setup e

Auto Preset e

Each

/

All

18 stations with first to 18th highest in signal strength of all FMs will be preset at once.

Preset Station Calling

¡Touch and hold for more than 2 seconds.

¡Once set, the preset stations are sequentially scanned for 5 seconds each. (scanning)

New stations overwrite existing saved stations.

Select a band or a list.

to

Preset Swap

A station preset is interchangeable with another station preset.

¡Touch desired preset button.

Preparation:

Select .

Setup e

Radio e

FM Setup e

Auto Preset e

Each

/

All

q Select the list and the preset number that contains the station to be interchanged

(see “Preset station calling” above).

w Select the list and hold down the preset number that contains the targeted channel for more than 2 seconds.

to

The preset station selected in the step q is interchanged with the targeted preset channel selected in the step w (Preset Swap).

…… Touch and hold

Downloaded from Caradio-Manual.com Manuals

CQ-VX100W

25

AV1/AV2

25

Preparation:

¡Connect an optional external device to the AV1/AV2.

Source Selection

You can view the images and listen to the sounds from the connected external devices in the AV1/AV2 mode respectively.

q Touch “Source Button”.

d w Touch /

(AV1/AV2) on the

Source Selection

Screen.

Press [SOURCE] to change to the desired mode.

To switch Operation Screen ON, touch the center of touch panel.

Note:

¡You can set up the system so that the AV mode is not selected (source skip). (

Input a page 31)

¡If no operation is performed for 10 seconds or is touched, the operation buttons disappear.

¡Only the pin jack of the supplied Conversion Cable for

AV 1 IN or a pin jack that has the same electrode arrangement can be connected to the AV 1 IN terminal.

(See Fig. 1.)

¡Use of the supplied Conversion Cable for AV 1 IN or an audio pin jack that has the same electrode arrangement also allows users to enjoy only music. In this case, the screen background becomes black.

Source Button

DIMMER

IN-DASH 7" WIDESCREEN COLOR LCD MONITOR / DVD RECEIVER

TILT CLOSE

DIMMER DIM

CQ-VX100W

CQ-VD5005W

TILT OPEN

TEXT

AV1 IN

VOL

MUTE MAP

POWER

TUNE/TRACK

[SOURCE] AV1 IN

<Fig. 1>

Audio (L)

Audio (R)

Video

Ground

Downloaded from Caradio-Manual.com Manuals

26

CQ-VX100W

26

Downloaded from Caradio-Manual.com Manuals

CQ-VX100W

27

Settings

27

Basic Setting

Clock

ID-Code

Input

Memory Clear

Other

Screen

Dimmer

Display

Aspect

Sound

SQ3

Bass/Treble

Balance/Fader

Disc

Audio Language

Subtitle Language

Menu Language

Video Setting

Audio Setting

DivX Registration

Radio

FM Setup

Basic Setting

Clock setting

ID Code Setting

Input Selection

Memory clearance

Other settings

Screen

Adjusting the brightness

Display appearance

Display aspect setting

Sound

SQ3 setting

Bass/treble adjustment

Balance/fader adjustment

Disc

DVD Audio Language Setting

DVD Subtitle Language Setting

DVD Menu Language Setting

DVD Video Setting

DVD Audio Setting

DivX Registration

Radio

Setting for FM stations

( a page 30)

( a page 30)

( a page 31)

( a page 31)

( a page 31)

( a page 32)

( a page 32)

( a page 32)

( a page 33)

( a page 33)

( a page 33)

( a page 34)

( a page 34)

( a page 34)

( a page 34)

( a page 35)

( a page 35)

( a page 35)

Downloaded from Caradio-Manual.com Manuals

28

CQ-VX100W

Setup Operation

(Example: DVD mode)

q w

28

Touch in Operation Screen.

e

(Example: setting screen of

Input a

page 31)

Touch desired setting.

Determines the setting and goes back to the previous menu out of the menu.

Determines the setting and gets out of the menu

Note :

¡ The display returns to the previous status if there is no operation for more than 60 seconds after changing to the setting menu.

¡ The item may not be temporarily selected depending on the current disc type or the state of this unit. In such a case, change the source to another one and try to set up the item again.

DIMMER DIM

CQ-VX100W

CQ-VD5005W

TILT OPEN

TEXT

[DIM] (DIMMER)

(The screen brightness is toggled between the set level and maximum luminance.)

VOL

PUSH

SEL

POWER

TUNE/TRACK

AV1 IN

DIMMER

IN-DASH 7" WIDESCREEN COLOR LCD MONITOR / DVD RECEIVER

TILT CLOSE

MUTE MAP

[SOURCE]

(Exit from the menu)

[VOL]

(PUSH SEL)

DIMMER

DIM

CQ-VX100W

CQ-VD5005W

TILT OPEN

TEXT

AV1 IN

VOL

PUSH SEL MUTE MAP

POWER

SOURCE

TUNE/TRACK

Downloaded from Caradio-Manual.com Manuals

CQ-VX100W

29

Settings

(continued)

Basic Setting

Screen Sound Disc Radio

29

Clock

Clock setting

Display

(Clock display)

On

Off

: clock display ON (“– –:– –” is displayed before adjusting the clock.)

: clock display OFF default:

Off

Adjust

}

{

(Clock adjustment)

: Forward

: Backward

Note:

¡To start the clock, touch/press

[SOURCE]

.

¡Set the Daylight Saving Time manually.

/ / default: Hour Adjust: 0

Minute Adjust: 0

ID-Code

ID Code Setting

Prior to operating this unit, it is advisable to assign a 4digit ID code for security. Once the ID code has been set, the unit cannot be operated if the main power supply is disconnected then re-connected. It is electronically locked so that a thief cannot use the stolen unit unless that person knows the code you have set.

The ID code operation must be performed only by the person to whom the unit belongs.

Generally, it is not necessary to enter the ID code each time when using the unit if it has not been disconnected from the main power supply (car battery).

0

to

9

4 digits numeric code default: none

How to set your ID code (for the first time)

q Enter an 4 digit ID code.

w Enter the same 4 digit ID code again.

How to change your ID code

q Enter the preset (old) 4 digit ID code. If the wrong ID code is entered, a new ID code cannot be registered.

w Enter a new 4 digit ID code.

e Enter the new 4 digit ID code again.

How to cancel the known ID code

q Enter the preset (old) 4 digit ID code. If the wrong ID code is entered, it is not possible to cancel the ID code function.

w Touch and hold until “Completed!” is displayed.

The ID code cancelling procedure is completed. The unit now works without an ID code.

Note:

¡Should your unit ever require service, cancel your ID code before sending for repair.

¡The ID code setting cannot be eliminated even by the memory clear function.

¡The inputted code is not displayed for your security.

Caution

¡Record your registered ID code and keep it in a

secure location. (Fill in the ID code memo

(

a

page 40).) If you forget it, you will be unable to use the unit. In case you forget the ID code, please consult your nearest Panasonic Service

Center.

Downloaded from Caradio-Manual.com Manuals

30

CQ-VX100W

Input

Input selection

Note:

¡If a non-Panasonic navigation system is connected to this unit, we do not guarantee the operations of the navigation system.

AV1

Skip

AV1

(AV1 input selection)

: an external device is connected to AV1.

: skips AV1.

default:

AV1

AV2

AV2

NAV1-3

Skip

(AV2 input selection)

: an external device is connected to AV2.

: Select one from among NAV1, NAV2, and

NAV3 with which images are displayed most beautifully when a non-Panasonic car navigation system is connected.

: skips AV2.

default:

AV2

CH-C Video Input

RGB Input

RGB1/2

( a System Upgrade Guidebook)

(RGB input selection)

: Select one between RGB1 and RGB2 with which images are displayed most regularly when a car navigation system is connected via RGB connector.

default:

RGB1

Ext. In

( a System Upgrade Guidebook)

Memory Clear

Memory clearance

The state of all of the current memories are returned to default settings.

Note:

¡The ID code is not deleted by executing memory clear.

: clears the memory to default settings

Yes

No : no memory clear.

The display returns to the previous one.

Really?

Yes appears when is selected.

OK

Cancel

: proceed.

: no memory clear.

Caution

¡Be aware that this setting restores the unit to default settings, so that all the memories and settings that you have set will be eliminated.

Other

Other settings

ACC Select

On

(Setting ACC selection ON and

OFF)

: sets to ON if your car has ACC position.

Off

: sets to OFF if your car has no ACC position.

default:

On

Note:

¡For an ACC-equipped car, select ON. The following functions are available.

¡ The power is turned on automatically when inserting

¡ a disc or magazine.

Off selection disables turning on the power of the main unit through the remote control.

Caution

¡Be sure to select off when your car has no ACC

position in the ignition switch. Failure to do this could cause the battery to go dead.

Security Alarm

(Security Alarm)

On

Off

: activates the security alarm.

( a page 11)

: inactivates the security alarm.

default:

On

30

Downloaded from Caradio-Manual.com Manuals

CQ-VX100W

31

Settings

(continued)

31

Basic Setting

Screen

touching

Screen

( a page 12)

Sound Disc Radio

(Display)

Note:

¡The screen setting screen can be also activated by when the button is displayed.

Dimmer

Adjusting the brightness

1 2 3

Darker Brighter default:

1

Note:

¡When [DIM] is pressed, the screen brightness is toggled between the set level that is adjusted by the procedure above and the maximum luminance.

Aspect

Display aspect setting

Normal

Full

¡The conventional display image has a 4 to 3 ratio of horizontal to vertical.

¡In this case, a blank area remains on the right and left sides of the display.

¡The screen is extended horizontally as a whole to the aspect ratio of 16 to 9.

¡The extension ratio is the same at any point of the screen.

Zoom

¡The screen is fully extended at the normal aspect ratio of 4 to 3.

¡The top and bottom of the screen are slightly cut.

Display

Display appearance

Contrast

(Adjust the image contrast)

]

: decreases the contrast between black and white.

[

: increases the contrast between black and white.

Bright

]

: darkens.

[

: lightens.

(Adjust the image brightness)

Color

(Adjust the image color depth)

]

: lightens the depth of color on the display.

[

: deepens the depth of color on the display.

Just

¡The screen is extended horizontally to the aspect ratio of 16 to 9.

¡The extension ratio increases toward the right and left ends of the screen.

default:

Normal

Note:

¡The aspect setting screen can be also activated by touching

Aspect

( a page 12) when the button is displayed.

¡This adjustment is common to video mode.

¡You cannot change the aspect in the menu screen and a screen in the CD, MP3 and radio mode. These are fixed to “Full”.

¡When the rear view camera is in operation with the transmission gear shift in the reverse position, the image is shown on the “Full” screen only.

¡In some cases, the picture looks different from the original one due to your selection of aspect.

Tint

(Adjust the image tone or tint)

]

: emphasizes green in the color image.

[

: emphasizes red in the color image.

Note:

¡When the video signal is PAL/SECAM format, adjustment cannot be performed.

Setting range: –15 to +15 default: ±0

Downloaded from Caradio-Manual.com Manuals

32

CQ-VX100W

Caution

¡This is to remind you that compression or extension of the screen using the aspect ratio (screen mode) changing function of this product for commercial purpose of profit making or viewing/listening by the public could infringe on the rights of the author protected by the copyright law.

¡If you expand normal picture (4 to 3) by using

“Just”, “Zoom” or “Full” aspect to the full of the screen, you might not see the periphery of the picture, or you might see a distorted picture.

Therefore, use the “Normal” mode to see the original picture as the author intended it.

Basic Setting Screen

Sound

Disc Radio

Note:

¡The sound setting screen can be also activated by touching

Sound when the button is displayed. ( a page 12)

SQ3

SQ3 setting

Six SQ presets are already provided at shipment in this unit.

Flat

: flat frequency response

Pop

Jazz

: wide-ranged and deep sound

Rock

: speedy and heavy sound

: jazz-specific deep sound

Club

: club and disco-specific sound

Vocal

: clear sound default:

Flat

You may set your own SQ or modify factory presettings in each memories by following the instructions below:

Adjusting level of each preset

q Select the preset SQ that you prefer to adjust.

w Touch or to select a frequency in a frequency band (BASS/MID/TRE).

e Touch or to adjust each frequency.

Adjustable range: –12 dB to +12 dB

Adjustable frequency:

BASS; 60 Hz, 80 Hz, 100 Hz, 200 Hz

MID; 500 Hz, 1 kHz, 2 kHz, 3 kHz

TRE; 10 kHz, 12 kHz, 15 kHz, 18 kHz

Note:

¡The new level adjustment will overwrite the previous level adjustment.

¡For resuming the factory settings, touch and hold

Default for more than 2 seconds.

Bass/Treble

Bass/treble adjustment

Bass

(Bass adjustment)

[

: more

]

: less

Treble

(Treble adjustment)

[

: more

]

: less

Setting range: –12 dB to +12 dB default: 0 dB

Downloaded from Caradio-Manual.com Manuals

Balance/Fader

Balance/fader adjustment

Balance

[

: right enhanced

]

: left enhanced

(Sound level adjustment between right and left speakers)

Fader

[

: front enhanced

]

: rear enhanced

Setting range: Right 15 to Left 15 default:

0

(Sound level adjustment between front and rear speakers)

Setting range: Front 15 to Rear 15 default:

0

Audio setting with [VOL] (PUSH

SEL) on the main unit

Audio settings of

Fader

Bass

,

Treble

,

Balance and can be performed with [VOL] (PUSH SEL) on the main unit. q Press [VOL] (PUSH SEL) to select a setting item.

(Regular mode) d

Bass

d

Treble

d

Balance

d

Fader

w Rotate [VOL] to make an adjustment.

CQ-VX100W

32

33

Settings

(continued)

33

Basic Setting Screen Sound

Disc

Radio

Audio Language

DVD audio language setting

Note:

¡These adjustments being executed, playback will start from the beginning of a disc.

English

Français

Other

: English

: Chinese

: French

: other language. Input the language code.

( a page 43) default:

English

Subtitle Language

DVD subtitle language setting

Note:

¡A disc supporting closed captioning and subtitles may overlap each other on the screen. In this case, turn the subtitle off.

English

Français

Other

: English

: Chinese

: French

: other language. Input the language code.

( a page 43) default:

English

Menu Language

DVD menu language setting

English

Français

Other

: English

: Chinese

: French

: other language. Input the language code.

( a page 43) default:

English

Video Setting

Display aspect and DVD software mode

DVD Aspect

(Display aspect setting)

Narrow

Wide

: plays a video in 4:3 screen.

: plays a video in wide screen (16:9).

default:

Wide

Letter Box

(DVD software mode)

Pan & Scan

Letter Box

: plays wide-screen video in Pan & Scan mode (in which the left and right edges of the screen are cut off).

: plays wide-screen video in letterbox mode (in which black bands appear at the top and bottom of the screen).

default:

Pan & Scan

Note:

¡This function is available only when

DVD Aspect is set

¡Set the software setting according to the symbol used on jacket. ( a page 16)

¡DVD software mode setting is ignored if

Pan & Scan or

Letter Box is already set in the software.

¡Screen aspect of the display unit is changed according to the aspect ratio setting ( a page 32) and DVD software’s aspect.

TV Type

PAL

NTSC

(VIDEO OUT terminal setting)

: sets PAL in accordance with the equipment connected to VIDEO OUT.

: sets NTSC in accordance with the equipment connected to VIDEO OUT.

default:

PAL

Angle Mark

(Angle mark setting)

The angle mark is displayed to indicate the parts where multi-angle data is recorded.

On

Off

: activates angle mark.

: inactivates angle mark.

default:

On

Downloaded from Caradio-Manual.com Manuals

34

CQ-VX100W

Audio Setting

Audio setting at DVD playing

Down Mix

(Down mix setting)

Lt/Rt

Lo/Ro

: surround element decodable down mix

(Lt = Left total, Rt = Right total)

: simple stereo down mix

(Lo = Left only, Ro = Right only)

Note:

¡This function is available only when “Dolby Digital” source is playing.

default:

Lt/Rt

DR COMP

STD

MIN

Off

(Dynamic Range Compression setting)

: DR COMP ON

: made with the greatest compression, roughly equivalent to a TV broadcast.

: DR COMP OFF

Note:

¡This function is available only when “Dolby Digital” source is playing.

default:

Off

DivX Registration

Show the DivX Registration Code ( a page 36)

Basic Setting Screen Sound Disc

Radio

FM Setup

Setting for FM stations

Auto Preset

(Auto preset setting)

Each

All

: saves the preset stations in each band.

: saves the preset stations in all FM lists regardless of band.

default:

Each

34

Downloaded from Caradio-Manual.com Manuals

CQ-VX100W

35

About DivX VOD Content

35

DivX Video-on-Demand (VOD) content is encrypted for copyright protection. In order to play DivX VOD content on this unit, you first need to register the unit.

Follow the on line instructions for purchasing DivX VOD content to enter the unit’s registration code and register the unit. For more information about DivX VOD, visit www.divx.com/vod.

Display the unit’s registration code

q Touch .

8 alphanumeric characters

Note:

¡We recommend that you make a note of this code for future reference.

¡After playing DivX VOD content for the first time, another registration code is then displayed in “DivX

Registration”. Do not use this registration code to purchase DivX VOD content. If you use this code to purchase DivX VOD content, and then play the content on this unit, you will no longer be able to play any content that you purchased using the previous code.

¡If you purchase DivX VOD content using a registration code different from this unit’s code, you will not be able to play this content. (“Authorization Error” is displayed.)

Regarding DivX content that can only be played a set number of times

Some DivX VOD content can only be played a set number of times. When you play this content, the remaining number of plays is displayed. You cannot play this content when the number of remaining plays is zero.

(“Rental Expired” is displayed.)

When playing this content

¡The number of remaining plays is reduced by one if

- you press [SOURCE].

- you press [s] / [d] (a / f) etc. and arrive at another content or the start of the content being played.

Downloaded from Caradio-Manual.com Manuals

36

CQ-VX100W

Troubleshooting

If You Suspect Something Wrong

Check and take steps as described below.

If the described suggestions do not solve the problem, it is recommended to take the unit to your nearest authorized Panasonic

Service Center. The product should be serviced only by qualified personnel. Please refer checking and repair to professionals.

Panasonic shall not be liable for any accidents arising out of neglect of checking the unit or your own repair after your checking.

Never take measures especially those other than indicated by

italic letters in “Possible Solution” described below because those are too dangerous for users to handle themselves.

Common

Problem

No power to the unit

Sound is not generated.

Noise

Noise is made in step with engine revolutions.

Warning

¡Do not use the unit in an irregular condition, for example, without sound, or with smoke or a foul smell, which can cause ignition or electric shock. Immediately stop using the unit and consult your dealer.

¡Never try to repair the unit by yourself because it is dangerous to do so.

Possible cause a

Possible solution

The power cord (battery, power and ground) is connected in the wrong way.

a

Check the wiring.

Fuse blows out.

a

Eliminate the cause of fuse blowout and replace the fuse with new one.

Consult your dealer.

MUTE is set to ON.

a

Set MUTE to OFF.

The wiring of speaker lines is not correct, or a break or poor contact arises.

a

Check the wiring in accordance with the wiring diagram. (Installation

Instructions)

There is an electromagnetic-wave generator such as a cellular phone near the unit or its electrical lines.

a

Keep the electromagnetic-wave generator such as a cellular phone away from the unit and the wiring of the unit. In case noise cannot be eliminated due to the wiring harness of the car, consult your dealer.

The contact of the ground lead is poor.

a

Make sure that the ground lead is connected to an unpainted part of the chassis securely.

Alternator noise comes from the car.

a

Change the wiring position of the ground lead.

a

Mount a noise filter.

36

Some operations are not executable.

Some operations are not executable in particular modes such as menu mode.

a

Read the operating instructions carefully and cancel the mode. If the unit is still out of order, consult your dealer.

There is a break, a short circuit, poor contact or wrong wiring regarding the speaker wiring.

a

Check the speaker wiring.

No sound from speaker(s)

The speaker channels are reversed between right and left.

The power of the unit fails unintentionally.

The speaker wiring is reversed between right and left.

a

Perform the speaker wiring in accordance with the wiring diagram.

The safety device works.

a

Consult your dealer, or your nearest Panasonic Service Center.

Downloaded from Caradio-Manual.com Manuals

CQ-VX100W

37

37

Troubleshooting

(continued)

Common (continued)

Output disabled/distorted video/audio.

The conversion cable for AV 1 IN supplied with this unit is not used for the terminal of AV1 IN.

a

Use the conversion cable for AV 1 IN supplied with this unit for the connection.

Display Settings

The picture is dark. The picture is whitish. Something is wrong with the picture.

The picture is light in color.

The display does not go back into the unit.

Radio

The screen is not adjusted properly.

a

Make every adjustment of the screen.

The monitor stops on the way to the home position.

a

Press [OPEN].

Poor reception or noise

Antenna installation or wiring of antenna cable is faulty.

a

Check whether the antenna mounting position and its wiring are correct. In addition, check to see whether the antenna ground is securely connected to the chassis.

No power is supplied to the antenna amplifier (when using a film antenna, etc.).

a

Check the wiring of the antenna power lead.

The number of receivable stations is less than 6.

a

Move to an area where receivable stations number is maximum, and try presetting.

The number of auto preset stations is less than 6.

Preset stations cannot be stored.

The contact of the battery lead is poor, or the battery lead is not always powered.

a

Make sure that the battery lead is connected securely, and preset stations again.

CD

No playback or disc ejected

Sound skipping or noise

Sound skipping due to vibration

The disc is inserted upside down.

a

Insert a disc correctly.

There is a flaw or foreign object on the disc.

a

Remove the foreign object, or use a flawless disc.

There is a flaw or foreign object on the disc.

a

Remove the foreign object, or use a flawless disc.

The unit is not sufficiently secured.

a

Secure the unit to the console box.

The unit is tilted at over 30˚ in the front-to-end direction.

a

Make the angle 30˚ or less.

Disc unejectable

Something such as a peeled label obstructs the disc coming out.

a

Press and hold the [

u

] for more than 10 seconds (disc forced ejection). In case that the disc forced ejection does not work, consult your dealer.

The microcontroller in the unit operates abnormally due to noise or other factors.

a

Unplug the power cord and plug it again. In case the unit is still out of order,

consult your dealer.

Downloaded from Caradio-Manual.com Manuals

38

CQ-VX100W

MP3/DivX

No playback or disc ejected

The CD-Rs/RWs/DVD-

Rs/RWs that are playable on other devices are not playable on this unit.

Sound skipping or noise

The disc has unplayable formatted data.

a

Refer to the description about MP3/DivX for playable formats.

The playability of some CD-Rs/RWs/DVD-Rs/RWs may depend on the combination of media, recording software and recorder to be used even if these CD-

Rs/RWs/DVD-Rs/RWs are playable on other devices such as a PC.

a

Make CD-Rs/RWs/DVD-Rs/RWs in a different combination of media, recording software and recorder after referring to the description about MP3/DivX.

There is a flaw or foreign objects on the disc.

a

Remove the foreign objects, or use a flawless disc. For MP3/DivX, refer to the description about MP3/DivX.

Playing VBR (Variable Bit Rate) files may cause sound skipping.

a

Play Non-VBR files.

The picture stops.

The picture may stop if the DivX files are greater than 2 GB.

a

Keep the file size under 2 GB.

Note:

¡Refer to “Notes on MP3/DivX”. ( a page 22)

DVD

Cannot switch the audio language/subtitle language/angle.

¡It is not possible to switch if the disc does not have multiple audio languages/subtitle languages/angles recorded on it. (Refer to the guide provided with your disc.)

¡Some discs permit switching through a menu screen.

¡Sometimes, switching angles is possible only with certain scenes.

The audio/subtitle language selected in the

DVD settings is not used.

If audio or subtitles in that language are not recorded on the disc, the audio or subtitles do not switch to that language. (Some discs permit switching through a menu screen. Refer to the guide provided with your disc.)

A DVD–R or DVD–RW is not playable.

The disc is still unfinalized.

a

Finalize the disc.

Refer to “Before Disc Playback” (

a

page 16) or “Notes on Discs”

(

a

page 42) for other cases.

The disc is in the video recording (VR) format.

a

Play video formatted discs.

Refer to “Before Disc Playback” (

a

page 16) or “Notes on Discs”

(

a

page 42) for other cases.

Sound is not generated.

The audio format is output disabled for this unit such as dts.

a

Use output enabled discs.

Refer to “Before Disc Playback” (

a

page 16) or “Notes on Discs”

(

a

page 42) for other cases.

38

Downloaded from Caradio-Manual.com Manuals

CQ-VX100W

39

39

Troubleshooting

(continued)

Error Display Messages

CD/MP3/DivX/DVD/VCD (Video CD)

Display

Possible cause a

Possible solution

Non Playable Disc

Disc is dirty, or is upside down.

a

Check disc.

Disc has scratches.

a

Check disc.

Mechanism error

File error

No Disc

Region Code error

No operation by some cause.

a

Press [

u

]. If failure persists, press the reset switch. If normal operation is not restored, call the store where you purchased the unit or the nearest Panasonic

Service Center.

The type of the file that is selected is not supported.

a

Check disc.

No disc is in the player.

a

Insert disc into the disc slot.

The region code of the disc to be used is not compatible with this unit. a

Press [

u

] and check the disc.

You are trying to play the DivX VOD content that was purchased with a different registration code.

a

Purchase the DivX VOD content with the registration code of this unit.

(

a

page 36)

The DivX VOD content has no available play count.

a

Purchase again the content or play another content. (

a

page 36)

Note:

¡There may be cases when the disc numbers affected by an error are displayed before “Non Playable Disc”.

In case you forget the ID code...

In case you forget the ID code, please consult your nearest Panasonic Service Center.

ID code memo

Copy the memo at right, fill in the ID code, and keep it in a secure location.

Model No. CQ-VX100W

ID CODE

Downloaded from Caradio-Manual.com Manuals

40

CQ-VX100W

Product Servicing

If the suggestions in the charts do not solve the problem, we recommend that you take it to your nearest authorized

Panasonic Service Center. The product should be serviced only by a qualified technician.

Replacing the Fuse

Use fuses of the same specified rating (15 A). Using different substitutes or fuses with higher rating, or connecting the product directly without a fuse, could cause fire or damage to this unit.

If the replacement fuse fails, contact your nearest

Panasonic Service Center for service.

If the Unit Begins to

Malfunction...

Reset switch

Remove the face plate ( a page 11) and insert a hard, slender stick into the hole and push the switch.

Important

Push the switch only when the unit fails to operate with any buttons. (Stored settings and adjustments are not cleared.)

If the unit fails to return to normal condition, call the nearest Panasonic Service Center and ask for repairs.

TILT OPEN

CQ-VX100W

40

AV1 IN

Reset switch

Note:

¡If the ID-CODE has been already set, you will be asked to enter the ID-CODE right after the unit is restarted.

Maintenance

Cleaning this Unit

Your product is designed and manufactured to ensure a minimum of maintenance. Use a dry soft cloth for routine exterior cleaning. Never use benzine, thinner or other solvents.

To remove stubborn stains

1

Moisten the soft cloth in dishwashing soap diluted with water and wring well.

2

Wipe lightly. Go over the same surface with a dry cloth.

Note:

¡Since there is the possibility of water drops getting inside of the unit, do not directly apply cleanser to the surface.

¡Do not scratch the screen with your nails or other hard objects. The resulting scratches or marks will obscure the images.

Caution

¡If water drops or similar wet substances get inside the monitor, it may cause a malfunction.

Downloaded from Caradio-Manual.com Manuals

CQ-VX100W

41

41

Notes on Discs

How to hold the disc

¡Do not touch the underside of the disc.

¡Do not scratch the disc.

¡Do not bend disc.

¡When not in use, keep disc in the case.

Printed side

Do not use discs that fit any of the descriptions given below. Using these discs may damage the discs or cause the unit to malfunction.

¡Special discs in a shape which is not round

¡Partly or wholly transparent disc

Wholly transparent disc* Partly transparent disc

*Wholly semi-transparent disc may not be played back.

¡Discs with adhered labels, etc. on them

Disc insert

The surfaces of new discs tend to be slippery. Therefore, when using such a disc for the first time, it may not load satisfactorily even when it has been inserted into the unit. At a time like this, insert the disc into the unit as far as it will go until it is loaded properly.

¡When inserting a disc into or ejecting and removing

it from the unit, insert it straight in or eject and remove it straight out in parallel with the unit.

Otherwise, the disc may be scratched or marked in the process.

¡When inserting a disc, do not put one disc on anoth-

er. Failure to observe this may cause the discs to be jammed.

Do not leave discs in the following places:

¡Direct sunlight

¡Near car heaters

¡Dirty, dusty and damp areas

¡On seats and dashboards

Disc cleaning

Use a dry, soft cloth to wipe from the center outward.

Do not attach any seals or labels to your discs.

Do not write on the disc label in a heavy pen or ballpoint pen.

Disc with adhered stickers or tape

Labels created by a printer

Protective films or sheets Disc accessories (stabilizers, etc.)

¡Damaged or deformed discs

Shoddily made discs

Discs with burrs

Please remove the burrs before use.

Discs with cracks, scratches or parts missing

<Correct> <Wrong>

Notes on CD-Rs/RWs,

DVD–Rs/RWs

¡You may have trouble playing back some CD-R/RW,

DVD–R/RW discs recorded on CD/DVD recorders (CD-

R/RW, DVD–R/RW drives), either due to their recording characteristics or dirt, fingerprints, scratches, etc.

on the disc surface.

¡CD-R/RW, DVD–R/RW discs are less resistant to high temperatures and high humidity than ordinary music

CDs. Leaving them inside a car for extended periods may damage and make playback impossible.

¡The unit may not successfully playback a CD-R/RW,

DVD–R/RW that was made by the combination of writing software, a CD/DVD recorder (CD-R/RW,

DVD–R/RW drives) and a disc if they are incompatible with one another.

¡This player does not play CD-R/RW, DVD–R/RW discs if the session is not closed.

¡Be sure to observe the handling instructions of CD-

R/RW, DVD–R/RW discs.

¡This player does not play CD-R/RW, DVD-R/RW discs which contain other than CD-DA or MP3/DivX data.

Downloaded from Caradio-Manual.com Manuals

42

CQ-VX100W

Language Code List

In “Other” cases...

(

a

page 34)

Input the four digit language code pressing the buttons to .

Note:

¡Setting is finished and the display returns to the main menu.

¡For retrying selection during number entry, touch .

DVD language menu ( a page 34)

Code Language Name

6565 Afar

6566 Abkhazian

6570 Afrikaans

6577 Ameharic

6582 Arabic

6583 Assamese

6589 Aymara

6590 Azerbaijani

6665 Bashkir

6669 Byelorussian

6671 Bulgarian

6672 Bihari

6678 Bengali; Bangla

6679 Tibetan

6682 Breton

6765 Catalan

6779 Corsican

6783 Czech

6789 Welsh

6865 Danish

6869 German

6890 Bhutani

6976 Greek

6978 English

6979 Esperanto

6983 Spanish

6984 Estonian

6985 Basque

7065 Persian

7073 Finnish

7074 Fiji

7079 Faroese

7082 French

7089 Frisian

7165 Irish

7168 Scots Gaelic

7176 Galician

7178 Guarani

7185 Gujarati

7265 Hausa

7273 Hindi

7282 Croatian

7285 Hungarian

Code Language Name

7289 Armenian

7365 Interlingua

7378 Indonesian

7383 Icelandic

7384 Italian

7387 Hebrew

7465 Japanese

7473 Yiddish

7487 Javanese

7565 Georgian

7575 Kazakh

7576 Greenlandic

7577 Cambodian

7578 Kannada

7579 Korean

7583 Kashmiri

7585 Kurdish

7589 Kirghiz

7665 Latin

7678 Lingala

7679 Laothian

7684 Lithuanian

7686 Latvian, Lettish

7771 Malagasy

7773 Maori

7775 Macedonian

7776 Malayalam

7778 Mongolian

7779 Moldavian

7782 Marathi

7783 Malay

7784 Maltese

7789 Burmese

7865 Nauru

7869 Nepali

7876 Dutch

7879 Norwegian

7982 Oriya

8065 Panjabi

8076 Polish

8083 Pashto, Pushto

8084 Portuguese

8185 Quechua

Code Language Name

8277 Rhaeto-Romance

8279 Romanian

8285 Russian

8365 Sanskrit

8368 Sindhi

8372 Serbo-Croatian

8373 Singhalese

8375 Slovak

8376 Slovenian

8377 Samoan

8378 Shona

8379 Somali

8381 Albanian

8382 Serbian

8385 Sundanese

8386 Swedish

8387 Swahili

8465 Tamil

8469 Telugu

8471 Tajik

8472 Thai

8473 Tigrinya

8475 Turkmen

8476 Tagalog

8479 Tonga

8482 Turkish

8484 Tatar

8487 Twi

8575 Ukrainian

8582 Urdu

8590 Uzbek

8673 Vietnamese

8679 Volapük

8779 Wolof

8872 Xhosa

8979 Yoruba

9072 Chinese

9085 Zulu

42

Downloaded from Caradio-Manual.com Manuals

CQ-VX100W

43

43

Definition of Terms

Dolby Digital

This fully discrete format divides the music signals into 5.1 channels: Front Left (L), Front Right (R),

Centre (C), Left Surround (LS), Right Surround (RS) and Subwoofer (SW: 0.1 channel) for recording and playback. The number of channels that are recorded depends on the software. (1 to 5.1 channels)

Manufactured under license from Dolby

Laboratories.

“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

Confidential unpublished works. Copyright

1992–1997 Dolby Laboratories. All rights reserved.

Interactive DVD

An interactive DVD is DVD software which includes multiple angles, multiple plot endings, etc.

Letterbox screen

This refers to a screen on which the playback picture of wide-screen DVDs or VCD (Video CD)s appears with black bands running along the top and bottom.

Playback control (VCD (Video CD))

If the VCD (Video CD) has “With Playback Control” or others written on the disc surface or on the jacket, the scenes or information to be viewed (or listened to) can be selected interactively with the screen by looking at the menu shown on the screen.

In these instructions, playback using the menu screen is referred to as the “menu play” for video

CDs. This player supports Video CDs with playback control.

DivX

DivX is a popular media technology created by DivX,

Inc. DivX media files contain highly compressed video with high visual quality that maintains a relatively small file size. DivX files can also include advanced media features like menus, subtitles, and alternate audio tracks. Many DivX media files are available for download online, and you can create your own using your personal content and easy-touse tools from DivX.com.

LPCM (Linear PCM audio)

In this format, the audio signal is converted to digital data and recorded in two channels without compression. Because the capacity of a DVD disc is large, it can store more data with better accuracy than a CD.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Pan & Scan screen

This refers to a screen on which the playback picture of wide-screen DVDs or VCD (Video CD)s is cut off at the left and right sides.

Official DivX ® Certified product

Plays all versions of DivX

® video with standard playback of DivX ® media files

DivX,DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license.

Downloaded from Caradio-Manual.com Manuals

44

CQ-VX100W

Specifications

General

¡Power supply

: 12 V DC (11 V – 16 V), test voltage 14.4 V, negative ground

¡Current consumption : Less than 10 A (during disc playback)

¡Power Output : 20 W x 4 ch

(1 kHz, 1 %, 4

Ω)

¡Maximum power output : 50 W x 4 ch

¡Compatible speaker impedance

¡Video input signal

: 4

: Composite video signal, 1.0

Vp-p (75

Ω)

¡Audio input sensitivity

: 2 Vrms

¡Video output signal : Composite video signal, 1.0

Vp-p (75

Ω)

¡Pre-Amp output voltage : 2 Vrms

¡Pre-Amp output impedance: Less than 600

¡Dimensions (W x H x D) : 178 x 50 x 165 mm

¡Weight

: 2.4 kg

Front AV input (AV1 IN)

¡Input impedance : 47 k

¡Allowable external input : 2.0 V

¡Connector : 3.5 mmø Stereo mini pin

(Equipped with video input terminal)

¡Video input signal

: Composite video signal, 1.0

Vp-p (75

Ω)

¡Audio input sensitivity

: 2 Vrms

FM stereo radio

¡Frequency range

¡Usable sensitivity

¡Stereo separation

¡S/N ratio

: 87.5 MHz – 108 MHz

: 7 dB/µV

: 30 dB (1 kHz)

: 62 dB

AM radio

¡Frequency range

¡Usable sensitivity :

: 531 kHz – 1 602 kHz

28 dB/µV

¡Image rejection ratio

: 50 dB

Audio section

¡Output voltage/

Impedance

¡Frequency characteristics

¡Dynamic range

¡S/N ratio

: 2 Vrms/600

: 20 Hz – 20 kHz (±1 dB)

: 96 dB (during CD playback)

: 95 dB (during CD playback)

Monitor

¡Liquid crystal panel

¡Screen dimensions

(W x H x D)

¡Number of pixels

: 7-inch wide

¡Valid pixel ratio

¡Display method

¡Drive method

: 154 x 87 x 177 mm

: 336 960 pixels (234 vertical x 480 horizontal x 3)

: Over 99.99%

: Transparent color filter format

: TFT (Thin Film Transistor) active matrix format

44

Note:

¡Specifications and the design are subject to modification without notice due to improvements in technology.

¡Some figures and illustrations on this manual may be different from your product.

Playable region number

This operating instruction manual is for 3 models CQ-VX100W2/CQ-VX100W3 and CQ-VX100W5.

The following table shows the playable region number for each model.

Model

CQ-VX100W2

CQ-VX100W3

CQ-VX100W5

Playable region number

2 (ALL)

3 (ALL)

5 (ALL)

Downloaded from Caradio-Manual.com Manuals

CQ-VX100W

45

CQ-VX100W

Matsushita Electric Industrial Co., Ltd.

Web Site : http://panasonic.net

Downloaded from Caradio-Manual.com Manuals

YFM264C059CA PTW1107-1018 Printed in China

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Languages
