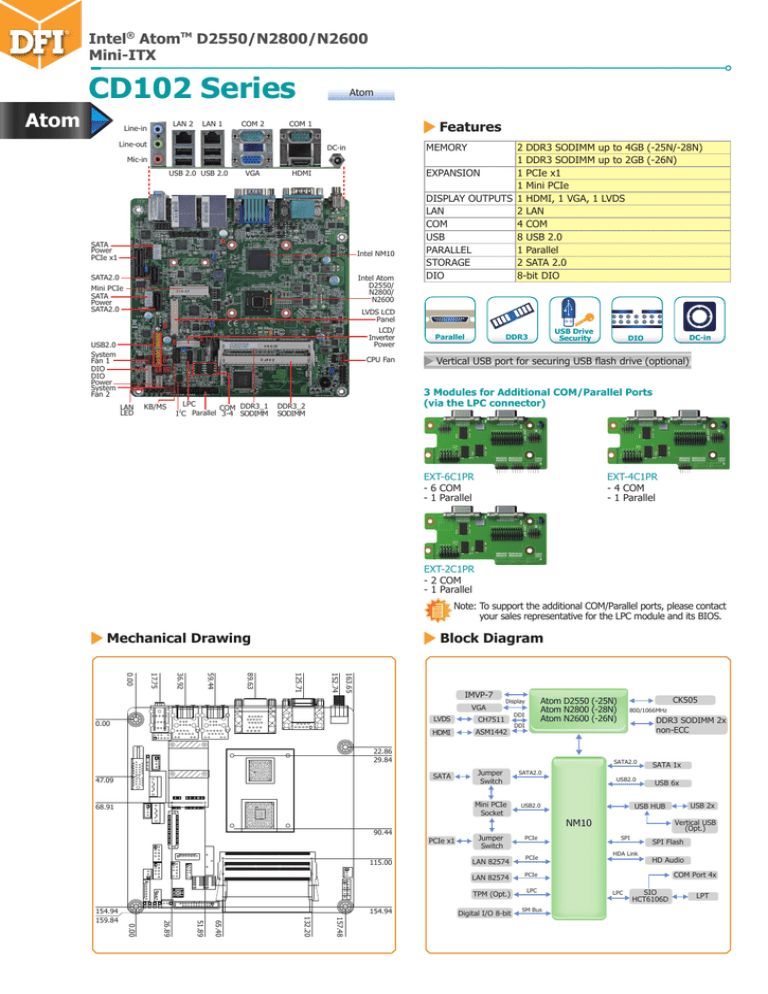

CD102 Series
Intel® AtomTM D2550/N2800/N2600
Mini-ITX
CD102 Series
Atom
LAN 2
Line-in
LAN 1
COM 2
Atom
Features
COM 1
Line-out
MEMORY
DC-in
Mic-in
USB 2.0 USB 2.0
VGA
HDMI
SATA
Power
PCIe x1
Intel NM10
SATA2.0
Intel Atom
D2550/
N2800/
N2600
Mini PCIe
SATA
Power
SATA2.0
2 DDR3 SODIMM up to 4GB (-25N/-28N)
1 DDR3 SODIMM up to 2GB (-26N)
EXPANSION
1 PCIe x1
1 Mini PCIe
DISPLAY OUTPUTS 1 HDMI, 1 VGA, 1 LVDS
LAN
2 LAN
COM
4 COM
USB
8 USB 2.0
PARALLEL
1 Parallel
STORAGE
2 SATA 2.0
DIO
8-bit DIO
LVDS LCD
Panel
LCD/
Inverter
Power
USB2.0
System
Fan 1
DIO
DIO
Power
System
Fan 2
CPU Fan
LAN
LED
KB/MS
LPC
COM DDR3_1
I2C Parallel 3-4 SODIMM
Parallel
USB Drive
Security
DDR3
DC-in
DIO
Vertical USB port for securing USB flash drive (optional)
3 Modules for Additional COM/Parallel Ports
(via the LPC connector)
DDR3_2
SODIMM
EXT-6C1PR
- 6 COM
- 1 Parallel
EXT-4C1PR
- 4 COM
- 1 Parallel
EXT-2C1PR
- 2 COM
- 1 Parallel
Note: To support the additional COM/Parallel ports, please contact
your sales representative for the LPC module and its BIOS.
Mechanical Drawing
Block Diagram
163.65
152.74
125.71
89.63
59.44
36.92
17.75
0.00
IMVP-7
VGA
0.00
DDI
LVDS
CH7511
HDMI
ASM1442
SATA
Jumper
Switch
SATA2.0
Mini PCIe
Socket
USB2.0
DDI
22.86
29.84
47.09
68.91
90.44
115.00
154.94
157.48
132.20
65.40
51.89
26.89
0.00
154.94
159.84
PCIe x1
Jumper
Switch
800/1066MHz
DDR3 SODIMM 2x
non-ECC
SATA2.0
SATA 1x
USB2.0
USB 6x
PCIe
PCIe
LAN 82574
PCIe
TPM (Opt.)
LPC
SM Bus
USB 2x
USB HUB
NM10
LAN 82574
Digital I/O 8-bit
CK505
Atom D2550 (-25N)
Atom N2800 (-28N)
Atom N2600 (-26N)
Display
Vertical USB
(Opt.)
SPI
SPI Flash
HDA Link
HD Audio
COM Port 4x
LPC
SIO
HCT6106D
LPT
Intel® AtomTM D2550/N2800/N2600
Mini-ITX
CD102 Series
Specifications
PROCESSOR
• Intel® AtomTM processors
• BGA 559 packaging technology
• 32nm process technology
Please refer to the Ordering Information below
CHIPSET
• Intel® NM10 Express chipset
SYSTEM MEMORY
•Two 204-pin DDR3 SODIMM sockets support up to 4GB system
memory (CD102-25N/CD102-28N)
One 204-pin DDR3 SODIMM socket supports up to 2GB system
memory (CD102-26N)
•Supports DDR3 1066MHz (CD102-25N/CD102-28N)
Supports DDR3 800MHz (CD102-26N)
•Supports single channel memory interface
•DRAM device technologies: 1Gb, 2Gb and 4Gb DDR3 DRAM
technologies are supported for x8 and x16 devices, unbuffered,
non-ECC
EXPANSION SLOTS
• 1 PCIe x1 Gen 2 slot (PCIe 2.0)
• 1 Mini PCIe slot
- Supports USB and PCIe signals
- Supports mSATA
- Supports half size and/or full size Mini PCIe card
ONBOARD GRAPHICS FEATURES
•Intel® HD Graphics
•Supports HDMI, VGA, and LVDS interfaces
•HDMI: resolution up to 4096x2304 @ 24Hz or 2560x1600 @ 60Hz
•VGA: resolution up to 1920x1200 @ 60Hz
•LVDS: 24-bit, dual channel, resolution up to 1920x1200 @ 60Hz
•Supports Hardware H.264/AVC, MPEG-2 video decoder, VC-1, DirectX
9, 1080p decoder
ONBOARD AUDIO FEATURES
• Realtek ALC886 7.1-channel High Definition Audio
ONBOARD LAN FEATURES
• 2 Intel® 82574L Gigabit Ethernet Controllers; or 2 Intel® I210 PCI
Express Gigabit Ethernet controllers (optional)
• Integrated 10/100/1000 transceiver
• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
SERIAL ATA INTERFACE
• 2 SATA 2.0 ports with data transfer rate up to 3Gb/s
- SATA port 0 provides adequate space for SATA DOM
• Integrated Advanced Host Controller Interface (AHCI) controller
TRUSTED PLATFORM MODULE (TPM) - optional
• Provides a Trusted PC for secure transactions
• Provides software license protection, enforcement and password protection
I/O CONNECTORS
• 2 connectors for 4 external USB 2.0/1.1 ports
• 1 vertical USB 2.0/1.1 port (optional)
• 2 connectors for 2 external RS232 serial ports
• 1 LVDS LCD panel connector
• 1 LCD/inverter power connector
• 1 8-bit Digital I/O connector
• 1 Digital I/O power connector
• 1 front audio connector for line-out and mic-in jacks
• 1 LPC connector
• 4 LAN LED connectors
• 1 PS/2 connector for keyboard/mouse port
• 1 S/PDIF connector
• 2 SATA 2.0 ports
• 2 SATA power connectors
• 1 parallel connector
• 1 I2C connector
• 1 chassis intrusion connector
• 1 front panel connector
• 3 fan connectors
BIOS
•AMI BIOS
- 16Mbit SPI BIOS
ENERGY EFFICIENT DESIGN
• ACPI v3.0 specification
• System Power Management
• Wake-On-Events include:
- Wake-On-USB KB/Mouse
- Wake-On-LAN
- RTC timer to power-on the system
• AC power failure recovery
DAMAGE FREE INTELLIGENCE
• Monitors CPU/system temperature and overheat alarm
• Monitors VCORE/5V/12V/V_SM voltages and failure alarm
• Monitors CPU/system fan speed and failure alarm
• Read back capability that displays temperature, voltage and fan speed
• Watchdog timer function
- Watchdog timeout programmable via software from 1 to 255
seconds
POWER CONSUMPTION
• TBD
OS SUPPORT
• Windows XP Professional x86 & SP3 (32-bit)
• Windows 7 Ultimate x86 & SP1 (32-bit)
TEMPERATURE
• Operating: 0ooC to 60ooC
• Storage: -20 C to 85 C
HUMIDITY
• 5% to 90%
DIMENSIONS
• Mini-ITX form factor
• 170mm (6.7") x 170mm (6.7")
REAR PANEL I/O PORTS
• 1 12V DC-in jack (default) or 4-pin ATX power connector (optional)
• 1 HDMI port
• 1 VGA port
• 2 DB-9 serial ports
- 1 RS232/422/485 (RS232 and/or Power)
- 1 RS232
• 2 RJ45 LAN ports
• 4 USB 2.0/1.1 ports
• Mic-in, Line-in, Line-out jacks
Power Connector
4-pin ATX (optional)
12V DC-in (default)
Ordering Information
Model Name
CD102
Processors
-
25
N
25: Intel® AtomTM D2550, Dual core, 1M Cache, 1.86GHz, 10W
28: Intel® AtomTM N2800, Dual core, 1M Cache, 1.86GHz, 6.5W
26: Intel® AtomTM N2600, Dual core, 1M Cache, 1.6GHz, 3.5W
Packing List
•
•
•
•
•
1
1
1
1
1
Optional Items
CD102 motherboard
Serial ATA data with power cable
I/O shield
DVD
QR (Quick Reference)
www.dfi.com
•
•
•
•
•
•
•
USB port cable
Serial ATA data cable
Serial ATA power cable
COM port cable
I/O shield
1 LPC module kit (COM/Parallel extension module)
Power adapter (60W, 12V) : 671-106002-102G
