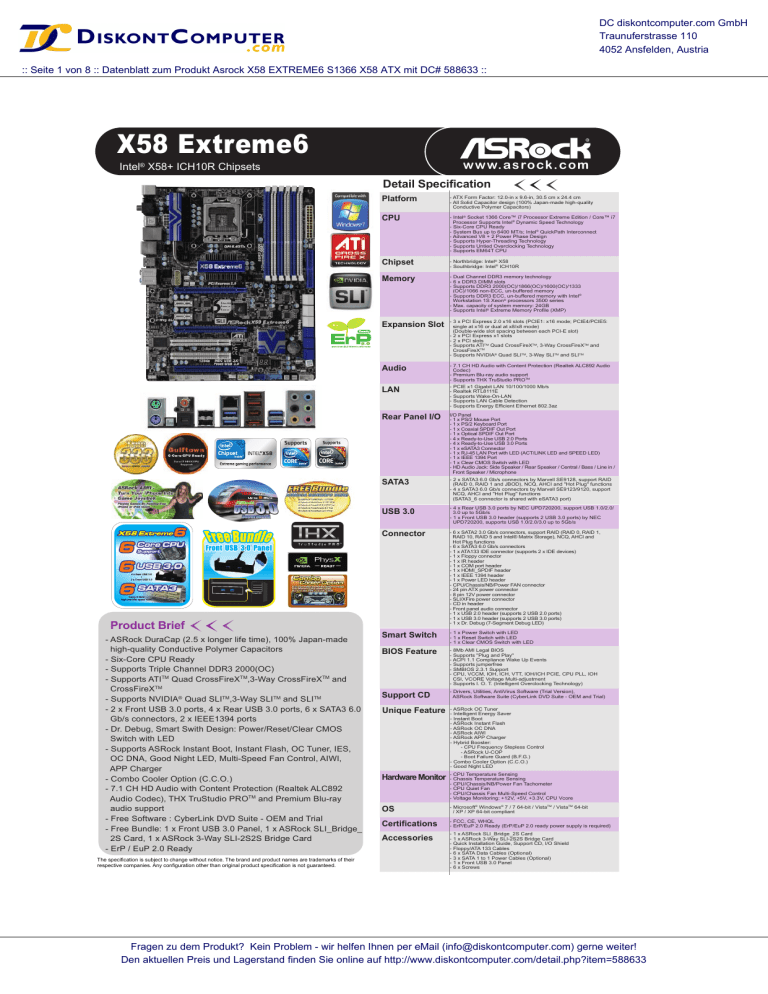

X58 Extreme6
ww w.asrock.com
Intel® X58+ ICH10R Chipsets
Detail Specification
Product Brief
- ASRock DuraCap (2.5 x longer life time), 100% Japan-made
high-quality Conductive Polymer Capacitors
- Six-Core CPU Ready
- Supports Triple Channel DDR3 2000(OC)
- Supports ATITM Quad CrossFireXTM,3-Way CrossFireXTM and
CrossFireXTM
- Supports NVIDIA® Quad SLITM,3-Way SLITM and SLITM
- 2 x Front USB 3.0 ports, 4 x Rear USB 3.0 ports, 6 x SATA3 6.0
Gb/s connectors, 2 x IEEE1394 ports
- Dr. Debug, Smart Swith Design: Power/Reset/Clear CMOS
Switch with LED
- Supports ASRock Instant Boot, Instant Flash, OC Tuner, IES,
OC DNA, Good Night LED, Multi-Speed Fan Control, AIWI,
APP Charger
- Combo Cooler Option (C.C.O.)
- 7.1 CH HD Audio with Content Protection (Realtek ALC892
Audio Codec), THX TruStudio PROTM and Premium Blu-ray
audio support
- Free Software : CyberLink DVD Suite - OEM and Trial
- Free Bundle: 1 x Front USB 3.0 Panel, 1 x ASRock SLI_Bridge_
2S Card, 1 x ASRock 3-Way SLI-2S2S Bridge Card
- ErP / EuP 2.0 Ready
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
Platform
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- All Solid Capacitor design (100% Japan-made high-quality
Conductive Polymer Capacitors)
CPU
- Intel® Socket 1366 Core™ i7 Processor Extreme Edition / Core™ i7
Processor Supports Intel® Dynamic Speed Technology
- Six-Core CPU Ready
- System Bus up to 6400 MT/s; Intel® QuickPath Interconnect
- Advanced V8 + 2 Power Phase Design
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU
Chipset
- Northbridge: Intel® X58
- Southbridge: Intel® ICH10R
Memory
- Dual Channel DDR3 memory technology
- 6 x DDR3 DIMM slots
- Supports DDR3 2000(OC)/1866(OC)/1600(OC)/1333
(OC)/1066 non-ECC, un-buffered memory
- Supports DDR3 ECC, un-buffered memory with Intel®
Workstation 1S Xeon® processors 3500 series
- Max. capacity of system memory: 24GB
- Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot
- 3 x PCI Express 2.0 x16 slots (PCIE1: x16 mode; PCIE4/PCIE5:
single at x16 or dual at x8/x8 mode)
(Double-wide slot spacing between each PCI-E slot)
- 2 x PCI Express x1 slots
- 2 x PCI slots
- Supports ATITM Quad CrossFireXTM, 3-Way CrossFireXTM and
CrossFireXTM
- Supports NVIDIA® Quad SLITM, 3-Way SLITM and SLITM
Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio
Codec)
- Premium Blu-ray audio support
- Supports THX TruStudio PROTM
LAN
-
Rear Panel I/O
I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 4 x Ready-to-Use USB 2.0 Ports
- 4 x Ready-to-Use USB 3.0 Ports
- 1 x eSATA3 Connector
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- 1 x IEEE 1394 Port
- 1 x Clear CMOS Switch with LED
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in /
Front Speaker / Microphone
SATA3
- 2 x SATA3 6.0 Gb/s connectors by Marvell SE9128, support RAID
(RAID 0, RAID 1 and JBOD), NCQ, AHCI and "Hot Plug" functions
- 4 x SATA3 6.0 Gb/s connectors by Marvell SE9123/9120, support
NCQ, AHCI and "Hot Plug" functions
(SATA3_6 connector is shared with eSATA3 port)
USB 3.0
- 4 x Rear USB 3.0 ports by NEC UPD720200, support USB 1.0/2.0/
3.0 up to 5Gb/s
- 1 x Front USB 3.0 header (supports 2 USB 3.0 ports) by NEC
UPD720200, supports USB 1.0/2.0/3.0 up to 5Gb/s
Connector
- 6 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1,
RAID 10, RAID 5 and Intel® Matrix Storage), NCQ, AHCI and
Hot Plug functions
- 6 x SATA3 6.0 Gb/s connectors
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- 1 x IEEE 1394 header
- 1 x Power LED header
- CPU/Chassis/NB/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- SLI/XFire power connector
- CD in header
- Front panel audio connector
- 1 x USB 2.0 header (supports 2 USB 2.0 ports)
- 1 x USB 3.0 header (supports 2 USB 3.0 ports)
- 1 x Dr. Debug (7-Segment Debug LED)
Smart Switch
- 1 x Power Switch with LED
- 1 x Reset Switch with LED
- 1 x Clear CMOS Switch with LED
BIOS Feature
- 8Mb AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU, VCCM, IOH, ICH, VTT, IOH/ICH PCIE, CPU PLL, IOH
CSI, VCORE Voltage Multi-adjustment
- Supports I. O. T. (Intelligent Overclocking Technology)
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version),
ASRock Software Suite (CyberLink DVD Suite - OEM and Trial)
Unique Feature
- ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- ASRock AIWI
- ASRock APP Charger
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Combo Cooler Option (C.C.O.)
- Good Night LED
Hardware Monitor
-
OS
- Microsoft® Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit
/ XP / XP 64-bit compliant
Certifications
- FCC, CE, WHQL
- ErP/EuP 2.0 Ready (ErP/EuP 2.0 ready power supply is required)
Accessories
-
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111E
Supports Wake-On-LAN
Supports LAN Cable Detection
Supports Energy Efficient Ethernet 802.3az
CPU Temperature Sensing
Chassis Temperature Sensing
CPU/Chassis/NB/Power Fan Tachometer
CPU Quiet Fan
CPU/Chassis Fan Multi-Speed Control
Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
1 x ASRock SLI_Bridge_2S Card
1 x ASRock 3-Way SLI-2S2S Bridge Card
Quick Installation Guide, Support CD, I/O Shield
Floppy/ATA 133 Cables
6 x SATA Data Cables (Optional)
3 x SATA 1 to 1 Power Cables (Optional)
1 x Front USB 3.0 Panel
