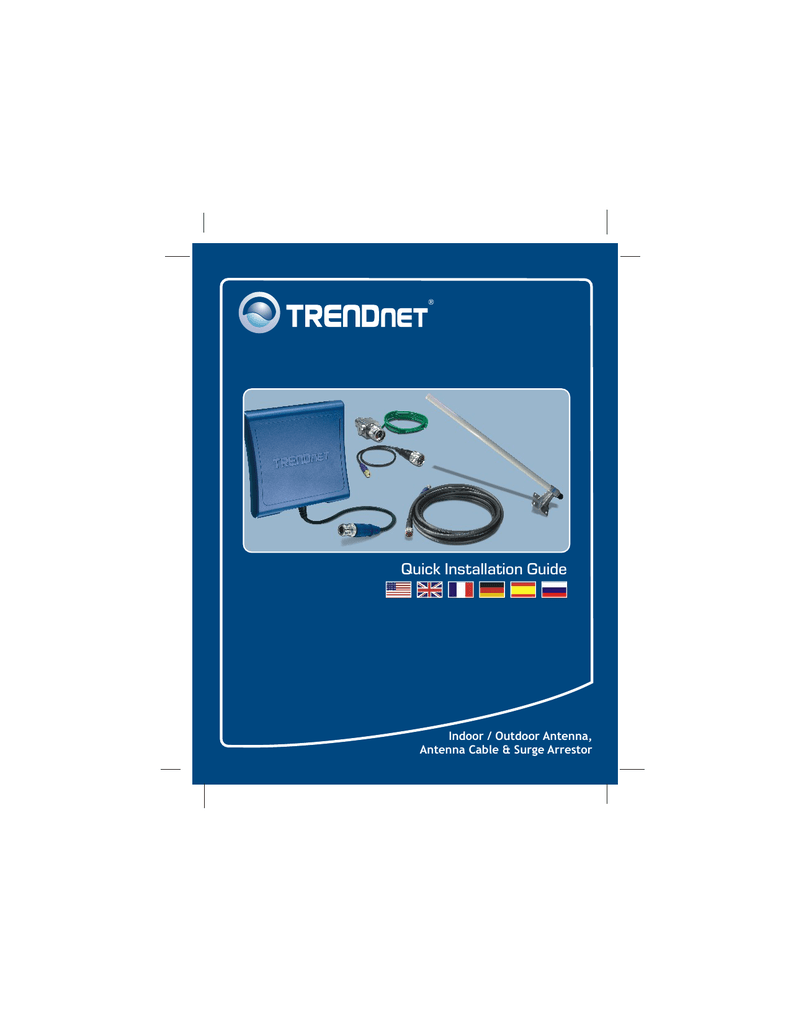

Quick Installation Guide

Indoor / Outdoor Antenna,

Antenna Cable & Surge Arrestor

Table of Contents

Español ........................................................................................................................... 1

1.

2.

3.

4.

Instalación de la antena exterior

Instalación de antena interior

.........................................................................

Cómo instalar un protector de sobretensiones ...................................................

Cinta adhesiva a prueba de agua para instalació exterior ..................................

..............................................................................

1

4

5

6

Version 02.23.2006

1. Instalación de la antena exterior

Antes de la instalación, compruebe que tiene los productos requeridos y que el contenido de cada producto está completo.

TEW-ASAK

Cable de Jumper

Protector de sobretensiones

TEW-L406/TEW-L412

TEW-L406 – Cable (6 metros)

TEW-L412 – Cable (12 Metros)

Una de las siguientes antenas:

TEW-AO08O

TEW-AO10O

TEW-AO09D TEW-AO14D TEW-AO19D

1

Español

1. Desconecte la antena dipolo por defecto de su punto de acceso interior o enrutador.

2. Conecte el manguito azul (SMA inverso) del cable de jumper a su dispositivo Wi-Fi.

3. Conecte el manguito negro (tipo N) del cable de jumper al protector de sobretensiones. Por favor consulte la

sección 2 “Cómo instalar un protector de sobretensiones”

2

Español

4. Conecte la parte restante del protector de sobretensiones al manguito azul

(tipo N) del cable de antena.

(TEW-L406/TEW-L412)

5. Conecte el cable verde al objeto de tierra.

1. Elemento conductor

2. Sistema eléctrico de puesta a tierra

3. Base de instalación

6. Conecte la parte restante del manguito negro (tipo N) del cable de antena a la antena.

7. La instalación de la antena exterior ha finalizado.

3

Español

2. Cómo instalar un protector de sobretensiones

1. Antes de instalar la antena, compruebe que el cable exterior de pérdida baja

(TEW-L406/TEW-L412) puede alcanzar la ubicación del punto de acceso o enrutador. Conecte el manguito azul del adaptador de cable incluido al dispositivo Wi-Fi (SMA inverso) y el manguito negro de los adaptadores de cable (tipo N) al protector de sobretensiones.

2. Tome el tornillo de metal tipo L y marque su lugar de fijación en la pared.

3. Fíjelo a la pared.

4. Coloque el protector dentro del soporte de sujeción.

Coloque la arandela

Enrosque la tuerca

4

Español

3. Cinta adhesiva a prueba de agua para

instalació exterior

Si su protector de sobretensiones se instala en exteriores, recuerde envolver firmemente ambos conectores con la cinta adhesiva a prueba de agua incluida.

5

Español

4. Instalación de antena interior

Antes de la instalación, compruebe que tiene los productos requeridos y que el contenido de cada producto está completo.

TEW-L202/TEW-L208

TEW-L202 – Cable (2 metros)

TEW-L208 – Cable (8 Metros)

Una de las siguientes antenas:

TEW-AO08O

TEW-AO10O

TEW-AO09D TEW-AO14D TEW-AO19D

Nota: Las siguientes antenas interiores vienen con cables o se conectan directamente a su dispositivo Wi-Fi. No requieren cables adicionales para el ensamblado:

TEW-AI86D TEW-AI86DB TEW-AI75O TEW-AI75OB

6

Español

1. Desconecte la antena dipolo de su punto de acceso o enrutador.

2. Conecte directamente el manguito azul

(SMA inverso) del cable interior

(TEW-L202/TEW-L208) al dispositivo

WiFi.

3. Conecte la parte restante del manguito negro (tipo N) del cable de antena al manguito azul de la antena (tipo N).

4. La instalación de antena interior ha finalizado.

7

Español
