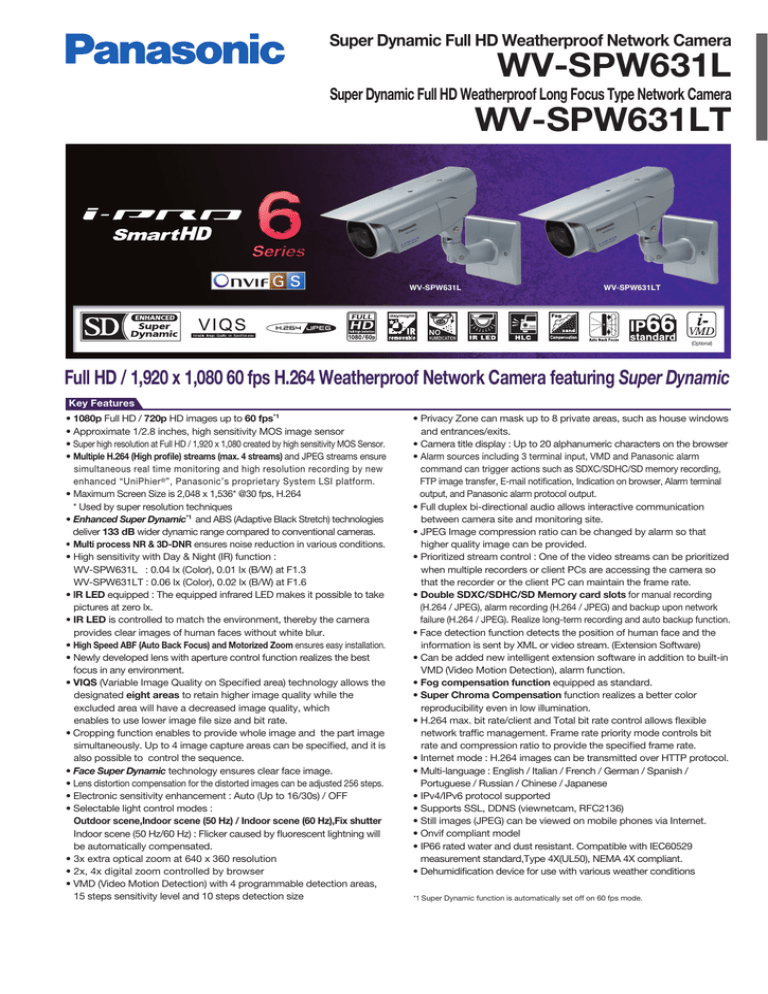

WV-SPW631L
Super Dynamic Full HD Weatherproof Network Camera
WV-SPW631L
Super Dynamic Full HD Weatherproof Long Focus Type Network Camera
WV-SPW631LT
WV-SPW631L
WV-SPW631LT
(Optional)
Full HD / 1,920 x 1,080 60 fps H.264 Weatherproof Network Camera featuring Super Dynamic
Key Features
• 1080p Full HD / 720p HD images up to 60 fps*1
• Approximate 1/2.8 inches, high sensitivity MOS image sensor
• Super high resolution at Full HD / 1,920 x 1,080 created by high sensitivity MOS Sensor.
• Multiple H.264 (High profile) streams (max. 4 streams) and JPEG streams ensure
simultaneous real time monitoring and high resolution recording by new
enhanced “UniPhier ®”, Panasonic’s proprietary System LSI platform.
• Maximum Screen Size is 2,048 x 1,536* @30 fps, H.264
* Used by super resolution techniques
• Enhanced Super Dynamic*1 and ABS (Adaptive Black Stretch) technologies
deliver 133 dB wider dynamic range compared to conventional cameras.
• Multi process NR & 3D-DNR ensures noise reduction in various conditions.
• High sensitivity with Day & Night (IR) function :
WV-SPW631L : 0.04 lx (Color), 0.01 lx (B/W) at F1.3
WV-SPW631LT : 0.06 lx (Color), 0.02 lx (B/W) at F1.6
• IR LED equipped : The equipped infrared LED makes it possible to take
pictures at zero lx.
• IR LED is controlled to match the environment, thereby the camera
provides clear images of human faces without white blur.
• High Speed ABF (Auto Back Focus) and Motorized Zoom ensures easy installation.
• Newly developed lens with aperture control function realizes the best
focus in any environment.
• VIQS (Variable Image Quality on Specified area) technology allows the
designated eight areas to retain higher image quality while the
excluded area will have a decreased image quality, which
enables to use lower image file size and bit rate.
• Cropping function enables to provide whole image and the part image
simultaneously. Up to 4 image capture areas can be specified, and it is
also possible to control the sequence.
• Face Super Dynamic technology ensures clear face image.
• Lens distortion compensation for the distorted images can be adjusted 256 steps.
• Electronic sensitivity enhancement : Auto (Up to 16/30s) / OFF
• Selectable light control modes :
Outdoor scene,Indoor scene (50 Hz) / Indoor scene (60 Hz),Fix shutter
Indoor scene (50 Hz/60 Hz) : Flicker caused by fluorescent lightning will
be automatically compensated.
• 3x extra optical zoom at 640 x 360 resolution
• 2x, 4x digital zoom controlled by browser
• VMD (Video Motion Detection) with 4 programmable detection areas,
15 steps sensitivity level and 10 steps detection size
• Privacy Zone can mask up to 8 private areas, such as house windows
and entrances/exits.
• Camera title display : Up to 20 alphanumeric characters on the browser
• Alarm sources including 3 terminal input, VMD and Panasonic alarm
command can trigger actions such as SDXC/SDHC/SD memory recording,
FTP image transfer, E-mail notification, Indication on browser, Alarm terminal
output, and Panasonic alarm protocol output.
• Full duplex bi-directional audio allows interactive communication
between camera site and monitoring site.
• JPEG Image compression ratio can be changed by alarm so that
higher quality image can be provided.
• Prioritized stream control : One of the video streams can be prioritized
when multiple recorders or client PCs are accessing the camera so
that the recorder or the client PC can maintain the frame rate.
• Double SDXC/SDHC/SD Memory card slots for manual recording
(H.264 / JPEG), alarm recording (H.264 / JPEG) and backup upon network
failure (H.264 / JPEG). Realize long-term recording and auto backup function.
• Face detection function detects the position of human face and the
information is sent by XML or video stream. (Extension Software)
• Can be added new intelligent extension software in addition to built-in
VMD (Video Motion Detection), alarm function.
• Fog compensation function equipped as standard.
• Super Chroma Compensation function realizes a better color
reproducibility even in low illumination.
• H.264 max. bit rate/client and Total bit rate control allows flexible
network traffic management. Frame rate priority mode controls bit
rate and compression ratio to provide the specified frame rate.
• Internet mode : H.264 images can be transmitted over HTTP protocol.
• Multi-language : English / Italian / French / German / Spanish /
Portuguese / Russian / Chinese / Japanese
• IPv4/IPv6 protocol supported
• Supports SSL, DDNS (viewnetcam, RFC2136)
• Still images (JPEG) can be viewed on mobile phones via Internet.
• Onvif compliant model
• IP66 rated water and dust resistant. Compatible with IEC60529
measurement standard,Type 4X(UL50), NEMA 4X compliant.
• Dehumidification device for use with various weather conditions
*1 Super Dynamic function is automatically set off on 60 fps mode.
Specifications
SD Memory Data Download
GUI / Setup Menu Language
System Log
Supported OS *3
Supported Browser
1,600 x 1,200 / 1,280 x 960 / 800 x 600 / 640 x 480 / 400 x 300 /
320 x 240 / 160 x 120
2,048 x 1,536* / 1,280 x 960 / 800 x 600 / 640 x 480 / 400 x 300 /
320 x 240 / 160 x 120 * Used by super resolution techniques
Constant bitrate / VBR / Framerate priority / Best effort / Advanced VBR
1 / 3 / 5 / 7.5 / 10 / 12 / 15 / 20 / 30 / 60 fps
64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 / 4,096 / 6,144 /
8,192 / 10,240 / 12,288 / 14,336 / 16,384 / 20,480 / 24,576 / 30720*/ 40960* kbps
H.264
Image Quality
Image quality (Constant bit rate / Best effort) :
*4
(Constant bit rate/Best effort) Low(Motion priority) / Normal/ Fine (Image quality priority)
Refresh interval
0.2 / 0.25 / 0.33 / 0.5 / 1 / 2 / 3 / 4 / 5s
Transmission Type Unicast / Multicast
Image Quality
10 steps
0.1 fps - 30 fps (JPEG frame rate will be restricted when displaying both JPEG and H.264 images.)
JPEG Refresh interval
Transmission Type Pull / Push
Audio Compression
G.726 (ADPCM) 32 kbps / 16 kbps, G.711 64 kbps / AAC-LC
Audio Mode
Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)
Authentication for Audio
Level 1 only / Level 2 higher / All users
Total Bit Rate
64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 2,048 / 4,096 / 8,192 kbps / Unlimited
Supported Protocol
IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP,
DHCPv6, RTP, MLD, ICMP, ARP
IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,FTP, SMTP,
DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP
• Masses and dimensions are approximate. • Specifications are subject to change without notice.
Lens
Rear cover
Safety wire
Front cover
Tilting lock screw
Panning lock screw
Mount bracket cover x2 (accessories)
Appearance
(The illustrations are WV-SPW631L.)
352(13-7/8")
15(5/8")
94(3-3/4")
125(4-7/8")
.
rox
app90°
Network Network IF
Image Capture Mode:
2 mega pixel [16:9] (30/60 fps)
Image Capture Mode:
Resolution 2 mega pixel [4:3] (30fps)
Image Capture Mode:
3 mega pixel [4:3] (30fps)
Transmission Mode
Frame Rate
Bit Rate/Client
Camera mount bracket
(accessory)
44(1-3/4")
130(5-1/8")
(685(27"))
(68
5(2
7"))
63(2-1/2")
Digital Zoom
Camera Title
Clock Display
Alarm Control
One Shot Capture
Audio
(The illustrations are WV-SPW631L.)
Rear part of sunshield
Sunshield
app
r
30° ox.
Browser Cropping
GUI
Camera Control
Display Mode
Part Names and Functions
122(4-3/4")
Focusing Range
Adjusting Angle
241(9-1/2")
Maximum Aperture Ratio
5(1/4")
Angular Field of View
Alarm image transmission, FTP periodic transmission (When the FTP transmission
is failed, backup on an optional SDXC/SDHC/SD memory card is available.)
Up to 14 users (Depends on network conditions)
H.264 recording : Manual REC / Alarm REC (Pre/Post) / Schedule REC/
Backup upon network failure Compatible(JPEG only)
* Manufactured by Panasonic
JPEG recording : Manual REC / Alarm REC (Pre/Post) /
(SD speed class 4 or higher)
Backup upon network failure Compatible
* Use the SD memory card that
SD (SDHC/SDXC) card: Panasonic
complies with UHS-1
(Ultra High Speed-1) in the case of
2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64GB** model
SD Speed Class 10.
*SDHC card, ** SDXC card (except miniSD card and microSD card)
Employment of two SD cards Dual Recording for Redundancy
Series Recording for long time
Cellular Phone Compatibility JPEG image, AUX control (by access level)
Mobile Terminal Compatibility iPad, iPhone, iPod touch (iOS 4.2.1 or later), AndroidTM Terminal
Alarm Source
3 terminals input, VMD, Command alarm, Audio detection alarm
Alarm
Alarm Actions
SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification
Indication on browser, FTP image transfer, Panasonic protocol output
Alarm Log
With SDXC/SDHC/SD memory card :
Up to 50,000 logs for each SD memory card
Schedule
Alarm / VMD / Access permission / H.264 recording / Scene file
Monitor Output
VBS : 1.0 V [p-p]/75 Ω, composite, RCA jack
Input /
(for adjustment)
An NTSC or PAL monitor can be connected to the camera
Output
(use the selector switch or software to select the monitor type).
Microphone/Line Input
MIC IN and Line IN are selectable. ø3.5 mm monaural mini jack
(monaural input) (Applicable microphone: Plug-in power type)
Supply voltage : 2.5 V ±0.5 V Input impedance : Approx. 2 kΩ (unbalanced)
ø3.5 mm stereo mini jack (monaural output)
Audio Output
Output impedance : Approx. 600 Ω (unbalanced)
ALARM IN 1 (DAY/NIGHT IN), ALARM IN 2 (ALARM OUT), ALARM IN 3 (AUX OUT)
External I/O Terminals
Safety
UL (UL60950-1), C-UL (CAN/CSA C22.2 No.60950-1), CE, IEC60950-1
General
EMS
FCC (Part15 ClassA), ICES003 ClassA, EN55022 ClassB, EN55024
Power Source and
When IR LED is On
Power Consumption
DC power supply : 12 V DC / 1080 mA / Approx. 12.9 W
PoE Device : 48 V DC / 360 mA / Approx. 12.95 W* (Class 0 device)
* Maximum power consumption on the camera power input side.
** ONLY CONNECT 12 V DC CLASS 2 POWER SUPPLY.
Ambient Operating Temperature –40 °C ~ +50 °C (–40 °F ~ 122 °F)
Ambient Operating Humidity 10 ~ 90 % (no condensation)
Water and Dust Resistance IP66, IEC60529 measuring standard compatible, Type 4X(UL50), NEMA 4X compliant
Dimensions
94 mm (W) x 89 mm (H) x 226 mm (L)
* Installing using the base bracket {3-3/4 inches (W) x 3-1/2 inches (H) x 8-7/8 inches (L)}
1.4kg {3.09 lbs.}
Mass (approx.)
Main body : Aluminum die cast, light gray / Front cover section clear part : Clear polycarbonate resin
Finish
*1 Converted value *2 Super Dynamic function is automatically set off on 60 fps mode.
®
®
*3 Refer to "Notes on Windows Vista / Windows 7 / Windows® 8" on the provided CD-ROM for further information about system requirements
for a PC and precautions when using Microsoft® Windows® 8 or Microsoft® Windows® 7 or Microsoft® Windows Vista®.
*4 Transmission for 4 streams can be individually set.
No. of Simultaneous Users
SDXC/SDHC/SD
Memory Card (Option)
83.8(3-1/4")
Lens
Day & Night (IR)
Dynamic Range
Digital Noise Reduction
Video Motion Detection
Privacy Zone
VIQS
Camera Title (OSD)
Focus Adjustment
Lens Distortion Compensation
Vari Focal Length
FTP Client
89(3-1/2")
Super Dynamic *2
Face Super Dynamic
Adaptive Black Stretch
Fog compensation
High light compensation(HLC)
AGC
Maximum shutter
Network
96.5(3-3/4")
IR LED Light
IR LED irradiation distance
White Balance
Light Control Mode
Shutter Speed
Approx. 1/2.8 type MOS image sensor, Built-in primary color filter
Approx. 2.4 mega pixels
Progressive scan
5.346 mm (H) x 3.336 mm (V) {7/32 inches (H) x 1/8 inches (V)}
WV-SPW631L Color : 0.04 lx, BW : 0.01 lx (F1.3, Maximum shutter : Max. 1/30s, Gain : On(High))
BW : 0 lx (F1.3, Maximum shutter : Off(1/30 s), Gain : High, when the IR LED is lit)
Color : 0.003 lx, BW : 0.0007 lx (F1.3, Maximum shutter : Max. 16/30s, Gain : On(High)) *1
WV-SPW631LT Color : 0.06 lx, BW: 0.02 lx (F1.6, Maximum shutter : Max. 1/30s, Gain : On(High))
BW : 0 lx (F1.6, Maximum shutter : Off(1/30 s), Gain : High, when the IR LED is lit)
Color : 0.004 lx, BW : 0.002 lx (F1.6, Maximum shutter : Max. 16/30s, Gain : On(High)) *1
Off / Auto(High / Mid / Low)
Approx. 30 m {98.43 feet}
AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K)
Outdoor scene / Indoor scene (50 Hz) / Indoor scene (60 Hz) / Fix shutter
[2 mega pixel [16 : 9] (60 fps mode) / 1.3 mega pixel [16 : 9] (60 fps mode)]
OFF(1/60), 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000,1/10000
Other than [2 mega pixel [16 : 9](60 fps mode)/ 1.3 mega pixel [16 : 9](60 fps mode)]
OFF(1/30), 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250,1/500, 1/1000, 1/2000, 1/4000, 1/10000
On(High) / On(Normal) / Off
On/Off (only when Super Dynamic : On)
On/Off (only when Super Dynamic : Off)
On/Off (only when Super Dynamic / Adaptive black stretch : Off)
On/Off (only when Super Dynamic / Adaptive black stretch : Off)
On (Low) / On(Mid), On(High) / Off
max. 1/1000 s, max. 1/500 s, max. 1/250 s, max. 1/100 s, max. 1/60 s,
max. 1/30 s, max. 2/30 s, max. 4/30 s, max. 6/30 s, max. 10/30 s, max. 16/30 s
Off/On / Auto1 (Normal) / Auto2 (IR Light) / Auto3 (SCC)
133 dB typ. (Super Dynamic : On)
High / Low
4 areas, Sensitivity : 15 steps, Detection size : 10 steps
Up to 8 zones
Up to 8 zones
Up to 20 characters (alphanumeric characters, marks)
ABF / MANUAL (Html only)
256 steps
WV-SPW631L : 2.8 mm - 10 mm {1/8 inches - 13/32 inches}, 3.6x
WV-SPW631LT : 9 mm - 22 mm {23/64 inches - 55/64 inches}, 2.4x
WV-SPW631L [16 : 9 mode] Horizontal : 30.9 ° (TELE) ~ 105.4 °(WIDE)
Vertical : 17.4 ° (TELE) ~ 57.3 ° (WIDE)
[4 : 3 mode] Horizontal : 25.8 ° (TELE) ~ 86.4 ° (WIDE)
Vertical : 19.3 ° (TELE) ~ 63.9 ° (WIDE)
WV-SPW631LT [16 : 9 mode] Horizontal : 13.8 ° (TELE) ~ 33.5 ° (WIDE)
Vertical : 7.7 ° (TELE) ~ 18.1 ° (WIDE)
[4 : 3 mode] Horizontal : 11.5 ° (TELE) ~ 27.4 ° (WIDE)
Vertical : 8.6 ° (TELE) ~ 20.1 ° (WIDE)
WV-SPW631L
1 : 1.3 (WIDE) ~ 1 : 3.0 (TELE)
WV-SPW631LT 1 : 1.6 (WIDE) ~ 1 : 3.0 (TELE)
WV-SPW631L : 0.3 m ~ ∞ / WV-SPW631LT : 1.0 m ~ ∞
Horizontal : ±100° (Camera mount bracket)
Vertical
: +30°, -90° (Camera mount bracket)
Off/ JPEG(1)/ JPEG(2)/ JPEG(3)/ H.264(1)/ H.264(2)/ H.264(3)/ H.264(4)/ H.264(all)
Alarm action On/ Off
Brightness, AUX On/Off
Spot, Quad : Image from 16 cameras can be displayed in 4 different Quad
screens or 16 split screen (JPEG only). 20 characters camera title available.
1x, 2x, 4x controlled by browser GUI
Up to 20 alphanumeric characters
Time : 12H/24H, Date : 5 formats on the browser, Summer time (Manual)
Reset
A still picture will be displayed on a newly opened window.
Mic (Line) Input : On/Off Volume adjustment : Low / Middle / High
Audio Output : On/Off Volume adjustment : Low / Middle / High
Still or motion Images recorded in the SDXC/SDHC/SD memory card can be downloaded.
English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Up to 100 (Internal)
Up to 4,000 (SDXC/SDHC/SD memory when the recording format is set to JPEG.) error logs
Microsoft® Windows® 8.1, Microsoft® Windows® 8, Microsoft® Windows® 7,
Microsoft® Windows Vista®
Windows® Internet Explorer® 11 (32 bit), Windows® Internet Explorer® 10 (32 bit),
Windows® Internet Explorer® 9 (32 bit), Windows® Internet Explorer® 8 (32 bit),
Windows® Internet Explorer® 7 (32 bit)
10Base-T / 100Base-TX, RJ45 connector
1,920 x 1,080 / 1,280 x 720 / 640 x 360 / 320 x 180 / 160 x 90
130(5-1/8")
Camera Image Sensor
Effective Pixels
Scanning Mode
Scanning Area
Minimum Illumination
226(8-7/8")
.
ox
pr °
ap 100
ap
10 prox
0° .
Unit: mm (inches)
Trademarks and registered trademarks
– Microsoft, and Windows are registered trademarks of Microsoft Corporation in the U.S. and other countries.
– UniPhier is a registered trademark of Panasonic Corporation.
– "i-PRO SmartHD" logo is trademark or registered trademark of Panasonic Corporation.
– ONVIF and the ONVIF logo are trademarks of ONVIF Inc.
Important
– Safety Precaution: Carefully read the Important Information, Installation Guide and operating instructions before using this product.
– Panasonic cannot be responsible for the performance of the network and/or other manufacturers' products used on the network.
DISTRIBUTED BY:
http://security.panasonic.com
http://www.facebook.com/PanasonicNetworkCamera
(2A-134BA)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
