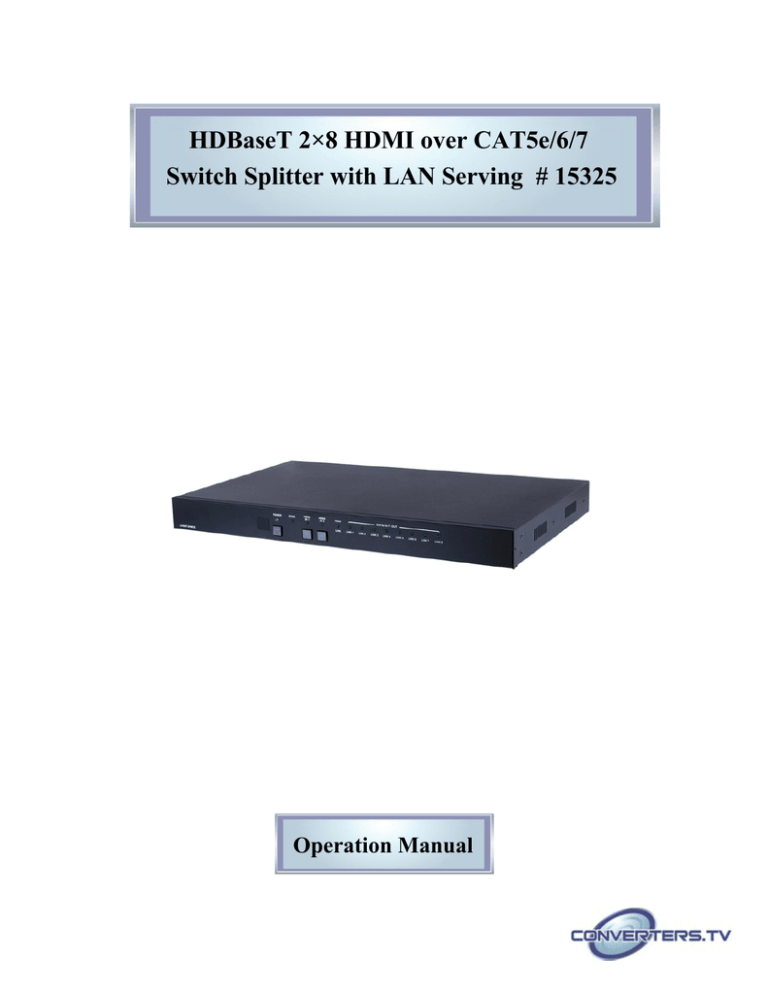

HDBaseT 2×8 HDMI over CAT5e/6/7
Switch Splitter with LAN Serving # 15325
Operation Manual
Introduction
The HDMI over HDMI and CAT5e/6/7 Transmitter can support resolutions up
to 1080p Full HD, 4Kx2K timing, 3D and multi-channel digital audio formats
to one HDTV and eight CAT5e/6/7 outputs.
The HDMI can be connected to HDMI display for instant nearby display and
the CAT5e/6/7 can be connected to CAT5e/6/7 to HDMI Receivers for
distance up to 100 meters. Further, a total of 100Mbps Ethernet transmission
rate allows all connected device to share the Ethernet service and the PoE
function free the power shortage issue from the Receiver end
Applications
•
Features
•
•
•
•
Household entertainment sharing and control
Lecture room display and control
Showroom display and control
Meeting room presentation and control
Classroom display and control
•
HDMI with 3D & 4Kx2K supported, HDCP and DVI compliant
•
The HDMI and CAT5e/6/7 outputs are playing the same source
simultaneously
Supports one HDMI and eight CAT5e/6/7 outputs
Supports data rate from 250Mbps up to 3Gbps
Supports wide range of PC resolutions from VGA to WUXGA
and HDTV resolutions up to 4Kx2K ([email protected]/25/30Hz and
[email protected])
Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTSHD Master Audio transmission (32-192kHz sample rate)
Supports distances up to 100 meters through CAT5e/6/7 cables
Supports Ethernet transmission rate up to 100Mbps
Can select Standard or TV EDID
Supports USB service port
The 3D signal display follow by display TV’s EDID
Supports PoE with capable Receiver units
Supports Bi-directional IR control
•
•
•
•
•
•
•
•
•
•
•
Note:
1.
This system was tested with CAT6/23AWG cables, results may vary
with cables of a different specification.
2.
The PoE function is designed for powering compatible Receiver units
only non-PoE Receivers will need their own power supply. Receivers
of another brand may not be compatible.
3.
Displaying HDMI 4Kx2K resolution require the standard 4Kx2K
HDMI cable and display in order for proper image displaying
System
Requirements
.
Operation
Controls and
Functions
•
Source equipment with HDMI output connector
•
•
Display TV/Monitor with HDMI input connector
HDMI over CAT5e/6/7 Receivers with industry CAT5e/6/7 cables
Front Panel
1. IR Window:
Receive IR signal from the package included remote control only.
2. POWER Button & LED:
Press this button to switch ON or set the device to standby mode and the
LED will illuminate in Green and Red.
3. SYNC:
This LED will illuminate when the HDMI input port connected to the source.
4. HDMI IN 1/2:
Press the button to selection HDMI input source 1 or 2.
The LED will illuminate according to the selection.
5. HDMI & CAT OUT LINK 1~8:
These link LEDs will illuminate when HDMI or CAT5e/6/7 output(s) has
been connected to the Display/ Receiver(s) and the Receiver(s) has
connected with display that shows image on screen
Rear Panel
1. CAT5e/6/7 OUT 1~8:
Connect these ports to CAT5e/6/7 to HDMI Receivers (with or without PoE
function) with CAT5e/6/7 cable to extend the signal up to 100m.
2. IR OUT:
Connect with IR Blaster to blast out the IR signal received from the Receiver
side. Place the IR Blaster in direct line-of-sight of the equipment to be
controlled.
3. IR IN:
Connect with IR Extender to receive IR signal from Transmitter side and
blast out at Receiver side. Ensure that remote controller being used is within
the direct line-of-sight of the IR Extender.
4. LAN:
Connect to intranet or internet service system for a total sharing rate of
100Mbps within the link of Transmitter.
Warning:
DO NOT connect this slot with any of the CAT5e/6/7 port, doing so may
trigger a power shot down and ruin the device.
5. L/R OUT:
Connect to active speaker or audio equipment for audio signal output.
6. OPTICAL OUT:
Connect to active speaker or audio equipment for audio signal output.
7. HDMI OUT:
Connect to HDMI display for instant image display or cascade with another
family type Transmitter.
8. HDMI IN1/2:
Connect with source equipment such as DVD/Blu-ray or PS3 player.
9. EDID STD/TV:
The default factory setting is on TV, leave as it is when the display is
properly. The unit will detect first the HDMI output’s EDID and send out the
signal accordingly to other output ports. If the HDMI output port is not
connected the device will detect the 1st CAT5e/6/7 output's EDID and send
out the signal accordingly to all outputs.
This device obtain the last memory function therefore, the device will use
the last HMDI output port/the 1st CAT5e/6/7's output EDID after power
cycling or switch in between the EDID setting.
Switch to STD to use build-in EDID if the display has problem. STD EDID's
video at [email protected] and audio at LPCM 2CH.
10. SERVICE:
This slot is reserved for factory service only.
11. RS-232:
Connect this slot from PC/Laptop for RS-232 command sending.
12. DC 24V:
Plug the 24V DC power supply into the unit and connect the adaptor to an
AC outlet
IR Cable Pin
Assignment
Remote Control
1. Power:
Press the button to turn On/Off the unit.
2. Input Selection 1/2:
Press 1/2 to select HDMI input sources 1 or 2
RS-232 Pin
Definition
Pin
Define Tx/Rx
1
N/C
2
TxD/RxD
3
RxD/TxD
4
N/C
5
GND
6
N/C
7
N/C
8
N/C
9
N/C
Baud Rate: 115200bps
Data bit: 8 bits
Parity: None
Flow Control: None
Stop Bit: 1
RS-232 Commands
Command
Description
Power 00
Power off (standby)
Power 01
Power on
Port 01
Select input 1
Port 02
Select input 2
Note:
1. All the RS-232 command will be not executed unless followed with
carriage return and LF (Line Feed).
2. Commands are case-insensitive
Specifications
Video Bandwidth
Input ports
340Mbps/10.2Gbps
2 x HDMI, 1 x IR IN, 1 x LAN,
1 x USB (Service only), 1 x RS-232
Output ports
1 x HDMI, 8 x CAT5e/6/7,
1 x IR OUT, 1 x L/R OUT,
1 x Optical OUT
Resolution
Up to 4Kx2K ([email protected]/25/30Hz/40
[email protected])
HDMI Input Cable DistanceN/A
CAT5e/6/7
Output Cable Distance
Up to 100m
IR Frequency
30~50kHz
ESD Protection
Human body model:
±8kV (air-gap discharge)
±4kV (contact discharge)
Power Supply
24V / 6.25A DC (US/EU standards, CE/
FCC/UL certified)
Dimensions (mm)
436 mm(W) x 256.2 mm(D) x 48 mm(H)
Weight(g)
3114
Chassis Material
Metal
Silkscreen Color
Black
Operating Temperature
0 ̊C ~ 40 ̊C / 32 ̊F ~ 104 ̊F
Storage Temperature
-20 ̊C ~ 60 ̊C / -4 ̊F ~ 140 ̊F
Connection
Diagram
