BT 87 TP NI
2621 Ridgepoint Drive, Suite 235 Austin, TX 78754
800.866.6506
www.ikey.com

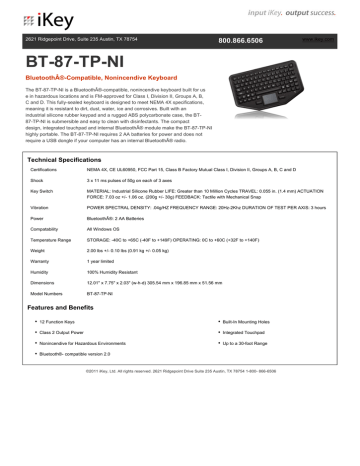

BT-87-TP-NI
Bluetooth®-Compatible, Nonincendive Keyboard
The BT-87-TP-NI is a Bluetooth®-compatible, nonincendive keyboard built for us
e in hazardous locations and is FM-approved for Class I, Division II, Groups A, B,
C and D. This fully-sealed keyboard is designed to meet NEMA 4X specifications,
meaning it is resistant to dirt, dust, water, ice and corrosives. Built with an
industrial silicone rubber keypad and a rugged ABS polycarbonate case, the BT87-TP-NI is submersible and easy to clean with disinfectants. The compact
design, integrated touchpad and internal Bluetooth® module make the BT-87-TP-NI
highly portable. The BT-87-TP-NI requires 2 AA batteries for power and does not
require a USB dongle if your computer has an internal Bluetooth® radio.
Technical Specifications
Certifications
NEMA 4X, CE UL60950, FCC Part 15, Class B Factory Mutual Class I, Division II, Groups A, B, C and D
Shock
3 x 11 ms pulses of 50g on each of 3 axes
Key Switch
MATERIAL: Industrial Silicone Rubber LIFE: Greater than 10 Million Cycles TRAVEL: 0.055 in. (1.4 mm) ACTUATION
FORCE: 7.03 oz +/- 1.06 oz. (200g +/- 30g) FEEDBACK: Tactile with Mechanical Snap
Vibration
POWER SPECTRAL DENSITY: .04g/HZ FREQUENCY RANGE: 20Hz-2Khz DURATION OF TEST PER AXIS: 3 hours
Power
Bluetooth®: 2 AA Batteries
Compatability
All Windows OS
Temperature Range
STORAGE: -40C to +65C (-40F to +149F) OPERATING: 0C to +60C (+32F to +140F)
Weight
2.00 lbs +/- 0.10 lbs (0.91 kg +/- 0.05 kg)
Warranty
1 year limited
Humidity
100% Humidity Resistant
Dimensions
12.01" x 7.75" x 2.03" (w-h-d) 305.54 mm x 196.85 mm x 51.56 mm
Model Numbers
BT-87-TP-NI
Features and Benefits
12 Function Keys
Built-In Mounting Holes
Class 2 Output Power
Integrated Touchpad
Nonincendive for Hazardous Environments
Up to a 30-foot Range
Bluetooth®- compatible version 2.0
©2011 iKey, Ltd. All rights reserved. 2621 Ridgepoint Drive Suite 235 Austin, TX 78754 1-800- 866-6506
