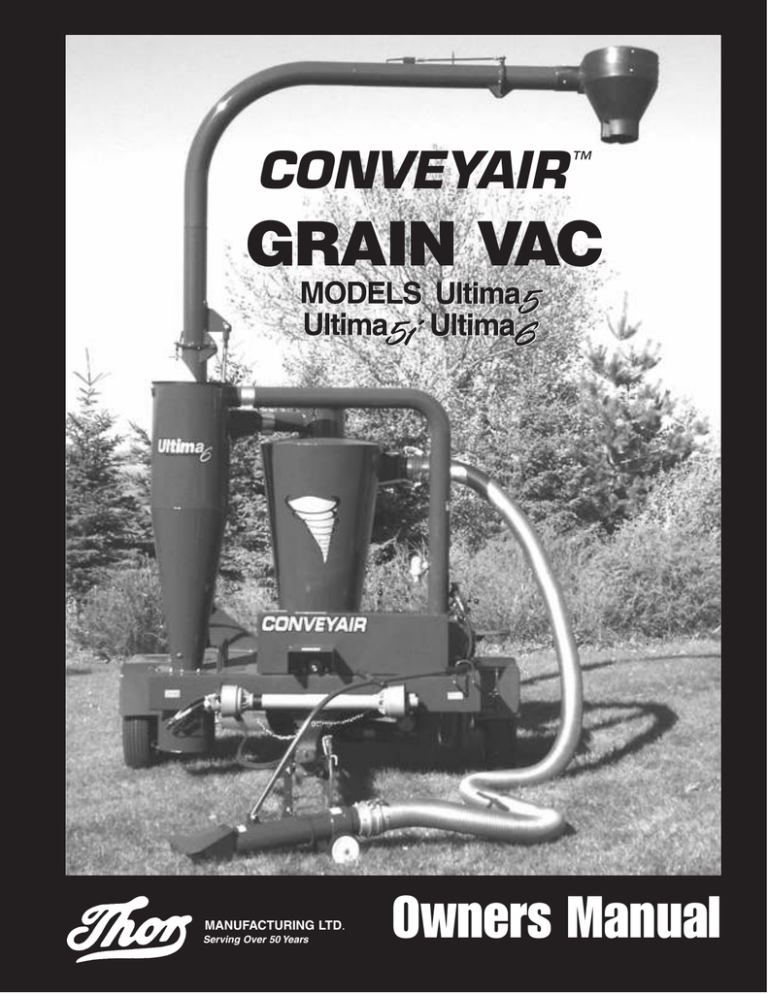

CONVEYAIR
™
GRAIN VAC
MANUFACTURING LTD.
Serving Over 50 Years
Owners Manual
Introduction
Congratulations, you have selected an Ultima
Series Conveyair Grain Vac which is designed
and engineered to help you make farming
Easier, Healthier and Safer.
Our knowledgeable engineering and
production staff have built both performance
and durability into each Conveyair. Our grain
vacs have been sold to farmers in Canada,
Europe, the USA, Australia and the Middle East.
To get the maximum benefit from your
CONVEYAIR please read the owners manual
carefully.
How to use this manual
We recommend that you study this manual
from beginning to end BEFORE operating
your new Conveyair Grain Vac. We have tried
to keep it brief and to the point. It is important
that you pay special attention to the safety
cautions in this book and on your equipment.
Safety Warnings and Symbols
!
As with all farm equipment, it is extremely
important that you familiarize yourself with
all the safety precautions and follow them
wisely.
Words like CAUTION or DANGER will tell
you about things that could hurt you if you
were to ignore the warning!
This safety symbol means:
“Don’t”
“Don’t do this” or
“Don’t let it happen”
Manufacturing Ltd.
Conveyair Pneumatic Grain Handling Systems
TM
77 Beghin Avenue, Winnipeg, MB Canada R2J 3S8 • 204-982-8350 • 204-663-8238 Fax • 1-800-582-3944 Toll-free
Customer Satisfaction Survey
PRODUCT: Conveyair Ultima Series Grain Vac
TM
Name
Phone
Fax
Address
Model
Dealer Name
Purchase Date
Note: For each of the first four questions give us your rating between 1 and 10.
One being the poorest and 10 being the best rating. Please fax,mail
or call us with your reponses.
1
How would you rate our product quality?
2
How would you rate us on our on-time delivery?
3
How easy are we to deal with?
4
How would you rate our response time regarding returned calls and service?
5
Would you use our product again?
6
Would you recommend us to a friend?
Comments (optional)
CONVEYAIR GRAIN VAC
TM
WARRANTY REGISTRATION FORM AND INSPECTION REPORT
WARRANTY REGISTRATION
Failure to return this registration to Thor within 10 says of delivery will VOID warranty.
This form must be filled out by the dealer and signed.
Mail to: Thor Manufacturing, 77 Beghin Avenue, Winnipeg, MB Canada R2J 3S8
Customer Name_______________________________________ Dealer_________________________________________________
Address________________________________________________ Address________________________________________________
City____________________________________________________
City____________________________________________________
Prov./State and Postal Code/Zip_________________________ Prov./State and Postal Code/Zip_________________________
Telephone______________________________________________ Sub Dealer____________________________________________
E-mail__________________________________________________ Address________________________________________________
Conveyair Model #______________________________________ City____________________________________________________
Conveyair Serial #______________________________________
Air Pump Serial #_______________________________________
Airlock Serial #_________________________________________
Prov/State and Postal Code/Zip_________________________
Date Purchased_______________________________________
Check one: ❑ Commercial Use
❑ Farm Use
WARRANTY REGISTRATION
❑
❑
❑
❑
❑
❑
❑
❑
❑
Belt Tension and Alignment
Hydraulic Fittings
Hydraulic Lines
All Reflectors in Place
Wheel Bolts Tight
Tire Pressure (32psi)
All Grease Fittings Greased
Cam Lock Couplers Operate Freely
PTO Shaft Installed Properly
Blower Reservoir Levels
❑ Front
❑ Rear
Self-contained Hydraulics
❑ Hydraulic oil Level
❑ Hydraulic Control Operation
Safety
❑ All safety procedures have been reviewed with
customer
❑ All Warning Decals are in place, clean and legible
❑ Customer has been instructed to review safety and
operating procedures with all operators annually
❑ All Shields in place
I have thoroughly inspected the machine and made adjustments and corrections as needed
Inspected by
Date
Signature (inspector)
I have thoroughly instructed the buyer on the above described equipment and included a review of the
Operators Manual, Equipment Care, Adjustments, Safe Operations and Applicable Warranty Policy.
Date
Dealer’s Rep Signature
The above Equipment and Operators Manual have been received by me and I have been thoroughly
instructed as to Equipment Care, Adjustments, Safe operations and Applicable Warranty Policy
Date
Owner’s Signature
White - THOR MFG. • Yellow - Dealer • Pink - Customer • Goldenrod - Sub dealer
Do not operate or allow anyone else to
operate the Conveyair Grain Vac until he/she
has carefully reviewed and understands the
safety instructions outlined in the Conveyair
manual. Annually review this information before
season start-up.
Be sure that all personnel who will be operating
the Conveyair sign this form after they have read
and understand the Conveyair Operators
Manual.
Date
Manufacturing Ltd.
Employee Signature
SIGN-OFF FORM
CONVEYAIR™ Grain Mover
Thor Manufacturing follows the general Safety
Standards specified by the American society of
Agricultural Engineers (ASAE) and the Occupational
Safety and Health Administration (OSHA). Anyone
who will be operating and/or maintaining the Grain Vac
must read and clearly understand ALL Safety,
Operating and Maintenance information presented in
the manual.
Employer’s Signature
THE STANDARD OF EXCELLENCE
Index Page
Introduction
Customer Satisfaction Survey
Warranty Registration
Sign-off Form
Serial # Registration
Specifications
Safety Precautions
Transport
Setting Up
Break In
Operation
(a) Short Distance
(b) Long Distance
(c) Top Loading
(d) Clean Up
(e) Bins and Storage
Accessories
Lubrication
Service Record
Service and Maintenance
Torque Charts
Hydraulic Schematics
Trouble Shooting
Storage
Parts Manual
Warranty
Inside Front Cover
4
4
6-9
10
11-14
14
15-18
16
17
17
17
18
19
20-21
22
23-27
28
29-31
32-34
35
37-53
Back Cover
3
Serial Numbers
When you order parts or require service,
provide your dealer with complete PARTS,
MODEL & SERIAL NUMBER(S)!
You will find TWO serial numbers on your
unit, we suggest you enter these in your
manual now for quick reference later:
LOCATIONS
1. Machine Serial number Look at rear of machine, right side
2. Blower Serial number Look at front of machine at side of
blower facing receiver tank
.........................................................................
Machine Serial Number
........................................................................................
Blower Serial Number
Specifications
Ultima 5, 5i
Ultima 6
Minimum Horse Power (1000 PTO RPM)
80
110
Length
2.43 m (96”)
2.43 m (96”)
Width
2.36 m (93”)
2.36 m (93”)
Height (transport)
2.54 m (100”)
2.54 m (100”)
Clearance (under cyclone)
3.50 m (138”)
3.50 m (138”)
Weight (complete with accessories)
1106 Kg (2440lb)
1204 Kg (2650 lb)
Tire size
6.70 x 15 (8 ply)
6.70 x 15 (8 ply)
Tire Pressure
35 PSI
35 PSI
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
4
!
Read and understand the operation manual before operating the CONVEYAIR.
Always follow safety and operating instructions as outlined in this manual
Familiarize yourself with the terms shown on this page.
Boom clamp
Discharge Cyclone
Upper Boom Hinge
Discharge Boom
Blower Protection System
(BPS)
Receiver Tank
Receiver
Tank Intake
Suction
Line
Boom
Clamp
Vacuum
Relief
Valve
Ultima6
Control
Panel
Boom Swivel
Lock
Blower
behind
panel
Belt
Cover
Airlock
Hydraulic
Hose
Dust Canister
Silencer
PTO Driveline
Hitch
Pressure
Relief Valve
Clean Out Nozzle
5
Safety Precautions
Thor Manufacturing is concerned about your
safety and is committed to the prevention of
accidents. SAFE AND CORRECT USE of
this equipment will help prevent accidents.
Be sure anyone who operates the
CONVEYAIR GRAIN VAC has read and
understood this manual! BEFORE
operating, maintaining, adjusting or
unplugging the grain vac. Review at least
annually as per OSHA (Occupational Safety
and Health Administration) regulations
1928.57
SAFETY WARNINGS AND SYMBOLS
!
This Safety Alert symbol means ATTENTION!
BE ALERT!
YOUR SAFETY IS INVOLVED!
WATCH OUT FOR THIS SYMBOL ON
YOUR CONVEYAIR® GRAIN VAC AND
THROUGHOUT THE MANUAL.
SIGNAL WORDS:
DANGER - An immediate and specific
hazard which WILL result in severe personal
injury or death if the proper precautions are
not taken.
WARNING - A specific hazard or unsafe
practice which COULD result in severe
personal injury or death if proper precautions
are not taken.
Do not modify the equipment in any way.
Unauthorized modifications may impair
the function and/or safety and could affect
the life of the equipment.
6
CAUTION - Unsafe practices COULD result
in personal injury if proper practices are not
taken, or as a reminder of good safety
practices.
Safety Precautions
!
Operating Safety
!
1. Wear appropriate ear protection.
2. Never wear ill-fitting, baggy or frayed
clothing when working around or on any of
the drive system components.
3. Always know where all overhead electrical wires are located and stay away from
them.
4. Do not allow riders.
5. Install and secure all guards and shields
before starting or operating.
6. Keep hands, feet, hair and clothing away
from moving parts.
7. Place all controls in neutral, stop tractor engine, set park brake, remove ignition key and wait for all moving parts to
stop before servicing, adjusting, repairing
or unplugging.
8. Place all tractor and machine controls in
neutral before starting.
9. Never operate the Conveyair and power
unit inside a closed building.
10. Clear area of bystanders, especially
small children, before starting.
11. Stay away from PTO shaft, intake nozzle
and discharge when engaging PTO.
12. Keep all hydraulic lines, fittings and couplers tight and free of leaks.
13. Clean reflector, SMV and lights before
transporting.
14. Use proper lighting when transporting.
15. Use a retainer or drawbar pin, secure
PTO shaft and install a safety chain when
attaching to tractor.
16. Stay away from overhead electrical
wires when operating boom or when moving.
17. Do not remove receiver inspection window while tractor is running.
18. Do not remove elbow from airlock outlet
when tractor is running.
19. Stay clear of truck loading boom when
folding it.
20. Review safety instructions with all operators annually.
7
Safety Precautions
SAFETY DECAL LOCATIONS
Decals with “CAUTION”, “ DANGER”,
“WARNING”, and other information appear on
your machine for your safety. Read the
information carefully and replace the decals
that are no longer legible.
E
B
A
C
D
F
DANGER
ROTATING DRIVELINE HAZARD
To prevent serious injury or death from
rotating driveline:
DANGER
• Keep all guards in place when operating.
ELECTROCUTION HAZARD
• Operate only at 1000 RPM.
• Keep hands, feet, hair and clothing away
from moving parts.
To prevent serious injury from electrocution:
Stay away from overhead electrical wires when
operating the discharge boom. Electrocution can
occur without direct contact.
68 056
Shield & Shaft “ A”
Control Panel “B”
SW105
8
Safety Precautions
WARNING
ROTATING PART HAZARD
To prevent serious injury or
death from rotating parts:
1. Close and secure guard
before operating.
2. Shut-off engine and wait for
moving parts to stop before
opening to adjust, service,
lubricate or unplug.
3. Keep hands, feet, clothing and
hair away from moving parts.
Guard “C”
CAUTION
EMPTY DUST CANISTER
FREQUENTLY
AS PER OPERATORS MANUAL
Dust Canister “D”
WARNING
ROTATING AIRLOCK HAZARD
To prevent serious injury or death
from airlock blades:
1. Do not place hands in tank
when airlock is turning.
2. Shut-off engine and wait for
moving parts to stop before
opening door to adjust, service or
unplug.
Dust Canister “D”
Receiver Tank “E”
AIRLOCK HAZARD
WARNING ROTATING
To prevent serious injury or death
from airlock blades:
1. Do not place hands in tank
when airlock is turning.
2. Shut-off engine and wait for
moving parts to stop before opening door to adjust, service or
unplug.
Back Frame “F”
“F” Airlock behind frame
WARNING
Do not place intake tube near feet when standing on top
of grain. Sufficient material can be removed to draw the
operator and intake tube into the grain. Submersion in
grain can cause suffocation.
Bin Nozzle “G”
Bin Nozzle “G”
9
Transport
The conveyair grain vac is designed to be easily moved from location to location. When
transporting, follow this procedure:
!
TRANSPORT SAFETY
1. Make sure you are in compliance with all
local regulations regarding transporting
equipment on public roads and highways.
2. Make sure the SMV(Slow Moving Vehicle)
emblem and all the lights and reflectors that
are required by the local highway and transport authorities are in place, are clean and
can be seen clearly by all overtaking and
oncoming traffic.
3. Do not allow anyone to ride on the grain vac
or tractor during transport.
4. Do not exceed 32 km/h (20 mph). Reduce
speed on rough roads and surfaces.
5. Use a retainer on the drawbar pin and install
a safety chain before transporting.
6. Always use proper lighting on the tractor
when transporting.
7. Stay away from overhead electrical wires.
Electrocution can occur without direct contact.
8. When using a ball and socket, make sure the
locking jaws are pinned securely in position.
9. Make sure all components and accessories
are retracted and securely stowed before moving.
10
Speed VS Weight Ratio
Road Speed
Weight of fully equipped or
loaded implement(s) relative
to weight of towing machine.
Up to 32 km/h
(20 mph)
1 to 1, or less
Up to 16 km/h
(10 mph)
2 to 1, or less
Do not tow
More than 2 to 1
Getting Ready
EQUIPMENT MATCHING
=
RPM
0
0
10 inches
16
ATTACHING TRACTOR
Jack
Drawbar
To provide sufficient clearance for turning and
to allow telescoping of the shaft, leave 16”
between the end of the shaft and drawbar pinhole centre. Consult your tractor manual for the
drawbar adjustment procedure.
One inch pin and retainer
PTO Shield anchor chain
Drawbar
Tractor Horsepower (PTO RPM -1000)
1. Clear area of bystanders.
Model
2. Use the jack on the hitch to adjust the height
of the hitch to the drawbar.
Minimum Horsepower
Ultima 5
Ultima 5i
Ultima 6
80
80
110
PTO Shaft
1000 RPM - 21 Spline. 1 3/8” dia.
Attach PTO shield safety chain to hitch.
To prevent operating at the wrong
RPM Do Not use a shaft adapter
on the tractor shaft .
Use extra care when using a tractor with a
shiftable PTO speed.
3. Slowly back up to the machine and align the
drawbar with the hitch.
4. Place all controls in neutral, stop tractor
engine, set the park brake, remove ignition key
and wait for all moving parts to stop before dismounting.
5. Insert a 1 inch (25 mm) hardened drawbar
pin and install a retainer such as a Klik pin.
6. Attach a safety chain between tractor and
Grain Vac.
Hydraulic System
The power unit must have dual remote
hydraulic outlets to operate the airlock motor
and the boom lift circuit. The system must deliver at least 6 gpm (23 lpm) @ 1800 PSI.
11
Getting Ready
Attach Hydraulic Lines
1. Clean hydraulic couplers and male tips.
(Thor factory supplied male tips are Standard
150 Tips).
2. Route the hydraulic hoses along the hitch
and away from moving parts. Secure in
position with clips or ties. (Be sure hoses are
not pinched or crimped).
BPS and Receiver Tank Screens
7. Open the belt cover and rotate the large pulley by hand to be sure the air pump turns freely.
!
Machine is shown with guard open for
illustrative purposes only! Do not operate the machine with guard open.
Before moving grain or other matrerials ensure
both BPS screen and main receiver tank
screen are installed in machine properly at all
times. (see: location on drawing, page 13)
Controls
Attach PTO Shaft
1. Clean splined yokes on the driveshaft.
2. Check that the driveshaft telescopes easily
and that the shield turns freely on the shaft.
Lubricate or clean before attaching if it does
not move freely.
3. Pull back locking collar on the yoke and
slide the yoke over the splined shaft of the
large pulley. Rotate the pulley by hand as
needed to align the splines of the yoke and
the shaft.
Hydraulic controls are located on the control
panel on the left hand side of the machine.
1.Airlock Speed.
2.Hydraulic boom control.
Note: Optional airlock control valve is located
on reverse side of panel.
4. Be sure the locking pin clicks into its locking groove on the shaft.
We suggest you thoroughly familiarize yourself
with the function of each control before regular
operation.
5. Attach the shield anchor chain to the frame.
6. Close and secure the belt cover.
Oil Level
Check the oil level in the blower reservoir.
Add correct oil as required.
12
Position Boom
Getting Ready
Over Centre Clamp
!
Stay at least 15 feet (5 m) away from overhead power lines when moving the boom.
Electrocution can occur without direct contact.
Cyclone
Boom
Over
Centre
Clamp
BPS Screen
Inside
DANGER
Main Receiver
Tank Screen
Inside
Ultima
6
Suction
line
Hydraulic
Boom
Lever
Boom
Lever
4. Use hydraulic boom lever (Up to raise, down
to lower). Carefully raise boom high enough to
allow cyclone assembly (at end of boom) to
swivel into position.
5. Secure cyclone into position, using overcenter clamp.
6. Now lift boom all the way into working position.
7. Secure boom with Over Centre Clamp.
NOTE: Close Boom Hydraulic Lock!
CONTROL
PANEL
Boom Swivel
Boom Swivel
1. Set the park brake and run the tractor at low
idle engine RPM. Place all controls in neutral.
Place chocks ahead and behind rear tires to
prevent machine movement when operating.
2. Use the control lever in the cab to engage
the remote hydraulic circuit.
3. Unlatch boom transport clamp, flip up the
boom lock, and swing boom back until it clears
the transport step.
!
BALL
VALVE
CLOSED
8. When boom is fully up and locked, close ball
valve at rear of control panel as shown above.
9. Attach suction line to the receiver tank intake
coupler. Close camlock couplers.
10. Flip transport step up during operation of
Conveyair.
All bystanders should stay well clear
of boom when raising or lowering it!!
13
Getting Ready
Breaking In
Airlock Rotation
Your machine has been operated for a short
time at the factory to assure good performance.
It can however not be considered broken in. It
normally takes 5 to 10 hours of operation for all
parts to be polished by the grain stream and for
the machine to come up to full capacity.
Do not run the airlock in the
reverse direction. Damage may
occur to the hydraulic motor.
We recommend the following checks during the
break in period:
A. After operating for 1/2 hour 1. Check for overheated bearing. Lubricate or
adjust as required*.
2. Check for oil leaks. Tighten or replace part
and oil as required*
WARNING
Check the rotation of the airlock. Coupler
should turn as indicated by arrow.
High pressure fluids can penetrate the skin and
cause infection and toxic reaction.
If airlock rotates in wrong direction, stop and
reverse direction of control lever on the tractor,
or shut down the hydraulic system and reverse
the order of the hoses plugged into the tractor
couplers.
3. Retorque all hardware - Wheel bolts and fasteners.
For Best Performance
1. Working area should be reasonably level
and dry.
2. The tractor should be positioned to have
the driveline angles at a minimum.
3. The Conveyair should be located so the
intake line is as straight and as short as
possible.
4. When using the Conveyair to load trucks,
make sure there is adequate room for the
receiving vehicle to get under the discharge
cyclone.
14
4. Check belt tension and adjust as required*.
5. Check the oil levels in the blower reservoirs.
If low, add oil as required. Check for leaks and
correct if problem persists*.
* Check maintenance section for proper procedures. ( Also see page 27 for hydraulic safety)
B. After operating for 2 to 10 hours 1. Perform the same checks and inspections as
done at 1/2 hour.
2. After the 10 hour inspection, go to normal
service and maintenance procedures.
Operation
Low - # 1
High - # 10
1. Set Airlock Speed
Adjusting Speed
For maximum performance adjust speed most
suitable for material moved.
Using a stop watch, the airlock can be set by
counting the number of turns the coupler
makes. Coupler is visible through the three
slots in the deck of the machine. One turn per
second equals 60 RPM.
Material
Barley
Canola
Corn
Flax
Wheat
Oats
Airlock Speed (RPM)
50
45
45
35
45
45
-
60
60
60
55
60
60
Adjust airlock RPM by moving the airlock
speed lever on your control panel towards # 10
to increase speed, toward # 1 to slow down.
Move lever slowly, a small movement will make
a significant change in airlock speed.
Material consistency varies widely in the
field. Airlock speed is also affected by suction and discharge length. To obtain maximum performance, try different airlock
speed, using above guide.
A rule of thumb is the larger and heavier the
kernel, the faster the airlock should turn.
Tip - with light oats, or other light grains,
slow PTO speed down to 900 or 950 RPM.
15
Operation
SHORT DISTANCE TRANSFER
IMPORTANT
If the machine still does not clear itself do
the following:
AIRSLIDE
Insert bin nozzle.
Connect hose from receiver intake to bin nozzle. Set the air slide on the full bin nozzle all the
way open and push the nozzle into the material to be moved.
Do not cover airslide with grain
a. Stop machine by slowly reducing tractor
rpm to an idle, then disengage PTO. Remove
dust pail which will allow any material in the
bottom of Blower Protection Cyclone to run
out.
b. Remove nozzle from grain source
c. Start the machine and allow the Receiver
tank to empty itself. Then stop machine again
d. Remove the top on the Blower Protection
Cyclone and clean out any material in the
top of the cyclone and in the pipe between
the receiver tank and the Blower Protection
Cyclone.
e. Replace the Dust pail and the Top on the
Blower Protection Cyclone.
f. Start machine, (RECHECK AIRLOCK
SPEED , page 15) and reset the air slide as
per start up instructions.
Note: Airlock should not turn faster than 65
RPM or slower than 30 RPM.
SIGHT GLASS
BPS System
For PUSH SYSTEM
only, remove
receiver tank lid
see page 17
The line of the grain can be horizontal, angled or vertical depending on conditions.
Adjust the airslide on the full bin nozzle so that
the material moves across the sight glass
window of the receiver tank to approximately
half way (no more than 2/3) up the window. If
the machine starts to surge, slowly open slide
till surging stops.
IMPORTANT
Note: Should the material stop moving and completely cover the
sight glass window in the receiver tank, the machine will quickly
plug. Immediately open the air slide fully, on the full bin nozzle,
to allow the machine to clear itself.
If your machine is an Ultima Series grain vac, simply remove the
nozzle from the grain and forward and reverse the airlock several
times to empty the tank. Then ensure the airlock is turning
counter clockwise and resume operation as normal.
Otherwise follow the next 6 steps:
16
Dust Canister
Operation
LONG DISTANCE BLOWING
!
WARNING
Do not use P.V.C. or other plastic tubing for
long distance application. The build-up of
static electricity could lead to an explosion.
Auxiliary airslide. Located on the airline
between the receiver tank and the air pump.
If discharge length is more than 40 ft. (12 m) or
if blower gets too hot to the touch, open the
airslide approximately 1/4” - 1/2” (6 - 12mm) for
every 100 ft. (30 m) discharge. Open further if
blower still gets hot.
CLEAN UP
When machine need not be at full capacity, e.g.
when cleaning bins, the tractor can be throttled
down.
STEEL FLEX HOSE
POLY
INTAKE HOSE
The rougher walls of the steel flex hose and the poly
intake hose provide more resistance than smooth
pipe. Capacity may be lowered by 20 to 40% compared to straight piping.
Use Poly hose for clean up only.
Opening the airslide too far will affect capacity
as adversely as not opening it at all.
Do not dent, stretch or overbend steel flex
line excessively.
Feed grain below opening to second cyclone
Do not store poly hose in sunshine, avoid
sharp obstructions that could cut or puncture the hose.
TOP LOADING
(Push Only)
For top loading,
remove top cover of
large cyclone. To
avoid feed back be
sure grain enters below opening to BPS
(smaller) cyclone.
For regular cleanup use a combination of steel
flex line, straight piping and poly hose. This will
give you the needed flexibility to easily get into
corners and around obstructions without sacrificing too much capacity.
SEED DRILL CLEAN OUT
LONG DISTANCE SUCTION
For sucking grain more than thirty feet, use
straight piping where possible!
Remember: The straighter the suction line
the greater the capacity of the Conveyair.
When using the seed drill clean out kit, operate
the tractor at idle only to reduce suction air
flow. The receiver tank can be used as a holding tank by stopping the airlock until the seed
can be discharged into a truck or storage.
17
Operation
CLEANUP OF SPILLS AND
GROUND STORED GRAIN
Extreme caution should be exercised when
cleaning spills or grain stored on dirt. Sand and
dirt may cause excessive wear to blower, and
life expectancy of the unit can be reduced significantly.
Multiple Bins (Parallel)
FILLING BINS AND
TEMPORARY STORAGE
Multiple bins (Series)
Bin Cyclone
Rear discharge option required.
30º Elbow
When discharging into bins, remove the airlock
discharge elbow and couple the machine to
stationary or movable piping.
Compression Clamp
For best performance, review recommended
installation schematics. Use Thor parts to
insure good sealing and maximum performance.
60º Elbow
Top Bin Bracket
Bin Bracket
Tubing
Contact your dealer for more information.
Quick Coupler
Silos over 100 feet tall can be
filled with your CONVEYAIR!
approx. 4Ft. (1.2M)
From Conveyair
18
Bin Fill System
Accessories
9
1
8
3
4
9
7
Cam Lock Couplers
2
7
5
6
Bin Accessories
1. Horizontal Pipe Section.
Steel or aluminum. Matched to 5” or 6”
Conveyair Grain Vac.
2. Vertical Pipe Section. Specs as above.
Sections may be welded or coupled together
with 3-bolt clamp.
Cyclone sock for windy conditions
3. Bin Top Cyclone. Cyclones come equipped
with a rain cap and can also double as aeration
vents.
For temporary installations, use the lightweight
poly cyclone and attach with quick couplers.
4. 90 Degree long radius elbow.
place or secure with 3-bolt clamp.
Weld in
5. 5” or 6” female quick couplers.
Seed Drill Cleanout Kit
6. Delivery from CONVEYAIR to bin. Use a
combination of short stainless lined steel flex
and long radius 90 degree elbow.
7. Side wall bin brackets.
8. Angle top mount bracket.
9. 3 Bolt clamp.
Fenders
10. SEE PARTS LIST FOR STANDARD HOSE
AND OTHER PARTS.
19
Lubrication
GREASING
1. Use only a manual grease gun for all greasing. Air powered grease guns may damage
the seal on bearings, leading to early bearing
failure.
Fluids and lubricants
Grease
Use any SAE multi -purpose high temperature
grease with extreme pressure (EP) performances and containing at least 1.5% molybdenum disulfide or SAE Multi-Purpose Lithium Base
Grease.
Oil
IMPORTANT
Do not over grease, it can
damage bearing seals.
2. Wipe grease fitting with a clean cloth before
greasing, to avoid injecting dirt and grit.
3. Replace and repair broken fittings immediately.
Blower: Grain Vacs Serial No. 3000 and later
USE SYNTHETIC GEAR OIL
Mobil SHC 630, or equivalent
8 Hours or Daily
Grain Vacs Serial No. 2999 and earlier
USE 15W40 MULTI GRADE OIL equal to or
exceeding SAE “SF” specifications
Capacity drive end 850 ml / 28.7 fl. oz US
Capacity gear end 1000 ml / 33.8 fl oz US
Hydraulic Oil Reservoirs:
10W Hydraulic oil equal to or exceeding
SAE “SF” specifications.
Capacity - (31 qt. US)
PTO SHAFT (9 Locations)
Cleaning agent
WD40 or equivalent.
!
CAUTION
1. Place all controls in neutral, stop tractor
engine, set park brake, remove ignition
key and wait for all moving parts to stop
before servicing.
2. Before applying pressure to a hydraulic
system, make sure all lines, fittings and
couplers are tight and in good condition.
3. Relieve pressure from hydraulic circuit
before servicing or disconnecting from
tractor.
20
Input Pulley Shaft, front and rear
!
CAUTION
Machine is shown with guard open for
illustrative purposes only. Do not operate
machine with guard open.
Lubrication
8 Hours or Daily
100 Hours or 6 Months
Check air pump oil level in reservoirs, front
and rear (2 locations). Add as required.
Change the oil in air pump reservoirs ( front
and rear).
NOTE
Check when the oil is cold and the machine is
level.
NOTE
Change every 30 hours if operating in very
dusty conditions.
50 Hours
200 Hours or Annually
Clean oil reservoir breather caps (2 locations).
Repack wheel bearings (2 locations).
21
Service Record
See Lubrication and Maintenance sections for details of service. Copy this page to continue
record.
ACTION:
✔ CHECK
L LUBRICATE
HOURS
MAINTENANCE
SERVICED
BY
8 Hours or Daily
L
L
✔
✔
✔
PTO Shaft (7)
Input Pulley Shaft Front & Rr. (2)
V Belt Tension
Air Pump Oil Level in Reservoir (2)
+ CL System Filter
L
Boom Grease Nipples
50 Hours
CL Oil Reservoir. Breather Caps (2)
100 Hours or 6 Month
C Oil in Air Pump Reservoir Front & Rear
Annually
R
CL
22
Wheel Bearings (2)
Machine
C
R
CHANGE
REPACK
CL
CLEAN
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
