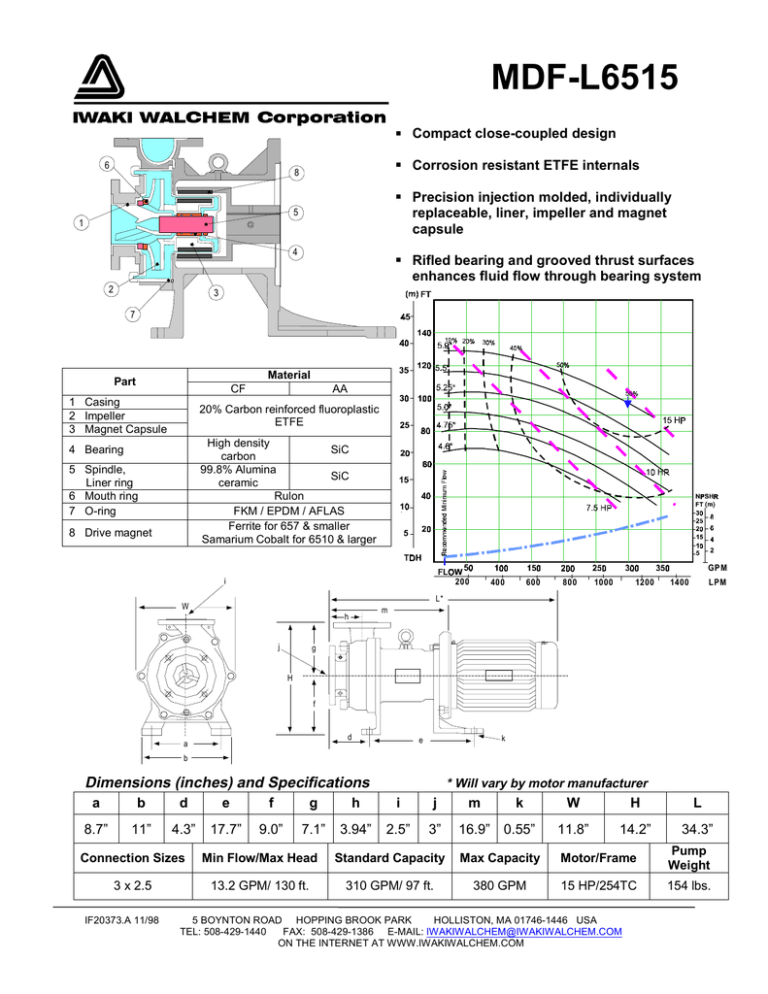

MDF-L6515
6
Compact close-coupled design
Corrosion resistant ETFE internals
8
Precision injection molded, individually
replaceable, liner, impeller and magnet
capsule
5
1
4
Rifled bearing and grooved thrust surfaces
enhances fluid flow through bearing system
2
3
7
Material
Part
CF
1 Casing
2 Impeller
3 Magnet Capsule
AA
20% Carbon reinforced fluoroplastic
ETFE
High density
SiC
carbon
99.8% Alumina
SiC
ceramic
Rulon
FKM / EPDM / AFLAS
Ferrite for 657 & smaller
Samarium Cobalt for 6510 & larger
4 Bearing
5 Spindle,
Liner ring
6 Mouth ring
7 O-ring
8 Drive magnet
GP M
i
200
400
600
800
1000
1200
1400
LPM
L*
W
m
h
j
g
H
f
d
a
k
e
b
Dimensions (inches) and Specifications
* Will vary by motor manufacturer
a
b
d
e
f
g
h
i
j
8.7”
11”
4.3”
17.7”
9.0”
7.1”
3.94”
2.5”
3”
m
k
W
H
L
16.9” 0.55”
11.8”
14.2”
34.3”
Connection Sizes
Min Flow/Max Head
Standard Capacity
Max Capacity
Motor/Frame
Pump
Weight
3 x 2.5
13.2 GPM/ 130 ft.
310 GPM/ 97 ft.
380 GPM
15 HP/254TC
154 lbs.
IF20373.A 11/98
5 BOYNTON ROAD HOPPING BROOK PARK
HOLLISTON, MA 01746-1446 USA
TEL: 508-429-1440
FAX: 508-429-1386 E-MAIL: [email protected]
ON THE INTERNET AT WWW.IWAKIWALCHEM.COM
