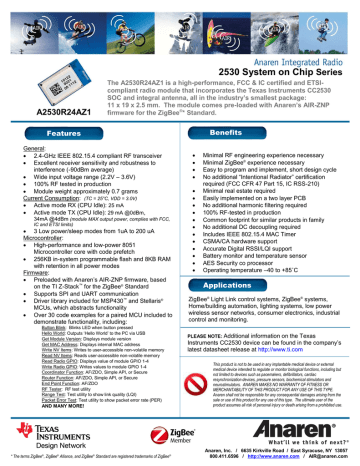

2530 System on Chip Series
The A2530R24AZ1 is a high-performance, FCC & IC certified and ETSIcompliant radio module that incorporates the Texas Instruments CC2530
SOC and integral antenna, all in the industry’s smallest package:
11 x 19 x 2.5 mm. The module comes pre-loaded with Anaren’s AIR-ZNP
firmware for the ZigBee®* Standard.
 2.4-GHz IEEE 802.15.4 compliant RF transceiver
 Excellent receiver sensitivity and robustness to
interference (-90dBm average)
 Wide input voltage range (2.2V – 3.6V)
 100% RF tested in production
 Module weight approximately 0.7 grams
Current Consumption: (TC = 25°C, VDD = 3.0V)
 Active mode RX (CPU Idle): 25 mA
 Active mode TX (CPU Idle): 29 mA @0dBm,
34mA @4dBm (module MAX output power, complies with FCC,
IC and ETSI limits)
 3 Low power/sleep modes from 1uA to 200 uA
 High-performance and low-power 8051
Microcontroller core with code prefetch
 256KB in-system programmable flash and 8KB RAM
with retention in all power modes
 Preloaded with Anaren’s AIR-ZNP firmware, based
on the TI Z-Stack™ for the ZigBee® Standard
 Supports SPI and UART communication
 Driver library included for MSP430™ and Stellaris®
MCUs, which abstracts functionality
 Over 30 code examples for a paired MCU included to
demonstrate functionality, including:
Button Blink: Blinks LED when button pressed
Hello World: Outputs ‘Hello World’ to the PC via USB
Get Module Version: Displays module version
Get MAC Address: Displays internal MAC address
Write NV Items: Writes to user-accessible non-volatile memory
Read NV Items: Reads user-accessible non-volatile memory
Read Radio GPIO: Displays value of module GPIO 1-4
Write Radio GPIO: Writes values to module GPIO 1-4
Coordinator Function: AF/ZDO, Simple API, or Secure
Router Function: AF/ZDO, Simple API, or Secure
End Point Function: AF/ZDO
RF Tester: RF test utility
Range Test: Test utility to show link quality (LQI)
Packet Error Test: Test utility to show packet error rate (PER)
* The terms ZigBee®, ZigBee® Alliance, and ZigBee® Standard are registered trademarks of ZigBee®
Minimal RF engineering experience necessary
Minimal ZigBee® experience necessary
Easy to program and implement, short design cycle
No additional “Intentional Radiator” certification
required (FCC CFR 47 Part 15, IC RSS-210)
Minimal real estate required
Easily implemented on a two layer PCB
No additional harmonic filtering required
100% RF-tested in production
Common footprint for similar products in family
No additional DC decoupling required
Includes IEEE 802.15.4 MAC Timer
CSMA/CA hardware support
Accurate Digital RSSI/LQI support
Battery monitor and temperature sensor
AES Security co processor
Operating temperature –40 to +85˚C
ZigBee® Light Link control systems, ZigBee® systems,
Home/building automation, lighting systems, low power
wireless sensor networks, consumer electronics, industrial
control and monitoring.
PLEASE NOTE: Additional information on the Texas
Instruments CC2530 device can be found in the company’s
latest datasheet release at
This product is not to be used in any implantable medical device or external
medical device intended to regulate or monitor biological functions, including but
not limited to devices such as pacemakers, defibrillators, cardiac
resynchronization devices, pressure sensors, biochemical stimulators and
Anaren shall not be responsible for any consequential damages arising from the
sale or use of this product for any use of this type. The ultimate user of the
product assumes all risk of personal injury or death arising from a prohibited use.
Anaren, Inc. / 6635 Kirkville Road / East Syracuse, NY 13057
800.411.6596 / / [email protected]
Product overview
Module Block Diagram
The A2530R24AZ1 is a high-performance, FCC & IC certified
and ETSI-compliant ZigBee®/IEEE 802.15.4 RF SOC module
that incorporates the Texas Instruments CC2530 transceiver
chip in the industry’s smallest package (11 x 19 x 2.5 mm). The
module incorporates a crystal, the required RF matching and
filtering for regulatory compliance, plus filtering on select digital
lines for better noise reduction and sensitivity. The modules
operate in the global non-licensed 2.4GHz ISM/SRD frequency
band. These radio modules are ideal for achieving low power
wireless connectivity without having to deal with extensive
Protocol, RF design and regulatory compliance, allowing quick
time to market. The modules are 100% RF-tested to provide
consistent performance.
The A2530R24AZ1 has an RoHS-compliant ENIG finish and
is packaged on tape & reel or in matrix trays for high-volume
automated manufacturing.
Layout Information
See product User’s Manual for detailed information.
Pin diagram
Pin-out shown is for operation using the AIR-ZNP firmware for
the ZigBee® Standard. See User’s Manual for detailed pin
Ground detail (corner)
DNC = “Do Not Connect”. Pin
reserved for internal use,
ensure mating footprint pads
are isolated.
GND = “Ground”. Connect the
maximum number possible
(minimum one for proper
Footprint (PWB)
Ground detail (edge)
Caution! ESD sensitive device.
Precautions should be used when
handling the device in order to
prevent permanent damage.
Chip series
Frequency band
Form factor
Design ID
6 Application
7 Packaging
(CC1101, CC2500, CC2530, CC8520)
(R = radio only, E = Range Extender)
(x 100MHz)
(A = Internal Antenna, C = Connector)
(Z1 = Loaded with Anaren AIR-ZNP
for the ZigBee® Standard)
(G = General)
(R = Reel, M = Matrix Tray)
