Asus B85-PRO Specifications

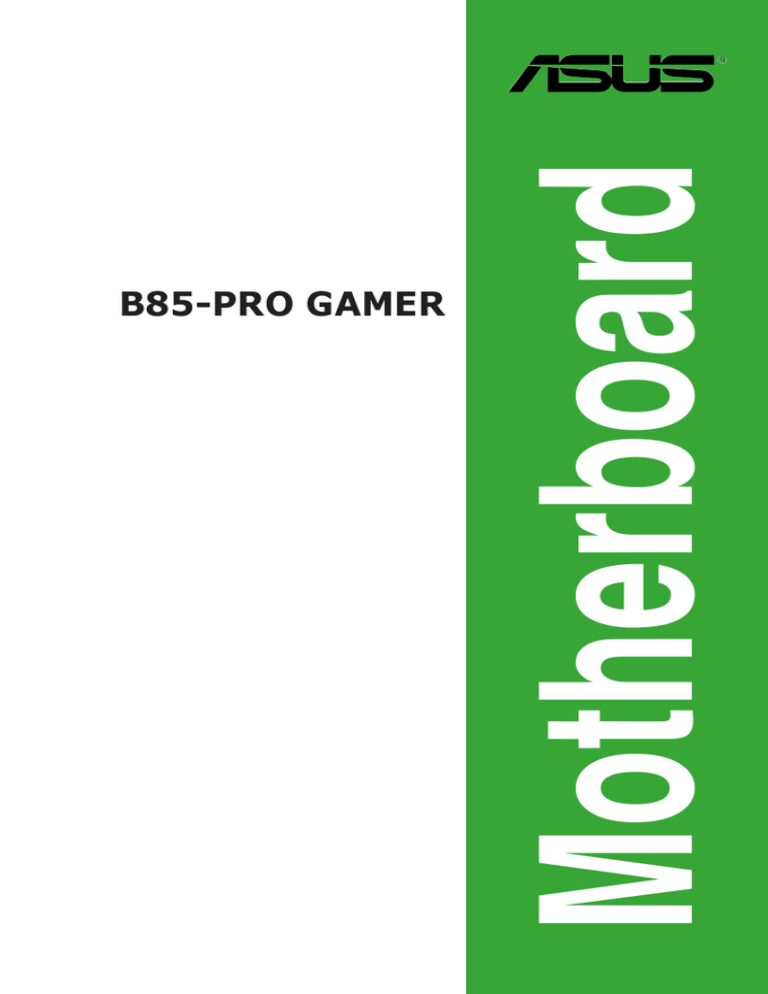

Motherboard
B85-PRO GAMER
E8922
First Edition V1
February 2014
Copyright © 2014 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK COMPUTER INC. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless
such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identification or explanation and to the
owners’ benefit, without intent to infringe.
Offer to Provide Source Code of Certain Software
This product contains copyrighted software that is licensed under the General Public License (“GPL”),
under the Lesser General Public License Version (“LGPL”) and/or other Free Open Source Software
Licenses. Such software in this product is distributed without any warranty to the extent permitted by the
applicable law. Copies of these licenses are included in this product.
Where the applicable license entitles you to the source code of such software and/or other additional data,
you may obtain it for a period of three years after our last shipment of the product, either
(1) for free by downloading it from http://support.asus.com/download
or
(2) for the cost of reproduction and shipment, which is dependent on the preferred carrier and the location
where you want to have it shipped to, by sending a request to:
ASUSTeK Computer Inc.
Legal Compliance Dept.
15 Li Te Rd.,
Beitou, Taipei 112
Taiwan
In your request please provide the name, model number and version, as stated in the About Box of the
product for which you wish to obtain the corresponding source code and your contact details so that we
can coordinate the terms and cost of shipment with you.
The source code will be distributed WITHOUT ANY WARRANTY and licensed under the same license as
the corresponding binary/object code.
This offer is valid to anyone in receipt of this information.
ASUSTeK is eager to duly provide complete source code as required under various Free Open Source
Software licenses. If however you encounter any problems in obtaining the full corresponding source
code we would be much obliged if you give us a notification to the email address [email protected], stating
the product and describing the problem (please DO NOT send large attachments such as source code
archives, etc. to this email address).
ii
Contents
Safety information....................................................................................... iv
About this guide.......................................................................................... iv
Package contents........................................................................................ vi
B85-PRO GAMER specifications summary............................................... vi
Product introduction
1.1
Before you proceed...................................................................... 1-1
1.2
Motherboard overview.................................................................. 1-1
1.3
Central Processing Unit (CPU).................................................... 1-3
1.4
System memory............................................................................ 1-7
1.5
Expansion slots............................................................................. 1-9
1.6Jumpers....................................................................................... 1-18
1.7Connectors.................................................................................. 1-19
1.8
Onboard LEDs............................................................................. 1-27
1.9
Software support......................................................................... 1-28
BIOS information
2.1
Managing and updating your BIOS............................................. 2-1
2.2
BIOS setup program..................................................................... 2-6
2.3
My Favorites.................................................................................. 2-9
2.4
Main menu................................................................................... 2-10
2.5
Ai Tweaker menu......................................................................... 2-12
2.6
Advanced menu.......................................................................... 2-26
2.7
Monitor menu.............................................................................. 2-35
2.8
Boot menu................................................................................... 2-39
2.9
Tool menu.................................................................................... 2-45
2.10
Exit menu..................................................................................... 2-46
Appendices
Notices........................................................................................................A-1
iii
Safety information
Electrical safety
•
To prevent electrical shock hazard, disconnect the power cable from the electrical outlet
before relocating the system.
•
When adding or removing devices to or from the system, ensure that the power cables
for the devices are unplugged before the signal cables are connected. If possible,
disconnect all power cables from the existing system before you add a device.
•
Before connecting or removing signal cables from the motherboard, ensure that all
power cables are unplugged.
•
Seek professional assistance before using an adapter or extension cord. These devices
could interrupt the grounding circuit.
•
Ensure that your power supply is set to the correct voltage in your area. If you are not
sure about the voltage of the electrical outlet you are using, contact your local power
company.
•
If the power supply is broken, do not try to fix it by yourself. Contact a qualified service
technician or your retailer.
Operation safety
•
Before installing the motherboard and adding components, carefully read all the manuals
that came with the package.
•
Before using the product, ensure all cables are correctly connected and the power
cables are not damaged. If you detect any damage, contact your dealer immediately.
•
To avoid short circuits, keep paper clips, screws, and staples away from connectors,
slots, sockets and circuitry.
•
Avoid dust, humidity, and temperature extremes. Do not place the product in any area
where it may be exposed to moisture.
•
Place the product on a stable surface.
•
If you encounter technical problems with the product, contact a qualified service
technician or your retailer.
About this guide
This user guide contains the information you need when installing and configuring the
motherboard.
How this guide is organized
This guide contains the following parts:
•
Chapter 1: Product introduction
This chapter describes the features of the motherboard and the new technology it
supports. It includes descriptions of the switches, jumpers, and connectors on the
motherboard.
•
Chapter 2: BIOS information
This chapter discusses changing system settings through the BIOS Setup menus.
Detailed descriptions for the BIOS parameters are also provided.
iv
Where to find more information
Refer to the following sources for additional information and for product and software
updates.
1.
ASUS websites
The ASUS website provides updated information on ASUS hardware and software
products. Refer to the ASUS contact information.
2.
Optional documentation
Your product package may include optional documentation, such as warranty flyers,
that may have been added by your dealer. These documents are not part of the
standard package.
Conventions used in this guide
To ensure that you perform certain tasks properly, take note of the following symbols used
throughout this manual.
DANGER/WARNING: Information to prevent injury to yourself when
completing a task.
CAUTION: Information to prevent damage to the components when
completing a task
IMPORTANT: Instructions that you MUST follow to complete a task.
NOTE: Tips and additional information to help you complete a task.
Typography
Bold text
Indicates a menu or an item to select.
Italics
Used to emphasize a word or a phrase.
<Key>
Keys enclosed in the less-than and greater-than sign
means that you must press the enclosed key.
Example: <Enter> means that you must press the Enter or
Return key.
<Key1> + <Key2> + <Key3>
If you must press two or more keys simultaneously, the key
names are linked with a plus sign (+).
v
Package contents
Check your motherboard package for the following items.
Motherboard
ASUS Gaming Motherboard – B85-PRO GAMER
Cables
2 x Serial ATA 6.0 Gb/s cables
Accessories
1 x I/O Shield
Application DVD
Support DVD
Documentation
User Guide
If any of the above items is damaged or missing, contact your retailer.
B85-PRO GAMER specifications summary
LGA1150 socket for Intel® 4th Generation Core™ i7 / i5 / i3, Pentium®, and
Celeron® processors
CPU
Supports Intel® 22nm CPU
Supports Intel® Turbo Boost Technology 2.0*
* The Intel® Turbo Boost Technology 2.0 support depends type of CPU installed in your
system.
** Refer to www.asus.com for Intel® CPU support list.
Chipset
Intel® B85 Express Chipset
4 x DIMM, maximum 32 GB, DDR3 1600 / 1333 / 1066 MHz, non-ECC, un-buffered
memory
Dual-channel memory architecture
Memory
Supports Intel® Extreme Memory Profile (XMP)
* Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP
mode will run at the maximum transfer rate of DDR3 1600 MHz.
** Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Please refer to Memory QVL (Qualified Vendors List) for details.
*** Refer to www.asus.com for the latest Memory QVL (Qualified Vendors List).
Integrated graphics processor - Intel® HD Graphics support
Graphics
Multi-VGA output support: HDMI / DVI-D / RGB ports
- Supports HDMI with maximum resolution of 4096 x 2160 @ 24 MHz or 2560 x
1600 @ 60 Hz
- Supports DVI-D with maximum resolution of 1920 x 1200 @ 60 Hz
- Supports RGB with maximum resolution of 1920 x 1200 @ 60 Hz
- Supports up to three displays simultaneously
Supports Intel® InTruTM 3D, Quick Sync Video, Intel® Clear Video HD Technology,
and Intel® InsiderTM
Maximum shared memory of 1024 MB
Multi-GPU
Support
Supports AMD® Quad-GPU CrossFireXTM technology
1 x PCI Express 3.0 / 2.0 x16 slot (gray, at x16)
Expansion
slots
1 x PCI Express 2.0 x16 slot (black, maximum at x4 mode, compatible with PCIe
x1 and x4 devices)
2 x PCI Express 2.0 x1 slots
3 x PCI slots
(continued on the next page)
vi
B85-PRO GAMER specifications summary
SupremeFX 8-channel High Definition Audio CODEC
- Supports jack-detection, multi-streaming and front panel MIC jack-retasking
- High quality 115dB SNR stereo playback output
Audio
Storage
Audio Features:
- SupremeFX ShieldingTM Technology
- ELNA premium audio capacitors
- Headphone AMP
- Sonic Radar
- Optical S/PDIF out port at back panel
Intel® B85 Express Chipset:
- 4 x Serial ATA 6.0 Gb/s connectors (gray)
- 2 x Serial ATA 3.0 Gb/s connectors (black)
Supports Intel® Rapid Start Technology and Intel® Smart Connect Technology*
* These functions work depending on the type of CPU installed.
LAN
USB
Intel® Gigabit LAN - Best Gaming Ethernet
GameFirst II
Intel® B85 Express Chipset
- 4 x USB3.0 / 2.0 ports* (2 ports at mid-board, 2 ports at rear panel)
- 8 x USB 2.0 ports (4 ports at mid-board, 4 ports at rear panel)
* with ASUS USB 3.0 Boost support
1 x PS/2 keyboard port (purple)
1 x PS/2 mouse port (green)
1 x optical S/PDIF out
1 x DVI port
Rear Panel
I/O ports
1 x HDMI port
1 x D-Sub port
1 x LAN (RJ-45) port
2 x USB 3.0 / 2.0 ports
4 x USB 2.0 / 1.1 ports
8-channel audio I/O ports
1 x USB 3.0 / 2.0 connector support additional 2 USB 3.0 / 2.0 ports
2 x USB 2.0 / 1.1 connectors support additional 4 USB 2.0 / 1.1 ports
1 x System panel connector
1 x S/PDIF out header
1 x Front panel audio connector (AAFP)
4 x SATA 6.0 Gb/s connectors (gray)
Internal
connectors
2 x SATA 3.0 Gb/s connectors (black)
1 x 4-pin CPU fan connector
1 x 4-pin CPU optional fan connector
3 x 4-pin Chassis fan connectors
1 x COM header
1 x TPM header
1 x Clear CMOS jumper
1 x 24-pin EATX power connector
1 x 8-pin ATX 12V power connector
(continued on the next page)
vii
B85-PRO GAMER specifications summary
Gamer’s Guardian
-
-
-
-
-
ESD Guards on LAN, Audio, KBMS, and USB 3.0 / 2.0 ports
DRAM Overcurrent Protection
10K Black Metallic Capacitors
Stainless Steel Back I/O
ASUS DIGI+ VRM
Performance Optimization
ASUS gaming
features
Dual Intelligent Processors 2 with DIGI+ VRM
ASUS DIGI+ VRM
- ASUS DIGI+ VRM utility
ASUS EPU
- EPU (Energy Processing Unit) allows you to adjust the CPU, GPU, and the
Fan control settings to their power-saving conditions.
ASUS TPU
- Auto Tuning, TurboV, GPU Boost
ASUS Fan Xpert 2
- Fan Auto Tuning function for optimized speed control
USB 3.0 Boost
- Ultra-fast USB 3.0 transmission
EZ DIY
- ASUS AI Suite 3
- Disk Unlocker
- AI Charger
Award-winning BIOS Design
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- ASUS Crashfree BIOS 3
- ASUS EZ Flash 2
BIOS features
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI v2.0, WfM2.0, SM BIOS
v2.7, ACPI v4.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS
CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12
PrintScreen, F3 Shortcut function, and ASUS DRAM SPD (Serial
Presence Detect) memory information
Manageability
Wfm 2.0, DMI 2.0, WOL by PME, PXE
Drivers
Support DVD
ASUS utilities
EZ Update
Anti-virus software (OEM version)
Form factor
ATX form factor: 12.0 in. x 9.0 in. (30.5 cm x 22.8 cm)
Specifications are subject to change without notice.
viii
Product introduction
1.1
Before you proceed
1
Take note of the following precautions before you install motherboard components or change
any motherboard settings.
1.2
•
Unplug the power cord from the wall socket before touching any component.
•
Before handling components, use a grounded wrist strap or touch a safely grounded
object or a metal object, such as the power supply case, to avoid damaging them due
to static electricity.
•
Hold components by the edges to avoid touching the ICs on them.
•
Whenever you uninstall any component, place it on a grounded antistatic pad or in the
bag that came with the component.
•
Before you install or remove any component, ensure that the ATX power supply is
switched off or the power cord is detached from the power supply. Failure to do so
may cause severe damage to the motherboard, peripherals, or components.
Motherboard overview
Before you install the motherboard, study the configuration of your chassis to ensure that the
motherboard fits.
Unplug the power cord before installing or removing the motherboard. Failure to do so can
cause you physical injury and damage to motherboard components.
1.2.1
Placement direction
When installing the motherboard, place it into the chassis in the correct orientation. The edge
with external ports goes to the rear part of the chassis as indicated in the image.
1.2.2
Screw holes
Place six screws into the holes indicated by circles to secure the motherboard to the chassis.
Do not overtighten the screws! Doing so can damage the motherboard.
ASUS B85-PRO GAMER
1-1
Place this side
towards the rear
of the chassis
1.2.3
1-2
Motherboard layout
Chapter 1: Product introduction
1.2.4
Layout contents
Connectors/Jumpers/Slots/LED
1. ATX power connectors (24-pin EATXPWR, 8-pin EATX12V)
2. Intel® LGA1150 CPU socket
3. CPU and chassis fan connectors (4-pin CPU_FAN, 4-pin CPU_OPT; CHA_FAN1, CHA_FAN2, CHA_FAN3)
4. DDR3 DIMM slots
5. USB 3.0 connector (20-1 pin USB3_12)
6. Intel® B85 Serial ATA 6.0 Gb/s connector (7-pin SATA6G_1, SATA6G_2,
SATA6G_3 SATA6G_4, [gray])
7. Intel® B85 Serial ATA 3.0 Gb/s connectors (7-pin SATA3G_5, SATA3G_6
[black])
8. Standby Power LED (SB_PWR)
9. System panel connector (20-8 pin F_PANEL)
10.
11.
12.
13.
14.
15.
1.3
USB 2.0 connectors (10-1 pin USB1314, USB34)
Serial port connectors (10-1 pin COM)
TPM connector (20-1 pin TPM)
Clear RTC RAM (3-pin CLRTC)
Digital audio connector (4-1 pin SPDIF_OUT)
Front panel audio connector (10-1 pin AAFP)
Page
1-22
1-3
1-21
1-7
1-24
1-25
1-25
1-27
1-26
1-24
1-21
1-22
1-18
1-23
1-23
Central Processing Unit (CPU)
This motherboard comes with a surface mount LGA1150 socket designed for the Intel® 4th
generation Core™ i7 / Core™ i5 / Core™ i3, Pentium® , Celeron® processors.
ASUS B85-PRO GAMER
1-3
Unplug all power cables before installing the CPU.
1.3.1
•
Ensure that you install the correct CPU designed for the LGA1150 socket only. DO
NOT install a CPU designed for LGA1155 and LGA1156 sockets on the LGA1150
socket.
•
Upon purchase of the motherboard, ensure that the PnP cap is on the socket and
the socket contacts are not bent. Contact your retailer immediately if the PnP cap
is missing, or if you see any damage to the PnP cap/socket contacts/motherboard
components. ASUS will shoulder the cost of repair only if the damage is shipment/
transit-related.
•
Keep the cap after installing the motherboard. ASUS will process Return Merchandise
Authorization (RMA) requests only if the motherboard comes with the cap on the
LGA1150 socket.
•
The product warranty does not cover damage to the socket contacts resulting from
incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the PnP
cap.
Installing the CPU
1
A
B
2
1-4
3
Chapter 1: Product introduction
4
5
C
A
B
1.3.2
CPU heatsink and fan assembly installation
Apply the Thermal Interface Material
to the CPU heatsink and CPU
before you install the heatsink and
fan if necessary.
ASUS B85-PRO GAMER
1-5
To install the CPU heatsink and fan assembly
1
2
A
B
B
A
3
4
To uninstall the CPU heatsink and fan assembly
1
2
A
B
B
A
1-6
Chapter 1: Product introduction
1.4
System memory
1.4.1Overview
This motherboard comes with four Double Data Rate 3 (DDR3) Dual Inline Memory Module
(DIMM) sockets. A DDR3 module is notched differently from a DDR or DDR2 module. DO
NOT install a DDR or DDR2 memory module to the DDR3 slot.
According to Intel® CPU spec, DIMM voltage below 1.65 V is recommended to protect the
CPU.
1.4.2
Memory configurations
You may install 1 GB, 2 GB, 4 GB, and 8 GB unbuffered non-ECC DDR3 DIMMs into the
DIMM sockets. You can refer to the recommended memory population below.
•
You may install varying memory sizes in Channel A and Channel B. The system maps
the total size of the lower-sized channel for the dual-channel configuration. Any excess
memory from the higher-sized channel is then mapped for single-channel operation.
•
Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP
mode will run at the maximum transfer rate of DDR3 1600 MHz.
•
Always install DIMMs with the same CAS latency. For optimal compatibility, we
recommend that you install memory modules of the same version or date code (D/C)
from the same vendor. Check with the retailer to get the correct memory modules.
•
Due to the memory address limitation on 32-bit Windows® OS, when you install 4GB
or more memory on the motherboard, the actual usable memory for the OS can be
about 3GB or less. For effective use of memory, we recommend that you do any of the
following:
-
Use a maximum of 3 GB system memory if you are using a 32-bit Windows® OS.
-
Install a 64-bit Windows® OS if you want to install 4GB or more on the
motherboard.
•
This motherboard does not support DIMMs made up of 512 Mb (64 MB) chips or less.
ASUS B85-PRO GAMER
1-7
1.4.3
•
The default memory operation frequency is dependent on its Serial Presence Detect
(SPD), which is the standard way of accessing information from a memory module.
•
For system stability, use a more efficient memory cooling system to support a full
memory load (4 DIMMs).
•
Visit the ASUS website at www.asus.com for the latest QVL.
Installing a DIMM
Unplug the power supply before adding or removing DIMMs or other system components.
Failure to do so can cause severe damage to both the motherboard and the components.
1.
Press the retaining clip outward to
unlock a DIMM socket.
2.
Align a DIMM on the socket
such that the notch on the DIMM
matches the DIMM slot key on the
socket.
DIMM notch
DIMM slot key
A DIMM is keyed with a notch so that it fits in only one direction. DO NOT force a DIMM into
a socket in the wrong direction to avoid damaging the DIMM.
3.
1.4.4
Firmly insert the DIMM into the socket
until the retaining clip clicks back
in place and the DIMM is properly
seated.
Removing a DIMM
To remove a DIMM:
1.
1-8
Press the retaining clips outward to unlock the DIMM.
Chapter 1: Product introduction
Support the DIMM lightly with
your fingers when pressing the
retaining clip. The DIMM might
get damaged when it flips out
with extra force.
2.
Remove the DIMM from the socket.
B85-PRO GAMER motherboard Qualified Vendors Lists (QVL)
DDR3 2133 MHz capability
DIMM
socket
support
(Optional)
Vendors
Part No.
Size
SS/
DS
Chip
Brand
Chip
NO.
Timing
Voltage
2
4
A-DATA
AX3U2133W4G10-DR(XMP)
8GB ( 2x 4GB )
SS
-
-
10-11-11-30
1.65
•
•
A-DATA
AX3U2133W8G10-DR(XMP)
16GB ( 2x
8GB )
DS
-
-
10-11-11-30
1.65
•
•
Apacer
78.BAGE4.AFD0C(XMP)
8GB ( 2x 4GB )
DS
-
-
9-9-9-24
-
•
•
Apacer
AHU04GFB33CAQ3R(XMP)
4GB
DS
-
-
11-13-13-31
-
•
•
CORSAIR
CMD16GX3M2A2133C9 (Ver4.21)
(XMP)
16GB ( 2x
8GB )
DS
-
-
9-11-11-31
1.65
•
•
CORSAIR
CMD32GX3M4A2133C9 (Ver4.21)
(XMP)
32GB ( 4x
8GB )
DS
-
-
9-11-11-31
1.65
•
•
CORSAIR
CMD8GX3M2A2133C9 (Ver1.5)
(XMP)
8GB ( 2x 4GB )
DS
-
-
9-11-10-27
1.5
•
CORSAIR
CMD8GX3M2B2133C9 (Ver5.12)
(XMP)
8GB ( 2x 4GB )
DS
-
-
9-11-11-31
1.65
•
•
CORSAIR
CMY8GX3M2A2133C11R (Ver4.21)
(XMP)
8GB ( 2x 4GB )
DS
-
-
11-11-11-27
1.5
•
•
CORSAIR
CMZ8GX3M2A2133C11R (Ver4.21)
(XMP)
8GB ( 2x 4GB )
DS
-
-
11-11-11-27
1.5
•
•
G.SKILL
F3-17000CL11Q2-64GBZLD(XMP)
64GB ( 8x
8GB )
DS
-
-
11-11-11-30
1.5
•
•
G.SKILL
F3-17000CL9Q-16GBZH(XMP)
16GB ( 4x
4GB )
DS
-
-
9-11-10-28
1.65
•
•
G.SKILL
F3-2133C10Q-32GSR(XMP)
32GB ( 4x
8GB )
DS
-
-
10-12-12-31
1.5
•
•
G.SKILL
F3-2133C11Q-32GZL(XMP)
32GB ( 4x
8GB )
DS
-
-
11-11-11-31
1.5
•
•
KINGSTON
KHX2133C11D3K4/16GX(XMP)
16GB ( 4x
4GB )
DS
-
-
11-12-11-30
1.65
•
•
KINGSTON
KHX21C11T3FK8/64X(XMP)
64GB ( 8x
8GB )
DS
-
-
9-9-9-24
1.5
•
•
(continued on the next page)
ASUS B85-PRO GAMER
1-9
DDR3 1866 MHz capability
1-10
DIMM
socket
support
(Optional)
Vendors
Part No.
Size
SS/
DS
Chip
Brand
Chip
NO.
Timing
Voltage
2
4
Transcend
TX2133KLH-16GK(XMP)
16GB ( 2x
8GB )
DS
-
-
2133-10-1110-27
1.6
•
•
•
Transcend
TX2133KLN-8GK(XMP)
8GB ( 2x
4GB )
DS
-
-
2133-10-1110-27
1.6
•
CORSAIR
CMD16GX3M2A1866C9 (Ver5.29)(XMP)
16GB ( 2x
8GB )
DS
-
-
1866 9-9-9-27
1.5
•
CORSAIR
CMD16GX3M4A1866C9 (Ver4.13)(XMP)
16GB ( 4x
4GB )
DS
-
-
9-10-9-27
1.5
•
•
CORSAIR
CMD16GX3M4A1866C9 (Ver8.16)(XMP)
16GB ( 4x
4GB )
DS
-
-
9-10-9-27
1.5
•
•
CORSAIR
CMD32GX3M4A1866C9 (Ver3.24)(XMP)
32GB ( 4x
8GB )
DS
-
-
9-10-9-27
1.5
•
•
CORSAIR
CMD8GX3M2A1866C9 (Ver4.13)(XMP)
8GB ( 2x
4GB )
DS
-
-
-
1.5
•
•
CORSAIR
CMD8GX3M2A1866C9 (Ver5.12)(XMP)
8GB ( 2x
4GB )
DS
-
-
9-10-9-27
1.5
•
CORSAIR
CMD8GX3M2A1866C9 (Ver8.16)(XMP)
8GB ( 2x
4GB )
DS
-
-
9-10-9-27
1.5
•
CORSAIR
CMT32GX3M4X1866C9(Ver3.23)(XMP)
32GB ( 4x
8GB )
DS
-
-
9-10-9-27
1.5
•
•
CORSAIR
CMY16GX3M2A1866C9 (Ver 4.21)
(XMP)
16GB ( 2x
8GB )
DS
-
-
9-10-9-27
1.5
•
•
CORSAIR
CMY8GX3M2A1866C9 (Ver3.24)(XMP)
8GB ( 2x
4GB )
DS
-
-
9-10-9-27
1.5
•
•
CORSAIR
CMZ16GX3M2A1866C10 (Ver5.29)
(XMP)
16GB ( 2x
8GB )
DS
-
-
10-11-10-30
1.5
•
•
CORSAIR
CMZ16GX3M2A1866C9(XMP)
16GB ( 2x
8GB )
DS
-
-
1866-9-10-9-27
1.5
•
•
CORSAIR
CMZ32GX3M4X1866C10 (Ver3.23)
(XMP)
32GB ( 4x
8GB )
DS
-
-
10-11-10-27
1.5
•
•
CORSAIR
CMZ32GX3M4X1866C10(Ver3.23)
(XMP)
32GB ( 4x
8GB )
DS
-
-
10-11-10-27
1.5
•
•
CORSAIR
CMZ8GX3M2A1866C9 (Ver8.16)(XMP)
8GB ( 2x
4GB )
DS
-
-
9-10-9-27
1.5
•
•
CORSAIR
CMZ8GX3M2A1866C9(XMP)
8GB ( 2x
4GB )
DS
-
-
9-10-9-27
1.5
•
CORSAIR
CMZ8GX3M2A1866C9G (Ver5.12)
(XMP)
8GB ( 2x
4GB )
DS
-
-
1866 9-10-9-27 1.5
•
•
Crucial
BLE4G3D1869DE1XT0.16FMD(XMP)
4GB
DS
-
-
9-9-9-27
1.5
•
•
G.SKILL
F3-14900CL10Q-32GBZL(XMP)
32GB ( 4x
8GB )
DS
-
-
10-11-10-30
1.5
•
•
G.SKILL
F3-14900CL9D-8GBSR(XMP)
8GB ( 2x
4GB )
DS
-
-
9-10-9-28
1.5
•
•
G.SKILL
F3-14900CL9Q-16GBXL(XMP)
16GB ( 4x
4GB )
DS
-
-
9-10-9-28
1.5
•
•
G.SKILL
F3-14900CL9Q-16GBZL(XMP)
16GB ( 4x
4GB )
DS
-
-
9-10-9-28
1.5
•
•
G.SKILL
F3-14900CL9Q-16GBZL(XMP)
16GB ( 4x
4GB )
DS
-
-
9-10-9-28
1.5
•
•
G.SKILL
F3-1866C10Q2-64GZM(XMP)
64GB ( 2x
8GB )
DS
-
-
10-11-10-30
1.5
•
•
G.SKILL
F3-1866C10Q2-64GZM(XMP)
64GB ( 2x
8GB )
DS
-
-
10-11-10-30
1.5
•
•
G.SKILL
F3-1866C9Q-32GXM(XMP)
32GB ( 4x
8GB )
DS
-
-
9-10-9-28
1.5
•
•
GEIL
GEEL316GB1866C9DC(XMP)
16GB ( 2x
8GB )
DS
-
-
1866-9-10-9-28 1.65
•
•
KINGSTON
KHX1866C9D3K2/8GX(XMP)
8GB ( 2x
4GB )
DS
-
-
-
1.65
•
•
Chapter 1: Product introduction
DDR3 1600 MHz capability
Vendors
Part No.
Size
SS/
DS
Chip
Brand
Chip NO.
Timing
Voltage
DIMM
socket
support
(Optional)
2/4
1/2
3/4
A-DATA
AD3U1600W4G11
4GB
SS
A-DATA
3WCD-1211A
11-11-11-28
-
-
-
A-DATA
AD3U1600W8G11
8GB
DS
A-DATA
3WCD-1211A
11-11-11-28
-
-
-
A-DATA
ADDU1600W4G11-B
4GB
SS
A-DATA
DWND-1211A
9-9-9-24
-
-
-
A-DATA
ADDU1600W8G11-B
8GB
DS
ELPIDA
J4208EBBG-GN-F
9-9-9-24
-
-
-
A-DATA
AX3U1600W4G9-DB(XMP)
8GB ( 2x
4GB )
SS
-
-
9-9-9-24
1.5
-
-
A-DATA
AX3U1600W8G9-DB(XMP)
16GB ( 2x
8GB )
DS
-
-
9-9-9-24
1.5
-
-
AMD
AE32G1609U1-U
2GB
SS
AMD
23EY4587MB6H
-
1.5
-
-
AMD
AE34G1609U2-U
4GB
DS
AMD
23EY4587MB6H
-
1.5
-
-
AMD
AP38G1608U2K(XMP)
8GB ( 2x
4GB )
DS
-
-
9-9-9-28
1.65
-
-
Apacer
78.B1GE3.9L10C
4GB
DS
Apacer
AM5D5908DEQSCK
-
1.65
-
-
Apacer
78.B1GET.9K00C
4GB
SS
Apacer
AM5D6008BQQSCK
11-11-11-28
-
-
-
Apacer
78.C1GET.9K10C
8GB
DS
Apacer
AM5D6008BQQSCK
11-11-11-31
-
-
-
Apacer
AHU04GFA60C9Q1D(XMP)
4GB
DS
-
-
9-9-9-27
1.65
•
•
Apacer
AHU04GFA60C9Q3R(XMP)
4GB
DS
-
-
11-11-11-28
-
-
-
Apacer
AHU08GFA60CBT3R(XMP)
8GB
DS
-
-
9-9-9-24
-
-
-
Asint
SLA302G08-EGG1C(XMP)
4GB
DS
Asint
302G08-GG1C
9-9-9-27
-
-
-
Asint
SLA302G08-EGJ1C(XMP)
4GB
DS
Asint
302G08-GJ1C
9-9-9-27
-
-
-
Asint
SLA302G08-EGN1C
4GB
DS
ASint
302G08-GN1C
-
-
-
-
Asint
SLA304G08-ENG1B
4GB
SS
Asint
304G08-GN1B
9-11-11-28
-
-
-
Asint
SLB304G08-EGJ1B(XMP)
8GB
DS
-
-
9-9-9-27
-
-
-
Asint
SLB304G08-EGN1B
8GB
DS
ASint
304G08-GN1B
-
-
-
-
Asint
SLZ302G08-EGN1C
2GB
SS
ASint
302G08-GN1C
-
-
-
-
AVEXIR
AVD3U16000904G2CW(XMP)
8GB ( 2x
4GB )
DS
-
-
11-11-11-28
1.5
-
-
CORSAIR
CMD16GX3M2A1600C9
(Ver8.21)(XMP)
16GB ( 2x
8GB )
DS
-
-
9-9-9-24
1.5
-
-
CORSAIR
CMD8GX3M2A1600C8
(Ver5.12)(XMP)
8GB ( 2x
4GB )
DS
-
-
1600 8-88-24
1.5
-
-
CORSAIR
CMD8GX3M2A1600C9
(Ver2.12)(XMP)
8GB ( 2x
4GB )
DS
-
-
9-9-9-24
1.5
-
-
CORSAIR
CML16GX3M2A1600C10
(Ver2.21)(XMP)
16GB ( 2x
8GB )
DS
-
-
10-10-10-27
1.5
-
-
CORSAIR
CML16GX3M4X1600C8(Ver
2.12)(XMP)
16GB ( 4x
4GB )
DS
-
-
Heat-Sink
Package
1.5
•
•
CORSAIR
CML8GX3M2A1600C9
(Ver7.12)(XMP)
8GB ( 2x
4GB )
DS
-
-
9-9-9- 24
1.5
-
-
CORSAIR
CMV8GX3M1A1600C11
8GB
DS
-
-
11-11-11-30
-
-
-
CORSAIR
CMX8GX3M2A1600C9
(Ver3.19)(XMP)
8GB ( 2x
4GB )
SS
-
-
9-9-9-24
1.65
-
-
CORSAIR
CMZ16GX3M2A1600C10
(Ver.3.24)(XMP)
16GB ( 2x
8GB )
DS
-
-
10-10-10-27
1.5
-
-
CORSAIR
CMZ16GX3M4A1600C9(XMP)
16GB ( 4x
4GB )
DS
-
-
9-9-9-24
1.5
-
-
CORSAIR
CMZ16GX3M4X1600C9
(Ver8.16)(XMP)
16GB ( 4x
4GB )
DS
-
-
1600-9-99-24
1.5
-
-
CORSAIR
CMZ32GX3M4X1600C10
(Ver2.2)(XMP)
32GB ( 4x
8GB )
DS
-
-
10-10-10-27
1.5
-
-
CORSAIR
CMZ4GX3M1A1600C9
(Ver8.16)(XMP)
4GB ( 1x
4GB )
DS
-
-
9-9-9-24
1.5
-
-
(continued on the next page)
ASUS B85-PRO GAMER
1-11
DDR3 1600 MHz capability
DIMM
socket
support
(Optional)
Vendors
Part No.
Size
SS/
DS
Chip Brand
Chip NO.
Timing
Voltage
2/4
1/2
3/4
CORSAIR
CMZ8GX3M1A1600C10 (Ver3.23)
(XMP)
8GB ( 1x 8GB )
DS
-
-
10-1010-27
1.5
-
-
CORSAIR
CMZ8GX3M1A1600C10 (Ver8.21)
(XMP)
8GB ( 1x 8GB )
DS
-
-
10-1010-27
1.5
-
-
CORSAIR
CMZ8GX3M2A1600C8(XMP)
8GB ( 2x 4GB )
DS
-
-
8-8-8-24
1.5
-
-
CORSAIR
CMZ8GX3M2A1600C9(XMP)
8GB ( 2x 4GB )
DS
-
-
9-9-9-24
1.5
•
•
Crucial
BLS4G3D1609DS1S00.16FMR(XMP)
4GB
DS
-
-
1600-9-99-24
1.5
-
-
Crucial
BLT4G3D1608DT1TX0.16FM(XMP)
4GB
DS
-
-
8-8-8-24
1.5
-
-
Elixir
M2X2G64CB88G7N-DG(XMP)
2GB
SS
Elixir
N2CB2G80GN-DG
9-9-9-28
-
-
-
Elixir
M2X4G64CB8HG5N-DG(XMP)
4GB
DS
Elixir
N2CB2G80GN-DG
9-9-9-28
-
-
-
G.SKILL
F3-12800CL9D-8GBSR2(XMP)
8GB ( 2x 4GB )
DS
-
-
9-9-9-24
1.25
-
-
G.SKILL
F3-12800CL9Q-16GBXL(XMP)
16GB ( 4x
4GB )
DS
-
-
9-9-9-24
1.5
-
-
G.Skill
F3-12800CL9Q-16GBZL(XMP)
16GB ( 4x
4GB )
DS
-
-
9-9-9-24
1.5
-
-
G.SKILL
F3-1600C9Q-32GXM(XMP)
32GB ( 4x
8GB )
DS
-
-
-
1.5
-
GEIL
GUP34GB1600C7DC(XMP)
4GB ( 2x 2GB )
DS
-
-
7-7-7-24
1.6
-
-
GEIL
GVP38GB1600C8QC(XMP)
8GB ( 4x 2GB )
DS
-
-
8-8-8-28
1.6
•
•
Hynix
HMT351U6CFR8C-PB
4GB
DS
Hynix
H5TQ2G83CFR
-
-
•
•
Hynix
HMT41GU6MFR8C-PB
8GB
DS
Hynix
H5TQ4G83MFR
-
-
•
•
KINGMAX
FLGE85F-C8KL9A(XMP)
2GB
SS
KINGMAX
N/A
9-9-9-28
-
-
-
KINGMAX
FLGF65F-C8KL9A(XMP)
4GB
DS
KINGMAX
N/A
9-9-9-28
-
-
-
KINGSTON
KHX16009CD3K2/8GX(XMP)
8GB ( 2x 4GB )
DS
-
-
9-9-9-27 1.65
-
-
KINGSTON
KHX1600C9D3B1/4G(XMP)
4GB
SS
-
-
9-9-9-27
1.65
-
-
KINGSTON
KHX1600C9D3K3/12GX(XMP)
12GB ( 3x
4GB )
DS
-
-
9
1.65
-
-
KINGSTON
KHX1600C9D3K3/6GX(XMP)
6GB ( 3x 2GB )
DS
-
-
9
1.65
-
-
KINGSTON
KHX1600C9D3K3/6GX(XMP)
6GB ( 3x 2GB )
DS
-
-
9
1.65
-
-
KINGSTON
KHX1600C9D3K4/16GX(XMP)
16GB ( 4x
4GB )
DS
-
-
9-9-9-24
1.65
-
-
KINGSTON
KHX1600C9D3K6/24GX(XMP)
24GB ( 6x
4GB )
DS
-
-
9
1.65
-
-
KINGSTON
KHX1600C9D3K8/32GX(XMP)
32GB ( 8x
4GB )
DS
-
-
9-9-9-27
1.65
•
•
KINGSTON
KHX1600C9D3LK2/8GX(XMP)
8GB ( 2x 4GB )
DS
-
-
9-9-9-24
1.35
-
-
KINGSTON
KHX1600C9D3P1K2/8G
8GB ( 2x 4GB )
DS
-
-
9
1.5
-
-
KINGSTON
KHX16C10B1K2/16X(XMP)
16GB ( 2x
8GB )
DS
-
-
-
1.5
-
-
KINGSTON
KHX16C9K2/16
16GB ( 2x
8GB )
DS
-
-
1333-9-99-24
1.5
-
-
KINGSTON
KHX16C9P1K2/16
16GB ( 2x
8GB )
DS
-
-
-
1.5
-
-
KINGSTON
KVR16N11/4
4GB
DS
KINGSTON
D2568JPUCPGGBU
11-11-1128-1
-
-
-
KINGSTON
KVR16N11/4
4G
DS
Hynix
H5TQ2G83CFRPBC
-
1.5
-
-
MICRON
MT16JTF1G64AZ-1G6D1
8GB
DS
MICRON
D9PBC
-
1.5
•
•
Micron
MT16JTF1G64AZ-1G6E1
8GB
DS
Micron
D9QBJ
-
-
-
-
MICRON
MT16KTF51264AZ-1G6M1
4GB
DS
MICRON
D9PFJ
11-1111-28
-
•
•
MICRON
MT16KTF51264AZ-1G6M1
4GB
DS
MICRON
D9PFJ
-
-
•
•
Micron
MT8JTF51264AZ-1G6E1
4GB
SS
Micron
D9QBJ
-
-
-
-
MICRON
MT8KTF25664AZ-1G6M1
2GB
SS
MICRON
D9PFJ
-
-
-
-
(continued on the next page)
1-12
Chapter 1: Product introduction
DDR3 1600 MHz capability
DIMM
socket
support
(Optional)
Vendors
Part No.
Size
SS/
DS
Chip Brand
Chip NO.
Timing
Voltage
2/4
1/2
3/4
Patriot
PV316G160C9K(XMP)
16GB
( 2x
4GB )
SS
-
-
1600-9-9-9-24
1.5
-
-
Patriot
PV316G160C9K(XMP)
16GB
( 2x
8GB )
SS
-
-
1600-9-9-9-24
1.5
-
-
PSC
AL9F8L93B-GN2E
4GB
SS
PSC
A3P4GF3BLF
-
-
•
•
PSC
ALAF8L93B-GN2E
8GB
DS
PSC
A3P4GF3BLF
-
-
•
•
SanMax
SMD-4G28N1P-16KM
4GB
SS
ELPIDA
J4208BBBG-GN-F
1600
-
-
-
SanMax
SMD-4G68HP-16KZ
4GB
DS
Hynix
H5TQ2G83BFRPBC
-
1.5
-
-
SanMax
SMD-4G68NG-16KK
4GB
DS
ELPIDA
J2108BDBG-GN-F
-
-
-
-
SanMax
SMD-8G28NP-16KM
8GB
DS
ELPIDA
J4208BBBG-GN-F
1600
-
-
-
Silicon Power
SP002GBLTU160V02(XMP)
2GB
SS
S-POWER
20YT5NG
9-11-11-28
1.5
-
-
Silicon Power
SP004GBLTU160V02(XMP)
4GB
DS
S-POWER
20YT5NG
9-9-9-24
1.5
-
-
Silicon Power
SP004GXLYU160NSA(XMP)
4GB
SS
-
-
1600-9-9-9-27
-
-
-
Silicon Power
SP008GXLYU160NSA(XMP)
8GB
DS
-
-
1600-9-9-9-27
-
-
-
Team
TED34GM1600C11BK
4GB
DS
Hynix
H5TC2G83EFR
11-11-11-28
1.5
-
-
Team
TED38GM1600C11BK
8GB
DS
Hynix
H5TQ4G83AFR
11-11-11-28
1.5
-
-
Team
TLD34G1600HC9BK(XMP)
8GB
( 2x
4GB )
DS
-
-
9-9-9-24
1.5
-
-
Team
TLD38G1600HC9BK(XMP)
16GB
( 2x
8GB )
DS
-
-
9-9-9-24
1.5
-
-
Team
TXD34096M1600HC9D(XMP)
4GB
DS
Hynix
H5TC2G83BFRH9A
9-9-9-24
1.5
-
-
Transcend
TS1GLK64V6H(620945)
8GB
DS
SAMSUNG
K4B4G0846B
-
-
-
-
Transcend
TS1GLK64W6H
8GB
DS
SAMSUNG
K4B4G0846B
11-11-11-28-1
-
-
-
Transcend
TS512MLK64W6H
4GB
SS
SAMSUNG
K4B4G0846B
11-11-11-28-2
-
-
-
UMAX
84E44G93UM-16BPSYW 4GB
SS
UMAX
U2S96D30TP-16
1600-11-1111-28
-
-
-
UMAX
84E48G93UM-16BPSYW 8GB
DS
UMAX
U2S96D30TP-16
1600-11-1111-28
-
-
-
DDR3 1333 MHz capability
DIMM socket
support
(Optional)
Vendors
Part No.
Size
SS/
DS
Chip
Brand
Chip NO.
Timing
Voltage
1
2
4
ACTICA
ACT1GHU64B8F1333S
1GB
SS
SAMSUNG
K4B1G0846F
-
-
•
•
•
ACTICA
ACT1GHU72C8G1333S
1GB
SS
SAMSUNG
K4B1G0846F(ECC)
-
-
•
•
•
ACTICA
ACT2GHU64B8G1333M
2GB
DS
Micron
D9KPT
-
-
•
•
•
ACTICA
ACT2GHU64B8G1333S
2GB
DS
SAMSUNG
K4B1G0846F
-
-
•
•
•
ACTICA
ACT2GHU72D8G1333M
2GB
DS
Micron
D9KPT(ECC)w
-
-
•
•
•
ACTICA
ACT2GHU72D8G1333S
2GB
DS
SAMSUNG
K4B1G0846F(ECC)
-
-
•
•
•
ACTICA
ACT4GHU64B8H1333H
4GB
DS
Hynix
H5TQ2G83AFR
-
-
•
•
•
ACTICA
ACT4GHU72D8H1333H
4GB
DS
Hynix
H5TQ2G83AFR(ECC)
-
-
•
•
•
AMD
AE32G1339U1-U
2GB
SS
AMD
23EY4587MB3H
-
1.5
•
•
•
AMD
AE34G1339U2-U
4GB
DS
AMD
23EY4587MB3H
-
1.5
•
•
•
Apacer
78.A1GC6.9L1
2GB
DS
Apacer
AM5D5808FEQSBG
9
-
•
•
•
(continued on the next page)
ASUS B85-PRO GAMER
1-13
DDR3 1333 MHz capability
DIMM socket
support
(Optional)
Vendors
Part No.
Size
SS/
DS
Chip
Brand
Chip NO.
Timing
Voltage
1
2
4
Apacer
78.B1GDE.9L10C
4GB
DS
Apacer
AM5D5908CEHSBG
9
-
•
•
•
Asint
SLA302G08-EDJ1C
2GB
SS
ASint
302G08-DJ1C
-
-
•
•
•
Asint
SLZ302G08-EDJ1C
4GB
DS
ASint
302G08-DJ1C
-
-
•
•
•
ATP
AQ12M72E8BKH9S
4GB
DS
SAMSUNG
K4B2G0846C(ECC)
-
-
•
•
•
BUFFALO
D3U1333-1G
1GB
SS
Elpida
J1108BFBG-DJ-F
-
-
•
•
•
BUFFALO
D3U1333-2G
2GB
DS
Elpida
J1108BFBG-DJ-F
-
•
•
•
BUFFALO
D3U1333-4G
4GB
DS
NANYA
NT5CB256M8BN-CG
-
•
•
•
CORSAIR
CMV4GX3M2A1333C9
4GB
( 2x
2GB )
SS
-
N/A
9-9-9-24
-
•
•
•
CORSAIR
CMV8GX3M2A1333C9
8GB
( 2x
4GB )
DS
-
N/A
9-9-9-24
-
•
•
•
CORSAIR
CMX8GX3M1A1333C9
(Ver2.2)
8GB
DS
-
-
9-9-9-24
1.5
•
•
CORSAIR
CMX8GX3M1A1333C9
(Ver3.23)
8GB
DS
-
-
9-9-9-24
1.5
•
•
CORSAIR
CMX8GX3M2A1333C9(XMP)
8GB
( 2x
4GB )
DS
-
-
9-9-9-24
1.5
•
•
CORSAIR
TW3X4G1333C9A
4GB
( 2x
2GB )
DS
-
-
9-9-9-24
1.5
•
•
EK Memory
EKM324L28BP8-I13
4GB
( 2x
2GB )
DS
-
-
9
-
•
•
•
G.SKILL
F3-10600CL9D-4GBNT
4GB
( 2x
2GB )
DS
G.SKILL
D3 128M8CE9 2GB
9-9-9-24
1.5
•
•
•
G.SKILL
F3-10666CL9D-8GBRL
8GB
( 2x
4GB )
DS
-
-
9-9-9-24
1.5
•
•
•
G.SKILL
F3-10666CL9D-8GBRL
8GB
( 2x
4GB )
DS
-
-
9-9-9-24
1.5
•
•
•
G.SKILL
F3-10666CL9D-8GBXL
8GB
( 2x
4GB )
DS
-
-
9-9-9-24
1.5
•
•
•
GEIL
GB34GB1333C7DC
4GB
( 2x
2GB )
DS
GEIL
GL1L128M88BA15FW
7-7-7-24
1.5
•
•
•
GEIL
GET316GB1333C9QC
16GB
( 4x
4GB )
DS
-
-
9-9-9-24
1.5
•
•
•
GEIL
GG34GB1333C9DC
4GB
( 2x
2GB )
DS
GEIL
GL1L128M88BA115FW
9-9-9-24
1.3
•
•
•
GEIL
GG34GB1333C9DC
4GB
( 2x
2GB )
DS
GEIL
GL1L128M88BA15B
9-9-9-24
1.3
•
•
•
GEIL
GVP34GB1333C9DC
4GB
( 2x
2GB )
DS
-
-
9-9-9-24
1.5
•
•
•
GEIL
GVP38GB1333C9DC
8GB
( 2x
4GB )
DS
-
-
9-9-9-24
1.5
•
•
•
GoodRam
GR1333D364L9/2G
2GB
DS
Qimonda
IDSH1G-03A1F1C-13H
-
-
•
•
•
Hynix
HMT125U6TFR8A-H9
2GB
DS
Hynix
H5TC1G83TFR
-
-
•
•
•
INNODISK
M3UN-2GHJBC09
2GB
SS
Hynix
H5TQ2G83CFRH9C
9-9-9-24
-
•
•
•
INNODISK
M3UN-4GHJAC09
4GB
DS
Hynix
H5TQ2G83CFRH9C
9-9-9-24
-
•
•
•
•
-
(continued on the next page)
1-14
Chapter 1: Product introduction
DDR3 1333 MHz capability
DIMM
socket
support
(Optional)
Vendors
Part No.
Size
SS/
DS
Chip Brand
Chip NO.
Timing
Voltage
1
2
4
KINGMAX
FLFE85F-B8KL9
2GB
DS
KINGMAX
KFB8FNLXL-BNF-15A
-
-
•
•
•
KINGMAX
FLFE85F-C8KL9
2GB
SS
KINGMAX
KFC8FNLBF-GXX-12A
-
-
•
•
•
KINGMAX
FLFE85F-C8KL9
2GB
SS
KINGMAX
KFC8FNLXF-DXX-15A
-
-
•
•
•
KINGMAX
FLFE85F-C8KM9
2GB
SS
Kingmax
KFC8FNMXF-BXX-15A
-
-
•
•
•
KINGMAX
FLFF65F-C8KL9
4GB
DS
KINGMAX
KFC8FNLBF-GXX-12A
-
-
•
•
•
KINGMAX
FLFF65F-C8KL9
4GB
DS
KINGMAX
KFC8FNLXF-DXX-15A
-
-
•
•
•
KINGMAX
FLFF65F-C8KM9
4GB
DS
Kingmax
KFC8FNMXF-BXX-15A
-
-
•
•
•
KINGSTON
KVR1333D3E9S/4G
4GB
DS
Elpida
J2108ECSE-DJ-F
9
1.5
•
•
•
KINGSTON
KVR1333D3N9H/4G
4GB
DS
ELPIDA
J2108BDBG-GN-F
-
1.5
•
•
•
KINGSTON
KVR1333D3N9H/8G
8GB
DS
ELPIDA
J4208EASE-DJ-F
9-9-924
1.5
•
•
•
KINGSTON
KVR13N9S8H/4
4GB
SS
ELPIDA
J4208BBBG-GN-F
-
1.5
•
•
•
KINGTIGER
F10DA2T1680
2GB
DS
KINGTIGER
KTG1333PS1208NST-C9
-
-
•
•
•
KINGTIGER
KTG2G1333PG3
2GB
DS
-
-
-
-
•
•
•
Mach Xtreme
MXD3U133316GQ
16GB
( 4x
4GB )
DS
-
-
-
-
•
•
•
Mach Xtreme
MXD3V13332GS
2GB
SS
Mach
Xtreme
C2S46D30-D313
-
-
•
•
•
MICRON
MT8JTF25664AZ-1G4M1
2GB
SS
MICRON
D9PFJ
-
-
•
•
•
OCZ
OCZ3G1333LV4GK
4GB
( 2x
2GB )
DS
-
-
9-9-9
1.65
•
•
-
OCZ
OCZ3G1333LV8GK
8GB
( 2x
4GB )
DS
-
-
9-9-9
1.65
•
•
-
OCZ
OCZ3G1333LV8GK
8GB
( 2x
4GB )
DS
-
-
9-9-9
1.65
•
•
-
OCZ
OCZ3RPR1333C9LV8GK
8GB
( 2x
4GB )
DS
-
-
9-9-9
1.65
•
•
-
Patriot
PG38G1333EL(XMP)
8GB
DS
-
-
-
1.5
•
•
•
Patriot
PGD316G1333ELK(XMP)
16GB
( 2x
8GB )
DS
-
-
9-9-924
1.5
•
•
•
Patriot
PGS34G1333LLKA
4GB
( 2x
2GB )
DS
-
-
7-7-720
1.7
•
•
•
RiDATA
C304627CB1AG22Fe
2GB
DS
RiDATA
C304627CB1AG22Fe
9
-
•
•
•
RiDATA
E304459CB1AG32Cf
4GB
DS
RiDATA
E304459CB1AG32Cf
9
-
•
•
•
SAMSUNG
M378B5273CH0-CH9
4GB
DS
SAMSUNG
K4B2G0846C
-
-
•
•
•
Silicon Power
SP001GBLTE133S01
1GB
SS
NANYA
NT5CB128M8AN-CG
-
-
•
•
•
Silicon Power
SP001GBLTU133S02
1GB
SS
S-POWER
10YT3E5
9
-
•
•
•
Silicon Power
SP002GBLTE133S01
2GB
DS
NANYA
NT5CB128M8AN-CG
-
-
•
•
•
Silicon Power
SP002GBLTU133V02
2GB
SS
S-POWER
20YT3NG
9-9-924
-
•
•
•
Silicon Power
SP004GBLTU133V02
4GB
DS
S-POWER
20YT3NG
9-9-924
-
•
•
•
Team
TED34096M1333HC9
4GB
DS
Team
T3D2568LT-13
-
-
•
•
•
Transcend
JM1333KLH-8G(623654)
8GB
DS
Transcend
TK963EBF3
-
-
•
•
•
Transcend
TS1GLK64V3H(620053)
8GB
DS
MICRON
D9QBJ
-
-
•
•
•
ASUS B85-PRO GAMER
1-15
1.5
Expansion slots
In the future, you may need to install expansion cards. The following sub‑sections describe
the slots and the expansion cards that they support.
Unplug the power cord before adding or removing expansion cards. Failure to do so may
cause you physical injury and damage motherboard components.
1.5.1
Installing an expansion card
To install an expansion card:
1.
Before installing the expansion card, read the documentation that came with it and
make the necessary hardware settings for the card.
2.
Remove the system unit cover (if your motherboard is already installed in a chassis).
3.
Remove the bracket opposite the slot that you intend to use. Keep the screw for later
use.
4.
Align the card connector with the slot and press firmly until the card is completely
seated on the slot.
5.
Secure the card to the chassis with the screw you removed earlier.
6.
Replace the system cover.
1.5.2
Configuring an expansion card
After installing the expansion card, configure it by adjusting the software settings.
1.
Turn on the system and change the necessary BIOS settings, if any. See Chapter 2 for
information on BIOS setup.
2.
Assign an IRQ to the card.
3.
Install the software drivers for the expansion card.
When using PCI cards on shared slots, ensure that the drivers support “Share IRQ” or that
the cards do not need IRQ assignments. Otherwise, conflicts will arise between the two PCI
groups, making the system unstable and the card inoperable.
1-16
Chapter 1: Product introduction
1.5.3
PCI slots
The PCI slot supports cards such as a LAN card, SCSI card, USB card, and other cards that
comply with PCI specifications.
1.5.4
PCI Express 2.0 x1 slots
This motherboard supports PCI Express x1 network cards, SCSI cards, and other cards that
comply with the PCI Express specifications.
1.5.5
PCI Express 3.0 / 2.0 x16 slots
This motherboard supports PCI Express x16 network cards, SCSI cards, and other cards that
comply with the PCI Express specifications.
IRQ assignments for this motherboard
A
B
C
D
E
F
G
H
I.G.D.
Shared
–
–
–
–
–
–
–
HD Audio 1 Controller
–
–
–
–
–
Shared
–
HD Audio 2 Controller
–
Shared
–
–
–
–
–
–
EHCI 1 Controller
EHCI 2 Controller
XHCI Controller
SATA Controller
PCIE x16_1
PCIE x16_2
PCIE x1_1
PCIE x1_2
Intel LAN
–
–
Shared
–
–
–
–
–
Shared
–
Shared
–
Shared
–
Shared
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
Shared
–
–
Shared
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
Shared
–
–
–
–
–
–
–
–
–
–
–
Shared
–
–
–
–
–
–
–
–
–
–
Shared
–
–
–
–
PCI Slot 1
–
PCI Slot 2
Shared
–
–
–
–
–
–
–
PCI Slot 3
–
Shared
–
–
–
–
–
–
ASUS B85-PRO GAMER
1-17
1.6Jumpers
1.
Clear RTC RAM (3-pin CLRTC)
This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can
clear the CMOS memory of date, time, and system setup parameters by erasing
the CMOS RTC RAM data. The onboard button cell battery powers the RAM data in
CMOS, which include system setup information such as system passwords.
To erase the RTC RAM:
1.
Turn OFF the computer and unplug the power cord.
2.
Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on pins 2-3
for about 5-10 seconds, then move the cap back to pins 1-2.
3.
Plug the power cord and turn ON the computer.
4.
Hold down the <Del> key during the boot process and enter BIOS setup to reenter data.
Except when clearing the RTC RAM, never remove the cap on CLRTC jumper default
position. Removing the cap will cause system boot failure!
1-18
•
If the steps above do not help, remove the onboard battery and move the jumper
again to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the
battery.
•
You do not need to clear the RTC when the system hangs due to overclocking. For
system failure due to overclocking, use the CPU Parameter Recall (C.P.R.) feature.
Shut down and reboot the system, then the BIOS automatically resets parameter
settings to default values.
Chapter 1: Product introduction
1.7Connectors
1.7.1
Rear panel connectors
1.
PS/2 mouse port (green). This port is for a PS/2 mouse.
2.
Optical S/PDIF out port. This port allows you to connect your PC to amplified
speakers, headphones, or Sony/Phillips Digital Interconnect Format (S/PDIF) compliant
devices.
3.
Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor or other
VGA-compatible devices.
4.
USB 2.0 ports 1, 2, 3, and 4. These two 4-pin Universal Serial Bus (USB) ports are for
USB 2.0/1.1 devices.
5.
LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub.
LAN port LED indications
Activity/Link LED
Status
Off
Orange
Orange
(Blinking)
Orange (Blinking
then steady)
Description
No link
Linked
Data activity
Speed LED
Status
Description
OFF
10 Mbps connection
ORANGE 100 Mbps connection
GREEN 1 Gbps connection
Activity Link Speed
LED
LED
LAN port
Ready to wake
up from S5 mode
ASUS B85-PRO GAMER
1-19
6.
PS/2 keyboard port (purple). This port is for a PS/2 keyboard.
7.
HDMI port. This port connects to the tape, CD, DVD player, or other audio sources.
8.
DVI-D port. This port is for any DVI-D compatible device.
DVI-D can not be converted to output from RGB Signal to CRT and is not compatible with
DVI-I.
9.
USB 3.0 ports 5 and 6. These two 9-pin Universal Serial Bus (USB) ports are for USB
3.0 devices.
•
The plugged USB 3.0 device may run on xHCI or EHCI mode, depending on the
operating system’s setting.
•
USB 3.0 devices can only be used for data storage.
•
We strongly recommend that you connect USB 3.0 devices to USB 3.0 ports for faster
and better performance from your USB 3.0 devices.
•
Due to the design of the Intel® 8 series chipset, all USB devices connected to the
USB 2.0 and USB 3.0 ports are controlled by the xHCI controller. Some legacy USB
devices must update their firmware for better compatibility.
•
Multi-VGA output supports up to three displays under Windows® OS environment, two
displays under BIOS, and one display under DOS.
•
Intel display architecture design supports the following maximum supported pixel
clocks (Pixel Clock = H total x V Total x Frame Rate (Screen refresh rate)):
-
DVI port: 165 MHz
-
VGA port: 180 MHz
-
HDMI port: 300 MHz
10. 8-channel audio ports. Refer to the following table for the recommended audio
configuration.
Audio 2, 4, 6, or 8-channel configuration
Port
Light Blue
Lime
Pink
Orange
Gray
Black
1-20
Headset
2-channel
Line In
Line Out
Mic In
–
–
–
4-channel
6-channel
8-channel
Line In
Front Speaker Out
Mic In
–
–
Rear Speaker Out
Line In
Front Speaker Out
Mic In
Center/Subwoofer
–
Rear Speaker Out
Side Speaker Out
Front Speaker Out
Mic In
Center/Subwoofer
Side Speaker Out
Rear Speaker Out
Chapter 1: Product introduction
1.7.2
1.
Internal connectors
Serial port connector (10-1 pin COM)
This connector is for a serial (COM) port. Connect the serial port module cable to this
connector, then install the module to a slot opening at the back of the system chassis.
2. CPU and chassis fan connectors (4-pin CPU_FAN, 4-pin CPU_OPT; CHA_FAN1, CHA_FAN2, CHA_FAN3)
Connect the fan cables to the fan connectors on the motherboard, ensuring that the
black wire of each cable matches the ground pin of the connector.
Do not forget to connect the fan cables to the fan connectors. Insufficient air flow inside
the system may damage the motherboard components. These are not jumpers! Do not
place jumper caps on the fan connectors! The CPU_FAN connector supports a CPU fan of
maximum 1 A (12 W) fan power.
ASUS B85-PRO GAMER
1-21
3. ATX power connectors (24-pin EATXPWR, 8-pin EATX12V)
These connectors are for ATX power supply plugs. The power supply plugs are
designed to fit these connectors in only one orientation. Find the proper orientation and
push down firmly until the connectors completely fit.
4.
•
For a fully configured system, we recommend that you use a power supply unit
(PSU) that complies with ATX 12 V Specification 2.0 (or later version) and provides a
minimum power of 350 W.
•
DO NOT forget to connect the 4-pin/8-pin ATX +12V power plug. Otherwise, the
system will not boot up.
•
We recommend that you use a PSU with higher power output when configuring a
system with more power-consuming devices or when you intend to install additional
devices. The system may become unstable or may not boot up if the power is
inadequate.
•
If you are uncertain about the minimum power supply requirement for your system,
refer to the Recommended Power Supply Wattage Calculator at http://support.asus.
com/PowerSupplyCalculator/PSCalculator.aspx?SLanguage=en-us for details.
TPM connector (20-1 pin TPM)
This connector supports a Trusted Platform Module (TPM) system, which securely
store keys, digital certificates, passwords and data. A TPM system also helps enhance
the network security, protects digital identities, and ensures platform integrity.
1-22
Chapter 1: Product introduction
5.
Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that supports
either HD Audio or legacy AC`97 audio standard. Connect one end of the front panel
audio I/O module cable to this connector.
6.
•
We recommend that you connect a high-definition front panel audio module to this
connector to avail of the motherboard’s high-definition audio capability.
•
If you want to connect a high-definition front panel audio module to this connector,
set the Front Panel Type item in the BIOS setup to [HD]. If you want to connect an
AC’97 front panel audio module to this connector, set the item to [AC97]. By default,
this connector is set to [HD]. See section 2.6.7 Onboard Devices Configuration for
details.
Digital audio connector (4-1 pin SPDIF_OUT)
This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port. Connect
the S/PDIF Out module cable to this connector, then install the module to a slot
opening at the back of the system chassis.
The S/PDIF module is purchased separately.
ASUS B85-PRO GAMER
1-23
7.
USB 3.0 connector (20-1 pin USB3_12)
This connector allows you to connect a USB 3.0 module for additional USB 3.0 front
or rear panel ports. With an installed USB 3.0 module, you can enjoy all the benefits of
USB 3.0 including faster data transfer speeds of up to 5 Gbps, faster charging time for
USB-chargeable devices, optimized power efficiency, and backward compatibility with
USB 2.0.
The USB 3.0 module is purchased separately.
8.
USB 2.0 connectors (10-1 pin USB1314, USB34)
These connectors are for USB 2.0 ports. Connect the USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system
chassis. These USB connectors comply with USB 2.0 specifications and supports up to
480Mbps connection speed.
Never connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!
The USB 2.0 module is purchased separately.
1-24
Chapter 1: Product introduction
9.Intel® B85 Serial ATA 6.0Gb/s connector (7-pin SATA6G_1, SATA6G_2, SATA6G_3, SATA6G_4, [gray])
This connector connects to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0 Gb/s
signal cables.
When using hot-plug and NCQ, set the SATA Mode Selection item in the BIOS to [AHCI].
See section SATA Configuration for details.
10.Intel® B85 Serial ATA 3.0 Gb/s connectors (7-pin SATA3G_5, SATA3G_6 [black])
These connectors connect to Serial ATA 3.0 Gb/s hard disk drives and optical drives via
Serial ATA 3.0 Gb/s signal cables.
When using hot-plug and NCQ, set the SATA Mode Selection item in the BIOS to [AHCI].
See section SATA Configuration for details.
ASUS B85-PRO GAMER
1-25
11. System panel connector (10-1 pin PANEL)
This connector supports several chassis-mounted functions.
•
System power LED (2-pin PWR_LED)
This 2-pin connector is for the system power LED. Connect the chassis power LED
cable to this connector. The system power LED lights up when you turn on the system
power, and blinks when the system is in sleep mode.
•
Hard disk drive activity LED (2-pin HDD_LED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable
to this connector. The HDD LED lights up or flashes when data is read from or written
to the HDD.
•
System warning speaker (4-pin SPEAKER)
This 4-pin connector is for the chassis-mounted system warning speaker. The speaker
allows you to hear system beeps and warnings.
•
ATX power button/soft-off button (2-pin PWR_SW)
This connector is for the system power button. Pressing the power button turns the
system on or puts the system in sleep or soft-off mode depending on the operating
system settings. Pressing the power switch for more than four seconds while the
system is ON turns the system OFF.
•
Reset button (2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for system reboot without
turning off the system power.
1-26
Chapter 1: Product introduction
1.8
1.
Onboard LEDs
Standby Power LED (SB_PWR)
The motherboard comes with a standby power LED that lights up to indicate that the
system is ON, in sleep mode, or in soft-off mode. This is a reminder that you should
shut down the system and unplug the power cable before removing or plugging in any
motherboard component. The illustration below shows the location of the onboard LED.
ASUS B85-PRO GAMER
1-27
1.9
Software support
1.9.1
Installing an operating system
This motherboard supports Windows® 7 (32-bit / 64-bit) and Windows® 8 / 8.1 (32-bit /64-bit)
Operating Systems (OS). Always install the latest OS version and corresponding updates to
maximize the features of your hardware.
Motherboard settings and hardware options vary. Refer to your OS documentation for
detailed information.
1.9.2
Support DVD information
The Support DVD that comes with the motherboard package contains the drivers, software
applications, and utilities that you can install to avail all motherboard features.
The contents of the Support DVD are subject to change at any time without notice. Visit the
ASUS website at www.asus.com for updates.
To run the Support DVD
Place the Support DVD into the optical drive. If Autorun is enabled in your computer, the DVD
automatically displays the lists of the unique features of your ASUS motherboard. Click the
Drivers, Utilities, AHCI/RAID Driver, Manual, Contact, or Specials tabs to display their
respective menus.
The following screen is for reference only.
Click an icon to
display Support
DVD/motherboard
information
Click an item to install
If Autorun is NOT enabled in your computer, browse the contents of the Support DVD to
locate the file ASSETUP.EXE from the BIN folder. Double-click the ASSETUP.EXE to run
the DVD.
1-28
Chapter 1: Product introduction
BIOS information
2.1
Managing and updating your BIOS
2
The ASUS website publishes the latest BIOS versions to provide enhancements on system
stability, compatibility,and performance. However, BIOS updating is potentially risky. If
there is no problem using the current version of BIOS, DO NOT manually update the BIOS.
Inappropriate BIOS updating may result to system’s failure to boot. Carefully follow the
instructions in this chapter to update your BIOS when necessary.
Visit http://www.asus.com to download the latest BIOS file for this motherboard.
The following utilities allow you to manage and update the motherboard BIOS setup program.
1. EZ Update: Updates the BIOS in Windows® environment.
2. ASUS EZ Flash 2: Updates the BIOS using a USB flash drive.
3. ASUS CrashFree BIOS 3: Restores the BIOS using the motherboard support DVD or
a USB flash drive when the BIOS file fails or gets corrupted.
4. ASUS BIOS Updater: Updates the BIOS in DOS environment using the motherboard
support DVD and a USB flash disk drive.
Save a copy of the original motherboard BIOS file to a USB flash disk in case you need
to restore the BIOS in the future. Copy the original motherboard BIOS using the ASUS
Update utility.
2.1.1
EZ Update
EZ Update is a utility that allows you to automatically update your motherboard’s softwares,
drivers, and the BIOS version easily. With this utlity, you can also manually update the saved
BIOS and select a boot logo when the system goes into POST.
Click to automatically
update your
motherboard’s
driver, software and
firmware
Click to find and
select the BIOS
from file
Click to select a
boot logo
Click to update
the BIOS
EZ Update requires an Internet connection either through a network or an ISP (Internet
Service Provider).
ASUS B85-PRO GAMER
2-1
2.1.2
ASUS EZ Flash 2
The ASUS EZ Flash 2 feature allows you to update the BIOS without using an OS‑based
utility.
Before you start using this utility, download the latest BIOS file from the ASUS website at
www.asus.com.
To update the BIOS using EZ Flash 2:
2-2
1.
Insert the USB flash disk that contains the latest BIOS file to the USB port.
2.
Enter the Advanced Mode of the BIOS setup program. Go to the Tool menu to select
ASUS EZ Flash Utility and press <Enter>.
3.
Press <Tab> to switch to the Drive field.
4.
Press the Up/Down arrow keys to find the USB flash disk that contains the latest BIOS
then press <Enter>.
5.
Press <Tab> to switch to the Folder Info field.
6.
Press the Up/Down arrow keys to find the BIOS file then press <Enter> to perform the
BIOS update process.
7.
Reboot the system when the update process is done.
•
This function supports USB flash disks formatted using FAT32 or FAT16 on a single
partition only.
•
Ensure to load the BIOS default settings to ensure system compatibility and stability.
Select the Load Optimized Defaults item under the Exit menu. .
•
DO NOT shut down or reset the system while updating the BIOS to prevent system
boot failure!
Chapter 2: Getting started
2.1.3
ASUS CrashFree BIOS 3 utility
The ASUS CrashFree BIOS 3 is an auto recovery tool that allows you to restore the BIOS file
when it fails or gets corrupted during the updating process. You can restore a corrupted BIOS
file using the motherboard support DVD or a USB flash drive that contains the updated BIOS
file.
•
Before using this utility, rename the BIOS file in the removable device into
B85PGM.CAP.
•
Download the latest BIOS file from the ASUS website at www.asus.com.
Recovering the BIOS
To recover the BIOS:
1.
Turn on the system.
2.
Insert the support DVD into the optical drive or the USB flash drive that contains the
BIOS file to the USB port.
The utility automatically checks the devices for the BIOS file. When found, the utility reads
the BIOS file and automatically enters ASUS EZ Flash 2 utility. The system requires you to
enter BIOS Setup to recover BIOS settings.
DO NOT shut down or reset the system while updating the BIOS! Doing so can cause
system boot failure!
3. Press <F5> to load default BIOS values (Highly recommended).
2.1.4
ASUS BIOS Updater
ASUS BIOS Updater allows you to update the BIOS in DOS environment.
The screen captures used in this section are for reference only and may not be exactly the
same as actually shown on your computer screen.
Before updating BIOS
•
Prepare the motherboard support DVD and a USB flash drive.
•
Download the latest BIOS file and BIOS Updater from http://support.asus.com and
save them in your USB flash drive.
NTFS is not supported under FreeDOS environment. Ensure that your USB flash drive is in
single partition and in FAT32 / FAT16 format.
•
Turn off the computer.
•
Ensure that your computer has a DVD optical drive.
ASUS B85-PRO GAMER
2-3
Booting the system in DOS environment
To boot the system in DOS:
1.
Insert the USB flash drive with the latest BIOS file and BIOS Updater to the USB port.
2.
Boot your computer then press <F8> to launch the BIOS Boot Device Select menu.
3.
When the BIOS Boot Device Select Menu appears, insert the Support DVD into the
optical drive then select the optical drive as the boot device.
Please select boot device:
E1: ASUS DVD-E818A6T (4069MB)
USB DISK 2.0 (3824MB)
UEFI: (FAT) USB DISK 2.0 (3824MB)
Enter Setup
 and  to move selection
ENTER to select boot device
ESC to boot using defaults
4. When the Boot Loader appears, press <Enter> within five (5) seconds to enter
FreeDOS prompt.
ISOLINUX 3.20 2006-08-26 Copyright (C) 1994-2005 H. Peter Anvin
A Bootable DVD/CD is detected. Press ENTER to boot from the DVD/CD.
If no key is pressed within 5 seconds, the system will boot next priority
device automatically. boot:
5.
On the FreeDOS prompt, type d: then press <Enter> to switch the disk from Drive C
(optical drive) to Drive D (USB flash drive).
Welcome to FreeDOS (http://www.freedos.org)!
C:/> d:
D:/>
Updating the BIOS file
To update the BIOS file:
1.
On the FreeDOS prompt, type bupdater /pc /g and press <Enter>.
D:/> bupdater /pc /g
2-4
Chapter 2: Getting started
2.
On the BIOS Updater screen, press <Tab> to switch from Files panel to Drives panel
then select D:.
ASUSTeK BIOS Updater for DOS V1.30 [2014/01/01]
Current ROM
BOARD: B85-PRO GAMER
VER: 0212 (H :00 B :00)
DATE: 02/12/2014
PATH:
Update ROM
BOARD: Unknown
VER: Unknown
DATE: Unknown
C:\
C:
D:
FORMAN~1
B85PGM.CAP
<DIR>
8390626
2014-02-10
21:14:34
Drives panel
Files panel
Note
[Enter] Select or Load
[Up/Down/Home/End] Move
[Tab] Switch
[Esc] Exit
[V] Drive Info
3.
Press <Tab> to switch from Drives panel to Files panel then press <Up/Down or Home/
End> keys to select the BIOS file and press <Enter>.
4.
After the BIOS Updater checks the selected BIOS file, select Yes to confirm the BIOS
update.
Are you sure you want to update the BIOS?
Yes
No
The BIOS Backup feature is not supported due to security regulations.
5.Select Yes then press <Enter>. When BIOS update is done, press <ESC> to exit BIOS
Updater.
6.
Restart your computer.
DO NOT shut down or reset the system while updating the BIOS to prevent system boot
failure.
Ensure to load the BIOS default settings to ensure system compatibility and stability. Select
the Load Optimized Defaults item under the Exit menu for more information.
ASUS B85-PRO GAMER
2-5
2.2
BIOS setup program
Use the BIOS Setup program to update the BIOS or configure its parameters. The BIOS
screens include navigation keys and brief online help to guide you in using the BIOS Setup
program.
Entering BIOS Setup at startup
To enter BIOS Setup at startup:
•
Press <Delete> during the Power-On Self Test (POST). If you do not press <Delete>,
POST continues with its routines.
Entering BIOS Setup after POST
To enter BIOS Setup after POST:
•
Press <Ctrl>+<Alt>+<Del> simultaneously.
•
Press the reset button on the system chassis.
•
Press the power button to turn the system off then back on. Do this option only if you
failed to enter BIOS Setup using the first two options.
Using the power button, reset button, or the <Ctrl>+<Alt>+<Del> keys to force reset from a
running operating system can cause damage to your data or system. We recommend you
always shut down the system properly from the operating system.
•
The BIOS setup screens shown in this section are for reference only. Some screen
displays may not be the same as what you see on your screen.
•
Visit the ASUS website at www.asus.com to download the latest BIOS file for this
motherboard.
•
Ensure that a USB mouse is connected to your motherboard if you want to use the
mouse to control the BIOS setup program.
•
If the system becomes unstable after changing any BIOS setting, load the default
settings to ensure system compatibility and stability. Select the Load Optimized
Defaults item under the Exit menu or press hotkey F5. See section Exit Menu for
details.
•
If the system fails to boot after changing any BIOS setting, try to clear the CMOS and
reset the motherboard to the default value. See section Jumpers for information on
how to erase the RTC RAM.
BIOS menu screen
The BIOS setup program can be used under two modes: EZ Mode and Advanced Mode.
You can change modes from the Exit menu or from the Exit/Advanced Mode button in the EZ
Mode/Advanced Mode screen.
2-6
Chapter 2: Getting started
EZ Mode
By default, the EZ Mode screen appears when you enter the BIOS setup program. The EZ
Mode provides you an overview of the basic system information, and allows you to select
the display language, system performance mode, and boot device priority. To access the
Advanced Mode, click Exit/Advanced Mode, then select Advanced Mode or press F7 for the
advanced BIOS settings.
Refer to the item Setup Mode in section Boot menu for more details on how to change the
default screen when entering the BIOS setup program.
Displays the CPU/motherboard
temperature, CPU voltage output,
and CPU/chassis fan speed
Selects the display language
of the BIOS setup program
Exits the BIOS setup program without
saving the changes, saves the changes
and resets the system, or enters the
Advanced Mode
Selects the
Normal mode
Advanced
mode functions
ASUS Optimal
Selects the boot
mode
device priority
Power saving
Displays the
Selects the boot
mode
Advanced mode
device priority
menus
Loads
optimized
default
Displays the system
properties of the
selected mode
•
The boot device options vary depending on the devices you installed to the system.
•
The Boot Menu(F8) button is available only when the boot device is installed to the
system.
Advanced Mode
The Advanced Mode provides advanced options for experienced end-users to configure the
BIOS settings. Refer to the following sections for the detailed configurations.
To access the EZ Mode, click Exit, then select ASUS EZ Mode or press F7.
ASUS B85-PRO GAMER
2-7
Back button
Menu items Menu bar
Submenu item
Configuration fields
Pop-up window
General help
Navigation keys
Scroll bar
Last modified
settings
Quick note
Menu bar
The menu bar on top of the screen has the following main items:
My Favorites For saving the frequently-used system settings and configuration
Main
For changing the basic system configuration
Ai Tweaker
For changing the overclocking settings
Advanced
Boot
For changing the advanced system settings
For displaying the system temperature, power status, and changing the
fan settings
For changing the system boot configuration
Tool
Exit
For configuring options for special functions
For selecting the exit options and loading default settings
Monitor
Menu items
The highlighted item on the menu bar displays the specific items for that menu. For example,
selecting Main shows the Main menu items.
The other items (Ai Tweaker, Advanced, Monitor, Boot, Tool, and Exit) on the menu bar have
their respective menu items.
Back button
This button appears when entering a submenu. Press <Esc> or use the USB mouse to click
this button to return to the previous menu screen.
Submenu items
A greater than sign (>) before each item on any menu screen means that the item has a
submenu. To display the submenu, select the item and press <Enter>.
2-8
Chapter 2: Getting started
Pop-up window
Select a menu item and press <Enter> to display a pop-up window with the configuration
options for that item.
Scroll bar
A scroll bar appears on the right side of a menu screen when there are items that do not fit on
the screen. Press the Up/Down arrow keys or <Page Up> / <Page Down> keys to display the
other items on the screen.
Navigation keys
At the bottom right corner of the menu screen are the navigation keys for the BIOS setup
program. Use the navigation keys to select items in the menu and change the settings.
General help
At the top right corner of the menu screen is a brief description of the selected item.
Configuration fields
These fields show the values for the menu items. If an item is user-configurable, you can
change the value of the field opposite the item. You cannot select an item that is not
user-configurable.
A configurable field is highlighted when selected. To change the value of a field, select it and
press <Enter> to display a list of options.
Quick Note button
This button allows you to enter notes of the activities that you have done in BIOS.
Last Modified button
This button shows the items that you last modified and saved in BIOS Setup.
2.3
My Favorites
MyFavorites is your personal space where you can easily save and access your favorite
BIOS items.
ASUS B85-PRO GAMER
2-9
Adding items to My Favorites
To add frequently-used BIOS items to My Favorites:
1.
Use the arrow keys to select an item that you want to add. When using a mouse, hover
the pointer to the item.
2.
Press <F4> on your keyboard or right-click on your mouse to add the item to My
Favorites page.
You cannot add the following items to My Favorites:
2.4
•
Items with submenu options
•
User-configurable items such as language and boot device order
•
Configuration items such as Memory SPD Information, system time and date
Main menu
The Main menu screen appears when you enter the Advanced Mode of the BIOS Setup
program. The Main menu provides an overview of the basic system information and allows
you to set the system date, time, language, and security settings.
2.4.1
System Language [English]
Allows you to choose the BIOS language version from the options. Configuration options:
[English]
[Español] [Русский] [한국어]
2.4.2
System Date [Day xx/xx/xxxx]
Allows you to set the system date.
2.4.3
System Time [xx:xx:xx]
Allows you to set the system time.
2.4.4Security
The Security menu items allow you to change the system security settings.
2-10
Chapter 2: Getting started
•
If you have forgotten your BIOS password, erase the CMOS Real Time Clock (RTC)
RAM to clear the BIOS password. See section Jumpers for information on how to
erase the RTC RAM.
•
The Administrator or User Password items on top of the screen show the default
Not Installed. After you set a password, these items show Installed.
Administrator Password
If you have set an administrator password, we recommend that you enter the administrator
password for accessing the system. Otherwise, you might be able to see or change only
selected fields in the BIOS setup program.
To set an administrator password:
1.
Select the Administrator Password item and press <Enter>.
2.
From the Create New Password box, key in a password, then press <Enter>.
3.
Confirm the password when prompted.
To change an administrator password:
1.
Select the Administrator Password item and press <Enter>.
2.
From the Enter Current Password box, key in the current password, then press
<Enter>.
3.
From the Create New Password box, key in a new password, then press <Enter>.
4.
Confirm the password when prompted.
To clear the administrator password, follow the same steps as in changing an administrator
password, but press <Enter> when prompted to create/confirm the password. After you clear
the password, the Administrator Password item on top of the screen shows Not Installed.
User Password
If you have set a user password, you must enter the user password for accessing the system.
The User Password item on top of the screen shows the default Not Installed. After you set
a password, this item shows Installed.
To set a user password:
1.
Select the User Password item and press <Enter>.
2.
From the Create New Password box, key in a password, then press <Enter>.
3.
Confirm the password when prompted.
To change a user password:
1.
Select the User Password item and press <Enter>.
2.
From the Enter Current Password box, key in the current password, then press
<Enter>.
3.
From the Create New Password box, key in a new password, then press <Enter>.
4.
Confirm the password when prompted.
ASUS B85-PRO GAMER
2-11
To clear the user password, follow the same steps as in changing a user password, but press
<Enter> when prompted to create/confirm the password. After you clear the password, the
User Password item on top of the screen shows Not Installed.
2.5
Ai Tweaker menu
The Ai Tweaker menu items allow you to configure overclocking-related items.
Be cautious when changing the settings of the Ai Tweaker menu items. Incorrect field
values can cause the system to malfunction.
The configuration options for this section vary depending on the CPU and DIMM model you
installed on the motherboard.
Scroll down to display the following items:
2-12
Chapter 2: Getting started
Scroll down to display the following items:
Target CPU Turbo-Mode Speed : xxxxMHz
Displays the target CPU Turbo-Mode speed.
Target DRAM Speed : xxxxMHz
Displays the target DRAM speed.
Target Cache Speed : xxxxMHz
Displays the target Cache speed.
Target DMI/PEG Clock : xxxxMHz
Displays the target DMI/PEG clock.
Target CPU Graphics Speed : xxxxMHz
Displays the target CPU Graphics speed.
2.5.1
Ai Overclock Tuner [Auto]
Allows you to set the CPU overclocking options to achieve the desired CPU internal
frequency.
[Auto]
Loads the optimal settings for the system.
[X.M.P.]
If you install memory modules supporting the eXtreme Memory Profile
(X.M.P) Technology, choose this item to set the profiles supported by your
memory modules for optimizing the system performance.
2.5.2
CPU Core Ratio [Auto]
Allows you to set the CPU core ratio automatically or manually.
[Auto]
Sets all CPU Core Ratio to Intel® CPU default settings automatically.
[Sync All Cores] Allows you to set CPU Core Ratio settings for all cores.
[Per Core]
Allows you to set CPU Core Ratio individually.
The following two items appear only when you set the CPU Core Ratio to [Sync All
Cores] or [Per Core].
ASUS B85-PRO GAMER
2-13
1-Core Ratio Limit [Auto]
Allows you to set the 1-Core Ratio Limit. Select [Auto] to apply the CPU default Turbo
Ratio setting or manually assign a 1-Core Ratio Limit value that is higher than or equal
to the 2-Core Ratio Limit.
2-Core/3-Core/4-Core Ratio Limit [Auto]
These items become configurable only when you set the CPU Core Ratio item to [Per
Core].
2.5.3
Min. / Max. CPU Cache Ratio [Auto]
Allows you to set the uncore ratio of the processor to its possible minimum or maximum value
depending on the type of CPU installed. Configuration options: [Auto] [x] ~ [xx].
2.5.4
CPU Ratio Tuner [Auto]
Allows you to enhance the overclocking capability of non-K series CPUs when enabled.
Configuration options: [Auto] [Enabled] [Disabled]
2.5.5
BCLK Frequency : DRAM Frequency Ratio [Auto]
Allows you to set the ratio of the BCLK and DRAM frequency.
[Auto]
The Ratio will be set to the optimized settings.
[100:133]
The Ratio will be set to 100:133.
[100:100]
The Ratio will be set to 100:100.
2.5.6
DRAM Frequency [Auto]
Allows you to set the memory operating frequency. The configuration options vary with the
BCLK Frequency item settings.
Selecting a very high frequency may cause the system to become unstable! If this happens,
revert to the defualt settings.
2.5.7Max. CPU Graphics Ratio [Auto]
[Auto]
The CPU Graphics Maximum ratio is set to its optimized setting depending
on the system loading.
[Manual]
Use the <+> or <-> keys to adjust the optimal Max. CPU Graphics ratio.
The value may vary depending on the system loading.
2.5.8
OC Tuner [As is]
The OC Tuner automatically overclocks the CPU and RAM frequency and voltage for an
enhanced system performance. It also accelerates iGPU performance according to the
integrated graphics loading. Configuration options: [As Is] [Enabled].
Ensure that you have an efficient cooling system before setting the OC Tuner to [Enabled].
2-14
Chapter 2: Getting started
2.5.9
EPU Power Saving Mode [Disabled]
Allows you to enable or disable the EPU power saving function. Configuration options:
[Disabled] [Enabled]
2.8.10
DRAM Timing Control
The subitems in this menu allow you to set the DRAM timing control features. Use the <+>
and <-> keys to adjust the value. To restore the default setting, type [auto] using the keyboard
and press the <Enter> key.
Changing the values in this menu may cause the system to become unstable! If this
happens, revert to the default settings.
Primary Timings
DRAM CAS# Latency [Auto]
Configuration options: [Auto] [1 DRAM Clock] – [31 DRAM Clock]
DRAM RAS# to CAS# Delay [Auto]
Configuration options: [Auto] [1 DRAM Clock] – [31 DRAM Clock]
DRAM RAS# PRE Time [Auto]
Configuration options: [Auto] [1 DRAM Clock] – [31 DRAM Clock]
DRAM RAS# ACT Time [Auto]
Configuration options: [Auto] [1 DRAM Clock] – [63 DRAM Clock]
DRAM Command Rate [Auto]
Configuration options: [Auto] [1 DRAM Clock] [2 DRAM Clock]
Secondary Timings
DRAM RAS# to RAS# Delay [Auto]
Configuration options: [Auto] [1 DRAM Clock] – [15 DRAM Clock]
DRAM REF Cycle Time [Auto]
Configuration options: [Auto] [1 DRAM Clock] – [511 DRAM Clock]
DRAM Refresh Interval [Auto]
Configuration options: [Auto] [1 DRAM Clock] – [65535 DRAM Clock]
DRAM WRITE Recovery Time [Auto]
Configuration options: [Auto] [1 DRAM Clock] – [16 DRAM Clock]
DRAM READ to PRE Time [Auto]
Configuration options: [Auto] [1 DRAM Clock] – [15 DRAM Clock]
DRAM FOUR ACT WIN Time [Auto]
Configuration options: [Auto] [1 DRAM Clock] – [255 DRAM Clock]
ASUS B85-PRO GAMER
2-15
DRAM WRITE to READ Delay [Auto]
Configuration options: [Auto] [1 DRAM Clock] – [15 DRAM Clock]
DRAM CKE Minimum pulse width [Auto]
Configuration options: [Auto] [1 DRAM Clock] – [15 DRAM Clock]
DRAM CAS# Write Latency [Auto]
Configuration options: [Auto] [1 DRAM Clock] – [31 DRAM Clock]
RTL IOL control
DRAM RTL (CHA_R0D0) [Auto]
Configuration options: [Auto] [1] - [63]
DRAM RTL (CHA_R0D1) [Auto]
Configuration options: [Auto] [1] - [63]
DRAM RTL (CHA_R1D0) [Auto]
Configuration options: [Auto] [1] - [63]
DRAM RTL (CHA_R1D1) [Auto]
Configuration options: [Auto] [1] - [63]
DRAM RTL (CHB_R0D0) [Auto]
Configuration options: [Auto] [1] - [63]
DRAM RTL (CHB_R0D1) [Auto]
Configuration options: [Auto] [1] - [63]
DRAM RTL (CHB_R1D0) [Auto]
Configuration options: [Auto] [1] - [63]
DRAM RTL (CHB_R1D1) [Auto]
Configuration options: [Auto] [1] - [63]
DRAM IO-L (CHA_R0D0) [Auto]
Configuration options: [Auto] [1] - [15]
DRAM IO-L (CHA_R0D1) [Auto]
Configuration options: [Auto] [1] - [15]
DRAM IO-L (CHA_R1D0 [Auto]
Configuration options: [Auto] [1] - [15]
DRAM IO-L (CHA_R1D1 [Auto]
Configuration options: [Auto] [1] - [15]
DRAM IO-L (CHB_R0D0 [Auto]
Configuration options: [Auto] [1] - [15]
2-16
Chapter 2: Getting started
DRAM IO-L (CHB_R0D1 [Auto]
Configuration options: [Auto] [1] - [15]
DRAM IO-L (CHB_R1D0 [Auto]
Configuration options: [Auto] [1] - [15]
DRAM IO-L (CHB_R1D1 [Auto]
Configuration options: [Auto] [1] - [15]
Third Timings
tRDRD [Auto]
Configuration options: [Auto] [1 DRAM Clock] – [7 DRAM Clock]
tRDRD_dr [Auto]
Configuration options: [Auto] [1 DRAM Clock] – [15 DRAM Clock]
tRDRD_dd [Auto]
Configuration options: [Auto] [1 DRAM Clock] – [15 DRAM Clock]
tWRRD [Auto]
Configuration options: [Auto] [1 DRAM Clock] – [63 DRAM Clock]
tWRRD_dr [Auto]
Configuration options: [Auto] [1 DRAM Clock] – [15 DRAM Clock]
tWRRD_dd [Auto]
Configuration options: [Auto] [1 DRAM Clock] – [15 DRAM Clock]
tWRWR [Auto]
Configuration options: [Auto] [1 DRAM Clock] – [7 DRAM Clock]
tWRWR_dr [Auto]
Configuration options: [Auto] [1 DRAM Clock] – [15 DRAM Clock]
tWRWR_dd [Auto]
Configuration options: [Auto] [1 DRAM Clock] – [15 DRAM Clock]
Dec_WRD [Auto]
Configuration options: [Auto] [0] [1]
tRDWR [Auto]
Configuration options: [Auto] [1 DRAM Clock] – [31 DRAM Clock]
tRDWR_dr [Auto]
Configuration options: [Auto] [1 DRAM Clock] – [31 DRAM Clock]
tRDWR_dd [Auto]
Configuration options: [Auto] [1 DRAM Clock] – [31 DRAM Clock]
ASUS B85-PRO GAMER
2-17
MISC
MRC Fast Boot [Auto]
Allows you to enable or disable the MRC fast boot.
[Auto]
Selects the optimum MRC fast boot.
[Enabled]
Enables the MRC fast boot.
[Disable]
Disables the MRC fast boot.
DRAM CLK Period [Auto]
Configuration options: [Auto] [1] – [14]
Channel A DIMM Control [Enable Bot...]
Configuration options: [Enable Both DIMMS] [Disable DIMM0] [Disable DIMM1]
[Disable Both DIMMS]
Channel B DIMM Control [Enable Bot...]
Configuration options: [Enable Both DIMMS] [Disable DIMM0] [Disable DIMM1]
[Disable Both DIMMS]
Scrambler Setting [Optimized ...]
Configuration options: [Optimized (ASUS)] [Default (MRC)]
MCH Full Check [Auto]
Allows you to enable, disable, or automatically set the MCH Full Check function.
Configuration options: [Auto] [Enabled] [Disabled]
Skew Control
Adjust these items may enhance the DRAM overclocking capability and stability.
Transmitter Rising Slope [Auto]
Configuration options: [0] ~ [31]
Transmitter Fallng Slope [Auto]
Configuration options: [0] ~ [31]
Transmitter Control Time [Auto]
Configuration options: [0] ~ [31]
Receiver Rising Slope [Auto]
Configuration options: [0] ~ [31]
Receiver Fallng Slope [Auto]
Configuration options: [0] ~ [31]
Receiver Control Time [Auto]
Configuration options: [0] ~ [31]
2.5.11
DIGI+ VRM
CPU Load-Line Calibration [Auto]
Load-line is defined by Intel VRM specification and affects CPU voltage. The CPU working
voltage will decrease proportionally to CPU loading. Higher value gets a higher voltage and
better overclocking performance, but increases the CPU and VRM thermal conditions. This
item allows you to adjust the voltage range from the following percentages to boost the
system performance. Configuration options: [Auto] [Level 1] ~ [Level 9]
The actual performance boost may vary depending on your CPU specification.
2-18
Chapter 2: Getting started
CPU Voltage Frequency [Auto]
Frequency switching affects the VRM transient response, and the thermal component. Higher
frequency gets quicker transient response. Configuration options: [Auto] [Manual]
DO NOT remove the thermal module when switching to Manual Mode. The thermal
conditions should be monitored.
CPU Fixed Frequency [xxxx] [Disabled]
This item only appears when you set the CPU Voltage Frequency to [Manual]. This
allows you set a fixed CPU frequency. The configuration options ranges from 300 KHz
to 1000 KHz. Uset the <+> or <-> keys to adjust the interval.
VRM Spread Spectrum [Disabled]
This item becomes configurable only when you set the CPU Voltage Frequency item to
[Auto] and allows you to enable the spread spectrum to enhance system stability.
CPU Power Phase Control [Auto]
Allows you to set the power phase based on the CPU. Configuration options: [Auto]
[Standard] [Optimized] [Extreme]
DO NOT remove the thermal module when setting this item to [Extreme]. The thermal
conditions should be monitored.
CPU Power Duty Control [T.Probe]
DIGI + VRM Duty Control adjusts the current of every VRM phase and the thermal conditions
of every component.
[T. Probe]
Select to maintain the VRM thermal balance.
[Extreme]
Select to maintain the current VRM balance.
CPU Current Capability [Auto]
Allows you to configure the total power range, and extends the overclocking frequency range
simultaneously. Configuration options: [Auto] [100%] [110%] [120%] [130%] [140%]
Choose a higher value when overclocking, or under a high CPU loading for extra power
support.
ASUS B85-PRO GAMER
2-19
2.5.12
CPU Power Management
The subitems in this menu allow you to set the CPU ratio and features.
Enhanced Intel® SpeedStep Technology [Enabled]
Allows you to enable or disable the Enhanced Intel® SpeedStep Technology (EIST).
[Disabled]
Disables this function.
[Enabled]
The operating system dynamically adjusts the processor voltage and
core frequency which may result in decreased average consumption and
decreased average heat production.
Turbo Mode [Enabled]
Allows you to enable your core processor’s speed to run faster than the marked frequency in
a specific condition. Configuration options: [Disabled] [Enabled]
•
Turbo Mode is only available on selected CPU models only.
•
The following first three items appear only when you set the Turbo Mode to [Enabled].
Turbo Mode Parameters
Long Duration Package Power Limit [Auto]
Allows you to limit the turbo ratio’s long duration package power.
Package Power Time Window [Auto]
Allows you to set the package power time window.
Use the <+> and <-> keys to adjust the value.
Short Duration Package Power Limit [Auto]
Allows you to limit the turbo ratio’s long duration power.
Use the <+> and <-> keys to adjust the value.
CPU Integrated VR Current Limit [Auto]
Allows you to limit the CPU Integrated VR current
Use <+> and <-> key to adjust the value.
CPU Internal Power Switching Frequency
Frequency Tuning Mode [Auto]
Allows you to set the frequency tuning mode. Configuration options: [Auto] [+] [-]
CPU Internal Power Fault Control
Thermal Feedback [Auto]
When enabled, it allows CPU to take precautionary actions when the thermal of the
external regulator exceeds the limit.Configuration options: [Auto] [Disabled] [Enabled]
CPU Integrated VR Fault Management [Auto]
Allows you to manage the CPU Integrated VR fault. Configuration options: [Auto]
[Disabled] [Enabled]
2-20
Chapter 2: Getting started
CPU Internal Power Configuration
CPU Integrated VR Efficiency Management [Auto]
Allows you to manage the CPU integrated VR efficiency. Configuration options: [Auto]
[High Performance] [Balanced]
Power Decay Mode [Auto]
Enable to improve power saving on the Fully Integrated Voltage Regulator as the processor
enters low current mode. Configuration options: [Auto] [Disabled] [Enabled]
Idle Power-in Response [Auto]
Allows you to set the idle power-in response. Configuration options: [Auto] [Regular] [Fast]
Idle Power-out Response [Auto]
Allows you to set the idle power-out response. Configuration options: [Auto] [Regular] [Fast]
Power Current Slope [Auto]
Allows you to set the power current slope. Configuration options: [Auto] [Level 4] [Level 3]
[Level 2] [Level 1] [Level 0] ]Level -1] [Level -2] [Level -3] [Level -4].
Power Current Offset [Auto]
Allows you to set the power current offset. Configuration options: [Auto] [100%] [87.5%] [75%]
[62.5%] [50%] [37.5%] [25%] [12.5%] [0%] [-12.5%] [-25%] [-37.5%] [-50.0%] [-62.5%] [-75%]
[-87.5%] [-100%]
Power Fast Ramp Response [Auto]
Allows you to set the power fast ramp response.
Use the <+> and <-> keys to adjust the value.
CPU Internal Power Saving Control
Power Saving Level 1 Threshhold [Auto]
Allows you to set the power saving level 1 threshhold.
Use the <+> and <-> keys to adjust the value.
Power Saving Level 2 Threshhold [Auto]
Allows you to set the power saving level 2 threshhold.
Use the <+> and <-> keys to adjust the value.
Power Saving Level 3 Threshhold [Auto]
Allows you to set the power saving level 3 threshhold.
Use the <+> and <-> keys to adjust the value.
ASUS B85-PRO GAMER
2-21
2.5.13
Extreme Over-Voltage [Disabled]
By default, this item is set to [Disabled] and helps provide over voltage protection for the
CPU. When you set this item to [Enabled], you can select voltage settings for overclocking,
but this will not guarantee the CPU’s lifespan.
2.5.14
CPU Core Voltage [Auto]
This item allows you to set the CPU core voltage. Increase the voltage when increasing the
core frequency. Configuration options: [Auto] [Manual Mode] [Offset Mode]
The following item appears only when you set the CPU Core Voltage to [Manual Mode].
CPU Core Voltage Override [Auto]
This item allows you to set the CPU core voltage override. The values range from 0.001V to
1.920V with a 0.001V interval.
The following item appears only when you set the CPU Core Voltage to [Offset Mode].
Offset Mode Sign [+]
This item allows you to set the offset mode sign. Configuration options: [+] [-]
CPU Core Voltage Offset [Auto]
This item appears only when you set the CPU Core Voltage to [Offset Mode] and
allows you to set the CPU core voltage offset. The values range from 0.001V to 0.999V
with a 0.001V interval.
The following two items appear only when you set the CPU Core Voltage to [Offset
Mode].
Offset Mode Sign [+]
This item appears only when you set the CPU Core Voltage to [Offset Mode] and
allows you to set the sign of the Offset mode.
CPU Core Voltage Offset [Auto]
This item appears only when you set the CPU Core Voltage to [Offset
Mode] and allows you to set the CPU core voltage offset. The values range
from 0.001V to .999V with a 0.001V interval.
2.5.15
CPU Cache Voltage [Auto]
This item allows you to set the CPU cache voltage. Increase the cache voltage when
increasing the ring frequency. Configuration options: [Auto] [Manual Mode] [Offset Mode]
CPU Cache Voltage Override [Auto]
This item appears only when you set the CPU Cache Voltage to [Manual Mode] and allows
you to set the CPU cache voltage override. The values range from 0.001V to 1.920V with a
0.001V interval.
2-22
Chapter 2: Getting started
Offset Mode Sign [+]
This item appears only when you set the CPU Cache Voltage to [Offset Mode] and allows
you to set the offset mode sign. Configuration options: [+] [-]
CPU Cache Voltage Offset [Auto]
This item appears only when you set the CPU Cache Voltage to [Offset Mode] and
allows you to set the CPU cache voltage offset. The values range from 0.001V to
0.999V with a 0.001V interval.
2.5.16
CPU Graphics Voltage [Auto]
This item allows you to set the CPU graphics voltage. Increase the graphics voltage when
increasing the iGPU frequency. Configuration options: [Auto] [Manual Mode] [Offset Mode]
[Adaptive Mode]
CPU Graphics Voltage Override [Auto]
This item appears only when you set the CPU Graphics Voltage to [Manual Mode] and allows
you to set the CPU graphics voltage override. The values range from 0.001V to 1.920V with
a 0.001V interval.
Offset Mode Sign [+]
This item appears only when you set the CPU Graphics Voltage to [Offset Mode] or [Adaptive
Mode] and allows you to set the offset mode sign. Configuration options: [+] [-]
CPU Graphics Voltage Offset [Auto]
This item appears only when you set the CPU Graphics Voltage to [Offset Mode] or
[Adaptive Mode] and allows you to set the CPU graphics voltage offset. The values
range from 0.001V to 0.999V with a 0.001V interval.
Additional Turbo Mode CPU Graphics Voltage [Auto]
This item appears only when you set the CPU Graphics Voltage to [Adaptive Mode]
andallows you to set the additional turbo mode CPU graphics voltage. The values range from
0.001V to 1.920V with a 0.001V interval.
Total Adaptive Mode CPU Graphics Voltage [Auto]
This item appears only when you set the CPU Graphics Voltage to [Adaptive Mode] and
allows you to set the total adaptive mode CPU graphics voltage. The values range from
0.001V to 1.920V with a 0.001V interval.
ASUS B85-PRO GAMER
2-23
2.5.17
CPU System Agent Voltage Offset Mode Sign [+]
This item allows you to set the CPU system agent voltage offset mode sign. Configuration
options: [+] [-].
CPU System Agent Voltage Offset [Auto]
This item allows you to set the CPU system agent voltage offset. Increase the value when
increasing DRAM frequency. The values range from 0.001V to 0.999V with a 0.001V interval.
2.5.18
CPU Analog I/O Voltage Offset Mode Sign [+]
This item allows you to set the CPU analog I/O voltage offset mode sign. Configuration
options: [+] [-].
CPU Analog I/O Voltage Offset [Auto]
This item allows you to set the CPU analog I/O voltage offset. Increase the value when
increasing DRAM frequency. The values range from 0.001V to 0.999V with a 0.001V interval.
2.5.19
CPU Digital I/O Voltage Offset Mode Sign [+]
This item allows you to set the CPU digital I/O voltage offset mode sign. Configuration
options: [+] [-].
CPU Digital I/O Voltage Offset [Auto]
This item allows you to set the CPU digital I/O voltage offset. Increase the value when
increasing DRAM frequency. The values range from 0.001V to 0.999V with a 0.001V interval.
2.5.20
SVID Support [Auto]
Disabling SVID Support stops the processor from commmunicating with the external voltage
regulator. Configuration options: [Auto] [Disabled] [Enabled].
SVID Voltage Override [Auto]
This item allows you to set the SVID voltage override. The values range from 0.001V to
2.440V with a 0.001V interval.
2.5.21
CPU Input Voltage (VCCIN) [Auto]
This item allows you to set the CPU input voltage. The values range from 0.800V to 2.700V
with a 0.010V interval.
2-24
Chapter 2: Getting started
2.5.22
DRAM Voltage [Auto]
Allows you to set the DRAM Voltage for the sytem memory. The values range from 1.20000V
to 1.92000V with a 0.01000V interval.
According to Intel CPU specifications, DIMMs with voltage requirement over 1.65V may
damage the CPU permanently. We recommend that you install the DIMMs with the voltage
requirement below 1.65V.
2.5.23
PCH Core Voltage [Auto]
Allows you to set the Platform Controller Hub voltage. Use the <+> or <-> keys to adjust
the value. The minimum voltage is 0.70000V and the maximum voltage varies with DRAM
voltage.with a 0.01250V interval.
The system may need better cooling system to work stably under high voltage settings.
2.5.24
PCH VLX Voltage [Auto]
Allows you to set the voltage for the I/O on the PCH. Use the <+> or <-> keys to adjust the
value. The values range from 1.2V to 2.0V with a 0.0125V interval.
2.5.25
DRAM CTRL REF Voltage [Auto]
Allows you to set the DRAM CTRL REF Voltage. The values range from 0.3950x to 0.6300x
with a 0.0050x interval.
2.5.26
DRAM DATA REF Voltage on CHA [Auto]
Allows you to set the DRAM DATA REF Voltage on CHA. The values range from 0.3950x to
0.6300x with a 0.0050x interval
2.5.27
DRAM DATA REF Voltage on CHB [Auto]
Allows you to set the DRAM DATA REF Voltage on CHB. The values range from 0.3950x to
0.6300x with a 0.0050x interval
2.5.28
CPU Spread Spectrum [Auto]
[Auto]
Automatic configuration.
[Disabled]
Enhances the BCLK overclocking ability.
[Enabled]
Sets to [Enabled] for EMI control.
ASUS B85-PRO GAMER
2-25
2.6
Advanced menu
The Advanced menu items allow you to change the settings for the CPU and other system
devices.
Be cautious when changing the settings of the Advanced menu items. Incorrect field values
can cause the system to malfunction.
2.6.1
CPU Configuration
The items in this menu show the CPU-related information that the BIOS automatically
detects.
The items shown in submenu may be different due to the CPU you installed.
Hyper-threading [Enabled]
The Intel Hyper-Threading Technology allows a hyper-threading processor to appear as two
logical processors to the operating system, allowing the operating system to schedule two
threads or processes simultaneously.
[Enabled]
Two threads per activated core are enabled.
[Disabled]
Only one thread per activated core is enabled.
Active Processor Cores [All]
Allows you to choose the number of CPU cores to activate in each processor package.
Configuration options: [All] [1] [2] [3]
Limit CPUID Maximum [Disabled]
2-26
[Enabled]
Allows legacy operating systems to boot even without support for CPUs
with extended CPUID functions.
[Disabled]
Disables this function.
Chapter 2: Getting started
Execute Disable Bit [Enabled]
[Enabled]
Enables the No-Execution Page Protection Technology.
[Disabled]
Forces the XD feature flag to always return to zero (0).
Intel® Virtualization Technology [Disabled]
[Enabled]
Allows a hardware platform to run multiple operating systems separately
and simultaneously, enabling one system to virtually function as several
systems.
[Disabled]
Disables this function.
Hardware Prefetcher [Enabled]
[Enabled]
Allows a hardware platform to automatically analyze the requirements and
prefetch data and codes for the CPU.
[Disabled]
Disables this function.
Adjacent Cache Line Prefetch [Enabled]
[Enabled]
Allows a hardware platform to perform adjacent cache line prefetching.
[Disabled]
Disables this function.
Boot performance mode [Max Non-Tu...]
This item allows you to select the boot performance mode. Configuration options: [Max NonTurbo Performance] [Max battery] [Turbo Performance]
CPU Power Management Configuration
This item allows you to manage and configure the CPU’s power.
EIST [Enabled]
Allows you to enable or disable the Enhanced Intel® SpeedStep Technology (EIST).
[Disabled]
[Enabled]
The CPU runs at its default speed.
The operating system controls the CPU speed.
Turbo Mode [Enabled]
Allows you to set the processor cores to run faster than the marked frequency in a
specific condition. Configuration options: [Enabled] [Disabled]
Turbo Mode is only available on selected CPU models only.
CPU C states [Enabled]
[Auto]
Automatic configuration.
[Enabled]
Enables the CPU C states.
[Disabled]
Disables the CPU C states.
The following items appear only when you set the CPU C states to [Enabled].
Enhanced C1 state [Enabled]
[Enabled]
Enables enhanced C1 state.
[Disabled]
Disables enhanced C1 state.
ASUS B85-PRO GAMER
2-27
CPU C3 Report [Enabled]
Allows you to disable or enable the CPU C3 report to OS. Configuration options:
[Enabled] [Disabled]
CPU C6 Report [Enabled]
Allows you to disable or enable the CPU C6 report to OS. Configuration options:
[Enabled] [Disabled]
C6 Latency [Short]
Allows you to choose short or long latency for C6. Configuration options: [Short] [Long]
CPU C7 Report [CPU C7s]
Allows you to disable or enable the CPU C7 report to OS. Configuration options:
[Disabled] [CPU C7] [CPU C7s]
C7 Latency [Long]
Allows you to choose short or long latency for C6. Configuration options: [Short] [Long]
Package C State Support [Auto]
Allows you to disable or enable the whole C-State package support. Configuration
options: [Auto] [Enabled] [C0/C1] [C2] [C3] [C6] [CPU C7] [CPU C7s]
2.6.2
PCH Configuration
PCI Express Configuration
DMI Link ASPM Control [Auto]
Allows you to control the Active State Power Managemennt on both NB and SB side of
the DMI Link. Configuration options: [Auto] [Enabled] [Disabled]
ASPM Support [Disabled]
Allows you to set the ASPM support. Configuration options: [Disabled] [Auto] [L0s] [L1]
L0sL1].
PCIe Speed [Auto]
Allows you to select the PCI Express port speed. Configuration options: [Auto] [Gen1]
[Gen2]
Intel® Rapid Start Technology
Intel® Rapid Start Technology [Disabled]
Allows you to enable or disable Intel® Rapid Start Technology. Configuration options:
[Enabled] [Disabled]
The following items appear only when you set the Intel® Rapid Start Technology to
[Enabled].
Entry on S3 RTC Wake [Enabled]
The system automatically wakes up and set to Rapid Start Technology S4 mode.
Configuration options: [Enabled] [Disabled]
2-28
Chapter 2: Getting started
Entry After [0]
Allows you to set the wake-up time.The values range from 0 (immediately) to 120.
Active Page Threshold Support [Enabled]
The system automatically set itself to sleep when the partition size is not enough for
Rapid Start Technology to work. Configuration options: [Enabled] [Disabled]
Active Memory Threshold [0]
Key in the value for the additional partition size for Rapid Start Technology to work.
Ensure that the caching partition size is larger than the total memory size.
Hybrid Hard Disk Support [Disabled]
Allows you to enable or disable hybrid hard disk support.
Configuration options: [Enabled] [Disabled]
Intel® Smart Connect Technology [Disabled]
ISCT Configuration [Disabled]
Allows you to enable or disable the ISCT configuration. Configuration options:
[Enabled] [Disabled]
2.6.3
SATA Configuration
While entering Setup, the BIOS automatically detects the presence of SATA devices. The
SATA Port items show Not Present if no SATA device is installed to the corresponding SATA
port.
SATA Mode Selection [AHCI]
Allows you to set the SATA configuration.
[Disabled]
Disables the SATA function.
[IDE]
Set to [IDE] when you want to use the Serial ATA hard disk drives as
Parallel ATA physical storage devices.
[AHCI]
Set to [AHCI] when you want the SATA hard disk drives to use the AHCI
(Advanced Host Controller Interface). The AHCI allows the onboard storage
driver to enable advanced Serial ATA features that increases storage
performance on random workloads by allowing the drive to internally
optimize the order of commands.
Aggressive LPM Support [Disabled]
This item appears only when you set the previous item to [AHCI] and allows you to enable or
disable PCH entering link power state aggressively. Configuration options: [Auto] [Disabled]
[Enabled]
IDE Legacy / Native Mode Selection [Native]
This item appears only when you set the SATA Mode Selection item to [IDE]. Configuration
options: [Native] [Legacy]
ASUS B85-PRO GAMER
2-29
S.M.A.R.T. Status Check [Enabled]
S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) is a monitor system. When
read/write of your hard disk errors occur, this feature allows the hard disk to report warning
messages during the POST. Configuration options: [Enabled] [Disabled]
Hot Plug [Disabled] (SATA 6G 1~4 [Gray], SATA 3G 5~6 [Black])
These items appear only when you set the SATA Mode Selection item to [AHCI] and allow
you to enable/disable SATA Hot Plug Support.Configuration options: [Disabled] [Enabled]
2.6.4
System Agent Configuration
Vt-d [Enabled]
Allows you to enable the virtualization technology fundtion on the memory controller hub
(MCH). Configuration options: [Enabled] [Disabled]
CPU Audio Device [Enabled]
Allows you to enable or disable CPU SA Audio Device. Configuration options: [Enabled]
[Disabled]
DVI Port Audio [Disabled]
Allows you to enable or disable the DVI port. Configuration options: [Enabled] [Disabled]
Graphics Configuration
Allows you to select a primary display from iGPU, and PCIe graphical devices.
Primary Display [Auto]
Allows you to select which of the iGPU/PCIE Graphics device should be the Primary
Display. Configuration options: [Auto] [IGPU] [PCIE] [PCI]
iGPU Memory [Auto]
Allows you to select the amount of system memory allocated to DVMT 5.0 used by the
iGPU. Configuration options: [Auto] [32M] [64M] [96M] [128M] [160M] [192M] [224M]
[256M] [288M][320M] [352M] [384M] [416M] [448M] [480M] [512M] [1024M]
Render Standby [Auto]
Allows you to enable or disable Intel® Graphics Render Standby support to reduce
iGPU power use when the system is idle. Configuration options: [Auto] [Disabled]
[Enabled]
iGPU Multi-Monitor [Disabled]
Allows you to enable the iGPU Multi-Monitor. For LucidLogix Virtu MVP function
support, set this item to [Enabled] to empower both integrated and discrete graphics.
The iGPU shared system memory size will be fixed at 64MB.
Configuration options: [Disabled] [Enabled]
2-30
Chapter 2: Getting started
DMI Configuration
Allows you to control various DMI functions.
DMI Gen 2 [Auto]
Allows you to enable or disable DMI Gen 2. Configuration options: [Auto] [Enabled]
[Disabled]
NB PCIe Configuration
Allows you to configure the NB PCI Express settings.
PCIEX16_1 Link Speed [Auto]
Allows you to configure the PCIEX16_1 speed.
Configuration options: [Auto] [Gen1] [Gen2] [Gen3]
DMI Link ASPM Control [Auto]
Allows you to enable or disable the control of Active State Power Management on SA
side of the DMI Link. Configuration options: [Auto] [Disabled] [L0s] [L1] [L0sL1]
PEG - ASPM [Disabled]
Allows you to control ASPM support for the PEG Device. The setting takes no effect if
PEG is not the active device at present. Configuration options: [Disabled] [Auto] [ASPM
L0s] [ASPM L1] [ASPM L0sL1]
Memory Configuration
Memory Scrambler [Enabled]
Allows you to enable or disable Memory Scrambler support.
Memory Remap [Enabled]
Allows you to enable or disable remapping the memory above 4GB.
[Enabled]
Enables the function.
[Disabled]
Disables this function.
2.6.5
USB Configuration
The items in this menu allow you to change the USB-related features.
The USB Devices item shows the auto-detected values. If no USB device is detected, the
item shows None.
Legacy USB Support [Enabled]
[Enabled]
Enables the support for USB devices on legacy operating systems (OS).
[Disabled]
The USB devices can be used only for the BIOS setup program.
[Auto] Allows the system to detect the presence of USB devices at startup. If
detected, the USB controller legacy mode is enabled. If no USB device is
detected, the legacy USB support is disabled.
ASUS B85-PRO GAMER
2-31
Intel® xHCI Mode [Smart Auto]
[Auto]
Keeps the last operation of xHCI controller in OS during bootup.
[Smart Auto]
Enables the operation of xHCI controller.
[Enabled]
Enables the function.
[Disabled]
Disables the function.
EHCI Hand-off [Disabled]
[Enabled]
Enables the support for operating systems without an EHCI hand‑off
feature.
[Disabled]
Disables the function.
USB Single Port Control
USB_3, 1~14 [Enabled]
Allows you to enable or disable an individual USB port. Refer to the section 1.2.3
Motherboard layout in this user manual for the locations of the USB ports.
Configuration options: [Enabled] [Disabled].
2.6.6
Platform Misc Configuration
The items in this menu allow you to configure the Platform Misc.
PCI Express Native Power Management [Disabled]
Allows you to enhance the power saving feature of PCI Express and perform ASPM
operations in the operating system. Configuration options: [Disabled] [Enabled]
Native ASPM [Disabled]
The item appears only when you set the PCI Express Native Power Management to
[Enabled] and allows you to enable or disable ASPM. Configuration options: [Enabled]
[Disabled]
2.6.7
Onboard Devices Configuration
HD Audio Controller [Enabled]
[Enabled]
Enables the HD Audio Device.
[Disabled]
Disables the HD Audio Device.
The following item appears only when you set the HD Audio Controller item to [Enabled].
Front Panel Type [HD Audio]
Allows you to set the front panel audio connector (AAFP) mode to legacy AC’97 or highdefinition audio depending on the audio standard that the front panel audio module supports.
[HD Audio]
Sets the front panel audio connector (AAFP) mode to high definition audio.
[AC97]
Sets the front panel audio connector (AAFP) mode to legacy AC’97
SPDIF Out Type [SPDIF]
2-32
[SPDIF]
Sets to an SPDIF audio output.
[HDMI]
Sets to an HDMI audio output.
Chapter 2: Getting started
SupremeFX Lighting LED [Enabled]
Allows you to enable or disable the SupremeFX Lighting LED. Configuration options:
[Enabled] [Disabled]
Intel LAN Controller [Enabled]
Allows you to enable or disable the GbE controller. Configuration options: [Enabled]
[Disabled]
Intel PXE Option ROM [Disabled]
This item only appears when the item Intel LAN Controller is set to [Enabled]. This item
allows you to enable or disable the Intel PXE Option ROM. Configuration options: [Enabled]
[Disabled]
Serial Port Configuration
The sub-items in this menu allow you to set the serial port configuration.
Serial Port [Enabled]
Allows you to enable or disable the serial port (COM).Configuration options: [Enabled]
[Disabled]
Change Settings [IO=3F8h; IRQ=4]
This item appears only when you set the Serial Port to [Enabled] and allows you
to select the Serial Port base address. Configuration options: [IO=3F8h; IRQ=4]
[IO=2F8h; IRQ=3] [IO=3E8h; IRQ=4] [IO=2E8h; IRQ=3]
2.6.8APM
ErP Ready [Disabled]
Allows you to switch off some power at S4+S5 or S5 to get the system ready for ErP
requirement. When set to [Enabled], all other PME options will be switched off. Configuration
options: [Disabled] [Enabled (S4+S5)] [Enabled (S5)]
Restore AC Power Loss [Power Off]
[Power On]
The system goes into on state after an AC power loss.
[Power Off]
The system goes into off state after an AC power loss.
[Last State]
The system goes into either off or on state, whatever the system state was
before the AC power loss.
Power On By PS/2 Keyboard [Disabled]
[Disabled]
Disables the Power On by a PS/2 keyboard.
[Space Bar]
Sets the Space Bar on the PS/2 keyboard to turn on the system.
[Ctrl-Esc]
Sets the Ctrl+Esc key on the PS/2 keyboard to turn on the system.
[Power Key]
Sets Power key on the PS/2 keyboard to turn on the system. This feature
requires an ATX power supply that provides at least 1A on the +5VSB lead.
ASUS B85-PRO GAMER
2-33
Power On By PS/2 Mouse [Disabled]
[Disabled]
Disables the Power On by a PS/2 mouse.
[Enabled]
Enables the Power On by a PS/2 mouse. This feature requires an ATX
power supply that provides at least 1A on the +5VSB lead.
Power On By PCI-E/PCI [Disabled]
[Disabled]
Disables the PCI-E/PCI devices to generate a wake-on-LAN feature of the
Intel®/Realtek LAN device.
[Enabled]
Enables the PCI-E/PCI devices to generate a wake-on-LAN feature of the
Intel®/Realtek LAN device.
Power On By Ring [Disabled]
[Disabled]
Disables Ring to generate a wake event.
[Enabled]
Enables Ring to generate a wake event.
Power On By RTC [Disabled]
[Disabled]
Disables RTC to generate a wake event.
[Enabled]
When set to [Enabled], the items RTC Alarm Date (Days) and Hour/
Minute/Second will become user-configurable with set values.
2.6.9
Network Stack Configuration
Network Stack [Disabled]
This item allows user to disable or enable the UEFI network stack. Configuration options:
[Disabled] [Enabled]
The following two items appear only when you set the previous item to [Enabled].
Ipv4 PXE Support [Enabled]
This item allows user to disable or enable the Ipv4 PXE Boot support. Configuration options:
[Disable Link] [Enabled]
Ipv6 PXE Support [Enabled]
This item allows user to disable or enable the Ipv6 PXE Boot support. Configuration options:
[Disable Link] [Enabled]
2-34
Chapter 2: Getting started
2.7
Monitor menu
The Monitor menu displays the system temperature/power status, and allows you to change
the fan settings.
Scroll down to display the following items:
ASUS B85-PRO GAMER
2-35
2.7.1
CPU Temperature [xxx°C/xxx°F]
The onboard hardware monitor automatically detects and displays the CPU temperature.
Select Ignore if you do not wish to display the detected temperature.
2.7.2
MB Temperature [xxx°C/xxx°F]
The onboard hardware monitor automatically detects and displays the mobtherboard
temperature. Select Ignore if you do not wish to display the detected temperature.
2.7.3
CPU Fan Speed, CPU Optional Fan Speed, Chassis
Fan 1 / Chassis Fan 2 / Chassis Fan 3 Speed [xxxx
RPM] or [Ignore] / [Monitor]
The onboard hardware monitor automatically detects and displays the CPU Fan Speed /
CPU Optional Fan Speed / Chassis fan 1, 2, and 3 speeds in rotations per minute (RPM). If
the fan is not connected to the motherboard, the field shows N/A. Select Ignore if you do not
wish to display the detected speed.
2.7.4
CPU Core 0 / CPU Core 1 / CPU Core 2 / CPU Core 3
Voltage, 3.3V Voltage, 5V Voltage, 12V Voltage
The onboard hardware monitor automatically detects the voltage output through the onboard
voltage regulators. Select Ignore if you do not want to detect this item.
2.7.5
CPU Q-Fan Control [Auto]
[Disabled]
Disables the CPU Q-Fan control feature.
[Auto]
Enables the CPU Q-Fan control for 4-pin CPU fan.
[Advance Mode]Select this mode for the DC mode Q-Fan control when a 3-pin CPU fan is
installed.
CPU Fan Speed Low Limit [200 RPM]
This item appears only when you enable the CPU Q-Fan Control feature and allows you
to disable or set the CPU fan warning speed. Configuration options: [Ignore] [100RPM]
[200RPM] [300 RPM] [400 RPM] [500 RPM] [600 RPM]
CPU Fan Profile [Standard]
This item appears only when you enable the CPU Q-Fan Control feature and allows you to
set the appropriate performance level of the CPU fan.
2-36
[Standard]
Sets to [Standard] to make the CPU fan automatically adjust depending on
the CPU temperature.
[Silent]
Sets to [Silent] to minimize the fan speed for quiet CPU fan operation.
[Turbo]
Sets to [Turbo] to achieve maximum CPU fan speed.
[Manual]
Sets to [Manual] to assign detailed fan speed control parameters.
Chapter 2: Getting started
The following four items appear only when you set CPU Fan Profile to [Manual].
CPU Upper Temperature [70]
Use the <+> and <-> keys to adjust the upper limit of the CPU temperature. The values
range from 20°C to 75°C.
CPU Fan Max. Duty Cycle (%) [100]
Use the <+> and <-> keys to adjust the maximum CPU fan duty cycle. The values
range from 20% to 100%. When the CPU temperature reaches the upper limit, the
CPU fan will operate at the maximum duty cycle.
CPU Lower Temperature [20]
Displays the lower limit of the CPU temperature.
CPU Fan Min. Duty Cycle(%) [20]
Use the <+> and <-> keys to adjust the minimum CPU fan duty cycle. The values
range from 20% to 100%. When the CPU temperature is under the lower limit, the CPU
fan will operate at the minimum duty cycle.
2.7.6
Chassis Fan 1/ Chassis Fan 2 / Chassis Fan 3 Q-Fan
Control [Enabled]
[Disabled]
Disables the Chassis fan 1/2/3/4 Q-Fan control feature.
[Enabled]
Enables the Chassis fan 1/2/3/4 Q-Fan control feature.
Chassis Fan 1/ Chassis Fan 2/ Chassis Fan 3 Speed Low Limit [600 RPM]
This item appears only when you enable the Chassis Fan Q-Fan Control feature and allows
you to disable or set the chassis fan warning speed.
Configuration options: [Ignore] [200RPM] [300 RPM] [400 RPM] [500 RPM] [600 RPM]
Chassis Fan 1/ Chassis Fan 2/ Chassis Fan 3 Profile [Standard]
This item appears only when you enable the Chassis Fan 1/2/3/4 Q-Fan Control feature and
allows you to set the appropriate performance level of the chassis fan 1/2/3/4.
[Standard]
Sets to [Standard] to make the chassis fan automatically adjust depending
on the chassis temperature.
[Silent]
Sets to [Silent] to minimize the fan speed for quiet chassis fan operation.
[Turbo]
Sets to [Turbo] to achieve maximum chassis fan speed.
[Manual]
Sets to [Manual] to assign detailed fan speed control parameters.
ASUS B85-PRO GAMER
2-37
The following four items appear only when you set Chassis1/2 Fan Profile to [Manual].
Chassis Fan 1/2/3 Upper Temperature [70]
Use the <+> and <-> keys to adjust the upper limit of the Chassis temperature. The
values range from 40°C to 75°C.
Chassis Fan 1/2/3 Max. Duty Cycle(%) [100]
Use the <+> and <-> keys to adjust the maximum chassis fan 1/2/3/4 duty cycle. The
values range from 60% to 100%. When the chassis temperature reaches the upper
limit, the chassis fan 1/2/3/4 will operate at the maximum duty cycle.
Chassis Fan 1/2/3 Lower Temperature [40]
Displays the lower limit of the chassis temperature.
CHASSIS Fan 1/2/3 Min. Duty Cycle(%) [60]
Use the <+> and <-> keys to adjust the minimum chassis fan duty cycle. The values
range from 60% to 100%. When the chassis temperature is under 40°C, the chassis
fan will operate at the minimum duty cycle.
2.7.7
Anti Surge Support [Enabled]
This item allows you to enable or disable the Anti Surge function.
Configuration options: [Disabled] [Enabled]
2-38
Chapter 2: Getting started
2.8
Boot menu
The Boot menu items allow you to change the system boot options.
Scroll down to display the following items:
2.8.1
Fast Boot [Enabled]
[Enabled]
Select to accelerate the boot speed.
[Disabled]
Select to go back to normal boot.
The following four items appear when you set Fast Boot to [Enabled].
SATA Support [All Devices]
[All Devices]All devices connected to SATA ports will be available during
POST. This process will extend the POST time.
[Hard Drive Only]Only hard drives connected to SATA ports will be detected during
POST. Any hardware change will disable fast boot.
[Boot Drive Only]Only boot drive connected to SATA ports will be detected during
POST. Any hardware change will disable fast boot.
ASUS B85-PRO GAMER
2-39
USB Support [Partial In...]
[Disabled]All USB devices will not be available until OS boot up for a
fastest POST time.
[Full Initialization]All USB devices will be available during POST. This process will
extend the POST time.
[Partial Initialization]For a faster POST time, only the USB ports with keyboard and
mouse connections will be detected.
PS/2 Keyboard and Mouse Support [Auto]
Select any of these settings when PS/2 keyboard and mouse are installed. These settings
only apply when Fast Boot is enabled.
[Auto]
For a faster POST time, PS/2 devices will only be available when the
system boots up or rebooted when the PS/2 devices have not been
reconnected or changed. If you disconnect or change PS/2 devices before
restarting the system, PS/2 devices will not be available and BIOS setup
program will not be accessible via PS/2 devices.
[Full Initialization]For full system control, PS/2 devices will be available during POST at any
circumstances. This process will extend POST time.
[Disabled]
For the fastest POST time, all PS/2 devices will not be available until your
computer enters the operating system.
Network Stack Driver Support [Disabled]
[Disabled]
Select to skip the network stack driver from loading during POST.
[Enabled]
Select to load the network stack driver during POST.
Next Boot after AC Power Loss [Normal Boot]
[Normal Boot]
Returns to normal boot on the next boot after AC power loss.
[Fast Boot]
Accelerates the boot speed on the next boot after AC power loss.
2.8.2
HW Fast Boot [Disabled]
Allows the system to enable or disable the HW Fast Boot. Configuration options: [Disabled]
[Enabled]
2.8.3
Boot Logo Display [Auto]
[Auto]
Adjust automatically for Windows® requrement.
[Full Screen]
Maximize the boot logo size.
[Disabled]
Hide the logo during POST.
POST Delay Time [3 sec]
This item appears only when you set Boot Logo Display to [Auto] or [Full Screen]. This item
allows you to select the desired additional POST waiting time to easily enter the BIOS setup.
You can only execute the POST delay time during Normal Boot. Configuration options: [1 sec]
~ [10 sec] [Until Press ESC].
This feature will only work under normal boot.
2-40
Chapter 2: Getting started
Post Report [5 sec]
This item appears only when you set Boot Logo Display to [Disabled]. This item allows you
to select a desired post report waiting time. The values range from 1 to 10 seconds.
2.8.4
Bootup NumLock State [On]
[On]
Sets the power-on state of the NumLock to [On].
[Off]
Sets the power-on state of the NumLock to [Off].
2.8.5
Wait for ‘F1’ If Error [Enabled]
When this item is set to [Enabled], the system waits for the F1 key to be pressed when error
occurs. Configuration options: [Disabled] [Enabled]
2.8.6
Option ROM Messages [Force BIOS]
[Force BIOS]
The third-party ROM messages will be forced to display during the boot
sequence.
[Keep Current]
The third-party ROM messages will be displayed only if the third-party
manufacturer had set the add-on device to do so.
2.8.7
Interrupt 19 Capture [Disabled]
[Enabled]
Allows the option ROMs to trap Interrupt 19.
[Disabled]
Disables this function.
2.8.8
Setup Mode [EZ Mode]
[Advanced Mode] Sets Advanced Mode as the default screen for entering the BIOS setup
program.
[EZ Mode]
2.8.9
Sets EZ Mode as the default screen for entering the BIOS setup program.
CSM (Compatibility Support Module)
Allows you to configure the CSM (Compatibility Support Module) items to fully support the
various VGA, bootable devices, and add-on devices for better compatibility.
Launch CSM [Enabled]
[Auto]The system automatically detects the bootable devices and the add-on
devices.
[Enabled]For better compatibility, enable the CSM to fully support the non-UEFI
driver add-on devices or the Windows® UEFI mode.
[Disabled]Disable the CSM to fully support the Windows® Security Update and
Security Boot.
The following four items appear when you set Launch CSM to [Enabled].
Allows you to select the type of devices that you want to boot up. Configuration options:
[UEFI and Legacy OPROM] [Legacy OPROM only] [UEFI only]
ASUS B85-PRO GAMER
2-41
Boot from Network Devices [Legacy OPR...]
Allows you to select the type of network devices that you want to launch. Configuration
options: [Legacy OPROM first] [UEFI driver first] [Ignore]
Boot from Storage Devices [Legacy OPR...]
Allows you to select the type of storage devices that you want to launch. Configuration
options: [Both, Legacy OPROM first] [Both, UEFI first] [Legacy OPROM first] [UEFI driver
first] [Ignore]
Boot from PCI-E/PCI Expansion Devices [Legacy OPR...]
Allows you to select the type of PCI-E/PCI expansion devices that you want to launch.
Configuration options: [Legacy OPROM first] [UEFI driver first]
2.8.10
Secure Boot
Allows you to configure the Windows® Secure Boot settings and manage its keys to protect
the system from unauthorized access and malwares during POST.
OS Type [Windows UE...]
Allows you to select your installed operating system.
[Windows UEFI mode]Executes the Microsoft® Secure Boot check. Only select this
option when booting on Windows® UEFI mode or other Microsoft®
Secure Boot compliant OS.
[Other OS]Get the optimized function when booting on Windows® non-UEFI
mode, Windows® Vista/XP, or other Microsoft® Secure Boot
non-compliant OS. Only on Windows® UEFI mode that Microsoft®
Secure Boot can function properly.
The following item appears when OS Type is set to [Windows UEFI mode].
Key Management
This item appears only when you set OS Type to [Windows UEFI mode]. It allows you
to manage the Secure Boot keys.
Clear Secure Boot keys
This item appears only when you load the default Secure Boot keys. This
item allows you to clear all default Secure Boot keys.
Save Secure Boot Keys
Allows you to save the PK (Platform Keys) to a USB storage device.
2-42
Chapter 2: Getting started
PK Management
The Platform Key (PK) locks and secures the firmware from any non-permissible
changes. The system verifies the PK before your system enters the OS.
Delete PK
Allows you to delete the PK from your system. Once the PK is deleted, all
the system’s Secure Boot keys will not be active. Configuration options:
[Yes] [No]
Load PK from File
Allows you to load the downloaded PK from a USB storage device.
The PK file must be formatted as a UEFI variable structure with time-based authenticated
variable.
KEK Management
The KEK (Key-exchange Key or Key Enrollment Key) manages the Signature database
(db) and Revoked Signature database (dbx).
Key-exchange Key (KEK) refers to Microsoft® Secure Boot Key-Enrollment Key (KEK).
Delete the KEK
Allows you to delete the KEK from your system. Configuration options:
[Yes] [No]
Load KEK from File
Allows you to load the downloaded KEK from a USB storage device.
Append KEK from file
Allows you to load the additional KEK from a storage device for an
additional db and dbx loaded management.
The KEK file must be formatted as a UEFI variable structure with time-based authenticated
variable.
DB Management
The db (Authorized Signature database) lists the signers or images of UEFI
applications, operating system loaders, and UEFI drivers that you can load on the
single computer.
Delete the db
Allows you to delete the db file from your system. Configuration options:
[Yes] [No]
Load db from File
Allows you to load the downloaded db from a USB storage device.
Append db from file
Allows you to load the additional db from a storage device so that more
images can be loaded securely.
ASUS B85-PRO GAMER
2-43
DBX Management
The dbx (Revoked Signature database) lists the forbidden images of db items that are
no longer trusted and cannot be loaded.
Delete the dbx
Allows you to delete the DBX file from your system. Configuration options:
[Yes] [No]
Load dbx from File
Allows you to load the downloaded DBX from a USB storage device.
Append dbx from file
Allows you to load the additional DBX from a storage device so that more
db’s images cannot be loaded.
The DBX file must be formatted as a UEFI variable structure with time-based authenticated
variable.
2.8.11
Boot Option Priorities
These items specify the boot device priority sequence from the available devices. The
number of device items that appears on the screen depends on the number of devices
installed in the system.
•
•
2.8.12
To select the boot device during system startup, press <F8> when ASUS Logo
appears.
To access Windows OS in Safe Mode, do any of the following:
-
Press <F5> when ASUS Logo appears.
-
Press <F8> after POST.
Hard Drive BBS Priorities
Allows you to set the order of the legacy devices in this group.
2.8.13
Boot Override
These items displays the available devices. The number of device items that appear on
the screen depends on the number of devices installed in the system. Click an item to start
booting from the selected device.
2-44
Chapter 2: Getting started
2.9
Tool menu
The Tool menu items allow you to configure options for special functions. Select an item then
press <Enter> to display the submenu.
2.9.1
ASUS EZ Flash 2 Utility
Allows you to run ASUS EZ Flash 2. Press <Enter> to launch the ASUS EZ Flash 2 screen.
For more details, see section ASUS EZ Flash 2.
2.9.2
ASUS Overclocking Profile
This item allows you to store or load multiple BIOS settings.
The Setup Profile Status items show Not Installed if no profile is created.
Profile Name
Allows you to key in a profile name.
Save to Profile
Allows you to save the current BIOS settings to the BIOS Flash, and create a profile. Key in a
profile number from one to eight, press <Enter>, and then select Yes.
Load Profile
Allows you to load the previous BIOS settings saved in the BIOS Flash. Key in the profile
number that saved your CMOS settings, press <Enter>, and then select Yes.
•
DO NOT shut down or reset the system while updating the BIOS to prevent the
system boot failure!
•
We recommend that you update the BIOS file only coming from the same memory/
CPU configuration and BIOS version.
Load/Save CMOS Profile from/to USB Drive
Allows you to load/save CMOS profile from/to USB drive.
ASUS B85-PRO GAMER
2-45
2.9.3
ASUS SPD Information
DIMM Slot # [Slot 1]
Displays the Serial Presence Detect (SPD) information of the DIMM module installed on the
selected slot. Configuration options: [Slot 1] [Slot 2] [Slot 3] [Slot 4]
2.10
Exit menu
The Exit menu items allow you to load the optimal default values for the BIOS items, and
save or discard your changes to the BIOS items. You can access the EZ Mode from the Exit
menu.
Load Optimized Defaults
This option allows you to load the default values for each of the parameters on the Setup
menus. When you select this option or if you press <F5>, a confirmation window appears.
Select Yes to load the default values.
Save Changes & Reset
Once you are finished making your selections, choose this option from the Exit menu to
ensure the values you selected are saved. When you select this option or if you press <F10>,
a confirmation window appears. Select Yes to save changes and exit.
Discard Changes & Exit
This option allows you to exit the Setup program without saving your changes. When you
select this option or if you press <Esc>, a confirmation window appears. Select Yes to discard
changes and exit.
ASUS EZ Mode
This option allows you to enter the EZ Mode screen.
Launch EFI Shell from filesystem device
This option allows you to attempt to launch the EFI Shell application (shellx64.efi) from one of
the available devices that have a filesystem.
2-46
Chapter 2: Getting started
Appendices
Notices
Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
•
This device may not cause harmful interference.
•
This device must accept any interference received including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with manufacturer’s instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
•
Consult the dealer or an experienced radio/TV technician for help.
The use of shielded cables for connection of the monitor to the graphics card is required
to assure compliance with FCC regulations. Changes or modifications to this unit not
expressly approved by the party responsible for compliance could void the user’s authority
to operate this equipment.
IC: Canadian Compliance Statement
Complies with the Canadian ICES-003 Class B specifications. This device complies with RSS
210 of Industry Canada. This Class B device meets all the requirements of the Canadian
interference-causing equipment regulations.
This device complies with Industry Canada license exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired
operation of the device.
Cut appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada.
Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
Cet appareil est conforme aux normes CNR exemptes de licence d’Industrie Canada. Le
fonctionnement est soumis aux deux conditions suivantes :
(1) cet appareil ne doit pas provoquer d’interférences et
(2) cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer
un fonctionnement non souhaité de l’appareil.
B85-PRO GAMER
A-1
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions from
digital apparatus set out in the Radio Interference Regulations of the Canadian Department
of Communications.
This class B digital apparatus complies with Canadian ICES-003.
VCCI: Japan Compliance Statement
VCCI Class B Statement
KC: Korea Warning Statement
REACH
Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of
Chemicals) regulatory framework, we published the chemical substances in our products at
ASUS REACH website at http://csr.asus.com/english/REACH.htm.
DO NOT throw the motherboard in municipal waste. This product has been designed to
enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin
indicates that the product (electrical and electronic equipment) should not be placed in
municipal waste. Check local regulations for disposal of electronic products.
DO NOT throw the mercury-containing button cell battery in municipal waste. This symbol
of the crossed out wheeled bin indicates that the battery should not be placed in municipal
waste.
ASUS Recycling/Takeback Services
ASUS recycling and takeback programs come from our commitment to the highest standards
for protecting our environment. We believe in providing solutions for you to be able to
responsibly recycle our products, batteries, other components as well as the packaging
materials. Please go to http://csr.asus.com/english/Takeback.htm for detailed recycling
information in different regions.
A-2
Appendices
ASUS contact information
ASUSTeK COMPUTER INC.
Address
15 Li-Te Road, Peitou, Taipei, Taiwan 11259
Telephone +886-2-2894-3447
Fax +886-2-2890-7798
E-mail
[email protected]
Web site
http://www.asus.com
Technical Support
Telephone Fax
Online support
+86-21-3842-9911
+86-21-5866-8722, ext. 9101#
http://support.asus.com/techserv/techserv.aspx
ASUS COMPUTER INTERNATIONAL (America)
Address
800 Corporate Way, Fremont, CA 94539, USA
Telephone+1-510-739-3777
Fax
+1-510-608-4555
Web site
http://usa.asus.com
Technical Support
Support fax
General support
Online support
+1-812-284-0883
+1-812-282-2787
http://support.asus.com/techserv/techserv.aspx
ASUS COMPUTER GmbH (Germany and Austria)
Address
Fax
Web site
Online contact
Harkort Str. 21-23, 40880 Ratingen, Deutschland
+49-2102-959931
http://www.asus.de
http://eu-rma.asus.com/sales
Technical Support
Telephone+49-2102-5789555
Support Fax
+49-2102-959911
Online support
http://support.asus.com/techserv/techserv.aspx
Manufacturer:
ASUSTeK Computer Inc.
Address:
4F, No. 150, LI-TE RD., PEITOU, TAIPEI 112,
TAIWAN
Authorised representative in
Europe:
ASUS Computer GmbH
Address:
HARKORT STR. 21-23, 40880 RATINGEN,
GERMANY
B85-PRO GAMER
A-3
A-4
Appendices
(510)739-3777/(510)608-4555
800 Corporate Way, Fremont, CA 94539.
Asus Computer International
Date :
Signature :
Representative Person’s Name :
Feb. 21, 2014
Steve Chang / President
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Supplementary Information:
FCC Part 15, Subpart B, Unintentional Radiators
Conforms to the following specifications:
Model Number : B85-PRO GAMER
Product Name : Motherboard
hereby declares that the product
Phone/Fax No:
Address:
Responsible Party Name:
Per FCC Part 2 Section 2. 1077(a)
DECLARATION OF CONFORMITY
Ver. 120601
EC Declaration of Conformity
B85-PRO GAMER
Declaration Date: 21/02/2014
Year to begin affixing CE marking: 2014
CE marking
2011/65/EU-RoHS Directive
Regulation (EC) No. 642/2009
Regulation (EC) No. 1275/2008
2009/125/EC-ErP Directive
EN 60950-1 / A12:2011
2006/95/EC-LVD Directive
EN 300 328 V1.7.1(2006-10)
EN 300 440-1 V1.6.1(2010-08)
EN 300 440-2 V1.4.1(2010-08)
EN 301 511 V9.0.2(2003-03)
EN 301 908-1 V5.2.1(2011-05)
EN 301 908-2 V5.2.1(2011-07)
EN 301 893 V1.6.1(2011-11)
EN 302 544-2 V1.1.1(2009-01)
EN 302 623 V1.1.1(2009-01)
EN 50360:2001
EN 62479:2010
EN 50385:2002
EN 62311:2008
1999/5/EC-R &TTE Directive
EN 55022:2010+AC:2011
EN 61000-3-2:2006+A2:2009
EN 55013:2001+A1:2003+A2:2006
2004/108/EC-EMC Directive
Signature : __________
Position : CEO
Name :
Jerry Shen
(EC conformity marking)
Regulation (EC) No. 617/2013
Regulation (EC) No. 278/2009
EN 60065:2002 / A12:2011
EN 301 489-1 V1.9.2(2011-09)
EN 301 489-3 V1.4.1(2002-08)
EN 301 489-4 V1.4.1(2009-05)
EN 301 489-7 V1.3.1(2005-11)
EN 301 489-9 V1.4.1(2007-11)
EN 301 489-17 V2.2.1(2012-09)
EN 301 489-24 V1.5.1(2010-09)
EN 302 326-2 V1.2.2(2007-06)
EN 302 326-3 V1.3.1(2007-09)
EN 301 357-2 V1.4.1(2008-11)
EN 302 291-1 V1.1.1(2005-07)
EN 302 291-2 V1.1.1(2005-07)
EN 55024:2010
EN 61000-3-3:2008
EN 55020:2007+A11:2011
conform with the essential requirements of the following directives:
Model name :
Product name :
Motherboard
GERMANY
declare the following apparatus:
ASUS COMPUTER GmbH
HARKORT STR. 21-23, 40880 RATINGEN
Country:
TAIWAN
Country:
Address, City:
4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN
Address, City:
Authorized representative in Europe:
ASUSTeK COMPUTER INC.
Manufacturer:
We, the undersigned,
Ver. 130816

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
