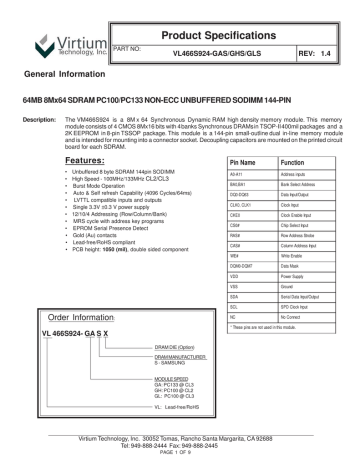

Product Specifications
PART NO:
VL466S924-GAS/GHS/GLS
REV: 1.4
General Information
64MB 8Mx64 SDRAM PC100/PC133 NON-ECC UNBUFFERED SODIMM 144-PIN
Description:
The VM466S924 is a 8M x 64 Synchronous Dynamic RAM high density memory module. This memory
module consists of 4 CMOS 8Mx16 bits with 4banks Synchronous DRAMsin TSOP-II400mil packages and a
2K EEPROM in 8-pin TSSOP package. This module is a 144-pin small-outline dual in-line memory module
and is intended for mounting into a connector socket. Decoupling capacitors are mounted on the printed circuit
board for each SDRAM.
Features:
•
•
•
•
•
•
•
•
•
•
•
•
Unbuffered 8 byte SDRAM 144pin SODIMM
High Speed - 100MHz/133MHz CL2/CL3
Burst Mode Operation
Auto & Self refresh Capability (4096 Cycles/64ms)
LVTTL compatible inputs and outputs
Single 3.3V ±0.3 V power supply
12/10/4 Addressing (Row/Column/Bank)
MRS cycle with address key programs
EPROM Serial Presence Detect
Gold (Au) contacts
Lead-free/RoHS compliant
PCB height: 1050 (mil), double sided component
Order Information:
Pin Name
Function
A0-A11
Address inputs
BA0,BA1
Bank Select Address
DQ0-DQ63
Data Input/Output
C LK 0, C LK 1
Clock Input
C KE0
Clock Enable Input
C S 0#
Chip Select Input
RAS#
Row Address Strobe
C AS#
Column Address Input
WE#
Write Enable
DQM0-DQM7
Data Mask
VD D
Power Supply
VSS
Ground
SD A
Serial Data Input/Output
SC L
SPD Clock Input
NC
No Connect
* These pins are not used in this module.
VL 466S924- GA S X
DRAM DIE (Option)
DRAM MANUFACTURER
S - SAMSUNG
MODULE SPEED
GA: PC133 @ CL3
GH: PC100 @ CL2
GL: PC100 @ CL3
VL: Lead-free/RoHS
Virtium Technology, Inc. 30052 Tomas, Rancho Santa Margarita, CA 92688
Tel: 949-888-2444 Fax: 949-888-2445
PAGE 1 OF 9
Product Specifications
PART NO:
VL466S924-GAS/GHS/GLS
REV: 1.4
Pin Configuration
Pin
Number
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
51
53
55
57
59
61
63
65
67
69
71
Pin
Number
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
Front
Side
VSS
DQ0
DQ1
DQ2
DQ3
VDD
DQ4
DQ5
DQ6
DQ7
VSS
DQM0
DQM1
VDD
A0
A1
A2
VSS
DQ8
DQ9
DQ10
DQ11
VDD
DQ12
DQ13
DQ14
DQ15
VSS
NC
NC
CLK0
VDD
RAS#
WE#
CS0#
*CS1#
Pin
Number
73
75
77
79
81
83
85
87
89
91
93
95`
97
99
101
103
105
107
109
111
113
115
117
119
121
123
125
127
129
131
133
135
137
139
141
143
Back
Side
VSS
DQ32
DQ33
DQ34
DQ35
VDD
DQ36
DQ37
DQ38
DQ39
VSS
DQM4
DQM5
VDD
A3
A4
A5
VSS
DQ40
DQ41
DQ42
DQ43
VDD
DQ44
DQ45
52
DQ46
54
56
58
60
62
64
66
68
70
72
DQ47
VSS
NC
NC
CKE0
VDD
CAS#
*CKE1
*A12
*A13
Front
Side
NC
VSS
NC
NC
VDD
DQ16
DQ17
DQ18
DQ19
VSS
DQ20
DQ21
DQ22
DQ23
VDD
A6
A8
VSS
A9
A10/AP
VDD
DQM2
DQM3
VSS
DQ24
DQ25
DQ26
DQ27
VDD
DQ28
DQ29
DQ30
DQ31
VSS
SDA
VDD
* These pins are not used in this module
Virtium Technology, Inc. 30052 Tomas, Rancho Santa Margarita, CA 92688
Tel: 949-888-2444 Fax: 949-888-2445
PAGE 2 OF 9
Pin
Number
74
76
78
80
82
84
86
88
90
92
94
96
98
100
102
104
106
108
110
112
114
116
118
120
122
124
126
128
130
132
134
136
138
140
142
144
Back
Side
!CLK1
VSS
NC
NC
VDD
DQ48
DQ49
DQ50
DQ51
VSS
DQ52
DQ53
DQ54
DQ55
VDD
A7
BA0
VSS
BA1
A11
VDD
DQM6
DQM7
VSS
DQ56
DQ57
DQ58
DQ59
VDD
DQ60
DQ61
DQ62
DQ63
VSS
SCL
VDD
Product Specifications
PART NO:
VL466S924-GAS/GHS/GLS
REV: 1.4
Functional Block Diagram
CS0#
DQM0
DQM4
LDQM
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQM1
I/O0
I/O1
I/O2
I/O3
I/O4
I/O5
I/O6
I/O7
CS#
U0
UDQM
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
LDQM
I/O0
I/O1
I/O2
I/O3
I/O4
I/O5
I/O6
I/O7
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
DQ47
UDQM
I/O8
I/O9
I/O10
I/O11
I/O12
I/O13
I/O14
I/O15
DQ48
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
LDQM
I/O0
I/O1
I/O2
I/O3
I/O4
I/O5
I/O6
I/O7
DQM5
I/O8
I/O9
I/O10
I/O11
I/O12
I/O13
I/O14
I/O15
DQM2
CS#
U2
DQM6
LDQM
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
I/O0
I/O1
I/O2
I/O3
I/O4
I/O5
I/O6
I/O7
CS#
U1
UDQM
DQM3
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
U3
UDQM
DQM7
I/O8
I/O9
I/O10
I/O11
I/O12
I/O13
I/O14
I/O15
CS#
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63
A0 ~ A11, BA0 & 1
SDRAM U0 ~ U3
RAS#
SDRAM U0 ~ U3
SCL
CAS#
SDRAM U0 ~ U3
47K
WE#
SDRAM U0 ~ U3
CKE0
SDRAM U0 ~ U3
I/O8
I/O9
I/O10
I/O11
I/O12
I/O13
I/O14
I/O15
Serial PD
10 ohm
CLK0
SDA
A1 ! A2
U0
U1
10 ohm
V DD
Three 0.1uF X7R 0603Capacitors
per each SDRAM
WP
A0
U2
U3
To all SDRAMs
Vss
10 ohm
CLK1
10pF
Virtium Technology, Inc. 30052 Tomas, Rancho Santa Margarita, CA 92688
Tel: 949-888-2444 Fax: 949-888-2445
PAGE 3 OF 9
Product Specifications
PART NO:
VL466S924-GAS/GHS/GLS
REV: 1.4
Absolute Maximum Ratings
Parameter
Symbol
Value
Unit
VIN, VOUT
-1.0 ~ 4.6
V
VDD, VDDQ
-1.0 ~ 4.6
V
TSTG
-55 ~ +150
Power dissipation
PD
4
W
Short circuit current
IOS
50
mA
Voltage on any pin relative to Vss
Voltage on VDD supply relative to Vss
Storage temperature
0
C
Note: Permanent device damage may occur if "ABSOLUTE MAXIMUM RATINGS" are exceeded.
Functional operation should be restricted to recommended operating condition.
Exposure to higher than recommended voltage for extended periods of time could affect device reliability.
Recommended DC Operating Conditions (TA = 00C to 700C)
Parameter
Symbol
Min
Typ
Max
Unit
Supply voltage
VDD
3.0
3.3
3.6
V
Input high voltage
VIH
2.0
3.0
VDDQ+0.3
V
1
Input low voltage
VIL
-0.3
0
0.8
V
2
Output high voltage
VOH
2.4
-
-
V
IOH = -2mA
Output low voltage
VOL
-
-
0.4
V
IOL = 2mA
IIL
-10
-
10
uA
3
Input leakage current (Inputs)
Note
Notes: 1. VIH (max) = 5.6V AC. The overshoot voltage duration is <= 3ns.
2. VIL (min) = 2.0V AC. The undershoot voltage duration is <= 3ns.
3. Any input 0V <= VIN <= VDDQ.
C apacitance (TA = 250C, f = 1MHz, VDD = 3.3V)
Parameter
Symbol
Min
Max
U nit
Input capaci tance (A0 ~ A11, BA0 ~ BA1)
C IN1
15
25
pF
Input capaci tance (RAS#, C AS#, WE#)
C IN2
15
25
pF
Input capaci tance (C KE0)
C IN3
15
25
pF
Input capaci tance (C LK0)
C IN4
15
21
pF
Input capaci tance (C S0#)
C IN5
15
25
pF
Input capaci tance (D QM0 ~ D QM7)
C IN6
10
12
pF
D ata i nput/output capaci tance (D Q0 ~ D Q63)
C OUT
10
12
pF
Virtium Technology, Inc. 30052 Tomas, Rancho Santa Margarita, CA 92688
Tel: 949-888-2444 Fax: 949-888-2445
PAGE 4 OF 9
Product Specifications
PART NO:
DC Characteristics
VL466S924-GAS/GHS/GLS
REV: 1.4
(Recommended operation condition unless otherwise noted, TA = 00C to 700C)
Version
Parameter
Symbol
Test Condion
Unit
Note
400
mA
1
CKE <= VIL(max), tCC = 15ns
8
mA
CKE & CLK <= VIL(max), tCC = 00
8
mA
CKE >= VIH(min), CS# >= VIH(min), tCC = 15ns
Input signals are charged one time during 30ns
80
mA
CKE >= VIH(min), CLK <= VIL(max), tCC = 00
Input signals ar stable
40
mA
CKE <= VIL(max), tCC = 15ns
20
mA
CKE & CLK <= VIL(max), tCC = 00
20
mA
CKE >= VIH(min), CS# >= VIH(min), tCC = 15ns
Input signals are changed one time during 30ns
120
mA
CKE >= VIH(min), CLK <= VIL(max), tCC= 00
Input signals are stable
100
mA
-GA
Operating current
(One bank active)
ICC1
Precharge standby current in power-down
mode
ICC2P
ICC2PS
ICC2N
Precharge standby current in non powerdown mode
ICC2NS
Active standby current in power-down
mode
ICC3P
ICC3PS
ICC3N
Active standby current in non-power down
mode (One bank active)
ICC3NS
Burst length = 1
tRC >= tRC(min)
IOL = 0 mA
-GH
-GL
ICC4
IOL = 0 mA
Page burst
2 Banks actived
tCCD = 2CLKs
560
520
520
mA
1
Refresh current
ICC5
tRC >= tRC(min)
800
760
760
mA
2
Self refresh current
ICC6
CKE <= 0.2V
Operating current
(Burst mode)
8
Note: 1. Measured with outputs open.
2.Refresh period is 64ms.
Virtium Technology, Inc. 30052 Tomas, Rancho Santa Margarita, CA 92688
Tel: 949-888-2444 Fax: 949-888-2445
PAGE 5 OF 9
mA
Product Specifications
PART NO:
AC Operating Test Conditions
VL466S924-GAS/GHS/GLS
REV: 1.4
(VDD = 3.3V, TA = 00C to 700C)
Parameter
AC input levels (VIH/VIL)
Input timing measurement reference level
Input rise and fall time
Output timing measurement reference level
Output load condition
Value
Unit
2.4/0.4
V
1.4
V
tr/tf = 1/1
ns
1.4
V
See Fig.2
3.3V
Vtt!=!1.4V
1200
50
VOH (DC)!=!2.4V,!IOH!=!-2mA
VOL!(DC)!=!0.4V,!IOL!=!2mA
Output
870
Output
Z0!=!50
50pF
50pF
(Fig.!1)!DC!output!load!circuit!
(Fig.!2)!AC!output!load!circuit!
Operating AC Parameter
Version
Parameter
Symbol
-GA
-GH
-GL
U nit
N ote
Row acti ve to row acti ve delay
tRRD(mi n)
15
20
20
ns
1
RAS# to C AS# delay
tRCD(mi n)
20
20
20
ns
1
tRP(mi n)
20
20
20
ns
1
tRAS(mi n)
45
50
50
ns
1
Row precharge ti me
Row acti ve ti me
tRAS(max)
Row cycle ti me
tRC(mi n)
Last data i n to row precharge
tRDL(mi n)
Last data i n to Acti ve delay
tDAL(mi n)
Last data i n to new col. addrees delay
tCDL(mi n)
Last data i n to burst stop
C ol. address to col. address delay
100
65
70
us
70
ns
1
C LK
2
1
C LK
1
tBDL(mi n)
1
C LK
2
tCCD(mi n)
1
C LK
2
C AS Latency = 3
2
C LK
3
C AS Latency =2
1
ea
4
2
2 C LK + 20ns
Number of vali d output data
Notes: 1. The mi ni mum number of clock cycles i s determi ned by di vi di ng the mi ni mum ti me requi red wi th clock cycle ti me
and then roundi ng off to the next hi gher i nteger.
2. Mi ni mum delay i s requi red to complete wri te.
3. All parts allow every cycle column address change.
4. In case of row precharge i nterrupt, auto precharge and read burst stop.
Virtium Technology, Inc. 30052 Tomas, Rancho Santa Margarita, CA 92688
Tel: 949-888-2444 Fax: 949-888-2445
PAGE 6 OF 9
Product Specifications
PART NO:
VL466S924-GAS/GHS/GLS
REV: 1.4
Operating AC Parameter
-GA
Parameter
-GH
-GL
Symbol
Min
7.5
C AS latency = 3
C LK cycle ti me
C AS latency = 2
Min
-
C AS latency = 3
Max
10
1000
tCC
C LK to vali d output delay
Max
Min
C AS latency = 3
Output data hold ti me
10
1000
ns
1
ns
1,2
ns
2
10
5.4
6
6
6
6
7
3
3
3
-
3
3
tOH
C AS latency = 2
N ote
10
1000
tSAC
C AS latency = 2
U nit
Max
C LK hi gh pulse wi dth
tCH
2.5
3
3
ns
3
C LK low pulse wi dth
tCL
2.5
3
3
ns
3
Input setup ti me
tSS
1.5
2
2
ns
3
Input hold ti me
tSH
0.8
1
1
ns
3
C LK to output i n Low-Z
tSLZ
1
1
1
ns
2
C AS latency = 3
C LK to output i n Hi -z
5.4
6
6
6
6
7
tSHZ
C AS latency = 2
ns
Notes: 1. Parameters depend on programmed C AS latency.
2. If clock ri si ng ti me i s longer than 1ns, (tr/2-0.5)ns should be added to the parameter.
3. Assumed i nput ri se and fall ti me (tr & tf) = 1ns.
i f tr & tf i s longer than 1ns, transi ent ti mecompensati on should be consi dered,
i .e. ,[(tr + tf)/2-1]ns should be added to the parameter.
Virtium Technology, Inc. 30052 Tomas, Rancho Santa Margarita, CA 92688
Tel: 949-888-2444 Fax: 949-888-2445
PAGE 7 OF 9
Product Specifications
PART NO:
VL466S924-GAS/GHS/GLS
REV: 1.4
Package Dimensions
Units : Inches (Millimeters)
2.66
(67.60)
2X!!0.079
!!!!!!(2.00)
2.50
(63.60)
1
59
61
0.91
(23.20)
0.13
(3.30)
143
1.29
(32.80)
0.18
(4.60)
0.083
(2.10)
0.10
(2.50)
2X 0.79
(20.00)
2X!!0.24
(6.0)
2X 0.16 ± 0.039
(4.00 ± 0.10)
1.05
( 26.67)
2X!!FULL!RADIUS
2X!!O!0.07
(1.80)
Z
Y
0.15
(3.70)
62
FULL!RADIUS
(4.00 Min)
0.157 Min
0.100 Max
(2.54 Max)
144
0.16 ± 0.0039
(4.00 ± 0.10)
0.100 Min
60
(2.540 Min)
2
0.024 ± 0.002
(0.600 ± 0.050)
0.008 ±0.006
(0.200 ±0.150)
0.06 ± 0.0039
(1.50 ± 0.10)
0.04 ± 0.0039
(1.00 ± 0.10)
Detail Z
0.030
(0.800)
Detail Y
Tolerances : ±.006(.15) unless otherwise specified
Virtium Technology, Inc. 30052 Tomas, Rancho Santa Margarita, CA 92688
Tel: 949-888-2444 Fax: 949-888-2445
PAGE 8 OF 9
Product Specifications
PART NO:
VL466S924-GAS/GHS/GLS
Revision History:
Date
Rev.
P ag e
C h an g es
03/23/2006
1.2
All
Released spec
10/10/2006
1.3
9
Added History Revision
09/24/2010
1.6
All
Update datasheet
Virtium Technology, Inc. 30052 Tomas, Rancho Santa Margarita, CA 92688
Tel: 949-888-2444 Fax: 949-888-2445
PAGE 9 OF 9
REV: 1.4
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
