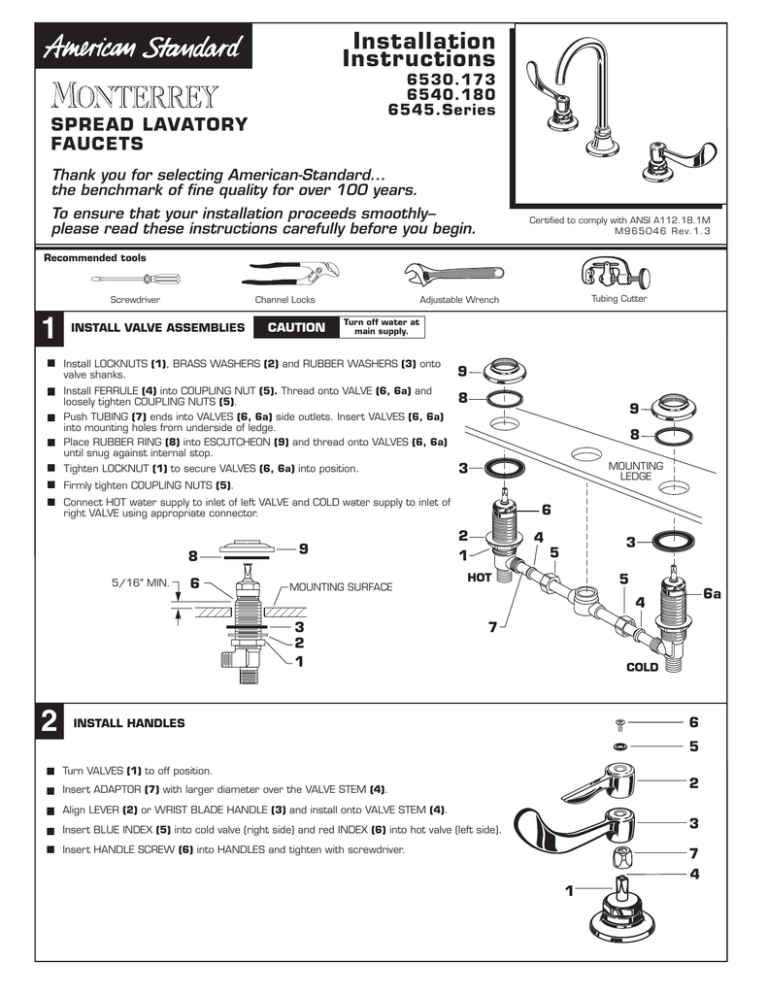

Installation
Instructions
6530.173
6540.180
6545.Series
SPREAD LAVATORY
FAUCETS
Thank you for selecting American-Standard...
the benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin.
Certified to comply with ANSI A112.18.1M
M 9 6 5 0 4 6 R e v. 1 . 3
Recommended tools
Screwdriver
1
Channel Locks
INSTALL VALVE ASSEMBLIES
CAUTION
Tubing Cutter
Adjustable Wrench
Turn off water at
main supply.
Install LOCKNUTS (1), BRASS WASHERS (2) and RUBBER WASHERS (3) onto
valve shanks.
9
Install FERRULE (4) into COUPLING NUT (5). Thread onto VALVE (6, 6a) and
loosely tighten COUPLING NUTS (5).
8
9
Push TUBING (7) ends into VALVES (6, 6a) side outlets. Insert VALVES (6, 6a)
into mounting holes from underside of ledge.
Place RUBBER RING (8) into ESCUTCHEON (9) and thread onto VALVES (6, 6a)
until snug against internal stop.
Tighten LOCKNUT (1) to secure VALVES (6, 6a) into position.
8
3
MOUNTING
LEDGE
Firmly tighten COUPLING NUTS (5).
Connect HOT water supply to inlet of left VALVE and COLD water supply to inlet of
right VALVE using appropriate connector.
8
5/16" MIN.
6
9
MOUNTING SURFACE
6
2
1
4
3
5
5
HOT
6a
4
3
2
1
2
7
COLD
6
INSTALL HANDLES
5
Turn VALVES (1) to off position.
2
Insert ADAPTOR (7) with larger diameter over the VALVE STEM (4).
Align LEVER (2) or WRIST BLADE HANDLE (3) and install onto VALVE STEM (4).
3
Insert BLUE INDEX (5) into cold valve (right side) and red INDEX (6) into hot valve (left side).
Insert HANDLE SCREW (6) into HANDLES and tighten with screwdriver.
1
7
4
3
INSTALL SPOUT
CAUTION
Turn off water at
main supply.
6540.180
6530.173
Insert SPOUT SHANK (1) through center hole of
mounting surface, making sure RUBBER GASKET (2)
is properly positioned in SPOUT BASE (3).
70˚
Assemble RUBBER WASHER (4), BRASS WASHER (5)
and LOCKNUT (6) onto threads of SPOUT SHANK (1)
from underside of mounting surface.
7
Press SPOUT SHANK (1) into TEE (11) making certain
that the O-RING (8) is properly seated on SHANK (1).
Push COUPLING (9) into TEE (7) and attach to SPOUT
SHANK (1) and loosely tighten.
3
2
1
Align SPOUT (7, 7a, 7b) and tighten LOCKNUT (6).
Be sure slot in BRASS WASHER (5) is positioned to
the rear as shown.
NOTE: For 6545 series faucet make sure Spout is
centered. Spout only rotates 70 degrees from center.
See spout illustration.
C/L 70˚
7b
7a
8
6545. Series
(Limited Swivel Spout)
MOUNTING
LEDGE
HOT
Use 3RD WATER COUPLING (10) for third water supply
connection. Thghten COUPLING (10). (6530.173)
4
5
6
11
9
COLD
10
4
TO CHANGE SPOUT FROM RIDGID TO
FULL SWIVEL SPOUT: (6540.180)
2
Unscrew SPOUT NUT (1) and remove SPOUT (2).
1
Take SPOUT CLIP (3) off SPOUT (2) and remove RUBBER RING (4).
Replace RUBBER RING (4) with seperate PLASTIC RING (5) packed
with faucet.
4
Install SPOUT CLIP (3) on SPOUT (2).
3
Reassemble SPOUT (2) to SPOUT BASE (6).
Tighten SPOUT NUT (1).
6
5
5
Operate both handles to flush water lines thoroughly. Check
spout mounting and hose connections for leaks.
Turn handles into OFF position and replace AERATOR.
TEST INSTALLED FAUCET
Remove AERATOR.
With handle in OFF position, turn on water supplies and check
all connections for leaks.
6
SERVICE
STOP
WASHER
90°
To change direction of handle rotation,
proceed as follows:
Turn valve to OFF position.
Remove HANDLE and BONNET NUT.
Remove SPRING CLIP.
Lift STOP WASHER, turn 90° and replace.
Replace SPRING CLIP.
Replace BONNET NUT, HANDLE, SCREW,
and INDEX.
AERATOR may accumulate dirt causing distorted and reduced
water flow. Remove AERATOR and rinse clean.
If spout drips, operate handles several times from OFF to ON
position. Do not force - handles turn only 90°.
SPRING
CLIP
Plastic SCREEN in CARTRIDGE may accumulate
dirt causing reduced water flow. To clean, first
turn off hot and cold water supplies, then:
Remove HANDLE and BONNET NUT.
CARTRIDGE
Remove CARTRIDGE by pulling up.
Thoroughly rinse plastic SCREEN at
base of CARTRIDGE.
Replace CARTRIDGE until flange is
tight against valve body.
Turn valves OFF.
Replace BONNET NUT, HANDLE, SCREW
and INDEX.
SCREEN
CARE INSTRUCTIONS:
DO: SIMPLY RINSE THE PRODUCT CLEAN WITH CLEAR WATER. DRY WITH A SOFT COTTON FLANNEL CLOTH.
DO NOT: DO NOT CLEAN THE PRODUCT WITH SOAPS, ACID, POLISH, ABRASIVES, HARSH CLEANERS, OR A
CLOTH WITH A COARSE SURFACE.
M 9 6 5 0 4 6 R e v.
1.3
