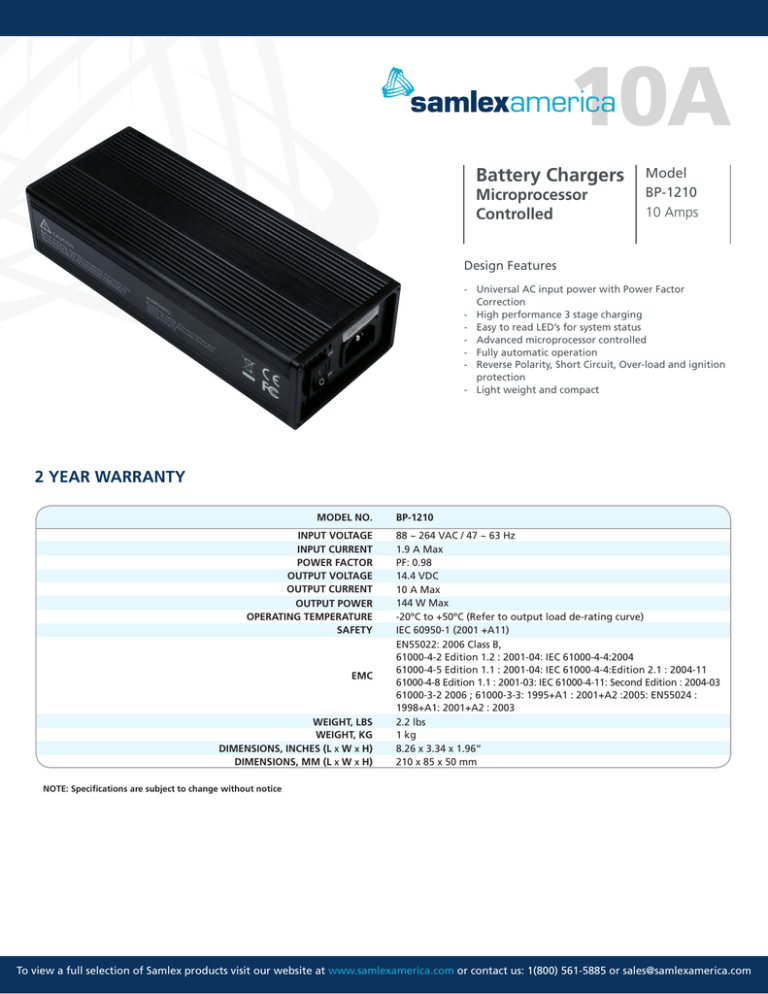

10A Battery Chargers Microprocessor Controlled
10A
Battery Chargers
Microprocessor
Controlled
Model
BP-1210
10 Amps
Design Features
-- Universal AC input power with Power Factor
Correction
-- High performance 3 stage charging
-- Easy to read LED’s for system status
-- Advanced microprocessor controlled
-- Fully automatic operation
-- Reverse Polarity, Short Circuit, Over-load and ignition
protection
-- Light weight and compact
2 YEAR WARRANTY
Model No.
Input Voltage
Input current
Power factor
Output voltage
Output current
Output power
Operating temperature
Safety
emc
Weight, LBS
Weight, kg
Dimensions, Inches (l x w x h)
Dimensions, mm (l x w x h)
BP-1210
88 ~ 264 VAC / 47 ~ 63 Hz
1.9 A Max
PF: 0.98
14.4 VDC
10 A Max
144 W Max
-20oC to +50oC (Refer to output load de-rating curve)
IEC 60950-1 (2001 +A11)
EN55022: 2006 Class B,
61000-4-2 Edition 1.2 : 2001-04: IEC 61000-4-4:2004
61000-4-5 Edition 1.1 : 2001-04: IEC 61000-4-4:Edition 2.1 : 2004-11
61000-4-8 Edition 1.1 : 2001-03: IEC 61000-4-11: Second Edition : 2004-03
61000-3-2 2006 ; 61000-3-3: 1995+A1 : 2001+A2 :2005: EN55024 :
1998+A1: 2001+A2 : 2003
2.2 lbs
1 kg
8.26 x 3.34 x 1.96”
210 x 85 x 50 mm
NOTE: Specifications are subject to change without notice
To view a full selection of Samlex products visit our website at www.samlexamerica.com or contact us: 1(800) 561-5885 or [email protected]
