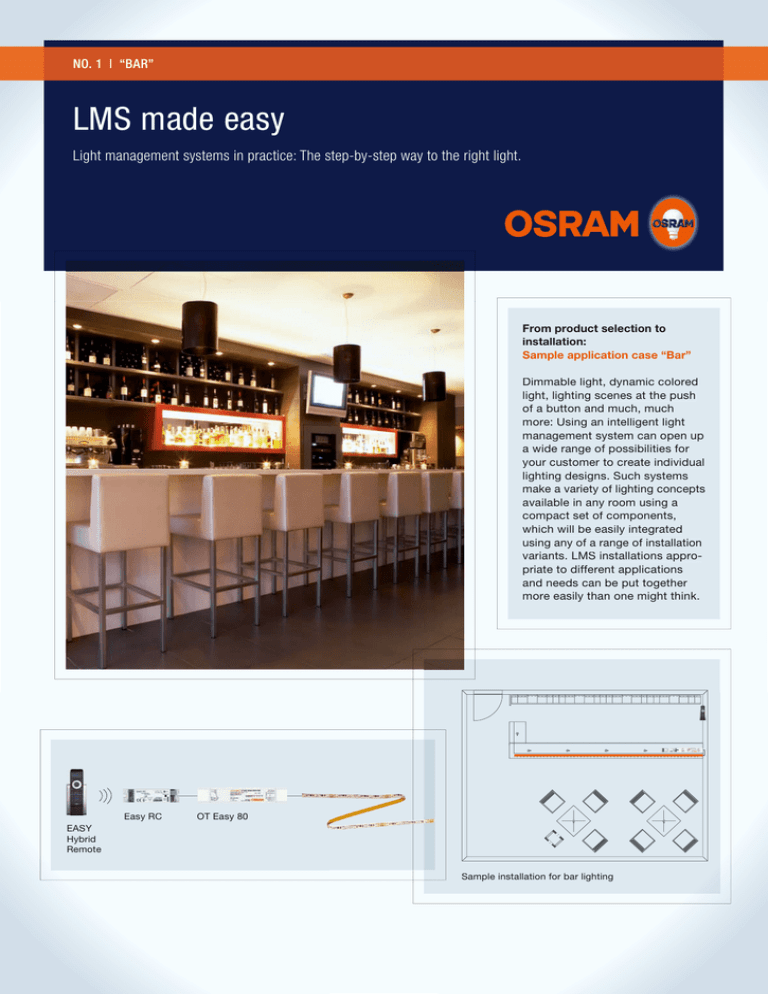

NO. 1 | “BAR”
LMS made easy
Light management systems in practice: The step-by-step way to the right light.
From product selection to
installation:
Sample application case “Bar”
Dimmable light, dynamic colored
light, lighting scenes at the push
of a button and much, much
more: Using an intelligent light
management system can open up
a wide range of possibilities for
your customer to create individual
lighting designs. Such systems
make a variety of lighting concepts
available in any room using a
compact set of components,
which will be easily integrated
using any of a range of installation
variants. LMS installations appropriate to different applications
and needs can be put together
more easily than one might think.
Easy RC
OT Easy 80
EASY
Hybrid
Remote
Sample installation for bar lighting
LMS BAR
Atmospheric feel thanks to
variable RGB bar lighting
What does the owner want to do?
• Use lighting to create atmosphere and mood
• Lighting for a range of different occasions
• Ease of operation
• Automation functionalities – no excessive effort
required in operation
What does the guest want?
• Atmospheric light
• Cozy atmosphere
The ideal solution: LMS for RGB bar lighting
The benefits of the recommended light management
system
• High level of flexibility in lighting
• Color control possible
• Easy installation and commissioning
• Feature allowing lighting to be grouped*
• Easy, wireless operation using a central control element
(e. g. remote control)
Photo: Rainer Rehfeld
Ideal solution for RGB bar lighting
• LINEARlight Colormix Flex ADVANCED LED strip:
flexible, self-adhesive and cuttable LED strip multicolored
LEDs: each LED contains a red, green and blue chip for
the best possible color mixing, easy connection using
the optional CONNECT system
• OT EASY 80 control unit:
Power 80 W, distributable as desired to multiple
channels. New control unit, developed especially for use
with RGB LED modules – 4 PWM terminals, RGB(W)
sequencing control for up to 4 different sequences, up
to 16 different lighting scenes with fade times independently adjustable for each sequence, up to 16 static
lighting scenes can be stored and retrieved. Housing
with strain relief clamping for independent installation
and integrated power supply for direct connection to
24-V LED modules, allowing up to 64 controllers to be
connected, output voltage 24 V
• EASY Hybrid remote control:
Easy-to-use radio remote control for easy wireless
control and personalization of lighting – continuous
color and brightness adjustment using a rotary wheel,
can store up to 8 lighting scenes, 8 lighting groups
and 4 sequences. Wall mounting included
• EASY RC radio receiver:
868.3 MHz radio receiver – suitable for 8 EASY Hybrid
remote units, connection via 4-pole screw terminal or
modular 4p4c plug-in connection
• Extensions to the system:
You can find a wide range of optional accessories
such as touch panels and interfaces to DALI/DMX at
www.osram.com/lms
* additional components required
2
STEP BY STEP: INSTALLATION INSTRUCTIONS
Products/part list
[1] LED module: LINEARlight Colormix
Flex Advanced
[2] OT EASY 80 control unit
[3] EASY Hybrid remote control
[4] EASY Hybrid (wall mounting)
[5] EASY RC radio receiver
[6] Connection cable (included in EASY RC)
Installation of an OT Easy 80 behind the bar
Connecting the LINEARlight Colormix Flex Advanced continuous LED
strip (4 m). Where longer strips are required, up to 64 OT EASY 80 can
be connected together
Installation of the radio receiver into the network behind the counter,
connecting the cable to the OT EASY 80
Connecting the mains power
(at 230 V~) to the OT EASY 80
Teaching the wireless remote control using the push button
Commissioning the LED module using
the push button (no PC etc. required)
3
PRODUCT AND ORDER INFORMATION
LED strip
LINEARlight Colormix
Flex ADVANCED – LF05CA2
Product
number (EAN)
4008321851536
Product description
Control unit
Product
number (EAN)
OT EASY 80
4008321808363
Product description
Remote control
Product
number (EAN)
EASY Hybrid remote
4008321421739
Product description
Receiver
Product
number (EAN)
EASY RC
4008321421753
RGB
722
24
3
120
–––
1883
4000
8
3
Red
288.8
24
1.2
–––
625
645
–––
–––
–––
Green
222
24
0.9
–––
525
1025
–––
–––
–––
Blue
199.2
24
0.8
–––
465
213
–––
–––
–––
–20…+50
50–60
220–240
245
46
44
187
67
23
5
118
30
21
18
IP
EASY
800
IP20
IP
EASY
30
IP20
Appliance
class
II
Appliance
class
III
black
IP
EASY
max.30
IP20
Product information and technical datasheets about the products to be used are available at:
www.osram.com/lms
www.osram.com/lms-easy
7KZS004GB 02/13 OSRAM S-GI EM-MKK
Tip: Take a look at our YouTube channel, where you will always find new installation videos:
www.youtube.com/osram
Subject to technical modifications and errors.
Application brochures containing other sample uses can be found at:
www.osram.com/hospitality
