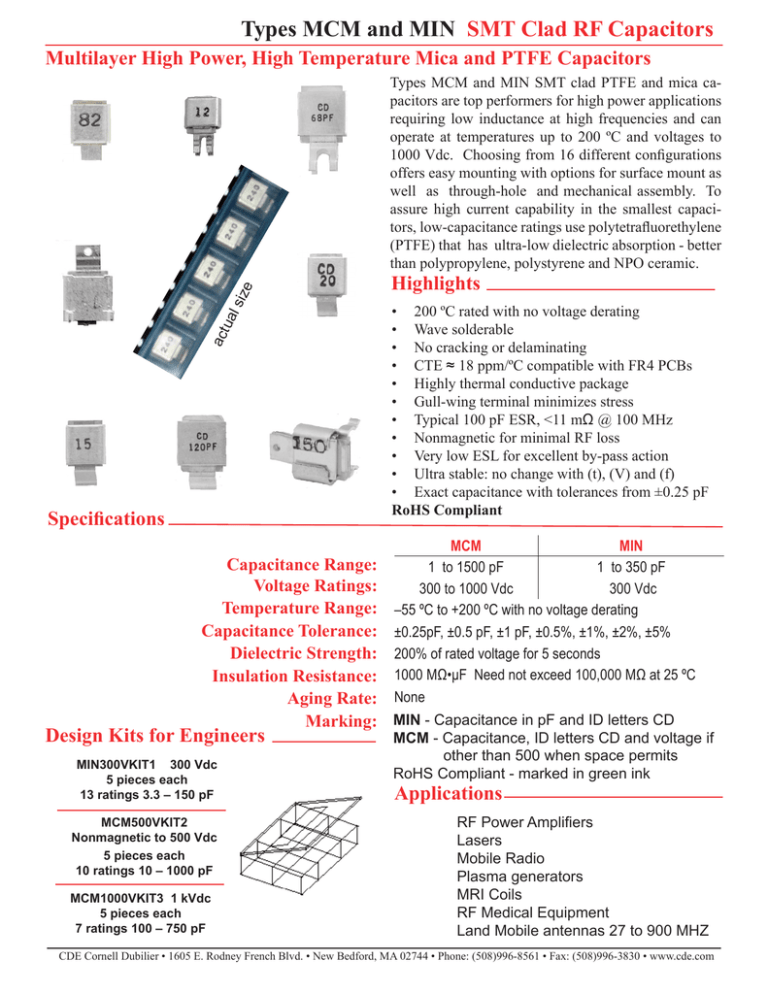

Types MCM and MIN SMT Clad RF Capacitors
Multilayer High Power, High Temperature Mica and PTFE Capacitors
Types MCM and MIN SMT clad PTFE and mica capacitors are top performers for high power applications
requiring low inductance at high frequencies and can
operate at temperatures up to 200 ºC and voltages to
1000 Vdc. Choosing from 16 different configurations
offers easy mounting with options for surface mount as
well as through-hole and mechanical assembly. To
assure high current capability in the smallest capacitors, low-capacitance ratings use polytetrafluorethylene
(PTFE) that has ultra-low dielectric absorption - better
than polypropylene, polystyrene and NPO ceramic.
l si
ze
Highlights
act
ua
• 200 ºC rated with no voltage derating
• Wave solderable
• No cracking or delaminating
• CTE ≈ 18 ppm/ºC compatible with FR4 PCBs
• Highly thermal conductive package
• Gull-wing terminal minimizes stress
• Typical 100 pF ESR, <11 mΩ @ 100 MHz
• Nonmagnetic for minimal RF loss
• Very low ESL for excellent by-pass action
• Ultra stable: no change with (t), (V) and (f)
• Exact capacitance with tolerances from ±0.25 pF
RoHS Compliant
Specifications
MCM
MIN
1 to 1500 pF
1 to 350 pF
300 to 1000 Vdc
300 Vdc
–55 ºC to +200 ºC with no voltage derating
Capacitance Range:
Voltage Ratings:
Temperature Range:
Capacitance Tolerance:
Dielectric Strength:
Insulation Resistance:
Aging Rate:
Marking:
±0.25pF, ±0.5 pF, ±1 pF, ±0.5%, ±1%, ±2%, ±5%
200% of rated voltage for 5 seconds
1000 MΩ•µF Need not exceed 100,000 MΩ at 25 ºC
None
MIN - Capacitance in pF and ID letters CD
MCM - Capacitance, ID letters CD and voltage if other than 500 when space permits
RoHS Compliant - marked in green inkMIN
Design Kits for Engineers
MIN300VKIT1 300 Vdc
5 pieces each
13 ratings 3.3 – 150 pF
Applications
RF Power Amplifiers
Lasers
Mobile Radio
Plasma generators
MRI Coils
RF Medical Equipment
Land Mobile antennas 27 to 900 MHZ
MCM500VKIT2
Nonmagnetic to 500 Vdc
5 pieces each
10 ratings 10 – 1000 pF
MCM1000VKIT3 1 kVdc
5 pieces each
7 ratings 100 – 750 pF
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
1
Types MCM and MIN SMT Clad RF Capacitors
Ratings Available
Voltage
Ratings
Capacitance
(pF)
Dielectric
(Vdc)
300
500
*1000
MIN02
1 - 2.9
X
PTFE
3 - 9.9
X
PTFE or Mica
10 - 60
X
Mica
61 - 120
X
Mica
121 - 180
X
Mica
181 - 240
X
Mica
241 - 300
X
Mica
301 - 350
X
Mica
MCM01
1-7
X
X
PTFE
8 - 32
X
X
PTFE or Mica
33 - 250
X
X
Mica
251 - 500
X
X
Mica
501 - 750
X
X
Mica
751 - 1000
X
Mica
1001 - 1280
X
Mica
1281 - 1500
X
Mica
*1000 V available in MCM01-001 and -009 style
Part Numbering System
MCM01
—
001
C
D
101
Terminal
Temperature
Rated
J
—
T
F
or
MIN02
Type
"dash" Configuration Coefficient *
Voltages
Capacitance
Tolerance*
(Vdc)
(pF)
( pF or %)
(mica only)
MCM01
0012
▲
Capacitance
C
C = 300 Vdc
090 = 9
MIN02
D
D = 500 Vdc
9R2 = 9.2
B = ±0.25 pF 1 - 50 pF
0021
E
F = 1000 Vdc
100 = 10
D = ±0.5 pF 1 - 100 pF
101 = 100
E = ±0.5 % > 100 pF
▲
0091,2
▲
010
▲
▲
Most Popular Series, other's
(751) = 751
F = ±1 %
> 33 pF
102 = 1000
G = ±2%
> 11 pF
J = ±5%
> 11 pF
available, consult factory
1
Surface mount and T&R
2
1kV
Style
A = ±1 pF 2 - 200 pF
Capacitance
Temperature
Range
Characteristic
C
1 pF to 20 pF
±200 ppm/ºC
D
21 pF to 56 pF
±100 ppm/ºC
E
57 pF to 1500 pF –20 to +100 ppm/ºC
*TC code letter is left blank for PTFE items
RoHS
Packaging
–T = Tape
Blank = Bulk
Compliant
Blank = Not
specified
F = Compliant
K = ±10% > 11 pF
Measured at 1 MHz for ≤1000 pF and
1 kHz for >1000 pF
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
2
Types MCM and MIN SMT Clad RF Capacitors
Typical Performance Data
click here to see additional rating charts
ESR vs. Frequency for 470 pF
1
ESR (Ω)
0.1
0.01
0.001
1
10
100
f(MHz)
1000
10000
Current Rating (IRMS) for 470 pF at 60 ºC Rise
RMS Current (Amps)
100
10
1
1
10
100
f(MHz)
1000
10000
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
3
Types MCM and MIN SMT Clad RF Capacitors
Types MCM and MIN SMT Clad RF Capacitors
Q vs. Frequency 470 pF @ 25 ºC
100000
Porcelain (2525)
10000
1000
MCM01 (≈4640)
Q
MC (1812)
MC (2220)
Q
100
Porcelain (3838)
MCH (3838)
10
1
1
10
100
1000
10000
f (MHz)
MCM01-009 (�4640) 1000 Vdc
MC22FF471J 1000 Vdc
Porcelain (2525) 1.5 kVdc
MCH (3838) 2.5 kVdc
Porcelain (3838) 2.5 kVdc
MC18FD471J 500 Vdc
Impedance |Z| vs. Frequency for 470 pF @ 25 ºC
1000
Impedance Z vs. Frequency for 470 pF @ 25 ºC
1000
100
|Z| (Ω )
Porcelain (3838)
10
MCM01 (≈4640)
MC (1812)
MCH (3838)
100
MC (2220)
Z (� )
1
Porcelain (3838)
1
10
MC (1812)
MCH (3838)
Porcelain (2525)
0.1
1
10
100
MCM01 (�4640)
1000
f (MHz)
10000
MC (2220)
1
MCM01-009 (�4640) 1000 Vdc
Porcelain (2525) 1.5 kVdc
MC22FF471J 1000 Vdc
MCH (3838) 2.5 kVdc
Porcelain (2525)
0.1
Porcelain (3838) 2.5 kVdc
MC18FD471J 500 Vdc
1
10
100
1000
10000
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
f (MHz)
4
MCM01-009 (�4640) 1000 Vdc
Porcelain (2525) 1.5 kVdc
Porcelain (3838) 2.5 kVdc
MC22FF471J 1000 Vdc
MCH (3838) 2.5 kVdc
MC18FD471J 500 Vdc
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
4
Types MCM and MIN SMT Clad RF Capacitors
Outline Drawings for Popular Items
MCM01-001
MIN02-002
.
.093” DIA.
.312”
.187”
.207”.163”
.100”
.218"
.218”
.203”
.042”
“T”
.010”
±.001”
.020”
.604” MAX.
.460”
MAX
.365”
.400”
“T”
.312”
“T” (thickness) depending on capacitance value = .065 to .125±.015
.010”
±.001
“T”
“T” (thickness) depending on capacitance value= .110 to .165±.015
MCM01-009
MCM01-010
.156”
REF
.400”
±.010
.605”
.365”
MAX
.400”
.400”
.500” MAX
“T”
Terminal A
.203”
.460”
MAX
.145”
MAX
45º
.100”
.200”
.400”
“T”
.062” DIA. 2 Holes
For Terminal “A”
“T”
.185”
.081” DIA. 2 Holes
.010”
±.001”
“T” (thickness) depending on capacitance value= .110 to .165±.015
.138” REF
.010”
.020”
.090”
.001”
.001”
.170”
.173”
.210”
For single plate
construction
.150”
270 pF or less
“T” (thickness) depending on capacitance value= .110 to .165±.015
“T” varies with capacitance
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
5
Types MCM and MIN SMT Clad RF Capacitors
Standard Minimum Quantities
Tape Specifications
Bulk Pack: 100 pieces per bag
Reel Pack: 500 pieces per reel
Tape Dimensions (mm)
Case
MIN02-002
< 150 pF
MIN02-002
≥ 150 pF
W
A
B
P1
F
t
16
5.56
8.18
8
7.5
2.16
16
5.66
8.10
8
7.5
3.20
Note: 24 mm tape for MCM01-009 and 32 mm tape for MCM01-004 are available upon request.
Solder Profile
Reflow Soldering Method
300
Specifications:
Case and Terminal Material:
Silver plated, copper flashed, brass
220 - 260 ºC
Temperature ºC
Lead free finish
Peak 230 - 260 ºC
260
200
10 sec. max.
150
100
50
Pre-Heat
0
30
50
Soldering
Cooling
190
150
200
Time (seconds)
Wave Soldering Method
300
Peak 230 - 260 ºC
Temperature ºC
250
220 - 260 ºC
200
5 sec.
max.
150
100
50
0
Pre-Heat
0
20
Cooling
Soldering
70
80
90
Time (seconds)
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
6
7-9-2008 fixed
graphs
Types MCM and MIN SMT Clad RF Capacitors
Notice and Disclaimer: All product drawings, descriptions, specifications, statements, information and data
(collectively, the “Information”) in this datasheet or other publication are subject to change. The customer
is responsible for checking, confirming and verifying the extent to which the Information contained in this
datasheet or other publication is applicable to an order at the time the order is placed. All Information given
herein is believed to be accurate and reliable, but it is presented without any guarantee, warranty, representation
or responsibility of any kind, expressed or implied. Statements of suitability for certain applications are based
on the knowledge that the Cornell Dubilier company providing such statements (“Cornell Dubilier”) has
of operating conditions that such Cornell Dubilier company regards as typical for such applications, but
are not intended to constitute any guarantee, warranty or representation regarding any such matter – and
Cornell Dubilier specifically and expressly disclaims any guarantee, warranty or representation concerning
the suitability for a specific customer application, use, storage, transportation, or operating environment.
The Information is intended for use only by customers who have the requisite experience and capability to
determine the correct products for their application. Any technical advice inferred from this Information or
otherwise provided by Cornell Dubilier with reference to the use of any Cornell Dubilier products is given
gratis (unless otherwise specified by Cornell Dubilier), and Cornell Dubilier assumes no obligation or liability
for the advice given or results obtained. Although Cornell Dubilier strives to apply the most stringent quality
and safety standards regarding the design and manufacturing of its products, in light of the current state
of the art, isolated component failures may still occur. Accordingly, customer applications which require a
high degree of reliability or safety should employ suitable designs or other safeguards (such as installation
of protective circuitry or redundancies or other appropriate protective measures) in order to ensure that the
failure of an electrical component does not result in a risk of personal injury or property damage. Although
all product-related warnings, cautions and notes must be observed, the customer should not assume that all
safety measures are indicated in such warnings, cautions and notes, or that other safety measures may not be
required.
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
7
