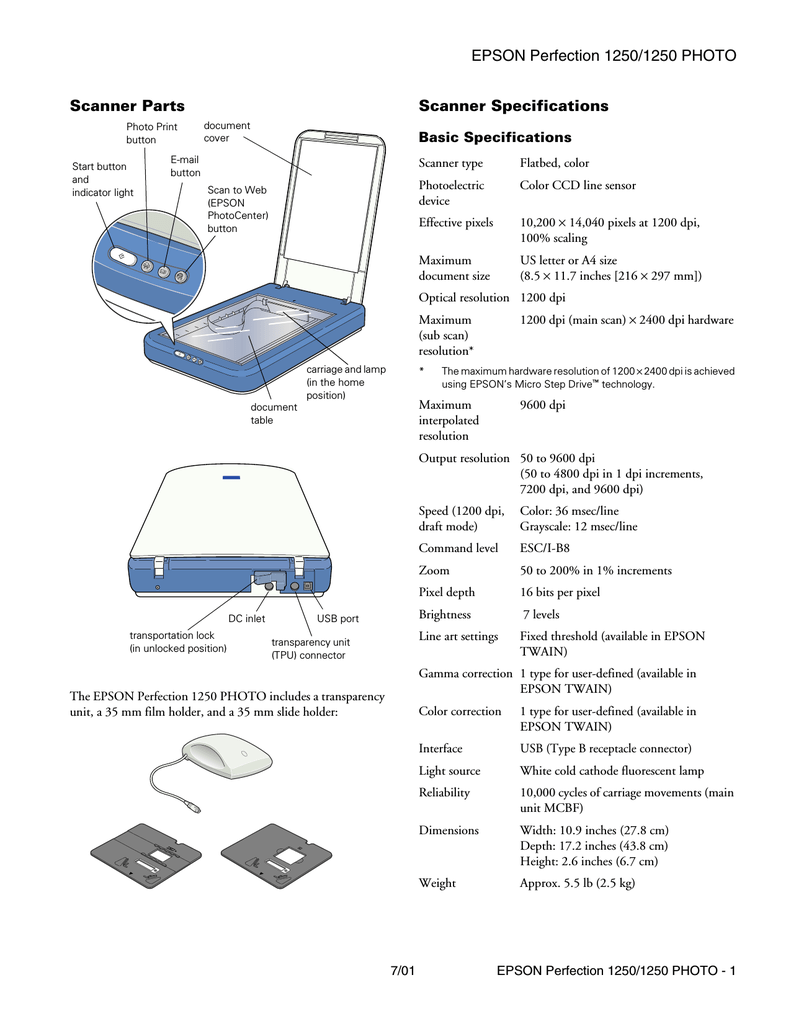

EPSON Perfection 1250/1250 PHOTO
Scanner Parts
Photo Print
button
Start button
and
indicator light
Scanner Specifications
document
cover
Basic Specifications
E-mail
button
Scan to Web
(EPSON
PhotoCenter)
button
Scanner type
Flatbed, color
Photoelectric
device
Color CCD line sensor
Effective pixels
10,200 × 14,040 pixels at 1200 dpi,
100% scaling
Maximum
document size
US letter or A4 size
(8.5 × 11.7 inches [216 × 297 mm])
Optical resolution 1200 dpi
1200 dpi (main scan) × 2400 dpi hardware
Maximum
(sub scan)
resolution*
carriage and lamp
(in the home
position)
*
The maximum hardware resolution of 1200 × 2400 dpi is achieved
using EPSON’s Micro Step Drive™ technology.
Maximum
interpolated
resolution
document
table
9600 dpi
Output resolution 50 to 9600 dpi
(50 to 4800 dpi in 1 dpi increments,
7200 dpi, and 9600 dpi)
DC inlet
transportation lock
(in unlocked position)
USB port
transparency unit
(TPU) connector
Speed (1200 dpi,
draft mode)
Color: 36 msec/line
Grayscale: 12 msec/line
Command level
ESC/I-B8
Zoom
50 to 200% in 1% increments
Pixel depth
16 bits per pixel
Brightness
7 levels
Line art settings
Fixed threshold (available in EPSON
TWAIN)
Gamma correction 1 type for user-defined (available in
EPSON TWAIN)
The EPSON Perfection 1250 PHOTO includes a transparency
unit, a 35 mm film holder, and a 35 mm slide holder:
7/01
Color correction
1 type for user-defined (available in
EPSON TWAIN)
Interface
USB (Type B receptacle connector)
Light source
White cold cathode fluorescent lamp
Reliability
10,000 cycles of carriage movements (main
unit MCBF)
Dimensions
Width: 10.9 inches (27.8 cm)
Depth: 17.2 inches (43.8 cm)
Height: 2.6 inches (6.7 cm)
Weight
Approx. 5.5 lb (2.5 kg)
EPSON Perfection 1250/1250 PHOTO - 1
EPSON Perfection 1250/1250 PHOTO
Electrical
Input voltage
range
DC 15.2 V
Rated input
current
1.2 A
Power
consumption
Approx. 18 W (same with or without TPU)
approx. 5 W in power-saving mode
Electrical
standard
Full Speed mode (12Mbit/s) of Universal
Serial Bus Specification Revision 1.1
Connector type
One receptacle (Type B)
Connector pin arrangement
Pin number
Note: Check the label on the back of the scanner for voltage
information.
Environmental
Temperature
Operation: 41 to 95 °F (5 to 35 °C)
Storage: –13 to 140 °F (–25 to 60 °C)
Humidity
(without
condensation)
Operation: 10% to 80%
Storage: 10% to 85%
Operating
conditions
Ordinary office or home conditions; avoid
extreme dust, direct sunlight, and strong
light sources.
Signal
1
VCC
2
–DATA
3
+DATA
4
GND
Initialization
methods
The scanner can be initialized (returned to
a fixed set of conditions) in the following
ways:
Hardware
initialization
The USB cable is unplugged, then plugged into the USB
port on the scanner.
Software
initialization
❏
Software sends the ESC @ (initialize the scanner)
command.
❏
The scanner receives a Bus Reset from the USB
interface.
AC Adapter Specifications
Safety Approvals
Safety Standards
Basic Specifications
120 V model
Dimensions
UL 1950
CSA C22.2 No. 950
EMC FCC part 15 subpart B class B
CSA C108.8 class B
Rated input
voltage
100 to 120 V ±15%
Rated input
current
0.4 A (input AC 100)
Rated output
voltage
DC 15.2 V
1.2 A
Remote wake up feature: Not supported
Rated output
current
Maximum power consumption from VBUS: 2mA (5V)
Rated frequency
50 to 60 Hz
No alternate setting
Input frequency
range
50 to 60 Hz ±3 Hz
Universal Serial Bus Specification
Revision 1.1
Configuration
Element
Description
Configuration
Characteristics: Self-powered
Interface
Class: Vendor specific
Endpoint 1
Bulk IN transfer
Safety Approvals
Maximum data transfer size: 64 bytes
Endpoint 2
Bulk OUT transfer
Maximum data transfer size: 64 bytes
String
Descriptor
2.3 × 4.3 × 3.4 inches
(5.8 × 10.8 × 3.4 cm)
Electrical
USB Interface
Interface type
Connector
Safety standards
UL 1950
UL 1310
CSA C22.2 No. 950
EMC
FCC part 15 subpart B class B
CSA C108.8 class B
Language ID: US English
1: Manufacturer: “EPSON”
2: Product: “EPSON Scanner 010F”
2 - EPSON Perfection 1250/1250 PHOTO
7/01
EPSON Perfection 1250/1250 PHOTO
Transparency Unit Specifications
Using EPSON Smart Panel
The transparency unit (part number B12B813321), also called
a film adapter, allows you to scan positive and negative
transparent materials such as 35 mm slides and 35 mm film.
Follow these steps to use EPSON Smart Panel to scan
documents or photos:
1. Place the original document(s) face down on the document
table.
The transparency unit is included with the EPSON
Perfection 1250 PHOTO. It can be purchased as an option
for the EPSON Perfection 1250.
Dimensions
2. Do one of the following to open the Smart Panel:
❏ Press the ] Start button on your scanner.
Width: 3.5 inches (88 mm)
Depth: 5.7 inches (145 mm)
Height: 2.2 inches (56 mm)
Weight
0.4 lb (170 g)
Maximum
readable area
1.4 × 1.4 inches (36 × 36 mm)
Electrical
Supply voltage: DC 15.2 V
Rated current: 0.3 A
Reliability
10,000 hours for light source
Temperature
Operation: 41 to 95 °F (5 to 35 °C)
Storage: –13 to 140 °F (–25 to 60 °C)
Humidity
(without
condensation)
Operation: 10% to 80%
Storage: 10% to 85%
Operating
conditions
Ordinary office or home conditions; avoid
extreme dust, direct sunlight, and
strong light sources.
Document
specifications
35 mm film strip (negative, positive)
35 mm slides (negative, positive)
Safety approvals
This product conforms to CE marking
requirements in accordance with EC
Directive 89/336/EEC.
❏ Click the
automatically open any of the Smart Panel applications.
3. Click the icon for your desired scanning application. The
window for that option appears and lets you adjust settings
for your scan. Follow the on-screen steps for each option.
Keep the following in mind when using Smart Panel:
❏ If you select Copy or Photo Print, make sure your printer is
turned on and the correct paper type and size is loaded in
your printer.
Scanner Buttons
❏ Scan to E-mail requires a MAPI-compliant e-mail program
(AOL is not MAPI compliant).
The scanner’s buttons let you perform one-touch scanning with
EPSON Smart Panel.™ The buttons are described below:
] Start
Press the ] Start button on the scanner to start
EPSON Smart Panel (default).
{ Photo Print
Press the { Photo Print button to automatically scan
and print a photo.
| E-Mail
Press the | E-Mail button to scan your image and
send it as an e-mail attachment.
} Scan to Web
Press the } Scan to Web button to scan an image
and upload it to the EPSON photo-sharing site,
EPSON PhotoCenter.SM
Smart Panel icon on the desktop.
❏ On a Macintosh,® you can also open the Apple® menu
and select EPSON SMART PANEL.
The ] Start button is set to open EPSON Smart Panel by
default. However, you can assign the ] Start button to
For instructions on using each of the Smart Panel applications,
see the electronic manual for EPSON Smart Panel.
7/01
EPSON Perfection 1250/1250 PHOTO - 3
EPSON Perfection 1250/1250 PHOTO
Selecting TWAIN Settings
The illustration to the right
shows the different settings
you can adjust in the
EPSON TWAIN window,
and the preferred order you
should adjust them in.
Detailed descriptions are
given in the electronic
Reference Guide. Manually
adjust settings in the EPSON
TWAIN window in the
following order:
3 Automatically set the
scan area for your image
using Auto Locate
1 Select the basic settings:
Document Source
Image Type
Destination
Resolution
4 Size or scale the image
The most important
thing to remember
when scanning is to
select the correct
image type and best
resolution for your
scan. For more
detailed information
on making settings in
EPSON TWAIN, see
the electronic
Reference Guide.
5 Customize your settings
and configuration, and
use color management
2 Preview your image
6 Scan the image into your
application
7 Close the EPSON
TWAIN window
Scanner Light
Related Documentation
The scanner has one indicator light. (The indicator light is part
of the ] Start button.)
CPD-12466
EPSON Perfection 1250/1650 Start Here
poster
The ] light indicates the status of the scanner, as described
below.
CPD-12467
EPSON Perfection 1250/1650 Scanner
Basics
CPD-12468
EPSON Perfection 1250/1650 scanner
software CD-ROM
—
Reference Guide (HTML)
—
EPSON Smart Panel User’s Manual
(HTML)
TM-PERF1250
EPSON Perfection 1250 Service Manual
PL-PERF1250
EPSON Perfection 1250 Parts List
Light
Color
Status
On
Green
The scanner is ready to scan images.
Flashing
Green
The scanner is initializing or is busy
scanning.
On
Red
The scanner may not be properly
connected to the computer. Unplug the
scanner from its power source, remove the
USB cable, and then plug them back in.
If this does not eliminate the error, one of
the following may be the problem and you
need to consult your dealer or EPSON:
Off
—
❏
The fluorescent lamp needs to be
replaced.
❏
The scanner is malfunctioning.
PL-PHOTO1250 EPSON Perfection 1250 PHOTO Parts
List
The scanner or AC adapter is unplugged.
4 - EPSON Perfection 1250/1250 PHOTO
7/01
