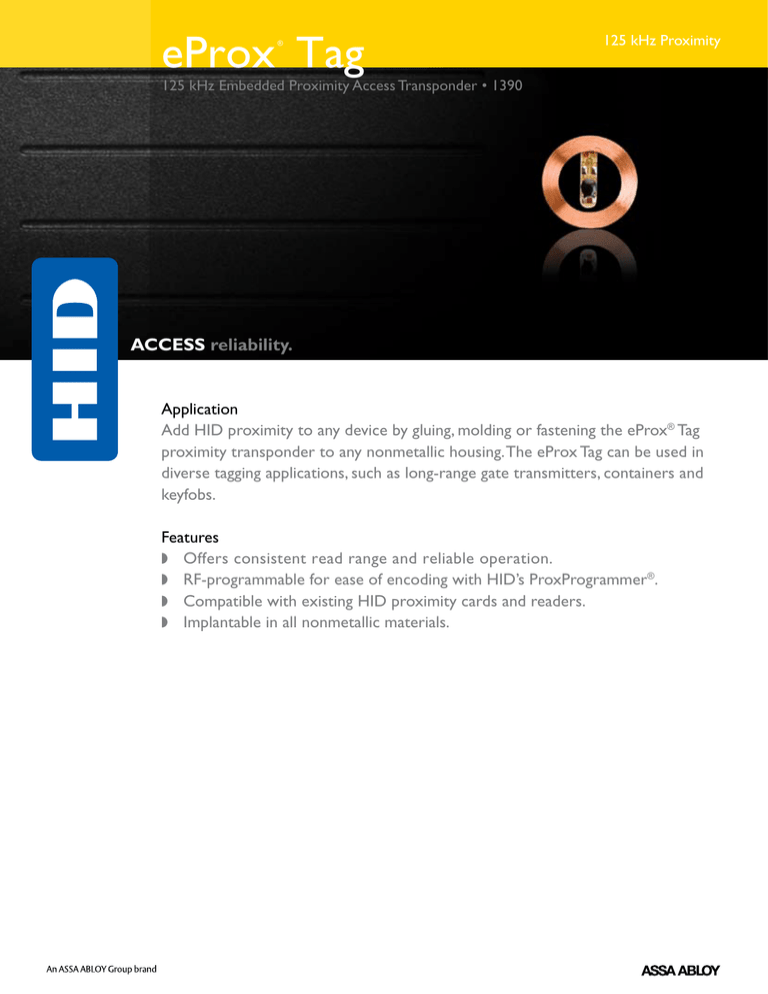

eProx Tag
®
125 kHz Proximity
125 kHz Embedded Proximity Access Transponder • 1390
ACCESS reliability.
Application
Add HID proximity to any device by gluing, molding or fastening the eProx® Tag
proximity transponder to any nonmetallic housing. The eProx Tag can be used in
diverse tagging applications, such as long-range gate transmitters, containers and
keyfobs.
Features
w Offers consistent read range and reliable operation.
w RF-programmable for ease of encoding with HID’s ProxProgrammer®.
w Compatible with existing HID proximity cards and readers.
w Implantable in all nonmetallic materials.
Description
Proven, Reliable
Technology
Security
Features
Specifications
RF programmable, 125 kHz, customer specified ID numbers.
Typical Maximum* Read Range
Offers extremely consistent read range. Unaffected by body
shielding or variable environmental conditions, even when close
to keys and coins.
Offers over 137 billion unique codes.
Long Life
Passive, no-battery design allows for an infinite number of reads.
Warranty
Lifetime warranty against defects in materials and
workmanship (see complete sales policy for details).
ProxPoint® Plus reader-up to 2.0” (5.1 cm)
MiniProx® reader-up to 2.25” (5.7 cm)
ThinLine II® reader-up to 2.5” (6.4 cm)
Prox80™ reader up to 2.25” (5.7 cm)
ProxPro® II reader up to 3.5” (8.9 cm)
ProxPro® reader up to 4” (10.2 cm)
MaxiProx® reader up to 4.5” (11.4 cm)
*Dependent on local installation conditions.
Data Storage
Up to 84 bits (Over 1.9x1025 codes)
Dimensions
Diameter: 0.866” (22.0mm)
Max. thickness (chip): 0.033” (0.83mm)
Coil thickness: 0.016” (0.40mm)
Operating Temperature
-50° to 160° F (-45° to 70° C)
0.033" (max)
0.083 cm (max)
0.016"
0.040 cm
Weight
0.019 oz. (0.54 gm)
Part Number
Base Part No.: 1390
Description
RF-programmable, 125 kHz, customer-specified ID numbers,
locations marked for horizontal and vertical slot punch
(Please see “How to Order Guide” for a description of the
options and associated part numbers.)
0.866" (max)
2.20 cm (max)
0.550"
1.40 cm
© 2007 HID Global. All rights reserved. HID, and the HID logo are trademarks
or registered trademarks of HID Global in the U.S. and/or other countries. All
other trademarks, service marks, and product or service names are trademarks or
registered trademarks of their respective owners. Rev. 4/2007
For best results, please
print on recycled paper.
ACCESS experience.
MKT-ePROX_DS_EN
hidcorp.com
HID Global Offices:
Corporate
North America
9292 Jeronimo Road
Irvine, CA 92618-1905
U.S.A.
Phone: (800) 237-7769
Phone: (949) 598-1600
Fax: (949) 598-1690
Asia Pacific
19/F 625 King’s Road
North Point
Island East
Hong Kong
Phone: +852 3160-9800
Fax: +852 3160-4809
Latin America
Circunvalacion Ote. #201 B
Despacho 2
Col. Jardines del Moral
Leon 37160, Gto.
Mexico
Phone: +52 477 779 1492
Fax: +52 477 779 1493
Europe, Middle East & Africa
Homefield Road
Haverhill, Suffolk
CB9 8QP
England
Phone: +44 (0) 1440 714 850
Fax: +44 (0) 1440 714 840
