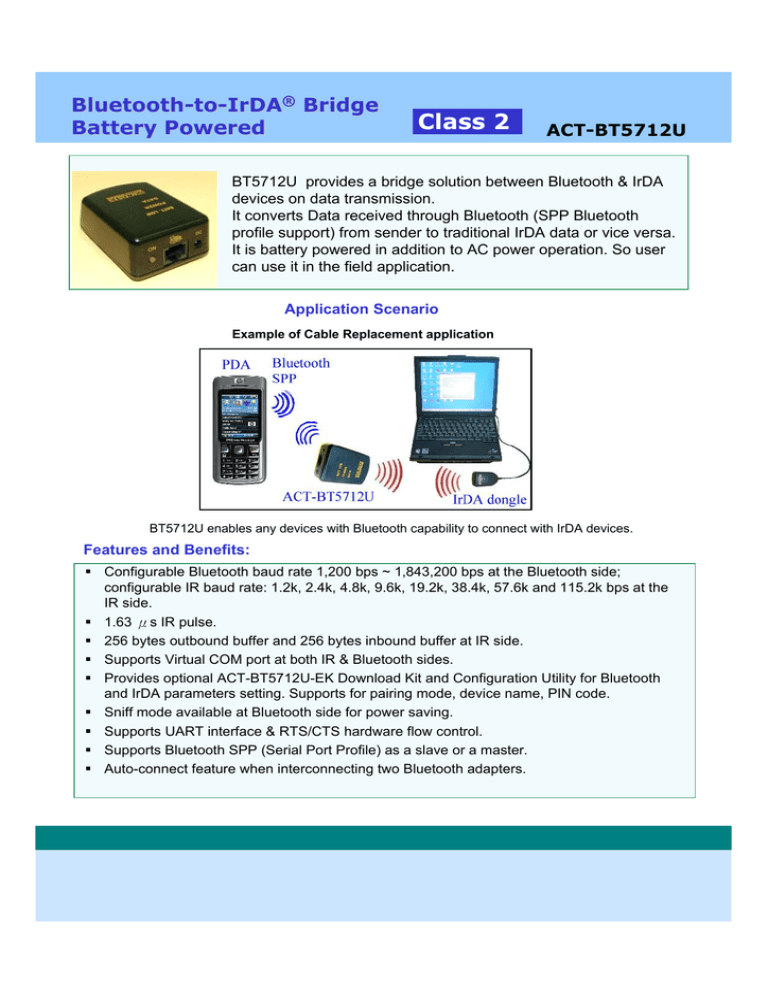

ACT-BT5712U Flyer

ACT-BT5712U Flyer
Bluetooth-to-IrDA® Bridge
Battery Powered
Class 2
ACT-BT5712U
BT5712U provides a bridge solution between Bluetooth & IrDA
devices on data transmission.
It converts Data received through Bluetooth (SPP Bluetooth
profile support) from sender to traditional IrDA data or vice versa.
It is battery powered in addition to AC power operation. So user
can use it in the field application.
Application Scenario
Example of Cable Replacement application
BT5712U enables any devices with Bluetooth capability to connect with IrDA devices.
Features and Benefits:
 Configurable Bluetooth baud rate 1,200 bps ~ 1,843,200 bps at the Bluetooth side;
configurable IR baud rate: 1.2k, 2.4k, 4.8k, 9.6k, 19.2k, 38.4k, 57.6k and 115.2k bps at the
IR side.
 1.63 μs IR pulse.
 256 bytes outbound buffer and 256 bytes inbound buffer at IR side.
 Supports Virtual COM port at both IR & Bluetooth sides.
 Provides optional ACT-BT5712U-EK Download Kit and Configuration Utility for Bluetooth
and IrDA parameters setting. Supports for pairing mode, device name, PIN code.
 Sniff mode available at Bluetooth side for power saving.
 Supports UART interface & RTS/CTS hardware flow control.
 Supports Bluetooth SPP (Serial Port Profile) as a slave or a master.
 Auto-connect feature when interconnecting two Bluetooth adapters.
ACT-BT5712U
Bluetooth-to
-IrDA Wireless
Bridge Class
Bluetooth
RS232
Cable 2Solution
BCR01
Specifications
Model No.
ACT-BT5712U
Standard
Bluetooth SIG 1.2
Bluetooth Profile
Serial Port Profile (SPP) only
Baud Rate
Bluetooth side: 1.2k bps ~ 1843.2k bps; Default 9.6k bps
IR side:1.2k, 2.4k, 4.8k, 9.6k, 19.2k, 38.4k, 57.6k and 115.2k bps;
Default 9.6k bps
Configurable Parameters at Bluetooth
side
Baud Rate, Data Bit, Parity Check, Stop Bit, RTS/CTS Flow Control,
COM Port, Device Name, Control Flag, PIN Code,
Master or Slave,
Watchdog Timeout,
Supervision Timeout,
BD Address
RF
Specifications
Frequency Band
2.400~2.4835 GHz unlicensed ISM band
Spectrum
FHSS (Frequency Hopping Spread Spectrum)
Modulation
GFSK
Output Power
4 dBm (typical)
Receiving Sensitivity
-82 dBm (typical)
Power Class
Class 2
Antenna
Internal embedded
Range
Up to 10 m (open-air)
LED Indicators
Battery Low,Power & Connection Activities LED
Power
1. AAA size 1.5V x 4 batteries ; or
2. 7.5 V / 300 mA AC-DC power adapter
Physical
Dimensions &
Environment
Dimensions
76.5 x 48.5x 28.0 mm (3.01 x 1.91 x 1.10 in.) (L x W x H)
Weight
50 g (1.76 oz) without batteries
Operating / Storage
Temperature
0o C ~ 55o C (32o F ~ 131 o F ) / -20o C ~ 80o C (-4o F ~ 176o F )
Specifications could be changed without prior notice.
All trademarks, logos, organization & company names, and product model names are the
properties of the respective owners.
921 Corporate Way, Fremont, CA 94539
Tel: +1-510-490-8024, Fax: +1-510-623-7268
E-mail: [email protected], http://www.actisys.com
