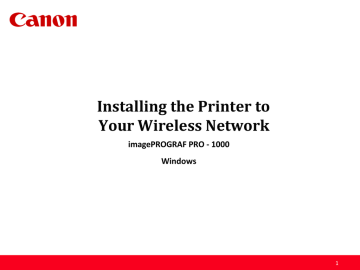

Installing the Printer to
Your Wireless Network
imagePROGRAF PRO - 1000
Windows
1
Setup and Installation
Setup and Installation
The instructions contained in this document apply equally to first-time installations, adding the printer to additional computers
in the Wireless Network and for re-installations after a Router or Network change.
To use the machine wirelessly with a computer, the printer must be connected to the Wireless LAN and software including the
drivers needs to be copied (installed) to the computer's hard disk. Installation time varies depending on the computer environment
or the number of application software to be installed.
IMPORTANT
• Log on as the administrator (or a member of the Administrators group).
• Quit all running applications before software installation.
• Do not switch users during the installation process.
• Internet connection may be required during the installation. Connection fees may apply. Consult the internet service provider.
• It may be necessary to restart your computer during the installation process. Follow the on-screen instructions.
. The installation resumes once your computer has restarted.
• If the firewall function of your security software is turned on, a warning message may appear that Canon software is attempting
to access the network. If such a warning message appears, set the security software to always allow access.
2
Connecting to the Wireless LAN
1. From the Home screen, press the up or down arrows until LAN settings appears. Then press
the OK button.
3
Connecting to the Wireless LAN
2. Use the down arrow to select Wireless LAN setup and press the OK button.
4
Connecting to the Wireless LAN
3. Use the arrows to select Cableless setup and press the OK button.
5
Connecting to the Wireless LAN
4. Press the OK button when this message appears.
6
Connecting to the Wireless LAN
5. When this screen appears, the printer is waiting to receive the information on the wireless network.
Go to the computer.
7
Connecting to the Wireless LAN
Insert the Setup CD-ROM into your computer.*
Click [ Run Msetup4.exe ] on the AutoPlay screen, then click [ Yes ] or [ Continue ] on the User Account Control
dialog box.
If the CD-ROM does not autorun:
Double-click [ (My) Computer ] > CDROM icon > [ MSETUP4.EXE. ]
*If you don’t have or cannot use the Setup CD-ROM, follow the steps below to start the setup.
• Download the software (click the link to download)
• Double-click the downloaded .exe file (win-pro_1000-1_0-jucd.exe)
If the User Account Control dialog box appears during the setup, click Yes or Continue.
88
Connecting to the Wireless LAN
Click Start Setup on the initial screen.
9
Connecting to the Wireless LAN
Continue following on-screen instructions to select country, License Agreement, etc. until the Select Connection Method
screen appears. Be sure to select Wireless LAN Connection, then click Next..
10
Connecting to the Wireless LAN
Select Connect via wireless router (recommended) then click Next.
11
Connecting to the Wireless LAN
Click Next on the Check Power screen.
12
Connecting to the Wireless LAN
On the Select Printer screen verify your printer is selected by checking the listing in the Serial Number(Last 5 Digits) column. This
will show the last 5 digits of the printer's serial number. The serial number is found on a sticker on the back of the printer near the
bottom right. Click Next.
13
Connecting to the Wireless LAN
Click Next on the Connection Completed screen.
14
Installing the Drivers & Software
Continue to follow on-screen instructions. Click Next on the Setup Complete screen.
15
Installing the Drivers & Software
Continue to follow the on-screen instructions. On the Software Installation List, select any of the optional software to install and
click Next.
16
Installing the Drivers & Software
At this point the connection has been established and Drivers and Software has been installed. Please follow any remaining
instructions to finish and exit the setup. Click Exit when the Installation completed successfully screen appears.
