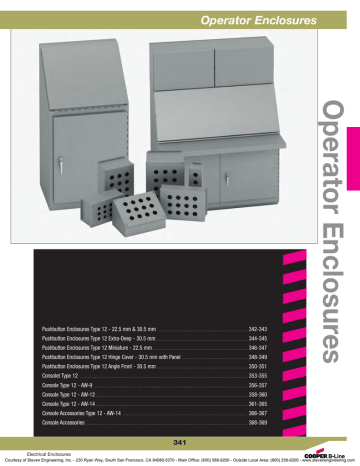

Operator Enclosures

Operator Enclosures

Operator Enclosures

Pushbutton Enclosures Type 12 - 22.5 mm & 30.5 mm

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

342-343

Pushbutton Enclosures Type 12 Extra-Deep - 30.5 mm

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

344-345

Pushbutton Enclosures Type 12 Miniature - 22.5 mm

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

346-347

Pushbutton Enclosures Type 12 Hinge Cover - 30.5 mm with Panel

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

348-349

Pushbutton Enclosures Type 12 Angle Front - 30.5 mm

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

350-351

Consolet Type 12

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

353-355

Console Type 12 - AW-9

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

356-357

Console Type 12 - AW-12 .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

358-360

Console Type 12 - AW-14 .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

361-365

Console Accessories Type 12 - AW-14

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

366-367

Console Accessories

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

368-369

341

Electrical Enclosures

Courtesy of Steven Engineering, Inc. - 230 Ryan Way, South San Francisco, CA 94080-5370 - Main Office: (650) 588-9200 - Outside Local Area: (800) 258-9200 - www.stevenengineering.com

Operator Enclosures

Pushbutton Enclosures

Type 12 - 22.5 mm & 30.5 mm

Data and Illustration Sheet

PBxx Series PVxSS Series

Application

• Designed to mount standard 30.5 mm or miniature

22.5 mm oil-tight pushbuttons, pilot lights and switches

• Protects against circulating dust, falling dirt and dripping non-corrosive liquids

Standards

• UL 508 listed, Type 12 and Type 13

• CSA C22.2 No.94 certified, Type 12 and Type 13

• Conforms to NEMA standard for Type 12 and Type 13

• Conforms to JIC standard EGP-1-1967

Finish

• Wash and phosphate undercoat

• ANSI 61 gray polyester powder finish

• Stainless steel enclosure cover and sides of body have a smooth brushed finish

Accessories

• Hole seals

• Columns and bases

• Touch-up paint

• See accessories section

Construction

• Enclosure and cover are fabricated from (14) gauge steel,

Type 304 or Type 316L stainless steel

• All continuous welded seams are finished smooth

• Cover is attached with captive screws which thread into sealed well nuts

• Cover has concealed, detachable hinges which allow for quick removal and can be hinged on either side (not offered on all sizes)

• Cover has a fixed, oil-resistant gasket

• Weldnut in body of enclosure for grounding

• Cover is pre-punched with standard 30.5 mm or miniature

22.5 mm “4-way” pushbutton holes

• External mounting feet are provided for secure wall mounting

Discount Schedule: C2

Subclass: DP0

.672

(17)

(TYP)

.484

(12)

(TYP)

1.203 D

(30.5)

.886 D

(22.5)

.190 (TYP)

(5)

.125 (TYP)

(3)

Standard 4-Way Miniature 4-Way

Notes: Cooper B-Line can provide special sizes, finishes and other holes and cutouts, see page 352.

Consult the factory for your special requirements.

342

Electrical Enclosures

Courtesy of Steven Engineering, Inc. - 230 Ryan Way, South San Francisco, CA 94080-5370 - Main Office: (650) 588-9200 - Outside Local Area: (800) 258-9200 - www.stevenengineering.com

Operator Enclosures

Pushbutton Enclosures

Type 12 - 22.5 mm & 30.5 mm

Illustration Sheet and Catalog Number

Enclosure Catalog Number

(30.5 mm Hole) (22.5 mm Hole)

Steel

PV3*

PV4*

PV5*

PV6*

PV8*

PV10*

PB1*

PB2*

PB3

PB4

PB6

PB9

PB12

PB16

PB20

PB25

* Enclosures are not hinged.

Type 304

Stainless

PB1SS*

PB2SS*

-

-

PB6SS*

PB9SS*

PB12SS*

-

-

-

PV3SS*

PV4SS*

-

-

-

-

Type 316L

Stainless

PB1SS6*

PB2SS6*

-

-

PB6SS6*

PB9SS6*

PB12SS6*

-

-

-

PV3SS6*

PV4SS6*

-

-

-

-

Steel

PV3M*

PV4M*

-

-

-

-

-

-

-

-

PB1M*

PB2M*

-

-

-

-

Type 304

Stainless

PB1MSS*

PB2MSS*

-

-

-

-

-

-

-

-

PV3MSS*

PV4MSS*

-

-

-

-

8

10

3

4

5

6

12

16

20

25

3

4

6

9

1

2

Holes

Enclosure Size

Height x Width x Depth

D E

A x B x C in.

mm in.

mm in.

mm

4.00 x 3.25 x 3.00

102 x 83 x 76 2.12

54 1.75

44

5.75 x 3.25 x 3.00

146 x 83 x 76 2.12

54 1.75

44

7.25 x 6.25 x 3.00

184 x 159 x 76 2.62

67 2.12

54

7.25 x 6.25 x 3.00

184 x 159 x 76 2.62

67 2.12

54

9.50 x 6.25 x 3.00

241 x 159 x 76 2.62

67 2.12

54

9.50 x 8.50 x 3.00

241 x 216 x 76 2.62

67 2.12

54

11.75 x 8.50 x 3.00

298 x 216 x 76 2.62

67 2.12

54

11.75 x 10.75 x 3.00

298 x 273 x 76 2.62

67 2.12

54

14.00 x 10.75 x 3.00

356 x 273 x 76 2.62

67 2.12

54

14.00 x 13.00 x 3.00

356 x 330 x 76 2.62

67 2.12

54

8.00 x 3.25 x 2.75

203 x 83 x 70 2.12

54 1.75

44

10.25 x 3.25 x 2.75

260 x 83 x 70 1.87

47 1.75

44

12.50 x 3.25 x 2.75

318 x 83 x 70 1.87

47 1.75

44

14.75 x 3.25 x 2.75

375 x 83 x 70 1.87

47 1.75

44

20.25 x 3.25 x 2.75

514 x 83 x 70 1.87

47 1.75

44

24.75 x 3.25 x 2.75

629 x 83 x 70 1.87

47 1.75

44

PB1

PB3

PB6

PB12

PB2

PB4

PB9

PB16

PB20 PB25

B-.50

(13)

B

B-.88

(22)

X

∅ .218 x .281

(6 x 7) detachable hinge

PV3 PV4

A-.50

(13)

3.25

(83)

A-1.50

(38)

PV5 PV6

B-.50

(13)

A

A+.50

(13)

2.25

(57)

(TYP)

2.25

(57)

(TYP)

D

D

PV8

PV10

E

2.25

(57)

(TYP)

X

Front View

mounting feet

C

Section X-X

1.75

(44)

PV Series

Typical 8 & 10

Hole

Cover Hole

Layout

Notes: Dimensions are in inches. Millimeters shown are for reference only. Data subject to change without notice.
