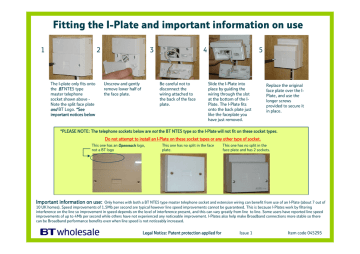

Fitting the I-Plate and important information on use
1
2
The I-plate only fits onto
the BT NTE5 type
master telephone
socket shown above Note the split face plate
and BT Logo. *See
important notices below
3
Unscrew and gently
remove lower half of
the face plate.
4
Be careful not to
disconnect the
wiring attached to
the back of the face
plate.
5
Slide the I-Plate into
place by guiding the
wiring through the slot
at the bottom of the IPlate. The I-Plate fits
onto the back plate just
like the faceplate you
have just removed.
Replace the original
face plate over the IPlate, and use the
longer screws
provided to secure it
in place.
*PLEASE NOTE: The telephone sockets below are not the BT NTE5 type so the I-Plate will not fit on these socket types.
Do not attempt to install an I-Plate on these socket types or any other type of socket.
This one has an Openreach logo,
not a BT logo
This one has no split in the face
plate.
This one has no split in the
face plate and has 2 sockets.
Important information on use: Only homes with both a BT NTE5 type master telephone socket and extension wiring can benefit from use of an I-Plate (about 7 out of
10 UK homes). Speed improvements of 1.5Mb per second are typical however line speed improvements cannot be guaranteed. This is because I-Plates work by filtering
interference on the line so improvement in speed depends on the level of interference present, and this can vary greatly from line to line. Some users have reported line speed
improvements of up to 4Mb per second while others have not experienced any noticeable improvement. I-Plates also help make Broadband connections more stable so there
can be Broadband performance benefits even when line speed is not noticeably increased.
Legal Notice: Patent protection applied for
Issue 1
Item code 045295
