Connection Systems
Connection Systems
Overview ..........................................................................................................7-2
7-Table of
Contents

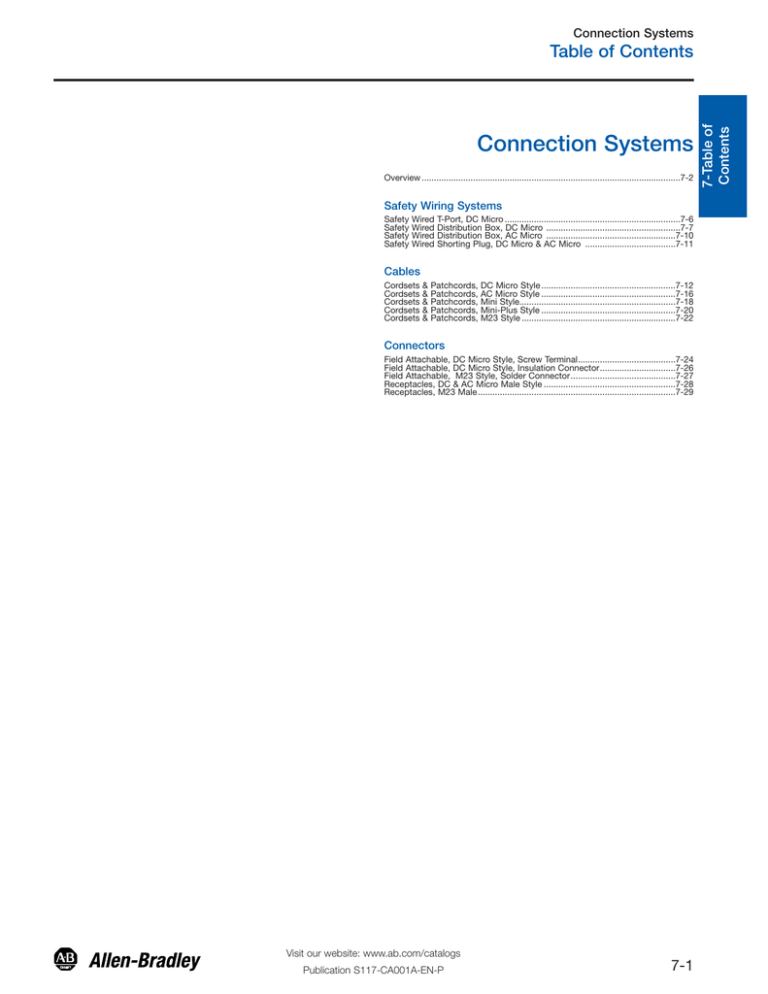

Table of Contents
Safety Wiring Systems
T-Port, DC Micro ........................................................................7-6
Distribution Box, DC Micro .......................................................7-7
Distribution Box, AC Micro .....................................................7-10
Shorting Plug, DC Micro & AC Micro .....................................7-11
Cables
Cordsets
Cordsets
Cordsets
Cordsets
Cordsets
&
&
&
&
&
Patchcords,
Patchcords,
Patchcords,
Patchcords,
Patchcords,
DC Micro Style .......................................................7-12
AC Micro Style .......................................................7-16
Mini Style................................................................7-18
Mini-Plus Style .......................................................7-20
M23 Style ...............................................................7-22
Connectors
Power
Logic
Operator
Interface
Safety Switches
Field Attachable, DC Micro Style, Screw Terminal........................................7-24
Field Attachable, DC Micro Style, Insulation Connector...............................7-26
Field Attachable, M23 Style, Solder Connector...........................................7-27
Receptacles, DC & AC Micro Male Style ......................................................7-28
Receptacles, M23 Male.................................................................................7-29
8-
Wired
Wired
Wired
Wired
presence-Sensing
Safety Devces
Safety
Safety
Safety
Safety
Visit our website: www.ab.com/catalogs
Publication S117-CA001A-EN-P
7-1
Connection Systems
Overview
7-Overview
Overview
Systems with Enunciation
The Allen-Bradley Guardmaster® Safety Connection Systems are
complete wiring solutions dedicated to machine safety. These quick
disconnect-based systems consist of safety wired T-Ports and
distribution boxes as well as patchcords and shorting plugs.
Specifically intended for use with dry-contact safety switches,
Safety Connection Systems provide flexible and reliable connections
between safety interlock switches, E-stops, cable pull switches and
safety relays. And while this system is ideal for use with these
components, it is not suitable for use with light curtains, safety mats
or pressure sensitive safety edges.
As shown below, system layouts with enunciation require
patchcords, shorting plugs and distribution boxes, which allow for
series wiring of the safety circuits while providing a separate circuit
for enunciation. Distribution boxes are offered for these applications
in two contact configurations: dual channel with 2 N.C. or single
channel with 1 N.C. Each type also provides a N.O. auxiliary contact
that is interfaced with the enunciation device to provide visual or
audible alarm indication. In addition, LEDs on the distribution boxes
assist in the troubleshooting of this system. See the wiring diagrams
below for the associated connector pin configurations.
8-
Allen-Bradley Guardmaster Safety Connection Systems are
designed to:
Reduce installation cost
Ease system expansion
Simplify troubleshooting
Promote system modularity
Provide for Safety PLC input expansion
Support systems up to Category 3 (per EN954-1)
Single Channel 1 N.C./1 N.O.
Safety
N.C.
Aux
N.O.
presence-Sensing
Safety Devces
Connector Pin
1 (Brown)
3 (Blue)
2 (White)
4 (Black)
Device
J11
J12
J23
J24
Connector Pin
1 Red/WhtTr
5 Red/BlackTr
2 Red
6 Red/BlueTr
3 Green
4 Red/YellowTr
Device
J11
J12
J21
J22
J33
J34
N.C.
N.O.
Male Connector (On Switch)
Safety Connection Systems layouts are available with or without
enunciation capabilities, allowing the user the option of direct
feedback for the status of individual switches in the system.
Enunciation systems utilize an auxiliary contact as input to tower
lights, audible alarms, PLC input cards, etc.
Dual Channel 2 N.C./1 N.O.
Safety
N.C.
Aux
N.O.
Systems without Enunciation
N.C.
N.C.
N.O.
Safety Switches
As illustrated in the example layout below, wiring systems for
applications not requiring enunciation use a combination of
patchcords, shorting plugs, safety wired distribution boxes and Tports for series wiring of safety circuits. Distribution boxes for such
an application are dual channel models with 2 N.C. or 1 N.C. + 1
N.O. contact configurations. See the wiring diagrams below for
connector pin assignments.
Note: Shorting plugs must be used on all unused ports for the
system to operate.
Dual Channel 2 N.C.
Installation Considerations
Safety
N.C.
Safety
N.C.
Connector Pin
1 (Brown)
3 (Blue)
2 (White)
4 (Black)
Device
J11
J12
J21
J22
N.C.
N.C.
Male Connector (On Switch)
Operator
Interface
Dual Channel 1 N.C./1 N.O.
Safety
N.C.
Safety
N.O.
Connector Pin
1 (Brown)
3 (Blue)
2 (White)
4 (Black)
Device
J11
J12
J23
J24
Safety
N.C.
Male Connector (On Switch)
Some important notes regarding Safety Connection Systems:
To help ensure that only authorized personnel can access the
connections, safety distribution boxes should be mounted in the
‘guarded’ area as defined in the risk assessment for the
application.
The safety connection system is designed to simplify the
installation of safety devices—it does not control the safety circuit.
Since the safety circuits are wired in series, shorting plugs must be
installed in all unused distribution box ports in order for the system
to operate.
N.C.
N.O.
Male Connector (On Switch)
Note: Shorting plugs must be used on all unused ports for the
system to operate.
Logic
Power
Visit our website: www.ab.com/catalogs
7-2
Publication S117-CA001A-EN-P
Connection Systems
Overview
Example Layout without Enunciation
7-Overview
Enclosure
presence-Sensing
Safety Devces
6. Safety Switch with QD.................... 3-1
7. Safety Relay........................................ 5-2
Logic
Operator
Interface
Safety Switches
4. Device Patchcord ............................. 7-12
5. Device Cordset .................................. 7-12
Power
1. Safety-Wired Splitter/T-Port.......... 7-6
2. Safety-Wired Distribution Box ..... 7-7
3. Shorting Plug...................................... 7-11
8-
Safety Relay
or
Safety PLC
Visit our website: www.ab.com/catalogs
Publication S117-CA001A-EN-P
7-3
Connection Systems
Overview
SensaGuard Units Wired in Series without Enunciation
7-Overview
8presence-Sensing
Safety Devces
1. Safety-Wired Splitter/T-Port.......... 7-6
2. Shorting Plug...................................... 7-11
3. Device Patchcord ............................. 7-12
4. Device Cordset .................................. 7-12
Safety Switches
Operator
Interface
Logic
Power
Visit our website: www.ab.com/catalogs
7-4
Publication S117-CA001A-EN-P
5. Safety Relay........................................ 5-2
6. SensaGuard with QD....................... 3-56
Connection Systems
Overview
7-Overview
Example Layout with Enunciation
Enclosure
Safety Relay
or
Safety PLC
See Industrial
6. Tower Light ........................ Controls catalog
Logic
Operator
Interface
Safety Switches
4. Safety Switch with QD.................... 3-1
5. Safety Relay........................................ 5-2
Power
1. Safety-Wired Distribution Box .... 7-7
2. Shorting Plug .................................... 7-11
3. Device Patchcord ............................ 7-12
presence-Sensing
Safety Devces
8-
PLC
Visit our website: www.ab.com/catalogs
Publication S117-CA001A-EN-P
7-5
Connection Systems
Safety Wired T-Port, DC Micro Style
Dual Channel, No Enunciation
Specifications
7-Safety Wired
Systems
Connector Shell Material Epoxy coated zinc
Contact Material Brass, gold over nickel plating
O-Ring Material Fluorelastomer
Enclosure Type Rating IP67, NEMA 6P
Operating Temperature [C (F)] -20…105° (-13…221°)
Features
8-
T-port/splitter designed for use with dual-channel safety devices
with 4-pin DC micro connector
PUR body offers good oil and chemical resistance
Ratcheting coupling nut for vibration resistance
For use in Category 2 or 3 systems per EN 954-1
SensaGuard units may be wired in series maintaining a
Cat. 4/SIL 3 rating
presence-Sensing
Safety Devces
Product Selection
Face View of
Female (2)
Rating
Face View of Male (1)
Configuration
Wiring
Safety Switches
Dimensions
Housing
Material
Connector
Insert
Material
Cat. No.
A
Red PUR
PUR
898D-43LY-D4
A
Red PUR
PUR
898D-43KY-D4
Female 1 Female 2
1 2 3 4
1 2 3 4
2 N.C.
2
5
1 2 3 4
Male 1
1
2
1
3
3
10…30V
DC
3A
Female 1
Female 2
1 2 3 4
1 2 3 4
1 N.O. & 1
N.C.
4
1 2 3 4
4
Male 1
2
3
8
1
Operator
Interface
4
7
5
Male M12
1
2
3
4
For use with
SensaGuard
switches only
Female M12
1
2
3
4
B
Black PVC Polyamide
898D-438Y-D8
1 2 3 4 5 6 7 8
6
Female M12
Approximate Dimensions
Dimensions are shown in mm (in.). Dimensions are not intended to be used for installation purposes.
56.4 (2.22)
23.5 (0.92)
51 (2.0)
19
(0.75)
Logic
35.5
(1.39)
21
(0.82)
M12 x 1
10.4 (0.40)
12 (0.47)
8 (0.31)
Dia.
M12 x 1
6.35 (0.25) Dia.
1
2
3
4
4
3
4 Pole Male
1
6.5
(0.25)
2
1
16
(0.62)
4
3
M12 x 1
Power
A
B
Visit our website: www.ab.com/catalogs
Publication S117-CA001A-EN-P
17 (0.66)
M12 x 1
30.5
(1.2)
17
(0.66)
4 Pole Females
7-6
4.5 (0.17)
Dia.
45.2
(1.77)
Connection Systems
Safety Wired Distribution Box, DC Micro Style
Dual-Channel N.C., No Enunciation
7-Safety Wired
Systems
Specifications
Housing Material Red PBT
Connector Insert Material PBT
Connector Shell Material Nickel-plated brass
Contact Material Gold-plated palladium/nickel
Cable O.D. 9.8 mm (0.39 in.)
Cable Type
Oil-resistant yellow PVC jacket, 22 AWG
conductors
Enclosure Type Rating IP67
Operating Temperature [C (F)] -20…105° (-13…221°)
Features
8-
Prewired for dual-channel N.C. safety
4 or 8 safety wired 4-pin DC micro connectors
4-pin male DC micro pigtail main connection
For use in category 2 or 3 systems per EN 954-1
No. of Ports
Face View of Male
(1)
Rating
Cat. No.
No LED
8
10…30V DC
898D-44LT-DM4
1
3
4
0.2 m (8 in.)
898D-48LT-DM4
4
898D-41LU-DM
Shorting plug for unused ports
889D-F4ACDM-1
Patchcord, straight to straight DC Micro
1 Length in meters (1, 2, 3, 5, 10 standard).
Approximate Dimensions
Dimensions are shown in mm (in.). Dimensions are not intended to be used for installation purposes.
4-Port
107 (4.21)
39
(1.53)
33
(1.29)
101.5 (3.99)
22.2
(0.87)
15
(0.59)
4.5
(0.17)
33
(1.29)
120 (4.72)
4.5
(0.17)
152 (5.98)
Operator
Interface
54 (2.12)
54 (2.12)
101.5 (3.99)
8-Port
107 (4.21)
18
(0.7)
39
(1.53)
Wiring Diagrams
4-Port
Port 3
Port 2
8-Port
Port 1
Pin
No.
Pin 3
Pin 1
Wire
Color
Blue
Brown
Pin 2
Pin 4
White
Black
Port 8
Port 7
Port 2
Port 1
Pin
No.
Pin 3
Pin 1
Wire
Color
Blue
Brown
Pin 2
Pin 4
White
Black
Power
Port 4
Safety Switches
3
Cable Length
2
4
2
1
Illuminated
Logic
Face View of Female
presence-Sensing
Safety Devces
Product Selection
Visit our website: www.ab.com/catalogs
Publication S117-CA001A-EN-P
7-7
Connection Systems
Safety Wired Distribution Box, DC Micro Style
Dual-Channel N.C./N.O., No Enunciation
Specifications
7-Safety Wired
Systems
Housing Material Red PBT
Connector Insert Material PBT
Connector Shell Material Nickel-plated brass
Contact Material Gold-plated palladium/nickel
Cable O.D. 9.8 mm (0.39 in.)
Cable Type
Oil-resistant yellow PVC jacket, 22
AWG conductors
Enclosure Type Rating IP67
Operating Temperature [C (F)] -20…105° (-13…221°)
Features
8-
Prewired for dual-channel (one N.O./one N.C.) safety
4 or 8 safety wired 4-pin DC micro connectors
4-pin male DC micro pigtail main connection
For use in category 2 or 3 systems per EN 954-1
Product Selection
No. of Ports
Face View of Male
(1)
Rating
Cable Length
Cat. No.
2
2
1
Illuminated
4
898D-44KT-DM4
3
No LED
10…30V DC
8
1
898D-48KT-DM4
3
4
0.2 m (8 in.)
4
898D-41KU-DM
Patchcord, straight to straight DC Micro
889D-F4ACDM-1
1 Length in meters (1, 2, 3, 5, 10 standard).
Approximate Dimensions
Dimensions are shown in mm (in.). Dimensions are not intended to be used for installation purposes.
107 (4.21)
101.5 (3.99)
54 (2.12)
Safety Switches
Shorting plug for unused ports
107 (4.21)
39
(1.53)
33
(1.29)
101.5 (3.99)
22.2
(0.87)
15
(0.59)
54 (2.12)
presence-Sensing
Safety Devces
Face View of Female
Operator
Interface
4.5
(0.17)
33
(1.29)
120 (4.72)
4.5
(0.17)
152 (5.98)
39
(1.53)
18
(0.7)
Wiring Diagrams
M/M Connecto
Pin
No.
Pin 3
Pin 1
Port 4
Port 3
Port 2
M/M Connecto
Wire
Color
Blue
Brown
Port 1
Port 8
Logic
Pin 4
Black
Pin 2
White
Power
Visit our website: www.ab.com/catalogs
7-8
Publication S117-CA001A-EN-P
Port 7
Port 2
Pin
No.
Pin 3
Pin 1
Wire
Color
Blue
Brown
Pin 4
Pin 2
Black
White
Port 1
Connection Systems
Safety Wired Distribution Box, DC Micro Style
Single-Channel N.C. plus Individual N.O. Enunciation
Housing Material Red PBT
Connector Insert Material PBT
Connector Shell Material Nickel-plated brass
Contact Material Gold-plated palladium/nickel
Cable O.D. 9.8 mm (0.39 in.)
Cable Type
Oil-resistant yellow PVC jacket, (12)
18 AWG conductors
7-Safety Wired
Systems
Specifications
Enclosure Type Rating IP67
Operating Temperature [C (F)] -20…105° (-13…221°)
Features
8-
Prewired for single-channel (N.C.) safety with enunciation
8 safety wired 4-pin DC micro connectors
Individual enunciation output for each port
For use in category 2 or 3 systems per EN 954-1
Face View of Female
No. of Ports
2
1
Illuminated
Face View of Male
(1)
Rating
4
3
LEDs
10…30V DC
Cable
8
4
Cable Length
Cat. No.
5 m (16.4 ft)
898D-P44JT-A5
10 m (32.8 ft)
898D-P44JT-A10
5 m (16.4 ft)
898D-P48JT-A5
10 m (32.8 ft)
898D-P48JT-A10
898D-41KU-DM
889D-F4ACDM-1
Safety Switches
Shorting plug for unused ports
Patchcord, straight to straight DC Micro
1 Length in meters (1, 2, 3, 5, 10 standard).
Approximate Dimensions
See 8-port dimensions on page 7-7.
Wiring Diagrams
J1
Cable
Color
J5
J3
J7
Port
(Contact)
Operator
Interface
Yellow/Brown Port J1 (1)
Brown/Green Port J2 (3)
Cable
Color
presence-Sensing
Safety Devces
Product Selection
Green
LED
Red LED
Red
LED
Red LED
Red LED
Red LED
Red
LED
Red LED
Red LED
Port
(Contact)
Logic
Blue
-V
White
Port J1(4)
Yellow
Port J3(4)
Pink
Port J5(4)
Grey/Pink Port J7(4)
Red/Blue Port J8(4)
Red
Port J6(4)
Grey
Port J4(4)
Green
Port J2(4)
Brown
+V
Connections for 4 ports
Additional Connections for 8 ports
J4
J6
J8
Power
J2
Visit our website: www.ab.com/catalogs
Publication S117-CA001A-EN-P
7-9
Connection Systems
Safety Wired Distribution Box, AC Micro Style
8-Port, Dual-Channel (2 N.C.) plus Individual N.O. Enunciation
Specifications
7-Safety Wired
Systems
Housing Material Red PBT
Connector Insert Material PBT
Connector Shell Material Nickle-plated brass
Contact Material Gold-plated palladium/nickel
Cable O.D. 9.8 mm (0.39 in.) OD
Oil-resistant yellow PVC jacket, (6)
Cable Type 19 AWG conductors and (8) 22
AWG conductors
Enclosure Type Rating IP67
Operating Temperature [C (F)] -20…105° (-13…221°)
Features
8-
Prewired for dual-channel N.C. safety plus individual N.O.
enunciation
Eight 6-pin AC micro connectors
14-conductor main cable
Individual enunciation output for each port
For use in category 2 or 3 systems per EN 954-1
presence-Sensing
Safety Devces
Product Selection
Face View of Female
2
6
No. of Ports
Rating
Face View of Male
(1)
3
4
1
Illuminated
8
LEDs
10…30V DC
Cable
Cable Length
Cat. No.
5 m (16.4 ft)
898R-P68MT-A5
10 m (32.8 ft)
898R-P68MT-A10
5
Safety Switches
Shorting plug for unused ports
898R-61MU-RM
Patchcord, straight to straight DC Micro
889R-F6ECRM-1
1 Length in meters (1, 2, 3, 5, 10 standard).
Approximate Dimensions
See 8-port dimensions on page 7-7.
Wiring Diagrams
J1
Operator
Interface
Cable
Color
J5
J7
Port
(Contact)
Yellow/Brown
Brown/Green
White/Green
White/Yellow
Port J1 (5)
Port J2 (1)
Port J1 (6)
Port J2 (6)
Cable
Color
Port
(Contact)
Not/Used
-V
Port J1(4)
Port J3(4)
Port J5(4)
Port J7(4)
Port J8(4)
Port J6(4)
Port J4(4)
Port J2(4)
+V
Logic
Blue
White
Yellow
Pink
Grey/Pink
Red/Blue
Red
Grey
Green
Brown
J3
Green
LED
J2
Red LED
Red LED
Red LED
Red LED
Red LED
Red LED
Red LED
Red LED
J4
J6
Power
Visit our website: www.ab.com/catalogs
7-10
Publication S117-CA001A-EN-P
J8
Connection Systems
Safety Wired Shorting Plug
DC & AC Micro Style
Connector Insert Material PUR
Connector Shell Material RED PVC
Contact Material Brass, gold over nickel plating
O-Ring Material Fluorelastomer
Enclosure Type Rating IP67, NEMA 6P
Operating Temperature [C (F)] -20…105° (-13…221°)
7-Safety Wired
Systems
Specifications
Features
8-
Shorting plug designed for use with safety-wired distribution
boxes
PVC body offers good oil and chemical resistance
Ratcheting coupling nut on 4-pin models for vibration resistance
Face View of Male
Rating
Configuration
Wiring
Coupling Nut Material
Cat. No.
Epoxy-coated zinc
898D-41LU-DM
Epoxy-coated zinc
898D-41KU-DM
Nickel-plated brass
898R-61MU-RM
Nickel-plated brass
898D-418U-DM
Pin 1
Pin 2
2
2 N.C.
Pin 3
Pin 4
1
Pin 1
Pin 2
NA
1 N.O. & 1 N.C.
4
Pin 3
Pin 4
NA
Pin 1
3
10…30V DC
4A
6
2
Pin 2
Pin 3
NA
Pin 4
NA
2 N.C. & 1 N.O.
4
1
5
Pin 5
Pin 6
5
2
Pin 1
1
3
Safety Switches
3
For use with SensaGuard
compatible T-Ports only
Pin 2
Pin 3
Pin 4
PWR
OSSD 1+
NA
OSSD 2+
4
Operator
Interface
5
presence-Sensing
Safety Devces
Product Selection
Approximate Dimensions
Dimensions are shown in mm (in.). Dimensions are not intended to be used for installation purposes.
Logic
M12 x 1 Thread (4-pin)
1/2in UNF thread (6-pin)
15
(0.57)
Power
50 (1.97)
Visit our website: www.ab.com/catalogs
Publication S117-CA001A-EN-P
7-11
Connection Systems
Cordsets & Patchcords, DC Micro Style
18 and 22 AWG, Yellow, Black, or Blue PVC
Specifications
Certifications
UL Recognized and CSA Certified
7-Cables
Mechanical
Coupling Nut Material
Epoxy-coated zinc
Connector Shell Material
Molded oil resistant PVC or PUR
Contact Material
Gold over nickel-plated brass
Cable Type
Oil resistant yellow PVC jacket, 20 AWG
stranded copper, 300V, UL Recognized and
CSA Certified
Home Run Connection
10 x diameter
Cable Diameter
4/c = 5 mm (0.21 in.);
5/c = 6.5 mm (0.25 in.)
Electrical
8Features
presence-Sensing
Safety Devces
Ratcheting coupling nut
Subtle black or highly visible yellow PVC jacket offers good oil and
chemical resistance
Blue jacket models for intrinsically safe applications
Cable Rating
LED models: UL AWM style 2661 VW-1 105C
300V, CSA AWM A/B I/II 80C 300V FT1, UV
oil and water resistant
Assembly Rating
250V, 4 A
Environmental
Enclosure Type Rating
IP67 and IP69K, NEMA 6P
Operating Temperature [C (F)] -20…+105° (-4…+221°)
Approximate Dimensions
Dimensions are shown in mm (in.). Dimensions are not intended to be used for installation purposes.
47
(1.85)
34.3
(1.35)
50.8
(2.0)
31.8
(1.25)
14
(0.56)
14
(0.56)
14
(0.56)
Straight Female
Straight Male
Safety Switches
Right Angle Female
Example of Cordset
Right Angle Male
Example of Patchcord
Operator
Interface
Logic
Power
Visit our website: www.ab.com/catalogs
7-12
31.8
(1.25)
Publication S117-CA001A-EN-P
14
(0.56)
Connection Systems
Cordsets & Patchcords, DC Micro Style
18 and 22 AWG, Yellow, Black, or Blue PVC
Pinout and Color Code
5-Pin
2
1
Color
Code
5
2
3
1
3
4
1 Brown
2 White
3 Blue
1 Brown
2 White
3 Blue
4 Black
5 NA
4
4 Black
5 Grey
8-
A
7-Cables
Face View Pinout
4-Pin
Product Selection
Cordsets
4-Pin
A
Wire Size
Straight Female
Right Angle Female
Straight Male
Right Angle Male
Yellow
22 AWG
889D-F4AC-21
889D-R4AC-21
889D-M4AC-21
889D-E4AC-21
Yellow
18 AWG
889D-F4AE-21
889D-R4AE-21
889D-M4AE-21
889D-E4AE-21
889D-F4BC-21
889D-R4BC-21
889D-M4BC-21
889D-E4BC-21
Black
Blue
Yellow
5-Pin
Cat. No.
Jacket
Color
Black
22 AWG
22 AWG
889D-F4LC-21
889D-R4LC-21
889D-M4LC-21
889D-E4LC-21
889D-F5AC-21
889D-R5AC-21
889D-M5AC-21
889D-E5AC-21
889D-F5BC-21
889D-R5BC-21
889D-M5BC-21
889D-E5BC-21
Straight Female
Right Angle Male
Right Angle Female
Straight Male
Right Angle Female
Right Angle Male
889D-R4ACDE-2
Patchcords
Cat. No.
Pin
Count
Color
Code
4-Pin
A
5-Pin
Jacket
Color
Wire Size
Straight Female
Straight Male
Yellow
22 AWG
889D-F4ACDM-2
889D-F4ACDE-2
889D-R4ACDM-2
Yellow
18 AWG
889D-F4AEDM-2
889D-F4AEDE-2
889D-R4AEDM-2
889D-R4AEDE-2
Black
22 AWG
889D-F4BCDM-2
889D-F4BCDE-2
889D-R4BCDM-2
889D-R4BCDE-2
Blue
22 AWG
889D-F4LCDM-2
889D-F4LCDE-2
889D-R4LCDM-2
889D-R4LCDE-2
Yellow
22 AWG
889D-F5ACDM-2
889D-F5ACDE-2
889D-R5ACDM-2
889D-R5ACDE-2
Yellow
22 AWG
889D-F5BCDM-2
889D-F5BCDE-2
889D-R5BCDM-2
889D-R5BCDE-2
presence-Sensing
Safety Devces
Color
Code
Safety Switches
Pin
Count
1 Replace 2 (2 m) with 5 (5 m) or 10 (10 m) for standard cable lengths.
Operator
Interface
Replace 2 (2 m) with 0M3 (1 ft), 1 (1 m), 5 (5 m) or 10 (10 m) for standard lengths.
Power
Logic
Note: Stainless steel connectors may be ordered by adding an "S" to the cat. no. (e.g. 889DS-F4AC-1).
Visit our website: www.ab.com/catalogs
Publication S117-CA001A-EN-P
7-13
Connection Systems
Cordsets & Patchcords, DC Micro Style
18 and 22 AWG, PUR, TPE, or TPR
Specifications
Certifications
UL Recognized and CSA Certified
7-Cables
Mechanical
Coupling Nut Material
Epoxy-coated zinc
Connector Shell Material
Molded oil-resistant PVC or PUR
Contact Material
Gold over nickel-plated brass
Cable Type
Oil-resistant PVC jacket, 18 & 22 AWG or 24
AWG conductors, 300V; UL Recognized and
CSA Certified
Cable Diameter
4/c
4/c
5/c
7/c
8/c
(PUR); 5 mm (0.21 in.);
(18 AWG TPE); 7 mm (0.28 in.);
6.5 mm (0.25 in.);
7.4 mm (0.29 in.);
7.4 mm (0.29 in.)
8-
Electrical
Features
presence-Sensing
Safety Devces
PUR jacket provides good oil and chemical resistance
TPE jacket material for good oil, chemical, and weld slag
resistance
8-pin/7-wire configuration for Sipha safety switches and other
applications
Ratcheting coupling nuts for vibration resistance
Cable Rating
UL AWM style 2661 VW-1 105C 300V, CSA
AWM A/B I/II 80C 300V FT1, UV oil and
water resistant
Assembly Rating
250V, 4 A
Environmental
IP67, NEMA 6P, 1200 psi (8270 kPa)
washdown
Enclosure Type Rating
PUR: -20…+80° (-4…+176°);
Operating Temperature [C (F)] TPE: -20…+105° (-4…+221°);
TPR: -25…+125° (-13…+256°)
Approximate Dimensions
Dimensions are shown in mm (in.). Dimensions are not intended to be used for installation purposes.
Safety Switches
47
(1.85)
34.3
(1.35)
50.8
(2.0)
31.8
(1.25)
14
(0.56)
14
(0.56)
14
(0.56)
Straight Female
Straight Male
Right Angle Female
Example of Cordset
Right Angle Male
Example of Patchcord
Operator
Interface
Logic
Power
Visit our website: www.ab.com/catalogs
7-14
31.8
(1.25)
Publication S117-CA001A-EN-P
14
(0.56)
Connection Systems
Cordsets & Patchcords, DC Micro Style
18 and 22 AWG, PUR, TPE, or TPR
Pinout and Color Code
5-Pin
1
4
7
3
4
8
4
1
3
2
3
8
1
7
5
6
4
5
6
A
1 Brown
2 White
3 Blue
4 Black
5 NA
1 Brown
2 White
3 Blue
4 Black
5 Grey
1 Red
2 Blue
3 Green
4 Yellow
5 Black
6 White
7 N.C.
8 Grey
B
—
—
1 White
2 Brown
3 Green
4 Yellow
5 Grey
6 Pink
7 Blue
8 Red
8-
Color
Code
3
Product Selection
Cordsets
Cat. No.
Pin
Count
4-Pin
5-Pin
8-Pin
Cable Type
TPE
PUR
TPR
PUR
Wire Size
18 AWG
22 AWG
Assembly
Rating
Color
Code
18 AWG,
250V, 4 A
A
A
22 AWG
22 AWG,
250V, 4 A
24 AWG
30V AC/36V
DC 1.5 A
Straight Female
Right Angle
Female
Straight Male
889D-F4HJ-21
889D-R4HJ-21
889D-M4HJ-21
889D-E4HJ-21
889D-F4HL-21
889D-R4HL-21
889D-M4HL-21
889D-E4HL-21
889D-F4UC-21
889D-R4UC-21
889D-M4UC-21
889D-E4UC-21
889D-F5UC-21
889D-R5UC-21
889D-M5UC-21
889D-E5UC-21
A
889D-F8AC-21
—
—
—
B
889D-F8AB-21
889D-R8AB-21
889D-M8AB-21
—
A
Right Angle Male
Patchcords
Cat. No.
Cable Type
4-Pin
5-Pin
8-Pin
PUR
Assembly
Rating
Straight Female
Straight Male
Straight Female
Right Angle Male
Right Angle Female
Straight Male
Right Angle Female
Right Angle Male
22 AWG
22 AWG,
250V, 4 A
889D-F4UCDM-2
889D-F4UCDE-2
889D-R4UCDM-2
889D-R4UCDE-2
22 AWG
22 AWG,
250V, 4 A
889D-F5UCDM-2
889D-F5UCDE-2
889D-R5UCDM-2
889D-R5UCDE-2
24 AWG
30V AC/36V
DC 1.5 A
889D-F8ABDM-2
—
—
—
Wire Size
Operator
Interface
Pin
Count
presence-Sensing
Safety Devces
1
5
2
Safety Switches
2
8-Pin
2
7-Cables
Face View Pinout
4-Pin
1 Replace 2 (2 m) with 5 (5 m) or 10 (10 m) for standard cable lengths.
Replace 2 (2 m) with 0M3 (1 ft), 1 (1 m), 5 (5 m) or 10 (10 m) for standard lengths.
Power
Logic
Note: Stainless steel connectors may be ordered by adding an "S" to the cat. no. (e.g. 889DS-F4UCDM-1).
Visit our website: www.ab.com/catalogs
Publication S117-CA001A-EN-P
7-15
Connection Systems
Cordsets & Patchcords, AC Micro Style
22 AWG, PVC
Specifications
Certifications
UL Recognized and CSA Certified
7-Cables
Mechanical
Coupling Nut Material
Features
8-
Highly visible yellow PVC jacket offers good oil and chemical
resistance
Heavy-duty re-inforcing braiding can be used as a grounded shield
to reduce noise
Ratcheting coupling nut for vibration resistance
Epoxy-coated zinc
Connector Material
Molded oil-resistant polyurethane
Contact Material
Gold over nickel-plated brass
Cable Type
Oil-resistant yellow PVC jacket, 22 AWG
conductors, 300V, UL Recognized and CSA
Certified
Home Run Connection
10x diameter
Cable Diameter
6/c (22 AWG) = 6.7 (0.26)
Braiding
Tinned copper braid
Cable Rating
UL AWM style 2661 VW-1 105C 300V, CSA
AWM A/B I/II 80C 300V FT1, UV oil and
water resistant
Assembly Rating
Braided 22 AWG, 250V, 4 A
Environmental
Enclosure Type Rating
IP67
Operating Temperature [C (F)] -20…+105° (-4…+221°)
presence-Sensing
Safety Devces
Approximate Dimensions
Dimensions are shown in mm (in.). Dimensions are not intended to be used for installation purposes.
31.8
(1.25)
47 (1.85)
14
(0.56)
14
(0.56)
14
(0.56)
34.3
(1.35)
50.8 (2.0)
Straight Female
Straight Male
Safety Switches
Right Angle Female
Example of Cordset
Right Angle Male
Example of Patchcord
Operator
Interface
Logic
Power
Visit our website: www.ab.com/catalogs
7-16
14
(0.56)
31.8
(1.25)
Publication S117-CA001A-EN-P
Connection Systems
Cordsets & Patchcords, AC Micro Style
22 AWG, PVC
Pinout and Color Code
7-Cables
Face View Pinout
6-Pin
2
6
3
3
4
Color
Code
5
1 Red/White Tr.
2 Red
3 Green
A
2
4
5
1
6
1
4 Red/Yellow Tr.
5 Red/Black Tr.
6 Red/Blue Tr.
8-
Product Selection
Cordsets
Wire Size
6-Pin
Braided 22 AWG
Assembly Rating
Braided 22 AWG,
250V, 4 A
Color
Code
A
Straight Female
Right Angle
Female
Straight Male
Right Angle Male
889R-F6ECA-21
889R-R6ECA-21
889R-M6ECA-21
889R-E6ECA-21
Patchcords
Cat. No.
Pin
Count
Wire Size
6-Pin
Braided 22 AWG
Assembly Rating
Braided 22 AWG,
250V, 4 A
Color
Code
A
Straight Female to Straight Female to
Straight Male
Right Angle Male
Right Angle
Female to
Straight Male
Right Angle
Female to
Right Angle Male
889R-F6ECRM-2 889R-F6ECRE-2 889R-R6ECRM-2 889R-R6ECRE-2
presence-Sensing
Safety Devces
Cat. No.
Pin
Count
1 Replace 2 (2 m) with 5 (5 m) or 10 (10 m) for standard cable lengths.
Power
Logic
Operator
Interface
Safety Switches
Replace 2 (2 m) with 0M3 (1 ft), 1 (1 m), 5 (5 m) or 10 (10 m) for standard lengths.
Visit our website: www.ab.com/catalogs
Publication S117-CA001A-EN-P
7-17
Connection Systems
Cordsets & Patchcords, Mini Style
18 AWG, PVC
Specifications
Certifications
UL Recognized and CSA Certified
7-Cables
Mechanical
Coupling Nut Material
Epoxy-coated zinc
Connector Material
Molded oil-resistant PVC
Contact Material
Gold over nickel-plated brass
Cable Type
Oil-resistant yellow PVC jacket, 18 AWG
stranded copper, 300V; UL Recognized and
CSA Certified
Home Run Connection
10x diameter
Cable Diameter
4/c = 7 mm (0.27 in.)
5/c = 8 mm (0.31 in.)
Electrical
8-
Cable Rating
UL AWM style 2661 VW-1 105C 300V, CSA
AWM A/B I/II 80C 300V FT1, UV oil and
water resistant
Assembly Rating
4-pin = 300V, 7 A
5-pin = 300V, 5.6 A
Features
presence-Sensing
Safety Devces
General purpose 18 AWG cable
Highly visible yellow PVC jacket offers good oil and chemical
resistance
2-, 3-, 4-, 5-, and 6-pin configurations
Ratcheting coupling nut for vibration resistance
Environmental
NEMA 4, 6P, 12, 13; IP67 and IP69K; 1200
psi washdown
Enclosure Type Rating
Operating Temperature [C (F)] -20…105° (-4…221°)
Approximate Dimensions
Dimensions are shown in mm (in.). Dimensions are not intended to be used for installation purposes.
43.7 (1.72)
43.7 (1.72)
61.8 (2.43)
Safety Switches
27
(1.06)
61.8 (2.43)
27
(1.06)
45.2
(1.78)
Straight Male
Straight
Female
Right Angle Female
Operator
Interface
Example of Cordset
Right Angle Male
Example of Patchcord
Logic
Power
Visit our website: www.ab.com/catalogs
7-18
45.2
(1.78)
Publication S117-CA001A-EN-P
Connection Systems
Cordsets & Patchcords, Mini Style
18 AWG, PVC
Pinout and Color Code
C
(IEC)
5-Pin
1 Black
2 Blue
1 Black
2 Blue
3 Grey
3 Brown
4 White
4 Brown
5 White
8-
4-Pin
7-Cables
Face View Pinout
Color
Code
Assembly
Rating
4-Pin
300V, 7 A
5-Pin
300V, 5.6 A
Color
Code
C
Cat. No.
Straight Female
Right Angle Female
Straight Male
Right Angle Male
889N-F4AE-6F1
889N-R4AE-6F1
889N-U4AE-6F1
889N-V4AE-6F1
889N-F5AE-6F1
889N-R5AE-6F1
889D-M5UC-2‡
889N-V5AE-6F1
Patchcords
Cat. No.
Pin
Count
Assembly
Rating
Straight Female
Straight Male
Straight Female
Right Angle Male
Right Angle Female
Straight Male
Right Angle Female
Right Angle Male
4-Pin
300V, 7 A
889N-F4AENU-6F
889N-F4AENV-6F
889N-R4AENU-6F
889N-R4AENV-6F
5-Pin
300V, 5.6 A
889N-F5AENU-6F
889N-F5AENV-6F
889N-R5AENU-6F
889N-R5AENV-6F
1 Replace 6 (6 ft) with 12 (12 ft), or 20 (20 ft) for standard cable lengths.
‡ Replace 2 (2 m) with 5 (5 m) or 10 (10 m) for standard cable lengths.
Replace 6 (6 ft) with 3 (3 ft), 12 (12 ft), or 20 (20 ft) for standard cable lengths.
Power
Logic
Operator
Interface
Note: Stainless steel connectors may be ordered by adding an "S" to the cat. no. (e.g. 889NS-F3AEC-1F).
Safety Switches
Pin
Count
presence-Sensing
Safety Devces
Product Selection
Cordsets
Visit our website: www.ab.com/catalogs
Publication S117-CA001A-EN-P
7-19
Connection Systems
Cordsets and Patchcords, Mini-Plus Style
18 AWG
Specifications
Certifications
UL Recognized and CSA Certified
7-Cables
Mechanical
Coupling Nut Material
Epoxy-coated zinc, 18 AWG
Connector Material
Molded oil-resistant PVC
Contact Material
Gold over nickel-plated brass
Cable Type
Oil-resistant yellow PVC jacket, 18 AWG
stranded copper, 300V; UL Recognized and
CSA Certified, STOOW
Features
Cable Diameter
Highly visible yellow PVC jacket offers good oil and chemical
resistance
7/c = 14 mm (0.55 in.)
8/c = 15 mm (0.59 in.)
Electrical
8-
Cable Rating
18 AWG: UL AWM style 2517 or 2661 105C
300V, CSA AWM A/B I/II 105C 300V FT1
Assembly Rating
(5) 18 AWG/(2) 20 AWG, 300V, 3 A
Environmental
Enclosure Type Rating
NEMA 4, 6P, 12, 13; IP67; 1200 psi
washdown
Operating Temperature [C (F)] -40…+105° (-40…+221°)
presence-Sensing
Safety Devces
Approximate Dimensions
Dimensions are shown in mm (in.). Dimensions are not intended to be used for installation purposes.
55.8 (2.2)
28.4
(1.12) Dia.
Safety Switches
Straight Female
Example of Cordset
Operator
Interface
Logic
Power
Visit our website: www.ab.com/catalogs
7-20
Publication S117-CA001A-EN-P
Connection Systems
Cordsets and Patchcords, Mini-Plus Style
18 AWG
Pinout and Color Code
7-Cables
Face View Pinout
7-Pin
8-Pin
Color
Code
1
2
3
4
Black
White
Blue
Brown
5 Grey
6 Yellow
7 Green
1
2
3
4
Red
White
Blue
Brown
5
6
7
8
Grey
Yellow
Green
Pink
8-
B
20 AWG conductors
presence-Sensing
Safety Devces
Product Selection
Cordsets
Cat. No.
Pin Count
Wire Size
Assembly Rating
Color Code
7-Pin
(5) 18 AWG (2) 20 AWG
8-Pin
18 AWG
(5) 18 AWG/(2) 20 AWG, 300V,
3A
B
Straight Female
889N-F7AG-21
889N-F8AE-21
Power
Logic
Operator
Interface
Safety Switches
1 Replace 2 (2 m) with 5 (5 m), 10 (10 m), 20 (20 m), or 30 (30 m) for standard cable lengths.
Visit our website: www.ab.com/catalogs
Publication S117-CA001A-EN-P
7-21
Connection Systems
Cordsets & Patchcords, M23 Style
18 or 18/22 AWG, Yellow PVC
Specifications
Certifications
UL Recognized and CSA Certified
7-Cables
Mechanical
Coupling Nut Material
Features
Nickel-plated brass
Connector Material
Molded oil-resistant PUR
Contact Material
Gold over nickel-plated brass
Cable Type
Oil-resistant yellow PVC jacket, 18 AWG
conductors, 60V, UL Recognized and CSA
Certified
Home Run Connection
10x diameter
Cable Diameter
10 mm (0.41 in.)
Electrical
8-
12-pin configuration for SafeShield light curtains and other
applications
Highly visible yellow PVC jacket offers good oil and chemical
resistance
Cable Rating
300V
Assembly Rating
9- & 12-pin: 300V, 4 A; 11-pin: 63V, 6 A; 19pin: 63V, 12 A
Environmental
IP67, NEMA 6P, 1200 psi (8270 kPa)
washdown
Enclosure Type Rating
Operating Temperature [C (F)] -20…+80° (-4…+176°)
presence-Sensing
Safety Devces
Approximate Dimensions
Dimensions are shown in mm (in.). Dimensions are not intended to be used for installation purposes.
85 (3.35)
26.2
(1.03) Dia.
Length
50.2 (1.98)
26.2
(1.03) Dia.
69.7
(2.74)
M23 x 1
Safety Switches
Straight Internal Threads
Length
Right Angle Internal Threads
Example of Cordset
Example of Patchcord
Operator
Interface
Logic
Power
Visit our website: www.ab.com/catalogs
7-22
Publication S117-CA001A-EN-P
Connection Systems
Cordsets & Patchcords, M23 Style
18 or 18/22 AWG, Yellow PVC
Pinout and Color Code
7-Cables
Face View Pinout
9-, 11-, or 12-Pin
2
3
Color
Code
1
10
7
7
2
6
6
11
4
12
12
3
11
5
5
4
A
1
2
3
4
Brown
NA
Blue
White
5
6
7
8
NA
Green
Yellow
Grey
9 Pink
10 Red
11 NA
12 Green/Yellow
B
1
2
3
4
Brown
Blue
Grey
Pink
5
6
7
8
Red
Yellow
White
Red/Blue
9 Black
10 Violet
11 Grey/Pink
12 Green
8-
10
9
8
8
Product Selection
Cordsets
Cat. No.
No. of Pins
Color Code
Jacket Color
Wire Size
Straight Female
9-Pin
A
Yellow
18 AWG
889M-FX9AE-21
Right Angle Female
889M-RX9AE-21
12-Pin
B
Yellow
18 AWG
889M-F12AH-21
889M-R12AH-21
presence-Sensing
Safety Devces
9
1
Safety Switches
Patchcords
Cat. No.
Pin Count
12-Pin
Jacket Color
Yellow
Wire Size
18 AWG
Straight Female
Straight Male
889M-F12AHMU-2
1 Replace 2 (2 m) with 5 (5 m) or 10 (10 m) for standard cable lengths.
Power
Logic
Operator
Interface
Replace 2 (2 m) with 0M3 (1 ft), 0M6 (0.6 m), 1 (1 m), or 3 (3 m) for standard cable lengths.
Visit our website: www.ab.com/catalogs
Publication S117-CA001A-EN-P
7-23
Connection Systems
Field Attachables, DC Micro Style
Screw Terminal Connector
Specifications
7-Connectors
Mechanical
Coupling Nut Material
Nickel-plated brass
Connector Shell Material
PBT, except embedded thermistor models:
Nylon
Contact Material
Gold plated palladium nickel
Wire Rating
18 AWG (0.75 mm2)
Electrical
8-
Features
Assembly Rating
Field installable
4- or 5-pin DC micro style
Single cable or dual cable models
Screw terminals provide simple and secure installation
Allows easy modification of existing cable installations
Embedded thermistor models designed for use with ArmorPoint
thermocoupling input modules provide cold junction compensation
capability
Environmental
4- or 5-pin: 250V, 4 A; 8-pin: 60V, 2 A
Enclosure Type Rating
IP67
Operating Temperature [C (F)] -40…88° (-40…185°)
presence-Sensing
Safety Devces
Approximate Dimensions
Dimensions are shown in mm (in.). Dimensions are not intended to be used for installation purposes.
Rear Nut
20
(0.79)
9
(0.35)
54 (2.1)
60 (2.4)
Safety Switches
20
(0.79)
Dia.
20
(0.79)
Dia.
M12x1
M12x1
Straight Female
Straight Male
35 (1.38)
41 (1.61)
25 (0.98)
Operator
Interface
20
(0.79)
Dia.
20.5
(0.81)
M12x1
14.8
(0.58)
Dia.
Right Angle Female
20
(0.79)
Dia.
20.5
(0.81)
M12x1
14.8
(0.58)
Dia.
Right Angle Male
Logic
Power
Visit our website: www.ab.com/catalogs
7-24
Publication S117-CA001A-EN-P
Connection Systems
Field Attachables, DC Micro Style
Screw Terminal Connector
Face View Pinout
4-Pin
5-Pin
2
1
8-Pin
2
5
2
8
4
1
1
4
7
3
Female
2
3
8
1
3
4
3
7
5
6
4
Male
5
Female
7-Connectors
Pinout and Color Code
6
Male
8-
Product Selection
Single-Cable Model Terminal Chambers
5-Pin
8-Pin
Thread Size
Straight Female
Right Angle
Female
PG 7
871A-TS4-D
871A-TR4-D
871A-TS4-DM
871A-TR4-DM
PG 9
871A-TS4-D1
871A-TR4-D1
871A-TS4-DM1
871A-TR4-DM1
4.0…6.0
(0.16…0.24)
PG 7
871A-TS5-D
871A-TR5-D
871A-TS5-DM
871A-TR5-DM
—
PG 9
871A-TS5-D1
871A-TR5-D1
871A-TS5-DM1
871A-TR5-DM1
PG 9
871A-TS8-D1
—
871A-TS8-DM1
—
Assembly Rating
4.0…6.0
(0.16…0.24)
6.0…8.0
(0.24…0.32)
6.0…8.0
(0.24…0.32)
250V, 4 A
60V, 2 A
Straight Male
Right Angle Male
Dual-Cable Model Terminal Chambers
Pin
Count
Cable Diameter
[mm (in.)]
4-Pin
Two cables 2.1…3.0
(0.08…0.12) or 3.5…5.2
(0.14…0.21)
5-Pin
Cat. No.
Assembly Rating
250V, 4 A
Thread Size
PG 9
Straight Male
Right Angle Male
871A-VS4-DM
871A-VR4-DM
871A-VS5-DM
871A-VR5-DM
Power
Logic
Operator
Interface
Note: Stainless steel coupling nuts are available, add an "S" to the cat. no. (e.g. 871AS-TS4-DM).
Safety Switches
4-Pin
Cable Diameter
[mm (in.)]
presence-Sensing
Safety Devces
Cat. No.
Pin
Count
Visit our website: www.ab.com/catalogs
Publication S117-CA001A-EN-P
7-25
Connection Systems
Field Attachables, DC Micro Style
Insulation Displacement Connector
Specifications
7-Connectors
Features
8-
Field installable with no hand tools required
4-pin DC micro style
Straight or right angle, male or female
Allows easy modification of existing cable installations
Insulation displacement technology for secure and reliable
installation
Coupling Nut Material
Zinc die-cast
Connector Shell Material
Zinc die-cast or polyamide
Connector Material
Hytrel
Contact Material
Gold-plated palladium nickel
Enclosure Type Rating
IP67
Operating Temperature [C (F)]
-25…85° (-13…185°)
Installation Temperature [C (F)]
-5…50° (23…185°)
IDC Installations
10 max.
Cable Diameter [mm (in.)]
4.0…5.1 (0.16…0.20)
Wire Size
1.2…1.6 (0.047…0.063) 26…22 AWG
Approximate Dimensions
Dimensions are shown in mm (in.). Dimensions are not intended to be used for installation purposes.
presence-Sensing
Safety Devces
15-20
(0.60-0.75)
Safety Switches
51.6 (2.03)
54.8 (2.16)
Straight Female
Straight Male
14.7
(0.58)
36.5 (1.44)
40 (1.57)
39.4
(0.55)
39.4
(0.55)
Right Angle Female
Right Angle Male
Operator
Interface
Product Selection
Connector Style
Cable Diameter
[mm (in.)]
Face View
Wire Rating
Female
Straight Male
Right Angle Male
2
4.0…5.1
(0.16…0.20)
32V, 4 A
1
Cat. No.
Male
5
3
4
1
3
Logic
Power
Visit our website: www.ab.com/catalogs
7-26
2
Publication S117-CA001A-EN-P
4
Female
Male
889D-F4DC-H
889D-M4DC-H
889D-R4DC-H
889D-E4DC-H
Connection Systems
Field Attachables, M23 Style
Solder Connector
Coupling Nut Material
Nickel-plated brass
Connector Shell Material
Nickel-plated brass
Contact Material
Gold-plated palladium/nickel
Wire Rating
18 AWG (1.0 mm2), max.
Enclosure Type Rating
IP65
7-Connectors
Specifications
Operating Temperature [C (F)] -20…+105° (-4…221°)
Features
Straight or right angle, male or female
12-pin M23 style for standard connectivity
Allows modification of existing cable installations and field creation
of special cable lengths
Solder connector for secure and reliable installation
Approximate Dimensions
Dimensions are shown in mm (in.). Dimensions are not intended to
be used for installation purposes. 26
48 (1.89)
56.5
(2.22)
49 (1.93)
M23 x 1
8-
(1.02) Dia.
24 (0.94)
(across flats)
20 (0.79)
PG 13.5
20
(0.79)
Straight Internal Threads
Product Selection
Connector Style
Cable Diameter
[mm (in.)]
Face View
Wire Rating
Cat. No.
Female
Male
Straight Male
9
1
2
3
6
11
4
7
5
889M-R12AH-T
889M-E12AH-T
1
10
7
2
6
3
11
5
4
Operator
Interface
60V
4A
12
889M-M12AH-T
Logic
10…14 (0.39…0.55)
9
8
8
12
Male
889M-F12AH-T
Power
Right Angle Male
10
Female
Safety Switches
PG 13.5
presence-Sensing
Safety Devces
20 (0.79)
(across flats)
Visit our website: www.ab.com/catalogs
Publication S117-CA001A-EN-P
7-27
Connection Systems
Receptacles, DC Micro Male
4-Pin, 5-Pin or 8-Pin and AC Micro Male, 6-Pin
Specifications
7-Connectors
Connector Shell Material Nickel-plated brass
Connector Insert Material Nylon
Contact Type
Wire Insulation
Machined brass with gold over
nickel plating
Oil resistant PVC, 22 AWG stranded
copper, 300V
Operating Temperature [C (F)] -20…+105° (-4…+221°)
Features
Male bulkhead receptacles
4-, 5- or 8-pin DC micro configuration
M16, M20 or 1/2 inch-14 NPT mounting threads
8-
Approximate Dimensions
Dimensions are shown in mm (in.). Dimensions are not intended to be used for installation purposes.
22.2
(0.88)
22.2
(0.88)
presence-Sensing
Safety Devces
18
(0.71)
101.6 (4)
Ref.
1/2 inch NPT threads
O-Ring
M20 threads
O-Ring
M16 threads
23.8
(0.94)
23.8
(0.94)
11.1
(0.44)
101.6 (4)
Ref.
19.8 (0.78)
A
12.7
(0.5)
19.5 (0.77)
12.7
(0.5)
304.8 (12)
Ref.
25.4 (1.0)
B
C
Product Selection
Safety Switches
Face View of Male
Wire Color
1 Brown
2 White
3 Blue
4 Black
2
5
1
3
4
3
1 Red/White Tr
2 Red
3 Green
4 Red/Yellow Tr
5 Red/Black Tr
6 Red/Blue Tr
6
2
4
Operator
Interface
5
1
3
2
8
1
4
7
5
6
1 Brown
2 White
3 Blue
4 Black
5 Grey
1 White
2 Brown
3 Green
4 Yellow
5 Grey
6 Pink
7 Blue
8 Red
Wire Rating
Length [m (ft)]
Panel Mount Thread
Size
Drawing
Cat. No.
M16 x 1
A
888D-M4AC9-4N
0.1 (0.3)
0.3 (1)
22 AWG
300V
3A
M20 x 1.5
B
888D-M4AC8-4N
1/2 inch-14 NPT
C
888D-M4AC1-0M3
M16 x 1
A
888D-M5AC9-4N
M20 x 1.5
B
888D-M5AC8-4N
1/2 inch-14 NPT
C
888D-M5AC1-0M3
0.1 (0.3)
0.3 (1)
M16 x 1
A
888R-M6AC9-4N
M20 x 1.5
B
888R-M6AC8-4N
1/2 inch-14 NPT
C
888R-M6AC1-0M3
M16 x 1
A
888D-M8AC9-4N
M20 x 1.5
B
888D-M8AC8-4N
0.1 (0.3)
22 AWG
300V
3A
0.3 (1)
24 AWG
36V DC/30V AC
1.5 A
0.1 (0.3)
Logic
Power
Visit our website: www.ab.com/catalogs
7-28
Publication S117-CA001A-EN-P
Connection Systems
Receptacles, M23 Male
Connector Shell Material
Features
Nylon
Contact Material
Machined brass with gold over nickel plating
Wire Size
Oil resistant PVC, 18 AWG stranded copper,
300V
Certifications
Cable: UL Recognized and CSA Certified
Enclosure Type Rating
IP67, NEMA 6P, 1200 psi (8270 kPa)
washdown
Operating Temperature [C (F)] -20…+105° (-4…+221°)
8-
18 AWG conductors for ease of wiring
12-pin configuration provides standard connectivity
M20 x 1.5 threads for convenient mounting to safety switches
Mounting nut and rubber sealing washer included
Nickel-plated brass
Connector Insert Material
7-Connectors
Specifications
Approximate Dimensions
Dimensions are shown in mm (in.). Dimensions are not intended to be used for installation purposes.
29.5 (1.16)
Length
Safety Switches
M20 x 1.5 panel
nut and gasket
included
M20 x 1.5
M23 x 1
presence-Sensing
Safety Devces
23.5 (0.93)
Product Selection
Cable
1
10
7
2
6
3
11
5
4
1 Brown
2 NA
3 Blue
4 White
5 NA
6 Green
7 Yellow
8 Grey
9 Pink
10 Red
11 NA
12 Green/Yellow
Length [m (ft)]
Panel Mount Thread
Size
Cat. No.
888M-M12AE-0F5
18 AWG
60V
4A
0.15 (0.5)
Operator
Interface
12
1 Brown
2 Blue
3 Grey
4 Pink
5 Red
6 Yellow
7 White
8 Red/Blue
9 Black
10 Violet
11 Grey/Pink
12 Green
Wire Rating
M20 x 1.5
888M-M12X9AE-0F5
Logic
9
8
Wire Color
Power
Face View of Male
Visit our website: www.ab.com/catalogs
Publication S117-CA001A-EN-P
7-29
Connection Systems
Notes
7-Notes
8presence-Sensing
Safety Devces
Safety Switches
Operator
Interface
Logic
Power
Visit our website: www.ab.com/catalogs
7-30
Publication S117-CA001A-EN-P
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
