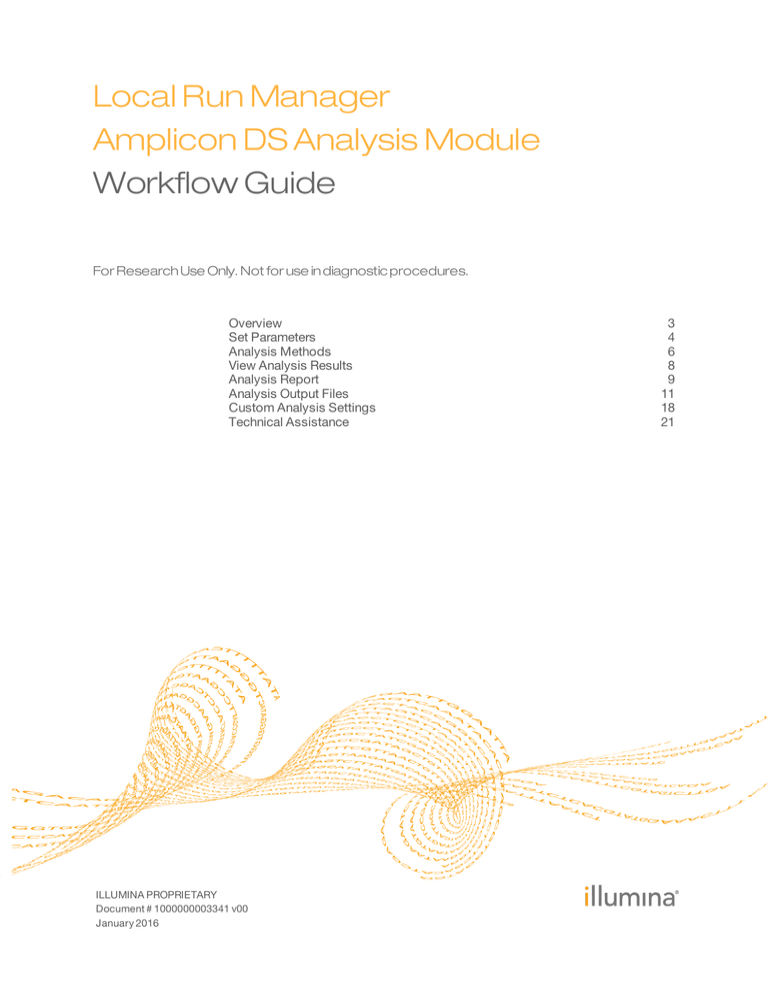

Local Run Manager

Amplicon DS Analysis Module

Workflow Guide

For Research Use Only. Not for use in diagnostic procedures.

Overview

Set Parameters

Analysis Methods

View Analysis Results

Analysis Report

Analysis Output Files

Custom Analysis Settings

Technical Assistance

6

8

3

4

9

11

18

21

ILLUMINA PROPRIETARY

Document # 1000000003341 v00

January 2016

This document and its contents are proprietary to Illumina, Inc. and its affiliates ("Illumina"), and are intended solely for the contractual use of its customer in connection with the use of the product(s) described herein and for no other purpose. This document and its contents shall not be used or distributed for any other purpose and/or otherwise communicated, disclosed, or reproduced in any way whatsoever without the prior written consent of Illumina. Illumina does not convey any license under its patent, trademark, copyright, or common-law rights nor similar rights of any third parties by this document.

The instructions in this document must be strictly and explicitly followed by qualified and properly trained personnel in order to ensure the proper and safe use of the product(s) described herein. All of the contents of this document must be fully read and understood prior to using such product(s).

FAILURE TO COMPLETELY READ AND EXPLICITLY FOLLOW ALL OF THE INSTRUCTIONS CONTAINED HEREIN

MAY RESULT IN DAMAGE TO THE PRODUCT(S), INJURY TO PERSONS, INCLUDING TO USERS OR OTHERS, AND

DAMAGE TO OTHER PROPERTY.

ILLUMINA DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE IMPROPER USE OF THE PRODUCT(S)

DESCRIBED HEREIN (INCLUDING PARTS THEREOF OR SOFTWARE).

© 2016 Illumina, Inc. All rights reserved.

Illumina, 24sure, BaseSpace, BeadArray, BlueFish, BlueFuse, BlueGnome, cBot, CSPro, CytoChip, DesignStudio,

Epicentre, ForenSeq, Genetic Energy, GenomeStudio, GoldenGate, HiScan, HiSeq, HiSeq X, Infinium, iScan, iSelect,

MiSeq, MiSeqDx, MiSeq FGx, NeoPrep, NextBio, Nextera, NextSeq, Powered by Illumina, SureMDA, TruGenome,

TruSeq, TruSight, Understand Your Genome, UYG, VeraCode, verifi, VeriSeq, the pumpkin orange color, and the streaming bases design are trademarks of Illumina, Inc. and/or its affiliate(s) in the U.S. and/or other countries. All other names, logos, and other trademarks are the property of their respective owners.

Overview

The Local Run Manager Amplicon DS analysis module aligns reads against the reference specified in the manifest files using the banded Smith-Waterman algorithm.

After alignment, the somatic variant caller performs variant analysis. This workflow is designed specifically for dual-strand targeted resequencing assays.

Compatible Library Types

The Amplicon DS analysis module is compatible with specific library types represented by library kit categories on the Create Run screen. For a current list of compatible library kits, see the Local Run Manager support page on the Illumina website.

Input Requirements

In addition to sequencing data files generated during the sequencing run, such as base call files, the Amplicon DS analysis module requires the following files.

} Manifest files (2)—The Amplicon DS analysis module requires 2 assay-specific manifest files: a manifest file for the forward pool and a manifest file for the reverse pool. Manifest files are available for download from the Illumina website.

}

Reference genome—The Amplicon DS analysis module requires the hg19 reference genome for coordinates and chromosome mapping, which is included in with the

Local Run Manager software installation.

Uploading Manifests

To import a manifest for all runs using the Amplicon DS analysis module, use the

Module Settings command from the Local Run Manager navigation bar. For more information, see the Local Run Manager Software Guide (document # 1000000002702).

Alternatively, you can import a manifest for the current run only using the Import

Manifests command on the Create Run screen.

About This Guide

This guide provides instructions for setting up run parameters for sequencing and analysis parameters for the Amplicon DS analysis module. For information about the

Local Run Manager dashboard and system settings, see the Local Run Manager Software

Guide (document # 1000000002702).

Local Run Manager Amplicon DS Analysis Module Workflow Guide

3

Set Parameters

1 Click Create Run, and select Amplicon DS.

2 Enter a run name that identifies the run from sequencing through analysis.

Use alphanumeric characters, spaces, underscores, or dashes.

3 [Optional] Enter a run description to help identify the run.

Use alphanumeric characters.

Specify Run Settings

1 Select a library kit category from the Library Kit drop-down list.

}

TruSight Amplicon Panels

} TruSeq Amplicon

2 Specify the number of cycles for the run.

3 [Optional] Specify any custom primers to be used for the run.

NOTE

By default, the Amplicon DS analysis module is set to 2 index reads of 8 cycles each and the read type Paired End.

Specify Module-Specific Settings

1 Click the On/Off toggle to enable or disable the Indel Repeat Filter Cutoff setting.

}

Indel Repeat Filter Cutoff—On by default. When enabled, indels are filtered when the reference has a 1-base or 2-base motif over 8 times next to the variant.

NOTE

By default, the Amplicon DS analysis module uses the Smith-Waterman algorithm for alignment and the Somatic Variant Caller.

Import Manifest Files for the Run

1 Make sure that the manifests you want to import are available in an accessible network location or on a USB drive.

2 Click Import Manifests.

3 Navigate to the manifest file and select the manifest that you want to add.

NOTE

To import manifests for any run using the Amplicon DS analysis module, use the Module

Settings feature from the navigation bar.

Specify Samples for the Run

Specify samples for the run using the following options:

}

Enter samples manually—Use the blank table on the Create Run screen.

}

Import samples—Navigate to an external file in a comma-separated values (*.csv) format. A template is available for download on the Create Run screen.

After you have populated the samples table, you can export the sample information to an external file, and use the file as a reference when preparing libraries or import the file for another run.

4

Document # 1000000003341 v00

Enter Samples Manually

1 Adjust the samples table to an appropriate number of rows.

}

Click the + icon to add a row.

}

Use the up/down arrows to add multiple rows. Click the + icon.

}

Click the x icon to delete a row.

} Right-click on a row in the table and use the commands in the drop-down menu.

2 Enter a unique sample ID in the Sample ID field.

Use alphanumeric characters, dashes, or underscores.

3 Enter a sample name in the Sample Name field.

The sample name is required to connect strand A and strand B with a common name.

Use alphanumeric characters, dashes, or underscores.

4 [Optional] Enter a sample description in the Sample Description field.

Use alphanumeric characters, dashes, underscores, or spaces.

5 Select an Index 1 adapter from the Index 1 (i7) drop-down list.

6 Select an Index 2 adapter from the Index 2 (i5) drop-down list.

7 Select a manifest file from the Manifest drop-down list.

8 [Optional] Click the Export icon to export sample information in *.csv format.

9 Click Save Run.

Import Samples

1 Click Template. The template file contains the correct column headings for import.

2 Enter the sample information in each column for the samples in the run, and then save the file.

3 Click Import Samples and browse to the location of the sample information file.

4 When finished, click Save Run.

Local Run Manager Amplicon DS Analysis Module Workflow Guide

5

Analysis Methods

The Amplicon DS analysis module performs the following analysis steps and then writes analysis output files to the Alignment folder.

}

Demultiplexes index reads

}

Generates FASTQ files

} Aligns to a reference

}

Identifies variants

Demultiplexing

Demultiplexing compares each Index Read sequence to the index sequences specified for the run. No quality values are considered in this step.

Index reads are identified using the following steps:

}

Samples are numbered starting from 1 based on the order they are listed for the run.

}

Sample number 0 is reserved for clusters that were not assigned to a sample.

} Clusters are assigned to a sample when the index sequence matches exactly or when there is up to a single mismatch per Index Read.

FASTQ File Generation

After demultiplexing, the software generates intermediate analysis files in the FASTQ format, which is a text format used to represent sequences. FASTQ files contain reads for each sample and the associated quality scores. Any controls used for the run and clusters that did not pass filter are excluded.

Each FASTQ file contains reads for only 1 sample, and the name of that sample is included in the FASTQ file name. In the Amplicon DS workflow, 2 FASTQ files are generated per sample, 1 from pool A, and 1 from pool B. FASTQ files are the primary input for alignment.

Alignment

During the alignment step, the banded Smith-Waterman algorithm aligns clusters from each sample against amplicon sequences specified in the manifest file.

The banded Smith-Waterman algorithm performs local sequence alignments to determine similar regions between 2 sequences. Instead of comparing the total sequence, the Smith-Waterman algorithm compares segments of all possible lengths. Local alignments are useful for dissimilar sequences that are suspected to contain regions of similarity within the larger sequence. This process allows alignment across small amplicon targets, often less than 10 bp.

Each paired-end read is evaluated in terms of its alignment to the relevant probe sequences for that read.

}

Read 1 is evaluated against the reverse complement of the Downstream Locus-

Specific Oligos (DLSO).

} Read 2 is evaluated against the Upstream Locus-Specific Oligos (ULSO).

}

If the start of a read matches a probe sequence with no more than 1 mismatch, the full length of the read is aligned against the amplicon target for that sequence.

Alignments that include more than 3 indels are filtered from alignment results. Filtered alignments are written in alignment files as unaligned and are not used in variant calling.

6

Document # 1000000003341 v00

Variant Calling

Developed by Illumina, the Somatic Variant Caller identifies variants present at low frequency in the DNA sample.

The somatic variant caller identifies SNPs in 3 steps:

} Considers each position in the reference genome separately

} Counts bases at the given position for aligned reads that overlap the position

}

Computes a variant score that measures the quality of the call using Poisson model.

Variants with a quality score below Q20 are excluded.

Variants are first called for each pool separately. Then, variants from each pool are compared and combined into a single output file. If a variant meets the following criteria, the variant is marked as PASS in the variant call (VCF) file:

}

The variant is present in both pools

}

Has a cumulative depth of 1000 or an average depth of 500x per pool

} Has a variant frequency of ≥ 3% as reported in the merged VCF file

Local Run Manager Amplicon DS Analysis Module Workflow Guide

7

View Analysis Results

1 From the Local Run Manager dashboard, click the run name.

2 From the Run Overview tab, review the sequencing run metrics.

3 [Optional] Click the Copy to Clipboard icon for access to the output run folder.

4 Click the Sequencing Information tab to review run parameters and consumables information.

5 Click the Samples and Results tab to view the analysis report.

}

If analysis was repeated, expand the Select Analysis drop-down list and select the appropriate analysis.

}

From the left navigation bar, select a sample name to view the report for another sample.

6 [Optional] Click the Copy to Clipboard icon for access to the Analysis folder.

8

Document # 1000000003341 v00

Analysis Report

Analysis results are summarized on the Samples and Results tab. The report is also available in a PDF file format for each sample and as an aggregate report in the Analysis folder.

Sample Information

Table 1 Sample Information Table

Column Heading

Sample ID

Description

The sample ID provided when the run was created.

Sample Name

Run Folder

Total PF Reads

Percent Q30 Bases

The sample name provided when the run was created.

The name of the run folder.

The total number of reads passing filter.

The percentage of bases called with a quality score ≥ Q30.

Amplicon Summary

Table 2 Amplicon Summary Table

Column Heading Description

Pool Name

Number of Amplicon

The name of the file that specifies the reference for pool A

(Pool_FPA) and pool B (Pool_FPB).

The number of amplicon regions sequenced as specified in the manifest file. Listed for pool A and pool B.

Total Length of Amplicons The total length in base pairs of sequenced amplicons in the target regions. Listed for pool A and pool B.

Read Level Statistics

Table 3 Read Level Statistics Table

Column Heading Description

Pool_FPA or Read level statistics are listed separately for each pool.

Pool_FPB

Total Aligned Reads The total number of reads that aligned to the reference for each read (Read 1 and Read 2) and the total of Read 1 and Read 2.

Percent Aligned Reads The percentage of reads that aligned to the reference for each read

(Read 1 and Read 2) and the percentage of Read 1 and Read 2 combined.

Base Level Statistics

Table 4 Base Level Statistics Table

Column Heading Description

Pool_FPA or Base level statistics are listed separately for each pool.

Pool_FPB

Total Aligned Bases The total number of bases that aligned to the reference for each read (Read 1 and Read 2) and the total of Read 1 and Read 2.

Percent Aligned Bases The percentage of aligned bases averaged over cycles per read

(Read 1 and Read 2) and the total of Read 1 and Read 2.

Percent Q30

Mismatch Rate

The percentage of bases called with a quality score ≥ Q30.

The percentage of bases that did not align to the reference averaged over cycles per read (Read 1 and Read 2).

Local Run Manager Amplicon DS Analysis Module Workflow Guide

9

Small Variants Summary

Table 5 Small Variants Summary Table

Row Heading Description

Total Passing The total number of variants passing filter for single nucleotide variations (SNVs), insertions, and deletions.

Percent Found in dbSNP The percentage of variants called by the variant caller that are also present in dbSNP.

Het/Hom Ratio The ratio of the number of heterozygous SNPs and number of homozygous SNPs detected for the sample.

Ts/Tv Ratio The ratio of transitions and transversions in SNPs.

• Transitions are variants of the same nucleotide type

(pyrimidine to pyrimidine, C and T; or purine to purine, A and G).

• Transversions are variants of a different nucleotide type

(pyrimidine to purine, or purine to pyrimidine).

Coverage Summary

Table 6 Coverage Summary Table

Column Heading Description

Amplicon Mean

Coverage

The total number of aligned bases divided by the targeted region size.

Uniformity of Coverage The percentage of amplicon regions with coverage values greater than the low coverage threshold of 0.2 * amplicon mean coverage.

Coverage by Amplicon Region Plot

The Coverage by Amplicon Region plot show the coverage across amplicon regions.

Regions with coverage values lower than the coverage threshold are highlighted in red.

The average of all values is indicated by an orange line.

A plot is provided for the overall coverage, coverage for pool FPA, and pool FPB.

Figure 1 Coverage by Amplicon Region Plot (Example)

10

Document # 1000000003341 v00

Analysis Output Files

The following analysis output files are generated for the Amplicon DS analysis module and provide analysis results for alignment and variant calling. Analysis output files are located in the Alignment folder.

File Name

Demultiplexing (*.demux)

FASTQ (*.fastq.gz)

Description

Intermediate files containing demultiplexing results.

Intermediate files containing quality scored base calls.

FASTQ files are the primary input for the alignment step.

Contains aligned reads for a given sample.

Alignment files in the

BAM format (*.bam)

Per-Pool variant call files in the VCF format (*.vcf)

Variant call files in the genome VCF format

(*.genome.vcf)

Consensus variant call files in the VCF format (*.vcf)

AmpliconCoverage_M1.tsv

Contains variants called at each position from either the forward pool or the reverse pool.

Contains the genotype for each position, whether called as a variant or called as a reference.

Contains variants called at each position from both pools.

Contains information about coverage per amplicon per sample for each manifest provided. M# represents the manifest number.

Demultiplexing File Format

The process of demultiplexing reads the index sequence attached to each cluster to determine from which sample the cluster originated. The mapping between clusters and sample number are written to 1 demultiplexing (*.demux) file for each tile of the flow cell.

The demultiplexing file naming format is s_1_X.demux, where X is the tile number.

Demultiplexing files start with a header:

} Version (4 byte integer), currently 1

} Cluster count (4 byte integer)

The remainder of the file consists of sample numbers for each cluster from the tile.

When the demultiplexing step is complete, the software generates a demultiplexing file named DemultiplexSummaryF1L1.txt.

}

In the file name, F1 represents the flow cell number.

} In the file name, L1 represents the lane number.

} Demultiplexing results in a table with 1 row per tile and 1 column per sample, including sample 0.

}

The most commonly occurring sequences in index reads.

FASTQ File Format

FASTQ file is a text-based file format that contains base calls and quality values per read.

Each record contains 4 lines:

Local Run Manager Amplicon DS Analysis Module Workflow Guide

11

} The identifier

}

The sequence

}

A plus sign (+)

}

The quality scores in an ASCII encoded format

The identifier is formatted as:

@Instrument:RunID:FlowCellID:Lane:Tile:X:Y ReadNum:FilterFlag:0:SampleNumber

Example:

@SIM:1:FCX:1:15:6329:1045 1:N:0:2

TCGCACTCAACGCCCTGCATATGACAAGACAGAATC

+

<>;##=><9=AAAAAAAAAA9#:<#<;<<<????#=

BAM File Format

A BAM file (*.bam) is the compressed binary version of a SAM file that is used to represent aligned sequences up to 128 Mb. SAM and BAM formats are described in detail at https://samtools.github.io/hts-specs/SAMv1.pdf.

BAM files use the file naming format of SampleName_S#.bam, where # is the sample number determined by the order that samples are listed for the run.

BAM files contain a header section and an alignments section:

} Header—Contains information about the entire file, such as sample name, sample length, and alignment method. Alignments in the alignments section are associated with specific information in the header section.

}

Alignments—Contains read name, read sequence, read quality, alignment information, and custom tags. The read name includes the chromosome, start coordinate, alignment quality, and the match descriptor string.

The alignments section includes the following information for each or read pair:

}

RG: Read group, which indicates the number of reads for a specific sample.

}

BC: Barcode tag, which indicates the demultiplexed sample ID associated with the read.

} SM: Single-end alignment quality.

}

AS: Paired-end alignment quality.

}

NM: Edit distance tag, which records the Levenshtein distance between the read and the reference.

} XN: Amplicon name tag, which records the amplicon tile ID associated with the read.

BAM files are suitable for viewing with an external viewer such as IGV or the UCSC

Genome Browser.

BAM index files (*.bam.bai) provide an index of the corresponding BAM file.

VCF File Format

VCF is a widely used file format developed by the genomics scientific community that contains information about variants found at specific positions in a reference genome.

VCF files use the file naming format SampleName_S#.vcf, where # is the sample number determined by the order that samples are listed for the run.

VCF File Header—Includes the VCF file format version and the variant caller version.

The header lists the annotations used in the remainder of the file. If MARS is listed, the

Illumina internal annotation algorithm annotated the VCF file. The VCF header includes

12

Document # 1000000003341 v00

the reference genome file and BAM file. The last line in the header contains the column headings for the data lines.

VCF File Data Lines—Each data line contains information about a single variant.

VCF File Headings

Heading

CHROM

POS

ID

REF

ALT

QUAL

Description

The chromosome of the reference genome. Chromosomes appear in the same order as the reference FASTA file.

The single-base position of the variant in the reference chromosome.

For SNPs, this position is the reference base with the variant; for indels or deletions, this position is the reference base immediately before the variant.

The rs number for the SNP obtained from dbSNP.txt, if applicable.

If there are multiple rs numbers at this location, the list is semicolon delimited. If no dbSNP entry exists at this position, a missing value marker ('.') is used.

The reference genotype. For example, a deletion of a single T is represented as reference TT and alternate T. An A to T single nucleotide variant is represented as reference A and alternate T.

The alleles that differ from the reference read.

For example, an insertion of a single T is represented as reference A and alternate AT. An A to T single nucleotide variant is represented as reference A and alternate T.

A Phred-scaled quality score assigned by the variant caller.

Higher scores indicate higher confidence in the variant and lower probability of errors. For a quality score of Q, the estimated probability of an error is 10

-(Q/10)

. For example, the set of Q30 calls has a 0.1% error rate. Many variant callers assign quality scores based on their statistical models, which are high in relation to the error rate observed.

VCF File Annotations

Heading

FILTER

Description

If all filters are passed, PASS is written in the filter column.

LowDP—Applied to sites with depth of coverage below a cutoff.

LowGQ—The genotyping quality (GQ) is below a cutoff.

LowQual—The variant quality (QUAL) is below a cutoff.

LowVariantFreq—The variant frequency is less than the given threshold.

R8—For an indel, the number of adjacent repeats (1-base or 2-base) in the reference is greater than 8.

SB—The strand bias is more than the given threshold. Used with the

Somatic Variant Caller and GATK.

Local Run Manager Amplicon DS Analysis Module Workflow Guide

13

14

Heading

INFO

FORMAT

Description

Possible entries in the INFO column include:

AC—Allele count in genotypes for each ALT allele, in the same order as listed.

AF—Allele Frequency for each ALT allele, in the same order as listed.

AN—The total number of alleles in called genotypes.

CD—A flag indicating that the SNP occurs within the coding region of at least 1 RefGene entry.

DP—The depth (number of base calls aligned to a position and used in variant calling).

Exon—A comma-separated list of exon regions read from RefGene.

FC—Functional Consequence.

GI—A comma-separated list of gene IDs read from RefGene.

QD—Variant Confidence/Quality by Depth.

TI—A comma-separated list of transcript IDs read from RefGene.

The format column lists fields separated by colons. For example,

GT:GQ. The list of fields provided depends on the variant caller used.

Available fields include:

AD—Entry of the form X,Y, where X is the number of reference calls, and Y is the number of alternate calls.

DP—Approximate read depth; reads with MQ=255 or with bad mates are filtered.

GQ—Genotype quality.

GQX—Genotype quality. GQX is the minimum of the GQ value and the QUAL column. In general, these values are similar; taking the minimum makes GQX the more conservative measure of genotype quality.

GT—Genotype. 0 corresponds to the reference base, 1 corresponds to the first entry in the ALT column, and so on. The forward slash (/) indicates that no phasing information is available.

NL—Noise level; an estimate of base calling noise at this position.

PL—Normalized, Phred-scaled likelihoods for genotypes.

SB—Strand bias at this position. Larger negative values indicate less bias; values near 0 indicate more bias. Used with the Somatic Variant

Caller and GATK.

VF—Variant frequency; the percentage of reads supporting the alternate allele.

The sample column gives the values specified in the FORMAT column.

SAMPLE

Genome VCF Files

Genome VCF (gVCF) files are VCF v4.1 files that follow a set of conventions for representing all sites within the genome in a reasonably compact format. The gVCF files include all sites within the region of interest in a single file for each sample.

The gVCF file shows no-calls at positions with low coverage, or where a low-frequency variant (< 3%) occurs often enough (> 1%) that the position cannot be called to the reference. A genotype (GT) tag of ./. indicates a no-call.

For more information, see sites.google.com/site/gvcftools/home/about-gvcf .

Document # 1000000003341 v00

Per-Pool and Consensus VCF Files

The Amplicon DS workflow generates 2 sets of variant call files.

}

Per-pool VCF files—Contains variants called in either the forward pool or the reverse pool. Per-pool files are written to the VariantCallingLogs folder.

}

Consensus VCF files—Contain variants called from both pools. Consensus files are written to the Alignments folder.

Per-pool and consensus VCF files include both VCF (*.vcf) and gVCF (*.genome.vcf) files, and use the following naming convention, where S# represents the order that the sample is listed for the run:

}

Reports for all sites—SampleName_S#.genome.vcf

} Reports variants only—SampleName_S#.vcf

Per-Pool VCF Files

Variants are called in the forward pool and the reverse pool to produce an independent set of VCF files for each pool.

Variants are listed in the VCF file using the following criteria:

}

Include variants that were flagged as filtered

} Exclude variants with a variant frequency of less than 3%

} Variants that pass filters include PASS in the FILTER column

}

Variants that fail filters include the filter name in the FILTER column

}

Filter variants due to probe bias (PB) when the variant frequency differs significantly between pools

Consensus VCF Files

The software compares the per-pool VCF files and combines the data at each position to create a consensus VCF file for the sample.

Variant calls from each pool are merged into consensus VCF files using the following criteria.

Criteria Result

A reference call in each pool

A reference call in 1 pool and a variant call in the other pool

Reference call

Filtered variant call

Matching variant calls with similar frequencies in each pool

Unmatched variant calls in each pool

Variant call

Matching variant calls with significantly different frequencies in each pool Filtered variant call

Filtered variant call

Metrics from each pool are merged using the following values.

Metric

Depth

Variant Frequency

Q-Score

Value

Addition of depths from both pools

Total variant counts divided by total coverage depth

Minimum value of both pools

Local Run Manager Amplicon DS Analysis Module Workflow Guide

15

Amplicon Coverage File

An amplicon coverage file is generated for each manifest file. The M# in the file name represents the manifest number as it is listed in the samples table for the run.

Each file includes a header row that contains the sample IDs associated with the manifest. Under the header row are 3 columns that list the following information:

} The Target ID as it is listed in the manifest.

} The coverage depth of reads passing filter.

}

The total coverage depth.

Supplementary Output Files

The following output files provide supplementary information, or summarize run results and analysis errors. Although, these files are not required for assessing analysis results, they can be used for troubleshooting purposes. All files are located in the Alignment folder unless otherwise specified.

File Name

AnalysisLog.txt

AnalysisError.txt

CompletedJobInfo.xml

DemultiplexSummaryF1L1.txt

ErrorsAndNoCallsByLaneTile

ReadCycle.csv

Mismatch.htm

AmpliconRunStatistics.xml

Summary.xml

Summary.htm

Description

Processing log that describes every step that occurred during analysis of the current run folder. This file does not contain error messages.

Located in the root level of the run folder.

Processing log that lists any errors that occurred during analysis. This file is present only if errors occurred.

Located in the root level of the run folder.

Written after analysis is complete, contains information about the run, such as date, flow cell ID, software version, and other parameters.

Located in the root level of the run folder.

Reports demultiplexing results in a table with 1 row per tile and 1 column per sample.

A comma-separated values file that contains the percentage of errors and no-calls for each tile, read, and cycle.

Contains histograms of mismatches per cycle and nocalls per cycle for each tile.

Contains summary statistics specific to the run.

Located in the root level of the run folder.

Contains a summary of mismatch rates and other base calling results.

Contains a summary web page generated from

Summary.xml.

Analysis Folder

The analysis folder holds the files generated by the Local Run Manager software.

The relationship between the output folder and analysis folder is summarized as follows:

16

Document # 1000000003341 v00

} During sequencing, Real-Time Analysis (RTA) populates the output folder with files generated during image analysis, base calling, and quality scoring.

}

RTA copies files to the analysis folder in real time. After RTA assigns a quality score to each base for each cycle, the software writes the file RTAComplete.xml to both folders.

} When the file RTAComplete.xml is present, analysis begins.

} As analysis continues, Local Run Manager writes output files to the analysis folder, and then copies the files back to the output folder.

Folder Structure

Data

Intensities

BaseCalls

Alignment—Contains *.bam and *.vcf files, and files specific to the analysis module.

L001—Contains one subfolder per cycle, each containing *.bcl files.

Sample1_S1_L001_R1_001.fastq.gz

Sample2_S2_L001_R1_001.fastq.gz

Undetermined_S0_L001_R1_001.fastq.gz

L001—Contains *.locs files, 1 for each tile.

RTA Logs—Contains log files from RTA software analysis.

InterOp—Contains binary files used by Sequencing Analysis Viewer (SAV).

Logs—Contains log files describing steps performed during sequencing.

Queued—A working folder for software; also called the copy folder.

AnalysisError.txt

AnalysisLog.txt

CompletedJobInfo.xml

QueuedForAnalysis.txt

[WorkflowName]RunStatistics

RTAComplete.xml

RunInfo.xml

runParameters.xml

Alignment Folders

Each time that analysis is requeued, the Local Run Manager creates an Alignment folder named AlignmentN, where N is a sequential number.

Local Run Manager Amplicon DS Analysis Module Workflow Guide

17

Custom Analysis Settings

Custom analysis settings are intended for technically advanced users. If settings are applied incorrectly, serious problems can occur.

Add a Custom Analysis Setting

1 From the Module-Specific Settings section of the Create Run screen, click Show

advanced module settings.

2 Click Add custom setting.

3 In the custom setting field, enter the setting name as listed in the Available Analysis

Settings section.

4 In the setting value field, enter the setting value.

5 To remove a setting, click the x icon.

Available Analysis Settings

}

Variant Frequency—Filters variants with a frequency less than the specified threshold.

Setting Name

VariantFrequencyFilterCutoff

Setting Value

Enter a threshold value.

With the Somatic Variant Caller, the default value is 0.05.

}

Indel Repeat Cutoff—Filters insertions and deletions when the reference has a 1base or 2-base motif over 8 times (by default) next to the variant. If using the Somatic

Variant Caller, enable or disable this setting on the Create Run screen.

Setting Name

IndelRepeatFilterCutoff

Setting Value

Enter a threshold value.

The default value is 8.

}

Variant Genotyping Quality—Filters variants with a genotype quality (GQ) less than the specified threshold.

Setting Name

VariantMinimumGQCutoff

Setting Value

Enter a value less than 99.

With the Somatic Variant Caller, the default value is 30.

}

Variant Quality Cutoff—Filters variants with a quality (QUAL) less than the specified threshold. QUAL indicates the confidence of the variant call.

18

Document # 1000000003341 v00

Setting Name

VariantMiniumQualCutoff

Setting Value

Enter a threshold value.

With the Somatic Variant Caller, the default value is 30.

Local Run Manager Amplicon DS Analysis Module Workflow Guide

19

Notes

Technical Assistance

For technical assistance, contact Illumina Technical Support.

Table 7 Illumina General Contact Information

Website

www.illumina.com

Email

[email protected]

Table 8 Illumina Customer Support Telephone Numbers

Region

North America

Australia

Austria

Belgium

China

Denmark

Finland

France

Germany

Hong Kong

Ireland

Italy

Contact Number

1.800.809.4566

1.800.775.688

0800.296575

0800.81102

400.635.9898

80882346

0800.918363

0800.911850

0800.180.8994

800960230

1.800.812949

800.874909

Region

Japan

Netherlands

New Zealand

Norway

Singapore

Spain

Sweden

Switzerland

Taiwan

United Kingdom

Other countries

Contact Number

0800.111.5011

0800.0223859

0800.451.650

800.16836

1.800.579.2745

900.812168

020790181

0800.563118

00806651752

0800.917.0041

+44.1799.534000

Safety data sheets (SDSs)—Available on the Illumina website at support.illumina.com/sds.html

.

Product documentation—Available for download in PDF from the Illumina website. Go to support.illumina.com, select a product, then select Documentation & Literature.

Local Run Manager Amplicon DS Analysis Module Workflow Guide

Illumina

5200 Illumina Way

San Diego, California 92122 U.S.A.

+1.800.809.ILMN (4566)

+1.858.202.4566 (outside North America) [email protected]

www.illumina.com

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
