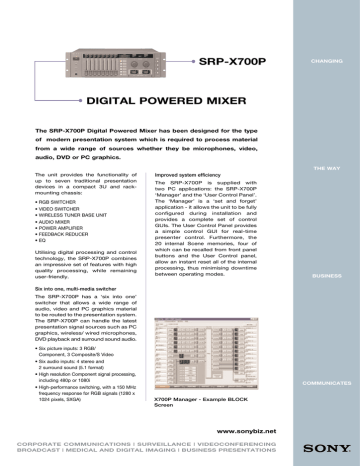

SRP X700P
SRP-X700P
CHANGING
DIGITAL POWERED MIXER
The SRP-X700P Digital Powered Mixer has been designed for the type
of modern presentation system which is required to process material
from a wide range of sources whether they be microphones, video,
audio, DVD or PC graphics.
THE WAY
The unit provides the functionality of
up to seven traditional presentation
devices in a compact 3U and rackmounting chassis:
• RGB SWITCHER
• VIDEO SWITCHER
• WIRELESS TUNER BASE UNIT
• AUDIO MIXER
• POWER AMPLIFIER
• FEEDBACK REDUCER
• EQ
Utilising digital processing and control
technology, the SRP-X700P combines
an impressive set of features with high
quality processing, while remaining
user-friendly.
Improved system efficiency
The SRP-X700P is supplied with
two PC applications: the SRP-X700P
‘Manager’ and the ‘User Control Panel’.
The ‘Manager’ is a ‘set and forget’
application - it allows the unit to be fully
configured during installation and
provides a complete set of control
GUIs. The User Control Panel provides
a simple control GUI for real-time
presenter control. Furthermore, the
20 internal Scene memories, four of
which can be recalled from front panel
buttons and the User Control panel,
allow an instant reset all of the internal
processing, thus minimising downtime
between operating modes.
BUSINESS
Six into one, multi-media switcher
The SRP-X700P has a ‘six into one’
switcher that allows a wide range of
audio, video and PC graphics material
to be routed to the presentation system.
The SRP-X700P can handle the latest
presentation signal sources such as PC
graphics, wireless/ wired microphones,
DVD playback and surround sound audio.
• Six picture inputs: 3 RGB/
Component, 3 Composite/S Video
• Six audio inputs: 4 stereo and
2 surround sound (5.1 format)
• High resolution Component signal processing,
including 480p or 1080i
• High-performance switching, with a 150 MHz
frequency response for RGB signals (1280 x
1024 pixels, SXGA)
COMMUNICATES
X700P Manager - Example BLOCK
Screen
www.sonybiz.net
CORPORATE COMMUNICATIONS | SURVEILLANCE | VIDEOCONFERENCING
BROADCAST | MEDICAL AND DIGITAL IMAGING | BUSINESS PRESENTATIONS
Conference room/Presentation
Training room/Presentation
6-mono and 2-stereo channels audio
mixing with extensive processing to
maximise sound quality
Integrated Machine control and automation
control interfacing
The SRP-X700P can mix and process
6 mono (4 mic, 2 mic/line) and 2 stereo
(a stereo line and the 5.1/stereo line
input of the switcher) input signals
into 10 outputs (8 general purpose
outputs and a stereo record output).
With comprehensive audio processing
such as EQ, dynamics, routing and
delay, the quality of the audio signals
can be maximised and room acoustics
can be corrected.
• High quality audio A/D and D/A conversion
(24-bit, 48 kHz sampling frequency).
Advanced audio processing functions ‘Feedback Reducer’ and ‘Automixer’
Two special audio processing tools are
included to allow professional quality
audio processing to be set up at
the touch of a button. The ‘Feedback
Reducer’ works by analysing and
‘nulling out’ potential howl round
frequencies. The ‘Automix’ function
allows the SRP-X700P to analyse, in
real time, the incoming signals and
make adjustments to maintain the
quality of the output.
Multiple operating modes with 10 outputs
and the on-board stereo power amplifier
A routing function allows the SRP-X700P
to offer many different operating modes
to support surround sound matrix
switching or ‘Zoned’ speaker configurations. In addition the on-board 150 W
stereo power amplifier can be switched
between high and low impedance
modes.
• Power rating 200 W + 200 W (4 Ω ), 150 W +
150 W (8 Ω ), Max 150 W (70 V Line)
The SRP-X700P has extensive machine
control capabilities with four CRTL-S
control ports (allowing a wired machine
control interface to Sony CD, MD and
VTRs). Moreover, parallel and serial
RS-232C control ports provide extensive
control from professional presentation
controllers.
• RS-232C port allows for remote control
of Sony projector and PDP.
• USB, RS-232C and parallel input ports
for remote control from an external PC
(or other control systems).
• Control-S ports on the unit allow for remote
operation of Sony VCRs, DVD players, CD
players, MD recorders and projectors.*1
• Parallel output port for remote control
of devices such as video screen (up/down),
window curtains (open/close), projector
(up/down), lighting (on/off), etc.*2
*1
*2
In case of control of projector with the Control-S port, it is
unable to switch between RGB and Component Video.
Requires Interface Box between SRP-X700P and the
devices.
Integrated wireless tuner unit slots
Up to two Sony WRU-806 wireless tuner
units (option) can be directly installed
into the SRP-X700P, making it simple to
integrate a high quality Sony wireless
microphone system into the presentation
system.
SRP-X700P FRONT & REAR VIEW
SRP-X700P BLOCK DIAGRAM
SRP-X700P DIMENSIONS & SYSTEM EXAMPLE
User Control Panel
Install
RGB
Component Video
Composite Video
Audio
RS-232C Remote
Control-S(IR)Remote
Parallel Remote
USB
RF
Touch Panel
& Controller
Mobile
PC
Desktop PC
Control Panel
IR
Transmitter
Mobile PC
Light
DVD Player
or
or
M
Screen
VCR
M
Window
Curtain
OUTPUT
VU
MIC1/WL1
MIC2/WL2
MIC3
MIC4
MIC5/LINE1
MIC6/LINE2
LINE3
1
LINE4
2
3
4
SIGNAL
SIGNAL
OVER GAIN
OVER GAIN
OVER
SIGNAL
GAIN
OVER
GAIN
SIGNAL
SIGNAL
OVER GAIN
OVER
GAIN
SIGNAL
SIGNAL
OVER GAIN
OVER GAIN
5
6
7
8
VU
MASTER A
MASTER B
+3
+3
SIGNAL
0
0
PROTECTION
OVER GAIN
-5
-5
OVER GAIN
CLIP
SCENE
-10
-10
RECALL
-20
-20
POWER
LINE
4
SELECT
A
MASTER B
1
OFF
ON
A
LOCK
B
2
C
RS232C
3
USB
D
E
4
F
WL1
MIC
TUNER
WL2
Digital
Powered Mixer
SRP-X700P
Document Camera
CD Player
I/F BOX
Projector
MD Recorder
Wireless Tuner
WRU-806
Microphone
Wireless Microphone
Antenna
AN-820A
Speaker
SRP-X700P SPECIFICATIONS
ELECTRICAL CHARACTERISTICS
AUDIO INPUTS/OUTPUTS
Composite Video/S Video
Input
Connector
Channel
Reference/Peak Level
Colour system
MIC/WL 1,
2 XLR-3-31type Balanced
Mono
-60 to -45 dBu/-37 to -22 dBu
more than 2.2 kΩ
NTSC/PAL/SECAM
Circuit
Impedance
Frequency response
50 Hz - 10 MHz
MIC 3, 4
XLR-3-31type Balanced
Mono
-60 to -45 dBu/-37 to -22 dBu
more than 2.2 kΩ
Level
1 Vp-p (75 Ω )
MIC 5, 6
(LINE 1, 2)
XLR-3-31type Balanced
Mono
-60 to -45 dBu/-37 to -22 dBu
-10 to +4 dBu/-+10 to +24 dBu
more than 2.2 kΩ
more than 10 kΩ
Colour system
NTSC/PAL/SECAM
LINE 3
Phono x 2
Unbalanced Stereo
-10 to 0 dBu/+10 dBu to +20 dBu more than 10 kΩ
Frequency response
50 Hz - 150 MHz
Phono x 2
Unbalanced Stereo
-10 to 0 dBu/+10 dBu to +20 dBu more than 10 kΩ
Level
Y
1 Vp-p (75 Ω )
LINE 4
(A, B, C, F)
R-Y
0.7 Vp-p (75 Ω )
Component Video
0.7 Vp-p (75 Ω )
B-Y
RGB
LINE 4 (D, E) Phono x 6
Unbalanced Stereo/Surround -10 to 0 dBu/+10 dBu to +20 dBu more than 10 kΩ
Output
Connector
Circuit
LINE 1, 2
XLR-3-32type Balanced
Frequency response
50 Hz - 150 MHz
LINE
Phono x 1
3, 4, 5, 6, 7, 8
Resolution
1280 x 1024 pixels, 60 Hz (SXGA)
REC 1, 2
Level
G
0.7 Vp-p (75 Ω )
B
0.7 Vp-p (75 Ω )
R
0.7 Vp-p (75 Ω )
SYNC/HD, VD
1-5 V (47 kΩ ) sync positive/negative
Phono x 1
Channel
Reference/Peak Level
Mono
+4 dBu/+24 dBu
Load impedance
more than 600 Ω
Unbalanced Mono
-5 dBu/+15 dBu
more than 10 kΩ
Unbalanced Mono
-5 dBu/+15 dBu
more than 10 kΩ
VIDEO/RGB INPUTS/OUTPUTS
Input
Connector
Signal Type
LINE 4 (A, B, C)
Phono x 1
4-pin Mini Din
Composite
S Video
Audio (analogue)
Frequency response
Line in - Line out
20 Hz - 20 kHz
LINE 4 (D, E, F)
D-sub 15-pin
Component/RGB
T.H.D
Line in - Line out
Less than 0.01 % (1 kHz)
Output
Connector
Signal Type
S/N ratio
Line in - Line out
More than 104 dB (IHF A)
R/R-Y G/Y B/B-Y SYNC/HD VD
BNC x 5
Component/RGB
Crosstalk
Line in - Line out
Less than -90 dB (1 kHz)
S VIDEO
4-pin Mini Din
S Video
VIDEO
BNC x 1
Composite
Others
ANTENNA IN a-b
BNC x 2, DC 9 V OUT
Microphone power supply
DC 48 V, MIC1-6 Inputs
* Can switch inputs of Sony applicable Projectors automatically by using RS-232C control function when the
switcher of SRP-X700P is operated.
GENERAL
REMOTE CONTROL TERMINAL
Power requirement
120/220/230 V AC, 50/60 Hz
Power Consumption
150 W
RS-232C ports
Operating temperature
0°C to +40°C (+32°F to +104°F)
PROJECTOR CONTROL D-sub 9-pin x 1, male, Input Selection, Power On/Standby
(RS-232C)
inch standard
(applicable Projectors/PDP:
Sony VPL-FX50, VPL-PX21/31/32, PFM-42B1)*1*2
Storage temperature
-20°C to +60°C (-4°F to +140°F)
Dimensions
482 (W) x 132 (H) x 350 (D) mm, 3U
Connector
Function
RS-232C
D-sub 9-pin x 1, male, Fully controlled Audio and Switch functions
inch standard
(19 x 5 1 /4 x 13 7 /8 inches)
Mass
Approx. 13 kg (28 lb 11 oz)
USB ports
Connector
Supplied Accessories
AC Power cord (1), Operating manual (1),
USB (Front/Rear)
Series B connector x2 Fully controlled Audio and Switch functions
IR Transmitter (1), Foot (4),
Parallel I/O ports
Connector
Control software disk (1)
PARALLEL IN (12-pin)
* Requires Microsoft Windows
98SE/ME/ 2000/XP
Optional Accessories
WRU-806 UHF Synthesized Tuner Unit
AN-820A UHF Antenna
Connector
Impedance
Rated Power
CH1
Screw
4 Ω -16 Ω
150 W (8 Ω ) 200 W (4 Ω )
CH2
type binding
4 Ω -16 Ω
150 W (8 Ω ) 200 W (4 Ω )
70V LINE
terminal x 4
32 Ω -10 kΩ
Max 150 W
Function
Type
AV Selection(LINE 4), Power On/Off,
Make-Contact
Scene Recall, Volume, Volume Up/Down, CMOS level, active low
D-sub 25-pin x 1,
Muting, Remote control of connected
female, milli standard products with Control-S
PARALLEL OUT (10-pin)
Output status of Pallalel Input Function
Open collector
(expect for status of Controlled products
with Control-S)
Control-S ports
OUTPUT 1-4
Connector
Mini Jack x 4
Function
Play, Stop, Pause, FF, REC, PREV, NEXT
(applicable AV Products: Sony VHS/8mmVTR/Betamax
VTR/DV/CD/CDR/MD equiped with Control-S terminal,
DVD by using supplied IR Transmitter)
PROJECTOR IN
Mini Jack x 1
For the connection of Projector remote commander
PROJECTOR OUT
Mini Jack x 1
SPEAKER OUTPUTS
Output
Function
Input Selection, Power On/Standby
(applicable Projectors: Sony’s VPL-PX15/10, PS10, CX11/10)*1*2
*1 These applicable models are as of April 2002 and will increase in future. When using a external System Controller
to control Projector, there is no restriction on the type of projector that can be used in the system.
*2 When both RGB and Component Video are used, it is necessary to connect RS-232C port of X700P to
Projector/PDP. Because Control-S control function is unable to switch between RGB and Component Video.
Sony address/contact details/dealer stamp
www.sonybiz.net
SONY BROADCAST & PROFESSIONAL EUROPE
Sony is a registered trademark of the Sony corporation, Japan.
Design, features and specifications are subject to change without notice.
All non-metric weights and measures are approximate.
PDF SRP-X700P/GB-27/6/2002
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
