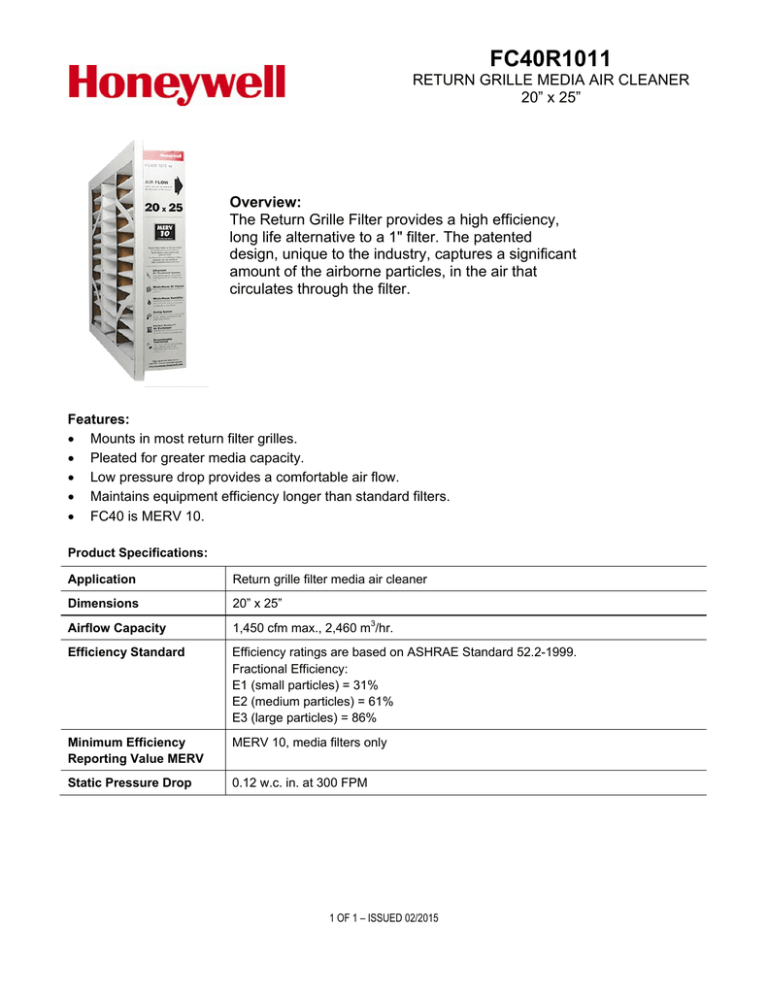

FC40R1011

FC40R1011
FC40R1011
RETURN GRILLE MEDIA AIR CLEANER
20” x 25”
Overview:
The Return Grille Filter provides a high efficiency,
long life alternative to a 1" filter. The patented
design, unique to the industry, captures a significant
amount of the airborne particles, in the air that
circulates through the filter.
Features:
 Mounts in most return filter grilles.
 Pleated for greater media capacity.
 Low pressure drop provides a comfortable air flow.
 Maintains equipment efficiency longer than standard filters.
 FC40 is MERV 10.
Product Specifications:
Application
Return grille filter media air cleaner
Dimensions
20” x 25”
Airflow Capacity
1,450 cfm max., 2,460 m3/hr.
Efficiency Standard
Efficiency ratings are based on ASHRAE Standard 52.2-1999.
Fractional Efficiency:
E1 (small particles) = 31%
E2 (medium particles) = 61%
E3 (large particles) = 86%
Minimum Efficiency
Reporting Value MERV
MERV 10, media filters only
Static Pressure Drop
0.12 w.c. in. at 300 FPM
1 OF 1 – ISSUED 02/2015
