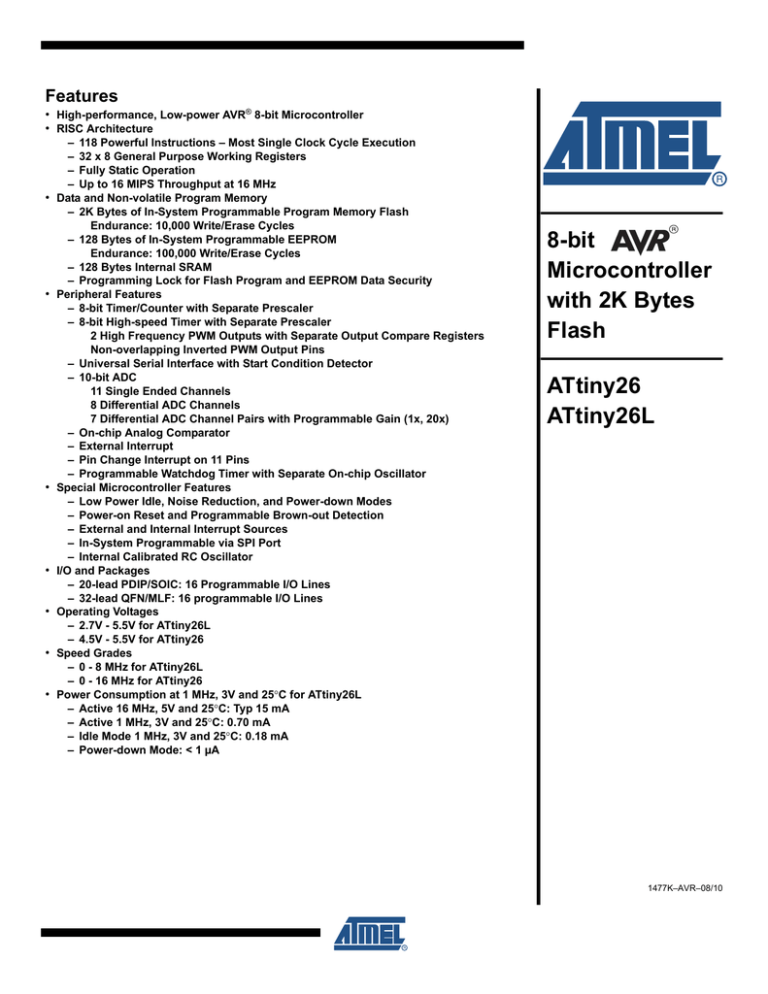

Features

High-performance, Low-power AVR

RISC Architecture

®

8-bit Microcontroller

– 118 Powerful Instructions – Most Single Clock Cycle Execution

– 32 x 8 General Purpose Working Registers

– Fully Static Operation

– Up to 16 MIPS Throughput at 16 MHz

Data and Non-volatile Program Memory

– 2K Bytes of In-System Programmable Program Memory Flash

Endurance: 10,000 Write/Erase Cycles

– 128 Bytes of In-System Programmable EEPROM

Endurance: 100,000 Write/Erase Cycles

– 128 Bytes Internal SRAM

– Programming Lock for Flash Program and EEPROM Data Security

Peripheral Features

– 8-bit Timer/Counter with Separate Prescaler

– 8-bit High-speed Timer with Separate Prescaler

2 High Frequency PWM Outputs with Separate Output Compare Registers

Non-overlapping Inverted PWM Output Pins

– Universal Serial Interface with Start Condition Detector

– 10-bit ADC

11 Single Ended Channels

8 Differential ADC Channels

7 Differential ADC Channel Pairs with Programmable Gain (1x, 20x)

– On-chip Analog Comparator

– External Interrupt

– Pin Change Interrupt on 11 Pins

– Programmable Watchdog Timer with Separate On-chip Oscillator

Special Microcontroller Features

– Low Power Idle, Noise Reduction, and Power-down Modes

– Power-on Reset and Programmable Brown-out Detection

– External and Internal Interrupt Sources

– In-System Programmable via SPI Port

– Internal Calibrated RC Oscillator

I/O and Packages

– 20-lead PDIP/SOIC: 16 Programmable I/O Lines

– 32-lead QFN/MLF: 16 programmable I/O Lines

Operating Voltages

– 2.7V - 5.5V for ATtiny26L

– 4.5V - 5.5V for ATtiny26

Speed Grades

– 0 - 8 MHz for ATtiny26L

– 0 - 16 MHz for ATtiny26

Power Consumption at 1 MHz, 3V and 25

°C for ATtiny26L

– Active 16 MHz, 5V and 25

°C: Typ 15 mA

– Active 1 MHz, 3V and 25

°C: 0.70 mA

– Idle Mode 1 MHz, 3V and 25

°C: 0.18 mA

– Power-down Mode: < 1 µA

8-bit

Microcontroller with 2K Bytes

Flash

ATtiny26

ATtiny26L

1477K–AVR–08/10

Pin

Configuration

(MOSI/DI/SDA/OC1A) PB0

(MISO/DO/OC1A) PB1

(SCK/SCL/OC1B) PB2

(OC1B) PB3

VCC

GND

(ADC7/XTAL1) PB4

(ADC8/XTAL2) PB5

(ADC9/INT0/T0) PB6

(ADC10/RESET) PB7

PDIP/SOIC

7

8

5

6

1

2

3

4

9

10

16

15

14

13

20

19

18

17

12

11

PA0 (ADC0)

PA1 (ADC1)

PA2 (ADC2)

PA3 (AREF)

GND

AVCC

PA4 (ADC3)

PA5 (ADC4)

PA6 (ADC5/AIN0)

PA7 (ADC6/AIN1)

MLF Top View

NC

(OC1B) PB3

NC

VCC

GND

NC

(ADC7/XTAL1) PB4

(ADC8/XTAL2) PB5

7

8

5

6

3

4

1

2

20

19

18

17

24

23

22

21

NC

PA2 (ADC2)

PA3 (AREF)

GND

NC

NC

AVCC

PA4 (ADC3)

Note: The bottom pad under the QFN/MLF package should be soldered to ground.

2

ATtiny26(L)

1477K–AVR–08/10

Description

ATtiny26(L)

The ATtiny26(L) is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATtiny26(L) achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

The AVR core combines a rich instruction set with 32 general purpose working registers. All the

32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in one single instruction executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers. The ATtiny26(L) has a high precision ADC with up to 11 single ended channels and 8 differential channels. Seven differential channels have an optional gain of

20x. Four out of the seven differential channels, which have the optional gain, can be used at the same time. The ATtiny26(L) also has a high frequency 8-bit PWM module with two independent outputs. Two of the PWM outputs have inverted non-overlapping output pins ideal for synchronous rectification. The Universal Serial Interface of the ATtiny26(L) allows efficient software implementation of TWI (Two-wire Serial Interface) or SM-bus interface. These features allow for highly integrated battery charger and lighting ballast applications, low-end thermostats, and firedetectors, among other applications.

The ATtiny26(L) provides 2K bytes of Flash, 128 bytes EEPROM, 128 bytes SRAM, up to 16 general purpose I/O lines, 32 general purpose working registers, two 8-bit Timer/Counters, one with PWM outputs, internal and external Oscillators, internal and external interrupts, programmable Watchdog Timer, 11-channel, 10-bit Analog to Digital Converter with two differential voltage input gain stages, and four software selectable power saving modes. The Idle mode stops the CPU while allowing the Timer/Counters and interrupt system to continue functioning.

The ATtiny26(L) also has a dedicated ADC Noise Reduction mode for reducing the noise in ADC conversion. In this sleep mode, only the ADC is functioning. The Power-down mode saves the register contents but freezes the oscillators, disabling all other chip functions until the next interrupt or hardware reset. The Standby mode is the same as the Power-down mode, but external oscillators are enabled. The wakeup or interrupt on pin change features enable the ATtiny26(L) to be highly responsive to external events, still featuring the lowest power consumption while in the Power-down mode.

The device is manufactured using Atmel’s high density non-volatile memory technology. By combining an enhanced RISC 8-bit CPU with Flash on a monolithic chip, the ATtiny26(L) is a powerful microcontroller that provides a highly flexible and cost effective solution to many embedded control applications.

The ATtiny26(L) AVR is supported with a full suite of program and system development tools including: Macro assemblers, program debugger/simulators, In-circuit emulators, and evaluation kits.

3

1477K–AVR–08/10

Block Diagram

Figure 1. The ATtiny26(L) Block Diagram

VCC

GND

AVCC

PROGRAM

COUNTER

PROGRAM

FLASH

INSTRUCTION

REGISTER

INSTRUCTION

DECODER

CONTROL

LINES

STACK

POINTER

SRAM

GENERAL

PURPOSE

REGISTERS

X

Y

Z

ALU

STATUS

REGISTER

8-BIT DATA BUS

INTERNAL

OSCILLATOR

WATCHDOG

TIMER

MCU CONTROL

REGISTER

MCU STATUS

REGISTER

TIMER/

COUNTER0

TIMER/

COUNTER1

UNIVERSAL

SERIAL

INTERFACE

INTERRUPT

UNIT

PROGRAMMING

LOGIC

ISP INTERFACE

EEPROM

INTERNAL

CALIBRATED

OSCILLATOR

TIMING AND

CONTROL

OSCILLATORS

DATA REGISTER

PORT A

DATA DIR.

REG.PORT A

ADC DATA REGISTER

PORT B

DATA DIR.

REG.PORT B

PORT A DRIVERS PORT B DRIVERS

PA0-PA7 PB0-PB7

4

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

Pin Descriptions

VCC

GND

AVCC

Port A (PA7..PA0)

Port B (PB7..PB0)

XTAL1

XTAL2

Digital supply voltage pin.

Digital ground pin.

AVCC is the supply voltage pin for Port A and the A/D Converter (ADC). It should be externally connected to V

CC

, even if the ADC is not used. If the ADC is used, it should be connected to V

through a low-pass filter. See page 94 for details on operating of the ADC.

CC

Port A is an 8-bit general purpose I/O port. PA7..PA0 are all I/O pins that can provide internal pull-ups (selected for each bit). Port A has alternate functions as analog inputs for the ADC and

analog comparator and pin change interrupt as described in “Alternate Port Functions” on page

46.

Port B is an 8-bit general purpose I/O port. PB6..0 are all I/O pins that can provide internal pullups (selected for each bit). PB7 is an I/O pin if not used as the reset. To use pin PB7 as an I/O pin, instead of RESET pin, program (“0”) RSTDISBL Fuse. Port B has alternate functions for the

ADC, clocking, timer counters, USI, SPI programming, and pin change interrupt as described in

“Alternate Port Functions” on page 46.

An External Reset is generated by a low level on the PB7/RESET pin. Reset pulses longer than

50 ns will generate a reset, even if the clock is not running. Shorter pulses are not guaranteed to generate a reset.

Input to the inverting oscillator amplifier and input to the internal clock operating circuit.

Output from the inverting oscillator amplifier.

5

1477K–AVR–08/10

General

Information

Resources

A comprehensive set of development tools, application notes and datasheets are available for download on http://www.atmel.com/avr.

Code Examples

This datasheet contains simple code examples that briefly show how to use various parts of the device. These code examples assume that the part specific header file is included before compilation. Be aware that not all C compiler vendors include bit definitions in the header files and interrupt handling in C is compiler dependent. Please confirm with the C compiler documentation for more details.

6

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

AVR CPU Core

Architectural

Overview

The fast-access Register File concept contains 32 x 8-bit general purpose working registers with a single clock cycle access time. This means that during one single clock cycle, one ALU (Arithmetic Logic Unit) operation is executed. Two operands are output from the Register File, the operation is executed, and the result is stored back in the Register File – in one clock cycle.

Six of the 32 registers can be used as 16-bit pointers for indirect memory access. These pointers are called the X-, Y-, and Z-pointers, and they can address the Register File and the Flash program memory.

Figure 2. The ATtiny26(L) AVR Enhanced RISC Architecture

8-bit Data Bus

Control

Registers

1024 x 16

Program

FLASH

Program

Counter

Status and Test

Interrupt

Unit

Instruction

Register

32 x 8

General

Purpose

Registers

Universal

Serial Interface

ISP Unit

Instruction

Decoder

2 x 8-bit

Timer/Counter

ALU

Control Lines

Watchdog

Timer

128 x 8

SRAM

128 byte

EEPROM

ADC

Analog

Comparator

I/O Lines

The ALU supports arithmetic and logic functions between registers or between a constant and a register. Single register operations are also executed in the ALU. Figure 2 shows the

ATtiny26(L) AVR Enhanced RISC microcontroller architecture. In addition to the register operation, the conventional memory addressing modes can be used on the Register File as well. This is enabled by the fact that the Register File is assigned the 32 lowermost Data Space addresses

($00 - $1F), allowing them to be accessed as though they were ordinary memory locations.

The I/O memory space contains 64 addresses for CPU peripheral functions as Control Registers, Timer/Counters, A/D Converters, and other I/O functions. The I/O Memory can be accessed directly, or as the Data Space locations following those of the Register File, $20 - $5F.

The AVR uses a Harvard architecture concept with separate memories and buses for program and data memories. The program memory is accessed with a two stage pipelining. While one instruction is being executed, the next instruction is pre-fetched from the program memory. This

7

1477K–AVR–08/10

General Purpose

Register File

concept enables instructions to be executed in every clock cycle. The program memory is In-

System programmable Flash memory.

With the relative jump and relative call instructions, the whole address space is directly accessed. All AVR instructions have a single 16-bit word format, meaning that every program memory address contains a single 16-bit instruction.

During interrupts and subroutine calls, the return address program counter (PC) is stored on the

Stack. The Stack is effectively allocated in the general data SRAM, and consequently the stack size is only limited by the total SRAM size and the usage of the SRAM. All user programs must initialize the SP in the reset routine (before subroutines or interrupts are executed). The 8-bit

Stack Pointer SP is read/write accessible in the I/O space. For programs written in C, the stack size must be declared in the linker file. Refer to the C user guide for more information.

The 128 bytes data SRAM can be easily accessed through the five different addressing modes supported in the AVR architecture.

The memory spaces in the AVR architecture are all linear and regular memory maps.

The I/O memory space contains 64 addresses for CPU peripheral functions as Control Registers, Timer/Counters, and other I/O functions. The memory spaces in the AVR architecture are all linear and regular memory maps.

A flexible interrupt module has its control registers in the I/O space with an additional Global

Interrupt Enable bit in the Status Register. All the different interrupts have a separate Interrupt

Vector in the Interrupt Vector table at the beginning of the program memory. The different interrupts have priority in accordance with their Interrupt Vector position. The lower the Interrupt

Vector address, the higher the priority.

Figure 3 shows the structure of the 32 general purpose working registers in the CPU.

Figure 3. AVR CPU General Purpose Working Registers

General

Purpose

Working

Registers

7

R27

R28

R29

R30

R31

R16

R17

R26

R13

R14

R15

0 Addr.

R0 $00

R1

R2

$01

$02

$0D

$0E

$0F

$10

$11

$1A

$1B

$1C

$1D

$1E

$1F

X-register Low Byte

X-register High Byte

Y-register Low Byte

Y-register High Byte

Z-register Low Byte

Z-register High Byte

8

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

X-register, Y-register, and Z-register

All of the register operating instructions in the instruction set have direct and single cycle access to all registers. The only exceptions are the five constant arithmetic and logic instructions SBCI,

SUBI, CPI, ANDI, and ORI between a constant and a register, and the LDI instruction for load immediate constant data. These instructions apply to the second half of the registers in the Register File – R16..R31. The general SBC, SUB, CP, AND, and OR, and all other operations between two registers or on a single register apply to the entire Register File.

As shown in Figure 3, each register is also assigned a data memory address, mapping them

directly into the first 32 locations of the user Data Space. Although not being physically implemented as SRAM locations, this memory organization provides flexibility in access of the registers, as the X-, Y-, and Z-registers can be set to index any register in the file.

The registers R26..R31 have some added functions to their general purpose usage. These registers are address pointers for indirect addressing of the Data Space. The three indirect address registers X, Y, and Z are defined as:

Figure 4. X-, Y-, and Z-register

X-register

15

7

R27 ($1B)

0 7

R26 ($1A)

0

0

Y-register

15

7

R29 ($1D)

0 7

R28 ($1C)

0

0

ALU – Arithmetic

Logic Unit

Z-register

15

7

R31 ($1F)

0 7

R30 ($1E)

0

0

In the different addressing modes, these address registers have functions as fixed displacement, automatic increment and decrement (see the descriptions for the different instructions).

The high-performance AVR ALU operates in direct connection with all 32 general purpose working registers. Within a single clock cycle, ALU operations between registers in the Register File are executed. The ALU operations are divided into three main categories – Arithmetic, Logical, and Bit-functions.

9

1477K–AVR–08/10

Status Register –

SREG

The AVR Status Register – SREG – at I/O space location $3F is defined as:

Bit

$3F ($5F)

Read/Write

Initial Value

7

I

R/W

0

6

T

R/W

0

5

H

R/W

0

4

S

R/W

0

3

V

R/W

0

2

N

R/W

0

1

Z

R/W

0

0

C

R/W

0

SREG

• Bit 7 – I: Global Interrupt Enable

The Global Interrupt Enable bit must be set (one) for the interrupts to be enabled. The individual interrupt enable control is then performed in the Interrupt Mask Registers – GIMSK and TIMSK.

If the Global Interrupt Enable Register is cleared (zero), none of the interrupts are enabled independent of the GIMSK and TIMSK values. The I-bit is cleared by hardware after an interrupt has occurred, and is set by the RETI instruction to enable subsequent interrupts. The I-bit can also be set and cleared by the application with the SEI and CLI instructions, as described in the instruction set reference.

• Bit 6 – T: Bit Copy Storage

The Bit Copy instructions BLD (Bit LoaD) and BST (Bit STore) use the T-bit as source and destination for the operated bit. A bit from a register in the Register File can be copied into T by the

BST instruction, and a bit in T can be copied into a bit in a register in the Register File by the

BLD instruction.

• Bit 5 – H: Half Carry Flag

The Half Carry Flag H indicates a Half Carry in some arithmetic operations. See the Instruction

Set Description for detailed information.

• Bit 4 – S: Sign Bit, S = N

V

The S-bit is always an exclusive or between the Negative Flag N and the Two’s Complement

Overflow Flag V. See the Instruction Set Description for detailed information.

• Bit 3 – V: Two’s Complement Overflow Flag

The Two’s Complement Overflow Flag V supports two’s complement arithmetics. See the

Instruction Set Description for detailed information.

• Bit 2 – N: Negative Flag

The Negative Flag N indicates a negative result after the different arithmetic and logic operations. See the Instruction Set Description for detailed information.

• Bit 1 – Z: Zero Flag

The Zero Flag Z indicates a zero result after the different arithmetic and logic operations. See the Instruction Set Description for detailed information.

• Bit 0 – C: Carry Flag

The Carry Flag C indicates a carry in an arithmetic or logic operation. See the Instruction Set

Description for detailed information.

10

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

Stack Pointer – SP

The ATtiny26(L) Stack Pointer is implemented as an 8-bit register in the I/O space location $3D

($5D). As the ATtiny26(L) data memory has 224 ($E0) locations, eight bits are used.

Bit

$3D ($5D)

Read/Write

Initial Value

7

SP7

R/W

0

6

SP6

R/W

0

5

SP5

R/W

0

4

SP4

R/W

0

3

SP3

R/W

0

2

SP2

R/W

0

1

SP1

R/W

0

0

SP0

R/W

0

SP

The Stack Pointer points to the data SRAM stack area where the Subroutine and Interrupt

Stacks are located. This Stack space in the data SRAM must be defined by the program before any subroutine calls are executed or interrupts are enabled. The Stack Pointer must be set to point above $60. The Stack Pointer is decremented by one when data is pushed onto the Stack with the PUSH instruction, and it is decremented by two when an address is pushed onto the

Stack with subroutine calls and interrupts. The Stack Pointer is incremented by one when data is popped from the Stack with the POP instruction, and it is incremented by two when an address is popped from the Stack with return from subroutine RET or return from interrupt RETI.

Program and Data

Addressing Modes

The ATtiny26(L) AVR Enhanced RISC microcontroller supports powerful and efficient addressing modes for access to the Flash program memory, SRAM, Register File, and I/O Data memory. This section describes the different addressing modes supported by the AVR architecture. In the figures, OP means the operation code part of the instruction word. To simplify, not all figures show the exact location of the addressing bits.

Register Direct, Single

Register Rd

Figure 5. Direct Single Register Addressing

Register Direct, Two

Registers Rd and Rr

The operand is contained in register d (Rd).

Figure 6. Direct Register Addressing, Two Registers

11

1477K–AVR–08/10

I/O Direct

Operands are contained in register r (Rr) and d (Rd). The result is stored in register d (Rd).

Figure 7. I/O Direct Addressing

Data Direct

Operand address is contained in 6 bits of the instruction word. n is the destination or source register address.

Figure 8. Direct Data Addressing

Data Space

31

$0000

15

OP

20 19

Rr/Rd

16

16 LSBs

0

Data Indirect with

Displacement

$00DF

A 16-bit Data Address is contained in the 16 LSBs of a two-word instruction. Rd/Rr specify the destination or source register.

Figure 9. Data Indirect with Displacement

Data Space

$0000

15 0

Y OR Z - REGISTER

15

OP

10 n

6 5 a

0

12

ATtiny26(L)

$00DF

1477K–AVR–08/10

Data Indirect

ATtiny26(L)

Operand address is the result of the Y- or Z-register contents added to the address contained in

6 bits of the instruction word.

Figure 10. Data Indirect Addressing

Data Space

$0000

15 0

X-, Y-, OR Z-REGISTER

$00DF

Operand address is the contents of the X-, Y-, or the Z-register.

Data Indirect with Predecrement

Figure 11. Data Indirect Addressing with Pre-decrement

Data Space

15 0

X-, Y-, OR Z-REGISTER

$0000

Data Indirect with

Post-increment

-1

$00DF

The X-, Y-, or Z-register is decremented before the operation. Operand address is the decremented contents of the X-, Y-, or Z-register.

Figure 12. Data Indirect Addressing with Post-increment

Data Space

$0000

15 0

X-, Y-, OR Z-REGISTER

1

$00DF

13

1477K–AVR–08/10

Constant Addressing

Using the LPM

Instruction

The X-, Y-, or Z-register is incremented after the operation. Operand address is the content of the X-, Y-, or Z-register prior to incrementing.

Figure 13. Code Memory Constant Addressing

PROGRAM MEMORY

$000

$3FF

Constant byte address is specified by the Z-register contents. The 15 MSBs select word address

(0 - 1K), the LSB selects low byte if cleared (LSB = 0) or high byte if set (LSB = 1).

Indirect Program

Addressing, IJMP and

ICALL

Figure 14. Indirect Program Memory Addressing

PROGRAM MEMORY

$000

Relative Program

Addressing, RJMP and RCALL

$3FF

Program execution continues at address contained by the Z-register (i.e., the PC is loaded with the contents of the Z-register).

Figure 15. Relative Program Memory Addressing

PROGRAM MEMORY

$000

+1

14

ATtiny26(L)

$3FF

1477K–AVR–08/10

ATtiny26(L)

Program execution continues at address PC + k + 1. The relative address k is from

-2048 to 2047.

1477K–AVR–08/10

15

Memories

The AVR CPU is driven by the System Clock Ø, directly generated from the external clock crystal for the chip. No internal clock division is used.

Figure 16 shows the parallel instruction fetches and instruction executions enabled by the Har-

vard architecture and the fast-access Register File concept. This is the basic pipelining concept to obtain up to 1 MIPS per MHz with the corresponding unique results for functions per cost, functions per clocks, and functions per power-unit.

Figure 16. The Parallel Instruction Fetches and Instruction Executions

T1 T2 T3 T4

System Clock Ø

1st Instruction Fetch

1st Instruction Execute

2nd Instruction Fetch

2nd Instruction Execute

3rd Instruction Fetch

3rd Instruction Execute

4th Instruction Fetch

Figure 17 shows the internal timing concept for the Register File. In a single clock cycle an ALU

operation using two register operands is executed, and the result is stored back to the destination register.

Figure 17. Single Cycle ALU Operation

T1 T2 T3 T4

System Clock Ø

Total Execution Time

Register Operands Fetch

ALU Operation Execute

Result Write Back

The internal data SRAM access is performed in two System Clock cycles as described in Figure

18.

16

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

Figure 18. On-chip Data SRAM Access Cycles

T1 T2

System Clock Ø

Address

Data

WR

Data

RD

Prev. Address Address

T3 T4

In-System

Programmable

Flash Program

Memory

SRAM Data

Memory

The ATtiny26(L) contains 2K bytes On-chip In-System Programmable Flash memory for program storage. Since all instructions are 16- or 32-bit words, the Flash is organized as 1K x 16.

The Flash memory has an endurance of at least 10,000 write/erase cycles. The ATtiny26(L) Pro-

gram Counter – PC – is 10 bits wide, thus addressing the 1024 program memory addresses, see

“Memory Programming” on page 107 for a detailed description on Flash data downloading. See

“Program and Data Addressing Modes” on page 11 for the different program memory address-

ing modes.

Figure 19. SRAM Organization

Register File

R0

R1

R2

...

Data Address Space

$0000

$0001

$0002

...

R29

R30

R31

I/O Registers

$00

$01

$02

$3D

$3E

$3F

$001D

$001E

$001F

$0020

$0021

$0022

$005D

$005E

$005F

Internal SRAM

$0060

$0061

...

$00DE

$00DF

Figure 19 above shows how the ATtiny26(L) SRAM Memory is organized.

The lower 224 Data Memory locations address the Register File, the I/O Memory and the internal data SRAM. The first 96 locations address the Register File and I/O Memory, and the next

128 locations address the internal data SRAM.

17

1477K–AVR–08/10

EEPROM Data

Memory

EEPROM Read/Write

Access

The five different addressing modes for the data memory cover: Direct, Indirect with Displacement, Indirect, Indirect with Pre-decrement, and Indirect with Post-increment. In the Register

File, registers R26 to R31 feature the indirect addressing pointer registers.

The direct addressing reaches the entire data space. The Indirect with Displacement mode features a 63 address locations reach from the base address given by the Y- or Z-register.

When using register indirect addressing modes with automatic pre-decrement and post-increment, the address registers X, Y, and Z are decremented and incremented.

The 32 general purpose working registers, 64 I/O Registers and the 128 bytes of internal data

SRAM in the ATtiny26(L) are all accessible through all these addressing modes.

See “Program and Data Addressing Modes” on page 11 for a detailed description of the different

addressing modes.

The ATtiny26(L) contains 128 bytes of data EEPROM memory. It is organized as a separate

data space, in which single bytes can be read and written (see “Memory Programming” on page

107). The EEPROM has an endurance of at least 100,000 write/erase cycles per location.

The EEPROM Access Registers are accessible in the I/O space.

The write access time is typically 8.3 ms. A self-timing function lets the user software detect when the next byte can be written. A special EEPROM Ready Interrupt can be set to trigger when the EEPROM is ready to accept new data.

An ongoing EEPROM write operation will complete even if a reset condition occurs.

In order to prevent unintentional EEPROM writes, a two state write procedure must be followed.

Refer to the description of the EEPROM Control Register for details on this.

When the EEPROM is written, the CPU is halted for two clock cycles before the next instruction is executed.

When the EEPROM is read, the CPU is halted for four clock cycles before the next instruction is executed.

EEPROM Address

Register – EEAR

Bit

$1E ($3E)

Read/Write

Initial Value

R

0

7

6

EEAR6

R/W

X

5

EEAR5

R/W

X

4

EEAR4

R/W

X

3

EEAR3

R/W

X

2

EEAR2

R/W

X

1

EEAR1

R/W

X

0

EEAR0

R/W

X

EEAR

• Bit 7 – RES: Reserved Bits

This bit are reserved bit in the ATtiny26(L) and will always read as zero.

• Bit 6..0 – EEAR6..0: EEPROM Address

The EEPROM Address Register – EEAR – specifies the EEPROM address in the 128 bytes

EEPROM space. The EEPROM data bytes are addressed linearly between 0 and 127. The initial value of EEAR is undefined. A proper value must be written before the EEPROM may be accessed.

18

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

EEPROM Data

Register – EEDR

EEPROM Control

Register – EECR

Bit

$1D ($3D)

Read/Write

Initial Value

7

MSB

R/W

0

6

R/W

0

5

R/W

0

4

R/W

0

3

R/W

0

2

R/W

0

1

R/W

0

0

LSB

R/W

0

EEDR

• Bit 7..0 – EEDR7..0: EEPROM Data

For the EEPROM write operation, the EEDR Register contains the data to be written to the

EEPROM in the address given by the EEAR Register. For the EEPROM read operation, the

EEDR contains the data read out from the EEPROM at the address given by EEAR.

Bit

$1C ($3C)

Read/Write

Initial Value

R

0

7

R

0

6

R

0

5

R

0

4

3

EERIE

R/W

0

2

EEMWE

R/W

0

1

EEWE

R/W

0

0

EERE

R/W

0

EECR

• Bit 7..4 – RES: Reserved Bits

These bits are reserved bits in the ATtiny26(L) and will always read as zero.

• Bit 3 – EERIE: EEPROM Ready Interrupt Enable

When the I-bit in SREG and EERIE are set (one), the EEPROM Ready Interrupt is enabled.

When cleared (zero), the interrupt is disabled. The EEPROM Ready Interrupt generates a constant interrupt when EEWE is cleared (zero).

• Bit 2 – EEMWE: EEPROM Master Write Enable

The EEMWE bit determines whether setting EEWE to one causes the EEPROM to be written.

When EEMWE is set (one), setting EEWE will write data to the EEPROM at the selected address. If EEMWE is zero, setting EEWE will have no effect. When EEMWE has been set (one) by software, hardware clears the bit to zero after four clock cycles. See the description of the

EEWE bit for an EEPROM write procedure.

• Bit 1 – EEWE: EEPROM Write Enable

The EEPROM Write Enable Signal – EEWE – is the write strobe to the EEPROM. When address and data are correctly set up, the EEWE bit must be set to write the value in to the

EEPROM. The EEMWE bit must be set when the logical one is written to EEWE, otherwise no

EEPROM write takes place. The following procedure should be followed when writing the

EEPROM (the order of steps 2 and 3 is unessential):

1. Wait until EEWE becomes zero.

2. Write new EEPROM address to EEAR (optional).

3. Write new EEPROM data to EEDR (optional).

4. Write a logical one to the EEMWE bit in EECR.

5. Within four clock cycles after setting EEMWE, write a logical one to EEWE.

Caution: An interrupt between step 4 and step 5 will make the write cycle fail, since the

EEPROM Master Write Enable will time-out. If an interrupt routine accessing the EEPROM is interrupting another EEPROM access, the EEAR or EEDR Register will be modified, causing the interrupted EEPROM access to fail. It is recommended to have the Global Interrupt Flag cleared during all the steps to avoid these problems.

When the access time (typically 8.3 ms) has elapsed, the EEWE bit is cleared (zero) by hardware. The user software can poll this bit and wait for a zero before writing the next byte. When

EEWE has been set, the CPU is halted for two cycles before the next instruction is executed.

• Bit 0 – EERE: EEPROM Read Enable

19

1477K–AVR–08/10

The EEPROM Read Enable Signal – EERE – is the read strobe to the EEPROM. When the correct address is set up in the EEAR Register, the EERE bit must be set. When the EERE bit is cleared (zero) by hardware, requested data is found in the EEDR Register. The EEPROM read access takes one instruction and there is no need to poll the EERE bit. When EERE has been set, the CPU is halted for four cycles before the next instruction is executed.

The user should poll the EEWE bit before starting the read operation. If a write operation is in progress when new data or address is written to the EEPROM I/O Registers, the write operation will be interrupted, and the result is undefined.

Table 1. EEPROM Programming Time

Symbol

EEPROM Write (from CPU)

Number of Calibrated RC

Oscillator Cycles

(1)

8448

Note: 1. Uses 1 MHz clock, independent of CKSEL-Fuse settings.

Typical Programming

Time

8.5 ms

EEPROM Write During

Power-down Sleep

Mode

When entering Power-down sleep mode while an EEPROM write operation is active, the

EEPROM write operation will continue, and will complete before the write access time has passed. However, when the write operation is completed, the crystal Oscillator continues running, and as a consequence, the device does not enter Power-down entirely. It is therefore recommended to verify that the EEPROM write operation is completed before entering Powerdown.

Preventing EEPROM

Corruption

During periods of low V

CC, the EEPROM data can be corrupted because the supply voltage is too low for the CPU and the EEPROM to operate properly. These issues are the same as for board level systems using the EEPROM, and the same design solutions should be applied.

An EEPROM data corruption can be caused by two situations when the voltage is too low. First, a regular write sequence to the EEPROM requires a minimum voltage to operate correctly. Secondly, the CPU itself can execute instructions incorrectly, if the supply voltage for executing instructions is too low.

EEPROM data corruption can easily be avoided by following these design recommendations

(one is sufficient):

1. Keep the AVR RESET active (low) during periods of insufficient power supply voltage.

This can be done by enabling the internal Brown-out Detector (BOD) if the operating voltage matches the detection level. If not, an external Brown-out Reset Protection circuit can be applied.

2. Keep the AVR core in Power-down Sleep mode during periods of low V

CC

. This will prevent the CPU from attempting to decode and execute instructions, effectively protecting the EEPROM Registers from unintentional writes.

Store constants in Flash memory if the ability to change memory contents from software is not required. Flash memory can not be updated by the CPU, and will not be subject to corruption.

I/O Memory

The I/O space definition of the ATtiny26(L) is shown in Table 2

Table 2. ATtiny26(L) I/O Space

(1)

Address Hex

$3F ($5F)

Name

SREG

Function

Status Register

$3D ($5D)

$3B ($5B)

SP

GIMSK

Stack Pointer

General Interrupt Mask Register

20

ATtiny26(L)

1477K–AVR–08/10

1477K–AVR–08/10

ATtiny26(L)

Table 2. ATtiny26(L) I/O Space

(1)

(Continued)

$2B ($4B)

$29 ($29)

$21 ($41)

$1E ($3E)

$1D ($3D)

$1C ($3C)

$1B ($3B)

$1A ($3A)

$19 ($39)

$18 ($38)

$17 ($37)

$16 ($36)

$0F ($2F)

$0E ($2E)

$0D ($2D)

$08 ($28)

$07 ($27)

$06($26)

$05($25)

$04($24)

Address Hex

$3A ($5A)

$39 ($59)

$38 ($58)

$35 ($55)

$34 ($54)

$33 ($53)

$32 ($52)

$31 ($51)

$30 ($50)

$2F ($4F)

$2E ($4E)

$2D ($4D)

$2C ($4C)

Name

GIFR

Function

General Interrupt Flag Register

TIMSK

TIFR

Timer/Counter Interrupt Mask Register

Timer/Counter Interrupt Flag Register

MCUCR MCU Control Register

MCUSR MCU Status Register

TCCR0 Timer/Counter0 Control Register

TCNT0 Timer/Counter0 (8-bit)

OSCCAL Oscillator Calibration Register

TCCR1A Timer/Counter1 Control Register A

TCCR1B Timer/Counter1 Control Register B

TCNT1 Timer/Counter1 (8-bit)

OCR1A Timer/Counter1 Output Compare Register A

OCR1B Timer/Counter1 Output Compare Register B

OCR1C Timer/Counter1 Output Compare Register C

PLLCSR PLL Control and Status Register

WDTCR Watchdog Timer Control Register

EEAR EEPROM Address Register

EEDR

EECR

EEPROM Data Register

EEPROM Control Register

PORTA Data Register, Port A

DDRA Data Direction Register, Port A

PINA Input Pins, Port A

PORTB Data Register, Port B

DDRB

PINB

Data Direction Register, Port B

Input Pins, Port B

USIDR

USISR

USICR

ACSR

Universal Serial Interface Data Register

Universal Serial Interface Status Register

Universal Serial Interface Control Register

Analog Comparator Control and Status Register

ADMUX ADC Multiplexer Select Register

ADCSR ADC Control and Status Register

ADCH

ADCL

ADC Data Register High

ADC Data Register Low

Note: 1. Reserved and unused locations are not shown in the table.

All ATtiny26(L) I/O and peripheral registers are placed in the I/O space. The I/O locations are accessed by the IN and OUT instructions transferring data between the 32 general purpose working registers and the I/O space. I/O Registers within the address range $00 - $1F are

21

directly bit-accessible using the SBI and CBI instructions. In these registers, the value of single bits can be checked by using the SBIS and SBIC instructions. Refer to the instruction set chapter for more details. For compatibility with future devices, reserved bits should be written zero if accessed. Reserved I/O memory addresses should never be written.

22

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

System Clock and Clock

Options

Clock Systems and their

Distribution

Figure 20 presents the principal clock systems in the AVR and their distribution. All of the clocks

need not be active at a given time. In order to reduce power consumption, the clocks to modules

not being used can be halted by using different sleep modes, as described in “Power Management and Sleep Modes” on page 37. The clock systems are detailed below.

Figure 20. Clock Distribution

Timer/Counter1

General I/O modules

ADC CPU Core RAM

Flash and

EEPROM clk

I/O clk

ADC

AVR Clock

Control Unit clk

CPU clk

FLASH

Reset Logic

Clock

Source clock

Multiplexer

Watchdog Timer

Watchdog clock

Watchdog

Oscillator clk

PCK clk

PLL

PLL

External RC

Oscillator

External clock

Crystal

Oscillator

Low-Frequency

Crystal Oscillator

Calibrated RC

Oscillator

CPU Clock – clk

I/O Clock – clk

I/O

CPU

The CPU clock is routed to parts of the system concerned with operation of the AVR core.

Examples of such modules are the General Purpose Register File, the Status Register and the data memory holding the Stack Pointer. Halting the CPU clock inhibits the core from performing general operations and calculations.

The I/O clock is used by the majority of the I/O modules, like Timer/Counters, and USI. The I/O clock is also used by the External Interrupt module, but note that some external interrupts are detected by asynchronous logic, allowing such interrupts to be detected even if the I/O clock is halted.

Flash Clock – clk

FLASH

The Flash clock controls operation of the Flash interface. The Flash clock is usually active simultaneously with the CPU clock.

ADC Clock – clk

ADC

The ADC is provided with a dedicated clock domain. This allows halting the CPU and I/O clocks in order to reduce noise generated by digital circuitry. This gives more accurate ADC conversion results.

23

1477K–AVR–08/10

Internal PLL for Fast

Peripheral Clock

Generation – clk

PCK

The internal PLL in ATtiny26(L) generates a clock frequency that is 64x multiplied from nominally 1 MHz input. The source of the 1 MHz PLL input clock is the output of the internal RC

Oscillator which is automatically divided down to 1 MHz, if needed. See the Figure 21 on page

24. When the PLL reference frequency is the nominal 1 MHz, the fast peripheral clock is 64

MHz. The fast peripheral clock, or a clock prescaled from that, can be selected as the clock source for Timer/Counter1.

The PLL is locked on the RC Oscillator and adjusting the RC Oscillator via OSCCAL Register will adjust the fast peripheral clock at the same time. However, even if the possibly divided RC

Oscillator is taken to a higher frequency than 1 MHz, the fast peripheral clock frequency saturates at 70 MHz (worst case) and remains oscillating at the maximum frequency. It should be noted that the PLL in this case is not locked any more with the RC Oscillator clock.

Therefore it is recommended not to take the OSCCAL adjustments to a higher frequency than 1

MHz in order to keep the PLL in the correct operating range. The internal PLL is enabled only when the PLLE bit in the register PLLCSR is set or the PLLCK Fuse is programmed (“0”). The bit

PLOCK from the register PLLCSR is set when PLL is locked.

Both internal 1 MHz RC Oscillator and PLL are switched off in Power-down and Standby sleep modes.

Figure 21. PCK Clocking System

PLLE

PLLCK &

CKSEL

FUSES

OSCCAL

Lock

Detector

PLOCK

RC OSCILLATOR

1

2

4

8 MHz

DIVIDE

TO 1 MHz

PLL

64x

PCK

DIVIDE

BY 4

CK

XTAL1

XTAL2

OSCILLATORS

24

ATtiny26(L)

1477K–AVR–08/10

Clock Sources

ATtiny26(L)

The device has the following clock source options, selectable by Flash Fuse bits as shown

below on Table 3. The clock from the selected source is input to the AVR clock generator, and

routed to the appropriate modules.The use of pins PB5 (XTAL2), and PB4 (XTAL1) as I/O pins is

limited depending on clock settings, as shown below in Table 4.

Table 3. Device Clocking Options Select

Device Clocking Option

External Crystal/Ceramic Resonator

External Low-frequency Crystal

External RC Oscillator

Calibrated Internal RC Oscillator

External Clock

PLL Clock

PLLCK

1

1

1

1

1

0

CKSEL3..0

1111 - 1010

1001

1000 - 0101

0100 - 0001

0000

0001

Table 4. PB5, and PB4 Functionality vs. Device Clocking Options

(1)

Device Clocking Option PLLCK CKSEL [3:0]

External Clock

Internal RC Oscillator

1

1

0000

0001

PB4

XTAL1

I/O

Internal RC Oscillator

Internal RC Oscillator

Internal RC Oscillator

External RC Oscillator

External RC Oscillator

External RC Oscillator

External RC Oscillator

External Low-frequency Oscillator

External Crystal/Resonator Oscillator

External Crystal/Resonator Oscillator

External Crystal/Resonator Oscillator

External Crystal/Resonator Oscillator

External Crystal/Resonator Oscillator

External Crystal/Resonator Oscillator

PLL

1010

1011

1100

1101

1110

1111

0001

0010

0011

0100

0101

0110

0111

1000

1001

1

1

0

1

1

1

1

1

1

1

1

1

1

1

1

XTAL1

XTAL1

XTAL1

XTAL1

XTAL1

XTAL1

I/O

I/O

I/O

I/O

XTAL1

XTAL1

XTAL1

XTAL1

XTAL1

I/O

I/O

I/O

XTAL2

XTAL2

XTAL2

XTAL2

XTAL2

PB5

I/O

I/O

I/O

I/O

I/O

I/O

XTAL2

XTAL2

I/O

Note: 1. For all fuses “1” means unprogrammed while “0” means programmed.

The various choices for each clocking option is given in the following sections. When the CPU wakes up from Power-down, the selected clock source is used to time the start-up, ensuring stable oscillator operation before instruction execution starts. When the CPU starts from Reset, there is as an additional delay allowing the power to reach a stable level before commencing normal operation. The Watchdog Oscillator is used for timing this real-time part of the start-up

time. The number of WDT Oscillator cycles used for each time-out is shown in Table 5. The fre-

25

1477K–AVR–08/10

quency of the Watchdog Oscillator is voltage dependent as shown in the Electrical

Characteristics section.

Table 5. Number of Watchdog Oscillator Cycles

Typ Time-out (V

CC

= 5.0V)

4.1 ms

65 ms

Typ Time-out (V

CC

= 3.0V)

4.3 ms

69 ms

Number of Cycles

4K (4,096)

64K (65,536)

Default Clock

Source

The deviced is shipped with CKSEL = “0001”, SUT = “10”, and PLLCK unprogrammed. The default clock source setting is therefore the internal RC Oscillator with longest startup time. This default setting ensures that all users can make their desired clock source setting using an In-

System or Parallel Programmer.

Crystal Oscillator

XTAL1 and XTAL2 are input and output, respectively, of an inverting amplifier which can be con-

figured for use as an On-chip Oscillator, as shown in Figure 22. Either a quartz crystal or a

ceramic resonator may be used. The maximum frequency for resonators is 12 MHz. The

CKOPT Fuse should always be unprogrammed when using this clock option. C1 and C2 should always be equal. The optimal value of the capacitors depends on the crystal or resonator in use, the amount of stray capacitance, and the electromagnetic noise of the environment. Some initial

guidelines for choosing capacitors for use with crystals are given in Table 6. For ceramic resona-

tors, the capacitor values given by the manufacturer should be used.

Figure 22. Crystal Oscillator Connections

C2

XTAL2

C1

XTAL1

GND

The Oscillator can operate in three different modes, each optimized for a specific frequency

range. The operating mode is selected by the fuses CKSEL3..1 as shown in Table 6.

Table 6. Crystal Oscillator Operating Modes

CKSEL3..1

101

(1)

Frequency

Range (MHz)

0.4 - 0.9

Recommended Range for Capacitors C1 and

C2 for Use with Crystals (pF)

110

111

0.9 - 3.0

3.0 - 16

16 -

12 - 22

12 - 22

12 - 15

Note: 1. This option should not be used with crystals, only with ceramic resonators.

26

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

Low-frequency

Crystal Oscillator

The CKSEL0 Fuse together with the SUT1..0 Fuses select the start-up times as shown in Table

7.

Table 7. Start-up Times for the Crystal Oscillator Clock Selection

CKSEL0 SUT1..0

0 00

Start-up Time from Power-down

258 CK

(1)

Additional Delay from

Reset (V

CC

= 5.0V)

4.1 ms

0

0

0

1

1

1

1

01

10

11

00

01

10

11

258 CK

(1)

1K CK

(2)

1K CK

(2)

1K CK

(2)

16K CK

16K CK

16K CK

65 ms

4.1 ms

65 ms

4.1 ms

65 ms

Recommended

Usage

Ceramic resonator, fast rising power

Ceramic resonator, slowly rising power

Ceramic resonator,

BOD enabled

Ceramic resonator, fast rising power

Ceramic resonator, slowly rising power

Crystal Oscillator,

BOD enabled

Crystal Oscillator, fast rising power

Crystal Oscillator, slowly rising power

Notes: 1. These options should only be used when not operating close to the maximum frequency of the device, and only if frequency stability at start-up is not important for the application.

2. These options are intended for use with ceramic resonators and will ensure frequency stability at start-up. They can also be used with crystals when not operating close to the maximum frequency of the device, and if frequency stability at start-up is not important for the application.

To use a 32.768 kHz watch crystal as the clock source for the device, the Low-frequency Crystal

Oscillator must be selected by setting the PLLCK to “1” and CKSEL Fuses to “1001”. The crystal

should be connected as shown in Figure 22. By programming the CKOPT Fuse, the user can

enable internal capacitors on XTAL1 and XTAL2, thereby removing the need for external capacitors. The internal capacitors have a nominal value of 36 pF.

When this oscillator is selected, start-up times are determined by the SUT Fuses as shown in

Table 8.

Table 8. Start-up Times for the Low-frequency Crystal Oscillator Clock Selection

SUT1..0

00

01

10

Start-up Time from Power-down

1K CK

(1)

1K CK

(1)

32K CK

Additional Delay from

Reset (V

CC

= 5.0V)

4.1 ms

65 ms

65 ms

Recommended Usage

Fast rising power or BOD enabled

Slowly rising power

Stable frequency at start-up

11 Reserved

Note: 1. These options should only be used if frequency stability at start-up is not important for the application.

27

1477K–AVR–08/10

External RC

Oscillator

For timing insensitive applications, the external RC configuration shown in Figure 23 can be

used. The frequency is roughly estimated by the equation f = 1/(3RC). C should be at least 22 pF. By programming the CKOPT Fuse, the user can enable an internal 36 pF capacitor between

XTAL1 and GND, thereby removing the need for an external capacitor.

Figure 23. External RC Configuration

V

CC

PB5 (XTAL2)

R

XTAL1

C

GND

The oscillator can operate in four different modes, each optimized for a specific frequency range.

The operating mode is selected by the fuses CKSEL3..0 as shown in Table 9.

Table 9. External RC Oscillator Operating Modes

CKSEL3..0

0101

0110

0111

1000

Frequency Range (MHz)

0.1 - 0.9

0.9 - 3.0

3.0 - 8.0

8.0 - 12.0

When this oscillator is selected, start-up times are determined by the SUT Fuses as shown in

Table 10.

Table 10. Start-up Times for the External RC Oscillator Clock Selection

SUT1..0

00

Start-up Time from Power-down

18 CK

Additional Delay from

Reset (V

CC

= 5.0V)

Recommended Usage

BOD enabled

01

10

11

18 CK

18 CK

6 CK

(1)

4.1 ms

65 ms

4.1 ms

Fast rising power

Slowly rising power

Fast rising power or BOD enabled

Notes: 1. This option should not be used when operating close to the maximum frequency of the device.

28

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

Calibrated Internal

RC Oscillator

The calibrated internal RC Oscillator provides a fixed 1.0, 2.0, 4.0, or 8.0 MHz clock. All frequencies are nominal values at 5V and 25

°C. This clock may be selected as the system clock by pro-

gramming the CKSEL Fuses as shown in Table 11. If selected, it will operate with no external

components. The CKOPT Fuse should always be unprogrammed when using this clock option.

During Reset, hardware loads the calibration byte into the OSCCAL Register and thereby automatically calibrates the RC Oscillator. At 5V, 25

°C and 1.0 MHz Oscillator frequency selected, this calibration gives a fre-quency within ± 3% of the nominal frequency. Using run-time calibration methods as described in application notes available at www.atmel.com/avr it is possible to achieve ± 1% accuracy at any given V

CC

and Temperature. When this oscillator is used as the chip clock, the Watchdog Oscillator will still be used for the Watchdog Timer and for the reset

time-out. For more information on the pre-programmed calibration value, see the section “Calibration Byte” on page 109.

Table 11. Internal Calibrated RC Oscillator Operating Modes

CKSEL3..0

0001

(1)

0010

Nominal Frequency (MHz)

1.0

2.0

0011

0100

4.0

8.0

Note: 1. The device is shipped with this option selected.

When this oscillator is selected, start-up times are determined by the SUT Fuses as shown in

Table 12. PB4 (XTAL1) and PB5 (XTAL2) can be used as general I/O ports.

Table 12. Start-up Times for the Internal Calibrated RC Oscillator Clock Selection

SUT1..0

00

Start-up Time from

Power-down

6 CK

Additional Delay from

Reset (V

CC

= 5.0V)

Recommended Usage

BOD enabled

01

10

(1)

11

6 CK

6 CK

4.1 ms

65 ms

Reserved

Fast rising power

Slowly rising power

Note: 1. The device is shipped with this option selected.

Oscillator Calibration

Register – OSCCAL

Bit

$31 ($51)

Read/Write

Initial Value

7

CAL7

R/W

6

CAL6

R/W

5

CAL5

4

CAL4

3

CAL3

2

CAL2

R/W R/W R/W R/W

Device Specific Calibration Value

1

CAL1

R/W

0

CAL0

R/W

OSCCAL

• Bits 7..0 – CAL7..0: Oscillator Calibration Value

Writing the calibration byte to this address will trim the internal oscillator to remove process variations from the oscillator frequency. During Reset, the 1 MHz calibration value which is located in the signature row high byte (address 0x00) is automatically loaded into the OSCCAL Register.

If the internal RC is used at other frequencies, the calibration value must be loaded manually.

This can be done by first reading the signature row by a programmer, and then store the calibration values in the Flash or EEPROM. Then the value can be read by software and loaded into the OSCCAl Register. When OSCCAL is zero, the lowest available frequency is chosen. Writing non-zero values to this register will increase the frequency of the internal oscillator. Writing $FF to the register gives the highest available frequency. The calibrated Oscillator is used to time

29

1477K–AVR–08/10

External Clock

EEPROM and Flash access. If EEPROM or Flash is written, do not calibrate to more than 10% above the nominal frequency. Otherwise, the EEPROM or Flash write may fail. Note that the oscillator is intended for calibration to 1.0, 2.0, 4.0, or 8.0 MHz. Tuning to other values is not

guaranteed, as indicated in Table 13.

Table 13. Internal RC Oscillator Frequency Range.

OSCCAL Value

$00

$7F

$FF

Min Frequency in Percentage of

Nominal Frequency

50%

75%

100%

Max Frequency in Percentage of

Nominal Frequency

100%

150%

200%

To drive the device from an external clock source, XTAL1 should be driven as shown in Figure

24. To run the device on an external clock, the CKSEL Fuses must be programmed to “0000”

and PLLCK to “1”. By programming the CKOPT Fuse, the user can enable an internal 36 pF capacitor between XTAL1 and GND.

Figure 24. External Clock Drive Configuration

PB5 (XTAL2)

EXTERNAL

CLOCK

SIGNAL

XTAL1

GND

When this clock source is selected, start-up times are determined by the SUT Fuses as shown in

Table 14.

Table 14. Start-up Times for the External Clock Selection

SUT1..0

00

Start-up Time from

Power-down

6 CK

Additional Delay from

Reset (V

CC

= 5.0V)

01

10

11

6 CK

6 CK

4.1 ms

65 ms

Reserved

Recommended Usage

BOD enabled

Fast rising power

Slowly rising power

When applying an external clock, it is required to avoid sudden changes in the applied clock frequency to ensure stable operation of the MCU. A variation in frequency of more than 2% from one clock cycle to the next can lead to unpredictable behaviour. It is required to ensure that the

MCU is kept in reset during such changes in the clock frequency.

30

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

High Frequency

PLL Clock –

PLL

CLK

There is an internal PLL that provides nominally 64 MHz clock rate locked to the RC Oscillator for the use of the Peripheral Timer/Counter1 and for the system clock source. When selected as a system clock source, by programming (“0”) the fuse PLLCK, it is divided by four. When this option is used, the CKSEL3..0 must be set to “0001”. This clocking option can be used only when operating between 4.5 - 5.5V to guaratee safe operation. The system clock frequency will be 16 MHz (64 MHz/4). When using this clock option, start-up times are determined by the SUT

Fuses as shown in Table 15. See also “PCK Clocking System” on page 24.

Table 15. Start-up Times for the PLLCK

SUT1..0

00

01

10

11

Start-up Time from

Power-down

1K CK

1K CK

1K CK

16K CK

Additional Delay from

Reset (V

CC

= 5.0V)

4.1 ms

65 ms

Recommended Usage

BOD enabled

Fast rising power

Slowly rising power

Slowly rising power

31

1477K–AVR–08/10

System Control and Reset

The ATtiny26(L) provides four sources of reset:

Power-on Reset. The MCU is reset when the supply voltage is below the Power-on Reset threshold (V

POT

).

External Reset. To use the PB7/RESET pin as an External Reset, instead of I/O pin, unprogram

(“1”) the RSTDISBL Fuse. The MCU is reset when a low level is present on the RESET pin for more than 500 ns.

Watchdog Reset. The MCU is reset when the Watchdog timer period expires and the Watchdog is enabled.

Brown-out Reset. The MCU is reset when the supply voltage V

CC

is below the Brown-out Reset threshold (V

BOT

).

During reset, all I/O Registers are then set to their initial values, and the program starts execution from address $000. The instruction placed in address $000 must be an RJMP – Relative

Jump – instruction to the reset handling routine. If the program never enables an interrupt source, the interrupt vectors are not used, and regular program code can be placed at these

locations. Figure 25 shows the reset logic for the ATtiny26(L). Table 16 shows the timing and

electrical parameters of the reset circuitry for ATtiny26(L).

Figure 25. Reset Logic for the ATtiny26(L)

DATA BUS

MCU Status

Register (MCUSR)

BODEN

BODLEVEL

Brown-Out

Reset Circuit

32

ATtiny26(L)

Clock

Generator

CKSEL[3:0]

CK

Delay Counters

TIMEOUT

1477K–AVR–08/10

ATtiny26(L)

Power-on Reset

Table 16. Reset Characteristics

Symbol Parameter

Power-on Reset Threshold

Voltage (rising)

V

POT

V

RST

Power-on Reset Threshold

Voltage (falling)

(1)

RESET Pin Threshold Voltage t

RST

Minimum pulse width on

RESET Pin

V

BOT

Brown-out Reset Threshold

Voltage

(2)

Condition Min Typ Max Units

0.2

1.4

1.3

2.3

2.3

0.9

1.5

V

V

V

CC

µs t

BOD

Minimum low voltage period for

Brown-out Detection

BODLEVEL = 1 2.4

BODLEVEL = 0 3.7

BODLEVEL = 1

BODLEVEL = 0

2.7

4.0

2

2

2.9

4.5

V

µs

µs

V

HYST

Brown-out Detector hysteresis 130 mV

Notes: 1. The Power-on Reset will not work unless the supply voltage has been below V

POT

2. V this is the case, the device is tested down to V

CC

= V

BOT

(falling)

BOT

may be below nominal minimum operating voltage for some devices. For devices where

during the production test. This guarantees that a Brown-out Reset will occur before V

CC

drops to a voltage where correct operation of the microcontroller is no longer guaranteed. The test is performed using

BODLEVEL=1 for ATtiny26L and BODLEVEL=0 for ATtiny26. BODLEVEL=1 is not applicable for ATtiny26.

See start-up times from reset from “System Clock and Clock Options” on page 23. When the

CPU wakes up from Power-down, only the clock counting part of the start-up time is used. The

Watchdog Oscillator is used for timing the real-time part of the start-up time.

A Power-on Reset (POR) pulse is generated by an On-chip Detection circuit. The detection level

is defined in Table 16 The POR is activated whenever V

CC

is below the detection level. The POR circuit can be used to trigger the Start-up Reset, as well as detect a failure in supply voltage.

The Power-on Reset (POR) circuit ensures that the device is reset from Power-on. Reaching the

Power-on Reset threshold voltage invokes a delay counter, which determines the delay, for which the device is kept in RESET after V

CC

rise. The time-out period of the delay counter can be defined by the user through the CKSEL Fuses. The different selections for the delay period

are presented in “System Clock and Clock Options” on page 23. The RESET signal is activated

again, without any delay, when the V

CC

decreases below detection level.

33

1477K–AVR–08/10

Figure 26. MCU Start-up, RESET Tied to VCC

V

POT

VCC

V

RST

RESET

TIME-OUT t

TOUT

INTERNAL

RESET

Figure 27. MCU Start-up, RESET Controlled Externally

V

POT

VCC

V

RST

RESET t

TOUT

TIME-OUT

External Reset

INTERNAL

RESET

An External Reset is generated by a low level on the RESET pin. Reset pulses longer than 500 ns will generate a reset, even if the clock is not running. Shorter pulses are not guaranteed to generate a reset. When the applied signal reaches the Reset Threshold Voltage – V positive edge, the delay timer starts the MCU after the Time-out period t

TOUT

RST

– on its

has expired.

Figure 28. External Reset During Operation

VCC

RESET

V

RST t

TOUT

TIME-OUT

INTERNAL

RESET

34

ATtiny26(L)

1477K–AVR–08/10

Brown-out

Detection

ATtiny26(L)

ATtiny26(L) has an On-chip Brown-out Detection (BOD) circuit for monitoring the V

CC

level during the operation. The BOD circuit can be enabled/disabled by the fuse BODEN. When the BOD is enabled (BODEN programmed), and V

Reset is immediately activated. When V

CC

CC

decreases below the trigger level, the Brown-out

increases above the trigger level, the Brown-out

Reset is deactivated after a delay. The delay is defined by the user in the same way as the delay

of POR signal, in Table 29. The trigger level for the BOD can be selected by the fuse

BODLEVEL to be 2.7V (BODLEVEL unprogrammed), or 4.0V (BODLEVEL programmed). The trigger level has a hysteresis of 50 mV to ensure spike free Brown-out Detection.

The BOD circuit will only detect a drop in V

CC ger than t

BOD

given in Table 16.

if the voltage stays below the trigger level for lon-

Figure 29. Brown-out Reset During Operation

V

CC

V

BOT-

V

BOT+

RESET

TIME-OUT t

TOUT

Watchdog Reset

INTERNAL

RESET

When the Watchdog times out, it will generate a short reset pulse of one CK cycle duration. On the falling edge of this pulse, the delay timer starts counting the Time-out period t

TOUT

page 78 for details on operation of the Watchdog.

. Refer to

Figure 30. Watchdog Time-out

1 CK Cycle

35

1477K–AVR–08/10

MCU Status

Register – MCUSR

Bit

$34 ($54)

Read/Write

Initial Value

R

0

7

R

0

6

R

0

5

R

0

4

3

WDRF

R/W

2

BORF

1

EXTRF

R/W R/W

See Bit Description

0

PORF

R/W

MCUSR

• Bit 7..4 – Res: Reserved Bits

These bits are reserved bits in the ATtiny26(L) and always read as zero.

• Bit 3 – WDRF: Watchdog Reset Flag

This bit is set (one) if a Watchdog Reset occurs. The bit is reset (zero) by a Power-on Reset, or by writing a logic zero to the flag.

• Bit 2 – BORF: Brown-out Reset Flag

This bit is set (one) if a Brown-out Reset occurs. The bit is reset (zero) by a Power-on Reset, or by writing a logic zero to the flag.

• Bit 1 – EXTRF: External Reset Flag

This bit is set (one) if an External Reset occurs. The bit is reset (zero) by a Power-on Reset, or by writing a logic zero to the flag.

• Bit 0 – PORF: Power-on Reset Flag

This bit is set (one) if a Power-on Reset occurs. The bit is reset (zero) by writing a logic zero to the flag.

To make use of the reset flags to identify a reset condition, the user should read and then reset

(zero) the MCUSR as early as possible in the program. If the register is cleared before another reset occurs, the source of the reset can be found by examining the reset flags.

36

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

Power

Management and Sleep

Modes

Sleep modes enable the application to shut down unused modules in the MCU, thereby saving power. The AVR provides various sleep modes allowing the user to tailor the power consumption to the application’s requirements.

To enter any of the four sleep modes, the SE bit in MCUCR must be written to logic one and a

SLEEP instruction must be executed. The SM1, and SM0 bits in the MCUCR Register select which sleep mode (Idle, ADC Noise Reduction, Power Down, or Stand-by) will be activated by

the SLEEP instruction. See Table 17 for a summary. If an enabled interrupt occurs while the

MCU is in a sleep mode, the MCU wakes up. The MCU is then halted for four cycles in addition to the start-up time, it executes the interrupt routine, and resumes execution from the instruction following SLEEP. The contents of the Register File and SRAM are unaltered when the device wakes up from sleep. If a Reset occurs during sleep mode, the MCU wakes up and executes from the Reset Vector.

Table 19 on page 39 presents the different clock systems in the ATtiny26, and their distribution.

The figure is helpful in selecting an appropriate sleep mode.

MCU Control

Register – MCUCR

The MCU Control Register contains control bits for general MCU functions.

Bit

$35 ($55)

Read/Write

Initial Value

R

0

7

6

PUD

R/W

0

5

SE

R/W

0

4

SM1

R/W

0

3

SM0

R/W

0

R

0

2

1

ISC01

R/W

0

0

ISC00

R/W

0

MCUCR

• Bits 7 – Res: Reserved Bit

This bit is a reserved bit in the ATtiny26(L) and always reads as zero.

• Bit 6 – PUD: Pull-up Disable

When this bit is set (one), the pull-ups in the I/O ports are disabled even if the DDxn and

PORTxn Registers are configured to enable the pull-ups ({DDxn, PORTxn} = 0b01). See “Configuring the Pin” on page 42 for more details about this feature.

• Bit 5 – SE: Sleep Enable

The SE bit must be set (one) to make the MCU enter the Sleep mode when the SLEEP instruction is executed. To avoid the MCU entering the Sleep mode unless it is the programmers purpose, it is recommended to set the Sleep Enable SE bit just before the execution of the

SLEEP instruction.

• Bits 4,3 – SM1/SM0: Sleep Mode Select Bits 1 and 0

These bits select between the four available Sleep modes, as shown in the following table.

Table 17. Sleep Modes

SM1 SM0

1

1

0

0

0

1

0

1

Sleep Mode

Idle mode

ADC Noise Reduction mode

Power-down mode

Standby mode

For details, refer to the paragraph “Sleep Modes” below.

• Bit 2 – Res: Reserved Bit

This bit is a reserved bit in the ATtiny26(L) and always reads as zero.

• Bits 1, 0 – ISC01, ISC00: Interrupt Sense Control 0 Bit 1 and Bit 0

37

1477K–AVR–08/10

The External Interrupt 0 is activated by the external pin INT0 if the SREG I-flag and the corresponding interrupt mask is set (one). The activity on the external INT0 pin that activates the interrupt is defined in the following table.

Table 18. Interrupt 0 Sense Control

(1)

ISC01

0

0

1

1

ISC00

0

1

0

1

Description

The low level of INT0 generates an interrupt request.

Any change on INT0 generates an interrupt request.

The falling edge of INT0 generates an interrupt request.

The rising edge of INT0 generates an interrupt request.

Note: 1. When changing the ISC10/ISC00 bits, INT0 must be disabled by clearing its Interrupt Enable bit in the GIMSK Register. Otherwise an interrupt can occur when the bits are changed.

Idle Mode

When the SM1..0 bits are written to “00”, the SLEEP instruction makes the MCU enter Idle mode, stopping the CPU but allowing Analog Comparator, ADC, USI, Timer/Counters, Watchdog, and the interrupt system to continue operating. This sleep mode basically halts clk

CPU clk

FLASH

, while allowing the other clocks to run.

and

Idle mode enables the MCU to wake up from external triggered interrupts as well as internal ones like the Timer Overflow and USI Start and Overflow interrupts. If wake-up from the Analog

Comparator interrupt is not required, the Analog Comparator can be powered down by setting the ACD bit in the Analog Comparator Control and Status Register – ACSR. This will reduce power consumption in Idle mode. If the ADC is enabled, a conversion starts automatically when this mode is entered.

ADC Noise

Reduction Mode

When the SM1..0 bits are written to “01”, the SLEEP instruction makes the MCU enter ADC

Noise Reduction mode, stopping the CPU but allowing the ADC, the External Interrupts, the USI start condition detection, and the Watchdog to continue operating (if enabled). This sleep mode basically halts clk

I/O

, clk

CPU

, and clk

FLASH

, while allowing the other clocks to run.

This improves the noise environment for the ADC, enabling higher resolution measurements. If the ADC is enabled, a conversion starts automatically when this mode is entered. Apart form the

ADC Conversion Complete interrupt, only an External Reset, a Watchdog Reset, a Brown-out

Reset, USI start condition interrupt, an EEPROM ready interrupt, an External Level Interrupt on

INT0, or a pin change interrupt can wake up the MCU from ADC Noise Reduction mode.

Power-down Mode

When the SM1..0 bits are written to “10”, the SLEEP instruction makes the MCU enter Powerdown mode. In this mode, the External Oscillator is stopped, while the External Interrupts, the

USI start condition detection, and the Watchdog continue operating (if enabled). Only an External Reset, a Watchdog Reset, a Brown-out Reset, USI start condition interrupt, an External

Level Interrupt on INT0, or a pin change interrupt can wake up the MCU. This sleep mode basically halts all generated clocks, allowing operation of asynchronous modules only.

When waking up from Power-down mode, there is a delay from the wake-up condition occurs until the wake-up becomes effective. This allows the clock to restart and become stable after having been stopped. The wake-up period is defined by the same CKSEL Fuses that define the

reset time-out period, as described in “Clock Sources” on page 25.

Note that if a level triggered external interrupt or pin change interrupt is used from Power-down mode, the changed level must be held for some time to wake up the MCU. This makes the MCU less sensitive to noise.

38

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

If the wake-up condition disappears before the MCU wakes up and starts to execute, e.g., a low level on INT0 is not held long enough, the interrupt causing the wake-up will not be executed.

Standby Mode

When the SM1..0 bits are “11” and an External Crystal/Resonator clock option is selected, the

SLEEP instruction forces the MCU into the Standby mode. This mode is identical to Power-down with the exception that the Oscillator is kept running. From Standby mode, the device wakes up in only six clock cycles.

Table 19. Active Clock Domains and Wake-up Sources in the different Sleep Modes.

Sleep Mode

Idle

Active Clock domains

clk

CPU clk

FLASH clk

IO

X clk

ADC

X

Oscillators

Main Clock

Source Enabled

X

INT0, and Pin

Change

X

Wake-up Sources

USI Start

Condition

X

ADC Noise

Reduction

Power-down

Standby

(1)

X X

X

X

(2)

X

X

(2)

(2)

Notes: 1. Only recommended with external crystal or resonator selected as clock source.

2. Only level interrupt INT0.

X

X

X

EEPROM

Ready

X

X

ADC

X

X

Other I/O

X

39

1477K–AVR–08/10

Minimizing Power

Consumption

Analog to Digital

Converter

Analog Comparator

Brown-out Detector

Internal Voltage

Reference

There are several issues to consider when trying to minimize the power consumption in an AVR controlled system. In general, sleep modes should be used as much as possible, and the sleep mode should be selected so that as few as possible of the device’s functions are operating. All functions not needed should be disabled. In particular, the following modules may need special consideration when trying to achieve the lowest possible power consumption.

If enabled, the ADC will be enabled in all sleep modes. To save power, the ADC should be disabled before entering any sleep mode. When the ADC is turned off and on again, the next

conversion will be an extended conversion. Refer to “Analog to Digital Converter” on page 94 for

details on ADC operation.

When entering Idle mode, the Analog Comparator should be disabled if not used. When entering

ADC Noise Reduction mode, the Analog Comparator should be disabled. In the other sleep modes, the Analog Comparator is automatically disabled. However, if the Analog Comparator is set up to use the Internal Voltage Reference as input, the Analog Comparator should be disabled in all sleep modes. Otherwise, the Internal Voltage Reference will be enabled,

independent of sleep mode. Refer to “Analog Comparator” on page 91 for details on how to con-

figure the Analog Comparator.

If the Brown-out Detector is not needed in the application, this module should be turned off. If the

Brown-out Detector is enabled by the BODEN Fuse, it will be enabled in all sleep modes, and hence, always consume power. In the deeper sleep modes, this will contribute significantly to

the total current consumption. Refer to “Brown-out Detection” on page 35 for details on how to

configure the Brown-out Detector.

The Internal Voltage Reference (see Table 20) will be enabled when needed by the Brown-out

Detector, the Analog Comparator or the ADC. If these modules are disabled as described in the sections above, the Internal Voltage Reference will be disabled and it will not be consuming power. When turned on again, the user must allow the reference to start up before the output is used. If the reference is kept on in sleep mode, the output can be used immediately.

Table 20. Internal Voltage Reference

Symbol

V

BG t

BG

I

BG

Parameter

Bandgap reference voltage

Bandgap reference start-up time

Bandgap reference current consumption

Min

1.15

Typ

1.18

40

10

Max

1.40

70

Units

V

µs

µA

Watchdog Timer

Port Pins

If the Watchdog Timer is not needed in the application, this module should be turned off. If the

Watchdog Timer is enabled, it will be enabled in all sleep modes, and hence, always consume power. In the deeper sleep modes, this will contribute significantly to the total current consump-

tion. Refer to “Watchdog Timer” on page 78 for details on how to configure the Watchdog Timer.

When entering a sleep mode, all port pins should be configured to use minimum power. The most important thing is then to ensure that no pins drive resistive loads. In sleep modes where the both the I/O clock (clk

I/O

) and the ADC clock (clk

ADC

) are stopped, the input buffers of the device will be disabled. This ensures that no power is consumed by the input logic when not needed. In some cases, the input logic is needed for detecting wake-up conditions, and it will

then be enabled. Refer to “Digital Input Enable and Sleep Modes” on page 45 for details on

which pins are enabled. If the input buffer is enabled and the input signal is left floating or have an analog signal level close to V

CC

/2, the input buffer will use excessive power.

40

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

I/O Ports

Introduction

All AVR ports have true Read-Modify-Write functionality when used as general digital I/O ports.

This means that the direction of one port pin can be changed without unintentionally changing the direction of any other pin with the SBI and CBI instructions. The same applies when changing drive value (if configured as output) or enabling/disabling of pull-up resistors (if configured as input). Each output buffer, except reset, has symmetrical drive characteristics with both high sink and source capability. The pin driver is strong enough to drive LED displays directly. All port pins have individually selectable pull-up resistors with a supply-voltage invariant resistance. All I/O pins have protection diodes to both V

CC

and Ground as indicated in Figure 31.

Figure 31. I/O Pin Equivalent Schematic

Pxn

C pin

R pu

Logic

See Figure

"General Digital I/O" for

Details

Ports as General

Digital I/O

All registers and bit references in this section are written in general form. A lower case “x” represents the numbering letter for the port, and a lower case “n” represents the bit number. However, when using the register or bit defines in a program, the precise form must be used. For example,

PORTB3 for bit no. 3 in Port B, here documented generally as PORTxn. The physical I/O Regis-

ters and bit locations are listed in “Register Description for I/O Ports” on page 56.

Three I/O memory address locations are allocated for each port, one each for the Data Register

– PORTx, Data Direction Register – DDRx, and the Port Input Pins – PINx. The Port Input Pins

I/O location is read only, while the Data Register and the Data Direction Register are read/write.

In addition, the Pull-up Disable – PUD bit in MCUCR disables the pull-up function for all pins in all ports when set.

Using the I/O port as General Digital I/O is described in “Ports as General Digital I/O” on page

41. Most port pins are multiplexed with alternate functions for the peripheral features on the

device. How each alternate function interferes with the port pin is described in “Alternate Port

Functions” on page 46. Refer to the individual module sections for a full description of the alter-

nate functions.

Note that enabling the alternate function of some of the port pins does not affect the use of the other pins in the port as general digital I/O.

The ports are bi-directional I/O ports with optional internal pull-ups. Figure 32 shows a functional

description of one I/O-port pin, here generically called Pxn.

41

1477K–AVR–08/10

Figure 32. General Digital I/O

(1)

PUD

Q D

DDxn

Q

CLR

RESET

WDx

RDx

Pxn

SLEEP

Q D

PORTxn

Q

CLR

RESET

WPx

RRx

SYNCHRONIZER

D Q

L

Q

D Q

PINxn

Q

RPx clk

I/O

PUD:

SLEEP: clk

I/O

:

PULLUP DISABLE

SLEEP CONTROL

I/O CLOCK

WDx:

RDx:

WPx:

RRx:

RPx:

WRITE DDRx

READ DDRx

WRITE PORTx

READ PORTx REGISTER

READ PORTx PIN

Configuring the Pin

42

Note: 1. WPx, WDx, RRx, RPx, and RDx are common to all pins within the same port. clk

I/O

, SLEEP, and PUD are common to all ports.

Each port pin consists of 3 Register bits: DDxn, PORTxn, and PINxn. As shown in “Register

Description for I/O Ports” on page 56, the DDxn bits are accessed at the DDRx I/O address, the

PORTxn bits at the PORTx I/O address, and the PINxn bits at the PINx I/O address.

The DDxn bit in the DDRx Register selects the direction of this pin. If DDxn is written logic one,

Pxn is configured as an output pin. If DDxn is written logic zero, Pxn is configured as an input pin.

If PORTxn is written logic one when the pin is configured as an input pin, the pull-up resistor is activated. To switch the pull-up resistor off, PORTxn has to be written logic zero or the pin has to be configured as an output pin. The port pins are tri-stated when a reset condition becomes active, even if no clocks are running.

If PORTxn is written logic one when the pin is configured as an output pin, the port pin is driven high (one). If PORTxn is written logic zero when the pin is configured as an output pin, the port pin is driven low (zero).

When switching between tri-state ({DDxn, PORTxn} = 0b00) and output high ({DDxn, PORTxn}

= 0b11), an intermediate state with either pull-up enabled ({DDxn, PORTxn} = 0b01) or output low ({DDxn, PORTxn} = 0b10) must occur. Normally, the pull-up enabled state is fully acceptable, as a high-impedant environment will not notice the difference between a strong high driver and a pull-up. If this is not the case, the PUD bit in the MCUCR Register can be set to disable all pull-ups in all ports.

Switching between input with pull-up and output low generates the same problem. The user must use either the tri-state ({DDxn, PORTxn} = 0b00) or the output high state ({DDxn, PORTxn}

= 0b11) as an intermediate step.

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

Table 21 summarizes the control signals for the pin value.

Table 21. Port Pin Configurations

DDxn PORTxn

0 0

PUD

(in MCUCR)

X

I/O

Input

1

1

0

0

0

1

1

1

X

X

0

1

Input

Input

Output

Output

Pull-up Comment

No

Yes

No

Tri-state (Hi-Z)

Pxn will source current if ext. pulled low

Tri-state (Hi-Z)

No

No

Output Low (Sink)

Output High (Source)

Reading the Pin Value

Independent of the setting of Data Direction bit DDxn, the port pin can be read through the

PINxn Register Bit. As shown in Figure 32, the PINxn Register bit and the preceding latch con-

stitute a synchronizer. This is needed to avoid metastability if the physical pin changes value

near the edge of the internal clock, but it also introduces a delay. Figure 33 shows a timing dia-

gram of the synchronization when reading an externally applied pin value. The maximum and minimum propagation delays are denoted t pd,max

and t pd,min

respectively.

Figure 33. Synchronization when Reading an Externally Applied Pin Value

SYSTEM CLK

INSTRUCTIONS

SYNC LATCH

PINxn r17

XXX XXX in r17, PINx

0xFF 0x00 t pd, max t pd, min

Consider the clock period starting shortly after the first falling edge of the system clock. The latch is closed when the clock is low, and goes transparent when the clock is high, as indicated by the shaded region of the “SYNC LATCH” signal. The signal value is latched when the system clock goes low. It is clocked into the PINxn Register at the succeeding positive clock edge. As indicated by the two arrows t pd,max

and t pd,min

, a single signal transition on the pin will be delayed between ½ and 1½ system clock period depending upon the time of assertion.

When reading back a software assigned pin value, a nop instruction must be inserted as indi-

cated in Figure 34. The out instruction sets the “SYNC LATCH” signal at the positive edge of the

clock. In this case, the delay t pd through the synchronizer is one system clock period.

43

1477K–AVR–08/10

Figure 34. Synchronization when Reading a Software Assigned Pin Value

SYSTEM CLK r16

INSTRUCTIONS

SYNC LATCH

PINxn r17 out PORTx, r16 nop

0xFF in r17, PINx

0x00 t pd

0xFF

44

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

Digital Input Enable and Sleep Modes

The following code example shows how to set port B pins 0 and 1 high, 2 and 3 low, and define the port pins from 4 to 7 as input with pull-ups assigned to port pins 6 and 7. The resulting pin values are read back again, but as previously discussed, a nop instruction is included to be able to read back the value recently assigned to some of the pins.

Assembly Code Example

(1)

...

; Define pull-ups and set outputs high

; Define directions for port pins

ldi

r16,(1<<PB7)|(1<<PB6)|(1<<PB1)|(1<<PB0)

ldi

r17,(1<<DDB3)|(1<<DDB2)|(1<<DDB1)|(1<<DDB0)

out

PORTB,r16

out

DDRB,r17

; Insert nop for synchronization

nop

; Read port pins

in

r16,PINB

...

C Code Example

unsigned char

i;

...

/* Define pull-ups and set outputs high */

/* Define directions for port pins */

PORTB = (1<<PB7)|(1<<PB6)|(1<<PB1)|(1<<PB0);

DDRB = (1<<DDB3)|(1<<DDB2)|(1<<DDB1)|(1<<DDB0);

/* Insert nop for synchronization*/

_NOP();

/* Read port pins */ i = PINB;

...

Note: 1. For the assembly program, two temporary registers are used to minimize the time from pullups are set on pins 0, 1, 6, and 7, until the direction bits are correctly set, defining bit 2 and 3 as low and redefining bits 0 and 1 as strong high drivers.

As shown in Figure 32, the digital input signal can be clamped to ground at the input of the

schmitt-trigger. The signal denoted SLEEP in the figure, is set by the MCU Sleep Controller in

Power-down mode, Standby mode, and ADC Noise Reduction mode to avoid high power consumption if some input signals are left floating, or have an analog signal level close to V

CC

/2.

SLEEP is overridden for port pins enabled as External Interrupt pins. If the External Interrupt

Request is not enabled, SLEEP is active also for these pins. SLEEP is also overridden by vari-

ous other alternate functions as described in “Alternate Port Functions” on page 46.

If a logic high level (“one”) is present on an Asynchronous External Interrupt pin configured as

“Interrupt on a Rising Edge, Falling Edge, or Any Logic Change on Pin” while the external interrupt is not enabled, the corresponding External Interrupt Flag will be set when resuming from the above mentioned sleep modes, as the clamping in these sleep modes produces the requested logic change.

45

1477K–AVR–08/10

Unconnected Pins

Alternate Port

Functions

46

If some pins are unused, it is recommended to ensure that these pins have a defined level. Even though most of the digital inputs are disabled in the deep sleep modes as described above, floating inputs should be avoided to reduce current consumption in all other modes where the digital inputs are enabled (Reset, Active mode, and Idle mode).

The simplest method to ensure a defined level of an unused pin, is to enable the internal pullup.

In this case, the pullup will be disabled during reset. If low power consumption during reset is important, it is recommended to use an external pullup or pulldown. Connecting unused pins directly to V

CC

or GND is not recommended, since this may cause excessive currents if the pin is accidentally configured as an output.

Most port pins have alternate functions in addition to being general digital I/Os. Figure 35 shows

how the port pin control signals from the simplified Figure 32 can be overridden by alternate

functions. The overriding signals may not be present in all port pins, but the figure serves as a generic description applicable to all port pins in the AVR microcontroller family.

Figure 35. Alternate Port Functions

(1)

PUOExn

PUOVxn

1

0

PUD

DDOExn

DDOVxn

1

0

PVOExn

PVOVxn

Q D

DDxn

Q

CLR

RESET

WDx

RDx

Pxn

1

0

Q D

PORTxn

Q

CLR

RESET

1

0

DIEOExn

DIEOVxn

SLEEP

WPx

RRx

SYNCHRONIZER

D

SET

Q

L

CLR

Q

D Q

PINxn

CLR

Q

RPx clk

I/O

DIxn

AIOxn

PUOExn: Pxn PULL-UP OVERRIDE ENABLE

PUOVxn: Pxn PULL-UP OVERRIDE VALUE

DDOExn: Pxn DATA DIRECTION OVERRIDE ENABLE

DDOVxn: Pxn DATA DIRECTION OVERRIDE VALUE

PVOExn: Pxn PORT VALUE OVERRIDE ENABLE

PVOVxn: Pxn PORT VALUE OVERRIDE VALUE

DIEOExn: Pxn DIGITAL INPUT-ENABLE OVERRIDE ENABLE

DIEOVxn: Pxn DIGITAL INPUT-ENABLE OVERRIDE VALUE

SLEEP: SLEEP CONTROL

PUD:

WDx:

RDx:

RRx:

WPx:

RPx: clk

I/O

DIxn:

:

AIOxn:

PULLUP DISABLE

WRITE DDRx

READ DDRx

READ PORTx REGISTER

WRITE PORTx

READ PORTx PIN

I/O CLOCK

DIGITAL INPUT PIN n ON PORTx

ANALOG INPUT/OUTPUT PIN n ON PORTx

Note: 1. WPx, WDx, RLx, RPx, and RDx are common to all pins within the same port. clk

I/O and PUD are common to all ports. All other signals are unique for each pin.

, SLEEP,

ATtiny26(L)

1477K–AVR–08/10

1477K–AVR–08/10

ATtiny26(L)

Table 22 summarizes the function of the overriding signals. The pin and port indexes from Figure 35 are not shown in the succeeding tables. The overriding signals are generated internally in

the modules having the alternate function.

Table 22. Generic Description of Overriding Signals for Alternate Functions

Signal Name

PUOE

PUOV

DDOE

DDOV

PVOE

PVOV

DIEOE

DIEOV

DI

AIO

Full Name

Pull-up Override

Enable

Pull-up Override

Value

Data Direction

Override Enable

Description

If this signal is set, the pull-up enable is controlled by the PUOV signal. If this signal is cleared, the pull-up is enabled when {DDxn, PORTxn, PUD} = 0b010.

If PUOE is set, the pull-up is enabled/disabled when

PUOV is set/cleared, regardless of the setting of the

DDxn, PORTxn, and PUD Register bits.

If this signal is set, the Output Driver Enable is controlled by the DDOV signal. If this signal is cleared, the Output driver is enabled by the DDxn Register bit.

Data Direction

Override Value

Port Value

Override Enable

Port Value

Override Value

Digital Input Enable

Override Enable

Digital Input Enable

Override Value

If DDOE is set, the Output Driver is enabled/disabled when DDOV is set/cleared, regardless of the setting of the DDxn Register bit.

If this signal is set and the Output Driver is enabled, the port value is controlled by the PVOV signal. If

PVOE is cleared, and the Output Driver is enabled, the port Value is controlled by the PORTxn Register bit.

If PVOE is set, the port value is set to PVOV, regardless of the setting of the PORTxn Register bit.

If this bit is set, the Digital Input Enable is controlled by the DIEOV signal. If this signal is cleared, the Digital

Input Enable is determined by MCU-state (Normal mode, sleep modes).

If DIEOE is set, the Digital Input is enabled/disabled when DIEOV is set/cleared, regardless of the MCU state (Normal mode, sleep modes).

Digital Input This is the Digital Input to alternate functions. In the figure, the signal is connected to the output of the schmitt trigger but before the synchronizer. Unless the

Digital Input is used as a clock source, the module with the alternate function will use its own synchronizer.

Analog Input/output This is the Analog Input/Output to/from alternate functions. The signal is connected directly to the pad, and can be used bidirectionally.

The following subsections shortly describes the alternate functions for each port, and relates the overriding signals to the alternate function. Refer to the alternate function description for further details.

47

MCU Control Register

– MCUCR

The MCU Control Register contains control bits for general MCU functions.

Bit

$35 ($55)

Read/Write

Initial Value

R

0

7

6

PUD

R/W

0

5

SE

R/W

0

4

SM1

R/W

0

3

SM0

R/W

0

R

0

2

1

ISC01

R/W

0

0

ISC00

R/W

0

MCUCR

• Bit 6 – PUD: Pull-up Disable

When this bit is set (one), the pull-ups in the I/O ports are disabled even if the DDxn and

PORTxn Registers are configured to enable the pull-ups ({DDxn, PORTxn} = 0b01). See “Configuring the Pin” on page 42 for more details about this feature.

Alternate Functions of

Port A

Port A has an alternate functions as analog inputs for the ADC and Analog Comparator and pin

change interrupt as shown in Table 23. If some Port A pins are configured as outputs, it is

essential that these do not switch when a conversion is in progress. This might corrupt the result

of the conversion. The ADC is described in “Analog to Digital Converter” on page 94. Analog

Comparator is described in “Analog Comparator” on page 91. Pin change interrupt triggers on

pins PA7, PA6 and PA3 if interrupt is enabled and it is not masked by the alternate functions

even if the pin is configured as an output. See details from “Pin Change Interrupt” on page 62.

Table 23. Port A Pins Alternate Functions

Port Pin

PA7

PA6

PA5

PA4

PA3

PA2

PA1

PA0

Alternate Function

ADC6 (ADC input channel 6)

AIN1 (Analog Comparator negative input)

PCINT1 (Pin Change Interrupt 1)

ADC5 (ADC input channel 5)

AIN0 (Analog Comparator positive input)

PCINT1 (Pin Change Interrupt 1)

ADC4 (ADC input channel 4)

ADC3 (ADC input channel 3)

AREF (ADC external reference)

PCINT1 (Pin Change Interrupt 1)

ADC2 (ADC input channel 2)

ADC1 (ADC input channel 1)

ADC0 (ADC input channel 0)

Table 24 and Table 25 relates the alternate functions of Port A to the overriding signals shown in

Figure 35 on page 46. Thera are changes on PA7, PA6, and PA3 digital inputs. PA3 output and

pullup driver are also overridden.

• ADC6/AIN1 Port – A, Bit 7

AIN1: Analog Comparator Negative input and ADC6: ADC input channel 6

.

Configure the port pin as input with the internal pull-up switched off to avoid the digital port function from interfering with the function of the analog comparator or analog to digital converter.

PCINT1: Pin Change Interrupt 1 pin. Pin change interrupt is enabled on pin when global interrupt is enabled, pin change interrupt is enabled and the alternate function do not mask the interrupt.

The masking alternate function is the Analog Comparator. Digital input is enabled on pin PA7 also in SLEEP modes, if the pin change interrupt is enabled and not masked by the alternate function.

• ADC5/AIN0 Port – A, Bit 6

48

ATtiny26(L)

1477K–AVR–08/10

1477K–AVR–08/10

ATtiny26(L)

AIN0: Analog Comparator Positive input and ADC5: ADC input channel 5

.

Configure the port pin as input with the internal pull-up switched off to avoid the digital port function from interfering with the function of the Analog Comparator or analog to digital converter.

PCINT1: Pin Change Interrupt 1 pin. Pin change interrupt is enabled on pin when global interrupt is enabled, pin change interrupt is enabled and the alternate function do not mask the interrupt.

The masking alternate function is the Analog Comparator. Digital input is enabled on pin PA6 also in SLEEP modes, if the pin change interrupt is enabled and not masked by the alternate function.

• ADC4, ADC3 Port – A, Bit 5, 4

ADC4/ADC3: ADC Input Channel 4 and 3. Configure the port pins as inputs with the internal pull-ups switched off to avoid the digital port function from interfering with the function of the analog to digital converter.

• AREF/PCINT1 Port – A, Bit 3

AREF: External Reference for ADC. Pullup and output driver are disabled on PA3 when the pin is used as an external reference or Internal Voltage Reference (2.56V) with external capacitor at the AREF pin by setting (one) the bit REFS0 in the ADC Multiplexer Selection Register

(ADMUX).

PCINT1: Pin Change Interrupt 1 pin. Pin change interrupt is enabled on pin when global interrupt is enabled, pin change interrupt is enabled and the alternate function do not mask the interrupt.

The masking alternate function is the pin usage as an analog reference for the ADC. Digital input is enabled on pin PA3 also in SLEEP modes, if the pin change interrupt is enabled and not masked by the alternate function.

Table 24. Overriding Signals for Alternate Functions in PA7..PA4

Signal

Name

PUOE

PUOV

0

0

PA7/ADC6/

AIN1/PCINT1

DDOE

DDOV

0

0

PVOE 0

PVOV 0

DIEOE

PCINT1_ENABLE

(1)

ACSR[ACD]

DIEOV 1

DI PCINT1

AIO ADC6 INPUT, AIN1

0

0

PA6/ADC5/

AIN0/PCINT1

0

0

0

0

PCINT1_ENABLE

(1)

ACSR[ACD]

1

PCINT1

ADC5 INPUT, AIN0

0

0

0

0

0

PA5/ADC4

0

0

0

0

0

0

0

PA4/ADC3

0

0

0

0

ADC4 INPUT ADC3 INPUT

49

Table 25. Overriding Signals for Alternate Functions in PA3..PA0

Signal

Name

PUOE

PUOV

DDOE

DDOV

PVOE

PVOV

DIEOE

DIEOV

DI

AIO

PA3/AREF/PCINT1

ADMUX[REFS0]

0

ADMUX[REFS0]

0

0

0

PCINT1_ENABLE

(1)

~

(2)

ADMUX[REFS0]

1

PCINT1

ANALOG REFERENCE INPUT

0

0

0

0

0

PA2/ADC2

0

0

0

0

0

0

0

PA1/ADC1

0

0

0

0

0

0

0

PA0/ADC0

0

0

0

0

0

ADC2 INPUT ADC1 INPUT ADC0 INPUT

Notes: 1. Note that the PCINT1 Interrupt is only enabled if both the Global Interrupt Flag is enabled, the

PCIE1 flag in GIMSK is set and the alternate function of the pin is disabled as described in “Pin

Change Interrupt” on page 62

2. Not operator is marked with “~”.

50

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

Alternate Functions Of

Port B

Port B has an alternate functions for the ADC, Clocking, Timer/Counters, USI, SPI programming

and pin change interrupt. The ADC is described in “Analog to Digital Converter” on page 94,

Clocking in “AVR CPU Core” on page 7, timers in “Timer/Counters” on page 64 and USI in “Universal Serial Interface – USI” on page 80. Pin change interrupt triggers on pins PB7 - PB0 if

interrupt is enabled and it is not masked by the alternate functions even if the pin is configured

as an output. See details from “Pin Change Interrupt” on page 62. Pin functions in programming

modes are described in “Memory Programming” on page 107. The alternate functions are shown

in Table 26.

Table 26. Port B Pins Alternate Functions

Port Pin Alternate Functions

PB7 ADC10 (ADC Input Channel 10)

RESET (External Reset Input)

PCINT1 (Pin Change Interrupt 1)

PB6 ADC9 (ADC Input Channel 9)

INT0 (External Interrupt 0 Input)

T0 (Timer/Counter 0 External Counter Clock Input)

PCINT1 (Pin Change Interrupt 1)

PB5

PB4

PB3

PB2

PB1

PB0

ADC8 (ADC Input Channel 8)

XTAL2 (Crystal Oscillator Output)

PCINT1 (Pin Change Interrupt 1)

ADC7 (ADC Input Channel 7)

XTAL1 (Crystal Oscillator Input)

PCINT1 (Pin Change Interrupt 1)

OC1B (Timer/Counter1 PWM Output B, Timer/Counter1Output Compare B Match

Output)

PCINT0 (Pin Change Interrupt 0)

SCK (USI Clock Input/Output)

SCL (USI External Open-collector Serial Clock)

OC1B (Inverted Timer/Counter1 PWM Output B)

PCINT0 (Pin Change Interrupt 0)

DO (USI Data Output)

OC1A (Timer/Counter1 PWM Output A, Timer/Counter1 Output Compare A Match

Output)

PCINT0 (Pin Change Interrupt 0)

DI (USI Data Input)

SDA (USI Serial Data)

OC1A (Inverted Timer/Counter1 PWM Output A)

PCINT0 (Pin Change Interrupt 0)

The alternate pin configuration is as follows:

• ADC10/RESET/PCINT1 – Port B, Bit 7

ADC10: ADC Input Channel 10. Configure the port pins as inputs with the internal pull-ups switched off to avoid the digital port function from interfering with the function of the analog to digital converter.

RESET: External Reset input is active low and enabled by unprogramming (“1”) the RSTDISBL

Fuse. Pullup is activated and output driver and digital input are deactivated when the pin is used as the RESET pin.

PCINT1: Pin Change Interrupt 1 pin. Pin change interrupt is enabled on pin when global interrupt is enabled, pin change interrupt is enabled and the alternate function do not mask the interrupt.

51

1477K–AVR–08/10

The masking alternate function is the pin usage as RESET. Digital input is enabled on pin PB7 also in SLEEP modes, if the pin change interrupt is enabled and not masked by the alternate function.

• ADC9/INT0/T0/PCINT1 – Port B, Bit 6

ADC9: ADC Input Channel 9. Configure the port pins as inputs with the internal pull-ups switched off to avoid the digital port function from interfering with the function of the analog to digital converter.

INT0: External Interrupt source 0: The PB6 pin can serve as an external interrupt source enabled by setting (one) the bit INT0 in the General Input Mask Register (GIMSK).

T0: Timer/Counter0 External Counter Clock input is enabled by setting (one) the bits CS02 and

CS01 in the Timer/Counter0 Control Register (TCCR0).

PCINT1: Pin Change Interrupt 1 pin. Pin change interrupt is enabled on pin when global interrupt is enabled, pin change interrupt is enabled and the alternate functions do not mask the interrupt.

The masking alternate functions are the external low level Interrupt source 0 (INT0) and the

Timer/Counter0 External Counter clock input (T0). Digital input is enabled on pin PB6 also in

SLEEP modes, if the pin change interrupt is enabled and not masked by the alternate functions.

• ADC8/XTAL2/PCINT1 – Port B, Bit 5

ADC8: ADC Input Channel 8. Configure the port pins as inputs with the internal pull-ups switched off to avoid the digital port function from interfering with the function of the analog to digital converter.

XTAL2: Chip Clock Oscillator pin 2. Used as clock pin for all chip clock sources except internal calibrateble RC Oscillator, external clock and PLL clock. When used as a clock pin, the pin can not be used as an I/O pin. When using internal calibratable RC Oscillator, External clock or PLL clock as Chip clock sources, PB5 serves as an ordinary I/O pin.

PCINT1: Pin Change Interrupt 1 pin. Pin change interrupt is enabled on pin when global interrupt is enabled, pin change interrupt is enabled and the alternate functions do not mask the interrupt.

The masking alternate functions are the XTAL2 outputs. Digital input is enabled on pin PB5 also in SLEEP modes, if the pin change interrupt is enabled and not masked by the alternate functions.

• ADC7/XTAL1/PCINT1 – Port B, Bit 4

ADC7: ADC Input Channel 7. Configure the port pins as inputs with the internal pull-ups switched off to avoid the digital port function from interfering with the function of the analog to digital converter.

XTAL1: Chip Clock Oscillator pin 1. Used for all chip clock sources except internal calibrateble

RC oscillator and PLL clock. When used as a clock pin, the pin can not be used as an I/O pin.

When using internal calibratable RC Oscillator or PLL clock as chip clock sources, PB4 serves as an ordinary I/O pin.

PCINT1: Pin Change Interrupt 1 pin. Pin change interrupt is enabled on pin when global interrupt is enabled, pin change interrupt is enabled and the alternate functions do not mask the interrupt.

The masking alternate functions are the XTAL1 inputs. Digital input is enabled on pin PB4 also in SLEEP modes, if the pin change interrupt is enabled and not masked by the alternate functions.

• OC1B/PCINT0 – Port B, Bit 3

OC1B: Output Compare match output: The PB3 pin can serve as an output for the

Timer/Counter1 compare match B. The PB3 pin has to be configured as an output (DDB3 set

(one)) to serve this function. The OC1B pin is also the output pin for the PWM mode.

52

ATtiny26(L)

1477K–AVR–08/10

1477K–AVR–08/10

ATtiny26(L)

PCINT0: Pin Change Interrupt 0 pin. Pin change interrupt is enabled on pin when global interrupt is enabled, pin change interrupt is enabled and the alternate functions do not mask the interrupt.

The masking alternate function is the output compare match output OC1B. Digital input is enabled on pin PB3 also in SLEEP modes, if the pin change interrupt is enabled and not masked by the alternate functions.

• SCK/SCL/OC1B/PCINT0 – Port B, Bit 2

SCK: Clock input or output in USI Three-wire mode. When the SPI is enabled this pin is configured as an input. In the USI Three-wire mode the bit DDRB2 controls the direction of the pin, output for the Master mode and input for the Slave mode.

SCL: USI External Open-collector Serial Clock for USI Two-wire mode. The SCL pin is pulled low when PORTB2 is cleared (zero) or USI start condition is detected and DDRB2 is set (one).

Pull-up is disabled in USI Two-wire mode.

OC1B: Inverted Timer/Counter1 PWM Output B: The PB2 pin can serve as an inverted output for the Timer/Counter1 PWM mode if USI is not enabled. The PB2 pin has to be configured as an output (DDB2 set (one)) to serve this function.

PCINT1: Pin Change Interrupt 0 pin. Pin change interrupt is enabled on pin when global interrupt is enabled, pin change interrupt is enabled and the alternate functions do not mask the interrupt.

The masking alternate function are the inverted output compare match output OC1B and USI clocks SCK/SCL. Digital input is enabled on pin PB2 also in SLEEP modes, if the pin change interrupt is enabled and not masked by the alternate functions.

• DO/OC1A/PCINT0 – Port B, Bit 1

DO: Data Output in USI Three-wire mode. Data output (DO) overrides PORTB1 value and it is driven to the port when the data direction bit DDB1 is set (one). However the PORTB1 bit still controls the pullup, enabling pullup if direction is input and PORTB1 is set(one).

OC1A: Output Compare match output: The PB1 pin can serve as an output for the

Timer/Counter1 compare match A. The PB1 pin has to be configured as an output (DDB1 set

(one)) to serve this function. The OC1B pin is also the output pin for the PWM mode timer function if not used in programming or USI.

PCINT0: Pin Change Interrupt 0 pin. Pin change interrupt is enabled on pin when global interrupt is enabled, pin change interrupt is enabled and the alternate functions do not mask the interrupt.

The masking alternate functions are the output compare match output OC1A and Data Output

(DO) in USI Three-wire mode. Digital input is enabled on pin PB1 also in SLEEP modes, if the pin change interrupt is enabled and not masked by the alternate functions.

53

• DI/SDA/OC1A/PCINT0 – Port B, Bit 0

DI: Data Input in USI Three-wire mode. USI Three-wire mode does not override normal port functions., so pin must be configure as an input.

SDA: Serial Data in USI Two-wire mode. Serial data pin is bi-directional and uses open-collector output. The SDA pin is enabled by setting the pin as an output. The pin is pulled low when the

PORTB0 or USI shiftRegister is zero when DDB0 is set (one). Pull-up is disabled in USI Twowire mode.

OC1A: Inverted Timer/Counter1 PWM output A: The PB0 pin can serve as an Inverted output for the PWM mode if not used in programming or USI. The PB0 pin has to be configured as an output (DDB0 set (one)) to serve this function.

PCINT0: Pin Change Interrupt 0 pin. Pin change interrupt is enabled on pin when global interrupt is enabled, pin change interrupt is enabled and the alternate functions do not mask the interrupt.

The masking alternate functions are the inverted output compare match output OC1A and USI data DI or SDA. Digital input is enabled on pin PB0 also in SLEEP modes, if the pin change

interrupt is enabled and not masked by the alternate functions. Table 27 and Table 28 relate the

alternate functions of Port B to the overriding signals shown in “Alternate Port Functions” on page 46.

Table 27. Overriding Signals for Alternate Functions in PB7..PB4

Signal

Name

PUOE

PUOV

DDOE

DDOV

PVOE

PVOV

DIEOE

DIEOV

PB7/ADC10/RESET/

PCINT1

RSTDSBL

1

RSTDSBL

0

0

0

PCINT1_ENABLE

(2)

| RSTDSBL

(1)

PCINT1_ENABLE

~

(5)

(1)

(1)

RSTDSBL

(1)

(2)

PB6/ADC9/INT0/TO/

PCINT1

0

0

0

0

0

0

~T0_EXT_CLOCK

(6)

PCINT1_ENABLE

(2)

|

INT0_ENABLE

(4)

1

PB5/ADC8/XTAL2/

PCINT1

~

(5)

0

~PB5IOENABLE

(3)

0

0

0

PB5IOENABLE

(3)

PCINT1_ENABLE

(2)

|

~PB5IOENABLE

(3)

PCINT1_ENABLE

PB5IOENABLE

(3)

(2)

PB4/ADC7/XTAL1

~PB4IOENABLE

(3)

0

~PB4IOENABLE

(3)

0

0

0

PCINT_ ENABLE

(2)

|

~PB4IOENABLE

(3)

|

EXT_CLOCK_ENABLE

(7)

PCINT1_ENABLE

(2)

PB4IOENABLE

(3)

|

EXT_CLOCK_ENABLE

DI

AIO

PCINT1

ADC10, RESET INPUT

INT0, T0, PCINT1

ADC9

PCINT1

ADC8, XTAL2

External Clock, PCINT1

XTAL1

Notes: 1. RSTDISBL Fuse (active low) is described in section “System Control and Reset” on page 32.

2. Note that the PCINT1 Interrupt is only enabled if both the Global Interrupt Flag is enabled, the PCIE1 flag in GIMSK is set

and the alternate function of the pin is disabled as described in “Pin Change Interrupt” on page 62.

3. PB5IOENABLE and PB4IOENABLE are given by the PLLCK and CKSEL Fuses as described in “Clock Sources” on page

25.

4. External low level interrupt is enabled if both the Global Interrupt Flag is enabled and the INT0 flag in GIMSK is set as

described in “External Interrupt” on page 62.

5. Not operator is marked with “~”.

6. The operation of the Timer/Counter0 with external clock disabled is described in “8-bit Timer/Counter0” on page 65.

7. External clock is selected by the PLLCK and CKSEL Fuses as described in “Clock Sources” on page 25.

54

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

Table 28. Overriding Signals for Alternate Functions in PB3..PB0

Signal Name

PUOE

PUOV

DDOE

DDOV

PVOE

PB3/OC1B/PCINT0

0

0

0

0

OC1B_ENABLE

(1)

PB2/SCK/SCL/OC1B/PCI

NT0

USI_TWO-WIRE

0

(3)

USI_TWO-WIRE

(3)

(USI_SCL_HOLD

(4)

|

~

(8)

PORTB2) • DDB2

USI_TWO-WIRE

(3)

DDB2 | OC1B_ENABLE

(1)

PB1/DO/OC1A/PCINT0

0

0

0

0

USI_THREE-WIRE

OC1A_ENABLE

(1)

(3)

|

PB0/DI/SDA/OC1A

USI_TWO-WIRE

(3)

0

USI_TWO-WIRE

(3)

(~SDA | ~PORTB0) •

DDB0

|

USI_TWO-WIRE

(3)

• DDB0

OC1A_ENABLE

(1)

PVOV

DIEOE

OC1B

PCINT0_ENABLE

~OC1B_ENABLE

(2)

(1)

~(USI_TWO-WIRE •

DDB2) • OC1B

~(USI_TWO-WIRE |

USI_THREE-WIRE |

OC1B_ENABLE) •

PCINT0_ENABLE

(2)

|

USI_START_I.ENABLE

(5)

1

USI_THREE-WIRE

(3)

DO

(6)

| ~USI_THREE-

WIRE • OC1A_ENABLE

(1)

• OC1A

~(USI_THREE-WIRE |

OC1A_ENABLE) •

PCINT0_ENABLE

(2)

~(USI_TWO-WIRE•

DDB0) •

OC1A_ENABLE

(1)

• OC1A

~(USI_TWO-WIRE

(3)

|

USI_THREE-WIRE

(3)

|

OC1A_ENABLE

(1)

) •

PCINT0_ENABLE

(2)

|

USI_START_I.ENABLE

(5)

1 DIEOV

DI

AIO

1

PCINT0

PCINT0, SCL, SCK

1

PCINT0

PCINT0, SDA

Notes: 1. Enabling of the Timer/Counter1 Compare match outputs and Timer/Counter1 PWM Outputs OC1A/OC1B and OC1A/OC1B

are described in the section “8-bit Timer/Counter1” on page 67.

2. Note that the PCINT0 Interrupt is only enabled if both the Global Interrupt Flag is enabled, the PCIE0 flag in GIMSK is set

and the alternate function of the pin is disabled as described in “Pin Change Interrupt” on page 62.

3. The Two-wire and Three-wire USI-modes are described in “Universal Serial Interface – USI” on page 80.

4. Shift clock (SCL) hold for USI is in described “Universal Serial Interface – USI” on page 80.

5. USI start up interrupt is enabled if both the Global Interrupt Flag is enabled and the USISIE flag in the USICR Register is set

as described in “Universal Serial Interface – USI” on page 80.

6. Data Output (DO) is valid in USI Three-wire mode and the operation is described in “Universal Serial Interface – USI” on page 80.

7. Operation of the data pin SDA in USI Two-wire mode and DI in USI Three-wire mode in “Universal Serial Interface – USI” on page 80.

8. Not operator is marked with “~”.

55

1477K–AVR–08/10

Register

Description for I/O

Ports

Port A Data Register –

PORTA

Bit

$1B ($3B)

Read/Write

Initial Value

7

PORTA7

R/W

0

6

PORTA6

R/W

0

5

PORTA5

R/W

0

4

PORTA4

R/W

0

3

PORTA3

R/W

0

2

PORTA2

R/W

0

1

PORTA1

R/W

0

0

PORTA0

R/W

0

PORTA

Port A Data Direction

Register – DDRA

Port B Input Pins

Address – PINB

Bit

$1A ($3A)

Read/Write

Initial Value

Bit

$16 ($36)

Read/Write

Initial Value

7

DDA7

R/W

0

7

PINB7

R

N/A

6

DDA6

R/W

0

6

PINB6

R

N/A

5

DDA5

R/W

0

5

PINB5

R

N/A

4

DDA4

R/W

0

4

PINB4

R

N/A

3

DDA3

R/W

0

3

PINB3

R

N/A

2

DDA2

R/W

0

2

PINB2

R

N/A

1

DDA1

R/W

0

1

PINB1

R

N/A

0

DDA0

R/W

0

0

PINB0

R

N/A

DDRA

Port A Input Pins

Address – PINA

Bit

$19 ($39)

Read/Write

Initial Value

Port B Data Register –

PORTB

Bit

$18 ($38)

Read/Write

Initial Value

Port B Data Direction

Register – DDRB

Bit

$17 ($37)

Read/Write

Initial Value

7

PINA7

R

N/A

7

DDB7

R/W

0

6

PINA6

R

N/A

6

DDB6

R/W

0

5

PINA5

R

N/A

5

DDB5

R/W

0

4

PINA4

R

N/A

4

DDB4

R/W

0

3

PINA3

R

N/A

3

DDB3

R/W

0

2

PINA2

R

N/A

2

DDB2

R/W

0

1

PINA1

R

N/A

1

DDB1

R/W

0

0

PINA0

R

N/A

0

DDB0

R/W

0

PINA

7 6 5 4 3 2 1 0

PORTB7 PORTB6 PORTB5 PORTB4 PORTB3 PORTB2 PORTB1 PORTB0 PORTB

R/W

0

R/W

0

R/W

0

R/W

0

R/W

0

R/W

0

R/W

0

R/W

0

DDRB

PINB

56

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

Interrupts

Interrupt Vectors

The ATtiny26(L) provides eleven interrupt sources. These interrupts and the separate Reset

Vector, each have a separate program vector in the program memory space. All the interrupts are assigned individual enable bits which must be set (one) together with the I-bit in the Status

Register in order to enable the interrupt.

The lowest addresses in the program memory space are automatically defined as the Reset and

Interrupt vectors. The complete list of vectors is shown in Table 29. The list also determines the

priority levels of the different interrupts. The lower the address the higher is the priority level.

RESET has the highest priority, and next is INT0 – the External Interrupt Request 0 etc.

Table 29. Reset and Interrupt Vectors

Vector No Program Address Source

3

4

1

2

$000

$001

$002

$003

RESET

INT0

Interrupt Definition

Hardware Pin and Watchdog Reset

External Interrupt Request 0

I/O Pins Pin Change Interrupt

TIMER1, CMPA Timer/Counter1 Compare Match 1A

B

C

9

A

7

8

5

6

$004

$005

$006

$007

$008

$009

$00A

$00B

TIMER1, CMPB Timer/Counter1 Compare Match 1B

TIMER1, OVF1 Timer/Counter1 Overflow

TIMER0, OVF0

USI_STRT

Timer/Counter0 Overflow

USI Start

USI_OVF

EE_RDY

ANA_COMP

USI Overflow

EEPROM Ready

Analog Comparator

$006

$007

$008

$009

$00A

$00B

$000

$001

$002

$003

$004

$005

;

$009

$00A

$00B

The most typical and general program setup for the Reset and Interrupt Vector Addresses are:

Address Labels Code Comments rjmp rjmp rjmp rjmp rjmp rjmp rjmp rjmp rjmp rjmp rjmp rjmp

RESET

EXT_INT0

PIN_CHANGE

TIM1_CMP1A

TIM1_CMP1B

TIM1_OVF

TIM0_OVF

USI_STRT

USI_OVF

EE_RDY

ANA_COMP

ADC

; Reset handler

; IRQ0 handler

; Pin change handler

; Timer1 compare match 1A

; Timer1 compare match 1B

; Timer1 overflow handler

; Timer0 overflow handler

; USI Start handler

; USI Overflow handler

; EEPROM Ready handler

; Analog Comparator handler

; ADC Conversion Handler

RESET: ldi out sei

… … … r16, RAMEND ; Main program start

SP, r16

57

1477K–AVR–08/10

Interrupt Handling

The ATtiny26(L) has two 8-bit Interrupt Mask Control Registers; GIMSK – General Interrupt

Mask Register and TIMSK – Timer/Counter Interrupt Mask Register.

When an interrupt occurs, the Global Interrupt Enable I-bit is cleared (zero) and all interrupts are disabled. The user software can set (one) the I-bit to enable nested interrupts. The I-bit is set

(one) when a Return from Interrupt instruction – RETI – is executed.

When the Program Counter is vectored to the actual Interrupt Vector in order to execute the interrupt handling routine, hardware clears the corresponding flag that generated the interrupt.

Some of the interrupt flags can also be cleared by writing a logic one to the flag bit position(s) to be cleared.

If an interrupt condition occurs when the corresponding interrupt enable bit is cleared (zero), the interrupt flag will be set and remembered until the interrupt is enabled, or the flag is cleared by software.

If one or more interrupt conditions occur when the Global Interrupt Enable bit is cleared (zero), the corresponding interrupt flag(s) will be set and remembered until the Global Interrupt Enable bit is set (one), and will be executed by order of priority.

Note that external level interrupt does not have a flag, and will only be remembered for as long as the interrupt condition is active.

Note that the Status Register is not automatically stored when entering an interrupt routine and restored when returning from an interrupt routine. This must be handled by software.

Interrupt Response

Time

The interrupt execution response for all the enabled AVR interrupts is four clock cycles minimum. After the four clock cycles the program vector address for the actual interrupt handling routine is executed. During this four clock cycle period, the Program Counter (10 bits) is pushed onto the Stack. The vector is a relative jump to the interrupt routine, and this jump takes two clock cycles. If an interrupt occurs during execution of a multi-cycle instruction, this instruction is completed before the interrupt is served.

A return from an interrupt handling routine takes four clock cycles. During these four clock cycles, the Program Counter (10 bits) is popped back from the Stack. When AVR exits from an interrupt, it will always return to the main program and execute one more instruction before any pending interrupt is served. Note that the Status Register – SREG – is not handled by the AVR hardware, neither for interrupts nor for subroutines. For the routines requiring a storage of the

SREG, this must be performed by user software.

General Interrupt

Mask Register –

GIMSK

Bit

$3B ($5B)

Read/Write

Initial Value

R

0

7

6

INT0

R/W

0

5

PCIE1

R/W

0

4

PCIE0

R/W

0

R

0

3

R

0

2

R

0

1

R

0

0

– GIMSK

• Bit 7 – Res: Reserved Bit

This bit is a reserved bit in the ATtiny26(L) and always reads as zero.

• Bit 6 – INT0: External Interrupt Request 0 Enable

When the INT0 bit is set (one) and the I-bit in the Status Register (SREG) is set (one), the external pin interrupt is enabled. The Interrupt Sense Control0 bits 1/0 (ISC01 and ISC00) in the MCU general Control Register (MCUCR) define whether the external interrupt is activated on rising or falling edge, on pin change, or low level of the INT0 pin. Activity on the pin will cause an interrupt request even if INT0 is configured as an output. The corresponding interrupt of External Interrupt

Request 0 is executed from program memory address $001. See also “External Interrupt” on page 62.

58

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

General Interrupt Flag

Register – GIFR

Bit

$3A ($5A)

Read/Write

Initial Value

R

0

7

6

INTF0

R/W

0

5

PCIF

R/W

0

R

0

4

R

0

3

R

0

2

R

0

1

R

0

0

– GIFR

• Bit 7 – Res: Reserved Bit

This bit is a reserved bit in the ATtiny26(L) and always reads as zero.

• Bit 6 – INTF0: External Interrupt Flag0

When an event on the INT0 pin triggers an interrupt request, INTF0 becomes set (one). If the Ibit in SREG and the INT0 bit in GIMSK are set (one), the MCU will jump to the Interrupt Vector at address $001. The flag is cleared when the interrupt routine is executed. Alternatively, the flag can be cleared by writing a logical one to it. The flag is always cleared when INT0 is configured as level interrupt.

• Bit 5 – PCIF: Pin Change Interrupt Flag

When an event on pins PB[7:0], PA[7:6], or PA[3] triggers an interrupt request, PCIF becomes set (one). PCIE1 enables interrupt from analog pins PB[7:4], PA[7:6], and PA[3]. PCIE0 enables interrupt on digital pins PB[3:0]. Note that pin change interrupt enable bits PCIE1 and PCIE0 also mask the flag if they are not set. For example, if PCIE0 is cleared, a pin change on PB[3:0] does not set PCIF. If an alternate function is enabled on a pin, PCIF is masked from that individual pin. If the I-bit in SREG and the PCIE bit in GIMSK are set (one), the MCU will jump to the

Interrupt Vector at address $002. The flag is cleared when the interrupt routine is executed.

Alternatively, the flag can be cleared by writing a logical one to it. See also “Pin Change Interrupt” on page 62.

• Bits 4..0 – Res: Reserved Bits

These bits are reserved bits in the ATtiny26(L) and always read as zero.

Timer/Counter

Interrupt Mask

Register – TIMSK

• Bit 5 – PCIE1: Pin Change Interrupt Enable1

When the PCIE1 bit is set (one) and the I-bit in the Status Register (SREG) is set (one), the interrupt pin change is enabled on analog pins PB[7:4], PA[7:6] and PA[3]. Unless the alternate function masks out the interrupt, any change on the pin mentioned before will cause an interrupt.

The corresponding interrupt of Pin Change Interrupt Request is executed from program memory

address $002. See also “Pin Change Interrupt” on page 62.

• Bit 4– PCIE0: Pin Change Interrupt Enable0

When the PCIE0 bit is set (one) and the I-bit in the Status Register (SREG) is set (one), the interrupt pin change is enabled on digital pins PB[3:0]. Unless the alternate function masks out the interrupt, any change on the pin mentioned before will cause an interrupt. The corresponding interrupt of Pin Change Interrupt Request is executed from program memory address $002. See

also “Pin Change Interrupt” on page 62.

• Bits 3..0 – Res: Reserved Bits

These bits are reserved bits in the ATtiny26(L) and always read as zero.

Bit

$39 ($59)

Read/Write

Initial Value

R

0

7

6

OCIE1A

R/W

0

5

OCIE1B

R/W

0

R

0

4

R

0

3

2

TOIE1

R/W

0

1

TOIE0

R/W

0

• Bit 7 – Res: Reserved Bit

This bit is a reserved bit in the ATtiny26(L) and always reads as zero.

R

0

0

– TIMSK

59

1477K–AVR–08/10

• Bit 6 – OCIE1A: Timer/Counter1 Output Compare Interrupt Enable

When the OCIE1A bit is set (one) and the I-bit in the Status Register is set (one), the

Timer/Counter1 compare match A, interrupt is enabled. The corresponding interrupt at vector

$003 is executed if a compare match A occurs. The Compare Flag in Timer/Counter1 is set

(one) in the Timer/Counter Interrupt Flag Register.

• Bit 5 – OCIE1B: Timer/Counter1 Output Compare Interrupt Enable

When the OCIE1B bit is set (one) and the I-bit in the Status Register is set (one), the

Timer/Counter1 compare match B, interrupt is enabled. The corresponding interrupt at vector

$004 is executed if a compare match B occurs. The Compare Flag in Timer/Counter1 is set

(one) in the Timer/Counter Interrupt Flag Register.

• Bit 4..3 – Res: Reserved Bits

These bits are reserved bits in the ATtiny26(L) and always read as zero.

• Bit 2 – TOIE1: Timer/Counter1 Overflow Interrupt Enable

When the TOIE1 bit is set (one) and the I-bit in the Status Register is set (one), the

Timer/Counter1 Overflow interrupt is enabled. The corresponding interrupt (at vector $005) is executed if an overflow in Timer/Counter1 occurs. The Overflow Flag (Timer1) is set (one) in the

Timer/Counter Interrupt Flag Register – TIFR.

• Bit 1 – TOIE0: Timer/Counter0 Overflow Interrupt Enable

When the TOIE0 bit is set (one) and the I-bit in the Status Register is set (one), the

Timer/Counter0 Overflow interrupt is enabled. The corresponding interrupt (at vector $006) is executed if an overflow in Timer/Counter0 occurs. The Overflow Flag (Timer0) is set (one) in the

Timer/Counter Interrupt Flag Register – TIFR.

• Bit 0 – Res: Reserved Bit

This bit is a reserved bit in the ATtiny26(L) and always reads as zero.

Timer/Counter

Interrupt Flag Register

– TIFR

Bit

$38 ($58)

Read/Write

Initial Value

R

0

7

6

OCF1A

R/W

0

5

OCF1B

R/W

0

R

0

4

R

0

3

2

TOV1

R/W

0

1

TOV0

R/W

0

R

0

0

– TIFR

• Bit 7 – Res: Reserved Bit

This bit is a reserved bit in the ATtiny26(L) and always reads as zero.

• Bit 6 – OCF1A: Output Compare Flag 1A

The OCF1A bit is set (one) when compare match occurs between Timer/Counter1 and the data value in OCR1A – Output Compare Register 1A. OCF1A is cleared by hardware when executing the corresponding interrupt handling vector. Alternatively, OCF1A is cleared, after synchronization clock cycle, by writing a logic one to the flag. When the I-bit in SREG, OCIE1A, and OCF1A are set (one), the Timer/Counter1 A Compare Match interrupt is executed.

• Bit 5 – OCF1B: Output Compare Flag 1B

The OCF1B bit is set (one) when compare match occurs between Timer/Counter1 and the data value in OCR1B – Output Compare Register 1A. OCF1B is cleared by hardware when executing the corresponding interrupt handling vector. Alternatively, OCF1B is cleared, after synchronization clock cycle, by writing a logic one to the flag. When the I-bit in SREG, OCIE1B, and OCF1B are set (one), the Timer/Counter1 B Compare Match interrupt is executed.

• Bits 4..3 – Res: Reserved Bits

These bits are reserved bits in the ATtiny26(L) and always read as zero.

60

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

• Bit 2 – TOV1: Timer/Counter1 Overflow Flag

The bit TOV1 is set (one) when an overflow occurs in Timer/Counter1. TOV1 is cleared by hardware when executing the corresponding interrupt handling vector. Alternatively, TOV1 is cleared, after synchronization clock cycle, by writing a logical one to the flag. When the SREG Ibit, and TOIE1 (Timer/Counter1 Overflow Interrupt Enable), and TOV1 are set (one), the

Timer/Counter1 Overflow interrupt is executed.

• Bit 1 – TOV0: Timer/Counter0 Overflow Flag

The bit TOV0 is set (one) when an overflow occurs in Timer/Counter0. TOV0 is cleared by hardware when executing the corresponding interrupt handling vector. Alternatively, TOV0 is cleared by writing a logical one to the flag. When the SREG I-bit, and TOIE0 (Timer/Counter0 Overflow

Interrupt Enable), and TOV0 are set (one), the Timer/Counter0 Overflow interrupt is executed.

• Bit 0 – Res: Reserved Bit

This bit is a reserved bit in the ATtiny26(L) and always reads as zero.

1477K–AVR–08/10

61

External

Interrupt

Pin Change

Interrupt

The External Interrupt is triggered by the INT0 pin. Observe that, if enabled, the interrupt will trigger even if the INT0 pin is configured as an output. This feature provides a way of generating a software interrupt. The External Interrupt can be triggered by a falling or rising edge, a pin change, or a low level. This is set up as indicated in the specification for the MCU Control Register – MCUCR. When the External Interrupt is enabled and is configured as level triggered, the interrupt will trigger as long as the pin is held low.

The changed level is sampled twice by the Watchdog Oscillator clock, and if both these samples have the required level, the MCU will wake up. The period of the Watchdog Oscillator is 1.0

µs

(nominal) at 3.0V and 25°C. The frequency of the Watchdog Oscillator is voltage dependent as

shown in “Electrical Characteristics” on page 126.

The pin change interrupt is triggered by any change on any I/O pin of Port B and pins PA3, PA6, and PA7, if the interrupt is enabled and alternate function of the pin does not mask out the interrupt. The bit PCIE1 in GIMSK enables interrupt from pins PB[7:4], PA[7:6], and PA[3]. PCIE0 enables interrupt on digital pins PB[3:0].

The pin change interrupt is different from other interrupts in two ways. First, pin change interrupt enable bits PCIE1 and PCIE0 also mask the flag if they are not set. The normal operation on most interrupts is that the flag is always active and only the execution of the interrupt is masked by the interrupt enable.

Secondly, please note that pin change interrupt is disabled for any pin that is configured as an alternate function. For example, no pin change interrupt is generated from pins that are configured as AREF, AIN0 or AIN1, OC1A, OC1A, OC1B, OC1B, XTAL1, or XTAL2 in a fuse selected

clock option, Timer0 clocking, or RESET function. See Table 30 for alternate functions which

mask the pin change interrupt and how the function is enabled. For example pin change interrupt on the PB0 is disabled when USI Two-wire mode or USI Three-wire mode or

Timer/Counter1 inverted output compare is enabled.

If the interrupt is enabled, the interrupt will trigger even if the changing pin is configured as an output. This feature provides a way of generating a software interrupt. Also observe that the pin change interrupt will trigger even if the pin activity triggers another interrupt, for example the external interrupt. This implies that one external event might cause several interrupts.

The value of the programmed fuse is “0” and unprogrammed is “1”. Each of the lines enables the alternate function so “or” function of the lines enables the function.

62

ATtiny26(L)

1477K–AVR–08/10

1477K–AVR–08/10

ATtiny26(L)

Table 30. Alternative Functions

Pin Alternate Function

PA3 AREF

PA6 Analog Comparator

PA7 Analog Comparator

PB0 USI Two-wire mode

USI Three-wire mode

TC1 compare/PWM

PB1 USI Three-wire mode

TC1 compare/PWM

PB2 USI Two-wire mode

USI Three-wire mode

TC1 compare/PWM

PB3 TC1 compare/PWM

PB4 XTAL1, clock source

PB5 XTAL2, clock source

PB6 External interrupt

TC0 clock

PB7 RESET

Control Register[Bit Name] which

set the Alternate Function

(1)

ADMUX[REFS0]

ACSR[ACD]

ACSR[ACD]

USICR[USIWM1]

USICR[USIWM1,USIWM0]

TCCR1A[COM1A1,COM1A0,PWM1A]

USICR[USIWM1,USIWM0]

TCCR1A[COM1A1]

TCCR1A[COM1A0]

USICR[USIWM1]

USICR[USIWM1,USIWM0]

TCCR1A[COM1B1,COM1B0,PWM1B]

TCCR1A[COM1B1]

TCCR1A[COM1B0]

FUSE[PLLCK,CKSEL]

FUSE[PLLCK,CKSEL]

FUSE[PLLCK,CKSEL]

GIMSK[INT0],MCUCR[ISC01,ISC01]

TCCR0[CS02,CS01]

RSTDISBL FUSE

Bit or Fuse

Value

()

1

0

01

1

1

1

01

011

0

1

01

011

1

1

10000

10101-11111

11001-11111

100

11

1

Notes: 1. Each line represents a bit or fuse combination which enables the function.

A fuse value of “0” is programmed, “1” is unprogrammed.

63

Timer/Counters

The ATtiny26(L) provides two general purpose 8-bit Timer/Counters. The Timer/Counters have separate prescaling selection from the separate prescaler. The Timer/Counter0 clock (CK) as the clock timebase. The Timer/Counter1 has two clocking modes, a synchronous mode and an asynchronous mode. The synchronous mode uses the system clock (CK) as the clock timebase and asynchronous mode uses the fast peripheral clock (PCK) as the clock time base.

Timer/Counter0

Prescaler

Figure 36 below shows the Timer/Counter prescaler.

Figure 36. Timer/Counter0 Prescaler

CK 10-BIT T/C PRESCALER

CLEAR

PSR0

T0(PB6)

0

CS00

CS01

CS02

TIMER/COUNTER0 CLOCK SOURCE

The four prescaled selections are: CK/8, CK/64, CK/256, and CK/1024 where CK is the oscillator clock. CK, external source, and stop, can also be selected as clock sources.

64

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

Timer/Counter1

Prescaler

Figure 37 shows the Timer/Counter1 prescaler. For Timer/Counter1 the clock selections are

between PCK to PCK/16384 and stop in asynchronous mode and CK to CK/16384 and stop in

synchronous. The clock options are described in Table 34 on page 72 and the Timer/Counter1

Control Register, TCCR1B. Setting the PSR1 bit in TCCR1B Register resets the prescaler. The

PCKE bit in the PLLCSR Register enables the asynchronous mode.

Figure 37. Timer/Counter1 Prescaler

PCKE

PSR1

CK

PCK

(64 MHz)

S

A

T1CK

14-BIT

T/C PRESCALER

8-bit

Timer/Counter0

0

CS10

CS11

CS12

CS13

TIMER/COUNTER1 COUNT ENABLE

Figure 38 shows the block diagram for Timer/Counter0.

The 8-bit Timer/Counter0 can select clock source from CK, prescaled CK, or an external pin. In addition, it can be stopped as described in the specification for the Timer/Counter0 Control Register – TCCR0. The overflow status flag is found in the Timer/Counter Interrupt Flag Register –

TIFR. Control signals are found in the Timer/Counter0 Control Register – TCCR0. The interrupt enable/disable settings for Timer/Counter0 are found in the Timer/Counter Interrupt Mask Register – TIMSK.

When Timer/Counter0 is externally clocked, the external signal is synchronized with the oscillator frequency of the CPU. To ensure proper sampling of the external clock, the minimum time between two external clock transitions must be at least one internal CPU clock period. The external clock signal is sampled on the rising edge of the internal CPU clock.

The 8-bit Timer/Counter0 features both a high resolution and a high accuracy usage with the lower prescaling opportunities. Similarly, the high prescaling opportunities make the

Timer/Counter0 useful for lower speed functions or exact timing functions with infrequent actions.

65

1477K–AVR–08/10

Figure 38. Timer/Counter0 Block Diagram

Timer/Counter0

Control Register –

TCCR0

66

Bit

$33 ($53)

Read/Write

Initial Value

R

0

7

R

0

6

R

0

5

R

0

4

3

PSR0

R/W

0

2

CS02

R/W

0

1

CS01

R/W

0

0

CS00

R/W

0

TCCR0

• Bits 7..4 – Res: Reserved Bits

These bits are reserved bits in the ATtiny26(L) and always read as zero.

• Bit 3 – PSR0: Prescaler Reset Timer/Counter0

When this bit is set (one), the prescaler of the Timer/Counter0 will be reset. The bit will be cleared by hardware after the operation is performed. Writing a zero to this bit will have no effect. This bit will always be read as zero.

• Bits 2, 1, 0 – CS02, CS01, CS00: Clock Select0, Bit 2, 1, and 0

The Clock Select0 bits 2, 1, and 0 define the prescaling source of Timer0.

Table 31. Clock 0 Prescale Select

1

1

0

1

1

CS02

0

0

0

0

1

1

0

1

CS01

0

0

1

1

0

1

0

1

CS00

0

1

0

Description

Stop, the Timer/Counter0 is stopped

CK

CK/8

CK/64

CK/256

CK/1024

External Pin T0, falling edge

External Pin T0, rising edge

ATtiny26(L)

1477K–AVR–08/10

Timer/Counter0 –

TCNT0

8-bit

Timer/Counter1

ATtiny26(L)

The Stop condition provides a Timer Enable/Disable function. The CK down divided modes are scaled directly from the CK oscillator clock. If the external pin modes are used, the corresponding setup must be performed in the actual Data Direction Control Register (cleared to zero gives an input pin).

Bit

$32 ($52)

Read/Write

Initial Value

7

MSB

R/W

0

6

R/W

0

5

R/W

0

4

R/W

0

3

R/W

0

2

R/W

0

1

R/W

0

0

LSB

R/W

0

TCNT0

The Timer/Counter0 is implemented as an up-counter with read and write access. If the

Timer/Counter0 is written and a clock source is present, the Timer/Counter0 continues counting in the timer clock cycle following the write operation.

The Timer/Counter1 has two clocking modes: a synchronous mode and an asynchronous mode.

The synchronous mode uses the system clock (CK) as the clock timebase and asynchronous mode uses the fast peripheral clock (PCK) as the clock time base. The PCKE bit from the

PLLCSR Register enables the asynchronous mode when it is set (“1”). The Timer/Counter1 general operation is described in the asynchronous mode and the operation in the synchronous

mode is mentioned only if there is differences between these two modes. Figure 39 shows

Timer/Counter1 synchronization register block diagram and synchronization delays in between registers. Note that all clock gating details are not shown in the figure. The Timer/Counter1 Register values go through the internal synchronization registers, which cause the input synchronization delay, before affecting the counter operation. The registers TCCR1A, TCCR1B,

OCR1A, OCR1B, and OCR1C can be read back right after writing the register. The read back values are delayed for the Timer/Counter1 (TCNT1) Register and flags (OCF1A, OCF1B, and

TOV1), because of the input and output synchronization.

This module features a high resolution and a high accuracy usage with the lower prescaling opportunities. Timer/Counter1 can also support two accurate, high speed, 8-bit Pulse Width

Modulators using clock speeds up to 64 MHz. In this mode, Timer/Counter1 and the Output

Compare Registers serve as dual stand-alone PWMs with non-overlapping non-inverted and

inverted outputs. Refer to page 74 for a detailed description on this function. Similarly, the high

prescaling opportunities make this unit useful for lower speed functions or exact timing functions with infrequent actions.

67

1477K–AVR–08/10

Figure 39. Timer/Counter1 Synchronization Register Block Diagram

IO-registers

OCR1A

OCR1B

OCR1C

TCCR1A

TCCR1B

8-BIT DATABUS

Input syncronization

Timer/Counter1 registers

OCR1A_SI

OCR1B_SI

OCR1C_SI

TCCR1A_SI

TCCR1B_SI

TCNT1

Output syncronization registers

TCNT_SO

OCF1A_SO

TCNT1

OCF1A

OCF1B

TOV1

TCNT1_SI

OCF1A_SI

OCF1B_SI

TOV1_SI

OCF1B_SO

TOV1_SO

Output multiplexers

TCNT1

S

A

S

A

OCF1A

S

A

OCF1B

S

A

TOV1

PCKE

CK

PCK

SYNC

MODE

ASYNC

MODE

S

A

S

A

1CK delay no delay

1/2PCK -1CK delay 1PCK delay 1/2PCK -1CK delay no delay

Timer/Counter1 and the prescaler allow running the CPU from any clock source while the prescaler is operating on the fast 64 MHz PCK clock in the asynchronous mode.

Note that the system clock frequency must be lower than one half of the PCK frequency. Only when the system clock is generated from PCK dividing that by two, the ratio of the PCK/system clock can be exactly two. The synchronization mechanism of the asynchronous Timer/Counter1 needs at least two edges of the PCK when the system clock is high. If the frequency of the system clock is too high, it is a risk that data or control values are lost.

The following Figure 40 shows the block diagram for Timer/Counter1.

68

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

Figure 40. Timer/Counter1 Block Diagram

T/C1 OVER-

FLOW IRQ

T/C1 COMPARE

MATCH A IRQ

T/C1 COMPARE

MATCH B IRQ

OC1A

(PB0)

OC1A

(PB1)

OC1B

(PB2)

OC1B

(PB3)

1477K–AVR–08/10

TIMER INT. MASK

REGISTER (TIMSK)

TIMER INT. FLAG

REGISTER (TIFR)

TIMER/COUNTER1

TIMER/COUNTER1

(TCNT1)

T/C CLEAR

T/C CONTROL

REGISTER 1 (TCCR1B)

T/C1 CONTROL

LOGIC

CK

PCK

8-BIT COMPARATOR

T/C1 OUTPUT

COMPARE REGISTER

(OCR1A)

8-BIT COMPARATOR

T/C1 OUTPUT

COMPARE REGISTER

(OCR1B)

8-BIT COMPARATOR

T/C1 OUTPUT

COMPARE REGISTER

(OCR1C)

8-BIT DATA BUS

Three status flags (overflow and compare matches) are found in the Timer/Counter Interrupt

Flag Register – TIFR. Control signals are found in the Timer/Counter Control Registers TCCR1A and TCCR1B. The interrupt enable/disable settings are found in the Timer/Counter Interrupt

Mask Register – TIMSK.

The Timer/Counter1 contains three Output Compare Registers, OCR1A, OCR1B, and OCR1C, as the data source to be compared with the Timer/Counter1 contents. In normal mode the Output Compare functions are operational with all three Output Compare Registers. OCR1A determines action on the OC1A pin (PB1), and it can generate Timer1 OC1A interrupt in normal mode and in PWM mode. Likewise, OCR1B determines action on the OC1B pin (PB3) and it can generate Timer1 OC1B interrupt in normal mode and in PWM mode. OCR1C holds the

Timer/Counter maximum value, i.e., the clear on compare match value. An overflow interrupt

(TOV1) is generated when Timer/Counter1 counts from $FF to $00 or from OCR1C to $00. This function is the same for both normal and PWM mode. The inverted PWM outputs OC1A and

OC1B are not connected in normal mode.

In PWM mode, OCR1A and OCR1B provide the data values against which the Timer/Counter value is compared. Upon compare match the PWM outputs (OC1A, OC1A, OC1B, OC1B) are generated. In PWM mode, the Timer/Counter counts up to the value specified in the Output

Compare Register OCR1C and starts again from $00. This feature allows limiting the counter

“full” value to a specified value, lower than $FF. Together with the many prescaler options, flexi-

ble PWM frequency selection is provided. Table 37 lists clock selection and OCR1C values to

obtain PWM frequencies from 20 kHz to 250 kHz in 10 kHz steps and from 250 kHz to 500 kHz in 50 kHz steps. Higher PWM frequencies can be obtained at the expense of resolution.

69

Timer/Counter1

Control Register A –

TCCR1A

Bit

$30 ($50)

Read/Write

Initial Value

7

COM1A1

R/W

0

6

COM1A0

R/W

0

5

COM1B1

R/W

0

4

COM1B0

R/W

0

3

FOC1A

R/W

0

2

FOC1B

R/W

0

1

PWM1A

R/W

0

0

PWM1B

R/W

0

TCCR1A

• Bits 7, 6 – COM1A1, COM1A0: Comparator A Output Mode, Bits 1 and 0

The COM1A1 and COM1A0 control bits determine any output pin action following a Compare

Match with Compare Register A in Timer/Counter1. Output pin actions affect pin PB1 (OC1A).

Since this is an alternative function to an I/O port, the corresponding direction control bit must be set (one) in order to control an output pin. Note that OC1A is not connected in normal mode.

Table 32. Comparator A Mode Select

COM1A1 COM1A0 Description

0 0 Timer/Counter Comparator A disconnected from output pin OC1A.

0

1

1

1

0

1

Toggle the OC1A output line.

Clear the OC1A output line.

Set the OC1A output line.

In PWM mode, these bits have different functions. Refer to Table 35 on page 75 for a detailed

description.

• Bits 5, 4 – COM1B1, COM1B0: Comparator B Output Mode, Bits 1 and 0

The COM1B1 and COM1B0 control bits determine any output pin action following a Compare

Match with Compare Register B in Timer/Counter1. Output pin actions affect pin PB3 (OC1B).

Since this is an alternative function to an I/O port, the corresponding direction control bit must be set (one) in order to control an output pin. Note that OC1B is not connected in normal mode.

Table 33. Comparator B Mode Select

COM1B1 COM1B0 Description

0 0 Timer/Counter Comparator B disconnected from output pin OC1B.

0

1

1

1

0

1

Toggle the OC1B output line.

Clear the OC1B output line.

Set the OC1B output line.

In PWM mode, these bits have different functions. Refer to Table 35 on page 75 for a detailed

description.

• Bit 3 – FOC1A: Force Output Compare Match 1A

Writing a logical one to this bit forces a change in the Compare Match output pin PB1 (OC1A) according to the values already set in COM1A1 and COM1A0. If COM1A1 and COM1A0 written in the same cycle as FOC1A, the new settings will be used. The Force Output Compare bit can be used to change the output pin value regardless of the timer value. The automatic action programmed in COM1A1 and COM1A0 takes place as if a compare match had occurred, but no interrupt is generated. The FOC1A bit always reads as zero. FOC1A is not in use if PWM1A bit is set.

• Bit 2 – FOC1B: Force Output Compare Match 1B

Writing a logical one to this bit forces a change in the Compare Match output pin PB3 (OC1B) according to the values already set in COM1B1 and COM1B0. If COM1B1 and COM1B0 written in the same cycle as FOC1B, the new settings will be used. The Force Output Compare bit can

70

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

be used to change the output pin value regardless of the timer value. The automatic action programmed in COM1B1 and COM1B0 takes place as if a compare match had occurred, but no interrupt is generated. The FOC1B bit always reads as zero. FOC1B is not in use if PWM1B bit is set.

• Bit 1 – PWM1A: Pulse Width Modulator A Enable

When set (one) this bit enables PWM mode based on comparator OCR1A in Timer/Counter1 and the counter value is reset to $00 in the CPU clock cycle after a compare match with OCR1C

Register value.

• Bit 0 – PWM1B: Pulse Width Modulator B Enable

When set (one) this bit enables PWM mode based on comparator OCR1B in Timer/Counter1 and the counter value is reset to $00 in the CPU clock cycle after a compare match with OCR1C

Register value.

Timer/Counter1

Control Register B –

TCCR1B

Bit

$2F ($4F)

Read/Write

Initial Value

7

CTC1

R/W

0

6

PSR1

R/W

0

R

0

5

R

0

4

3

CS13

R/W

0

2

CS12

R/W

0

1

CS11

R/W

0

0

CS10

R/W

0

TCCR1B

• Bit 7 – CTC1: Clear Timer/Counter on Compare Match

When the CTC1 control bit is set (one), Timer/Counter1 is reset to $00 in the CPU clock cycle after a compare match with OCR1C Register value. If the control bit is cleared, Timer/Counter1 continues counting and is unaffected by a compare match.

• Bit 6 – PSR1: Prescaler Reset Timer/Counter1

When this bit is set (one), the Timer/Counter prescaler will be reset. The bit will be cleared by hardware after the operation is performed. Writing a zero to this bit will have no effect. This bit will always read as zero.

• Bit 5..4 – Res: Reserved Bits

These bits are reserved bits in the ATtiny26(L) and always read as zero.

71

1477K–AVR–08/10

• Bits 3..0 – CS13, CS12, CS11, CS10: Clock Select Bits 3, 2, 1, and 0

The Clock Select bits 3, 2, 1, and 0 define the prescaling source of Timer/Counter1.

Table 34. Timer/Counter1 Prescale Select

1

1

1

1

1

1

1

1

0

0

CS13 CS12 CS11 CS10

0

0

0

0

0

0

0

1

0

0

0

0

0

0

1

1

1

1

0

0

0

1

0

1

1

1

0

0

0

0

1

1

1

1

1

1

0

0

1

1

0

0

1

1

0

1

0

1

0

1

0

1

0

1

Description

Asynchronous Mode

Description

Synchronous Mode

Timer/Counter1 is stopped.

Timer/Counter1 is stopped.

PCK CK

PCK/2

PCK/4

PCK/8

PCK/16

CK/2

CK/4

CK/8

CK/16

PCK/32

PCK/64

PCK/128

PCK/256

PCK/512

PCK/1024

PCK/2048

PCK/4096

PCK/8192

PCK/16384

CK/32

CK/64

CK/128

CK/256

CK/512

CK/1024

CK/2048

CK/4096

CK/8192

CK/16384

The Stop condition provides a Timer Enable/Disable function.

Timer/Counter1 –

TCNT1

Bit

$2E ($4E)

Read/Write

Initial Value

7

MSB

R/W

0

6

R/W

0

5

R/W

0

4

R/W

0

3

R/W

0

2

R/W

0

1

R/W

0

0

LSB

R/W

0

TCNT1

This 8-bit register contains the value of Timer/Counter1.

Timer/Counter1 is realized as an up counter with read and write access. Due to synchronization of the CPU, Timer/Counter1 data written into Timer/Counter1 is delayed by one CPU clock cycle in synchronous mode and at most two CPU clock cycles for asynchronous mode.

Timer/Counter1

Output Compare

RegisterA – OCR1A

72

Bit

$2D ($4D)

Read/Write

Initial Value

7

MSB

R/W

0

6

R/W

0

5

R/W

0

4

R/W

0

3

R/W

0

2

R/W

0

1

R/W

0

0

LSB

R/W

0

OCR1A

The Output Compare Register A is an 8-bit read/write register.

The Timer/Counter Output Compare Register A contains data to be continuously compared with

Timer/Counter1. Actions on compare matches are specified in TCCR1A. A compare match does only occur if Timer/Counter1 counts to the OCR1A value. A software write that sets TCNT1 and

OCR1A to the same value does not generate a compare match.

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

A compare match will set the compare interrupt flag OCF1A after a synchronization delay following the compare event.

Timer/Counter1

Output Compare

RegisterB – OCR1B

Timer/Counter1

Output Compare

RegisterC – OCR1C

Bit

$2B ($4B)

Read/Write

Initial Value

7

MSB

R/W

0

6

R/W

0

5

R/W

0

4

R/W

0

3

R/W

0

2

R/W

0

1

R/W

0

0

LSB

R/W

0

OCR1C

The Output Compare Register C is an 8-bit read/write register.

The Timer/Counter Output Compare Register C contains data to be continuously compared with

Timer/Counter1. A compare match does only occur if Timer/Counter1 counts to the OCR1C value. A software write that sets TCNT1 and OCR1C to the same value does not generate a compare match.

If the CTC1 bit in TCCR1B is set, a compare match will clear TCNT1 and set an Overflow Interrupt Flag (TOV1). The flag is set after a synchronization delay following the compare event.

This register has the same function in normal mode and PWM mode.

PLL Control and

Status Register –

PLLCSR

Bit

$2C ($4C)

Read/Write

Initial Value

7

MSB

R/W

0

6

R/W

0

5

R/W

0

4

R/W

0

3

R/W

0

2

R/W

0

1

R/W

0

0

LSB

R/W

0

OCR1B

The Output Compare Register B is an 8-bit read/write register.

The Timer/Counter Output Compare Register B contains data to be continuously compared with

Timer/Counter1. Actions on compare matches are specified in TCCR1A. A compare match does only occur if Timer/Counter1 counts to the OCR1B value. A software write that sets TCNT1 and

OCR1B to the same value does not generate a compare match.

A compare match will set the compare interrupt flag OCF1B after a synchronization delay following the compare event.

Bit

$29 ($29)

Read/Write

Initial Value

R

0

7

R

0

6

R

0

5

R

0

4

R

0

3

2

PCKE

R/W

0

1

PLLE

R/W

0/1

0

PLOCK

R

0

PLLCSR

• Bit 7..3 – Res: Reserved Bits

These bits are reserved bits in the ATtiny26(L) and always read as zero.

• Bit 2 – PCKE: PCK Enable

The PCKE bit change the Timer/Counter1 clock source. When it is set, the asynchronous clock mode is enabled and fast 64 MHz PCK clock is used as Timer/Counter1 clock source. If this bit is cleared, the synchronous clock mode is enabled, and system clock CK is used as

Timer/Counter1 clock source. This bit can be set only if PLLE bit is set. It is safe to set this bit only when the PLL is locked i.e., the PLOCK bit is 1.

• Bit 1 – PLLE: PLL Enable

When the PLLE is set, the PLL is started and if needed internal RC Oscillator is started as a PLL reference clock. If PLL is selected as a system clock source the value for this bit is always 1.

• Bit 0 – PLOCK: PLL Lock Detector

73

1477K–AVR–08/10

Timer/Counter1

Initialization for

Asynchronous Mode

Timer/Counter1 in

PWM Mode

When the PLOCK bit is set, the PLL is locked to the reference clock, and it is safe to enable PCK for Timer/Counter1. After the PLL is enabled, it takes about 64 µs/100 µs (typical/worst case) for the PLL to lock.

To change Timer/Counter1 to the asynchronous mode, first enable PLL, and poll the PLOCK bit until it is set, and then set the PCKE bit.

When the PWM mode is selected, Timer/Counter1 and the Output Compare Register C –

OCR1C form a dual 8-bit, free-running and glitch-free PWM generator with outputs on the

PB1(OC1A) and PB3(OC1B) pins. Also inverted, non-overlapping outputs are available on pins

PB0(OC1A) and PB2(OC1B), respectively. The non-overlapping output pairs (OC1A - OC1A and OC1B - OC1B) are never both set at the same time. This allows driving power switches directly. The non-overlap time is one prescaled clock cycle, and the high time is one cycle shorter than the low time.

The non-overlap time is generated by delaying the rising edge, i.e., the positive edge is one prescaled and one PCK cycle delayed and the negative edge is one PCK cycle delayed in the asynchronous mode. In the synchronous mode he positive edge is one prescaled and one CK cycle delayed and the negative edge is one CK cycle delayed. The high time is also one prescaled cycle shorter in the both operation modes.

Figure 41. The Non-overlapping Output Pair

OC1x

OC1x x = A or B t non-overlap

When the counter value match the contents of OCR1A and OCR1B, the OC1A and OC1B outputs are set or cleared according to the COM1A1/COM1A0 or COM1B1/COM1B0 bits in the

Timer/Counter1 Control Register A – TCCR1A, as shown in Table 35 below.

Timer/Counter1 acts as an up-counter, counting from $00 up to the value specified in the Output

Compare Register (OCR1C), and starting from $00 up again. A compare match with OC1C will set an Overflow Interrupt Flag (TOV1) after a synchronization delay following the compare event.

74

ATtiny26(L)

1477K–AVR–08/10

1477K–AVR–08/10

ATtiny26(L)

Table 35. Compare Mode Select in PWM Mode

COM1x1 COM1x0 Effect on Output Compare Pins

0 0

OC1x not connected.

OC1x not connected.

0 1

OC1x cleared on compare match. Set when TCNT1 = $01.

OC1x set one prescaled cycle after compare match. Cleared when

TCNT1 = $00.

1

1

0

1

OC1x cleared on compare match. Set when TCNT1 = $01.

OC1x not connected.

OC1x set one prescaled cycle after compare match. Cleared when

TCNT = $00

OC1x not connected.

Note that in PWM mode, writing to the Output Compare Registers OCR1A or OCR1B, the data value is first transferred to a temporary location. The value is latched into OCR1A or OCR1B when the Timer/Counter reaches OCR1C. This prevents the occurrence of odd-length PWM

pulses (glitches) in the event of an unsynchronized OCR1A or OCR1B. See Figure 42 for an

example.

Figure 42. Effects of Unsynchronized OCR Latching

Compare Value Changes

Counter Value

Compare Value

PWM Output OC1x

Synchronized OC1x Latch

Unsynchronized OC1x Latch

Compare Value changes

Counter Value

Compare Value

PWM Output OC1x

Glitch

During the time between the write and the latch operation, a read from OCR1A or OCR1B will read the contents of the temporary location. This means that the most recently written value always will read out of OCR1A or OCR1B.

When OCR1A or OCR1B contain $00 or the top value, as specified in OCR1C Register, the output PB1(OC1A) or PB3(OC1B) is held low or high according to th e setting s of

COM1A1/COM1A0. This is shown in Table 36.

75

Table 36. PWM Outputs OCR1x = $00 or OCR1C, x = A or B

COM1x1

0

0

1

1

1

1

COM1x0

1

1

0

0

1

1

OCR1x

$00

OCR1C

$00

OCR1C

$00

OCR1C

Output OC1x

L

H

L

H

H

L

Output OC1x

H

L

Not connected

Not connected

Not connected

Not connected

In PWM mode, the Timer Overflow Flag – TOV1, is set as in normal Timer/Counter mode. Timer

Overflow Interrupt1 operates exactly as in normal Timer/Counter mode, i.e., it is executed when

TOV1 is set provided that Timer Overflow Interrupt and global interrupts are enabled. This also applies to the Timer Output Compare flags and interrupts.

The frequency of the PWM will be Timer Clock 1 Frequency divided by (OCR1C value + 1). See the following equation:

f

PWM

=

(

f

OCR1C + 1

)

Resolution shows how many bit is required to express the value in the OCR1C Register. It is calculated by following equation

Resolution

PWM

= log

2

(OCR1C + 1)

76

ATtiny26(L)

1477K–AVR–08/10

1477K–AVR–08/10

ATtiny26(L)

Table 37. Timer/Counter1 Clock Prescale Select in the Asynchronous Mode

PWM Frequency (kHz) Clock Selection CS13..CS10

OCR1C RESOLUTION (Bits)

20 PCK/16 0101 199 7.6

30

40

PCK/16

PCK/8

0101

0100

132

199

7.1

7.6

50

60

70

80

PCK/8

PCK/8

PCK/4

PCK/4

0100

0100

0011

0011

159

132

228

199

7.3

7.1

7.8

7.6

130

140

150

160

90

100

PCK/4

PCK/4

110 PCK/4

120 PCK/4

PCK/2

PCK/2

PCK/2

PCK/2

0011

0011

0011

0011

0010

0010

0010

0010

177

159

144

132

245

228

212

199

7.5

7.3

7.2

7.1

7.9

7.8

7.7

7.6

250

300

350

400

170

180

190

200

450

500

PCK/2

PCK/2

PCK/2

PCK/2

PCK

PCK

PCK

PCK

PCK

PCK

0010

0010

0010

0010

0001

0001

0001

0001

0001

0001

255

212

182

159

187

177

167

159

141

127

8.0

7.7

7.5

7.3

7.6

7.5

7.4

7.3

7.1

7.0

77

Watchdog

Timer

The Watchdog Timer is clocked from a separate On-chip Oscillator which runs at 1 MHz. This is the typical value at V

CC

= 5V. See characterization data for typical values at other V

CC

levels. By controlling the Watchdog Timer prescaler, the Watchdog Reset interval can be adjusted from 16 to 2048 ms. The WDR – Watchdog Reset – instruction resets the Watchdog Timer. Eight different clock cycle periods can be selected to determine the reset period. If the reset period expires without another Watchdog Reset, the ATtiny26(L) resets and executes from the Reset Vector.

For timing details on the Watchdog Reset, refer to page 35.

To prevent unintentional disabling of the Watchdog, a special turn-off sequence must be followed when the Watchdog is disabled. Refer to the description of the Watchdog Timer Control

Register for details.

Figure 43. Watchdog Timer

Normally 1 MHz

WATCHDOG

PRESCLALER

WATCHDOG

RESET

WDP0

WDP1

WDP2

WDE

MCU RESET

Watchdog Timer

Control Register –

WDTCR

Bit

$21 ($41)

Read/Write

Initial Value

R

0

7

R

0

6

R

0

5

4

WDCE

R/W

0

3

WDE

R/W

0

2

WDP2

R/W

0

1

WDP1

R/W

0

0

WDP0

R/W

0

WDTCR

• Bits 7..5 – Res: Reserved Bits

These bits are reserved bits in the ATtiny26(L) and will always read as zero.

• Bit 4 – WDCE: Watchdog Change Enable

This bit must be set when the WDE bit is written to logic zero. Otherwise, the Watchdog will not be disabled. Once written to one, hardware will clear this bit after four clock cycles. Refer to the description of the WDE bit for a Watchdog disable procedure. In Safety Level 1 and 2, this bit must also be set when changing the prescaler bits.

• Bit 3 – WDE: Watchdog Enable

When the WDE is set (one) the Watchdog Timer is enabled, and if the WDE is cleared (zero) the

Watchdog Timer function is disabled. WDE can be cleared only when the WDCE bit is set(one).

To disable an enabled Watchdog Timer, the following procedure must be followed:

1. In the same operation, write a logical one to WDCE and WDE. A logical one must be written to WDE even though it is set to one before the disable operation starts.

2. Within the next four clock cycles, write a logical 0 to WDE. This disables the Watchdog.

• Bits 2..0 – WDP2, WDP1, WDP0: Watchdog Timer Prescaler 2, 1, and 0

78

ATtiny26(L)

1477K–AVR–08/10

1477K–AVR–08/10

ATtiny26(L)

The WDP2, WDP1 and WDP0 bits determine the Watchdog Timer prescaling when the Watchdog Timer is enabled. The different prescaling values and their corresponding time-out periods

are shown in Table 38.

Table 38. Watchdog Timer Prescale Select

(1)

WDP2 WDP1 WDP0

0

0

0

0

0

1

1

1

0

0

1

1

1

1

0

0

1

1

0

1

0

1

0

1

Number of WDT

Oscillator Cycles

16K (16,384)

32K (32,768)

64K (65,536)

128K (131,072)

256K (262,144)

512K (524,288)

1,024K (1,048,576)

2,048K (2,097,152)

Typical Time-out at V

CC

= 3.0V

17.1 ms

34.3 ms

68.5 ms

0.14 s

0.27 s

0.55 s

1.1 s

2.2 s

Typical Time-out at V

CC

= 5.0V

16.3 ms

32.5 ms

65 ms

0.13 s

0.26 s

0.52 s

1.0 s

2.1 s

Note: 1. The frequency of the Watchdog Oscillator is voltage dependent. The WDR – Watchdog Reset

– instruction should always be executed before the Watchdog Timer is enabled. This ensures that the reset period will be in accordance with the Watchdog Timer prescale settings. If the

Watchdog Timer is enabled without reset, the Watchdog Timer may not start counting from zero.

79

Universal Serial

Interface – USI

The Universal Serial Interface, or USI, provides the basic hardware resources needed for serial communication. Combined with a minimum of control software, the USI allows significantly higher transfer rates and uses less code space than solutions based on software only. Interrupts

• are included to minimize the processor load. The main features of the USI are:

Two-wire Synchronous Data Transfer (Master or Slave, f

Three-wire Synchronous Data Transfer (Master, f

Data Received Interrupt

SCLmax

= f

CK

/16)

SCKmax

= f

CK

/2, Slave f

Two-wire Start Condition Detector with Interrupt Capability

SCKmax

= f

Wakeup from Idle Mode

In Two-wire Mode: Wake-up from All Sleep Modes, Including Power-down Mode

CK

/4)

Overview

A simplified block diagram of the USI is shown on Figure 44.

Figure 44. Universal Serial Interface, Block Diagram

PB1

DO

(Output only)

D Q

LE

PB0

DI/SDA

(Input/Open Drain)

USIDR

4-bit Counter

3

2

1

0

3

2

1

0

[1]

TIM0 OVF

0

1

Two-wire Clock

Control Unit

CLOCK

HOLD

PB2

SCK/SCL

(Input/Open Drain)

USISR

2

USICR

The 8-bit Shift Register is directly accessible via the data bus and contains the incoming and outgoing data. The register has no buffering so the data must be read as quickly as possible to ensure that no data is lost. The most significant bit is connected to one of two output pins depending of the wire mode configuration. A transparent latch is inserted between the serial register output and output pin, which delays the change of data output to the opposite clock edge of the data input sampling. The serial input is always sampled from the Data Input (DI) pin independent of the configuration.

The 4-bit counter can be both read and written via the data bus, and can generate an overflow interrupt. Both the serial register and the counter are clocked simultaneously by the same clock source. This allows the counter to count the number of bits received or transmitted and generate an interrupt when the transfer is complete. Note that when an external clock source is selected the counter counts both clock edges. In this case the counter counts the number of edges, and not the number of bits. The clock can be selected from three different sources: the SCK pin,

Timer 0 overflow, or from software.

The Two-wire clock control unit can generate an interrupt when a start condition is detected on the Two-wire bus. It can also generate wait states by holding the clock pin low after a start condition is detected, or after the counter overflows.

80

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

Register

Descriptions

USI Data Register –

USIDR

Bit

$0F ($2F)

Read/Write

Initial Value

7

MSB

R/W

0

6

R/W

0

5

R/W

0

4

R/W

0

3

R/W

0

2

R/W

0

1

R/W

0

0

LSB

R/W

0

USIDR

The USI uses no buffering of the serial register, i.e., when accessing the Data Register (USIDR) the serial register is accessed directly. If a serial clock occurs at the same cycle the register is written, the register will contain the value written and no shift is performed. A (left) shift operation is performed depending of the USICS1..0 bits setting. The shift operation can be controlled by an external clock edge, by a Timer/Counter0 overflow, or directly by software using the USICLK strobe bit. Note that even when no wire mode is selected (USIWM1..0 = 0) both the external data input (DI/SDA) and the external clock input (SCK/SCL) can still be used by the Shift

Register.

The output pin in use, DO or SDA depending on the wire mode, is connected via the output latch to the most significant bit (bit 7) of the Data Register. The output latch is open (transparent) during the first half of a serial clock cycle when an external clock source is selected (USICS1 = 1), and constantly open when an internal clock source is used (USICS1 = 0). The output will be changed immediately when a new MSB written as long as the latch is open. The latch ensures that data input is sampled and data output is changed on opposite clock edges.

Note that the corresponding Data Direction Register (DDRB2/1) to the pin must be set to one for enabling data output from the Shift Register.

USI Status Register –

USISR

Bit

$0E ($2E)

Read/Write

Initial Value

7

USISIF

R/W

0

6

USIOIF

R/W

0

5

USIPF

R/W

0

4

USIDC

R

0

3

USICNT3

R/W

0

2

USICNT2

R/W

0

1

USICNT1

R/W

0

0

USICNT0

R/W

0

USISR

The Status Register contains interrupt flags, line status flags and the counter value.

Note that doing a Read-Modify-Write operation on USISR Register, i.e., using the SBI or CBI instructions, will clear pending interrupt flags. It is recommended that register contents is altered by using the OUT instruction only.

• Bit 7 – USISIF: Start Condition Interrupt Flag

When Two-wire mode is selected, the USISIF flag is set (to one) when a start condition is detected. When output disable mode or Three-wire mode is selected and (USICSx = 0b11 &

USICLK = 0) or (USICS = 0b10 & USICLK = 0), any edge on the SCK pin sets the flag.

An interrupt will be generated when the flag is set while the USISIE bit in USICR and the Global

Interrupt Enable Flag are set. The flag will only be cleared by writing a logical one to the USISIF bit. Clearing this bit will release the start detection hold of SCL in Two-wire mode.

A start condition interrupt will wakeup the processor from all four sleep modes.

• Bit 6 – USIOIF: Counter Overflow Interrupt Flag

This flag is set (one) when the 4-bit counter overflows (i.e., at the transition from 15 to 0). An interrupt will be generated when the flag is set while the USIOIE bit in USICR and the Global

Interrupt Enable Flag are set. The flag will only be cleared if a one is written to the USIOIF bit.

Clearing this bit will release the counter overflow hold of SCL in Two-wire mode.

A counter overflow interrupt will wakeup the processor from Idle sleep mode.

81

1477K–AVR–08/10

• Bit 5 – USIPF: Stop Condition Flag

When Two-wire mode is selected, the USIPF flag is set (one) when a stop condition is detected.

The flag is cleared by writing a one to this bit. Note that this is not an interrupt flag. This signal is useful when implementing Two-wire bus master arbitration.

• Bit 4 – USIDC: Data Output Collision

This bit is logical one when bit 7 in the Shift Register differs from the physical pin value. The flag is only valid when Two-wire mode is used. This signal is useful when implementing Two-wire bus master arbitration.

• Bits 3..0 – USICNT3..0: Counter Value

These bits reflect the current 4-bit counter value. The 4-bit counter value can directly be read or written by the CPU.

The 4-bit counter increments by one for each clock generated either by the external clock edge detector, by a Timer/Counter0 overflow, or by software using USICLK or USITC strobe bits. The clock source depends of the setting of the USICS1..0 bits. For external clock operation a special feature is added that allows the clock to be generated by writing to the USITC strobe bit. This feature is enabled by write a one to the USICLK bit while setting an external clock source

(USICS1 = 1).

Note that even when no wire mode is selected (USIWM1..0 = 0) the external clock input

(SCK/SCL) are can still be used by the counter.

USI Control Register –

USICR

Bit

$0D ($2D)

Read/Write

Initial Value

7

USISIE

R/W

0

6

USIOIE

R/W

0

5

USIWM1

R/W

0

4

USIWM0

R/W

0

3

USICS1

R/W

0

2 1

USICS0 USICLK

R/W

0

W

0

0

USITC

W

0

USICR

The Control Register includes interrupt enable control, wire mode setting, clock select setting, and clock strobe.

• Bit 7 – USISIE: Start Condition Interrupt Enable

Setting this bit to one enables the Start Condition detector interrupt. If there is a pending interrupt when the USISIE and the Global Interrupt Enable Flag is set to one, this will immediately be

executed. Refer to the description of “Bit 7 – USISIF: Start Condition Interrupt Flag” on page 81

for further details.

When Two-wire mode is selected, the USISIF flag is set (to one) when a start condition is detected. When output disable mode or Three-wire mode is selected and (USICSx = 0b11 &

USICLK = 0) or (USICS = 0b10 & USICLK = 0), any edge on the SCK pin sets the flag.

• Bit 6 – USIOIE: Counter Overflow Interrupt Enable

Setting this bit to one enables the Counter Overflow interrupt. If there is a pending interrupt when the USIOIE and the Global Interrupt Enable Flag is set to one, this will immediately be executed.

Refer to the description of “Bit 6 – USIOIF: Counter Overflow Interrupt Flag” on page 81 for fur-

ther details.

82

ATtiny26(L)

1477K–AVR–08/10

1477K–AVR–08/10

ATtiny26(L)

• Bit 5..4 – USIWM1..0: Wire Mode

These bits set the type of wire mode to be used. Basically only the function of the outputs are affected by these bits. Data and clock inputs are not affected by the mode selected and will always have the same function. The counter and Shift Register can therefore be clocked externally, and data input sampled, even when outputs are disabled. The relations between

USIWM1..0 and the USI operation is summarized in Table 39.

When Two-wire mode is selected, the USISIF flag is set (to one) when a start condition is detected. When output disable mode or Three-wire mode is selected and (USICSx = 0b11 &

USICLK = 0) or (USICS = 0b10 & USICLK = 0), any edge on the SCK pin sets the flag.

Table 39. Relations between USIWM1..0 and the USI Operation

USIWM1 USIWM0 Description

0 0 Outputs, clock hold, and start detector disabled. Port pins operates as normal.

0 1

1

1

0

1

Three-wire mode. Uses DO, DI, and SCK pins.

The Data Output (DO) pin overrides the PORTB1 bit in the PORTB

Register in this mode. However, the corresponding DDRB1 bit still controls the data direction. When the port pin is set as input

(DDRB1 = 0) the pins pull-up is controlled by the PORTB1 bit.

The Data Input (DI) and Serial Clock (SCK) pins do not affect the normal port operation. When operating as master, clock pulses are software generated by toggling the PORTB2 bit while DDRB2 is set to output. The USITC bit in the USICR Register can be used for this purpose.

Two-wire mode. Uses SDA (DI) and SCL (SCK) pins

(1)

.

The Serial Data (SDA) and the Serial Clock (SCL) pins are bidirectional and uses open-collector output drives. The output drivers are enabled by the DDRB0/2 bit in the DDRB Register.

When the output driver is enabled for the SDA pin, the output driver will force the line SDA low if the output of the Shift Register or the

PORTB0 bit in the PORTB Register is zero. Otherwise the SDA line will not be driven (i.e., it is released). When the SCL pin output driver is enabled the SCL line will be forced low if the PORTB2 bit in the

PORTB Register is zero, or by the start detector. Otherwise the SCL line will not be driven.

The SCL line is held low when a start detector detects a start condition and the output is enabled. Clearing the start condition flag (USISIF) releases the line. The SDA and SCL pin inputs is not affected by enabling this mode. Pull-ups on the SDA and SCL port pin are disabled in Two-wire mode.

Two-wire mode. Uses SDA and SCL pins.

Same operation as for the Two-wire mode described above, except that the SCL line is also held low when a counter overflow occurs, and is held low until the Counter Overflow Flag (USIOIF) is cleared.

Note: 1. The DI and SCK pins are renamed to Serial Data (SDA) and Serial Clock (SCL) respectively to avoid confusion between the modes of operation.

83

• Bit 3..2 – USICS1..0: Clock Source Select

These bits set the clock source for the Shift Register and counter. The data output latch ensures that the output is changed at the opposite edge of the sampling of the data input (DI/SDA) when using external clock source (SCK/SCL). When software strobe or Timer0 overflow clock option is selected the output latch is transparent and therefore the output is changed immediately. Clearing the USICS1..0 bits enables software strobe option. When using this option, writing a one to the USICLK bit clocks both the Shift Register and the counter. For external clock source

(USICS1 = 1), the USICLK bit is no longer used as a strobe, but selects between external clocking, and software clocking by the USITC strobe bit.

Table 40 shows the relationship between the USICS1..0 and USICLK setting and clock source

used for the Shift Register and the 4-bit counter.

Table 40. Relations between the USICS1..0 and USICLK Setting

USICS1 USICS0 USICLK

0

0

0

0

0

1

0

1

1

1

1

0

1

0

X

0

0

1

Shift Register Clock

Source

No Clock

Software clock strobe

(USICLK)

Timer/Counter0 overflow

External, positive edge

External, negative edge

External, positive edge

1 1 1 External, negative edge

4-bit Counter Clock

Source

No Clock

Software clock strobe

(USICLK)

Timer/Counter0 overflow

External, both edges

External, both edges

Software clock strobe

(USITC)

Software clock strobe

(USITC)

• Bit 1 – USICLK: Clock Strobe

Writing a one to this bit location strobes the Shift Register to shift one step and the counter to increment by one provided that the USICS1..0 bits are set to zero and by doing so selects the software clock strobe option. The output will change immediately when the clock strobe is executed i.e. in the same instruction cycle. The value shifted into the Shift Register is sampled the previous instruction cycle. The bit will be read as zero.

When an external clock source is selected (USICS1 = 1), the USICLK function is changed from a clock strobe to a Clock Select Register. Setting the USICLK bit in this case will select the

USITC strobe bit as clock source for the 4-bit counter (see Table 40).

• Bit 0 – USITC: Toggle Clock Port Pin

Writing a one to this bit location toggles the PORTB2 (SCK/SCL) value from either from 0 to 1, or

1 to 0. The toggling is independent of the DDRB2 setting, but if the PORTB2 value is to be shown on the pin the DDRB2 must be set as output (to one). This feature allows easy clock generation when implementing master devices. The bit will be read as zero.

When an external clock source is selected (USICS1 = 1) and the USICLK bit is set to one, writing to the USITC strobe bit will directly clock the 4-bit counter. This allows an early detection of when the transfer is done when operating as a master device.

84

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

Functional

Descriptions

Three-wire Mode

The USI Three-wire mode is compliant to the Serial Peripheral Interface (SPI) mode 0 and 1, but does not have the slave select (SS) pin functionality. However, this feature can be implemented in software if necessary. Pin names used by this mode are: DI, DO, and SCK.

Figure 45. Three-wire Mode Operation, Simplified Diagram

DO

PBx

PBy

DI

Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0

PBz

SCK

SLAVE

PBx

DO

PBy

DI

Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0

PBz

SCK

PORTBz

MASTER

Figure 45 shows two USI units operating in Three-wire mode, one as master and one as slave.

The two shift Registers are interconnected in such way that after eight SCK clocks, the data in each register are interchanged. The same clock also increments the USI’s 4-bit counter. The

Counter Overflow (interrupt) flag, or USIOIF, can therefore be used to determine when a transfer is completed. The clock is generated by the master device software by toggling the PB2 pin via the PORTB Register or by writing a one to the USITC bit in USICR.

Figure 46. Three-wire Mode, Timing Diagram

CYCLE

( Reference ) 1 2 3 4

SCK

SCK

DO

DI

MSB

MSB 6

6

5

5

4

4

5

3

3

6

2

2

7

1

1

8

LSB

LSB

A B C D E

The Three-wire mode timing is shown in Figure 46. At the top of the figure is a SCK cycle refer-

ence. One bit is shifted into the USI Shift Register (USIDR) for each of these cycles. The SCK timing is shown for both external clock modes. In external clock mode 0 (USICS0 = 0), DI is sampled at positive edges, and DO is changed (Data Register is shifted by one) at negative edges. External clock mode 1 (USICS0 = 1) uses the opposite edges versus mode 0, i.e., sam-

85

1477K–AVR–08/10

SPI Master Operation

Example

ples data at negative and changes the output at positive edges. The USI clock modes corresponds to the SPI data mode 0 and 1.

Referring to the timing diagram (Figure 46.), a bus transfer involves the following steps:

1. The slave device and master device sets up its data output and, depending on the protocol used, enables its output driver (mark A and B). The output is set up by writing the data to be transmitted to the serial Data Register. Enabling of the output is done by setting the corresponding bit in the port data direction register (DDRB2). Note that point A and B does not have any specific order, but both must be at least one half SCK cycle before point C where the data is sampled. This must be done to ensure that the data setup requirement is satisfied. The 4-bit counter is reset to zero.

2. The master generates a clock pulse by software toggling the SCK line twice (C and D).

The bit value on the slave and master’s data input (DI) pin is sampled by the USI on the first edge (C), and the data output is changed on the opposite edge (D). The 4-bit counter will count both edges.

3. Step 2. is repeated eight times for a comlpete register (byte) transfer.

4. After eight clock pulses (i.e., 16 clock edges) the counter will overflow and indicate that the transfer is completed. The data bytes transferred must now be processed before a new transfer can be initiated. The overflow interrupt will wake up the processor if it is set to Idle mode. Depending of the protocol used the slave device can now set its output to high impedance.

The following code demonstrates how to use the USI module as a SPI master:

SPITransfer: out USIDR,r16 ldi out ldi r16,(1<<USIOIF)

USISR,r16 r16,(1<<USIWM0)+(1<<USICS1)+(1<<USICLK)+(1<<USITC)

SPITransfer_loop: out USICR,r16 sbis USISR,USIOIF rjmp SPITransfer_loop in ret r16,USIDR

The code is size optimized using only 8 instructions (+ ret). The code example assumes that the

DO and SCK pins are enabled as output in the DDRB Register. The value stored in register r16 prior to the function is called is transferred to the slave device, and when the transfer is completed the data received from the slave is stored back into the r16 register.

The second and third instructions clears the USI Counter Overflow Flag and the USI counter value. The fourth and fifth instruction set Three-wire mode, positive edge Shift Register clock, count at USITC strobe, and toggle SCK (PORTB2). The loop is repeated 16 times.

86

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

The following code demonstrates how to use the USI module as a SPI Master with maximum speed (fsck = fck/2):

SPITransfer_Fast: out USIDR,r16 ldi r16,(1<<USIWM0)+(0<<USICS0)+(1<<USITC) ldi r17,(1<<USIWM0)+(0<<USICS0)+(1<<USITC)+(1<<USICLK) out USICR,r16 ; MSB out USICR,r17 out USICR,r16 out USICR,r17 out USICR,r16 out USICR,r17 out USICR,r16 out USICR,r17 out USICR,r16 out USICR,r17 out USICR,r16 out USICR,r17 out USICR,r16 out USICR,r17 out USICR,r16 ; LSB out USICR,r17 ret in r16,USIDR

SPI Slave Operation

Example

The following code demonstrates how to use the USI module as a SPI slave: init: ldi out r16,(1<<USIWM0)+(1<<USICS1)

USICR,r16

...

SlaveSPITransfer: out ldi

USIDR,r16 r16,(1<<USIOIF) out USISR,r16

SlaveSPITransfer_loop: sbis USISR,USIOIF rjmp SlaveSPITransfer_loop in ret r16,USIDR

The code is size optimized using only 8 instructions (+ ret). The code example assumes that the

DO is configured as output and SCK pin is configured as input in the DDRB Register. The value stored in register r16 prior to the function is called is transferred to the master device, and when the transfer is completed the data received from the master is stored back into the r16 register.

87

1477K–AVR–08/10

Two-wire Mode

Note that the first two instructions is for initialization only and needs only to be executed once.These instructions sets Three-wire mode and positive edge Shift Register clock. The loop is repeated until the USI Counter Overflow Flag is set.

The USI Two-wire mode is compliant to the Inter IC (TWI) bus protocol, but without slew rate limiting on outputs and input noise filtering. Pin names used by this mode are SCL and SDA.

Figure 47. Two-wire Mode Operation, Simplified Diagram

VCC

Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0

PBy

SDA

Two-wire Clock

Control Unit

HOLD

SCL

PBz

SCL

SLAVE

PBy

SDA

Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0

PBz

SCL

PORTBz

MASTER

Figure 47 shows two USI units operating in Two-wire mode, one as master and one as slave. It

is only the physical layer that is shown since the system operation is highly dependent of the communication scheme used. The main differences between the master and slave operation at this level, is the serial clock generation which is always done by the master, and only the slave uses the clock control unit. Clock generation must be implemented in software, but the shift operation is done automatically by both devices. Note that only clocking on negative edge for shifting data is of practical use in this mode. The slave can insert wait states at start or end of transfer by forcing the SCL clock low. This means that the master must always check if the SCL line was actually released after it has generated a positive edge.

Since the clock also increments the counter, a counter overflow can be used to indicate that the transfer is completed. The clock is generated by the master by toggling the PB2 pin via the

PORTB Register.

The data direction is not given by the physical layer. A protocol, like the one used by the TWIbus, must be implemented to control the data flow.

88

ATtiny26(L)

1477K–AVR–08/10

1477K–AVR–08/10

ATtiny26(L)

Figure 48. Two-wire Mode, Typical Timing Diagram

SDA

SCL

S

1 - 7

ADDRESS

8

R/W

9

ACK

1 - 8

DATA

9

ACK

1 - 8

DATA

9

ACK

P

A B C D E F

Referring to the timing diagram (Figure 48.), a bus transfer involves the following steps:

1. The a start condition is generated by the master by forcing the SDA low line while the

SCL line is high (A). SDA can be forced low either by writing a zero to bit 7 of the Shift

Register, or by setting the PORTB0 bit to zero. Note that DDRB0 must be set to one for

the output to be enabled. The slave device’s start detector logic (Figure 49.) detects the

start condition and sets the USISIF flag. The flag can generate an interrupt if necessary.

2. In addition, the start detector will hold the SCL line low after the master has forced an negative edge on this line (B). This allows the slave to wake up from sleep or complete its other tasks, before setting up the Shift Register to receive the address by clearing the start condition flag and reset the counter.

3. The master set the first bit to be transferred and releases the SCL line (C). The slave samples the data and shift it into the serial register at the positive edge of the SCL clock.

4. After eight bits are transferred containing slave address and data direction (read or write), the slave counter overflows and the SCL line is forced low (D). If the slave is not the one the master has addressed it releases the SCL line and waits for a new start condition.

5. If the slave is addressed it holds the SDA line low during the acknowledgment cycle before holding the SCL line low again (i.e., the Counter Register must be set to 14 before releasing SCL at (D)). Depending of the R/W bit the master or slave enables its output. If the bit is set, a master read operation is in progress (i.e., the slave drives the SDA line)

The slave can hold the SCL line low after the acknowledge (E).

6. Multiple bytes can now be transmitted, all in same direction, until a stop condition is given by the master (F). Or a new start condition is given.

If the slave is not able to receive more data it does not acknowledge the data byte it has last received. When the master does a read operation it must terminate the operation by force the acknowledge bit low after the last byte transmitted.

Figure 49. Start Condition Detector, Logic Diagram

SDA

SCL

Write( USISIF)

D Q

CLR

D Q

CLR

USISIF

CLOCK

HOLD

89

Start Condition

Detector

The start condition detector is shown in Figure 49. The SDA line is delayed (in the range of 50 to

300 ns) to ensure valid sampling of the SCL line. The start condition detector is only enabled in

Two-wire mode.

When Two-wire mode is selected, the USISIF flag is set (to one) when a start condition is detected. When output disable mode or Three-wire mode is selected and (USICSx = 0b11 &

USICLK = 0) or (USICS = 0b10 & USICLK = 0), any edge on the SCK pin sets the flag.

The start condition detector is working asynchronously and can therefore wake up the processor from the Power-down sleep mode. However, the protocol used might have restrictions on the

SCL hold time. Therefore, when using this feature in this case the oscillator start-up time set by

the CKSEL Fuses (see “Clock Systems and their Distribution” on page 23) must also be taken

into the consideration. Refer to the description of “Bit 7 – USISIF: Start Condition Interrupt Flag” on page 81 for further details.

When the USI unit is not used for serial communication, it can be set up to do alternative tasks due to its flexible design.

By utilizing the Shift Register in Three-wire mode, it is possible to implement a more compact and higher performance UART than by software only.

Alternative USI

Usage

Half-duplex

Asynchronous Data

Transfer

4-bit Counter

12-bit Timer/Counter

Edge Triggered

External Interrupt

Software Interrupt

The 4-bit counter can be used as a stand-alone counter with overflow interrupt. Note that if the counter is clocked externally, both clock edges will generate an increment.

Combining the USI 4-bit counter and Timer/Counter0 allows them to be used as a 12-bit counter.

By setting the counter to maximum value (F) it can function as an additional external interrupt.

The overflow flag and interrupt enable bit are then used for the external interrupt. This feature is selected by the USICS1 bit.

The counter overflow interrupt can be used as a software interrupt triggered by a clock strobe.

90

ATtiny26(L)

1477K–AVR–08/10

Analog

Comparator

ATtiny26(L)

The Analog Comparator compares the input values on the positive pin PA6 (AIN0) and negative pin PA7 (AIN1). When the voltage on the positive pin PA6 (AIN0) is higher than the voltage on the negative pin PA7 (AIN1), the Analog Comparator Output, ACO is set (one). The comparator’s output can trigger a separate interrupt, exclusive to the Analog Comparator. The user can select Interrupt triggering on comparator output rise, fall or toggle. A block diagram of the com-

parator and its surrounding logic is shown in the Figure 50.

Figure 50. Analog Comparator Block Diagram

ACBG

PA6

(AIN0)

PA7

(AIN1)

MUX

ACME

ADC

MULTIPLEXER OUTPUT

Analog Comparator

Control and Status

Register – ACSR

Bit

$08 ($28)

Read/Write

Initial Value

7

ACD

R/W

0

6

ACBG

R/W

0

5

ACO

R

X

4

ACI

R/W

0

3

ACIE

R/W

0

2

ACME

R/W

0

1

ACIS1

R/W

0

0

ACIS0

R/W

0

ACSR

• Bit 7 – ACD: Analog Comparator Disable

When this bit is set(one), the power to the Analog Comparator is switched off. This bit can be set at any time to turn off the Analog Comparator. When changing the ACD bit, the Analog Comparator Interrupt must be disabled by clearing the ACIE bit in ACSR. Otherwise an interrupt can occur when the bit is changed.

• Bit 6 – ACBG: Analog Comparator Bandgap Select

When this bit is set (one), it selects internal bandgap reference voltage (1.18V) as the positive comparator input.

• Bit 5 – ACO: Analog Comparator Output

ACO is directly connected to the comparator output.

91

1477K–AVR–08/10

• Bit 4 – ACI: Analog Comparator Interrupt Flag

This bit is set (one) when a comparator output event triggers the interrupt mode defined by ACI1 and ACI0. The Analog Comparator Interrupt routine is executed if the ACIE bit is set (one) and the I-bit in SREG is set (one). ACI is cleared by hardware when executing the corresponding interrupt handling vector. Alternatively, ACI is cleared by writing a logic one to the flag.

• Bit 3 – ACIE: Analog Comparator Interrupt Enable

When the ACIE bit is set (one) and the I-bit in the Status Register is set (one), the Analog Comparator interrupt is activated. When cleared (zero), the interrupt is disabled.

• Bit 2 – ACME: Analog Comparator Multiplexer Enable

When the ACME bit is set (one) and the ADC is switched off (ADEN in ADCSR is zero),

MUX3...0 in ADMUX select the input pin to replace the negative input to the Analog Comparator,

as shown in Table 42 on page 93. If ACME is cleared (zero) or ADEN is set (one), PA7(AIN1) is

applied to the negative input to the Analog Comparator.

• Bits 1, 0 – ACIS1, ACIS0: Analog Comparator Interrupt Mode Select

These bits determine which comparator events that trigger the Analog Comparator interrupt. The

different settings are shown in Table 41.

Table 41. ACIS1/ACIS0 Settings

(1)

ACIS1 ACIS0 Interrupt Mode

1

1

0

0

0

1

0

1

Comparator Interrupt on Output Toggle

Reserved

Comparator Interrupt on Falling Output Edge

Comparator Interrupt on Rising Output Edge

Note: 1. When changing the ACIS1/ACIS0 bits, the Analog Comparator Interrupt must be disabled by clearing its Interrupt Enable bit in the ACSR Register. Otherwise an interrupt can occur when the bits are changed.

92

ATtiny26(L)

1477K–AVR–08/10

1477K–AVR–08/10

ATtiny26(L)

Table 42. Analog Comparator Input Selection

(1)

ACME ADEN MUX3...0

(3)

Analog Comparator Negative Input

0 X XXXX AIN1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0111

1000

1001

1010

1011

1100

1101

1110

1111

XXXX

0000

0001

0010

0011

0100

0101

0110

AIN1

ADC0

ADC1

ADC2

ADC3

ADC4

ADC5

ADC6

(2)

ADC7

(2)

ADC8

ADC9

ADC10

Undefined

Undefined

Undefined

Undefined

Undefined

Notes: 1. MUX4 does not affect Analog Comparator input selection.

2. Pin change interrupt on PA6 and PA7 is disabled if the Analog Comparator is enabled. This happens regardless of whether AIN1 or AIN0 has been replaced as inputs to the Analog

Comparator.

3. The MUX3...0 selections go into effect after one clock cycle delay.

93

Analog to

Digital

Converter

Features

10-bit Resolution

±2 LSB Absolute Accuracy

0.5 LSB Integral Non-linearity

Optional Offset Cancellation

13 - 260 µs Conversion Time

11 Multiplexed Single Ended Input Channels

8 Differential Input Channels

7 Differential Input Channels with Optional Gain of 20x

Optional Left Adjustment for ADC Result Readout

0 - AVCC ADC Input Voltage Range

Selectable ADC Reference Voltage

Free Running or Single Conversion Mode

Interrupt on ADC Conversion Complete

Sleep Mode Noise Canceler

The ATtiny26(L) features a 10-bit successive approximation ADC. The ADC is connected to an

11-channel Analog Multiplexer which allows eight differential voltage input combinations or 11 single-ended voltage inputs constructed from seven pins from Port A and four pins from Port B.

Seven of the differential inputs are equipped with a programmable gain stage, providing amplification steps of 0 dB (1x) and 26 dB (20x) on the differential input voltage before the A/D conversion. There are four groups of three differential analog input channel selections. All input channels in each group share a common negative terminal, while another ADC input can be selected as the positive input terminal. The single-ended voltage inputs refer to 0V (GND).

The ADC contains a Sample and Hold Amplifier which ensures that the input voltage to the ADC

is held at a constant level during conversion. A block diagram of the ADC is shown in Figure 51.

The ADC has an analog supply voltage pin, AVCC. The voltage on AVCC must not differ more than ±0.3V from V

CC

. See the paragraph “ADC Noise Canceling Techniques” on page 105 on

how to connect these pins.

An internal reference voltage of nominally 2.56V is provided On-chip, and this reference may be externally decoupled at the AREF pin by a capacitor.

94

ATtiny26(L)

1477K–AVR–08/10

Operation

ATtiny26(L)

Figure 51. Analog to Digital Converter Block Schematic

ADC CONVERSION

COMPLETE IRQ

8-BIT DATA BUS

ADC MULTIPLEXER

SELECT (ADMUX)

ADC CTRL. & STATUS

REGISTER (ADCSR)

15

ADC DATA REGISTER

(ADCH/ADCL)

0

PRESCALER

MUX DECODER

CONVERSION LOGIC

VCC

AREF

INTERNAL

2.56 V

REFERENCE

GND

ADC10

ADC9

ADC8

ADC7

ADC6

ADC5

ADC4

ADC3

ADC2

ADC1

ADC0

INTERNAL 1.18 V

REFERENCE

POS.

INPUT

MUX

+

-

GAIN

AMPLIFIER

10-BIT DAC

SINGLE ENDED /

DIFFERENTIAL SELECTION

SAMPLE & HOLD

COMPARATOR

-

+

ADC

MULTIPLEXER OUTPUT

NEG.

INPUT

MUX

The ADC converts an analog input voltage to a 10-bit digital value through successive approximation. The minimum value represents GND and the maximum value represents the voltage on the AREF pin minus 1 LSB. Optionally, AVCC or and internal 2.56V reference voltage may be connected to the AREF pin by writing to the REFS bits in ADMUX. The internal voltage reference may thus be decoupled by an external capacitor at the AREF pin to improve noise immunity.

The analog input channel and differential gain are selected by writing to the MUX bits in

ADMUX. Any of the 11 ADC input pins ADC10..0, as well as GND and a fixed bandgap voltage reference of nominally 1.18V (V

BG

), can be selected as single ended inputs to the ADC. A selection of ADC input pins can be selected as positive and negative inputs to the differential gain amplifier.

If differential channels are selected, the differential gain stage amplifies the voltage difference between the selected input channel pair by the selected gain factor. Note that the voltage on the positive input terminal must be higher than on the negative input terminal, otherwise the gain

95

1477K–AVR–08/10

Prescaling and

Conversion

Timing

stage will saturate at 0V (GND). This amplified value then becomes the analog input to the ADC.

If single ended channels are used, the gain amplifier is bypassed altogether.

The ADC can operate in two modes – Single Conversion and Free Running mode. In Single

Conversion mode, each conversion will have to be initiated by the user. In Free Running mode, the ADC is constantly sampling and updating the ADC Data Register. The ADFR bit in ADCSR selects between the two available modes.

The ADC is enabled by setting the ADC Enable bit, ADEN in ADCSR. Voltage reference and input channel selections will not go into effect until ADEN is set. The ADC does not consume power when ADEN is cleared, so it is recommended to switch off the ADC before entering power saving sleep modes.

A conversion is started by writing a logical one to the ADC Start Conversion bit, ADSC. This bit stays high as long as the conversion is in progress and will be set to zero by hardware when the conversion is completed. If a different data channel is selected while a conversion is in progress, the ADC will finish the current conversion before performing the channel change.

The ADC generates a 10-bit result, which is presented in the ADC Data Registers, ADCH and

ADCL. By default, the result is presented right adjusted, but can optionally be presented left adjusted by setting the ADLAR bit in ADMUX.

If the result is left adjusted and no more than 8-bit precision is required, it is sufficient to read

ADCH. Otherwise, ADCL must be read first, then ADCH, to ensure that the content of the data registers belongs to the same conversion. Once ADCL is read, ADC access to data registers is blocked. This means that if ADCL has been read, and a conversion completes before ADCH is read, neither register is updated and the result from the conversion is lost. When ADCH is read,

ADC access to the ADCH and ADCL Registers is re-enabled.

The ADC has its own interrupt which can be triggered when a conversion completes. When ADC access to the Data Registers is prohibited between reading of ADCH and ADCL, the interrupt will trigger even if the result is lost.

Figure 52. ADC Prescaler

ADEN

CK

Reset

7-BIT ADC PRESCALER

ADPS0

ADPS1

ADPS2

ADC CLOCK SOURCE

The successive approximation circuitry requires an input clock frequency between 50 kHz and

200 kHz. If a lower resolution than 10 bits is needed, the input clock frequency to the ADC can be as high as 1000 kHz to get a higher sample rate.

96

ATtiny26(L)

1477K–AVR–08/10

1477K–AVR–08/10

ATtiny26(L)

The ADC module contains a prescaler, which divides the system clock to an acceptable ADC clock frequency.

The ADPS bits in ADCSR are used to generate a proper ADC clock input frequency from any chip clock frequency above 100 kHz. The prescaler starts counting from the moment the ADC is switched on by setting the ADEN bit in ADCSR. The prescaler keeps running for as long as the

ADEN bit is set, and is continuously reset when ADEN is low.

When initiating a conversion by setting the ADSC bit in ADCSR, the conversion starts at the following rising edge of the ADC clock cycle. If differential channels are selected, the conversion will only start at every other rising edge of the ADC clock cycle after ADEN was set.

A normal conversion takes 13 ADC clock cycles. In certain situations, the ADC needs more clock cycles to initialization and minimize offset errors. Extended conversions take 25 ADC clock cycles and occur as the first conversion after the ADC is switched on (ADEN in ADCSR is set).

Special care should be taken when changing differential channels. Once a differential channel has been selected, the gain stage may take as much as 125 µs to stabilize to the new value.

Thus conversions should not be started within the first 125 µs after selecting a new differential channel. Alternatively, conversions results obtained within this period should be discarded. The same settling time should be observed for the first differential conversion after changing ADC reference (by changing the REFS1:0 bits in ADMUX).

The actual sample-and-hold takes place 1.5 ADC clock cycles after the start of a normal conversion and 13.5 ADC clock cycles after the start of an extended conversion. When a conversion is complete, the result is written to the ADC Data Registers, and ADIF is set. In Single Conversion mode, ADSC is cleared simultaneously. The software may then set ADSC again, and a new conversion will be initiated on the first rising ADC clock edge. In Free Running mode, a new conversion will be started immediately after the conversion completes, while ADSC remains high.

Using Free Running mode and an ADC clock frequency of 200 kHz gives the lowest conversion time, 65

µs

, equivalent to 15 kSPS. For a summary of conversion times, see Table 43.

Figure 53. ADC Timing Diagram, Extended Conversion (Single Conversion Mode)

Extended Conversion

Next

Conversion

Cycle Number

ADC Clock

ADEN

ADSC

ADIF

ADCH

ADCL

1 2 12 13 14 15 16 17 18 19 20 21 22 23 24 25

MUX and REFS

Update

Sample & Hold

Conversion

Complete

1 2 3

MSB of Result

LSB of Result

MUX and REFS

Update

97

Figure 54. ADC Timing Diagram, Single Conversion

One Conversion

1 2 3 4 5 6 7 8 9 10 11 12 13

Cycle Number

ADC Clock

ADSC

ADIF

ADCH

ADCL

Sample & Hold

MUX and REFS

Update

Conversion

Complete

Figure 55. ADC Timing Diagram, Free Running Conversion

One Conversion Next Conversion

4

Cycle Number

11

ADC Clock

12 13 1

ADSC

ADIF

ADCH

ADCL

2 3

MSB of Result

LSB of Result

Conversion

Complete

Sample & Hold

MUX and REFS

Update

Next Conversion

1 2 3

MSB of Result

LSB of Result

MUX and REFS

Update

Table 43. ADC Conversion Time

Condition

Extended conversion

Sample & Hold (Cycles from

Start of Conversion)

13.5

Normal conversions 1.5

Conversion

Time (Cycles)

25

13

Conversion

Time (µs)

125 - 500

65 - 260

Changing Channel or Reference

Selection

The MUXn and REFS1:0 bits in the ADMUX Register are single buffered through a temporary register to which the CPU has random access. This ensures that the channels and reference selection only takes place at a safe point during the conversion. The channel and reference selection is continuously updated until a conversion is started. Once the conversion starts, the channel and reference selection is locked to ensure a sufficient sampling time for the ADC. Continuous updating resumes in the last ADC clock cycle before the conversion completes (ADIF in

ADCSR is set). Note that the conversion starts on the following rising ADC clock edge after

ADSC is written. The user is thus advised not to write new channel or reference selection values to ADMUX until one ADC clock cycle after ADSC is written.

98

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

Special care should be taken when changing differential channels. Once a differential channel has been selected, the gain stage may take as much as 125 µs to stabilize to the new value.

Thus conversions should not be started within the first 125 µs after selecting a new differential channel. Alternatively, conversion results obtained within this period should be discarded.

The same settling time should be observed for the first differential conversion after changing

ADC reference (by changing the REFS1:0 bits in ADMUX).

ADC Noise

Canceler Function

The ADC features a noise canceler that enables conversion during ADC Noise Reduction mode

(see “Power Management and Sleep Modes” on page 37) to reduce noise induced from the

CPU core and other I/O peripherals. If other I/O peripherals must be active during conversion, this mode works equivalently for Idle mode. To make use of this feature, the following procedure should be used:

1. Make sure that the ADC is enabled and is not busy converting. Single Conversion mode must be selected and the ADC conversion complete interrupt must be enabled.

ADEN = 1

ADSC = 0

ADFR = 0

ADIE = 1

2. Enter ADC Noise Reduction mode (or Idle mode). The ADC will start a conversion once the CPU has been halted.

3. If no other interrupts occur before the ADC conversion completes, the ADC interrupt will wake up the CPU and execute the ADC Conversion Complete interrupt routine.

ADC Conversion

Result

After the conversion is complete (ADIF is high), the conversion result can be found in the ADC

Result Registers (ADCL, ADCH).

For single ended conversion, the result is

ADC

=

V

V

1024

REF

where V

IN

is the voltage on the selected input pin and V

REF

the selected voltage reference (see

Table 45 on page 101 and Table 46 on page 102). 0x000 represents analog ground, and 0x3FF

represents the selected reference voltage minus one LSB.

If differential channels are used, the result is

ADC

=

(

V

V

NEG

V

REF

where V

POS

is the voltage on the positive input pin, V

GAIN the selected gain factor, and V

REF must be higher than V

NEG

NEG

the voltage on the negative input pin,

the selected voltage reference. Keep in mind that V

POS

, otherwise, the ADC value will saturate at 0x000. Figure 56 shows the

decoding of the differential input range.

Table 44 shows the resulting output codes if the differential input channel pair (ADCn - ADCm) is

selected with a gain of GAIN and a reference voltage of V

REF

.

99

1477K–AVR–08/10

Figure 56. Differential Measurement Range

Output Code

0x3FF

0x000

0

V

REF

/GAIN

Differential Input

Voltage (Volts)

Table 44. Correlation Between Input Voltage and Output Codes

V

ADCn

V

ADCm

+ V

REF

/GAIN

V

ADCm

+ (1023/1024) V

REF

/GAIN

V

ADCm

+ (1022/1024) V

REF

/GAIN

...

Read code

0x3FF

0x3FF

0x3FE

...

Corresponding decimal value

1023

1023

1022

...

V

ADCm

+ (1/1024) V

REF

/GAIN

V

ADCm

0x001

0x000

1

0

Example:

ADMUX = 0xEB (ADC0 - ADC1, 20x gain, 2.56V reference, left adjusted result)

Voltage on ADC0 is 400 mV, voltage on ADC1 is 300 mV.

ADCR = 1024 * 20 * (400 - 300) / 2560 = 800 = 0x320

ADCL will thus read 0x00, and ADCH will read 0xC8. Writing zero to ADLAR right adjusts the result: ADCL = 0x20, ADCH = 0x03.

100

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

ADC Multiplexer

Selection Register –

ADMUX

Bit

$07 ($27)

Read/Write

Initial Value

7

REFS1

R/W

0

6

REFS0

R/W

0

5

ADLAR

R/W

0

4

MUX4

R/W

0

3

MUX3

R/W

0

2

MUX2

R/W

0

1

MUX1

R/W

0

0

MUX0

R/W

0

ADMUX

• Bit 7, 6 – REFS1, REFS0: Reference Selection Bits

These bits select the voltage reference for the ADC, as shown in Table 45. If these bits are

changed during a conversion, the change will not go in effect until this conversion is complete

(ADIF in ADCSR is set). The user should disregard the first conversion result after changing these bits to obtain maximum accuracy. If differential channels are used, using AVCC or an external AREF higher than (AVCC - 0.2V) is not recommended, as this will affect ADC accuracy.

The internal voltage reference may not be used if an external reference voltage is being applied to the AREF pin.

Table 45. Voltage Reference Selections for ADC

REFS1 REFS0 Voltage Reference Selection

0 0 AVCC

0

1

1

0

AREF (PA3), Internal Vref turned off.

Internal Voltage Reference (2.56 V), AREF pin (PA3) not connected.

1 1

Internal Voltage Reference (2.56 V) with external capacitor at AREF pin

(PA3).

• Bit 5 – ADLAR: ADC Left Adjust Result

The ADLAR bit affects the presentation of the ADC conversion result in the ADC Data Register.

If ADLAR is cleared, the result is right adjusted. If ADLAR is set, the result is left adjusted.

Changing the ADLAR bit will affect the ADC Data Register immediately, regardless of any ongo-

ing conversions. For a complete description of this bit, see “ADC Data Register – ADCL and

ADCH” on page 104.

• Bits 4..0 – MUX4..MUX0: Analog Channel and Gain Selection Bits

The value of these bits selects which combination of analog inputs are connected to the ADC.

These bits also select the gain for the differential channels. See Table 46 for details.

If these bits are changed during a conversion, the change will not go in effect until this conversion is complete (ADIF in ADCSR is set).

101

1477K–AVR–08/10

01110

01111

10000

10001

(1)

10010

10011

10100

10101

10110

(1)

10111

11000

11001

11010

11011

(1)

11100

11101

11110

11111

00110

00111

01000

01001

01010

01011

01100

01101

(1)

MUX4..0

00000

00001

00010

00011

00100

00101

Table 46. Input Channel and Gain Selections

Single Ended

Input

ADC0

ADC1

ADC2

ADC3

ADC4

ADC5

ADC6

ADC7

ADC8

ADC9

ADC10

Positive Differential

Input

N/A

N/A

N/A

N/A

1.18V (V

BG

)

0V (GND)

ADC4

ADC4

ADC4

ADC4

ADC5

ADC6

ADC6

ADC8

ADC0

ADC0

ADC1

ADC2

ADC2

ADC2

ADC3

ADC8

ADC9

ADC10

ADC10

Negative Differential

Input

N/A

N/A

Gain

Note:

1. For offset measurements only. See “Offset Compensation Schemes” on page 105.

ADC3

ADC3

ADC5

ADC5

ADC5

ADC5

ADC5

ADC9

ADC1

ADC1

ADC1

ADC1

ADC1

ADC3

ADC3

ADC9

ADC9

ADC9

ADC9

20x

20x

1x

20x

20x

1x

20x

1x

1x

20x

20x

1x

20x

1x

20x

20x

1x

1x

20x

102

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

ADC Control and

Status Register –

ADCSR

Bit

$06 ($26)

Read/Write

Initial Value

7

ADEN

R/W

0

6

ADSC

R/W

0

5

ADFR

R/W

0

4

ADIF

R/W

0

3

ADIE

R/W

0

2

ADPS2

R/W

0

1

ADPS1

R/W

0

0

ADPS0

R/W

0

ADCSR

• Bit 7 – ADEN: ADC Enable

Writing a logical “1” to this bit enables the ADC. By clearing this bit to zero, the ADC is turned off.

Turning the ADC off while a conversion is in progress, will terminate this conversion.

• Bit 6 – ADSC: ADC Start Conversion

In Single Conversion mode, a logical “1” must be written to this bit to start each conversion. In

Free Running mode, a logical “1” must be written to this bit to start the first conversion. The first time ADSC has been written after the ADC has been enabled, or if ADSC is written at the same time as the ADC is enabled, a dummy conversion will precede the initiated conversion. This dummy conversion performs initialization of the ADC.

ADSC will read as one as long as a conversion is in progress. When the conversion is complete, it returns to zero. When a dummy conversion precedes a real conversion, ADSC will stay high until the real conversion completes. Writing a 0 to this bit has no effect.

• Bit 5 – ADFR: ADC Free Running Select

When this bit is set (one) the ADC operates in Free Running mode. In this mode, the ADC samples and updates the Data Registers continuously. Clearing this bit (zero) will terminate Free

Running mode.

• Bit 4 – ADIF: ADC Interrupt Flag

This bit is set (one) when an ADC conversion completes and the data registers are updated. The

ADC Conversion Complete Interrupt is executed if the ADIE bit and the I-bit in SREG are set

(one). ADIF is cleared by hardware when executing the corresponding interrupt handling vector.

Alternatively, ADIF is cleared by writing a logical one to the flag. Beware that if doing a readmodify-write on ADCSR, a pending interrupt can be disabled. This also applies if the SBI and

CBI instructions are used.

• Bit 3 – ADIE: ADC Interrupt Enable

When this bit is set (one) and the I-bit in SREG is set (one), the ADC Conversion Complete Interrupt is activated.

103

1477K–AVR–08/10

• Bits 2..0 – ADPS2..0: ADC Prescaler Select Bits

These bits determine the division factor between the CK frequency and the input clock to the

ADC.

Table 47. ADC Prescaler Selections

ADPS2 ADPS1 ADPS0 Division Factor

1

1

1

1

0

0

0

0

1

1

0

0

1

1

0

0

0

1

0

1

0

1

0

1

16

32

64

128

4

8

2

2

ADC Data Register –

ADCL and ADCH

ADLAR = 0

Bit

$05 ($25)

$04 ($24)

Read/Write

Initial Value 0

0

R

R

15

ADC7

7

0

0

R

R

14

ADC6

6

0

0

R

R

13

ADC5

5

0

0

R

R

12

ADC4

4

0

0

R

R

11

ADC3

3

0

0

R

R

10

ADC2

2

0

0

R

R

9

ADC9

ADC1

1

0

0

R

R

8

ADC8

ADC0

0

ADCH

ADCL

ADLAR = 1

Bit

$05 ($25)

$04 ($24)

Read/Write

Initial Value 0

0

R

R

15

ADC9

ADC1

7

0

0

R

R

14

ADC8

ADC0

6

0

0

R

R

13

ADC7

5

0

0

R

R

12

ADC6

4

0

0

R

R

11

ADC5

3

0

0

R

R

10

ADC4

2

0

0

R

R

9

ADC3

1

0

0

R

R

8

ADC2

0

ADCH

ADCL

When an ADC conversion is complete, the result is found in these two registers. The ADLAR bit in ADMUX affect the way the result is read from the registers. If ADLAR is set, the result is left adjusted. If ADLAR is cleared (default), the result is right adjusted. If the result is left adjusted and no more than 8-bit precision is required, it is sufficient to read ADCH. Otherwise, ADCL must be read first, then ADCH.

• ADC9..0: ADC Conversion Result

These bits represent the result from the conversion. For differential channels, this is the absolute

value after gain adjustment, as indicated in Table 46 on page 102. For single ended channels,

$000 represents analog ground, and $3FF represents the selected reference voltage minus one

LSB.

104

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

Scanning Multiple

Channels

Since change of analog channel always is delayed until a conversion is finished, the Free Running mode can be used to scan multiple channels without interrupting the converter. Typically, the ADC Conversion Complete interrupt will be used to perform the channel shift. However, the user should take the following fact into consideration:

The interrupt triggers once the result is ready to be read. In Free Running mode, the next conversioin will start immediately when the interrupt triggers. If ADMUX is changed after the interrupt triggers, the next conversion has already started, and the old setting is used.

ADC Noise

Canceling

Techniques

Digital circuitry inside and outside the ATtiny26(L) generates EMI which might affect the accuracy of analog measurements. If conversion accuracy is critical, the noise level can be reduced by applying the following techniques:

1. The analog part of the ATtiny26(L) and all analog components in the application should have a separate analog ground plane on the PCB. This ground plane is connected to the digital ground plane via a single point on the PCB.

2. Keep analog signal paths as short as possible. Make sure analog tracks run over the analog ground plane, and keep them well away from high-speed switching digital tracks.

3. The AVCC pin on the ATtiny26(L) should be connected to the digital V

CC

via an LC network as shown in Figure 57.

supply voltage

4. Use the ADC noise canceler function to reduce induced noise from the CPU.

5. If some pins are used as digital outputs, it is essential that these do not switch while a conversion is in progress in that port.

Offset

Compensation

Schemes

The gain stage has a built-in offset cancellation circuitry that nulls the offset of differential measurements as much as possible. The remaining offset in the analog path can be measured directly by selecting the same channel for both differential inputs. This offset residue can be then subtracted in software from the measurement results. Using this kind of software based offset correction, offset on any channel can be reduced below one LSB.

105

1477K–AVR–08/10

Figure 57. ADC Power Connections

(MOSI/DI/SDA/OC1A) PB0

1

(MISO/DO/OC1A) PB1

2

(SCK/SCL/OC1B) PB2

3

(OC1B) PB3

4

VCC

5

GND

6

(ADC7/XTAL1) PB4 7

(ADC8/XTAL2) PB5

8

(ADC9/INT0/T0) PB6 9

(ADC10/RESET) PB7

10

ATtiny26/L

PA0 (ADC0)

19 PA1 (ADC1)

18

PA2 (ADC2)

17

PA3 (AREF)

16

GND

15

AVCC

14 PA4 (ADC3)

13 PA5 (ADC4)

12 PA6 (ADC5/AIN0)

11 PA7 (ADC6/AIN1)

106

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

Memory

Programming

Program and Data

Memory Lock Bits

The ATtiny26 provides two Lock bits which can be left unprogrammed (“1”) or can be pro-

grammed (“0”) to obtain the additional features listed in Table 49. The Lock bits can only be

erased to “1” with the Chip Erase command.

Table 48. Lock Bit Byte

(1)

Lock Bit Byte

LB2

LB1

2

1

4

3

0

Bit No

7

6

5

Description

Lock bit

Lock bit

Note: 1. “1” means unprogrammed, “0” means programmed

Default Value

1 (unprogrammed)

1 (unprogrammed)

1 (unprogrammed)

1 (unprogrammed)

1 (unprogrammed)

1 (unprogrammed)

1 (unprogrammed)

1 (unprogrammed)

Table 49. Lock Bit Protection Modes

Memory Lock Bits

LB Mode

LB2

(2)

LB1

(2)

1 1 1

2

3

1

0

0

0

Protection Type

No memory lock features enabled.

Further programming of the Flash and EEPROM is disabled in parallel and serial programming mode. The

Fuse bits are locked in both serial and parallel

programming mode.

(1)

Further programming and verification of the Flash and

EEPROM is disabled in parallel and serial programming mode. The Fuse bits are locked in both serial and parallel

programming mode.

(1)

Notes: 1. Program the Fuse bits before programming the Lock bits.

2. “1” means unprogrammed, “0” means programmed

107

1477K–AVR–08/10

Fuse Bits

The ATtiny26 has two Fuse bytes. Table 50 and Table 51 describe briefly the functionality of all

the fuses and how they are mapped into the fuse bytes. Note that the fuses are read as logical zero, “0”, if they are programmed.

Table 50. Fuse High Byte

Fuse High Byte Bit No Description

7 –

RSTDISBL

(2)

SPIEN

(1)

EESAVE

6

5

4

3

2

Select if PB7 is I/O pin or

RESET pin

Enable

Serial Program and Data Downloading

EEPROM memory is preserved through the Chip

Erase

BODLEVEL 1

Brown out detector trigger level

Default Value

1 (unprogrammed)

1 (unprogrammed)

1 (unprogrammed)

1 (unprogrammed, PB7 is

RESET pin)

0 (programmed, SPI prog. enabled)

1 (unprogrammed, EEPROM not preserved)

1 (unprogrammed)

BODEN 0

Brown out detector enable

1 (unprogrammed, BOD disabled)

Notes: 1. The SPIEN Fuse is not accessible in serial programming mode.

2. When programming the RSTDISBL Fuse, Parallel Programming has to be used to change fuses or perform further programming.

Table 51. Fuse Low Byte

Fuse Low Byte Bit No Description

PLLCK

CKOPT

(3)

SUT1

SUT0

CKSEL3

CKSEL2

CKSEL1

CKSEL0

1

0

3

2

5

4

7

6

Use PLL for internal clock

Oscillator options

Select start-up time

Select start-up time

Select Clock source

Select Clock source

Select Clock source

Select Clock source

Default Value

1 (unprogrammed)

1 (unprogrammed)

1 (unprogrammed)

(1)

0 (programmed)

(1)

0 (programmed)

(2)

0 (programmed)

(2)

0 (programmed)

(2)

1 (unprogrammed)

(2)

Notes: 1. The default value of SUT1..0 results in maximum start-up time. See Table 12 on page 29 for

details.

2. The default setting of CKSEL3..0 results in internal RC Oscillator at 1 MHz. See Table 3 on page 25 for details.

3. The CKOPT Fuse functionality depends on the setting of the CKSEL bits. See “System Clock and Clock Options” on page 23 for details.

The status of the Fuse bits is not affected by Chip Erase. Note that the Fuse bits are locked if

Lock bit1 (LB1) is programmed. Program the Fuse bits before programming the Lock bits.

108

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

Latching of Fuses

Signature Bytes

Calibration Byte

The fuse values are latched when the device enters programming mode and changes of the fuse values will have no effect until the part leaves programming mode. This does not apply to the EESAVE Fuse which will take effect once it is programmed. The fuses are also latched on

Power-up in normal mode.

All Atmel microcontrollers have a three-byte signature code which identifies the device. This code can be read in both serial and parallel mode, also when the device is locked. The three bytes reside in a separate address space.

For the ATtiny26 the signature bytes are:

1. $000: $1E (indicates manufactured by Atmel).

2. $001: $91 (indicates 2KB Flash memory).

3. $002: $09 (indicates ATtiny26 device when $001 is $91).

The ATtiny26 stores four different calibration values for the internal RC Oscillator. These bytes resides in the signature row high byte of the addresses 0x0000, 0x0001, 0x0002, and 0x0003 for

1, 2, 4, and 8 MHz respectively. During Reset, the 1 MHz value is automatically loaded into the

OSCCAL Register. If other frequencies are used, the calibration value has to be loaded manu-

ally, see “Oscillator Calibration Register – OSCCAL” on page 29 for details.

Page Size

Table 52. No. of Words in a Page and no. of Pages in the Flash

Flash Size Page Size PCWORD No. of Pages PCPAGE PCMSB

1K words (2K bytes) 16 words PC[3:0] 64 PC[9:4] 9

Parallel

Programming

Parameters, Pin

Mapping, and

Commands

Signal Names

Table 53. No. of Words in a Page and no. of Pages in the EEPROM

EEPROM Size

128 bytes

Page Size

4 bytes

PCWORD

EEA[1:0]

No. of Pages

32

PCPAGE

EEA[7:0]

EEAMSB

7

This section describes how to parallel program and verify Flash Program memory, EEPROM

Data memory, Memory Lock bits, and Fuse bits in the ATtiny26. Pulses are assumed to be at least 250 ns unless otherwise noted.

In this section, some pins of the ATtiny26 are referenced by signal names describing their func-

tionality during parallel programming, see Figure 58 and Table 54. Pins not described in the

following table are referenced by pin names.

The XA1/XA0 pins determine the action executed when the XTAL1 pin is given a positive pulse.

The bit coding is shown in Table 56.

When pulsing WR or OE, the command loaded determines the action executed. The different

Commands are shown in Table 57.

109

1477K–AVR–08/10

Figure 58. Parallel Programming

WR

XA0

XA1/BS2

PAGEL/BS1

OE

RDY/BSY

+12 V

+5V

PB0

PB1

PB2

PB3

PB5

PB6

RESET

XTAL1/PB4

GND

VCC

AVCC

PA7: PA0

+5V

DATA

Table 54. Pin Name Mapping

Signal Name in

Programming Mode Pin Name I/O Function

WR PB0 I Write Pulse (Active low)

XA0

XA1/BS2

(1)

PAGEL/BS1

(1)

OE

RDY/BSY

DATA

PB1

PB2

PB3

PB5

PB6

PA7:0

I

I

I XTAL Action Bit 0

XTAL Action Bit 1 multiplexed with Byte Select 2

(“0” selects low byte, “1” selects 2’nd high byte)

Program Memory and EEPROM data Page Load multiplexed with Byte Select 1 (“0” selects low byte, “1” selects high byte).

I Output Enable (Active low)

O

0: Device is busy programming, 1: Device is ready for new command

I/O Bidirectional Data bus (Output when OE is low)

Note: 1. The pin is used for two different control signals. In the description below, normally only one of the signals is referred. E.g., “give BS1 a positive pulse” equals “give PAGEL/BS1 a positive pulse”.

Table 55. Pin Values used to Enter Programming Mode

Pin Symbol

PAGEL/BS1

XA1/BS2

XA0

WR

Prog_enable[3]

Prog_enable[2]

Prog_enable[1]

Prog_enable[0]

Value

0

0

0

0

110

ATtiny26(L)

1477K–AVR–08/10

1477K–AVR–08/10

ATtiny26(L)

Table 56. XA1 and XA0 Coding

(1)

XA1 XA0 Action when XTAL1 is Pulsed

0

0

0

1

Load Flash or EEPROM Address (High or low address byte determined by

BS1).

Load Data (High or Low data byte for Flash determined by BS1).

1

1

0

1

Load Command

No Action, Idle

Note: 1. [XA1, XA0] = 0b11 is “No Action, Idle”. As long as XTAL1 is not pulsed, the Command,

Address, and Data Registers remain unchanged. Therefore, there are no problems using BS2 as described below even though BS2 is multiplexed with XA1. BS2 is only asserted when reading the fuses (OE is low) and XTAL1 is not pulsed.

Table 57. Command Byte Bit Coding

Command Byte

1000 0000

0100 0000

0010 0000

0001 0000

0001 0001

0000 1000

0000 0100

0000 0010

0000 0011

Command Executed

Chip Erase

Write Fuse Bits

Write Lock Bits

Write Flash

Write EEPROM

Read Signature Bytes and Calibration Byte

Read Fuse and Lock Bits

Read Flash

Read EEPROM

111

Parallel

Programming

Enter Programming

Mode

The following algorithm puts the device in parallel programming mode:

Step 2-7 must be completed within 64ms.

1. Set Prog_enable pins listed in Table 55 on page 110, RESET and Vcc to 0V.

2. Apply 4.5 - 5.5V between Vcc/AVcc and GND.

3. Wait at least 60us.

4. Apply between 4.5V - 5.5V (Same as on Vcc/AVcc) to RESET pin.

5. Wait at least 20us.

6. Apply between 11.5V - 12.5V to RESET pin.

7. Wait at least 10us.

8. Program fuses to internal clock mode, 8 MHz, with 64ms delay. (CKSEL[3..0] = 0100,

SUT[1..0] = 10). If Lock bits are programmed, a Chip Erase command must be executed before changing the fuses.

9. Exit Programming mode by power the device down or by bringing RESET pin to 0V.

10. Repeat step 1 to 7 too re-enter programming mode.

Considerations for

Efficient Programming

The loaded command and address are retained in the device during programming. For efficient programming, the following should be considered.

• The command needs only be loaded once when writing or reading multiple memory locations.

• Skip writing the data value $FF, that is the contents of the entire EEPROM (unless the

EESAVE Fuse is programmed) and Flash after a Chip Erase.

• Address high byte needs only be loaded before programming or reading a new 256-word window in Flash or 256-byte EEPROM. This consideration also applies to Signature bytes reading.

112

ATtiny26(L)

1477K–AVR–08/10

Chip Erase

Programming the

Flash

ATtiny26(L)

The Chip Erase will erase the Flash and EEPROM

(1)

memories plus Lock bits. The Lock bits are

not reset until the program memory has been completely erased. The Fuse bits are not changed. A Chip Erase must be performed before the Flash and/or EEPROM are reprogrammed.

Note: 1. The EEPROM memory is preserved during Chip Erase if the EESAVE Fuse is programmed.

Load Command “Chip Erase”

1. Set XA1, XA0 to “10”. This enables command loading.

2. Set BS1 to “0”.

3. Set DATA to “1000 0000”. This is the command for Chip Erase.

4. Give XTAL1 a positive pulse. This loads the command.

5. Give WR a negative pulse. This starts the Chip Erase. RDY/BSY goes low.

6. Wait until RDY/BSY goes high before loading a new command.

The Flash is organized in pages, see Table 52 on page 109. When programming the Flash, the

program data is latched into a page buffer. This allows one page of program data to be programmed simultaneously. The following procedure describes how to program the entire Flash memory:

A. Load Command "Write Flash"

1. Set XA1, XA0 to “10”. This enables command loading.

2. Set BS1 to “0”.

3. Set DATA to “0001 0000”. This is the command for Write Flash.

4. Give XTAL1 a positive pulse. This loads the command.

B. Load Address Low byte

1. Set XA1, XA0 to “00”. This enables address loading.

2. Set BS1 to “0”. This selects low address.

3. Set DATA = Address low byte ($00 - $FF).

4. Give XTAL1 a positive pulse. This loads the address low byte.

C. Load Data Low Byte

1. Set XA1, XA0 to “01”. This enables data loading.

2. Set DATA = Data low byte ($00 - $FF).

3. Give XTAL1 a positive pulse. This loads the data byte.

D. Load Data High Byte

1. Set BS1 to “1”. This selects high data byte.

2. Set XA1, XA0 to “01”. This enables data loading.

3. Set DATA = Data high byte ($00 - $FF).

4. Give XTAL1 a positive pulse. This loads the data byte.

E. Repeat B through D until the entire buffer is filled or until all data within the page is loaded.

While the lower bits in the address are mapped to words within the page, the higher bits address

the pages within the FLASH. This is illustrated in Figure 59 on page 114. Note that if less than 8

bits are required to address words in the page (pagesize < 256), the most significant bit(s) in the address low byte are used to address the page when performing a page write.

113

1477K–AVR–08/10

F. Load Address High byte

1. Set XA1, XA0 to “00”. This enables address loading.

2. Set BS1 to “1”. This selects high address.

3. Set DATA = Address high byte ($00 - $03).

4. Give XTAL1 a positive pulse. This loads the address high byte.

G. Program Page

1. Set BS1 to “0”.

2. Give WR a negative pulse. This starts programming of the entire page of data.

RDY/BSYgoes low.

3. Wait until RDY/BSY goes high. (See Figure 60 for signal waveforms.)

H. Repeat B through G until the entire Flash is programmed or until all data has been programmed.

I. End Page Programming

1. Set XA1, XA0 to “10”. This enables command loading.

2. Set DATA to “0000 0000”. This is the command for No Operation.

3. Give XTAL1 a positive pulse. This loads the command, and the internal write signals are reset.

Figure 59. Addressing the Flash which is Organized in Pages

(1)

PROGRAM

COUNTER

PCMSB

PCPAGE

PAGEMSB

PCWORD

PAGE ADDRESS

WITHIN THE FLASH

WORD ADDRESS

WITHIN A PAGE

PROGRAM MEMORY

PAGE

PAGE

INSTRUCTION WORD

PCWORD[PAGEMSB:0]:

00

01

02

PAGEEND

Note:

1. PCPAGE and PCWORD are listed in Table 52 on page 109.

114

ATtiny26(L)

1477K–AVR–08/10

Programming the

EEPROM

ATtiny26(L)

Figure 60. Programming the Flash Waveforms

(1)

E

A

$10

B C D B C D F

ADDR. LOW DATA LOW DATA HIGH ADDR. LOW DATA LOW DATA HIGH ADDR. HIGH

G

XX

DATA

XA1/BS2

XA0

PAGEL/BS1

XTAL1

WR

RDY/BSY

RESET +12V

OE

Note: 1. “XX” is don’t care. The letters refer to the programming description above.

The EEPROM is organized in pages, see Table 53 on page 109. When programming the

EEPROM, the program data is latched into a page buffer. This allows one page of data to be programmed simultaneously. The programming algorithm for the EEPROM data memory is as

follows (refer to “Programming the Flash” on page 113 for details on Command, Address and

Data loading):

1. A: Load Command “0001 0001”.

2. B: Load Address Low Byte ($00 - $FF).

3. C: Load Data ($00 - $FF).

J: Repeat 2 and 3 until the entire buffer is filled

K: Program EEPROM page

1. Set BS1 to “0”.

2. Give WR a negative pulse. This starts programming of the EEPROM page. RDY/BSY goes low.

3. Wait until to RDY/BSY goes high before programming the next page.

(See Figure 61 for signal waveforms.)

115

1477K–AVR–08/10

Figure 61. Programming the EEPROM Waveforms

J

A

$11

B

ADDR. LOW

C

DATA

B

ADDR. LOW

C

DATA XX

K

DATA

XA1/BS2

XA0

PAGEL/BS1

XTAL1

WR

RDY/BSY

RESET +12V

OE

Reading the Flash

Reading the EEPROM

The algorithm for reading the EEPROM memory is as follows (refer to “Programming the Flash” on page 113 for details on Command and Address loading):

1. A: Load Command “0000 0011”.

2. B: Load Address Low Byte ($00 - $FF).

3. Set OE to “0”, and BS1 to “0”. The EEPROM Data byte can now be read at DATA.

4. Set OE to “1”.

Programming the

Fuse Low Bits

The algorithm for reading the Flash memory is as follows (refer to “Programming the Flash” on page 113 for details on Command and Address loading):

1. A: Load Command “0000 0010”.

2. F: Load Address High Byte ($00 - $03).

3. B: Load Address Low Byte ($00 - $FF).

4. Set OE to “0”, and BS1 to “0”. The Flash word low byte can now be read at DATA.

5. Set BS1 to “1”. The Flash word high byte can now be read at DATA.

6. Set OE to “1”.

The algorithm for programming the Fuse Low bits is as follows (refer to “Programming the Flash” on page 113 for details on Command and Data loading):

1. A: Load Command “0100 0000”.

2. C: Load Data Low Byte. Bit n = “0” programs and bit n = “1” erases the Fuse bit.

3. Set BS1 and BS2 to “0”.

4. Give WR a negative pulse and wait for RDY/BSY to go high.

116

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

Programming the

Fuse High Bits

The algorithm for programming the Fuse high bits is as follows (refer to “Programming the Flash” on page 113 for details on Command and Data loading):

1. A: Load Command “0100 0000”.

2. C: Load Data Low Byte. Bit n = “0” programs and bit n = “1” erases the Fuse bit.

3. Set BS1 to “1” and BS2 to “0”. This selects high data byte.

4. Give WR a negative pulse and wait for RDY/BSY to go high.

5. Set BS1 to “0”. This selects low data byte.

Figure 62. Programming the Fuse Waveforms

Write Fuse Low Byte

DATA

A

$40

C

DATA XX

A

$40

C

DATA

Write Fuse High Byte

XX

XA1/BS2

XA0

PAGEL/BS1

XTAL1

WR

RDY/BSY

RESET +12V

OE

Programming the

Lock Bits

The algorithm for programming the Lock bits is as follows (refer to “Programming the Flash” on page 113 for details on Command and Data loading):

1. A: Load Command “0010 0000”.

2. C: Load Data Low Byte. Bit n = “0” programs the Lock bit.

3. Give WR a negative pulse and wait for RDY/BSY to go high.

The Lock bits can only be cleared by executing Chip Erase.

Reading the Fuse and

Lock Bits

The algorithm for reading the Fuse and Lock bits is as follows (refer to “Programming the Flash” on page 113 for details on Command loading):

1. A: Load Command “0000 0100”.

2. Set OE to “0”, BS2 to “0”, and BS1 to “0”. The status of the Fuse Low bits can now be read at DATA (“0” means programmed).

3. Set OE to “0”, BS2 to “1”, and BS1 to “1”. The status of the Fuse High bits can now be read at DATA (“0” means programmed).

4. Set OE to “0”, BS2 to “0”, and BS1 to “1”. The status of the Lock bits can now be read at

DATA (“0” means programmed).

5. Set OE to “1”.

117

1477K–AVR–08/10

Figure 63. Mapping Between BS1, BS2 and the Fuse- and Lock-bits During Read

Fuse Low Byte 0

DATA

Lock Bits

0

1

BS1

Fuse High Byte

1

BS2

Reading the Signature

Bytes

The algorithm for reading the Signature bytes is as follows (refer to Programming the Flash for details on Command and Address loading):

1. A: Load Command “0000 1000”.

2. B: Load Address Low Byte ($00 - $02).

3. Set OE to “0” and BS1 to “0”. The selected Signature byte can now be read at DATA.

4. Set OE to “1”.

Reading the

Calibration Byte

The algorithm for reading the Calibration byte is as follows (refer to Programming the Flash for details on Command and Address loading):

1. A: Load Command “0000 1000”.

2. B: Load Address Low Byte.

3. Set OE to “0” and BS1 to “1”. The Calibration byte can now be read at DATA.

4. Set OE to “1”.

Parallel Programming

Characteristics

Figure 64. Parallel Programming Timing, Including some General Timing Requirements t

XLWL

XTAL1 t

XHXL t

DVXH t

XLDX

Data & Contol

(DATA, XA0, XA1/BS2

PAGEL/BS1) t

BVWL t

WLWH t

WLBX

WR

WLRL

RDY/BSY t

WLRH

118

ATtiny26(L)

1477K–AVR–08/10

1477K–AVR–08/10

ATtiny26(L)

Figure 65. Parallel Programming Timing, Loading Sequence with Timing Requirements

(1)

LOAD ADDRESS

(LOW BYTE)

LOAD DATA

(LOW BYTE)

LOAD DATA

(HIGH BYTE)

LOAD ADDRESS

(LOW BYTE) t

XLXH t

XLXH t

XLXH

XTAL1

PAGEL/BS1

DATA ADDR0 (Low Byte) DATA (Low Byte) DATA (High Byte) ADDR1 (Low Byte)

XA0

XA1/BS2

Note:

1. The timing requirements shown in Figure 64 (i.e., t

DVXH

, t

XHXL

, and t

XLDX

) also apply to loading operation.

Figure 66. Parallel Programming Timing, Reading Sequence (Within the Same Page) with Timing Requirements

()

LOAD ADDRESS

(LOW BYTE)

READ DATA

(LOW BYTE)

READ DATA

(HIGH BYTE)

LOAD ADDRESS

(LOW BYTE) t

XLOL

XTAL1 t

BHDV

PAGEL/BS1 t

OLDV

OE t

OHDZ

DATA ADDR0 (Low Byte) DATA (Low Byte)

DATA (High Byte) ADDR1 (Low Byte)

XA0

XA1/BS2

Note:

1. The timing requirements shown in Figure 64 (i.e. t

DVXH operation.

, t

XHXL

, and t

XLDX

) also apply to reading

119

Table 58. Parallel Programming Characteristics, V

CC

= 5V ± 10%

Symbol Parameter Min Typ Max Units

t

BVWL t

WLWH t

WLRL t

WLRH t

WLRH_CE t

XLOL t

BVDV t

OLDV t

OHDZ

V

PP

I

PP t

DVXH t

XLXH t

XHXL t

XLDX t

XLWL t

WLBX

Programming Enable Voltage

Programming Enable Current

Data and Control Valid before XTAL1 High

XTAL1 Low to XTAL1 High

XTAL1 Pulse Width High

Data and Control Hold after XTAL1 Low

XTAL1 Low to WR Low

BS2/1 Hold after WR Low

BS1 Valid to WR Low

WR Pulse Width Low

WR Low to RDY/BSY Low

WR Low to RDY/BSY High

(1)

WR Low to RDY/BSY High for Chip Erase

(2)

XTAL1 Low to OE Low

BS1 Valid to DATA valid

OE Low to DATA Valid

OE High to DATA Tri-stated

11.5

67

200

150

67

0

67

67

150

0

3.7

7.5

0

0

12.5

250

1

4.5

9

250

250

250

V

μA ns ns ns ns ns ns ns ns

μs ms ms ns ns ns ns

Notes: 1. t

WLRH is valid for the Write Flash, Write EEPROM, Write Fuse bits and Write Lock bits commands.

2. t

WLRH_CE is valid for the Chip Erase command.

120

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

Serial

Downloading

Both the Flash and EEPROM memory arrays can be programmed using the serial SPI bus while

RESET is pulled to GND. The serial interface consists of pins SCK, MOSI (input) and MISO (output). After RESET is set low, the Programming Enable instruction needs to be executed first

before program/erase operations can be executed. NOTE, in Table 59 on page 121, the pin

mapping for SPI programming is listed. Not all parts use the SPI pins dedicated for the internal

SPI interface. Note that throughout the description about Serial downloading, MOSI and MISO are used to describe the serial data in and serial data out respectively.

Serial

Programming Pin

Mapping

Table 59. Pin Mapping Serial Programming

Symbol

MOSI

MISO

SCK

Pins

PB0

PB1

PB2

Figure 67. Serial Programming and Verify

(1)

I/O

I

O

I

Description

Serial data in

Serial data out

Serial clock

2.7 - 5.5V

VCC

2.7 - 5.5V

(2)

MOSI

MISO

SCK

PB0

PB1

PB2

XTAL1

AVCC

RESET

GND

Notes: 1. If the device is clocked by the internal oscillator, there is no need to connect a clock source to the XTAL1 pin.

2. V

CC

-0.3V < AVCC < V

CC

+0.3V, however, AVCC should always be within 2.7 - 5.5V.

When programming the EEPROM, an auto-erase cycle is built into the self-timed programming operation (in the serial mode ONLY) and there is no need to first execute the Chip Erase instruction. The Chip Erase operation turns the content of every memory location in both the Program and EEPROM arrays into $FF.

Depending on CKSEL Fuses, a valid clock must be present. The minimum low and high periods for the serial clock (SCK) input are defined as follows:

Low: > 2 CPU clock cycles for f ck

< 12 MHz, 3 CPU clock cycles for f ck

12 MHz

High: > 2 CPU clock cycles for f ck

< 12 MHz, 3 CPU clock cycles for f ck

12 MHz

121

1477K–AVR–08/10

SPI Serial

Programming

Algorithm

When writing serial data to the ATtiny26, data is clocked on the rising edge of SCK.

When reading data from the ATtiny26, data is clocked on the falling edge of SCK. See Figure

68, Figure 69, and Table 69 for timing details.

To program and verify the ATtiny26 in the serial programming mode, the following sequence is

recommended (See four byte instruction formats in Table 61):

1. Power-up sequence:

Apply power between V

CC

and GND while RESET and SCK are set to “0”. In some systems, the programmer can not guarantee that SCK is held low during Power-up. In this case, RESET must be given a positive pulse of at least two CPU clock cycles duration after SCK has been set to “0”.

2. Wait for at least 20 ms and enable serial programming by sending the Programming

Enable serial instruction to pin MOSI.

3. The serial programming instructions will not work if the communication is out of synchronization. When in synchronize the second byte ($53), will echo back when issuing the third byte of the Programming Enable instruction. Whether the echo is correct or not, all 4 bytes of the instruction must be transmitted. If the $53 did not echo back, give RESET a positive pulse and issue a new Programming Enable command.

4. The Flash is programmed one page at a time. The page size is found in Table 52 on page 109. The memory page is loaded one byte at a time by supplying the 4 LSB of the

address and data together with the Load Program Memory Page instruction. To ensure correct loading of the page, the data low byte must be loaded before data high byte is applied for given address. The Program Memory Page is stored by loading the Write Program Memory Page instruction with the 6 MSB of the address. If polling is not used, the user must wait at least t

WD_FLASH

before issuing the next page. (See Table 60). Accessing

the serial programming interface before the Flash write operation completes can result in incorrect programming.

5. The EEPROM array is programmed one byte at a time by supplying the address and data together with the appropriate Write instruction. An EEPROM memory location is first automatically erased before new data is written. If polling is not used, the user must wait at least t

WD_EEPROM

before issuing the next byte. (See Table 60). In a chip erased device,

no $FFs in the data file(s) need to be programmed.

6. Any memory location can be verified by using the Read instruction which returns the content at the selected address at serial output MISO.

7. At the end of the programming session, RESET can be set high to commence normal operation.

8. Power-off sequence (if needed):

Set RESET to “1”.

Turn V

CC

power off.

122

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

Data Polling Flash

When a page is being programmed into the Flash, reading an address location within the page being programmed will give the value $FF. At the time the device is ready for a new page, the programmed value will read correctly. This is used to determine when the next page can be written. Note that the entire page is written simultaneously and any address within the page can be used for polling. Data polling of the Flash will not work for the value $FF, so when programming this value, the user will have to wait for at least t

WD_FLASH

before programming the next page. As a chip-erased device contains $FF in all locations, programming of addresses that are meant to

contain $FF, can be skipped. See Table 60 for t

WD_FLASH

value.

Data Polling EEPROM

When a new byte has been written and is being programmed into EEPROM, reading the address location being programmed will give the value $FF. At the time the device is ready for a new byte, the programmed value will read correctly. This is used to determine when the next byte can be written. This will not work for the value $FF, but the user should have the following in mind: As a chip-erased device contains $FF in all locations, programming of addresses that are meant to contain $FF, can be skipped. This does not apply if the EEPROM is re-programmed without chip-erasing the device. In this case, data polling cannot be used for the value $FF, and t the user will have to wait at least t

WD_EEPROM

WD_EEPROM

value.

before programming the next byte. See Table 60 for

Table 60. Minimum Wait Delay before Writing the Next Flash or EEPROM Location

Symbol

t

WD_FLASH t

WD_EEPROM t

WD_ERASE t

WD_FUSE

Minimum Wait Delay

4.5 ms

9.0 ms

9.0 ms

4.5 ms

Figure 68. Serial Programming Waveforms

SERIAL DATA INPUT

(MOSI)

MSB LSB

SERIAL DATA OUTPUT

(MISO)

SERIAL CLOCK INPUT

(SCK)

SAMPLE

MSB LSB

123

1477K–AVR–08/10

Table 61. Serial Programming Instruction Set

Instruction

Programming Enable

Byte 1

Instruction Format

Byte 2 Byte 3 Byte4

Operation

1010 1100 0101 0011 xxxx xxxx xxxx xxxx

Enable Serial Programming after

RESET goes low.

Chip Erase

Read Program Memory

1010 1100 100x xxxx xxxx xxxx xxxx xxxx

Chip Erase EEPROM and Flash.

0010 H000 xxxx xxaa

bbbb bbbb oooo oooo

Read H (high or low) data o from

Program memory at word address a:b.

Load Program Memory Page

0100 H000 xxxx xxxx xxxx bbbb

iiii iiii

Write H (high or low) data i to Program

Memory page at word address b. Data low byte must be loaded before data high byte is applied within the same address.

Write Program Memory Page

0100 1100 xxxx xxaa bbbb xxxx xxxx xxxx

Write Program Memory Page at address a:b.

Read EEPROM Memory

1010 0000 xxxx xxxx xbbb bbbb

oooo oooo

Read data o from EEPROM memory at address b.

Write EEPROM Memory

1100 0000 xxxx xxxx xbbb bbbb

iiii iiii

Write data i to EEPROM memory at address b.

Read Lock Bits

Write Lock Bits

Read Signature Byte

Write Fuse Bits

Write Fuse High Bits

Read Fuse Bits

0101 1000 0000 0000 xxxx xxxx xxxx xxoo

Read Lock bits. “0” = programmed, “1”

= unprogrammed. See

Table 48 on page 107

for details.

1010 1100 111x xxxx xxxx xxxx 1111 11ii

Write Lock bits. Set bits = “0” to program Lock bits. See

Table 48 on page 107

for details.

0011 0000 xxxx xxxx xxxx xxbb

oooo oooo

Read Signature Byte o at address b.

1010 1100 1010 0000 xxxx xxxx

iiii iiii

Set bits = “0” to program, “1” to unprogram. See

Table 51 on page

108

for details.

1010 1100 1010 1000 xxxx xxxx xxxi iiii

Set bits = “0” to program, “1” to unprogram. See

Table 50 on page

108

for details.

0101 0000 0000 0000 xxxx xxxx

oooo oooo

Read Fuse bits. “0” = programmed, “1”

= unprogrammed. See

Table 51 on page 108

for details.

Read Fuse High Bits

0101 1000 0000 1000 xxxx xxxx xxxo oooo

Read Fuse high bits.

“0” = programmed,

“1” = unprogrammed. See

Table 50 on page 108

for details.

Read Calibration Byte

0011 1000 xxxx xxxx 0000 00bb

oooo oooo

Read Calibration Byte o.

Note: a = address high bits

b = address low bits

H = 0 – Low byte, 1 – High Byte

o = data out

i = data in x = don’t care

124

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

Serial Programming

Characteristics

Figure 69. Serial Programming Timing

MOSI t

OVSH

SCK t

SHSL

MISO t

SHOX t

SLSH

t

SLIV

Table 62. Serial Programming Characteristics, T

A

Otherwise Noted)

(1)

= -40

°C to +85°C, V

CC

= 2.7V - 5.5V (Unless

Symbol Parameter

1/t t

CLCL

1/t t

CLCL

CLCL

CLCL t

SHSL t

SLSH t

OVSH t

SHOX t

SLIV

Oscillator Frequency (V

CC

= 2.7 - 5.5 V)

Oscillator Period (V

CC

= 2.7 - 5.5 V)

Oscillator Frequency (V

CC

= 4.5 - 5.5 V)

Oscillator Period (V

CC

= 4.5 - 5.5 V)

SCK Pulse Width High

SCK Pulse Width Low

MOSI Setup to SCK High

MOSI Hold after SCK High

SCK Low to MISO Valid

Note: 1. 2 t

CLCL

for f ck

< 12 MHz, 3 t

CLCL

for f ck

>= 12 MHz

Min

0

125

0

62.5

2 t

CLCL

(1)

2 t

CLCL

(1)

t

CLCL

2 t

CLCL

Typ Max Units

8 MHz

16 ns

MHz

20 ns ns ns ns ns ns

125

1477K–AVR–08/10

Electrical Characteristics

Absolute Maximum Ratings*

Operating Temperature.................................. -55

°C to +125°C

Storage Temperature ..................................... -65°C to +150

°C

Voltage on Any Pin except RESET with Respect to Ground ..............................-0.5V to V

CC

+ 0.5V

Voltage on RESET with Respect to Ground ....-0.5V to +13.0V

Maximum Operating Voltage ............................................ 6.0V

DC Current per I/O Pin ............................................... 40.0 mA

DC Current V

CC

and GND Pins ................................ 200.0 mA

*NOTICE: Stresses beyond those listed under “Absolute

Maximum Ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or other conditions beyond those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

DC Characteristics

T

A

= -40

°C to +85°C, V

CC

= 2.7V to 5.5V (unless otherwise noted)

Symbol Parameter Condition Min.

V

IL

V

IH

V

IL1

V

IH1

V

IL2

V

IH2

V

IL3

V

IH3

V

OL

V

OH

I

IL

I

IH

R

RST

R pu

Input Low Voltage

Input High Voltage

Input Low Voltage

Input High Voltage

Input Low Voltage

Input High Voltage

Input Low Voltage

Input High Voltage

Output Low Voltage

(4)

(Ports A, B)

Output High Voltage

(5)

(Ports A, B)

Input Leakage

Current I/O Pin

Input Leakage

Current I/O Pin

Reset Pull-up Resistor

I/O Pin Pull-up Resistor

Except XTAL1 pin and

RESET pins

Except XTAL1 and

RESET pins

XTAL1 pin, External

Clock Selected

XTAL1 pin, External

Clock Selected

RESET pin

RESET pin

RESET pin as I/O

RESET pin as I/O

I

OL

= 20 mA, V

CC

I

OL

= 10 mA, V

CC

= 5V

= 3V

I

I

OH

OH

= -20 mA, V

= -10 mA, V

CC

= 5V

CC

= 3V

V

CC

= 5.5V, pin low

(absolute value)

V

CC

= 5.5V, pin high

(absolute value)

-0.5

0.6V

CC

(3)

-0.5

0.8V

CC

(3)

-0.5

0.9V

CC

(3)

-0.5

0.6V

CC

(3)

4.2

2.3

20

20

Typ.

(1)

Max.

0.2V

CC

(2)

V

CC

+0.5

0.1V

CC

(2)

V

CC

+0.5

0.2V

CC

(2)

V

CC

+0.5

0.2V

CC

(2)

V

CC

+0.5

0.7

0.5

1

1

100

100

Units

V

V

V

V

V

V

V

V

V

V

V

V

µA

µA k

Ω k

Ω

126

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

T

A

= -40

°C to +85°C, V

CC

= 2.7V to 5.5V (unless otherwise noted) (Continued)

Symbol Parameter Condition Min.

Typ.

(1)

Max.

Units

I

CC

Power Supply Current

Active 1 MHz, V

CC

= 3V

(ATtiny26L)

Active 4 MHz, V

CC

= 3V

(ATtiny26L)

Active 8 MHz, V

CC

= 5V

(ATtiny26)

Idle 1 MHz, V

CC

= 3V

(ATtiny26L)

0.70

2.5

8

0.18

6

15 mA mA mA mA

Idle 4 MHz, V

CC

= 3V

(ATtiny26L)

Idle 8 MHz, V

CC

= 5V

(ATtiny26)

0.75

3.5

2

7 mA mA

I

V

ACIO

ACLK

Power-down mode

(6)

Analog Comparator

Input Offset Voltage

Analog Comparator

Input Leakage Current

WDT enabled, V

CC

= 3V

WDT disabled, V

CC

= 3V

V

CC

= 5V

V in

= V

CC

/2

V

CC

= 5V

V in

= V

CC

/2

-50

7.5

0.3

<10

15

3

40

50

µA

µA mV nA t

ACID

Analog Comparator

Propagation Delay

V

CC

V

CC

= 2.7V

= 4.0V

750

500 ns

Notes: 1. Typical values at 25

°C.

2. “Max” means the highest value where the pin is guaranteed to be read as low.

3. “Min” means the lowest value where the pin is guaranteed to be read as high.

4. Although each I/O port can sink more than the test conditions (20mA at Vcc = 5V, 10 mA at Vcc = 3V) under steady state conditions (non-transient), the following must be observed:

1] The sum of all IOL, for all ports, should not exceed 400 mA.

2] The sum of all IOL, for port A0 - A7, should not exceed 300 mA.

3] The sum of all IOL, for ports B0 - B7 should not exceed 300 mA.

If IOL exceeds the test condition, VOL may exceed the related specification. Pins are not guaranteed to sink current greater than the listed test condition.

5. Although each I/O port can source more than the test conditions (20 mA at V

CC conditions (non-transient), the following must be observed:

= 5V, 10 mA at V

CC

= 3V) under steady state

1] The sum of all IOH, for all ports, should not exceed 400 mA.

2] The sum of all IOH, for port A0 - A7, should not exceed 300 mA.

3] The sum of all IOH, for ports B0 - B7 should not exceed 300 mA.

If IOH exceeds the test condition, VOH may exceed the related specification. Pins are not guaranteed to source current greater than the listed test condition.

6. Minimum V

CC

for Power-down is 2.5V.

127

1477K–AVR–08/10

External Clock

Drive Waveforms

Figure 70. External Clock Drive Waveforms

V

IL1

V

IH1

External Clock

Drive

Table 63. External Clock Drive

Symbol Parameter

1/t

CLCL t

CLCL t

CHCX t

CLCX t

CLCH t

CHCL

Oscillator Frequency

Clock Period

High Time

Low Time

Rise Time

Fall Time

Δ t

CLCL

Change in period from one clock cycle to the next

V

CC

= 2.7 - 5.5V

V

CC

= 4.5 - 5.5V

Min Max Min Max

0 8 0 16

125

50

50

62.5

25

25

1.6

1.6

0.5

0.5

2 2

Units

MHz ns ns ns

μs

μs

Table 64. External RC Oscillator, Typical Frequencies

R [k

Ω]

(1)

C [pF] f

(2)

33 22 650 kHz

10 22 2.0 MHz

Notes: 1. R should be in the range 3 k

Ω - 100 kΩ, and C should be at least 20 pF. The C values given in the table includes pin capacitance. This will vary with package type.

2. The frequency will vary with package type and board layout.

128

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

ADC Characteristics

Table 65. ADC Characteristics, Single Ended Channels, T

A

= -40

°C to +85°C

Symbol Parameter Condition

Resolution Single Ended Conversion

Absolute Accuracy

(Including INL, DNL, Quantization Error, Gain and Offset Error)

Integral Non-Linearity (INL)

Differential Non-Linearity (DNL)

Gain Error

Offset error

Single Ended Conversion

V

REF

= 4V, V

CC

= 4V

ADC clock = 200 kHz

Single Ended Conversion

V

REF

= 4V, V

CC

= 4V

ADC clock = 1 MHz

Single Ended Conversion

V

REF

= 4V, V

CC

= 4V

ADC clock = 200 kHz

Noise Reduction mode

Single Ended Conversion

V

REF

= 4V, V

CC

= 4V

ADC clock = 1 MHz

Noise Reduction mode

Single Ended Conversion

V

REF

= 4V, V

CC

= 4V

ADC clock = 200 kHz

Single Ended Conversion

V

REF

= 4V, V

CC

= 4V

ADC clock = 200 kHz

Single Ended Conversion

V

REF

= 4V, V

CC

= 4V

ADC clock = 200 kHz

Single Ended Conversion

V

REF

= 4V, V

CC

= 4V

ADC clock = 200 kHz

AVCC

V

REF

V

IN

Clock Frequency

Conversion Time

Analog Supply Voltage

Reference Voltage

Input Voltage

ADC Conversion Output

V

INT

R

REF

R

AIN

Input Bandwidth

Internal Voltage Reference

Reference Input Resistance

Analog Input Resistance

Note: 1. Minimum for AVCC is 2.7V.

2. Maximum for AVCC is 5.5V

Min

50

13

V

CC

- 0.3

(1)

2.0

GND

0

2.4

Typ

10

1

2

1

2

0.5

0.5

0.75

0.5

38.5

2.7

32

100

Max Units

Bits

LSB

LSB

LSB

LSB

LSB

LSB

LSB

LSB

1000

260

V

CC

+ 0.3

(2)

AVCC

V

REF

1023

2.9

V

LSB kHz

V k

Ω

M

Ω kHz

µs

V

V

129

1477K–AVR–08/10

Table 66. ADC Characteristics, Differential Channels, T

A

= -40

°C to +85°C

Symbol Parameter Condition

Gain = 1x

Resolution

Gain = 20x

Gain = 1x

V

REF

= 4V, V

CC

= 5V

ADC clock = 50 - 200 kHz

Absolute Accuracy

Integral Non-Linearity (INL)

(Accuracy after Calibration for Offset and

Gain Error)

Gain = 20x

V

REF

= 4V, V

CC

= 5V

ADC clock = 50 - 200 kHz

Gain = 1x

V

REF

= 4V, V

CC

= 5V

ADC clock = 50 - 200 kHz

Gain = 20x

V

REF

= 4V, V

CC

= 5V

ADC clock = 50 - 200 kHz

Gain = 1x

Gain Error

Gain = 20x

Gain = 1x

V

REF

= 4V, V

CC

= 5V

ADC clock = 50 - 200 kHz

Offset Error

Gain = 20x

V

REF

= 4V, V

CC

= 5V

ADC clock = 50 - 200 kHz

Clock Frequency

AVCC

V

REF

V

IN

V

DIFF

Conversion Time

Analog Supply Voltage

Reference Voltage

Input Voltage

Input Differential Voltage

ADC Conversion Output

Input Bandwidth

V

INT

R

REF

Internal Voltage Reference

Reference Input Resistance

R

AIN

Analog Input Resistance

Notes: 1. Minimum for AVCC is 2.7V.

2. Maximum for AVCC is 5.5V.

Min

50

26

V

CC

- 0.3

(1)

2.0

GND

0

0

2.4

Typ

24

27

1.5

2

2

2.5

4

6

4

2.7

32

100

Max

10

10

Units

Bits

Bits

LSB

LSB

LSB

LSB

%

%

LSB

LSB

200

65

V

CC

+ 0.3

(2)

AVCC - 0.5

V

CC

V

REF

/Gain

1023

2.9

kHz

µs

V

V

V

V

LSB kHz

V k

Ω

M

Ω

130

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

ATtiny26

Typical

Characteristics

The following charts show typical behavior. These figures are not tested during manufacturing.

All current consumption measurements are performed with all I/O pins configured as inputs and with internal pull-ups enabled. A sine wave generator with rail-to-rail output is used as clock source.

The power consumption in Power-down mode is independent of clock selection.

The current consumption is a function of several factors such as: operating voltage, operating frequency, loading of I/O pins, switching rate of I/O pins, code executed and ambient temperature. The dominating factors are operating voltage and frequency.

The current drawn from capacitive loaded pins may be estimated (for one pin) as C

C

L

= load capacitance, V

CC

L

*

V

CC

*f where

= operating voltage and f = average switching frequency of I/O pin.

The parts are characterized at frequencies higher than test limits. Parts are not guaranteed to function properly at frequencies higher than the ordering code indicates.

The difference between current consumption in Power-down mode with Watchdog Timer enabled and Power-down mode with Watchdog Timer disabled represents the differential current drawn by the Watchdog Timer.

Active Supply Current

Figure 71. Active Supply Current vs. Frequency (0.1 - 1.0 MHz)

ACTIVE SUPPLY CURRENT vs. FREQUENCY

0.1 - 1.0 MHz

1.6

1.4

1.2

1

0.8

0.6

0.4

0.2

0

0 0.1

0.2

0.3

0.4

0.5

Frequency (MHz)

0.6

0.7

0.8

0.9

1

5.5V

5.0V

4.5V

4.0V

3.3V

3.0V

2.7V

131

1477K–AVR–08/10

Figure 72. Active Supply Current vs. Frequency (1 - 20 MHz)

25

20

15

10

5

0

0 2 4

ACTIVE SUPPLY CURRENT vs. FREQUENCY

1 - 20 MHz

6

2.7V

8 10

Frequency (MHz)

12

3.0V

14

3.3V

16

4.0V

18 20

5.5V

5.0V

4.5V

Figure 73. Active Supply Current vs. V

CC

(Internal RC Oscillator, 8 MHz)

ACTIVE SUPPLY CURRENT vs. V

CC

INTERNAL RC OSCILLATOR, 8 MHz

14

12

10

8

6

4

2

0

2 2.5

3 3.5

V

CC

(V)

4 4.5

5 5.5

-40 °C

25 °C

85 °C

132

ATtiny26(L)

1477K–AVR–08/10

1477K–AVR–08/10

Figure 74. Active Supply Current vs. V

CC

(Internal RC Oscillator, 4 MHz)

ATtiny26(L)

ACTIVE SUPPLY CURRENT vs. V

CC

INTERNAL RC OSCILLATOR, 4 MHz

6

5

4

3

8

7

2

1

0

2 2.5

3 3.5

V

CC

(V)

4 4.5

5

Figure 75. Active Supply Current vs. V

CC

(Internal RC Oscillator, 2 MHz)

5.5

85 °C

25 °C

-40 °C

4

3.5

3

2.5

2

1.5

1

0.5

0

2 2.5

3

ACTIVE SUPPLY CURRENT vs. V

CC

INTERNAL RC OSCILLATOR, 2 MHz

3.5

V

CC

(V)

4 4.5

5 5.5

85 °C

25 °C

-40 °C

133

Figure 76. Active Supply Current vs. V

CC

(Internal RC Oscillator, 1 MHz)

ACTIVE SUPPLY CURRENT vs. V

CC

INTERNAL RC OSCILLATOR, 1 MHz

1.8

1.6

1.4

1.2

1

0.8

0.6

0.4

0.2

0

2 2.5

3 3.5

V

CC

(V)

4 4.5

Figure 77. Active Supply Current vs. V

CC

(PLL Oscillator)

5 5.5

25 °C

85 °C

-40 °C

ACTIVE SUPPLY CURRENT vs. V

CC

PLL OSCILLATOR

25

20

15

10

5

0

2 2.5

3 3.5

V

CC

(V)

4 4.5

5 5.5

-40 °C

25 °C

85 °C

134

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

Figure 78. Active Supply Current vs. V

CC

(32 kHz External Oscillator)

ACTIVE SUPPLY CURRENT vs. V

CC

32kHz EXTERNAL OSCILLATOR

70

60

50

40

30

20

10

0

1.5

2 2.5

3 3.5

V

CC

(V)

4 4.5

5 5.5

25 °C

Idle Supply Current

Figure 79. Idle Supply Current vs. Frequency (0.1 - 1.0 MHz)

IDLE SUPPLY CURRENT vs. FREQUENCY

0.1 - 1.0 MHz

0.6

0.5

0.4

0.3

0.2

0.1

0

0 0.1

0.2

0.3

0.4

0.5

Frequency (MHz)

0.6

0.7

0.8

0.9

1

5.5V

5.0V

4.5V

4.0V

3.3V

3.0V

2.7V

135

1477K–AVR–08/10

Figure 80. Idle Supply Current vs. Frequency (1 - 20 MHz)

12

10

8

6

4

2

0

0 2 4

IDLE SUPPLY CURRENT vs. FREQUENCY

1 - 20 MHz

6

4.0V

3.3V

2.7V

3.0V

8 10

Frequency (MHz)

12 14 16 18 20

5.5V

5.0V

4.5V

Figure 81. Idle Supply Current vs. V

CC

(Internal RC Oscillator, 8 MHz)

IDLE SUPPLY CURRENT vs. V

CC

INTERNAL RC OSCILLATOR, 8 MHz

7

6

5

4

3

2

1

0

2 2.5

3 3.5

V

CC

(V)

4 4.5

5 5.5

-40 °C

25 °C

85 °C

136

ATtiny26(L)

1477K–AVR–08/10

1477K–AVR–08/10

ATtiny26(L)

Figure 82. Idle Supply Current vs. V

CC

(Internal RC Oscillator, 4 MHz)

IDLE SUPPLY CURRENT vs. V

CC

INTERNAL RC OSCILLATOR, 4 MHz

3.5

3

2.5

2

1.5

1

0.5

0

2 2.5

3 3.5

V

CC

(V)

4 4.5

5

Figure 83. Idle Supply Current vs. V

CC

(Internal RC Oscillator, 2 MHz)

5.5

-40 °C

25

°C

85 °C

1.6

1.4

1.2

1

0.8

0.6

0.4

0.2

0

2 2.5

3

IDLE SUPPLY CURRENT vs. V

CC

INTERNAL RC OSCILLATOR, 2 MHz

3.5

V

CC

(V)

4 4.5

5 5.5

25 °C

85 °C

-40 °C

137

Figure 84. Idle Supply Current vs. V

CC

(Internal RC Oscillator, 1 MHz)

IDLE SUPPLY CURRENT vs. V

CC

INTERNAL RC OSCILLATOR, 1 MHz

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

2 2.5

3 3.5

V

CC

(V)

4

Figure 85. Idle Supply Current vs. V

CC

(PLL Oscillator)

4.5

5 5.5

25

°C

85 °C

-40 °C

IDLE SUPPLY CURRENT vs. V

CC

PLL OSCILLATOR

85 °C

-40

°C

25 °C

10

8

6

4

2

0

2 2.5

3 3.5

V

CC

(V)

4 4.5

5 5.5

138

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

Figure 86. Idle Supply Current vs. V

CC

(32 kHz External Oscillator)

IDLE SUPPLY CURRENT vs. V

CC

32kHz EXTERNAL OSCILLATOR

30

25

20

15

10

5

0

2

25 °C

2.5

3 3.5

V

CC

(V)

4 4.5

5 5.5

Power-down Supply

Current

Figure 87. Power-down Supply Current vs. V

CC

(Watchdog Timer Disabled)

POWER-DOWN SUPPLY CURRENT vs. V

CC

WATCHDOG TIMER DISABLED

1.8

1.6

1.4

1.2

1

0.8

0.6

0.4

0.2

0

2 2.5

3 3.5

V

CC

(V)

4 4.5

5 5.5

85 °C

-40

°C

25

°C

139

1477K–AVR–08/10

Standby Supply

Current

Figure 88. Power-down Supply Current vs. V

CC

(Watchdog Timer Enabled)

POWER-DOWN SUPPLY CURRENT vs. V

CC

WATCHDOG TIMER ENABLED

12

10

8

6

4

2

0

2

20

18

16

14

85 °C

25 °C

-40 °C

2.5

3 3.5

V

CC

(V)

4 4.5

5 5.5

Figure 89. Standby Supply Current vs. V

CC

(455 kHz Resonator, Watchdog Timer Disabled)

STANDBY SUPPLY CURRENT vs. V

CC

455 kHz RESONATOR, WATCHDOG TIMER DISABLED

70

60

50

40

30

20

10

0

2 2.5

3 3.5

V

CC

(V)

4 4.5

5 5.5

140

ATtiny26(L)

1477K–AVR–08/10

1477K–AVR–08/10

ATtiny26(L)

Figure 90. Standby Supply Current vs. V

CC

(1 MHz Resonator, Watchdog Timer Disabled)

STANDBY SUPPLY CURRENT vs. V

CC

1 MHz RESONATOR, WATCHDOG TIMER DISABLED

60

50

40

30

20

10

0

2 2.5

3 3.5

V

CC

(V)

4 4.5

5 5.5

Figure 91. Standby Supply Current vs. V

CC

(2 MHz Resonator, Watchdog Timer Disabled)

STANDBY SUPPLY CURRENT vs. V

CC

2 MHz RESONATOR, WATCHDOG TIMER DISABLED

80

70

60

50

40

30

20

10

0

2 2.5

3 3.5

V

CC

(V)

4 4.5

5 5.5

141

Figure 92. Standby Supply Current vs. V

CC

(2 MHz XTAL, Watchdog Timer Disabled)

STANDBY SUPPLY CURRENT vs. V

CC

2 MHz XTAL, WATCHDOG TIMER DISABLED

60

50

40

30

90

80

70

20

10

0

2 2.5

3 3.5

V

CC

(V)

4 4.5

5 5.5

Figure 93. Standby Supply Current vs. V

CC

(4 MHz Resonator, Watchdog Timer Disabled)

STANDBY SUPPLY CURRENT vs. V

CC

4 MHz RESONATOR, WATCHDOG TIMER DISABLED

120

100

80

60

40

20

0

2 2.5

3 3.5

V

CC

(V)

4 4.5

5 5.5

142

ATtiny26(L)

1477K–AVR–08/10

1477K–AVR–08/10

ATtiny26(L)

Figure 94. Standby Supply Current vs. V

CC

(4 MHz XTAL, Watchdog Timer Disabled)

STANDBY SUPPLY CURRENT vs. V

CC

4 MHz XTAL, WATCHDOG TIMER DISABLED

120

100

80

60

40

20

0

2 2.5

3 3.5

V

CC

(V)

4 4.5

5 5.5

Figure 95. Standby Supply Current vs. V

CC

(6 MHz Resonator, Watchdog Timer Disabled)

STANDBY SUPPLY CURRENT vs. V

CC

6 MHz RESONATOR, WATCHDOG TIMER DISABLED

160

140

120

100

80

60

40

20

0

2 2.5

3 3.5

V

CC

(V)

4 4.5

5 5.5

143

Pin Pull-up

Figure 96. Standby Supply Current vs. V

CC

(6 MHz XTAL, Watchdog Timer Disabled)

STANDBY SUPPLY CURRENT vs. V

CC

6 MHz XTAL, WATCHDOG TIMER DISABLED

120

100

80

60

180

160

140

40

20

0

2 2.5

3 3.5

V

CC

(V)

4 4.5

5

Figure 97. I/O Pin Pull-up Resistor Current vs. Input Voltage (V

CC

= 5V)

5.5

160

85 °C

140

120

-40 °C

100

25 °C

I/O PIN PULL-UP RESISTOR CURRENT vs. INPUT VOLTAGE

Vcc = 5V

80

60

40

20

0

0 1 2 3

V

OP

(V)

4 5 6

144

ATtiny26(L)

1477K–AVR–08/10

1477K–AVR–08/10

Figure 98. I/O Pin Pull-up Resistor Current vs. Input Voltage (V

CC

= 2.7V)

ATtiny26(L)

85 °C

70

60

-40

°C

25 °C

I/O PIN PULL-UP RESISTOR CURRENT vs. INPUT VOLTAGE

Vcc = 2.7V

50

40

30

20

10

0

0 0.5

1 1.5

V

OP

(V)

2 2.5

3

Figure 99. Reset Pull-up Resistor Current vs. Reset Pin Voltage (V

CC

= 5V)

60

40

20

0

RESET PULL-UP RESISTOR CURRENT vs. RESET PIN VOLTAGE

Vcc = 5V

120

-40 °C

100

80

85 °C

25

°C

V

RESET

(V)

145

Figure 100. Reset Pull-up Resistor Current vs. Reset Pin Voltage (V

CC

= 2.7V)

RESET PULL-UP RESISTOR CURRENT vs. RESET PIN VOLTAGE

Vcc = 2.7V

60

-40

°C

50

85 °C

25 °C

40

30

20

10

0

0 0.5

1 1.5

V

RESET

(V)

2 2.5

3

Pin Driver Strength

Figure 101. I/O Pin Source Current vs. Output Voltage (V

CC

= 5V)

90

80

70

60

50

40

30

20

10

0

0 1

I/O PIN SOURCE CURRENT vs. OUTPUT VOLTAGE

Vcc = 5V

-40 °C

25 °C

85

°C

2 3

V

OH

(V)

4

146

ATtiny26(L)

1477K–AVR–08/10

1477K–AVR–08/10

ATtiny26(L)

Figure 102. I/O Pin Source Current vs. Output Voltage (V

CC

= 2.7V)

30

25

20

15

10

5

0

0

I/O PIN SOURCE CURRENT vs. OUTPUT VOLTAGE

Vcc = 2.7V

-40 °C

25 °C

85 °C

0.5

1 1.5

V

OH

(V)

2

Figure 103. I/O Pin Sink Current vs. Output Voltage (V

CC

= 5V)

2.5

90

80

70

60

50

40

30

20

10

0

0 0.5

I/O PIN SINK CURRENT vs. OUTPUT VOLTAGE

Vcc = 5V

-40 °C

25 °C

85 °C

1

V

OL

(V)

1.5

2

3

2.5

147

Figure 104. I/O Pin Sink Current vs. Output Voltage (V

CC

= 2.7V)

35

30

25

20

15

10

5

0

0

I/O PIN SINK CURRENT vs. OUTPUT VOLTAGE

Vcc = 2.7V

-40 °C

25 °C

85 °C

0.5

1

V

OL

(V)

1.5

2 2.5

Figure 105. Reset Pin as I/O – Source Current vs. Output Voltage (V

CC

= 5V)

1.4

1.2

1

0.8

0.6

0.4

0.2

0

0

RESET PIN AS I/O - SOURCE CURRENT vs. OUTPUT VOLTAGE

Vcc = 5V

-40

°C

25 °C

85 °C

1 2 3

V

OH

(V)

148

ATtiny26(L)

1477K–AVR–08/10

1477K–AVR–08/10

ATtiny26(L)

Figure 106. Reset Pin as I/O – Source Current vs. Output Voltage (V

CC

= 2.7V)

2.5

2

1.5

1

0.5

0

0

RESET PIN AS I/O - SOURCE CURRENT vs. OUTPUT VOLTAGE

Vcc = 2.7V

-40 °C

25 °C

85 °C

0.5

1 1.5

V

OH

(V)

2 2.5

3

Figure 107. Reset Pin as I/O –Sink Current vs. Output Voltage (V

CC

= 5V)

14

12

10

8

6

4

2

0

0

RESET PIN AS I/O - SINK CURRENT vs. OUTPUT VOLTAGE

Vcc = 5V

-40

°C

25

°C

85 °C

0.5

1

V

OL

(V)

1.5

2 2.5

149

Figure 108. Reset Pin as I/O – Sink Current vs. Output Voltage (V

CC

= 2.7V)

3

2.5

2

1.5

4.5

4

3.5

1

0.5

0

0

RESET PIN AS I/O - SINK CURRENT vs. OUTPUT VOLTAGE

Vcc = 2.7V

-40 °C

25 °C

85 °C

0.5

1

V

OL

(V)

1.5

2 2.5

Pin Thresholds and

Hysteresis

Figure 109. I/O Pin Input Threshold Voltage vs. V

CC

(V

IH

, I/O Pin Read as “1”)

I/O PIN INPUT THRESHOLD VOLTAGE vs. V

CC

VIH, IO PIN READ AS '1'

2.5

2

1.5

1

0.5

0

2 2.5

3 3.5

V

CC

(V)

4 4.5

5 5.5

-40 °C

85 °C

25 °C

150

ATtiny26(L)

1477K–AVR–08/10

1477K–AVR–08/10

ATtiny26(L)

Figure 110. I/O Pin Input Threshold Voltage vs. V

CC

(V

IL

, I/O Pin Read as “0”)

I/O PIN INPUT THRESHOLD VOLTAGE vs. V

CC

VIL, IO PIN READ AS '0'

2

1.5

1

0.5

0

2 2.5

3 3.5

V

CC

(V)

4 4.5

Figure 111. I/O Pin Input Hysteresis vs. V

CC

I/O PIN INPUT HYSTERESIS vs. V

CC

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

2 2.5

3 3.5

V

CC

(V)

4 4.5

5

5

5.5

-40 °C

25 °C

85 °C

5.5

85°C

25°C

-40°C

151

Figure 112. Reset Pin as I/O – Input Threshold Voltage vs. V

CC

(V

IH

, Reset Pin Read as “1”)

RESET PIN AS I/O - INPUT THRESHOLD VOLTAGE vs. V

CC

VIH, RESET PIN READ AS '1'

2.5

2

1.5

1

0.5

0

2 2.5

3 3.5

V

CC

(V)

4 4.5

Figure 113. Reset Pin as I/O – Input Threshold Voltage vs. V

CC

(V

IL

, Reset Pin Read as “0”)

5 5.5

-40

°C

85

°C

25 °C

RESET PIN AS I/O - INPUT THRESHOLD VOLTAGE vs. V

CC

VIL, RESET PIN READ AS '0'

2.5

2

1.5

1

0.5

0

2 2.5

3 3.5

V

CC

(V)

4 4.5

5 5.5

-40 °C

25 °C

85 °C

152

ATtiny26(L)

1477K–AVR–08/10

1477K–AVR–08/10

ATtiny26(L)

Figure 114. Reset Pin as I/O – Pin Hysteresis vs. V

CC

RESET PIN AS I/O - PIN HYSTERESIS vs. V

CC

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

2 2.5

3 3.5

V

CC

(V)

4 4.5

5 5.5

Figure 115. Reset Input Threshold Voltage vs. V

CC

(V

IH

, Reset Pin Read as “1”)

85°C

-40°C

25°C

2.5

2

1.5

1

0.5

0

1.5

-40 °C

25 °C

85

°C

2

RESET INPUT THRESHOLD VOLTAGE vs. V

CC

VIH, RESET PIN READ AS '1'

2.5

3 3.5

V

CC

(V)

4 4.5

5 5.5

153

Figure 116. Reset Input Threshold Voltage vs. V

CC

(V

IL

, Reset Pin Read as “0”)

2.5

2

1.5

1

0.5

0

2

85 °C

25 °C

-40 °C

2.5

RESET INPUT THRESHOLD VOLTAGE vs. V

CC

VIL, RESET PIN READ AS '0'

3 3.5

V

CC

(V)

4 4.5

5

Figure 117. Reset Input Pin Hysteresis vs. V

CC

5.5

RESET INPUT PIN HYSTERESIS vs. V

CC

0.5

0.45

0.4

0.35

0.3

0.25

0.2

0.15

0.1

0.05

0

2

-40

°C

25

85

°C

°C

2.5

3 3.5

V

CC

(V)

4 4.5

5 5.5

154

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

BOD Thresholds and

Analog Comparator

Offset

Figure 118. BOD Thresholds vs. Temperature (BOD Level is 4.0V)

BOD THRESHOLDS vs. TEMPERATURE

BODLEVEL IS 4.0V

4.3

4.2

4.1

Rising V

CC

4

Falling V

CC

3.9

3.8

-50 -40 -30 -20 -10 0 10 20 30

Temperature (C)

40 50 60 70 80 90 100

Figure 119. BOD Thresholds vs. Temperature (BOD Level is 2.7V)

BOD THRESHOLDS vs. TEMPERATURE

BODLEVEL IS 2.7V

3.1

3

Rising V

CC

2.9

2.8

Falling V

CC

2.7

2.6

-50 -40 -30 -20 -10 0 10 20 30

Temperature (C)

40 50 60 70 80 90 100

155

1477K–AVR–08/10

Figure 120. Bandgap Voltage vs. V

CC

BANDGAP vs. V

CC

1.236

1.234

1.232

1.23

1.228

1.226

1.224

1.222

1.22

1.218

1.216

2.5

-40°C

85°C

25°C

3 3.5

4

Vcc (V)

4.5

5 5.5

Figure 121. Analog Comparator Offset Voltage vs. Common Mode Voltage (V

CC

= 5.0V)

0.009

0.008

0.007

0.006

0.005

0.004

0.003

0.002

0.001

0

0

ANALOG COMPARATOR OFFSET VOLTAGE vs. COMMON MODE VOLTAGE

Vcc = 5V

1 2 3

Common Mode Voltage (V)

4

-40°C

25°C

85°C

156

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

Figure 122. Analog Comparator Offset Voltage vs. Common Mode Voltage (V

CC

= 2.7V)

0.009

0.008

0.007

0.006

0.005

0.004

0.003

0.002

0.001

0

0

ANALOG COMPARATOR OFFSET VOLTAGE vs. COMMON MODE VOLTAGE

Vcc = 2.7V

0.5

1 1.5

Common Mode Voltage (V)

2 2.5

-40°C

25°C

85°C

3

Internal Oscillator

Speed

Figure 123. Watchdog Oscillator Frequency vs. V

CC

WATCHDOG OSCILLATOR FREQUENCY vs. V

CC

1.4

1.35

1.3

1.25

1.2

1.15

1.1

1.05

2 2.5

3 3.5

V

CC

(V)

4 4.5

5 5.5

-40 °C

25 °C

85 °C

157

1477K–AVR–08/10

Figure 124. Calibrated 8 MHz RC Oscillator Frequency vs. Temperature

8.9

8.4

7.9

7.4

6.9

6.4

-60

CALIBRATED 8MHz RC OSCILLATOR FREQUENCY vs. TEMPERATURE

-40 -20 0 20

T a

(˚C)

40 60 80

5.0V

3.5V

2.7V

100

Figure 125. Calibrated 8 MHz RC Oscillator Frequency vs. V

CC

CALIBRATED 8MHz RC OSCILLATOR FREQUENCY vs. V

CC

9

8.5

8

7.5

7

6.5

6

2 2.5

3 3.5

V

CC

(V)

4 4.5

5 5.5

-40 °C

25 °C

85

°C

158

ATtiny26(L)

1477K–AVR–08/10

1477K–AVR–08/10

Figure 126. Calibrated 8 MHz RC Oscillator Frequency vs. Osccal Value

ATtiny26(L)

CALIBRATED 8MHz RC OSCILLATOR FREQUENCY vs. OSCCAL VALUE

17.5

15.5

13.5

11.5

9.5

7.5

5.5

3.5

0 16 32 48 64 80 96 112 128 144 160 176 192 208 224 240

OSCCAL VALUE

Figure 127. Calibrated 4 MHz RC Oscillator Frequency vs. Temperature

4.3

4.2

4.1

4

3.9

3.8

3.7

3.6

3.5

3.4

-60

CALIBRATED 4MHz RC OSCILLATOR FREQUENCY vs. TEMPERATURE

-40 -20 0 20

T a

(˚C)

40 60 80

5.0V

3.5V

2.7V

100

159

Figure 128. Calibrated 4 MHz RC Oscillator Frequency vs. V

CC

CALIBRATED 4MHz RC OSCILLATOR FREQUENCY vs. V

CC

4.4

4.3

4.2

4.1

4

3.9

3.8

3.7

3.6

3.5

3.4

2 2.5

3 3.5

V

CC

(V)

4 4.5

5

Figure 129. Calibrated 4 MHz RC Oscillator Frequency vs. Osccal Value

5.5

-40 °C

25 °C

85

°C

CALIBRATED 4MHz RC OSCILLATOR FREQUENCY vs. OSCCAL VALUE

9.6

8.6

7.6

6.6

5.6

4.6

3.6

2.6

1.6

0 16 32 48 64 80 96 112 128 144 160 176 192 208 224 240

OSCCAL VALUE

160

ATtiny26(L)

1477K–AVR–08/10

1477K–AVR–08/10

ATtiny26(L)

Figure 130. Calibrated 2 MHz RC Oscillator Frequency vs. Temperature

CALIBRATED 2MHz RC OSCILLATOR FREQUENCY vs. TEMPERATURE

2.15

2.1

2.05

2

1.95

1.9

1.85

1.8

1.75

-60 -40 -20 0 20

T a

(˚C)

40 60 80

5.0V

3.5V

2.7V

100

Figure 131. Calibrated 2 MHz RC Oscillator Frequency vs. V

CC

CALIBRATED 2MHz RC OSCILLATOR FREQUENCY vs. V

CC

2.15

2.1

2.05

2

1.95

1.9

1.85

1.8

1.75

1.7

2 2.5

3 3.5

V

CC

(V)

4 4.5

5 5.5

-40

°C

25 °C

85

°C

161

Figure 132. Calibrated 2 MHz RC Oscillator Frequency vs. Osccal Value

CALIBRATED 2MHz RC OSCILLATOR FREQUENCY vs. OSCCAL VALUE

4.3

3.8

3.3

2.8

2.3

1.8

1.3

0.8

0 16 32 48 64 80 96 112 128 144 160 176 192 208 224 240

OSCCAL VALUE

Figure 133. Calibrated 1 MHz RC Oscillator Frequency vs. Temperature

CALIBRATED 1 MHz RC OSCILLATOR FREQUENCY vs. TEMPERATURE

1.04

1.02

1

0.98

0.96

0.94

0.92

0.9

-60 -40 -20 0 20

V

CC

(V)

40 60

5.0V

3.5V

2.7V

80 100

162

ATtiny26(L)

1477K–AVR–08/10

1477K–AVR–08/10

ATtiny26(L)

Figure 134. Calibrated 1 MHz RC Oscillator Frequency vs. V

CC

CALIBRATED 1MHz RC OSCILLATOR FREQUENCY vs. V

CC

1.1

1.05

1

0.95

0.9

0.85

2 2.5

3 4.5

5 3.5

V

CC

(V)

4 5.5

-40°C

25°C

85°C

Figure 135. Calibrated 1 MHz RC Oscillator Frequency vs. Osccal Value

CALIBRATED 1MHz RC OSCILLATOR FREQUENCY vs. OSCCAL VALUE

2

1.8

1.6

1.4

1.2

1

0.8

0.6

0.4

0 16 32 48 64 80 96 112 128 144 160 176 192 208 224 240

OSCCAL VALUE

163

Current Consumption of Peripheral Units

Figure 136. Brown-out Detector Current vs. V

CC

BROWNOUT DETECTOR CURRENT vs. V

CC

0.035

0.03

0.025

0.02

0.015

0.01

0.005

0

2 2.5

-40 °C

25

°C

85 °C

3 3.5

V

CC

(V)

4 4.5

5

Figure 137. ADC Current vs. V

CC

(AREF = AV

CC

)

5.5

ADC CURRENT vs. V

CC

AREF = AVCC

250

200

150

100

50

0

2 2.5

3 3.5

V

CC

(V)

4 4.5

5 5.5

-40

°C

25 °C

85 °C

164

ATtiny26(L)

1477K–AVR–08/10

1477K–AVR–08/10

ATtiny26(L)

Figure 138. AREF External Reference Current vs. V

CC

AREF EXTERNAL REFERENCE CURRENT vs. VCC

250

200

150

100

50

0

2 2.5

3 3.5

V

CC

(V)

4

Figure 139. Analog Comparator Current vs. V

CC

4.5

5 5.5

-40

°C

25 °C

85 °C

ANALOG COMPARATOR CURRENT vs. V

CC

120

100

80

60

40

20

0

2 2.5

3 3.5

V

CC

(V)

4 4.5

5 5.5

85 °C

25 °C

-40 °C

165

Figure 140. Programming Current vs. V

CC

PROGRAMMING CURRENT vs. VCC

5

4

3

2

1

0

2

-40 °C

25

°C

85 °C

2.5

3 3.5

V

CC

(V)

4 4.5

5 5.5

Current Consumption in Reset and Reset

Pulsewidth

Figure 141. Reset Supply Current vs. V

CC

(0.1 - 1.0 MHz, Excluding Current Through The Reset Pull-up)

RESET SUPPLY CURRENT vs. V

CC

0.1 - 1.0 MHz, EXCLUDING CURRENT THROUGH THE RESET PULLUP

3.5

3

2.5

2

1.5

1

0.5

0

0 0.1

0.2

0.3

0.4

0.5

Frequency (MHz)

0.6

0.7

0.8

0.9

1

5.5V

5.0V

4.5V

4.0V

3.3V

3.0V

2.7V

166

ATtiny26(L)

1477K–AVR–08/10

1477K–AVR–08/10

ATtiny26(L)

Figure 142. Reset Supply Current vs. V

CC

(1 - 20 MHz, Excluding Current Through The Reset Pull-up)

20

18

16

14

12

10

8

6

4

2

0

0 2

RESET SUPPLY CURRENT vs. V

CC

1 - 20 MHz, EXCLUDING CURRENT THROUGH THE RESET PULLUP

4 6 8 10

Frequency (MHz)

12 14 16 18 20

5.5V

5.0V

4.5V

4.0V

3.3V

3.0V

2.7V

Figure 143. Reset Pulsewidth vs. V

CC

1200

1000

800

600

400

200

0

0 1 2

RESET PULSE WIDTH vs. V

CC

85 °C

25

°C

-40 °C

3

V

CC

(V)

167

Register Summary

Address

$0F ($2F)

$0E ($2E)

$0D ($2D)

$0C ($2C)

$0B ($2)B

$0A ($2A)

$09 ($29)

$08 ($28)

$07 ($27)

$06 ($26)

$05 ($25)

$04 ($24)

$00 ($20)

$1F ($3F)

$1E ($3E)

$1D ($3D)

$1C ($3C)

$1B ($3B)

$1A ($3A)

$19 ($39)

$18 ($38)

$17 ($37)

$16 ($36)

$15 ($35)

$14 ($34)

$13 ($33)

$12 ($32)

$11 ($31)

$10 ($30)

$2F ($4F)

$2E ($4E)

$2D ($4D)

$2C ($4C)

$2B ($4B)

$2A ($4A)

$29 ($49)

$28 ($48)

$27 ($47)

$26 ($46)

$25 ($45)

$24 ($44)

$23 ($43)

$22 ($42)

$21 ($41)

$20 ($40)

$3F ($5F)

$3E ($5E)

$3D ($5D)

$3C ($5C)

$3B ($5B)

$3A ($5A)

$39 ($59)

$38 ($58)

$37 ($57)

$36 ($56)

$35 ($55)

$34 ($54)

$33 ($53)

$32 ($52)

$31 ($51)

$30 ($50)

Name

USIDR

USISR

USICR

Reserved

Reserved

Reserved

Reserved

ACSR

ADMUX

ADCSR

ADCH

ADCL

Reserved

Reserved

Reserved

EEAR

EEDR

EECR

PORTA

DDRA

PINA

PORTB

DDRB

PINB

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

TCCR1B

TCNT1

OCR1A

OCR1B

OCR1C

Reserved

PLLCSR

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

Reserved

WDTCR

Reserved

SREG

Reserved

SP

Reserved

GIMSK

GIFR

TIMSK

TIFR

Reserved

Reserved

MCUCR

MCUSR

TCCR0

TCNT0

OSCCAL

TCCR1A

Bit 7

I

SP7

-

-

-

-

-

-

-

COM1A1

CTC1

-

-

-

-

PORTA7

DDA7

PINA7

PORTB7

DDB7

PINB7

USISIF

USISIE

ACD

REFS1

ADEN

PUD

-

-

COM1A0

PSR1

-

-

USIOIF

USIOIE

ACBG

REFS0

ADSC

EEAR6

-

PORTA6

DDA6

PINA6

PORTB6

DDB6

PINB6

Bit 6

T

SP6

INT0

INTF0

OCIE1A

OCF1A

Bit 5

H

SP5

PCIE1

PCIF

OCIE1B

OCF1B

-

Bit 4

S

SP4

PCIE0

-

-

-

WDCE

Bit 3

V

SP3

-

-

-

-

SE

-

-

SM1

-

SM0

WDRF

PSR0

Timer/Counter0 (8-Bit)

Oscillator Calibration Register

COM1B0 FOC1A

-

BORF

CS02

COM1B1 FOC1B

CS13

Timer/Counter1 (8-Bit)

CS12

Timer/Counter1 Output Compare Register A (8-Bit)

Timer/Counter1 Output Compare Register B (8-Bit)

Timer/Counter1 Output Compare Register C (8-Bit)

PCKE

WDE

Bit 2

N

SP2

-

-

TOIE1

TOV1

WDP2

EEAR5

-

PORTA5

DDA5

PINA5

PORTB5

DDB5

PINB5

EEAR4 EEAR3

EEPROM Data Register (8-Bit)

EERIE

PORTA4

DDA4

PINA4

PORTB4

DDB4

PINB4

PORTA3

DDA3

PINA3

PORTB3

DDB3

PINB3

EEAR2

EEMWE

PORTA2

DDA2

PINA2

PORTB2

DDB2

PINB2

EEAR1

EEWE

PORTA1

DDA1

PINA1

PORTB1

DDB1

PINB1

EEAR0

EERE

PORTA0

DDA0

PINA0

PORTB0

DDB0

PINB0

ACO

ADLAR

ADFR

ACI ACIE

MUX4

ADIF

MUX3

ADIE

ADC Data Register High Byte

ADC Data Register Low Byte

ACME

MUX2

ADPS2

Bit 1

Z

SP1

-

-

TOIE0

TOV0

ISC01

EXTRF

CS01

PWM1A

CS11

PLLE

WDP1

Bit 0

C

SP0

-

-

-

-

Universal Serial Interface Data Register (8-Bit)

USIPF USIDC USICNT3 USICNT2

USIWM1 USIWM0 USICS1 USICS0

USICNT1

USICLK

USICNT0

USITC

ACIS1

MUX1

ADPS1

ISC00

PORF

CS00

PWM1B

CS10

PLOCK

WDP0

ACIS0

MUX0

ADPS0

168

ATtiny26(L)

78

18

19

19

81

81

82

91

101

103

104

104

1477K–AVR–08/10

Page

10

11

58

59

59

60

71

72

72

73

73

37

36

66

67

29

70

Instruction Set Summary

Mnemonic Operands Description

MOV

LDI

LD

LD

LD

BRCC

BRSH

BRLO

BRMI

BRPL

BRGE

BRLT

BRHS

SBRS

SBIC

SBIS

BRBS

BRBC

BREQ

BRNE

BRCS

ICALL

RET

RETI

CPSE

CP

CPC

CPI

SBRC

OR

ORI

EOR

COM

NEG

SBR

CBR

INC

ARITHMETIC AND LOGIC INSTRUCTIONS

ADD Rd, Rr

ADC Rd, Rr

Add Two Registers

Add with Carry Two Registers

ADIW

SUB

SUBI

SBC

SBCI

SBIW

AND

ANDI

Rdl, K

Rd, Rr

Rd, K

Rd, Rr

Rd, K

Rdl, K

Rd, Rr

Rd, K

Add Immediate to Word

Subtract Two Registers

Subtract Constant from Register

Subtract with Carry Two Registers

Subtract with Carry Constant from Reg.

Subtract Immediate from Word

Logical AND Registers

Logical AND Register and Constant

DEC

TST

CLR

SER

Rd, Rr

Rd, K

Rd, Rr

Rd

Rd

Rd, K

Rd, K

Rd

Rd

Rd

Rd

Rd

BRANCH INSTRUCTIONS

RJMP k

IJMP

RCALL k

Logical OR Registers

Logical OR Register and Constant

Exclusive OR Registers

One’s Complement

Two’s Complement

Set Bit(s) in Register

Clear Bit(s) in Register

Increment

Decrement

Test for Zero or Minus

Clear Register

Set Register

Rd, Rr

Rd, Rr

Rd, Rr

Rd, K

Rr, b k k s, k k

Rr, b

P, b

P, b s, k

Relative Jump

Indirect Jump to (Z)

Relative Subroutine Call

Indirect Call to (Z)

Subroutine Return

Interrupt Return

Compare, Skip if Equal

Compare

Compare with Carry

Compare Register with Immediate

Skip if Bit in Register Cleared

Skip if Bit in Register is Set

Skip if Bit in I/O Register Cleared

Skip if Bit in I/O Register is Set

Branch if Status Flag Set

BRHC

BRTS

BRTC

BRVS

BRVC

BRIE

BRID k k k k k k k k k k k k k k k

DATA TRANSFER INSTRUCTIONS

Branch if Status Flag Cleared

Branch if Equal

Branch if Not Equal

Branch if Carry Set

Branch if Carry Cleared

Branch if Same or Higher

Branch if Lower

Branch if Minus

Branch if Plus

Branch if Greater or Equal, Signed

Branch if Less than Zero, Signed

Branch if Half-carry Flag Set

Branch if Half-carry Flag Cleared

Branch if T-flag Set

Branch if T-flag Cleared

Branch if Overflow Flag is Set

Branch if Overflow Flag is Cleared

Branch if Interrupt Enabled

Branch if Interrupt Disabled

Rd, Rr

Rd, K

Rd, X

Rd, X+

Rd, -X

Move between Registers

Load Immediate

Load Indirect

Load Indirect and Post-inc.

Load Indirect and Pre-dec.

1477K–AVR–08/10

ATtiny26(L)

Operation

Rd

← Rd + Rr

Rd

← Rd + Rr + C

Rdh:Rdl

← Rdh:Rdl + K

Rd

← Rd - Rr

Rd

← Rd - K

Rd

← Rd - Rr - C

Rd

← Rd - K - C

Rdh:Rdl

← Rdh:Rdl - K

Rd

← Rd • Rr

Rd

← Rd • K

Rd

← Rd v Rr

Rd

← Rd v K

Rd

← Rd ⊕ Rr

Rd

← $FF - Rd

Rd

← $00 - Rd

Rd

← Rd v K

Rd

← Rd • ($FF - K)

Rd

← Rd + 1

Rd

← Rd - 1

Rd

← Rd • Rd

Rd

← Rd ⊕ Rd

Rd

← $FF

PC

← PC + k + 1

PC

← Z

PC

← PC + k + 1

PC

← Z

PC

← STACK

PC

← STACK if (Rd = Rr) PC

← PC + 2 or 3

Rd - Rr

Rd - Rr - C

Rd - K if (Rr(b) = 0) PC

← PC + 2 or 3 if (Rr(b) = 1) PC

← PC + 2 or 3 if (P(b) = 0) PC

← PC + 2 or 3 if (P(b) = 1) PC

← PC + 2 or 3 if (SREG(s) = 1) then PC

← PC + k + 1 if (SREG(s) = 0) then PC

← PC + k + 1 if (Z = 1) then PC

← PC + k + 1 if (Z = 0) then PC

← PC + k + 1 if (C = 1) then PC

← PC + k + 1 if (C = 0) then PC

← PC + k + 1 if (C = 0) then PC

← PC + k + 1 if (C = 1) then PC

← PC + k + 1 if (N = 1) then PC

← PC + k + 1 if (N = 0) then PC

← PC + k + 1 if (N

⊕ V = 0) then PC ← PC + k + 1 if (N

⊕ V = 1) then PC ← PC + k + 1 if (H = 1) then PC

← PC + k + 1 if (H = 0) then PC

← PC + k + 1 if (T = 1) then PC

← PC + k + 1 if (T = 0) then PC

← PC + k + 1 if (V = 1) then PC

← PC + k + 1 if (V = 0) then PC

← PC + k + 1 if (I = 1) then PC

← PC + k + 1 if (I = 0) then PC

← PC + k + 1

Rd

← Rr

Rd

← K

Rd

← (X)

Rd

← (X), X ← X + 1

X

← X - 1, Rd ← (X)

# Clocks

1/2

1/2

1/2

1/2

1/2

1/2

1/2

1/2

1/2

1/2

1/2

1/2

1/2

1/2

1/2

1/2

1/2

1/2

1/2

1

1

1

1/2/3

1/2/3

1/2/3

1/2/3

1/2

2

2

3

3

4

4

1/2/3

2

2

1

1

2

1

1

1

1

1

1

1

2

1

1

2

1

1

1

1

1

1

1

1

1

1

1

Flags

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

I

None

Z,N,V,C,H

Z,N,V,C,H

Z,N,V,C,H

None

None

None

None

None

Z,C,N,V,H

Z,C,N,V,H

Z,C,N,V,S

Z,C,N,V,H

Z,C,N,V,H

Z,C,N,V,H

Z,C,N,V,H

Z,C,N,V,S

Z,N,V

Z,N,V

Z,N,V

Z,N,V

Z,N,V

Z,C,N,V

Z,C,N,V,H

Z,N,V

Z,N,V

Z,N,V

Z,N,V

Z,N,V

Z,N,V

None

None

None

None

None

None

169

Instruction Set Summary (Continued)

Mnemonic Operands

CLZ

SEI

CLI

SES

CLS

SEV

CLV

SET

CLT

SEH

CLH

NOP

SLEEP

WDR

BCLR

BST

BLD

SEC

CLC

SEN

CLN

SEZ

CBI

LSL

LSR

ROL

ROR

ASR

SWAP

BSET

ST

ST

ST

ST

LD

LD

LDD

LDS

LD

LD

LD

LDD

LD

Rd, Y

Rd, Y+

Rd, -Y

Rd,Y+q

Rd, Z

Rd, Z+

Rd, -Z

Rd, Z+q

Rd, k

X, Rr

X+, Rr

-X, Rr

Y, Rr

ST

ST

STD

ST

ST

ST

STD

STS

Y+, Rr

-Y, Rr

Y+q, Rr

Z, Rr

Z+, Rr

-Z, Rr

Z+q, Rr k, Rr

LPM

LPM

IN

OUT

Rd, Z

Rd, P

P, Rr

PUSH

POP

Rr

Rd

BIT AND BIT-TEST INSTRUCTIONS

SBI P, b

Rd

Rd

Rd s

P, b

Rd

Rd

Rd s

Rr, b

Rd, b

Description

Load Indirect

Load Indirect and Post-inc.

Load Indirect and Pre-dec.

Load Indirect with Displacement

Load Indirect

Load Indirect and Post-inc.

Load Indirect and Pre-dec.

Load Indirect with Displacement

Load Direct from SRAM

Store Indirect

Store Indirect and Post-inc.

Store Indirect and Pre-dec.

Store Indirect

Store Indirect and Post-inc.

Store Indirect and Pre-dec.

Store Indirect with Displacement

Store Indirect

Store Indirect and Post-inc.

Store Indirect and Pre-dec.

Store Indirect with Displacement

Store Direct to SRAM

Load Program Memory

Load Program Memory

In Port

Out Port

Push Register on Stack

Pop Register from Stack

Set Bit in I/O Register

Clear Bit in I/O Register

Logical Shift Left

Logical Shift Right

Rotate Left through Carry

Rotate Right through Carry

Arithmetic Shift Right

Swap Nibbles

Flag Set

Flag Clear

Bit Store from Register to T

Bit Load from T to Register

Set Carry

Clear Carry

Set Negative Flag

Clear Negative Flag

Set Zero Flag

Clear Zero Flag

Global Interrupt Enable

Global Interrupt Disable

Set Signed Test Flag

Clear Signed Test Flag

Set Two’s Complement Overflow

Clear Two’s Complement Overflow

Set T in SREG

Clear T in SREG

Set Half-carry Flag in SREG

Clear Half-carry Flag in SREG

No Operation

Sleep

Watchdog Reset

Operation

Rd

← (Y)

Rd

← (Y), Y ← Y + 1

Y

← Y - 1, Rd ← (Y)

Rd

← (Y + q)

Rd

← (Z)

Rd

← (Z), Z ← Z + 1

Z

← Z - 1, Rd ← (Z)

Rd

← (Z + q)

Rd

← (k)

(X)

← Rr

(X)

← Rr, X ← X + 1

X

← X - 1, (X) ← Rr

(Y)

← Rr

(Y)

← Rr, Y ← Y + 1

Y

← Y - 1, (Y) ← Rr

(Y + q)

← Rr

(Z)

← Rr

(Z)

← Rr, Z ← Z + 1

Z

← Z - 1, (Z) ← Rr

(Z + q)

← Rr

(k)

← Rr

R0

← (Z)

Rd

← (Z)

Rd

← P

P

← Rr

STACK

← Rr

Rd

← STACK

S

← 0

V

← 1

V

← 0

T

← 1

T

← 0

H

← 1

H

← 0

C

← 0

N

← 1

N

← 0

Z

← 1

Z

← 0

I

← 1

I

← 0

S

← 1

I/O(P,b)

← 1

I/O(P,b)

← 0

Rd(n+1)

← Rd(n), Rd(0) ← 0

Rd(n)

← Rd(n+1), Rd(7) ← 0

Rd(0)

← C, Rd(n+1) ← Rd(n), C ← Rd(7)

Rd(7)

← C, Rd(n) ← Rd(n+1), C ← Rd(0)

Rd(n)

← Rd(n+1), n = 0..6

Rd(3..0)

← Rd(7..4), Rd(7..4) ← Rd(3..0)

SREG(s)

← 1

SREG(s)

← 0

T

← Rr(b)

Rd(b)

← T

C

← 1

(see specific descr. for Sleep function)

(see specific descr. for WDR/timer)

Flags

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

None

V

T

S

V

T

H

H

None

None

None

I

S

I

Z

N

Z

C

N

None

None

Z,C,N,V

Z,C,N,V

Z,C,N,V

Z,C,N,V

Z,C,N,V

None

SREG(s)

SREG(s)

T

None

C

# Clocks

1

1

3

3

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

2

1

1

2

1

170

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

Ordering Information

Speed (MHz)

8

16

Power Supply (V)

2.7 - 5.5

4.5 - 5.5

Ordering Code

(2)

ATtiny26L-8PU

ATtiny26L-8SU

ATtiny26L-8SUR

ATtiny26L-8MU

ATtiny26L-8MUR

ATtiny26-16PU

ATtiny26-16SU

ATtiny26-16SUR

ATtiny26-16MU

ATtiny26-16MUR

Package

20P3

20S

20S

32M1-A

32M1-A

20P3

20S

20S

32M1-A

32M1-A

(2)

Operational Range

Industrial

(-40

°C to +85°C)

Industrial

(-40

°C to +85°C)

(1)

(1)

Notes: 1. This device can also be supplied in wafer form. Please contact your local Atmel sales office for detailed ordering information and minimum quantities.

2. Pb-free packaging alternative, complies to the European Directive for Restriction of Hazardous Substances (RoHS directive). Also Halide free and fully Green.

3. Code Indicators:

– U: matte tin

– R: tape & reel

20P3

20S

32M1-A

1477K–AVR–08/10

Package Type

20-lead, 0.300" Wide, Plastic Dual Inline Package (PDIP)

20-lead, 0.300" Wide, Plastic Gull Wing Small Outline (SOIC)

32-pad, 5 x 5 x 1.0 body, Lead Pitch 0.50 mm Quad Flat No-Lead/Micro Lead Frame Package (QFN/MLF)

171

Packaging Information

20P3

D

PIN

1

E1

A

SEATING PLANE

L

B

A1

B1 e

E

C

Notes: 1. This package conforms to JEDEC reference MS-001, Variation AD.

2. Dimensions D and E1 do not include mold Flash or Protrusion.

Mold Flash or Protrusion shall not exceed 0.25 mm (0.010").

R

2325 Orchard Parkway

San Jose, CA 95131

TITLE

eB eC

20P3, 20-lead (0.300"/7.62 mm Wide) Plastic Dual

Inline Package (PDIP)

COMMON DIMENSIONS

(Unit of Measure = mm)

SYMBOL

MIN

A –

A1 0.381

D

E

E1

B

25.493

7.620

6.096

0.356

NOM

MAX

5.334

NOTE

– 25.984 Note 2

– 8.255

7.112

0.559

Note 2

B1

L

C

1.270

2.921

0.203

1.551

3.810

0.356

eB eC

0.000

e 2.540 TYP

10.922

1.524

1/12/04

DRAWING NO.

REV.

20P3

C

172

ATtiny26(L)

1477K–AVR–08/10

20S

ATtiny26(L)

1477K–AVR–08/10

173

32M1-A

D

D1

1

2

3

Pin 1 ID

0

E1

E

SIDE VIEW

P

TOP VIEW

K

D2

A2

A

A3

A1

0.08 C

COMMON DIMENSIONS

(Unit of Measure = mm)

SYMBOL

MIN

A

NOM

MAX

0.80 0.90 1.00

A1 – 0.02 0.05

A2 – 0.65 1.00

NOTE

P

Pin #1 Notch

(0.20 R) b

BOTTOM VIEW

e

1

2

3

E2

L

K

Note: JEDEC Standard MO-220, Fig. 2 (Anvil Singulation), VHHD-2.

L

P

0

K

b 0.18

D

D1

4.90

4.70

D2

E

E1

E2

e

2.95

4.90

4.70

2.95

0.23

5.00

4.75

3.10

5.00

4.75

3.10

0.50 BSC

0.30 0.40 0.50

0.60

12 o

0.20

– –

0.30

5.10

4.80

3.25

5.10

4.80

3.25

R

2325 Orchard Parkway

San Jose, CA 95131

TITLE

32M1-A, 32-pad, 5 x 5 x 1.0 mm Body, Lead Pitch 0.50 mm,

3.10 mm Exposed Pad, Micro Lead Frame Package (MLF)

5/25/06

DRAWING NO.

REV.

32M1-A E

174

ATtiny26(L)

1477K–AVR–08/10

Errata

ATtiny26 Rev.

B/C/D

ATtiny26(L)

The revision letter refers to the revision of the device.

First Analog Comparator conversion may be delayed

1. First Analog Comparator conversion may be delayed

If the device is powered by a slow rising VCC, the first Analog Comparator conversion will take longer than expected on some devices.

Problem Fix/Workaround

When the device has been powered or reset, disable then enable the Analog Comparator before the first conversion.

1477K–AVR–08/10

175

Datasheet

Revision

History

Please note that the referring page numbers in this section refer to the complete document.

Rev. 1477K-08/10

Added tape and reel part numbers in “Ordering Information” on page 171. Removed text

“Not recommended for new design” from cover page. Updated last page.

Rev. 1477J-06/07

1. “Not recommended for new design”

Rev. 1477I-05/06

1. Updated “Errata” on page 175

Rev. 1477H-04/06

1. Updated typos.

2. Added “Resources” on page 6.

3. Updated features in “System Control and Reset” on page 32.

4. Updated “Prescaling and Conversion Timing” on page 96.

5. Updated algorithm for “Enter Programming Mode” on page 112.

Rev. 1477G-03/05

1. MLF-package alternative changed to “Quad Flat No-Lead/Micro Lead Frame Package

QFN/MLF”.

2. Updated “Electrical Characteristics” on page 126

3. Updated “Ordering Information” on page 171

Rev. 1477F-12/04

1. Updated Table 16 on page 33, Table 9 on page 28, and Table 29 on page 57.

2. Added Table 20 on page 40.

3. Added “Changing Channel or Reference Selection” on page 98.

4. Updated “Offset Compensation Schemes” on page 105.

5. Updated “Electrical Characteristics” on page 126.

6. Updated package information for “20P3” on page 172.

7. Rearranged some sections in the datasheet.

Rev. 1477E-10/03

1. Removed Preliminary references.

2. Updated “Features” on page 1.

3. Removed SSOP package reference from “Pin Configuration” on page 2.

4. Updated V

RST

and t

RST

in Table 16 on page 33.

5. Updated “Calibrated Internal RC Oscillator” on page 29.

176

ATtiny26(L)

1477K–AVR–08/10

ATtiny26(L)

6. Updated DC Characteristics for V

OL

Characteristics” on page 126.

, I

IL

, I

IH

, I

CC

Power Down and

V

ACIO

in “Electrical

7. Updated V

INT

, INL and Gain Error in “ADC Characteristics” on page 129 and page 130.

Fixed typo in “Absolute Accuracy” on page 130.

8. Added Figure 106 in “Pin Driver Strength” on page 146, Figure 120, Figure 121 and

Figure 122 in “BOD Thresholds and Analog Comparator Offset” on page 155. Updated

Figure 117 and Figure 118.

9. Removed LPM Rd, Z+ from “Instruction Set Summary” on page 169. This instruction

is not supported in ATtiny26.

Rev. 1477D-05/03

1. Updated “Packaging Information” on page 172.

2. Removed ADHSM from “ADC Characteristics” on page 129.

3. Added section “EEPROM Write During Power-down Sleep Mode” on page 20.

4. Added section “Default Clock Source” on page 26.

5. Corrected PLL Lock value in the “Bit 0 – PLOCK: PLL Lock Detector” on page 73.

6. Added information about conversion time when selecting differential channels on

page 97.

7. Corrected {DDxn, PORTxn} value on page 42.

8. Added section “Unconnected Pins” on page 46.

9. Added note for RSTDISBL Fuse in Table 50 on page 108.

10. Corrected DATA value in Figure 61 on page 116.

11. Added WD_FUSE period in Table 60 on page 123.

12. Updated “ADC Characteristics” on page 129 and added Table 66, “ADC Characteristics, Differential Channels, T

A

= -40

°C to +85°C,” on page 130.

13. Updated “ATtiny26 Typical Characteristics” on page 131.

14. Added LPM Rd, Z and LPM Rd, Z+ in “Instruction Set Summary” on page 169.

Rev. 1477C-09/02

1. Changed the Endurance on the Flash to 10,000 Write/Erase Cycles.

Rev. 1477B-04/02

1. Removed all references to Power Save sleep mode in the section “System Clock and

Clock Options” on page 23.

2. Updated the section “Analog to Digital Converter” on page 94 with more details on

how to read the conversion result for both differential and single-ended conversion.

3. Updated “Ordering Information” on page 171 and added QFN/MLF package

information.

Rev. 1477A-03/02

1. Initial version.

177

1477K–AVR–08/10

178

ATtiny26(L)

1477K–AVR–08/10

Table of

Contents

ATtiny26(L)

Features................................................................................................ 1

Pin Configuration ................................................................................ 2

Description........................................................................................... 3

Block Diagram ...................................................................................................... 4

Pin Descriptions.................................................................................................... 5

General Information ............................................................................ 6

Resources ............................................................................................................ 6

Code Examples .................................................................................................... 6

AVR CPU Core ..................................................................................... 7

Architectural Overview.......................................................................................... 7

General Purpose Register File ............................................................................. 8

ALU – Arithmetic Logic Unit.................................................................................. 9

Status Register – SREG..................................................................................... 10

Stack Pointer – SP ............................................................................................. 11

Program and Data Addressing Modes ............................................................... 11

Memories............................................................................................ 16

In-System Programmable Flash Program Memory ............................................ 17

SRAM Data Memory........................................................................................... 17

EEPROM Data Memory ..................................................................................... 18

I/O Memory......................................................................................................... 20

System Clock and Clock Options .................................................... 23

Clock Systems and their Distribution.................................................................. 23

Clock Sources .................................................................................................... 25

Default Clock Source.......................................................................................... 26

Crystal Oscillator ................................................................................................ 26

Low-frequency Crystal Oscillator........................................................................ 27

External RC Oscillator ........................................................................................ 28

Calibrated Internal RC Oscillator ........................................................................ 29

External Clock .................................................................................................... 30

High Frequency PLL Clock – PLLCLK ............................................................... 31

System Control and Reset................................................................ 32

Power-on Reset.................................................................................................. 33

External Reset .................................................................................................... 34

Brown-out Detection ........................................................................................... 35

Watchdog Reset ................................................................................................. 35

MCU Status Register – MCUSR......................................................................... 36

Power Management and Sleep Modes ............................................ 37

MCU Control Register – MCUCR ....................................................................... 37

i

1477K–AVR–08/10

ii

Idle Mode............................................................................................................ 38

ADC Noise Reduction Mode............................................................................... 38

Power-down Mode.............................................................................................. 38

Standby Mode .................................................................................................... 39

Minimizing Power Consumption ......................................................................... 40

I/O Ports.............................................................................................. 41

Introduction......................................................................................................... 41

Ports as General Digital I/O................................................................................ 41

Alternate Port Functions ..................................................................................... 46

Register Description for I/O Ports....................................................................... 56

Interrupts............................................................................................ 57

Interrupt Vectors ................................................................................................. 57

Interrupt Handling ............................................................................................... 58

External Interrupt............................................................................... 62

Pin Change Interrupt .......................................................................................... 62

Timer/Counters .................................................................................. 64

Timer/Counter0 Prescaler .................................................................................. 64

Timer/Counter1 Prescaler .................................................................................. 65

8-bit Timer/Counter0........................................................................................... 65

8-bit Timer/Counter1........................................................................................... 67

Watchdog Timer ................................................................................ 78

Universal Serial Interface – USI........................................................ 80

Overview............................................................................................................. 80

Register Descriptions ......................................................................................... 81

Functional Descriptions ...................................................................................... 85

Alternative USI Usage ........................................................................................ 90

Analog Comparator ........................................................................... 91

Analog to Digital Converter .............................................................. 94

Features ............................................................................................................. 94

Operation............................................................................................................ 95

Prescaling and Conversion Timing..................................................................... 96

Changing Channel or Reference Selection ........................................................ 98

ADC Noise Canceler Function............................................................................ 99

ADC Conversion Result...................................................................................... 99

Scanning Multiple Channels ............................................................................. 105

ADC Noise Canceling Techniques ................................................................... 105

Offset Compensation Schemes........................................................................ 105

ATtiny26(L)

1477K–AVR–08/10

1477K–AVR–08/10

ATtiny26(L)

Memory Programming .................................................................... 107

Program and Data Memory Lock Bits............................................................... 107

Fuse Bits........................................................................................................... 108

Signature Bytes ................................................................................................ 109

Calibration Byte ................................................................................................ 109

Page Size ......................................................................................................... 109

Parallel Programming Parameters, Pin Mapping, and Commands .................. 109

Parallel Programming ....................................................................................... 112

Serial Downloading........................................................................................... 121

Serial Programming Pin Mapping ..................................................................... 121

Electrical Characteristics................................................................ 126

Absolute Maximum Ratings* ............................................................................ 126

DC Characteristics............................................................................................ 126

External Clock Drive Waveforms...................................................................... 128

External Clock Drive ......................................................................................... 128

ADC Characteristics ......................................................................................... 129

ATtiny26 Typical Characteristics ................................................... 131

Register Summary........................................................................... 168

Instruction Set Summary ................................................................ 169

Ordering Information....................................................................... 171

Packaging Information.................................................................... 172

20P3 ................................................................................................................. 172

20S ................................................................................................................... 173

32M1-A ............................................................................................................. 174

Errata ................................................................................................ 175

ATtiny26 Rev. B/C/D ........................................................................................ 175

Datasheet Revision History ............................................................ 176

Rev. 1477K-08/10............................................................................................. 176

Rev. 1477J-06/07 ............................................................................................. 176

Rev. 1477I-05/06 .............................................................................................. 176

Rev. 1477H-04/06 ............................................................................................ 176

Rev. 1477G-03/05 ............................................................................................ 176

Rev. 1477F-12/04............................................................................................. 176

Rev. 1477E-10/03............................................................................................. 176

Rev. 1477D-05/03 ............................................................................................ 177

Rev. 1477C-09/02 ............................................................................................ 177

Rev. 1477B-04/02............................................................................................. 177

Rev. 1477A-03/02............................................................................................. 177

iii

Headquarters

Atmel Corporation

2325 Orchard Parkway

San Jose, CA 95131

USA

Tel: 1(408) 441-0311

Fax: 1(408) 487-2600

International

Atmel Asia

Unit 1-5 & 16, 19/F

BEA Tower, Millennium City 5

418 Kwun Tong Road

Kwun Tong, Kowloon

Hong Kong

Tel: (852) 2245-6100

Fax: (852) 2722-1369

Atmel Europe

Le Krebs

8, Rue Jean-Pierre Timbaud

BP 309

78054 Saint-Quentin-en-

Yvelines Cedex

France

Tel: (33) 1-30-60-70-00

Fax: (33) 1-30-60-71-11

Atmel Japan

9F, Tonetsu Shinkawa Bldg.

1-24-8 Shinkawa

Chuo-ku, Tokyo 104-0033

Japan

Tel: (81) 3-3523-3551

Fax: (81) 3-3523-7581

Product Contact

Web Site

www.atmel.com

Literature Requests

www.atmel.com/literature

Technical Support

Enter Product Line E-mail

Sales Contact

www.atmel.com/contacts

Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN ATMEL’S TERMS AND CONDI-

TIONS OF SALE LOCATED ON ATMEL’S WEB SITE, ATMEL ASSUMES NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY

WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR

PURPOSE, OR NON-INFRINGEMENT. IN NO EVENT SHALL ATMEL BE LIABLE FOR ANY DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE, SPECIAL OR INCIDEN-

TAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION, OR LOSS OF INFORMATION) ARISING OUT

OF THE USE OR INABILITY TO USE THIS DOCUMENT, EVEN IF ATMEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Atmel makes no representations or warranties with respect to the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and product descriptions at any time without notice. Atmel does not make any commitment to update the information contained herein. Unless specifically provided otherwise, Atmel products are not suitable for, and shall not be used in, automotive applications. Atmel’s products are not intended, authorized, or warranted for use as components in applications intended to support or sustain life.

© 2010 Atmel Corporation. All rights reserved.

Atmel

®

, logo and combinations thereof, AVR

®

and others are registered trademarks or trademarks of Atmel Corporation or its subsidiaries. Other terms and product names may be trademarks of others.

1477K–AVR–08/10

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
