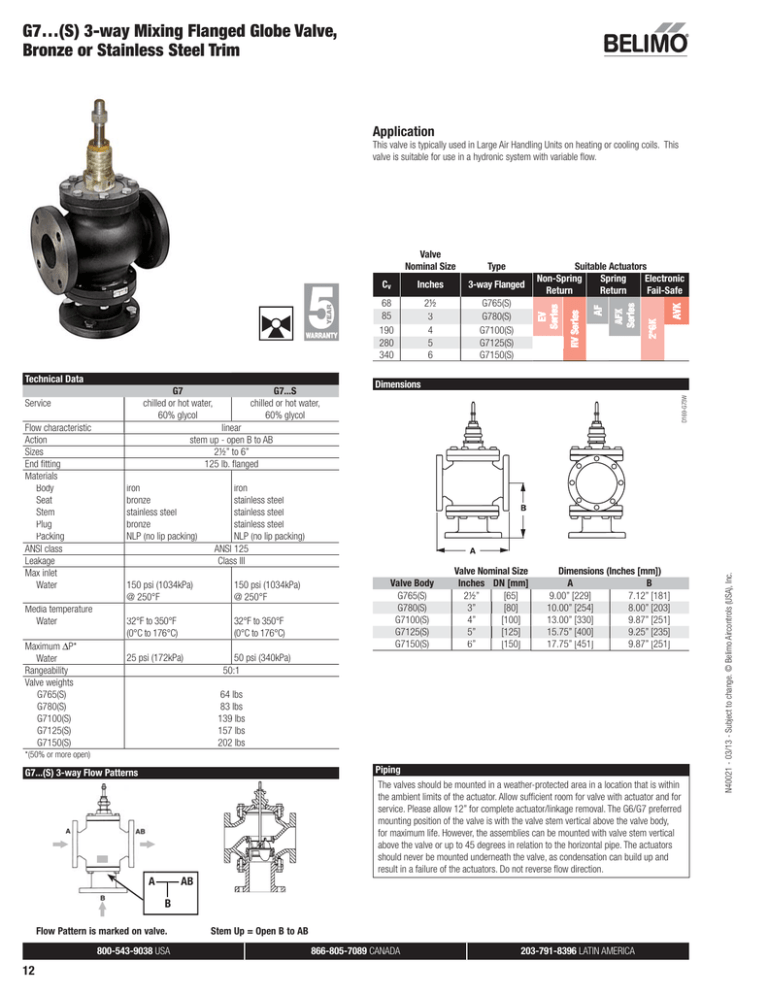

G7…(S) 3-way Mixing Flanged Globe Valve,
Bronze or Stainless Steel Trim
Application
This valve is typically used in Large Air Handling Units on heating or cooling coils. This
valve is suitable for use in a hydronic system with variable flow.
G7
chilled or hot water,
60% glycol
Service
Media temperature
Water
Maximum ΔP*
Water
Rangeability
Valve weights
G765(S)
G780(S)
G7100(S)
G7125(S)
G7150(S)
AVK
G765(S)
G780(S)
G7100(S)
G7125(S)
G7150(S)
2*GK
2½
3
4
5
6
AFX
Series
68
85
190
280
340
AF
3-way Flanged
RV Series
Inches
EV
Series
Cv
Suitable Actuators
Non-Spring
Spring
Electronic
Return
Return
Fail-Safe
Dimensions
linear
stem up - open B to AB
2½” to 6”
125 lb. flanged
iron
bronze
stainless steel
bronze
NLP (no lip packing)
iron
stainless steel
stainless steel
stainless steel
NLP (no lip packing)
ANSI 125
Class III
150 psi (1034kPa)
@ 250°F
150 psi (1034kPa)
@ 250°F
32°F to 350°F
(0°C to 176°C)
32°F to 350°F
(0°C to 176°C)
25 psi (172kPa)
50 psi (340kPa)
50:1
Valve Body
G765(S)
G780(S)
G7100(S)
G7125(S)
G7150(S)
Valve Nominal Size
Inches DN [mm]
2½”
[65]
3”
[80]
4”
[100]
5”
[125]
6”
[150]
Dimensions (Inches [mm])
A
B
9.00” [229]
7.12” [181]
10.00” [254]
8.00” [203]
13.00” [330]
9.87” [251]
15.75” [400]
9.25” [235]
17.75” [451]
9.87” [251]
64 lbs
83 lbs
139 lbs
157 lbs
202 lbs
*(50% or more open)
Piping
The valves should be mounted in a weather-protected area in a location that is within
the ambient limits of the actuator. Allow sufficient room for valve with actuator and for
service. Please allow 12” for complete actuator/linkage removal. The G6/G7 preferred
mounting position of the valve is with the valve stem vertical above the valve body,
for maximum life. However, the assemblies can be mounted with valve stem vertical
above the valve or up to 45 degrees in relation to the horizontal pipe. The actuators
should never be mounted underneath the valve, as condensation can build up and
result in a failure of the actuators. Do not reverse flow direction.
G7...(S) 3-way Flow Patterns
A
AB
B
Flow Pattern is marked on valve.
800-543-9038 USA
12
Stem Up = Open B to AB
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
N40021 - 03/13 - Subject to change. © Belimo Aircontrols (USA), Inc.
Flow characteristic
Action
Sizes
End fitting
Materials
Body
Seat
Stem
Plug
Packing
ANSI class
Leakage
Max inlet
Water
G7...S
chilled or hot water,
60% glycol
Type
D169-G73W
Technical Data
Valve
Nominal Size
AFBUP-X1, AFBUP-S-X1, AFXUP-X1, AFXUP-S-X1
On/Off, Spring Return, 24 to 240 VAC
Torque min. 180 in-lb, for control of air dampers
Application
For On/Off, fail-safe control of dampers in HVAC systems. Actuator sizing should be
done in accordance with the damper manufacturer’s specifications. Control is On/Off
from an auxiliary contact, or a manual switch.
The actuator is mounted directly to a damper shaft up to 1.05” in diameter by means
of its universal clamp. A crank arm and several mounting brackets are available for
applications where the actuator cannot be direct coupled to the damper shaft.
Operation
The AFB and AFX series actuators provide true spring return operation for reliable failsafe application and positive close off on air tight dampers. The spring return system
provides constant torque to the damper with, and without, power applied to the
actuator.
The AFB and AFX series provides 95° of rotation and is provided with a graduated
position indicator showing 0° to 95°.
The actuator may be stalled anywhere in its normal rotation without the need of
mechanical end switches.
Technical Data
Transformer sizing
The AFBUP-S and AFXUP-S versions are provided with two built-in auxiliary switches.
These SPDT switches provide safety interfacing or signaling, for example, for fan startup. The switching function at the fail-safe position is fixed at +10°, the other switch
function is adjustable between +10° to +90°. The AFBUP, AFBUP-S, AFXUP and
AFXUP-S actuator is shipped at +5° (5° from full fail-safe) to provide automatic
compression against damper gaskets for tight shut-off.
Electrical connection
AFBUP...
3 ft, 18 GA appliance cable, 1/2" conduit
connector
-S models: Two 3 ft, 18 gauge appliance cables
with 1/2” conduit connectors
AFXUP...
3 ft [1m], 10 ft [3m] or 16 ft [5m] 18 GA
appliance cable, with or without 1/2” conduit
connector
-S models: Two 3 ft [1m], 10 ft [3m] or
16 ft [5m] appliance cables with or without 1/2"
conduit connectors
Overload protection
Electronic throughout 0 to 95° rotation
Control
On/Off
Torque
180 in-lb [20 Nm] minimum
Direction of rotation
spring reversible with CW/CCW mounting
Mechanical angle of rotation
95° (adjustable with mechanical end stop, 35° to
95°)
motor < 75 sec
Running time
spring 20 sec @ -4°F to 122°F [-20°C to 50°C];
< 60 sec @ -22°F [-30°C]
Position indication
visual indicator, 0° to 95°
(0° is full spring return position)
Manual override
5 mm hex crank (³⁄₁₆" Allen), supplied
Humidity
max. 95% RH non-condensing
Ambient temperature
-22°F to 122°F [-30°C to 50°C]
Storage temperature
-40°F to 176°F [-40°C to 80°C]
Housing
Nema 2, IP54, Enclosure Type2
Housing material
Zinc coated metal and plastic casing
Agency listings †
cULus acc. to UL60730-1A/-2-14,
CAN/CSA E60730-1:02, CE acc. to
2004/108/EC & 2006/95/EC
Noise level
<50dB(A) motor @ 75 seconds
≤62dB(A) spring return
Servicing
maintenance free
Quality standard
ISO 9001
Weight
4.6 lbs (2.1 kg), 4.9 lbs (2.25 kg) with switches
Dimensions (Inches [mm])
K7-2 (supplied)
1/2" Centered
(Default)
3/4" Centered
(Field Selectable)
1.05" Centered
(Field Selectable)
N40103 - 09/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
Power consumption
24...240 VAC -20% / +10%, 50/60 Hz
24...125 VDC ±10%
running 7 W
holding 3.5 W
7 VA @ 24 VAC (class 2 power source)
8.5 VA @ 120 VAC
18 VA @ 240 VAC
† Rated Impulse Voltage 4kV, Type of action 1.AA (1.AA.B for -S version), Control Pollution Degree 3.
AFBUP-S-X1, AFXUP-S-X1
Auxiliary switches
2 x SPDT 3A (0.5A) @ 250 VAC, UL Approved
one set at +10°, one adjustable 10° to 90°
800-543-9038 USA
53
866-805-7089 CANADA
WAFBNFBDim
Power supply
203-791-8396 LATIN AMERICA / CARIBBEAN
AFBUP-X1, AFBUP-S-X1, AFXUP-X1, AFXUP-S-X1
On/Off, Spring Return, 24 to 240 VAC
Accessories
AV 8-25
IND-AFB
K7-2
KH-AFB
TF-CC US
Tool-06
ZG-100
ZG-101
ZG-118
ZG-AFB
ZG-AFB118
ZS-100
ZS-150
ZS-260
ZS-300
Wiring Diagrams
Shaft extension
Damper position indicator
Universal clamp for up to 1.05” dia jackshafts
Crank arm
Conduit fitting
8mm and 10 mm wrench
Universal mounting bracket
Universal mounting bracket
Mounting bracket for Barber Colman® MA 3../4.., Honeywell®
Mod III or IV or Johnson® Series 100 replacement or new crank
arm type installations
Crank arm adaptor kit
Crank arm adaptor kit
Weather shield (metal)
Weather shield (polycarbonate)
Explosion-proof housing
NEMA 4X housing
Note: When using AFBUP, AFBUP-S, AFXUP, AFXUP-S actuators, only use accessories listed on
this page.
For actuator wiring information and diagrams, refer to Belimo Wiring Guide.
Typical Specification
Provide overload protection and disconnect as required.
1
CAUTION Equipment Damage!
2
Actuators may be connected in parallel.
Power consumption and input impedance must be observed.
No ground connection is required.
3
For end position indication, interlock control, fan startup, etc.,
AFBUP-S and AFXUP-S incorporates two built-in auxiliary switches: 2 x
SPDT, 3A (0.5A) @250 VAC, UL Approved, one switch is fixed at +10°, one
is adjustable 10° to 90°.
4
Meets cULus requirements without the need of an electrical ground connection.
WARNING
G Live Electrical Components!
During installation, testing, servicing and troubleshooting of this product, it may be
necessary to work with live electrical components. Have a qualified licensed electrician or other
individual who has been properly trained in handling live electrical components perform these
tasks. Failure to follow all electrical safety precautions when exposed to live electrical components could result in death or serious injury.
W066_AFB(X)UP
On/Off spring return damper actuators shall be direct coupled type which require
no crank arm and linkage and be capable of direct mounting to a jackshaft up to a
1.05” diameter. The actuators must be designed so that they may be used for either
clockwise or counterclockwise fail-safe operation. Actuators shall be protected
from overload at all angles of rotation. If required, two SPDT auxiliary switch shall
be provided having the capability of one being adjustable. Actuators with auxiliary
switches must be constructed to meet the requirements for Double Insulation so
an electrical ground is not required to meet agency listings. Actuators shall be
cULus approved and have a 5 year warranty, and be manufactured under ISO 9001
International Quality Control Standards. Actuators shall be as manufactured by
Belimo.
