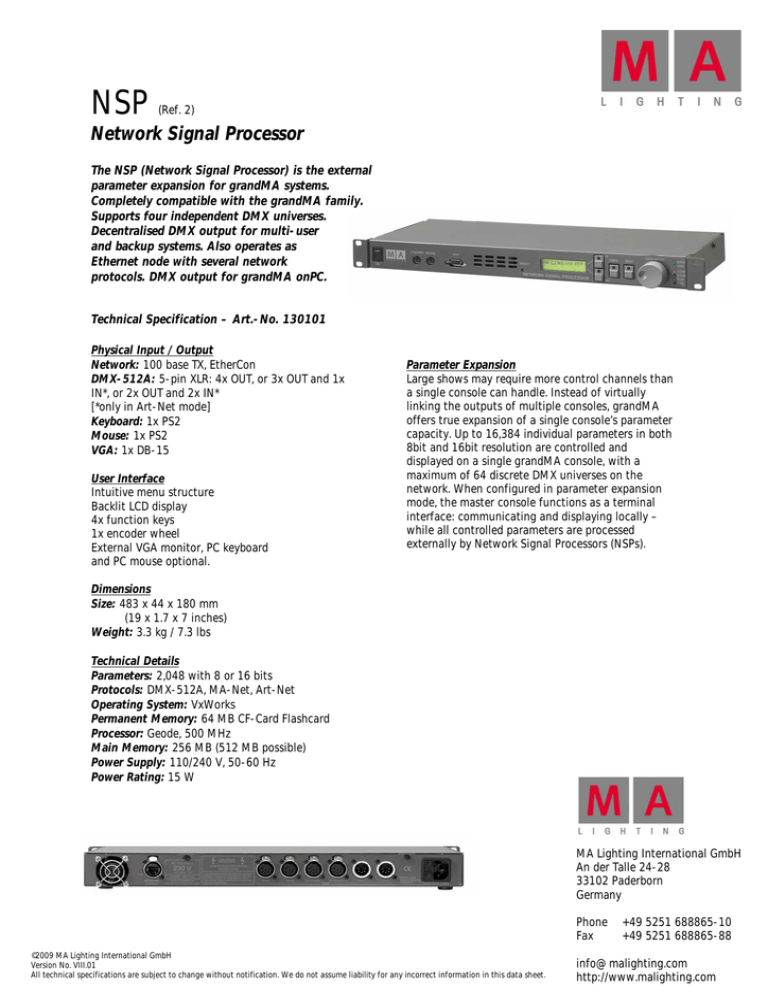

NSP
(Ref. 2)
Network Signal Processor
The NSP (Network Signal Processor) is the external
parameter expansion for grandMA systems.
Completely compatible with the grandMA family.
Supports four independent DMX universes.
Decentralised DMX output for multi-user
and backup systems. Also operates as
Ethernet node with several network
protocols. DMX output for grandMA onPC.
Technical Specification – Art.-No. 130101
Physical Input / Output
Network: 100 base TX, EtherCon
DMX-512A: 5-pin XLR: 4x OUT, or 3x OUT and 1x
IN*, or 2x OUT and 2x IN*
[*only in Art-Net mode]
Keyboard: 1x PS2
Mouse: 1x PS2
VGA: 1x DB-15
User Interface
Intuitive menu structure
Backlit LCD display
4x function keys
1x encoder wheel
External VGA monitor, PC keyboard
and PC mouse optional.
Parameter Expansion
Large shows may require more control channels than
a single console can handle. Instead of virtually
linking the outputs of multiple consoles, grandMA
offers true expansion of a single console’s parameter
capacity. Up to 16,384 individual parameters in both
8bit and 16bit resolution are controlled and
displayed on a single grandMA console, with a
maximum of 64 discrete DMX universes on the
network. When configured in parameter expansion
mode, the master console functions as a terminal
interface: communicating and displaying locally –
while all controlled parameters are processed
externally by Network Signal Processors (NSPs).
Dimensions
Size: 483 x 44 x 180 mm
(19 x 1.7 x 7 inches)
Weight: 3.3 kg / 7.3 lbs
Technical Details
Parameters: 2,048 with 8 or 16 bits
Protocols: DMX-512A, MA-Net, Art-Net
Operating System: VxWorks
Permanent Memory: 64 MB CF-Card Flashcard
Processor: Geode, 500 MHz
Main Memory: 256 MB (512 MB possible)
Power Supply: 110/240 V, 50-60 Hz
Power Rating: 15 W
MA Lighting International GmbH
An der Talle 24-28
33102 Paderborn
Germany
Phone
Fax
©2009 MA Lighting International GmbH
Version No. VIII.01
All technical specifications are subject to change without notification. We do not assume liability for any incorrect information in this data sheet.
+49 5251 688865-10
+49 5251 688865-88
[email protected]
http://www.malighting.com
