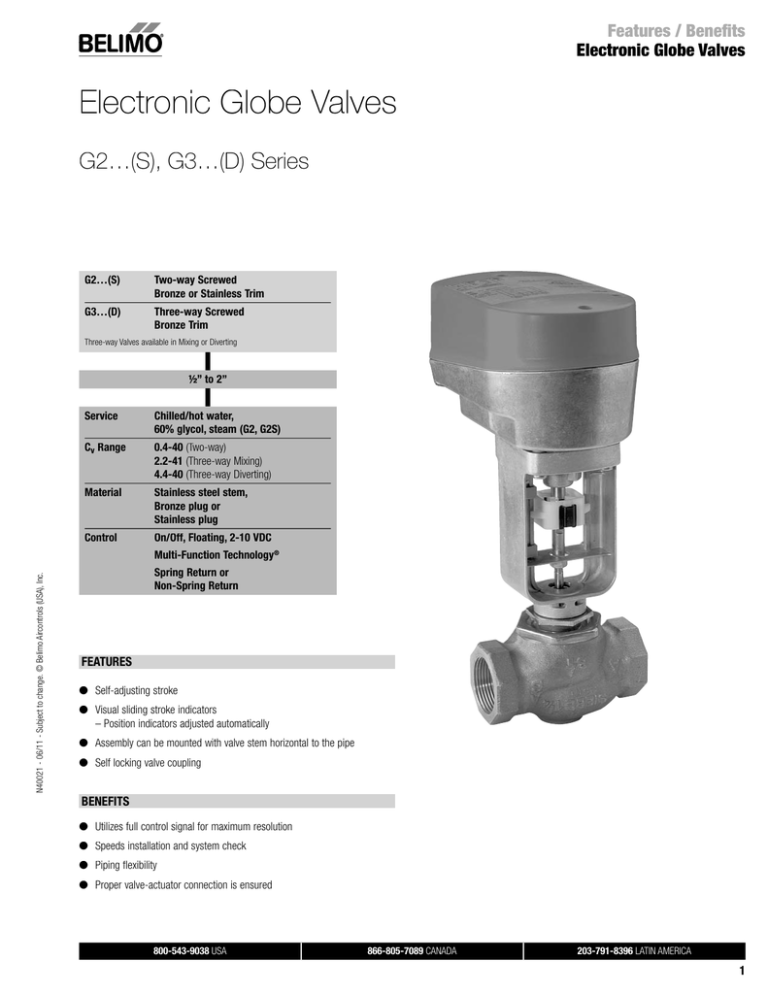

Features / Benefits
Electronic Globe Valves
Electronic Globe Valves
G2…(S), G3…(D) Series
G2…(S)
Two-way Screwed
Bronze or Stainless Trim
G3…(D)
Three-way Screwed
Bronze Trim
Three-way Valves available in Mixing or Diverting
½” to 2”
Service
Chilled/hot water,
60% glycol, steam (G2, G2S)
Cv Range
0.4-40 (Two-way)
2.2-41 (Three-way Mixing)
4.4-40 (Three-way Diverting)
Material
Stainless steel stem,
Bronze plug or
Stainless plug
Control
On/Off, Floating, 2-10 VDC
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
Multi-Function Technology®
Spring Return or
Non-Spring Return
FEATURES
● Self-adjusting stroke
● Visual sliding stroke indicators
– Position indicators adjusted automatically
● Assembly can be mounted with valve stem horizontal to the pipe
● Self locking valve coupling
BENEFITS
● Utilizes full control signal for maximum resolution
● Speeds installation and system check
● Piping flexibility
● Proper valve-actuator connection is ensured
800-543-9038 USA
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
1
G2…(S) 2-way Globe Valve, Bronze or Stainless Steel Trim
Application
This valve is typically used in Air Handling Units on heating or cooling coils and Fan Coil
Unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV Box reheat coils and bypass loops. This valve is suitable for use in a hydronic
system with variable flow.
Bronze and stainless steel trim valves can be used for steam applications, depending on
actuator and close-off combinations.
NVF Series
LF Series
AF(X)
NF
Series
NV Series
LM Series
Suitable Actuators
Non-Spring
Spring
15 psi (103 kPa)
35 psi (241 kPa)
50 psi (345 kPa)
100 psi (689 kPa)
20°F to 250°F
(-7°C to 120°C)
20°F to 300°F
(-7°C to 149°C)
35 psi (241 kPa)
15 psi (103 kPa)
20 psi (138 kPa)
G2(S) 100:1
G212(S), G213(S), G214(S), G215(S)
G219(S), G220(S)
G224(S), G225(S), G232(S)
G240(S), G250(S)
35 psi (241 kPa)
35 psi (241 kPa)
35 psi (241 kPa)
2 lbs
3 lbs
5.5 lbs
13 lbs
*(50% or more open)
G2...(S) 2-way Flow Patterns
Flow Direction
800-543-9038 USA
Valve Body
G212(S)-G215(S)
G219(S)-G220(S)
G224(S)-G225(S)
G232(S)
G240(S)
G250(S)
Valve Nominal Size
Inches DN [mm]
½”
15
¾”
20
1”
25
1¼
32
1½
40
2
50
Dimensions (Inches [mm])
A
B
3.06” [78]
1.06” [27]
3.62” [92]
1.06” [27]
4.62” [117]
1.12” [29]
4.62” [117]
1.37” [35]
5.37” [137]
1.50” [38]
6.12” [156]
1.56” [40]
Piping
The valves should be mounted in a weather-protected area in a location that is within
the ambient limits of the actuator. Allow sufficient room for valve with actuator and for
service. For the NV Series, allow 6” for cover removal and 12” for complete actuator
removal. The G2(S) and G3(D) preferred mounting position of the valve is with the
valve stem vertical above the valve body, for maximum life. However, the assemblies
can be mounted with the valve stem vertical or horizontal in relation to the pipe. The
actuators should never be mounted underneath the valve, as condensation can build
up and result in a failure of the actuators. Do not reverse flow direction.
Stem Up - Open A to AB
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
D031-2W
Dimensions
bronze
bronze
bronze
stainless steel
stainless steel
stainless steel
brass
stainless steel
spring loaded TFE
spring loaded TFE
composition (EPDM)
Teflon
ANSI 250 (up to 400 psi below 150°F)
ANSI class IV
Maximum ΔP*
Water
Steam (NV Actuator)
Steam (Rotary Actuator)
Rangeability
Valve weights
8
Type
2-way NPT
G212(S)
G213(S)
G214(S)
G215(S)
G219(S)
G220(S)
G224(S)
G225(S)
G232(S)
G240(S)
G250(S)
NM
Series
G2
G2...S
chilled or hot water, 60% glycol, steam
equal percentage
linear
stem up - open A to AB
½” to 2”
NPT female ends
Service
Flow characteristic
Action
Sizes
End fitting
Materials
Body
Seat
Stem
Plug
Packing
Disc
ANSI class
Leakage
Max steam inlet
NV actuators
Rotary actuators
Media temperature
Water
Valve Nominal Size
Inches DN [mm]
½
15
½
15
½
15
½
15
¾
20
¾
20
1
25
1
25
1¼
32
1½
40
2
50
AM
Technical Data
Cv
0.4
1.3
2.2
4.4
5.5
7.5
10
14
20
28
40
NV(D)24-3 US Actuators, On/Off, Floating Point
7.05" [179]
4.35" [110]
D031
Dimensions with G2... Series 2-Way Valve
Assembly using UNV-001 Bracket
C
B
A
Models
NV24-3 US
NVD24-3 US
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
Nominal voltage range
Power consumption
Transformer sizing
Electrical connection
Overload protection
Control
Maximum stroke
Force
NV24-3 US
NVD24-3 US
Position indication
Manual override
Running time
Humidity
Ambient temperature
Storage temperature
Housing
Housing material
Agency listings†
Noise level
Quality standard
24 VAC ± 20% 50/60 Hz
24 VDC ± 10%
19.2...28.8 VAC, 21.6...28.8 VDC
3W
5 VA (Class 2 power source)
3 ft [1m]
18 GA plenum rated cable
½” conduit connector
electronic throughout stroke
on/off, floating point
¾” [20mm]
Dimensions with G2...S Series 2-Way Valve
Assembly using UNV-035 Bracket (Bracket is 1.563” longer than UNV-001)
7.05" [179]
225 lbf [1000 N]
90 lbf [400 N]
stroke indicator on bracket
3/16” hex, 5mm hex or phillips screwdriver
20mm/150 seconds, independent of load
5 to 95% RH non-condensing
32°F to 122°F [0°C to 50°C]
20°F to 176°F [-7°C to 80°C]
NEMA 2/IP54 with cable entry down
UL94-5V (flammability rating)
cULus to UL 60730-1A/UL60730-2-14 and CAN/
CSA E60730-1/CSA C22.2 No. 24-93 CE acc. to
2004/108/EC & 2006/95/EC, tested to 1EC/EN
60730-1 and 1EC/EN 60370-2-14
<52 dB(A)
ISO 9001
4.35" [110]
C
B
A
Valve Body
G2S
G2S
G2S
G2S
G2S
G2S
800-543-9038 USA
Dimensions (Inches [mm])
A
B
C
9.75" [248]
3.00" [76]
1.06" [27]
9.75" [248]
3.62" [92]
1.06" [27]
4.62" [117]
1.12" [29] 10.43" [265]
4.62" [117]
1.37” [35] 10.43" [265]
5.37" [137]
1.50” [38] 10.50" [267]
6.12" [156]
1.56” [40] 10.81" [275]
D056
Technical Data
Power supply
Valve Nominal Size
Inches DN [mm]
1/2"
15
3/4"
20
1"
25
1-1/4"
32
1-1/2"
40
2"
50
Valve Body
G2
G2
G2
G2
G2
G2
866-805-7089 CANADA
Valve
Nominal Size
Inches DN [mm]
1/2"
15
3/4"
20
1"
25
1-1/4"
32
1-1/2"
40
2"
50
Dimensions (Inches [mm])
A
B
C
3.00" [76]
1.06" [27] 11.31" [287]
3.62" [92]
1.06" [27] 11.31" [287]
4.62" [117]
1.12" [29] 12.00" [305]
4.62" [117]
1.37” [35] 12.00" [305]
5.37" [137]
1.50” [38] 12.06” [306]
6.12" [156]
1.56” [40] 12.37” [314]
203-791-8396 LATIN AMERICA
21
NV(D)24-3 US Actuators, On/Off, Floating Point
Wiring Diagrams
7.05" [179]
W128
Dimensions with G3...(D) Series 3-Way Valve
4.35" [110]
24 VAC Transformer
Blk (1) Common –
Line
Volts
Wht (2) +
extending
Wht (3) +
retracting
= actuator plunger extending
C
= actuator plunger retracting
NV24-3 US
NVD24-3 US
On/Off or Floating Point Control
B
A
Valve Body
G3(D)
G3(D)
G3(D)
G3(D)
G3(D)
G3(D)
G3(D)
Valve Nominal Size
Inches DN [mm]
1/2"
15
1/2"
15
3/4"
20
1"
25
1-1/4"
32
1-1/2"
40
2"
50
Dimensions (Inches [mm])
A
B
C
9.75" [248]
3.00" [76]
1.37" [35]
9.75" [248]
3.00" [76]
1.37" [35]
9.75" [248]
3.62" [92]
1.68” [43]
4.62" [117]
1.56" [40]
9.81” [249]
4.62" [117]
1.62" [41] 10.06” [256]
9.18” [234]
5.37" [137]
1.62" [41]
9.25” [235]
6.12" [156]
1.87” [48]
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
4.35" [110]
7.05" [179]
D068
Dimensions with G6...C ANSI 125 Series 2-Way Valve
C
B
A
Valve Body
G6C ANSI 125
G6C ANSI 125
Valve Nominal Size
Dimensions (Inches [mm])
Inches DN [mm]
A
B
C
2-1/2"
65
9.00” [229] 4.75” [120] 15.00" [381]
3"
80
10.00” [254] 5.37” [137] 15.43" [392]
800-543-9038 USA
22
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
NV...24-MFT US Actuators, Multi-Function Technology
7.05" [179]
4.35" [110]
D031
Dimensions with G2... Series 2-Way Valve
Assembly using UNV-001 Bracket
C
B
A
Valve Body
G2
G2
G2
G2
G2
G2
Models
NVD24-MFT US
NV24-MFT US
NVG24-MFT US
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
Overload protection
Control
Control signal Y
Operating range
Input impedance
Feedback output U
Maximum stroke
Force
NVD24-3 US
NV24-3 US
NVG24-MFT US
Position indication
Manual override
Running time
Humidity
Ambient temperature
Storage temperature
Housing
Housing material
Agency listings†
Noise level
Quality standard
Dimensions (Inches [mm])
A
B
C
9.75" [248]
3.00" [76]
1.06" [27]
9.75" [248]
3.62" [92]
1.06" [27]
4.62" [117]
1.12" [29] 10.43" [265]
4.62" [117]
1.37” [35] 10.43" [265]
5.37" [137]
1.50” [38] 10.50" [267]
6.12" [156]
1.56“[40]
10.81" [275]
24 VAC ± 20% 50/60 Hz, 24 VDC ± 10%
19.2...28.8 VAC, 21.6...28.8 VDC
3W
3W
4W
5 VA (Class 2 power source)
3 ft, 18 GA plenum rated cable
½” conduit connector
electronic throughout stroke
Multi-Function Technology
2 to 10 VDC (V-10001 default), PWM available
2 to 10 VDC
4 to 20 mA (w/500 Ω, ¼ W resistor) ZG-R01
100 kΩ for 2 to 10 VDC (0.1 mA)
500 Ω for 4 to 20 mA
1500 Ω for PWM, on/off and floating point
2 to 10 VDC, 0.5 mA max
¾” [20mm]
90 lbf [400 N]
225 lbf [1000 N]
360 lbf [1600 N]
stroke indicator on bracket
3/16” hex, 5mm hex or phillips screwdriver
150 seconds, independent of load
5 to 95% RH non-condensing
32°F to 122°F [0°C to 50°C]
20°F to 176°F [-7°C to 80°C]
NEMA 2/IP54 with cable entry down
UL94-5V (flammability rating)
cULus to UL 60730-1A/UL60730-2-14 and CAN/
CSA E60730-1/CSA C22.2 No. 24-93 CE acc. to
2004/108/EC & 2006/95/EC, tested to 1EC/EN
60730-1 and 1EC/EN 60370-2-14
<35 dB(A)
ISO 9001
800-543-9038 USA
Dimensions with G2...S Series 2-Way Valve
Assembly using UNV-035 Bracket (Bracket is 1.563” longer than UNV-001)
D056
Technical Data
Power supply
Nominal voltage range
Power consumption
NVD24-MFT US
NV24-MFT US
NVG24-MFT US
Transformer sizing
Electrical connection
Valve Nominal Size
Inches DN [mm]
1/2"
15
3/4"
20
1"
25
1-1/4"
32
1-1/2"
40
2"
50
7.05" [179]
4.35" [110]
C
B
A
Valve Body
G2S
G2S
G2S
G2S
G2S
G2S
866-805-7089 CANADA
Valve Nominal Size
Inches DN [mm]
1/2"
15
3/4"
20
1"
25
1-1/4"
32
1-1/2"
40
2"
50
Dimensions (Inches [mm])
A
B
C
3.00" [76]
1.06" [27] 11.31" [287]
3.62" [92]
1.06" [27] 11.31" [287]
4.62" [117]
1.12" [29] 12.00" [305]
4.62" [117]
1.37” [35] 12.00" [305]
5.37" [137]
1.50” [38] 12.06” [306]
6.12" [156]
1.56” [40] 12.37” [314]
203-791-8396 LATIN AMERICA
23
NV...24-MFT US Actuators, Multi-Function Technology
7.05" [179]
Dimensions with G7 and G7D ANSI 125/250 Series 3-Way Valve
4.35" [110]
4.35" [110]
7.05" [179]
D166
Dimensions with G3...(D) Series 3-Way Valve
C
C
B
B
A
Valve Nominal Size
Inches DN [mm]
1/2"
15
1/2"
15
3/4"
20
1"
25
1-1/4"
32
1-1/2"
40
2"
50
Valve Body
G3(D)
G3(D)
G3(D)
G3(D)
G3(D)
G3(D)
G3(D)
A
Dimensions (Inches [mm])
A
B
C
9.75" [248]
3.00" [76]
1.37" [35]
9.75" [248]
3.00" [76]
1.37" [35]
9.75" [248]
3.62" [92]
1.68” [43]
4.62" [117]
1.56" [40]
9.81” [249]
4.62" [117]
1.62" [41] 10.06” [256]
9.18” [234]
5.37" [137]
1.62" [41]
9.25” [235]
6.12" [156]
1.87” [48]
4.35" [110]
7.05" [179]
D166_A
Dimensions with G6/G6C ANSI 125 and G6 ANSI 250 Series 2-Way Valve
Valve Body
G7 ANSI 125
G7 ANSI 125
G7D ANSI 125
G7D ANSI 125
G7D ANSI 125
G7 ANSI 250
G7 ANSI 250
G7D ANSI 250
G7D ANSI 250
G7D ANSI 250
Valve Nominal Size
Inches DN [mm]
2-1/2"
65
3"
80
2-1/2"
65
3"
80
4"
100
2-1/2"
65
3"
80
2-1/2"
65
3"
80
4"
100
Dimensions (Inches [mm])
A
B
C
9.00" [229] 7.12” [181] 15.37” [391]
10.00" [254] 8.00” [203] 15.93” [405]
9.00" [229] 7.12” [181] 15.12” [384]
10.00" [254] 8.00” [203] 15.93” [405]
13.00” [330] 9.87” [251] 16.75" [425]
9.62” [244] 7.37” [187] 15.50” [394]
10.75” [273] 8.37” [213] 16.12” [410]
9.62” [244] 7.37” [187] 15.25” [387]
10.75” [273] 8.37” [213] 16.06” [408]
13.62” [346] 10.25” [260] 16.87” [429]
W130
Wiring Diagrams
24 VAC Transformer
Red (2) + Hot
C
Wht (3) Y1 Input, 2 to 10V
2 to 10 VDC (–)
Control Signal (+)
Wht (5) U Output, 2 to 10V
2 to 10 VDC (–)
Feedback Signal (+)
NVD24-MFT US
NV24-MFT US
NVG24-MFT US
24 VAC Transformer
2 to 10 VDC Control Signal
B
NV24 MFT US
NVG24-MFT US
A
Valve Nominal Size
Valve Body
Inches DN [mm]
G6/G6C ANSI 125 2-1/2"
65
G6/G6C ANSI 125
3"
80
G6 ANSI 250
2-1/2"
65
G6 ANSI 250
3"
80
24 VAC Transformer
Blk (1) Common
Line
Volts
Dimensions (Inches [mm])
A
B
C
9.00” [229] 4.75” [120] 15.00" [381]
10.00” [254] 5.37” [137] 15.43" [392]
9.62” [244] 4.75” [120] 15.00” [381]
10.75” [273] 5.37” [137] 15.43” [392]
4 to 20 mA (–)
Control Signal (+)
2 to 10 VDC (–)
Feedback Signal (+)
Red (2) + Hot
Ω
500Ω
Wht (3) Y1 Input, 2 to 10V
Wht (5) U Output, 2 to 10V
NVD24-MFT US
NV24-MFT US
NVG24-MFT US
4 to 20 mA Control Signal
800-543-9038 USA
24
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
Blk (1) Common
Line
Volts
LMB24-3-X1 Actuators, On/Off, Floating Point
10-1/2" [266.7]
6" [152.4]
D177
Dimensions with G2...(S) Series 2-Way Valve
C
B
Models
A
LMB24-3-X1
LMB24-3-S-X1
w/built-in Aux. Switch
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
Power consumption
Transformer sizing
Electrical connection
LMB24-3-X1
LMB24-3-S-X1
Overload protection
Input impedance
Angle of rotation
Torque
Direction of rotation
Position indication
Manual override
Running time
Humidity
Ambient temperature
Storage temperature
Housing
Housing material
Agency listings
Noise level
Quality standard
LMB24-3-S-X1
Auxiliary switch
on/off, floating point
24 VAC ± 20% 50/60 Hz
24 VDC ± 10%
running 1.5 W
holding 0.2 W
3 VA (class 2 power source)
½” conduit connector
3 ft, 18 GA plenum rated cables
3 ft, 18 GA appliance cables
electronic throughout 0° to 95° rotation
600 Ω
95°
45 in-lb [5 Nm]
reversible with
reflective visual indicator (snap-on)
external push button
95 seconds, constant independent of load
5 to 95% RH non-condensing (EN 60730-1)
-22° F to 122° F [-30° C to 50° C]
-40° F to 176° F [-40° C to 80° C]
NEMA type 2/IP54
UL94-5VA
cULus acc. to UL 60730-1/-2-14,
CAN/CSA C22.2 No. 24 certified,
CE acc. to 73/23/EEC
<35 db(A)
ISO 9001
1 x SPDT, 6A (1.5A) @ 250 VAC, UL Listed, adjustable 0° to 95° (double insulated)
800-543-9038 USA
Valve Body
G2(S)
G2(S)
Valve Nominal Size
Inches DN [mm]
½"
15
¾"
20
Dimensions (Inches [mm])
A
B
C
7.56" [192]
3.00" [76]
1.06" [27]
7.56" [192]
3.62" [92]
1.06" [27]
Dimensions with G3...(D) Series 3-Way Valve
10-1/2" [266.7]
6" [152.4]
D182
Technical Data
Control
Power supply
C
B
A
Valve Body
G3(D)
G3(D)
866-805-7089 CANADA
Valve Nominal Size
Inches DN [mm]
½"
15
¾"
20
Dimensions (Inches [mm])
A
B
C
7.87" [200]
3.00" [76]
1.37" [35]
8.18" [208]
3.62" [92]
1.68" [43]
203-791-8396 LATIN AMERICA
25
LMB24-3-X1 Actuators, On/Off, Floating Point
W266-08
Wiring Diagrams
1
Provide overload protection and disconnect as required.
3
Actuators may also be powered by 24 VDC.
Meets cULus or UL and CSA requirements without the
need of an electrical ground connection.
On/Off control
WARNING Live Electrical Components!
W267-08
During installation, testing, servicing and troubleshooting of this product, it may be necessary
to work with live electrical components. Have a qualified licensed electrician or other individual who
has been properly trained in handling live electrical components perform these tasks. Failure to follow
all electrical safety precautions when exposed to live electrical components could result in death or
serious injury.
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
Floating Point or On/Off control
800-543-9038 USA
26
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
LMB24-SR-X1 Actuators, Proportional
10-1/2" [266.7]
6" [152.4]
D177
Dimensions with G2...(S) Series 2-Way Valve
C
B
Models
Technical Data
Control
Power supply
Power consumption
Transformer sizing
Electrical connection
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
Overload protection
Operating range Y
Input impedance
Angle of rotation
Torque
Direction of rotation
Position indication
Manual override
Running time
Humidity
Ambient temperature
Storage temperature
Housing
Housing material
Agency listings
Noise level
Quality standard
A
w/built-in Aux. Switch
proportional
24 VAC ± 20% 50/60 Hz
24 VDC ± 10%
running 1.5 W
holding 0.4 W
3 VA (class 2 power source)
3 ft, 18 GA plenum rated cable
½” conduit connector
electronic throughout 0° to 95° rotation
2 to 10 VDC, 4 to 20 mA
100 kΩ (0.1 mA), 500 Ω
max 95°, adjustable with mechanical stop
45 in-lb [5 Nm]
reversible with
=CCW with decreasing control signal (10-2V)
=CW with decreasing control signal (10-2V)
reflective visual indicator (snap-on)
external push button
95 seconds, constant independent of load
5 to 95% RH non-condensing (EN 60730-1)
-22° F to 122° F [-30° C to 50° C]
-40° F to 176° F [-40° C to 80° C]
NEMA type 2/IP54
UL94-5VA
cULus acc. to UL 60730-1/-2-14,
CAN/CSA C22.2 No. 24 certified,
CE acc. to 73/23/EEC
<35 db(A)
ISO 9001
800-543-9038 USA
Valve Body
G2(S)
G2(S)
Valve Nominal Size
Inches DN [mm]
½"
15
¾"
20
Dimensions (Inches [mm])
A
B
C
3.00" [76]
1.06" [27]
7.56" [192]
7.56" [192]
3.62" [92]
1.06" [27]
Dimensions with G3...(D) Series 3-Way Valve
10-1/2" [266.7]
6" [152.4]
D182
LMB24-SR-X1
C
B
A
Valve Body
G3(D)
G3(D)
866-805-7089 CANADA
Valve Nominal Size
Inches DN [mm]
½"
15
¾"
20
Dimensions (Inches [mm])
A
B
C
7.87" [200]
3.00" [76]
1.37" [35]
8.18" [208]
3.62" [92]
1.68" [43]
203-791-8396 LATIN AMERICA
27
LMB24-SR-X1 Actuators, Proportional
Wiring Diagrams
1
Provide overload protection and disconnect as required.
2
CAUTION Equipment damage!
3
Actuators may also be powered by 24 VDC.
5
Only connect common to neg. (–) leg of control circuits.
Actuators may be connected in parallel.
Power consumption and input impedance must be observed.
2 to 10 VDC control
The ZG-R01 500 Ω resistor converts the 4 to 20 mA control signal to
2 to 10 VDC, up to 2 actuators may be connected in parallel.
WARNING Live Electrical Components!
During installation, testing, servicing and troubleshooting of this product, it may be necessary
to work with live electrical components. Have a qualified licensed electrician or other individual who
has been properly trained in handling live electrical components perform these tasks. Failure to follow
all electrical safety precautions when exposed to live electrical components could result in death or
serious injury.
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
4 to 20 mA control
800-543-9038 USA
28
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
LMX24-MFT-X1 Actuators, Multi-Function Technology
10-1/2" [266.7]
6" [152.4]
D177
Dimensions with G2...(S) Series 2-Way Valve
C
B
Models
A
LMX24-MFT-X1
Power consumption
Transformer sizing
Electrical connection
Overload protection
Operating range Y
Input impedance
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
Feedback output U
Angle of rotation
Torque
Direction of rotation
Position indication
Manual override
Running time
Humidity
Ambient temperature
Storage temperature
Housing
Housing material
Agency listings
Noise level
Quality standard
24 VAC ± 20% 50/60 Hz
24 VDC ± 10%
2 W (1.2 W)
3.5 VA (class 2 power source)
3 ft, 10 ft, 16ft, 18 GA plenum rated cable
½” conduit connector
electronic throughout 0° to 95° rotation
2 to 10 VDC, 4 to 20 mA (default)
variable (VDC, PWM, floating point, on/off)
100 kΩ (0.1 mA), 500 Ω
1500 Ω (PWM, floating point, on/off)
2 to 10 VDC, 0.5 mA max, VDC variable
max 95°, adjustable with mechanical stop
electronically variable
45 in-lb [5 Nm]
reversible with
reflective visual indicator (snap-on)
external push button
default 150 seconds
variable 35 to 150 seconds
5 to 95% RH non-condensing (EN 60730-1)
-22° F to 122° F [-30° C to 50° C]
-40° F to 176° F [-40° C to 80° C]
NEMA type 2/IP54
UL94-5VA
cULus acc. to UL 60730-1A/-2-14,
CAN/CSA E60730-1, CSA C22.2
No. 24-93, CE acc. to 89/336/EEC
<35 db(A)
ISO 9001
800-543-9038 USA
Valve Body
G2(S)
G2(S)
Valve Nominal Size
Inches
DN [mm]
½"
15
¾"
20
Dimensions (Inches [mm])
A
B
C
7.56" [192]
3.00" [76]
1.06" [27]
7.56" [192]
3.62" [92]
1.06" [27]
Dimensions with G3...(D) Series 3-Way Valve
10-1/2" [266.7]
6" [152.4]
D182
Technical Data
Power supply
C
B
A
Valve Body
G3(D)
G3(D)
866-805-7089 CANADA
Valve Nominal Size
Inches
DN [mm]
½"
15
¾"
20
Dimensions (Inches [mm])
A
B
C
7.87" [200]
3.00" [76]
1.37" [35]
8.18" [208]
3.62" [92]
1.68" [43]
203-791-8396 LATIN AMERICA
29
LMX24-MFT-X1 Actuators, Multi-Function Technology
W538
Wiring Diagrams
1
Provide overload protection and disconnect as required.
2
CAUTION Equipment damage!
3
Actuators may also be powered by 24 VDC.
5
Only connect common to neg. (–) leg of control circuits.
Actuators may be connected in parallel.
Power consumption and input impedance must be observed.
W538
On/Off control
The ZG-R01 500 Ω resistor converts the 4 to 20 mA control signal to
2 to 10 VDC, up to 2 actuators may be connected in parallel.
WARNING Live Electrical Components!
During installation, testing, servicing and troubleshooting of this product, it may be necessary
to work with live electrical components. Have a qualified licensed electrician or other individual who
has been properly trained in handling live electrical components perform these tasks. Failure to follow
all electrical safety precautions when exposed to live electrical components could result in death or
serious injury.
W538
Floating Point
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
W538
VDC/4-20 mA
PWM
800-543-9038 USA
30
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
NMB24-3-X1 Actuators, On/Off, Floating Point
11" [279.4]
6" [152.4]
D178
Dimensions with G2...(S) Series 2-Way Valve
C
B
Models
A
NMB24-3-X1
Power consumption
Transformer sizing
Electrical connection
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
Overload protection
Input impedance
Angle of rotation
Torque
Direction of rotation
Position indication
Manual override
Running time
Humidity
Ambient temperature
Storage temperature
Housing
Housing material
Agency listings
Noise level
Quality standard
on/off, floating point
24 VAC ± 20% 50/60 Hz
24 VDC ± 10%
running 2.0 W
holding 0.2 W
4 VA (class 2 power source)
3 ft, 18 GA plenum rated cable
½” conduit connector
electronic throughout 0° to 95° rotation
600 Ω
max 95°, adjustable with mechanical stop
90 in-lb [10 Nm]
reversible with
=CCW with decreasing control signal (10-2V)
=CW with decreasing control signal (10-2V)
reflective visual indicator (snap-on)
external push button
95 seconds, constant independent of load
5 to 95% RH non-condensing (EN 60730-1)
-22° F to 122° F [-30° C to 50° C]
-40° F to 176° F [-40° C to 80° C]
NEMA type 2/IP54
UL94-5VA
cULus acc. to UL 60730-1/-2-14,
CAN/CSA C22.2 No. 24 certified,
CE acc. to 73/23/EEC
<45 db(A)
ISO 9001
Valve Body
G2(S)
G2(S)
Dimensions (Inches [mm])
A
B
C
8.12" [206]
4.62" [117]
1.12" [29]
4.62" [117]
1.37" [35]
8.37" [213]
Dimensions with G3...(D) Series 3-Way Valve
11" [279.4]
6" [152.4]
C
B
A
Valve Body
G3(D)
G3(D)
800-543-9038 USA
Valve Nominal Size
Inches DN [mm]
1"
25
1¼"
32
D183
Technical Data
Control
Power supply
866-805-7089 CANADA
Valve Nominal Size
Inches DN [mm]
1"
25
1¼"
32
Dimensions (Inches [mm])
A
B
C
8.56" [217]
4.62" [117]
1.56" [40]
4.62" [117]
1.62" [41]
8.62" [219]
203-791-8396 LATIN AMERICA
31
NMB24-3-X1 Actuators, On/Off, Floating Point
W266-08
Wiring Diagrams
1
Provide overload protection and disconnect as required.
3
Actuators may also be powered by 24 VDC.
Meets cULus or UL and CSA requirements without the
need of an electrical ground connection.
During installation, testing, servicing and troubleshooting of this product, it may be necessary
to work with live electrical components. Have a qualified licensed electrician or other individual who
has been properly trained in handling live electrical components perform these tasks. Failure to follow
all electrical safety precautions when exposed to live electrical components could result in death or
serious injury.
On/Off control
W267-08
WARNING Live Electrical Components!
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
Floating Point or On/Off control
800-543-9038 USA
32
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
NMB24-SR-X1 Actuators, Proportional
11" [279.4]
D178
Dimensions with G2...(S) Series 2-Way Valve
6" [152.4]
C
B
Models
NMB24-SR-X1
A
Power consumption
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
Transformer sizing
Electrical connection
Overload protection
Operating range Y
Input impedance
Angle of rotation
Torque
Direction of rotation
Position indication
Manual override
Running time
Humidity
Ambient temperature
Storage temperature
Housing
Housing material
Agency listings
Noise level
Quality standard
proportional
24 VAC ± 20% 50/60 Hz
24 VDC ± 10%
running 2.5 W
holding 0.4 W
5 VA (Class 2 power source)
3 ft, 18 GA plenum rated cable
½” conduit connector
electronic throughout 0° to 95° rotation
2 to 10 VDC, 4 to 20 mA
100 kΩ (0.1 mA), 500 Ω
max 95°, adjustable with mechanical stop
90 in-lb [10 Nm]
reversible with
reflective visual indicator (snap-on)
external push button
95 seconds, constant independent of load
5 to 95% RH non-condensing (EN 60730-1)
-22° F to 122° F [-30° C to 50° C]
-40° F to 176° F [-40° C to 80° C]
NEMA type 2/IP54
UL94-5VA
cULus acc. to UL 60730-1/-2-14,
CAN/CSA C22.2 No. 24 certified,
CE acc. to 73/23/EEC
<45 db(A)
ISO 9001
Valve Body
G2(S)
G2(S)
Dimensions (Inches [mm])
A
B
C
8.12" [206]
4.62" [117]
1.12" [29]
4.62" [117]
1.37" [35]
8.37" [213]
Dimensions with G3...(D) Series 3-Way Valve
11" [279.4]
6" [152.4]
C
B
A
Valve Body
G3(D)
G3(D)
800-543-9038 USA
Valve Nominal Size
Inches DN [mm]
1"
25
1¼"
32
D183
Technical Data
Control
Power supply
866-805-7089 CANADA
Valve Nominal Size
Inches DN [mm]
1"
25
1¼"
32
Dimensions (Inches [mm])
A
B
C
8.56" [217]
4.62" [117]
1.56" [40]
4.62" [117]
1.62" [41]
8.62" [219]
203-791-8396 LATIN AMERICA
33
NMB24-SR-X1 Actuators, Proportional
Wiring Diagrams
1
Provide overload protection and disconnect as required.
2
CAUTION Equipment damage!
3
Actuators may also be powered by 24 VDC.
5
Only connect common to neg. (–) leg of control circuits.
Actuators may be connected in parallel.
Power consumption and input impedance must be observed.
2 to 10 VDC control
Meets cULus or UL and CSA requirements without the
need of an electrical ground connection.
WARNING Live Electrical Components!
During installation, testing, servicing and troubleshooting of this product, it may be necessary
to work with live electrical components. Have a qualified licensed electrician or other individual who
has been properly trained in handling live electrical components perform these tasks. Failure to follow
all electrical safety precautions when exposed to live electrical components could result in death or
serious injury.
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
4 to 20 mA control
800-543-9038 USA
34
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
NMX24-MFT-X1 Actuators, Proportional
11" [279.4]
D178
Dimensions with G2...(S) Series 2-Way Valve
6" [152.4]
C
B
Models
NMX24-MFT-X1
A
Power consumption
Transformer sizing
Electrical connection
Overload protection
Operating range Y
Input impedance
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
Feedback output U
Angle of rotation
Torque
Direction of rotation
Position indication
Manual override
Running time
Humidity
Ambient temperature
Storage temperature
Housing
Housing material
Agency listings
Noise level
Quality standard
24 VAC ± 20% 50/60 Hz
24 VDC ± 10%
3.5 W (1.25 W)
5.5 VA (Class 2 power source)
3 ft, 10ft, 16ft, 18 GA plenum rated cable
½” conduit connector
electronic throughout 0° to 95° rotation
2 to 10 VDC, 4 to 20 mA (default)
variable (VDC, PWM, floating point, on/off)
100 kΩ (0.1 mA), 500 Ω
1500 Ω (PWM, floating point, on/off)
2 to 10 VDC, 0.5 mA max, VDC variable
max 95°, adjustable with mechanical stop
electronically variable
90 in-lb [10 Nm]
reversible with
reflective visual indicator (snap-on)
external push button
default 150 seconds
variable 45 to 170 seconds
5 to 95% RH non-condensing (EN 60730-1)
-22° F to 122° F [-30° C to 50° C]
-40° F to 176° F [-40° C to 80° C]
NEMA type 2/IP54
UL94-5VA
cULus acc. to UL 60730-1A/-2-14,
CAN/CSA E60730-1, CSA C22.2
No. 24-93,CE acc. to 89/336/EEC
<45 db(A)
ISO 9001
800-543-9038 USA
Valve Body
G2(S)
G2(S)
Valve Nominal Size
Inches DN [mm]
1"
25
1¼"
32
Dimensions (Inches [mm])
A
B
C
8.12" [206]
4.62" [117]
1.12" [29]
4.62" [117]
1.37" [35]
8.37" [213]
Dimensions with G3...(D) Series 3-Way Valve
11" [279.4]
D183
Technical Data
Power supply
6" [152.4]
C
B
A
Valve Body
G3(D)
G3(D)
866-805-7089 CANADA
Valve Nominal Size
Inches DN [mm]
1"
25
1¼"
32
Dimensions (Inches [mm])
A
B
C
8.56" [217]
4.62" [117]
1.56" [40]
4.62" [117]
1.62" [41]
8.62" [219]
203-791-8396 LATIN AMERICA
35
NMX24-MFT-X1 Actuators, Multi-Function Technology
W538
Wiring Diagrams
1
Provide overload protection and disconnect as required.
2
CAUTION Equipment damage!
3
Actuators may also be powered by 24 VDC.
5
Only connect common to neg. (–) leg of control circuits.
Actuators may be connected in parallel.
Power consumption and input impedance must be observed.
W538
On/Off control
Meets cULus or UL and CSA requirements without the
need of an electrical ground connection.
WARNING Live Electrical Components!
During installation, testing, servicing and troubleshooting of this product, it may be necessary
to work with live electrical components. Have a qualified licensed electrician or other individual who
has been properly trained in handling live electrical components perform these tasks. Failure to follow
all electrical safety precautions when exposed to live electrical components could result in death or
serious injury.
W538
Floating Point
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
W538
VDC/4-20 mA
PWM
800-543-9038 USA
36
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
AMB24-3-X1 Actuators, On/Off, Floating Point
11" [279.4]
D178_A
Dimensions with G2...(S) Series 2-Way Valve
6" [152.4]
C
B
Models
AMB24-3-X1
AMB24-3-S-X1
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
Power consumption
Transformer sizing
Electrical connection
AMB24-3-X1
AMB24-3-S-X1
Overload protection
Input impedance
Angle of rotation
Torque
Direction of rotation
Position indication
Manual override
Running time
Humidity
Ambient temperature
Storage temperature
Housing
Housing material
Agency listings
AMB24-3-S-X1
Auxiliary switch
on/off, floating point
24 VAC ± 20% 50/60 Hz
24 VDC ± 10%
running 2.5 W
holding 0.2 W
5.5 VA (Class 2 power source)
½” conduit connector
3 ft, 18 GA plenum rated cable
3 ft, 18 GA appliance cable
electronic throughout 0° to 95° rotation
600 Ω
max 95°, adjustable with mechanical stop
180 in-lb [20 Nm]
reversible with
reflective visual indicator (snap-on)
external push button
95 seconds, constant independent of load
5 to 95% RH non-condensing (EN 60730-1)
-22° F to 122° F [-30° C to 50° C]
-40° F to 176° F [-40° C to 80° C]
NEMA type 2/IP54
UL94-5VA
cULus acc. to UL 60730-1/-2-14,
CAN/CSA C22.2 No. 24 certified,
CE acc. to 73/23/EEC
<45 db(A)
ISO 9001
1 x SPDT, 6A (1.5A) @ 250 VAC, UL Listed, adjustable 0° to 95° (double insulated)
800-543-9038 USA
Valve Body
G2(S)
G2(S)
Valve Nominal Size
Inches DN [mm]
1½"
40
2"
50
Dimensions (Inches [mm])
A
B
C
8.50" [216]
5.37" [137]
1.50" [38]
6.12" [156]
1.56" [40]
8.56" [217]
Dimensions with G3...(D) Series 3-Way Valve
D184
Technical Data
Control
Power supply
Noise level
Quality standard
A
w/built-in Aux. Switch
13-1/4" [336.55]
6" [152.4]
C
B
A
Valve Body
G3(D)
G3(D)
866-805-7089 CANADA
Valve Nominal Size
Inches DN [mm]
1½"
40
2"
50
Dimensions (Inches [mm])
A
B
C
8.62" [219]
5.37" [137]
1.62" [41]
8.87" [225]
6.12" [156]
1.87" [48]
203-791-8396 LATIN AMERICA
37
AMB24-3-X1 Actuators, On/Off, Floating Point
Wiring Diagrams
1
Provide overload protection and disconnect as required.
2
CAUTION Equipment damage!
3
Actuators may also be powered by 24 VDC.
5
Only connect common to neg. (–) leg of control circuits.
Actuators may be connected in parallel.
Power consumption and input impedance must be observed.
AMB24-3-X1
On/Off control
Meets cULus or UL and CSA requirements without the
need of an electrical ground connection.
WARNING Live Electrical Components!
During installation, testing, servicing and troubleshooting of this product, it may be necessary
to work with live electrical components. Have a qualified licensed electrician or other individual who
has been properly trained in handling live electrical components perform these tasks. Failure to follow
all electrical safety precautions when exposed to live electrical components could result in death or
serious injury.
AMB24-3-X1
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
Floating Point or On/Off control
800-543-9038 USA
38
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
AMB24-SR-X1 Actuators, Proportional
11" [279.4]
6" [152.4]
D178_A
Dimensions with G2...(S) Series 2-Way Valve
C
Models
B
AMB24-SR-X1
A
Power consumption
Transformer sizing
Electrical connection
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
Overload protection
Operating range Y
Input impedance
Angle of rotation
Torque
Direction of rotation
Position indication
Manual override
Running time
Humidity
Ambient temperature
Storage temperature
Housing
Housing material
Agency listings
Noise level
Quality standard
proportional
24 VAC ± 20% 50/60 Hz
24 VDC ± 10%
running 2.5 W
holding 0.4 W
5 VA (Class 2 power source)
3 ft, 18 GA appliance cable
½” conduit connector
electronic throughout 0° to 95° rotation
2 to 10 VDC, 4 to 20 mA
100 kΩ (0.1 mA), 500 Ω
max 95°, adjustable with mechanical stop
180 in-lb [20 Nm]
reversible with
=CCW with decreasing control signal (10-2V)
=CW with decreasing control signal (10-2V)
reflective visual indicator (snap-on)
external push button
95 seconds, constant independent of load
5 to 95% RH non-condensing (EN 60730-1)
-22° F to 122° F [-30° C to 50° C]
-40° F to 176° F [-40° C to 80° C]
NEMA type 2/IP54
UL94-5VA
cULus acc. to UL 60730-1/-2-14,
CAN/CSA C22.2 No. 24 certified,
CE acc. to 73/23/EEC
<45 db(A)
ISO 9001
Valve Body
G2(S)
G2(S)
Dimensions (Inches [mm])
A
B
C
8.50" [216]
5.37" [137]
1.50" [38]
6.12" [156]
1.56" [40]
8.56" [217]
Dimensions with G3...(D) Series 3-Way Valve
13-1/4" [336.55]
6" [152.4]
C
B
A
Valve Body
G3(D)
G3(D)
800-543-9038 USA
Valve Nominal Size
Inches DN [mm]
1½"
40
2"
50
D184
Technical Data
Control
Power supply
866-805-7089 CANADA
Valve Nominal Size
Inches DN [mm]
1½"
40
2"
50
Dimensions (Inches [mm])
A
B
C
8.62" [219]
5.37" [137]
1.62" [41]
8.87" [225]
6.12" [156]
1.87" [48]
203-791-8396 LATIN AMERICA
39
AMB24-SR-X1 Actuators, Proportional
W257-08
Wiring Diagrams
1
Provide overload protection and disconnect as required.
2
CAUTION Equipment damage!
3
Actuators may also be powered by 24 VDC.
5
Only connect common to neg. (–) leg of control circuits.
Actuators may be connected in parallel.
Power consumption and input impedance must be observed.
AMB24-SR-X1
W257-08
2 to 10 VDC Control
The ZG-R01 500 Ω resistor converts the 4 to 20 mA control signal to
2 to 10 VDC, up to 2 actuators may be connected in parallel.
WARNING Live Electrical Components!
During installation, testing, servicing and troubleshooting of this product, it may be necessary
to work with live electrical components. Have a qualified licensed electrician or other individual who
has been properly trained in handling live electrical components perform these tasks. Failure to follow
all electrical safety precautions when exposed to live electrical components could result in death or
serious injury.
AMB24-SR-X1
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
4 to 20 mA Control
800-543-9038 USA
40
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
AMX24-MFT-X1 Actuators, Multi-Function Technology
11" [279.4]
D178_A
Dimensions with G2...(S) Series 2-Way Valve
6" [152.4]
C
B
Models
A
AMX24-MFT-X1
Power consumption
Transformer sizing
Electrical connection
Overload protection
Operating range Y
Input impedance
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
Feedback output U
Angle of rotation
Torque
Direction of rotation
Position indication
Manual override
Running time
Humidity
Ambient temperature
Storage temperature
Housing
Housing material
Agency listings
Noise level
Quality standard
24 VAC ± 20% 50/60 Hz
24 VDC ± 10%
4 W (1.25 W)
6 VA (Class 2 power source)
3 ft, 10ft, 16ft, 18 GA plenum rated cable
½” conduit connector
electronic throughout 0° to 95° rotation
2 to 10 VDC, 4 to 20 mA (default)
variable (VDC, PWM, floating point, on/off)
100 kΩ (0.1 mA), 500 Ω
1500 Ω (PWM, floating point, on/off)
2 to 10 VDC, 0.5 mA max, VDC variable
max 95°, adjustable with mechanical stop
electronically variable
180 in-lb [20 Nm]
reversible with
reflective visual indicator (snap-on)
external push button
default 150 seconds
variable 90 to 350 seconds
5 to 95% RH non-condensing (EN 60730-1)
-22° F to 122° F [-30° C to 50° C]
-40° F to 176° F [-40° C to 80° C]
NEMA type 2/IP54
UL94-5VA
cULus acc. to UL 60730-1A/-2-14,
CAN/CSA E60730-1, CSA C22.2
No. 24-93,CE acc. to 89/336/EEC
<45 db(A)
ISO 9001
800-543-9038 USA
Valve Body
G2(S)
G2(S)
Valve Nominal Size
Inches DN [mm]
1½"
40
2"
50
Dimensions (Inches [mm])
A
B
C
8.50" [216]
5.37" [137]
1.50" [38]
6.12" [156]
1.56" [40]
8.56" [217]
Dimensions with G3...(D) Series 3-Way Valve
D184
Technical Data
Power supply
13-1/4" [336.55]
6" [152.4]
C
B
A
Valve Body
G3(D)
G3(D)
866-805-7089 CANADA
Valve Nominal Size
Inches DN [mm]
1½"
40
2"
50
Dimensions (Inches [mm])
A
B
C
8.62" [219]
1.62" [41]
5.37" [137]
8.87" [225]
6.12" [156]
1.87" [48]
203-791-8396 LATIN AMERICA
41
AMX24-MFT-X1 Actuators, Multi-Function Technology
W538
Wiring Diagrams
1
Provide overload protection and disconnect as required.
2
CAUTION Equipment damage!
3
Actuators may also be powered by 24 VDC.
5
Only connect common to neg. (–) leg of control circuits.
Actuators may be connected in parallel.
Power consumption and input impedance must be observed.
W538
On/Off control
The ZG-R01 500 Ω resistor converts the 4 to 20 mA control signal to
2 to 10 VDC, up to 2 actuators may be connected in parallel.
WARNING Live Electrical Components!
During installation, testing, servicing and troubleshooting of this product, it may be necessary
to work with live electrical components. Have a qualified licensed electrician or other individual who
has been properly trained in handling live electrical components perform these tasks. Failure to follow
all electrical safety precautions when exposed to live electrical components could result in death or
serious injury.
W538
Floating Point
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
W538
VDC/4-20 mA
PWM
800-543-9038 USA
42
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
NVF(D)24(-E) US Actuators, On/Off
7.05" [179]
4.35" [110]
D031
Dimensions with G2... Series 2-Way Valve
Assembly using UNV-001 Bracket
C
B
A
Valve Body
G2
G2
G2
G2
G2
G2
Models
NVF24 US
Spring Up
NVF24-E US Spring Down
NVFD24 US Spring Up
NVFD24-E US
Spring Down
4.35" [110]
C
90 lbf [400 N]
180 lbf [800 N]
stroke indicator on bracket
3/16” hex, 5mm hex or phillips screwdriver
motor 150 seconds, independent of load
spring 30 seconds at ¾” [20mm] stroke
5 to 95% RH non-condensing
32°F to 122°F [0°C to 50°C]
20°F to 176°F [-7°C to 80°C]
NEMA 2/IP54 with cable entry down
UL94-5V (flammability rating)
cULus to UL 60730-1A/UL60730-2-14 and CAN/
CSA E60730-1/CSA C22.2 No. 24-93 CE acc. to
2004/108/EC & 2006/95/EC, tested to 1EC/EN
60730-1 and 1EC/EN 60370-2-14
<35 dB(A)
ISO 9001
800-543-9038 USA
48
7.05" [179]
spring up
spring down
Humidity
Ambient temperature
Storage temperature
Housing
Housing material
Agency listings†
Noise level
Quality standard
Dimensions with G2...S Series 2-Way Valve
Assembly using UNV-035 Bracket (Bracket is 1.563” longer than UNV-001)
B
A
Valve Body
G2S
G2S
G2S
G2S
G2S
G2S
866-805-7089 CANADA
Valve Nominal Size
Inches DN [mm]
½”
15
¾”
20
1"
25
1 ¼"
32
1½”
40
2"
50
Dimensions (Inches [mm])
A
B
C
3.00" [76]
1.06" [27] 11.31" [287]
3.62" [92]
1.06" [27] 11.31" [287]
4.62" [117]
1.12" [29] 12.00" [305]
4.62" [117]
1.37” [35] 12.00" [305]
5.37" [137]
1.50” [38] 12.06” [306]
6.12" [156]
1.56” [40] 12.37” [314]
203-791-8396 LATIN AMERICA
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
Overload protection
Control signal Y
Operating range
Maximum stroke
Plunger
NVF...24 US
NVF...24-E US
Force
NVFD24(-E) US
NVF24(-E) US
Position indication
Manual override
Running time
24 VAC ± 20% 50/60 Hz, 24 VDC ± 10%
19.2...28.8 VAC, 21.6...28.8 VDC
5.5 W
10 VA (Class 2 power source)
3 ft, 18 GA plenum rated cable
½” conduit connector
electronic throughout stroke
on/off
2 to 10 VDC
¾” [20mm]
Dimensions (Inches [mm])
A
B
C
9.75" [248]
3.00" [76]
1.06" [27]
9.75" [248]
3.62" [92]
1.06" [27]
4.62" [117]
1.12" [29] 10.43" [265]
4.62" [117]
1.37” [35] 10.43" [265]
5.37" [137]
1.50” [38] 10.50" [267]
6.12" [156]
1.56” [40] 10.81" [275]
D056
Technical Data
Power supply
Nominal voltage range
Power consumption
Transformer sizing
Electrical connection
Valve Nominal Size
Inches DN [mm]
½”
15
¾”
20
1"
25
1¼"
32
1½”
40
2"
50
NVF(D)...24(-E) US Actuators, On/Off
7.05" [179]
Wiring Diagrams
W136-ON-OFF
Dimensions with G3...(D) Series 3-Way Valve
4.35" [110]
C
B
A
Valve Body
G3(D)
G3(D)
G3(D)
G3(D)
G3(D)
G3(D)
G3(D)
Valve Nominal Size
Inches DN [mm]
½”
15
½”
15
¾”
20
1"
25
1¼”
32
1½”
40
2"
50
Dimensions (Inches [mm])
A
B
C
9.75" [248]
3.00" [76]
1.37" [35]
9.75" [248]
3.00" [76]
1.37" [35]
9.75" [248]
3.62" [92]
1.68” [43]
4.62" [117]
1.56" [40]
9.81” [249]
4.62" [117]
1.62" [41] 10.06” [256]
9.18” [234]
5.37" [137]
1.62" [41]
9.25” [235]
6.12" [156]
1.87” [48]
On/Off control
Spring Return Actuators Model Designation
NVF(D)24 US
retracting plunger (spring up)
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
NVF(D)24-E US
extending plunger (spring down)
800-543-9038 USA
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
49
NVF(D)24-MFT(-E) US Actuators, Multi-Function Technology
7.05" [179]
4.35" [110]
D031
Dimensions with G2... Series 2-Way Valve
Assembly using UNV-001 Bracket
C
B
A
Technical Data
Power supply
Nominal voltage range
Power consumption
Transformer sizing
Electrical connection
Overload protection
Control signal Y
Operating range
Input impedance
Operating range
Maximum stroke
Plunger
NVF...24-MFT US
NVF...24-MFT-E US
Force
NVFD24-MFT(-E) US
NVF24-MFT(-E) US
Position indication
Manual override
Running time
Humidity
Ambient temperature
Storage temperature
Housing
Housing material
Agency listings†
Noise level
Quality standard
24 VAC ± 20% 50/60 Hz, 24 VDC ± 10%
19.2...28.8 VAC, 21.6...28.8 VDC
5.5 W
10 VA (Class 2 power source)
3 ft, 18 GA plenum rated cable
½” conduit connector
electronic throughout stroke
2 to 10 VDC (V-10001 default), PWM available
2 to 10 VDC
4 to 20 mA (w/500 Ω, ¼ W resistor) ZG-R01
100 kΩ for 2 to 10 VDC (0.1 mA)
500 Ω for 4 to 20 mA
1500 Ω for PWM, on/off and floating point
2 to 10 VDC
¾” [20mm]
Dimensions (Inches [mm])
A
B
C
9.75" [248]
3.00" [76]
1.06" [27]
9.75" [248]
3.62" [92]
1.06" [27]
10.43" [265]
4.62" [117]
1.12" [29]
4.62" [117]
1.37” [35]
10.43" [265]
10.50" [267]
5.37" [137]
1.50” [38]
6.12" [156]
1.56” [40]
10.81" [275]
Dimensions with G2...S Series 2-Way Valve
Assembly using UNV-035 Bracket (Bracket is 1.563” longer than UNV-001)
7.05" [179]
4.35" [110]
C
spring up
spring down
90 lbf [400 N]
180 lbf [800 N]
stroke indicator on bracket
3/16” hex, 5mm hex or phillips screwdriver
motor 150 seconds, independent of load and stroke
spring 30 seconds at ¾” [20mm] stroke
5 to 95% RH non-condensing
32°F to 122°F [0°C to 50°C]
20°F to 176°F [-7°C to 80°C]
NEMA 2/IP54 with cable entry down
UL94-5V (flammability rating)
cULus to UL 60730-1A/UL60730-2-14 and CAN/
CSA E60730-1/CSA C22.2 No. 24-93 CE acc. to
2004/108/EC & 2006/95/EC, tested to 1EC/EN
60730-1 and 1EC/EN 60370-2-14
<35 dB(A)
ISO 9001
800-543-9038 USA
50
Valve Body
G2
G2
G2
G2
G2
G2
Spring Up
Spring Down
Spring Up
Spring Down
B
A
Valve Body
G2S
G2S
G2S
G2S
G2S
G2S
866-805-7089 CANADA
Valve Nominal
Size
Inches DN [mm]
½”
15
¾”
20
1"
25
1¼"
32
1½”
40
2"
50
Dimensions (Inches [mm])
A
B
C
11.31" [287]
3.00" [76]
1.06" [27]
11.31" [287]
3.62" [92]
1.06" [27]
12.00" [305]
4.62" [117]
1.12" [29]
4.62" [117]
1.37” [35]
12.00" [305]
12.06” [306]
5.37" [137]
1.50” [38]
6.12" [156]
1.56” [40]
12.37” [314]
203-791-8396 LATIN AMERICA
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
NVF24-MFT US
NVF24-MFT-E US
NVFD24-MFT US
NVFD24-MFT-E US
Valve Nominal
Size
Inches DN [mm]
½”
15
¾”
20
1"
25
1¼"
32
1½”
40
2"
50
D056
Models
NVF(D)24-MFT(-E) US Actuators, Multi-Function Technology
7.05" [179]
Wiring Diagrams
W136-MFT
Dimensions with G3...(D) Series 3-Way Valve
4.35" [110]
C
B
A
Valve Nominal Size
Inches DN [mm]
½”
15
½”
15
¾”
20
1"
25
1¼”
32
1½”
40
2"
50
Dimensions (Inches [mm])
A
B
C
9.75" [248]
3.00" [76]
1.37" [35]
9.75" [248]
3.00" [76]
1.37" [35]
9.75" [248]
3.62" [92]
1.68” [43]
4.62" [117]
1.56" [40]
9.81” [249]
10.06” [256]
4.62" [117]
1.62" [41]
9.18” [234]
5.37" [137]
1.62" [41]
9.25” [235]
6.12" [156]
1.87” [48]
On/Off Control
W135-MFT
Valve Body
G3(D)
G3(D)
G3(D)
G3(D)
G3(D)
G3(D)
G3(D)
Dimensions with G6...C Series 2-Way Valve
4.35" [110]
7.05" [179]
W135-MFT
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
2 to 10 VDC
C
B
A
D068
Valve Body
G6C ANSI 125
G6C ANSI 125
Valve Nominal Size
Dimensions (Inches [mm])
Inches DN [mm]
A
B
C
2½”
65
9.00” [229]
4.75” [120] 15.00" [381]
3"
80
10.00” [254]
5.37” [137] 15.43" [392]
4 to 20 mA
Spring Return Actuators Model Designation
NVF(D)24-MFT US
retracting plunger (spring up)
NVF(D)24-MFT-E US
extending plunger (spring down)
800-543-9038 USA
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
51
LF24 US Actuators, On/Off
D180
Dimensions with G2...(S) Series 2-Way Valve
7-5/8" [193.68]
6" [152.4]
C
B
A
Models
LF24 US
LF24-S US
LF120 US
LF120-S US
w/built-in Aux. Switch
w/built-in Aux. Switch
on/off, floating point
24 VAC ± 20% 50/60 Hz
24 VDC ± 10%
120 VAC ± 10% 50/60 Hz
running
holding
running
holding
LF120(-S) US
Transformer sizing
LF24(-S) US
LF120(-S) US
Electrical connection
Electrical protection
Overload protection
Angle of rotation
Spring return direction
Position indication
Running time
Ambient temperature
Housing
Agency listings†
Quality standard
Noise level
LF...-S US
Auxiliary switch
Dimensions (Inches [mm])
A
B
C
7.56” [192]
3.00" [76]
1.06" [27]
7.56” [192]
3.62" [92]
1.06" [27]
Dimensions with G3...(D) Series 3-Way Valve
D185
LF120(-S) US
Power consumption
LF24(-S) US
Valve Nominal Size
Inches DN [mm]
½"
15
¾"
20
7-5/8" [193.68]
5W
2.5 W
5.5 W
3.5 W
7 VA, class 2 power source
7.5 VA, class 2 power source
3 ft, 18 GA appliance cable
(-S models have 2 cables)
½” conduit connector
120V actuators double insulated
electronic throughout rotation
95°
reversible with CW/CCW mounting
visual indicator 0° to 90°
<40 to 75 sec. (on-off)
spring <25 sec. @-4°F to 122°F [-20°C to 50°C]
<60 sec. @-22°F [-30°C]
-22° F to 122° F [-30° C to 50° C]
NEMA 2
UL 873, CSA C22.2 No. 24 certified, CE
ISO 9001
max. 62 dB(A)
6" [152.4]
C
B
A
Valve Body
G3(D)
G3(D)
Valve Nominal Size
Inches DN [mm]
½"
15
¾"
20
Dimensions (Inches [mm])
A
B
C
7.87” [200]
3.00" [76]
1.37" [35]
8.18” [208]
3.62" [92]
1.68” [43]
1 x SPDT, 6A (1.5A) @ 250 VAC, UL Listed, adjustable 0° to 95° (double insulated)
† Rated impulse voltage 800V (4kV for 120V model), Control pollution degree 3,
Type of action 1.AA (1.AA.B for -S models)
800-543-9038 USA
52
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
Technical Data
Control
Power supply
LF24(-S) US
Valve Body
G2(S)
G2(S)
LF24 US Actuators, On/Off
W047
Wiring Diagrams
24 VAC Transformer
2
CAUTION Equipment damage!
3
Actuator may also be powered by 24 VDC.
4
For end position indication, interlock control, fan startup, etc.,
LF24-S US and LF120-S US incorporates a built-in auxiliary switch:
1 x SPDT, 6A (1.5A) @ 250 VAC, UL listed, adjustable 0° to 95°.
Line
Volts
Actuators may be connected in parallel.
Power consumption must be observed.
1 Common
2 + Hot
LF24 US
3
2
W048-AUX
On/Off wiring
Meets cULus or UL and CSA requirements without the
need of an electrical ground connection.
WARNING Live Electrical Components!
Auxiliary Switch
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
During installation, testing, servicing and troubleshooting of this product, it may be necessary
to work with live electrical components. Have a qualified licensed electrician or other individual who
has been properly trained in handling live electrical components perform these tasks. Failure to follow
all electrical safety precautions when exposed to live electrical components could result in death or
serious injury.
800-543-9038 USA
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
53
LF24-3 US Actuators, Floating Point
7-5/8" [193.68]
6" [152.4]
D180
Dimensions with G2...(S) Series 2-Way Valve
C
B
A
Models
LF24-3 US
LF24-3-S US
w/built-in Aux. Switch
running
holding
Transformer sizing
Electrical connection
Overload protection
Input impedance
Angle of rotation
Torque
Direction of rotation
spring
motor
Position indication
Running time
motor
spring
Humidity
Ambient temperature
Storage temperature
Housing
Housing material
Agency listings
Noise level (max)
Servicing
Quality standard
LF24-3-S US
Auxiliary switch
running
spring return
1 x SPDT, 6A (1.5A) @ 250 VAC, UL Listed, adjustable 0° to 95° (double insulated)
800-543-9038 USA
54
Valve Body
G2(S)
G2(S)
Valve Nominal Size
Inches DN [mm]
½”
15
¾”
20
Dimensions (Inches [mm])
A
B
C
7.56” [192]
3.06” [78]
1.06” [27]
7.56” [192]
3.62” [92]
1.06” [27]
Dimensions with G3...(D) Series 3-Way Valve
7-5/8" [193.68]
6" [152.4]
C
B
A
Valve Body
G3(D)
G3(D)
866-805-7089 CANADA
Valve Nominal Size
Inches DN [mm]
½"
(15)
¾"
(20)
Dimensions (Inches [mm])
A
B
C
7.87" [2000]
3.00" [76]
1.37" [35]
8.18" [208]
3.62" [92]
1.68" [43]
203-791-8396 LATIN AMERICA
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
Power consumption
24 VAC ± 20% 50/60 Hz
24 VDC ± 10%
2.5 W
1W
5 VA (class 2 power source)
3 ft, 18 GA appliance cables
(-S model has 2 cables)
½” conduit connector
electronic throughout 0° to 95° rotation
1000 Ω (0.6w) control inputs
95°
35 in-lb [Nm]
reversible with CW/CCW mounting
reversible with built-in
visual indicator 0° to 90°
150 sec. constant independent of load
<25 sec. @ -4°F to 122°F [-20°C to 50°C]
<60 sec. @ -22°F [-30°C]
5 to 95% RH non-condensing
-22° F to 122° F [-30° C to 50° C]
-40° F to 176° F [-40° C to 80° C]
NEMA type 2/IP54
zinc coated metal
UL 873 listed, CSA C22.2 No. 24 certified, CE
<30 db(A)
62 dB(A)
maintenance free
ISO 9001
D185
Technical Data
Power supply
LF24-3 US Actuators, Floating Point
W054
Wiring Diagrams
24 VAC Transformer
Line
Volts
CAUTION Equipment damage!
3
Actuators may also be powered by 24 VDC.
4
The common connection from the actuator must be connected to the
Hot connection of the controller.
6
8
Hot
nents!
ting,
hooting
be
h live
Have
ectrician
o has
n
Com
Blk (1) Common
Red (2) + Hot
Wht (3) +
Grn (4) +
CW
hese
all
utions
electrical
ult in
.
The actuator Hot must be connected to the control board common.
For end position indication, interlock control, fan startup, etc.,
LF24-3-S US incorporates one built-in auxiliary switch: 1 x SPDT, 6A (1.5A) @
250 VAC, UL listed, adjustable 0° to 95°.
Actuators with plenum rated cable do not have numbers on wires;
use color coded instead. Actuators with appliance rated cable use numbers.
8
CCW
LF24-3(-S) US
The indication of direction is
valid for switch position CW.
Controller
Triac source
W055
Actuators may be connected in parallel.
Power consumption must be observed.
5
2
NG
2
24 VAC Transformer
Line
Volts
G
Meets cULus or UL and CSA requirements without the
need of an electrical ground connection.
WARNING Live Electrical Components!
8
2
nts!
ng,
ooting
e
ive
Have
trician
has
Hot
Com
Blk (1) Common 4
Red (2) + Hot
5
Wht (3) +
Grn (4) +
During installation, testing, servicing and troubleshooting of this product, it may be necessary
to work with live electrical components. Have a qualified licensed electrician or other individual who
has been properly trained in handling live electrical components perform these tasks. Failure to follow
all electrical safety precautions when exposed to live electrical components could result in death or
serious injury.
ese
ll
ons
ectrical
t in
CW
CCW
LF24-3(-S) US
Controller
The indication of direction is valid for switch position CW.
3
2
8
Blk (1) Common
Line
Volts
24 VAC Transformer
24 VAC Transformer
s!
Line
Volts
Line
Volts
2
8
Red (2) +
Blk (1) Common
ing
a
Wht (3) +
e
ve
cian
s
Grn (4) +
a open
a closed
Hot
Com
Red (2) + Hot
5
Wht (3) +
Grn (4) +
CW
CCW
The indication of direction
is valid for switch position CW.
e
LF24-3(-S) US
ns
rical
n
24 VAC Transformer
W052
On/Off control
8
CW
CCW
LF24-3(-S) US
Controller
The indication of direction is valid for switch position CW.
Triac sink with separate transformers
Blk (1) Common
Line
Volts
Red (2) +
a
Wht (3) +
b
Grn (4) +
Installation Side
xx
xx
xx
xx
xx
xx
xx
xx
xx
xx
xx
xx
xx
xx
xx
xx
xx
x
xx
x
CCW
Switch
Positions
a
(3)
b
(4)
Direction of Rotation Switch
CW
W
C W
CC
CW
C W
CC
stop
stop
stop
stop
CW
CCW
LF24-3(-S) US
The indication of direction
is valid for switch position CW.
Floating Point control
W053
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
W056
24 VAC Transformer
W061
Triac sink
6
S1
NC
S2
S3
NO
0° to 95°
LF24-3-S US
Auxiliary switch
800-543-9038 USA
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
55
LF24-SR US Actuators, Proportional
7-5/8" [193.68]
6" [152.4]
D180
Dimensions with G2...(S) Series 2-Way Valve
C
B
A
Models
w/built-in Aux. Switch
Power consumption
running
holding
Transformer sizing
Electrical connection
Overload protection
Input impedance
Feedback output
Angle of rotation
Direction of rotation
spring
motor
Position indication
Running time
motor
spring
Ambient temperature
Housing
Agency listings
Quality standard
Noise level
LF24-SR-S US
Auxiliary switch
proportional
2 to 10 VDC
4 to 20 mA (with 500 Ω resistor)
2.5 W
1W
5 VA (Class 2 power)
3 ft, 18 GA appliance cables
(-S model has 2 cables)
½” conduit connector
electronic throughout 0° to 95° rotation
100 kΩ
2 to 10 VDC
95°
reversible with CW/CCW mounting
reversible with built-in
visual indicator
<40 to 75 sec. (on/off)
150 sec. independent of load (proportional)
<25 sec. @ -4°F to 122°F [-20°C to 50°C]
<60 sec. @ -22°F [-30°C]
-22° F to 122° F [-30° C to 50° C]
NEMA 2
UL 873, CSA C22.2 No. 24 certified, CE
ISO 9001
max. 62 dB(A)
56
Dimensions (Inches [mm])
A
B
C
7.56" [192]
3.00" [76]
1.06" [27]
7.56" [192]
3.62" [92]
1.06" [27]
Dimensions with G3...(D) Series 3-Way Valve
7-5/8" [193.68]
6" [152.4]
C
B
A
1 x SPDT, 6A (1.5A) @ 250 VAC, UL Listed, adjustable 0° to 95° (double insulated)
800-543-9038 USA
Valve Nominal Size
Inches DN [mm]
½"
(15)
¾"
(20)
D185
Technical Data
Control
Control signal
Valve Body
G2(S)
G2(S)
Valve Body
G3(D)
G3(D)
866-805-7089 CANADA
Valve Nominal Size
Inches DN [mm]
½"
15
¾"
20
Dimensions (Inches [mm])
A
B
C
7.87" [200]
3.00" [76]
1.37" [35]
8.18" [208]
3.62" [92]
1.68" [43]
203-791-8396 LATIN AMERICA
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
LF24-SR US
LF24-SR-S US
LF24-SR US Actuators, Proportional
4
24 VAC Transformer
2
Blk (1) Common
Line
Volts
CAUTION Equipment damage!
Actuators may be connected in parallel. Up to 4 actuators may be connected
in parallel. With 4 actuators wired to one 500 Ω resistor, a +2% shift of
control signal may be required. Power consumption must be observed.
W057
Wiring Diagrams
Red (2) + Hot
3
Wht (3) Y1 Input, 2 to 10V
Control Signal (–)
2 to 10 VDC (+)
Grn (5) U Output, 2 to 10V
7
3
Actuators may also be powered by 24 VDC.
4
Actuators with plenum rated cable do not have numbers on wires;
use color codes instead.
5
Only connect common to neg. (–) leg of control circuits.
6
For end position indication, interlock control, fan startup, etc.,
LF24-SR-S US incorporates one built-in auxiliary switch: 1 x SPDT, 6A (1.5A)
@ 250 VAC, UL listed, adjustable 0° to 95°.
7
The LF24-SR-S US wire 5 is white.
CW
CCW
2
LF24-SR US
2 to 10 VDC control
24 VAC Transformer
Blk (1) Common
Line
Volts
(–)
4 to 20 mA
Control Signal (+)
Ω
500Ω
5
Red (2) + Hot
3
Wht (3) Y1 Input, 2 to 10V
2 to 10 VDC (–)
Feedback Signal (+)
The ZG-R01 500 Ω resistor converts the 4 to 20 mA control signal to
2 to 10 VDC, up to 2 actuators may be connected in parallel.
Meets cULus or UL and CSA requirements without the
need of an electrical ground connection.
4
Grn (5) U Output, 2 to 10V
To other
actuators
CW
CCW
2
LF24-SR US
W058
4 to 20 mA control
WARNING Live Electrical Components!
During installation, testing, servicing and troubleshooting of this product, it may be necessary
to work with live electrical components. Have a qualified licensed electrician or other individual who
has been properly trained in handling live electrical components perform these tasks. Failure to follow
all electrical safety precautions when exposed to live electrical components could result in death or
serious injury.
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
Auxiliary switch
800-543-9038 USA
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
57
LF24-MFT US Actuators, Multi-Function Technology
7-5/8" [193.68]
6" [152.4]
D180
Dimensions with G2...(S) Series 2-Way Valve
C
B
A
Models
LF24-MFT US
LF24-MFT-S US
w/built-in Aux. Switch
Transformer sizing
Electrical connection
(-S models have 2 cables)
Overload protection
Feedback output
Input impedance
Angle of rotation
Direction of rotation
spring
motor
Position indication
Running time
motor
spring
Ambient temperature
Housing
Agency listings
Noise level (max)
Quality standard
LF24-MFT-S US
Auxiliary switch
running
spring return
1 x SPDT, 6A (1.5A) @ 250 VAC, UL Listed, adjustable 0° to 95° (double insulated)
800-543-9038 USA
58
Valve Nominal Size
Inches DN [mm]
½"
15
¾"
20
Dimensions (Inches [mm])
A
B
C
7.56" [1922]
3.00" [76]
1.06" [27]
7.56" [192]
3.62" [92]
1.06" [27]
Dimensions with G3...(D) Series 3-Way Valve
7-5/8" [193.68]
6" [152.4]
C
B
A
Valve Body
G3(D)
G3(D)
866-805-7089 CANADA
Valve Nominal Size
Inches DN [mm]
½"
15
¾"
20
Dimensions (Inches [mm])
A
B
C
7.87" [200]
3.00" [76]
1.37" [35]
8.18" [208]
3.62" [92]
1.68" [43]
203-791-8396 LATIN AMERICA
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
running
holding
MFT
2 to 10 VDC
2.5 W
1W
5 VA (Class 2 power source)
½” conduit connector
3 ft [1m], 18 GA appliance cable
electronic throughout 0° to 95° rotation
2 to 10 VDC, 0.5 mA max
100 kΩ for 2 to 10 VDC (0.1 mA)
500 Ω for 4 to 20mA
750 Ω for PWM
500 Ω for on/off and floating point
95°
reversible with CW/CCW mounting
reversible with built-in
visual indicator
150 sec. independent of load
(proportional, default)
<25 sec. @-4°F to 122°F [-20°C to 50°C]
<60 sec. @-22°F [-30°C]
-22° F to 122° F [-30° C to 50° C]
NEMA 2
cULus according to UL 873 and CAN/CSA C22.2
No. 24-93
<30 db(A)
62 dB(A)
ISO 9001
Valve Body
G2(S)
G2(S)
D185
Technical Data
Control
Control signal
Power consumption
LF24-MFT US Actuators, Multi-Function Technology
W043
Wiring Diagrams
24 VAC/DC Transformer
Line
Volts
CAUTION Equipment damage!
Actuators may be connected in parallel if not mechanically mounted to the
same shaft. Power consumption and input impedance must be observed.
3
Actuators may also be powered by 24 VDC.
4
IN4004 or IN4007 diode (IN4007 supplied, Belimo part number 40155).
5
Triac A and B can also be contact closures.
6
7
Position
Common
(2)
Hot
(3)
Y Input
(5)
U Output
a
(–)
Feedback VDC (+)
CCW CW
…MFT
On/Off control
W041
2
(1)
24 VAC Transformer (AC only)
Control signal may be pulsed from either the Hot (Source) or
Common (Sink) 24 VAC line.
Position feedback cannot be used with Triac sink controller.
The actuators internal common reference is not compatible.
(1)
Line
Volts
7
Position
6
(–)
Feedback VDC (+)
The ZG-R01 500 Ω resistor converts the 4 to 20 mA control signal to
2 to 10 VDC, up to 2 actuators may be connected in parallel.
Common
(2)
+ Hot
(3)
Y Input
(5)
U Output
CCW CW
…MFT
PWM, triac source and sink
WARNING Live Electrical Components!
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
W302
During installation, testing, servicing and troubleshooting of this product, it may be necessary
to work with live electrical components. Have a qualified licensed electrician or other individual who
has been properly trained in handling live electrical components perform these tasks. Failure to follow
all electrical safety precautions when exposed to live electrical components could result in death or
serious injury.
Floating Point control
Proportional 2 to 10 or 4 to 20 mA control signal
800-543-9038 USA
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
59
NFBUP-X1 Actuators, On/Off
D180
Dimensions with G2...(S) Series 2-Way Valve
C
B
A
Models
Technical Data
Power supply
Power consumption
running
holding
Transformer sizing
Electrical connection
Overload protection
Control
Torque
Direction of rotation
spring
Mechanical angle of rotation
motor
spring
Running time
Position indication
Manual override
Humidity
Ambient temperature
Housing
Housing material
Agency listings †
Noise level
Quality standard
Weight
Valve Body
G2(S)
G2(S)
24...240 VAC -20% / +10%, 50/60 Hz
24...125 VDC ±10%
6W
2.5 W
9.5 VA (Class 2 power source)
3 ft, 18 GA appliance cable, ½" conduit connector
-S models: two 3 ft, 18 gauge appliance cables
with ½” conduit connectors
electronic throughout 0 to 95° rotation
on/off
90 in-lb [10 Nm] minimum
reversible with CW/CCW mounting
95° (adjustable with mechanical end stop, 35° to
95°)
<75 sec
20 sec @ -4°F to 122°F [-20°C to 50°C];
<60 sec @ -22°F [-30°C]
visual indicator, 0° to 95°
(0° is full spring return position)
5 mm hex crank (³⁄₁₆
⁄ " Allen), supplied
max. 95% RH non-condensing
-22°F to 122°F [-30°C to 50°C]
Nema 2, IP54, Enclosure Type2
Zinc coated metal and plastic casing
cULus acc. to UL60730-1A/-2-14,
CAN/CSA E60730-1:02, CE acc. to
2004/108/EC & 2006/95/EC
<50dB(A) motor @ 75 seconds
≤62dB(A) spring return
ISO 9001
4.15 lbs (1.9 kg), 4.25 lbs (1.9 kg) with switches
Valve Nominal Size
Inches DN [mm]
1”
32
1¼”
40
Dimensions (Inches [mm])
A
B
C
8.12” [206]
4.62” [117]
1.12” [29]
8.37” [213]
4.62" [117]
1.37” [35]
Dimensions with G3...(D) Series 3-Way Valve
C
B
A
Valve Body
G3(D)
G3(D)
Valve Nominal Size
Inches DN [mm]
1”
25
1¼”
32
Dimensions (Inches [mm])
A
B
C
8.56” [217]
4.62” [117]
1.56” [40]
8.62” [219]
4.62” [117]
1.62” [41]
† Rated Impulse Voltage 4kV, Type of action 1.AA (1.AA.B for -S version), Control Pollution Degree 3.
NFBUP-S-X1
Auxiliary switches
2 x SPDT 3A (0.5A) @ 250 VAC, UL approved
one set at +10°, one adjustable 10° to 90°
800-543-9038 USA
60
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
w/built-in Aux. Switch
D185
NFBUP-X1
NFBUP-S-X1
NFBUP-X1 Actuators, On/Off
W066_NFB(X)UP
Wiring Diagrams
1
Provide overload protection and disconnect as required.
2
CAUTION
N Equipment Damage!
3
No ground connection is required.
4
For end position indication, interlock control, fan startup, etc., NFBUP-S-X1
incorporates two built-in auxiliary switches: 2 x SPDT, 3A (0.5A) @250 VAC,
UL Approved, one switch is fixed at +10°, one is adjustable 10° to 90°.
Actuators may be connected in parallel.
Power consumption and input impedance must be observed.
NFBUP-X1
NFBUP-S-X1
W067_NFB(X)UP-S
On/Off wiring for NFBUP-X1
Meets cULus requirements without the need of an electrical ground connection.
WARNING
G Live Electrical Components!
During installation, testing, servicing and troubleshooting of this product, it may be necessary
to work with live electrical components. Have a qualified licensed electrician or other individual who
has been properly trained in handling live electrical components perform these tasks. Failure to follow
all electrical safety precautions when exposed to live electrical components could result in death or
serious injury.
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
NFBUP-S-X1
Auxiliary Switches for NFBUP-S-X1
800-543-9038 USA
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
61
NFB24-SR-X1 Actuators, Proportional
D180
Dimensions with G2...(S) Series 2-Way Valve
C
Models
Power consumption
running
holding
Transformer sizing
Electrical connection
Overload protection
Operating range Y
Input impedance
Feedback output U
Torque
Direction of rotation
spring
motor
Mechanical angle of rotation
spring
Running time
motor
Position indication
Manual override
Humidity
Ambient temperature
Housing
Housing material
Agency listings†
Quality standard
Weight
24 VAC ±20%, 50/60 Hz
24 VDC +20% / -10%
3.5 W
2.5 W
6 VA (Class 2 power source)
3 ft, 18 GA appliance cable, ½” conduit connector
-S models: Two 3 ft, 18 GA appliance cables with
½” conduit connectors
electronic throughout 0 to 95° rotation
2 to 10 VDC, 4 to 20mA
100 kΩ for 2 to 10 VDC (0.1 mA)
500 Ω for 4 to 20 mA
2 to 10 VDC (max. 0.5 mA)
90 in-lb [10 Nm] minimum
reversible with CW/CCW mounting
reversible with built-in switch
95° (adjustable with mechanical end stop, 35° to
95°)
<20 sec @ -4°F to 122°F [-20°C to 50°C];
<60 sec @ -22°F [-30°C]
95 sec
visual indicator, 0° to 95°
(0° is full spring return position)
5 mm hex crank ((³⁄₁₆ Allen), supplied
max. 95% RH non-condensing
-22°F to 122°F [-30°C to 50°C]
Nema 2, IP54, Enclosure Type2
Zinc coated metal and plastic casing
cULus acc. to UL60730-1A/-2-14, CAN/CSA
E60730-1:02, CE acc. to 2004/108/EC &
2006/95/EC
≤40dB(A) motor @ 95 seconds
≤62dB(A) spring return
ISO 9001
4.15 lbs (1.9 kg); 4.25 lbs (1.9 kg) with switches
Valve Body
G2(S)
G2(S)
Valve Nominal Size
Inches DN [mm]
1”
32
1¼”
40
Dimensions (Inches [mm])
A
B
C
8.12” [206]
4.62” [117]
1.12” [29]
8.37” [213]
4.62" [117]
1.37” [35]
Dimensions with G3...(D) Series 3-Way Valve
C
B
A
Valve Body
G3(D)
G3(D)
Valve Nominal Size
Inches DN [mm]
1”
25
1¼”
32
Dimensions (Inches [mm])
A
B
C
8.56” [217]
4.62” [117]
1.56” [40]
8.62” [219]
4.62” [117]
1.62” [41]
† Rated Impulse Voltage 800V, Type of action 1.AA (1.AA.B for -S version), Control Pollution Degree 3.
NFB24-SR-S-X1
Auxiliary switches
2 x SPDT 3A (0.5A) @ 250 VAC, UL approved
one set at +10°, one adjustable 10° to 90°
800-543-9038 USA
62
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
Technical Data
Power supply
Noise level
A
w/built-in Aux. Switch
D185
NFB24-SR-X1
NFB24-SR-S-X1
B
NFB24-SR-X1 Actuators, Proportional
Wiring Diagrams
1
1
Provide overload protection and disconnect as required.
2
CAUTION
N Equipment Damage!
24 VAC Transformer
Line
Volts
1 Common
3 Y1 Input, 2 to 10V
Control Signal (–)
2 to 10 VDC (+)
Actuators may be connected in parallel.
Power consumption and input impedance must be observed.
2
Up to 4 actuators may be connected in parallel. With 4 actuators
wired to one 500 Ω resistor. Power consumption must be observed.
3
Actuator may also be powered by 24 VDC.
4
For end position indication, interlock control, fan startup, etc., NFB24-SR-S-X1
incorporates two built-in auxiliary switches: 2 x SPDT, 3A (0.5A) @250 VAC,
UL Approved, one switch is fixed at +10°, one is adjustable 10° to 90°.
5
Only connect common to neg. (–) leg of control circuits
3
2 + Hot
5 U Output 2 to 10V
NFB24-SR-X1
NFB24-SR-S-X1
2
W069_NFB(X)24-SR
2 to 10 VDC control of NFB24-SR-X1
The ZG-R01 500 Ω resistor converts the 4 to 20 mA control signal to
2 to 10 VDC.
WARNING
G Live Electrical Components!
During installation, testing, servicing and troubleshooting of this product, it may be necessary
to work with live electrical components. Have a qualified licensed electrician or other individual who
has been properly trained in handling live electrical components perform these tasks. Failure to follow
all electrical safety precautions when exposed to live electrical components could result in death or
serious injury.
NFB24-SR-X1
NFB24-SR-S-X1
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
W064_NFB(X)24_SR_-S
4 to 20 mA control of NFB24-SR-X1 with
2 to 10 VDC feedback output
NFB24-SR-S-X1
Auxiliary switches for NFB24-SR-S-X1
800-543-9038 USA
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
63
NFX24-MFT-X1 Actuators, Multi-Function Technology
D180
Dimensions with G2...(S) Series 2-Way Valve
C
Models
NFX24-MFT-X1
NFX24-MFT-S-X1
B
A
Transformer sizing
Electrical connection
Overload protection
Operating range Y*
Input impedance
Feedback output U*
Torque
Direction of rotation*
spring
motor
Mechanical angle of rotation*
spring
Running time
motor*
Angle of rotation adaptation*
Override control*
Position indication
Manual override
Humidity
Ambient temperature
Housing
Housing material
Agency listings†
Noise level
Quality standard
Weight
Valve Nominal Size
Inches DN [mm]
1”
32
1¼”
40
Valve Body
G2(S)
G2(S)
Dimensions (Inches [mm])
A
B
C
8.12” [2066]
4.62” [117]
1.12” [29]
8.37” [213]
4.62" [117]
1.37” [35]
Dimensions with G3...(D) Series 3-Way Valve
C
B
A
Valve Body
G3(D)
G3(D)
Valve Nominal Size
Inches DN [mm]
1”
25
1¼”
32
Dimensions (Inches [mm])
A
B
C
8.56” [217]
4.62” [117]
1.56” [40]
8.62” [219]
4.62” [117]
1.62” [41]
*Variable when configured with MFT options.
† Rated Impulse Voltage 800V, Type of action 1.AA (1.AA.B for -S version), Control Pollution Degree 3.
Programmed for 40 sec motor run time. At 150 sec motor run time, transformer sizing is 6.5 VA and
power consumption is 4.5 W running / 3 W holding.
NFX24-MFT-S-X1
Auxiliary switches
2 x SPDT 3A (0.5A) @ 250 VAC, UL Approved
one set at +10°, one adjustable 10° to 90°
800-543-9038 USA
64
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
running
holding
Power consumption
24 VAC ±20%, 50/60 Hz
24 VDC +20% / -10%
6.5 W
3W
9 VA (Class 2 power source)
3 ft [1m], 10 ft [3m] or 16 ft [5m] 18 GA appliance
or plenum cables, with or without ½” conduit
connector
-S models: two 3 ft [1m], 10 ft [3m] or
16 ft [5m] appliance cables with or without ½"
conduit connectors
electronic throughout 0 to 95° rotation
2 to 10 VDC, 4 to 20mA (default)
variable (VDC, PWM, floating point, on/off)
100 kΩ for 2 to 10 VDC (0.1 mA)
500 Ω for 4 to 20 mA
1500 Ω for PWM, floating point, on/off
2 to 10 VDC (max. 0.5 mA)
90 in-lb [10 Nm] minimum
reversible with CW/CCW mounting
reversible with built-in switch
95° (adjustable with mechanical end stop, 35° to
95°)
<20 seconds @ -4°F to 122°F [-20°C to 50°C];
<60 seconds @ -22°F [-30°C]
150 seconds (default), variable (40 to 220 seconds)
off (default)
min position = 0%
mid. position = 50%
max. position = 100%
visual indicator, 0° to 95°
(0° is full spring return position)
5 mm hex crank ((³⁄₁₆” Allen), supplied
max. 95% RH non-condensing
-22°F to 122°F [-30°C to 50°C]
Nema 2, IP54, Enclosure Type2
Zinc coated metal and plastic casing
cULus acc. to UL60730-1A/-2-14,
CAN/CSA E60730-1:02, CE acc. to
2004/108/EC & 2006/95/EC
≤40dB(A) motor @ 150 secs, run time dependent
≤62dB(A) spring return
ISO 9001
4.2 lbs (1.9 kg), 4.3 lbs (2.0 kg) with switches
D185
Technical Data
Power supply
NFX24-MFT-X1 Actuators, Multi-Function Technology
W600_A
Wiring Diagrams
1
Provide overload protection and disconnect as required.
2
CAUTION
N Equipment Damage!
3
Actuators may also be powered by 24 VDC.
5
8
9
Position feedback cannot be used with Triac sink controller.
The actuator internal common reference is not compatible.
Control signal may be pulsed from either the Hot (source)
or the Common (sink) 24 VAC line.
Contact closures A & B also can be triacs.
A & B should both be closed for triac source and open for triac sink.
For triac sink the common connection from the actuator
must be connected to the hot connection of the controller.
NFX24-MFT-S-X1
Auxiliary Switches for NFX24-MFT-S-X1
W399_08
4
Actuators may be connected in parallel if not mechanically mounted to the same
shaft. Power consumption and input impedance must be observed.
Meets UL requirements without the need of an electrical ground connection.
The ZG-R01 500 Ω resistor may be used.
WARNING Live Electrical Components!
VDC/4-20 mA
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
W399_08
During installation, testing, servicing and troubleshooting of this product, it may be
necessary to work with live electrical components. Have a qualified licensed electrician or
other individual who has been properly trained in handling live electrical components
perform these tasks. Failure to follow all electrical safety precautions when exposed to live
electrical components could result in death or serious injury.
W399_08
PWM
M
W399_08
On/Off
Off controll
Floating Point control
800-543-9038 USA
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
65
AF24(-S) US Actuators, On/Off
11" [279.4]
6" [152.4]
D181_A
Dimensions with G2...(S) Series 2-Way Valve
C
B
Models
A
w/built-in Aux. Switches
Power consumption
running
holding
Transformer sizing
Electrical connection
Electrical protection
Overload protection
Angle of rotation
Position indication
Manual override
Running time
control
spring
Ambient temperature
Housing
Agency listings
Noise level
AF24-S US
Auxiliary switches
on/off
24 VAC ± 20% 50/60 Hz
24 VDC ± 10%
5W
1.5 W
10 VA (Class 2 power)
3 ft, 18 GA appliance cables
(-S model has 2 cables)
½” conduit connector
auxiliary switches are double insulated
electronic throughout 0° to 95° rotation
95°
visual indicator, 0° to 95°
hex crank
150 seconds independent of load
< 20 seconds
-22° F to 122° F [-30° C to 50° C]
NEMA 2 / IP54
UL 873, CSA C22.2 No. 24 certified, CE
max. 45 dB(A)
66
Dimensions (Inches [mm])
A
B
C
8.50" [216]
5.37" [137]
1.50" [38]
6.12" [156]
1.56" [40]
8.56" [217]
Dimensions with G3...(D) Series 3-Way Valve
11" [279.4]
6" [152.4]
C
B
A
2 x SPDT, 7A (2.5A) @ 250 VAC, UL listed, one
switch is fixed at +5°, one is adjustable 25° to
85° (double insulated)
800-543-9038 USA
Valve Nominal Size
Inches DN [mm]
1½"
40
2"
50
Valve Nominal Size
Valve Body Inches DN [mm]
G3(D)
1½"
40
G3(D)
2"
50
866-805-7089 CANADA
Dimensions (Inches [mm])
A
B
C
8.62" [219]
5.37" [137]
1.62" [41]
8.87" [225]
6.12" [156]
1.87" [48]
203-791-8396 LATIN AMERICA
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
Technical Data
Control
Power supply
Valve Body
G2(S)
G2(S)
D186_A
AF24 US
AF24-S US
AF24(-S) US Actuators, On/Off
Dimensions with G7/G7D ANSI 125/250 Series 3-Way Valve
D168-2x
Dimensions with G6/G6C ANSI 125 and G6 ANSI 250 Series 2-Way Valve
Valve Body
G7 ANSI 125
G7 ANSI 125
G7D ANSI 125
G7D ANSI 125
G7 ANSI 250
G7 ANSI 250
G7D ANSI 250
G7D ANSI 250
Valve Nominal Size
Valve Nominal Size
Inches DN [mm]
2½"
65
3"
80
2½"
65
3"
80
4"
100
5"
125
6"
150
2½”
3”
5”
6”
2½”
3”
5”
6”
65
80
125
150
65
80
125
150
Dimensions (Inches [mm])
A
B
C-2x
9.00” [229]
10.00” [254]
12.00” [305]
14.12” [359]
9.62” [244]
10.75” [273]
12.87” [327]
14.50” [368]
7.12” [181]
8.00” [203]
10.50” [267]
11.12” [282]
7.37” [187]
8.37” [213]
11.00” [279]
11.50” [292]
18.37” [467]
19.18” [487]
20.56” [522]
21.25” [540]
18.75” [476]
19.37” [492]
20.56” [522]
21.25” [540]
Dimensions (Inches [mm])
Valve Body Inches DN [mm]
A
G6 ANSI 125
2½"
65
9.00" [229]
G6 ANSI 125
3"
80
10.00" [254]
G6 ANSI 250
2½"
65
9.62" [244]
G6 ANSI 250
3"
80
10.75" [273]
G6C ANSI 125
2½”
65
9.00” [229]
G6C ANSI 125
3”
80
10.00” [254]
Valve Body
G6 ANSI 125
G6 ANSI 125
G6 ANSI 250
G6 ANSI 250
G6C ANSI 125
G6C ANSI 125
G6C ANSI 125
Valve Nominal Size
Inches DN [mm]
B
4.75" [121]
5.37" [136]
4.75" [121]
5.37" [136]
4.75” [121]
5.37” [136]
C
13.50” [343]
13.94” [354]
14.00” [356]
14.12” [359]
13.50” [343]
13.94” [354]
Dimensions (Inches [mm])
A
B
C-2x
9.00" [229]
4.75" [121]
18.25” [464]
10.00" [254]
5.37" [136]
19.18” [487]
9.62" [244]
4.75" [121]
18.75” [476]
10.75" [273]
5.37" [136]
19.75” [502]
13.00" [330.2] 6.87" [175]
20.25” [514]
15.75" [400]
7.87" [200]
20.87” [530]
17.75" [451]
8.50" [216]
21.50” [546]
D171-2x
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
Dimensions with G7/G7D ANSI 125/250 Series 3-Way Valve
Valve Body
G7 & G7D ANSI 125
G7 & G7D ANSI 125
G7D ANSI 125
G7 & G7D ANSI 250
G7 & G7D ANSI 250
G7D ANSI 250
Valve Nominal
Size
Dimensions (Inches [mm])
DN
Inches
A
B
C
[mm]
2½"
65
9.00" [229]
7.12" [181] 13.87” [352]
3"
80
10.00" [254] 8.00" [203] 14.44” [367]
4"
100 13.00" [330.2] 9.87" [251] 15.25” [387]
2½"
65
9.62" [244]
7.37" [187] 14.00” [356]
3"
80
10.75" [273] 8.37" [213] 14.62” [371]
4"
100 13.62" [346] 10.25" [260] 15.25” [387]
800-543-9038 USA
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
67
AF24(-S) US Actuators, On/Off
2
Wiring Diagrams for Multiple On/Off Actuators
1
Provide overload protection and disconnect as required..
CAUTION Equipment damage!
2
Actuators may be connected in parallel.
Power consumption must be observed.
Actuators may be connected in parallel.
Power consumption must be observed.
3
Actuators may also be powered by 24 VDC.
!
Same model numbers must be used when mounted on one shaft..
3
Actuators may also be powered by 24 VDC.
5
Actuators with plenum rated cable do not have numbers on wires; use color
codes instead. Actuators with appliance cables are numbered.
Meets cULus or UL and CSA requirements without the
need of an electrical ground connection.
WARNING Live Electrical Components!
During installation, testing, servicing and troubleshooting of this product, it may be necessary
to work with live electrical components. Have a qualified licensed electrician or other individual who
has been properly trained in handling live electrical components perform these tasks. Failure to follow
all electrical safety precautions when exposed to live electrical components could result in death or
serious injury.
AF24 US
AF24-S US
2
24 VAC Transformer
3
Multiple Actuator on Single Shaft Wiring Diagram_AF24
Wiring Diagrams
5
Blk (1) Common
Line
Volts
Red (2) + Hot
On/Off Wiring
AF24 US
13
On/Off
S1
NC
S3
NO
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
S2
5°
S4
NC
S5
S6
NO
25° to 85°
AF…-S US
Auxiliary Switch Wiring for AF… -S US
800-543-9038 USA
68
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
AF120(-S) US Actuators, On/Off
11" [279.4]
6" [152.4]
D181_A
Dimensions with G2...(S) Series 2-Way Valve
C
B
A
Models
w/built-in Aux. Switches
Technical Data
Control
Power consumption
Transformer sizing
Electrical connection
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
Electrical protection
Overload protection
Angle of rotation
Position indication
Manual override
Running time
Ambient temperature
Housing
Agency listings
Noise level
AF120-S US
Auxiliary switches
Valve Body
G2(S)
G2(S)
on/off
running 6 W
holding 2.3 W
10 VA (Class 2 power)
3 ft, 18 GA appliance cables
(-S model has 2 cables)
½” conduit connector
120 V actuators double insulated
electronic throughout 0° to 95° rotation
95°
visual indicator
hex crank
control 150 seconds independent of load
spring < 20 seconds
-22° F to 122° F [-30° C to 50° C]
NEMA 2 / IP54
UL 873, CSA C22.2 No. 24 certified, CE
max. 45 dB(A)
Dimensions with G3...(D) Series 3-Way Valve
11" [279.4]
6" [152.4]
C
B
2 x SPDT, 7A (2.5A) @ 250 VAC, UL listed, one
switch is fixed at +5°, one is adjustable 25° to
85° (double insulated)
800-543-9038 USA
Valve Nominal Size
Dimensions (Inches [mm])
Inches DN [mm]
A
B
C
8.50" [216]
1½"
40
5.37" [137]
1.50" [38]
2"
50
6.12" [156]
1.56" [40]
8.56" [217]
D186_A
AF120 US
AF120-S US
A
Valve Body
G3(D)
G3(D)
866-805-7089 CANADA
Valve Nominal Size
Inches
DN [mm]
1½"
40
2"
50
Dimensions (Inches [mm])
A
B
C
8.62" [219]
5.37" [137] 1.62" [41]
8.87" [225]
6.12" [156] 1.87" [48]
203-791-8396 LATIN AMERICA
69
AF120(-S) US Actuators, On/Off
Dimensions with G7/G7D ANSI 125/250 Series 3-Way Valve
D168-2x
Dimensions with G6/G6C ANSI 125 and G6 ANSI 250 Series 2-Way Valve
Valve Body
G6 ANSI 125
G6 ANSI 125
G6 ANSI 250
G6 ANSI 250
G6C ANSI 125
G6C ANSI 125
Valve Nominal Size
Dimensions (Inches [mm])
Inches DN [mm]
A
B
C
2½"
65
9.00" [229]
4.75" [121]
13.50” [343]
3"
80
10.00" [254]
5.37" [136]
13.94” [354]
2½"
65
9.62" [244]
4.75" [121]
14.00” [356]
3"
80
10.75" [273]
5.37" [136]
14.12” [359]
2½”
65
9.00” [229]
4.75” [121] 13.50” [343]
3”
80
10.00” [254] 5.37” [136] 13.94” [354]
Valve Body
G6C ANSI 125
G6C ANSI 125
G6C ANSI 125
G6 ANSI 125
G6 ANSI 125
G6 ANSI 250
G6 ANSI 250
Valve Nominal Size
Inches DN [mm]
100
4"
5"
125
6"
150
2½"
65
3"
80
2½"
65
3"
80
Valve Body
G7 ANSI 125
G7 ANSI 125
G7D ANSI 125
G7D ANSI 125
G7 ANSI 250
G7 ANSI 250
G7D ANSI 250
G7D ANSI 250
Valve Nominal Size
Inches DN [mm]
2½"
3"
5"
6"
2½"
3"
5"
6"
65
80
125
150
65
80
125
150
Dimensions (Inches [mm])
A
B
C-2x
9.00" [229]
10.00" [254]
12.00" [305]
14.12" [359]
9.62" [244]
10.75" [273]
12.87" [327]
14.50" [368]
7.12" [181]
8.00" [203]
10.50"[267]
11.12" [282]
7.37" [187]
8.37" [213]
11.00" [279]
11.50" [292]
18.37” [467]
19.18” [487]
20.56” [522]
21.25” [540]
18.75” [476]
19.37” [492]
20.56” [522]
21.25” [540]
Dimensions (Inches [mm])
A
B
C-2x
13.00" [330.2] 6.87" [175]
20.25” [514]
15.75" [400]
7.87" [200]
20.87” [530]
17.75" [451]
8.50" [216]
21.50” [546]
9.00" [229]
4.75" [121]
18.25” [464]
10.00" [254]
5.37" [136]
19.18” [487]
9.62" [244]
4.75" [121]
18.75” [476]
10.75" [273]
5.37" [136]
19.75” [502]
D171-2x
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
Dimensions with G7/G7D ANSI 125/250 Series 3-Way Valve
Valve Nominal
Size
DN
Inches
[mm]
Valve Body
G7 & G7D ANSI 125
G7 & G7D ANSI 125
G7D ANSI 125
G7 & G7D ANSI 250
G7 & G7D ANSI 250
G7D ANSI 250
2½”
3”
4”
2½”
3”
4”
65
80
100
65
80
100
800-543-9038 USA
70
Dimensions (Inches [mm])
A
B
C
9.00” [229]
10.00” [254]
13.00” [330]
9.62” [244]
10.75” [273]
13.62” [346]
7.12” [181]
8.00” [203]
9.87” [251]
7.37” [187]
8.37” [213]
10.25” [260]
13.87” [352]
14.44” [367]
15.25” [387]
14.00” [356]
14.62” [371]
15.25” [387]
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
AF120(-S) US Actuators, On/Off
2
Wiring Diagrams for Multiple On/Off Actuators
1
Provide overload protection and disconnect as required..
CAUTION Equipment damage!
2
Actuators may be connected in parallel.
Power consumption must be observed.
Actuators may be connected in parallel.
Power consumption must be observed.
3
Actuators may also be powered by 24 VDC.
!
Same model numbers must be used when mounted on one shaft..
3
Actuators may also be powered by 24 VDC.
5
Actuators with plenum rated cable do not have numbers on wires; use color
codes instead. Actuators with appliance cables are numbered.
Meets cULus or UL and CSA requirements without the
need of an electrical ground connection.
WARNING Live Electrical Components!
During installation, testing, servicing and troubleshooting of this product, it may be necessary
to work with live electrical components. Have a qualified licensed electrician or other individual who
has been properly trained in handling live electrical components perform these tasks. Failure to follow
all electrical safety precautions when exposed to live electrical components could result in death or
serious injury.
2
24 VAC Transformer
3
AF120 US
AF120-S US
5
Multiple Actuator on Single Shaft Wiring Diagram_AF120
Wiring Diagrams
Blk (1) Common
Line
Volts
Red (2) + Hot
On/Off Wiring
13
S1
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
S2
On/Off
NC
S3
NO
5°
S4
NC
S5
S6
NO
25° to 85°
AF…-S US
Auxiliary Switch Wiring for AF… -S US
800-543-9038 USA
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
71
AF24-SR US Actuators, Proportional
11" [279.4]
6" [152.4]
D181_A
Dimensions with G2...(S) Series 2-Way Valve
C
B
A
Models
AF24-SR US
running
holding
Transformer sizing
Electrical connection
Overload protection
Angle of rotation
Direction of rotation
spring
motor
Position indication
Manual override
Running time
control
spring
Ambient temperature
Housing
Agency listings
Noise level
Dimensions with G3...(D) Series 3-Way Valve
11" [279.4]
72
6" [152.4]
C
B
A
Valve Body
G3(D)
G3(D)
800-543-9038 USA
Dimensions (Inches [mm])
A
B
C
8.50" [216]
5.37" [137]
1.50" [38]
6.12" [156]
1.56" [40]
8.56" [217]
866-805-7089 CANADA
Valve Nominal Size
Inches DN [mm]
1½"
40
2"
50
Dimensions (Inches [mm])
A
B
C
8.62" [219]
5.37" [137]
1.62" [41]
8.87" [225]
6.12" [156]
1.87" [48]
203-791-8396 LATIN AMERICA
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
Feedback output
Control
Power consumption
24 VAC ± 20% 50/60 Hz
24 VDC ± 10%
2 to 10 VDC, 0.5 mA max
proportional
6W
2W
10 VA, class 2 power
3 ft, 18 GA appliance cable
½” conduit connector
electronic throughout 0° to 95° rotation
95°
reversible with CW/CCW mounting
reversible with built-in
visual indicator
hex crank
150 seconds independent of load
< 20 seconds
-22° F to 122° F [-30° C to 50° C]
NEMA 2, IP54
UL 873, CSA C22.2 No. 24 certified, CE
max. 45 dB(A)
Valve Nominal Size
Inches DN [mm]
1½"
40
2"
50
D186_A
Technical Data
Power supply
Valve Body
G2(S)
G2(S)
AF24-SR US Actuators, Proportional
Dimensions with G7/G7D ANSI 125/250 Series 3-Way Valve
D168-2x
Dimensions with G6/G6C ANSI 125 and G6 ANSI 250 Series 2-Way Valve
Valve Body
G6 ANSI 125
G6 ANSI 125
G6 ANSI 250
G6 ANSI 250
G6C ANSI 125
G6C ANSI 125
Valve Body
2½"
3"
2½"
3"
2½”
3”
65
80
65
80
65
80
Valve Nominal
Size
DN
Inches
[mm]
100
4"
5"
125
6"
150
2½"
65
3"
80
2½"
65
3"
80
G7 ANSI 125
G7 ANSI 125
G7D ANSI 125
G7D ANSI 125
G7 ANSI 250
G7 ANSI 250
G7D ANSI 250
G7D ANSI 250
Valve Nominal Size
Inches DN [mm]
2½"
3"
5"
6"
2½"
3"
5"
6"
65
80
125
150
65
80
125
150
Dimensions (Inches [mm])
A
B
C-2x
9.00" [229]
10.00" [254]
12.00" [305]
14.12" [359]
9.62" [244]
10.75" [273]
12.87" [327]
14.50" [368]
7.12" [181]
8.00" [203]
10.50" [267]
11.12" [282]
7.37" [187]
8.37" [213]
11.00" [279]
11.50" [292]
18.37” [467]
19.18” [487]
20.56” [522]
21.25” [540]
18.75” [476]
19.37” [492]
20.56” [522]
21.25” [540]
Dimensions (Inches [mm])
B
C
A
9.00" [229]
10.00" [254]
9.62" [244]
10.75" [273]
9.00” [229]
10.00” [254]
4.75" [121]
5.37" [136]
4.75" [121]
5.37" [136]
4.75” [121]
5.37” [136]
13.50” [343]
13.94” [354]
14.00” [356]
14.12” [359]
13.50” [343]
13.94” [354]
Dimensions (Inches [mm])
A
B
C-2x
13.00" [330.2]
15.75" [400]
17.75" [451]
9.00" [229]
10.00" [254]
9.62" [244]
10.75" [273]
6.87" [175]
7.87" [200]
8.50" [216]
4.75" [121]
5.37" [136]
4.75" [121]
5.37" [136]
20.25” [514]
20.87” [530]
21.50” [546]
18.25” [464]
19.18” [487]
18.75” [476]
19.75” [502]
Dimensions with G7/G7D ANSI 125/250 Series 3-Way Valve
D171-2x
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
G6C ANSI 125
G6C ANSI 125
G6C ANSI 125
G6 ANSI 125
G6 ANSI 125
G6 ANSI 250
G6 ANSI 250
Valve Nominal Size
Inches DN [mm]
Valve Body
Valve Nominal
Size
DN
Inches
[mm]
Valve Body
G7 & G7D ANSI 125
G7 & G7D ANSI 125
G7D ANSI 125
G7 & G7D ANSI 250
G7 & G7D ANSI 250
G7D ANSI 250
2½"
3"
4"
2½"
3"
4"
65
80
100
65
80
100
800-543-9038 USA
Dimensions (Inches [mm])
A
B
C
9.00" [229]
10.00" [254]
13.00" [330.2]
9.62" [244]
10.75" [273]
13.62" [346]
7.12" [181]
8.00" [203]
9.87" [251]
7.37" [187]
8.37" [213]
10.25" [260]
13.87” [352]
14.44” [367]
15.25” [387]
14.00” [356]
14.62” [371]
15.25” [387]
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
73
AF24-SR US Actuators, Proportional
Wiring Diagrams
1
Provide overload protection and disconnect as required..
CAUTION Equipment damage!
4
Actuators may be connected in parallel.
Power consumption must be observed.
Set reversing switch (CCW-CW) (A-B) as required by control logic and
control range.
!
Same model numbers must be used when mounted on one shaft.
3
Actuators may also be powered by 24 VDC.
5
Actuators with plenum rated cable do not have numbers on wires; use color
codes instead. Actuators with appliance cables are numbered.
Multiple Actuator on Single Shaft Wiring Diagram_AF24_SR
2
Wiring Diagrams for Multiple Proportional Actuators
Meets cULus or UL and CSA requirements without the
need of an electrical ground connection.
WARNING Live Electrical Components!
During installation, testing, servicing and troubleshooting of this product, it may be necessary
to work with live electrical components. Have a qualified licensed electrician or other individual who
has been properly trained in handling live electrical components perform these tasks. Failure to follow
all electrical safety precautions when exposed to live electrical components could result in death or
serious injury.
24 VAC Transformer
1 Common
Line
Volts
2 + Hot
3
3 Y Input, 0 to 10V
Control Signal (–)
2 to 10 VDC (+)
5 U Output 2 to 10V
2
AF24-SR US
Proportional 2 to 10 VDC control signal
Proportional
24 VAC Transformer
1 Common
Line
Volts
(–)
Control Signal (+)
2 to 10 VDC (–)
Feedback Signal (+)
5
800-543-9038 USA
74
Ω
500Ω
3 Y Input, 0 to 10V
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
4 to 20 mA
3
2 + Hot
5 U Output 2 to 10V
AF24-SR US
2
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
AFX24-MFT-X1 Actuators, Multi-Function Technology
D180
Dimensions with G2...(S) Series 2-Way Valve
C
Models
w/built-in Aux. Switch
Technical Data
Power supply
Power
running
holding
consumption
Transformer sizing
Electrical connection
Overload protection
Operating range Y*
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
Input impedance
24 VAC, +/- 20%, 50/60 Hz
24 VDC, +20% / -10%
7.5 W
3W
10 VA (Class 2 power source)
3 ft [1m], 10 ft [3m] or 16 ft [5m] 18 GA appliance or
plenum cables, with or without ½” conduit connector
-S models: two 3 ft [1m], 10 ft [3m] or
16 ft [5m] appliance cables with or without ½” conduit
connectors
electronic throughout 0 to 95° rotation
2 to 10 VDC, 4 to 20 mA (default)
variable (VDC, PWM, floating point, on/off)
100 kΩ for 2 to 10 VDC (0.1 mA)
500 Ω for 4 to 20 mA
1500 Ω for PWM, floating point and on/off control
2 to 10 VDC, 0.5 mA max
minimum 180 in-lb (20 Nm)
reversible with cw/ccw mounting
reversible with built-in switch
95° (adjustable with mechanical end stop, 35° to 95°)
Feedback output U*
Torque
Direction of
spring
rotation*
motor
Mechanical
angle of rotation*
Running time
spring <20 seconds @ -4°F to 122°F [-20° C to 50° C];
<60 seconds @ -22°F [-30° C]
motor* 150 seconds (default), variable (70 to 220 seconds)
Angle of rotation
off (default)
adaptation
Override control*
min position = 0%
mid. position = 50%
max. position = 100%
Position indication
visual indicator, 0° to 95°
(0° is spring return position)
Manual override
5 mm hex crank ((³⁄₁₆” Allen), supplied
Humidity
max. 95% RH, non-condensing
Ambient temperature
-22 to 122° F (-30 to 50° C)
Housing
NEMA 2, IP54, Enclosure Type 2
Housing material
zinc coated metal and plastic casing
Noise level
≤40dB(A) motor @ 150 seconds, run time dependent
≤62dB(A) spring return
Agency listings †
cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02,
CE acc. to 2004/108/EC & 2006/95/EC
Quality standard
ISO 9001
Weight
4.2 lbs. (1.9 kg), 4.3 lbs. (2 kg) with switch
B
A
Valve Nominal Size
Inches DN [mm]
1½”
40
2”
50
Valve Body
G2(S)
G2(S)
Dimensions (Inches [mm])
A
B
C
8.50” [2166]
5.37” [137]
1.50” [38]
8.56” [217]
6.12" [156]
1.56” [40]
Dimensions with G3...(D) Series 3-Way Valve
D185
AFX24-MFT-X1
AFX24-MFT-S-X1
C
B
A
Valve Body
G3(D)
G3(D)
Valve Nominal Size
Inches DN [mm]
1½”
40
2”
50
Dimensions (Inches [mm])
A
B
C
8.62” [219]
5.37” [137]
1.62” [41]
8.87” [225]
6.12” [156]
1.87” [48]
* Variable when configured with MFT options
† Rated Impulse Voltage 800V, Type of action 1.AA (1.AA.B for -S version), Control Pollution Degree 3.
Programmed for 70 sec motor run time. At 150 sec motor run time, transformer sizing is 8.5 VA and
power consumption is 6 W running / 3 W holding.
AFX24-MFT-S-X1
Auxiliary switches
2 x SPDT 3A (0.5A) @ 250 VAC, UL approved
one set at +10°, one adjustable 10° to 90°
800-543-9038 USA
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
75
AFX24-MFT-X1 Actuators, Multi-Function Technology
Dimensions with G7 and G7D ANSI 125/250 Series 3-Way Valve
Valve Nominal
Size
Dimensions (Inches [mm])
Inches
DN
[mm]
A
B
C
G6 ANSI 125
G6 ANSI 125
G6 ANSI 250
G6 ANSI 250
G6C ANSI 125
G6C ANSI 125
G6C ANSI 250
G6C ANSI 250
2½”
3"
2½”
3"
2½”
3”
2½”
3”
65
80
65
80
65
80
65
80
9.00” [229]
10.00” [254]
9.62” [244]
10.75” [273]
9.00” [220]
10.00” [254]
9.62” [244]
10.75” [254]
4.75” [121]
5.37” [136]
4.75” [121]
5.37” [136]
4.75” [121]
5.37” [136]
4.75” [121]
5.37” [136]
13.50” [343]
13.94” [354]
14.00” [356]
14.12” [359]
13.50” [343]
13.94” [354]
13.50” [343]
13.94” [354]
Valve Nominal
Size
Valve Body
2½”
3”
2½”
3"
4"
5"
6"
4"
5"
6"
65
80
65
80
100
125
150
100
125
150
A
B
C-2x
9.00" [229]
10.00" [254]
9.62" [244]
10.75" [273]
13.00" [330]
15.75" [400]
17.75" [451]
13.62" [346]
16.62" [422]
18.62" [473]
4.75" [121]
5.37" [136]
4.75" [121]
5.37" [136]
6.87" [175]
7.87" [200]
8.50" [216]
6.87" [175]
7.87" [200]
8.50” [216]
18.25" [464]
19.18" [487]
18.25" [464]
19.18" [487]
20.25” [514]
20.87” [530]
21.50” [546]
20.25" [514]
20.87” [530]
21.50” [546]
800-543-9038 USA
76
Valve Body
Dimensions (Inches [mm])
Inches DN [mm]
Valve Body
G7 & G7D ANSI 125
G7 & G7D ANSI 125
G7D ANSI 125
G7 & G7D ANSI 250
G7 & G7D ANSI 250
G7D ANSI 250
G7 ANSI 125
G7 ANSI 125
G7 ANSI 125
G7D ANSI 125
G7D ANSI 125
G7 ANSI 250
G7 ANSI 250
G7 ANSI 250
G7D ANSI 250
G7D ANSI 250
866-805-7089 CANADA
Valve Nominal
Size
DN
Inches
[mm]
2½”
65
3”
80
4”
100
2½”
65
3”
80
4”
100
Valve Nominal Size
Inches DN [mm]
2½”
3”
4”
5”
6”
2½”
3”
4”
5”
6”
65
80
100
125
150
65
80
100
125
150
Dimensions (Inches [mm])
A
B
C
9.00” [229]
10.00” [254]
13.00” [330]
9.62” [244]
10.75” [273]
13.62” [346]
7.12” [181]
8.00” [203]
9.87” [251]
7.37” [187]
8.37” [213]
10.25” [260]
13.87” [352]
14.43” [367]
15.25” [387]
14.00” [356]
14.62” [371]
15.25” [387]
A
Dimensions (Inches [mm])
B
C-2x
9.00” [229]
10.00” [254]
13.00” [330.2]
12.00” [305]
14.12” [359]
9.62” [244]
10.75” [273]
13.62” [346]
12.87” [327]
14.50” [368]
7.12” [181]
8.00” [203]
9.87” [251]
10.50” [267]
11.12” [282]
7.37” [187]
8.37” [213]
10.25” [260]
11.00” [279]
11.50” [292]
203-791-8396 LATIN AMERICA
18.25” [464]
19.18” [487]
20.00” [508]
18.37” [467]
19.18” [487]
18.75” [476]
19.37” [492]
20.37” [517]
20.56” [522]
21.25” [540]
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
Valve Body
G6 ANSI 125
G6 ANSI 125
G6 ANSI 250
G6 ANSI 250
G6C ANSI 125
G6C ANSI 125
G6C ANSI 125
G6C ANSI 250
G6C ANSI 250
G6C ANSI 250
D
D167_GM_NG_3
GM NG
D167_GM_NG
G
G
Dimensions with G6/G6C ANSI 125 and G6 ANSI 250 Series 2-Way Valve
AFX24-MFT-X1 Actuators, Multi-Function Technology
1
Provide overload protection and disconnect as required.
2
CAUTION
N Equipment Damage!
3
Actuators may also be powered by 24 VDC.
5
8
9
Actuators may be connected in parallel if not mechanically mounted to the same
shaft. Power consumption and input impedance must be observed.
Position feedback cannot be used with Triac sink controller.
The actuator internal common reference is not compatible.
Control signal may be pulsed from either the Hot (source)
or the Common (sink) 24 VAC line.
Contact closures A & B also can be triacs.
A & B should both be closed for triac source and open for triac sink.
For triac sink the common connection from the actuator
must be connected to the hot connection of the controller.
AFX24-MFT-S-X1
Auxiliary Switches for AFX24-MFT-S-X1
W399_08
4
W600_AFB_AFX
Wiring Diagrams
Meets UL requirements without the need of an electrical ground connection.
The ZG-R01 500 Ω resistor may be used.
WARNING
G Live Electrical Components!
VDC/4-20 mA
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
W399_08
During installation, testing, servicing and troubleshooting of this product, it may be
necessary to work with live electrical components. Have a qualified licensed electrician or
other individual who has been properly trained in handling live electrical components
perform these tasks. Failure to follow all electrical safety precautions when exposed to live
electrical components could result in death or serious injury.
W399_08
PWM
M
W399_08
On/Off
Off controll
Floating Point control
800-543-9038 USA
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
77
Wiring Diagrams for Multiple MFT Actuators
24 VAC Transformer
Blk (1) Common
Line
Volts
3
Actuators may also be powered by 24 VDC
5
Actuators with plenum rated cable do not have numbers on wires; use color codes
instead. Actuators with appliance cable are numbered.
5
Master
Red (2) + Hot
3
(–)
Control Signal
(+)
2 to 10 VDC or
4 to 20 mA
WARNING
G Live Electrical Components!
During installation, testing, servicing and troubleshooting of this product, it may be
necessary to work with live electrical components. Have a qualified licensed electrician or
other individual who has been properly trained in handling live electrical components
perform these tasks. Failure to follow all electrical safety precautions when exposed to live
electrical components could result in death or serious injury.
Wht (3) Y Input, 2 to 10 V
500 Ω
1/4 watt
Org (5) U Output 2 to 10 V
W234_2_B_AFX24_MFT_X1
AFX24-MFT-X1 Actuators, Multi-Function Technology
CCW CW
Slave
5
Blk (1) Common
Maximum
4 actuators
per shaft.
Wiring multiple ...MFT actuators to a single shaft and/or on valves. All MFT actuators are
wired in master-slave configuration.
Red (2) + Hot
Wht (3) Y Input, 2 to 10 V
Org (5) U
MFT actuator configurations should also coordinate with each other. Meaning the master
input = controllers output. Master output = slave output. Slave output = controller input.
CCW CW
Example
Master Feedback
Slave Input
Slave Feedback
2 to 10 VDC
2 to 10 VDC
2 to 10 VDC
0 to 5 VDC
VDC/4-20 mA
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
Controller Output
800-543-9038 USA
78
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
AFX24-MFT95-X1 Actuators, 0-135 Ω
D180
Dimensions with G2...(S) Series 2-Way Valve
C
B
A
Models
Valve Nominal Size
Inches DN [mm]
1½”
40
2”
50
AFX24-MFT95-X1
Power
running
consumption
holding
Transformer sizing
Electrical connection
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
Overload protection
Operating range Y
24 VAC, +/- 20%, 50/60 Hz
24 VDC, +20% / -10%
7.5 W
3W
10 VA (Class 2 power source)
3 ft [1m], 18 GA plenum cable,
with or without ½” conduit connector
electronic throughout 0 to 95° rotation
0 to 135 Ω Honeywell Electronic Series 90,
0 to 135 Ω input
2 to 10 VDC, 0.5 mA max
minimum 180 in-lb (20 Nm)
reversible with CW/CCW mounting
reversible with built-in switch
95° (adjustable with mechanical end stop, 35° to 95°)
Feedback output U*
Torque
Direction
spring
of rotation*
motor
Mechanical
angle of rotation*
Running time
spring <20 sec @ -4°F to 122°F [-20° C to 50° C];
<60 sec @ -22°F [-30° C]
motor* 150 seconds (default), variable (70 to 220 seconds)
Angle of rotation
off (default)
adaptation
Position indication
visual indicator, 0° to 95°
(0° is spring return position)
Manual override
5 mm hex crank ((³⁄₁₆” Allen), supplied
Humidity
max. 95% RH, non-condensing
-22 to 122° F (-30 to 50° C)
Ambient temperature
Housing
NEMA 2, IP54, Enclosure Type 2
Housing material
zinc coated metal and plastic casing
Noise level
≤40dB(A) motor @ 150 seconds, run time dependant
≤62dB(A) spring return
Agency listings †
cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02,
CE acc. to 2004/108/EC & 2006/95/EC
Quality standard
ISO 9001
Weight
4.2 lbs. (1.9 kg)
Dimensions (Inches [mm])
A
B
C
8.50” [2166]
5.37” [137]
1.50” [38]
8.56” [217]
6.12" [156]
1.56” [40]
Dimensions with G3...(D) Series 3-Way Valve
D185
Technical Data
Power supply
Valve Body
G2(S)
G2(S)
C
B
A
Valve Body
G3(D)
G3(D)
Valve Nominal Size
Inches DN [mm]
1½”
40
2”
50
Dimensions (Inches [mm])
A
B
C
8.62” [219]
5.37” [137]
1.62” [41]
8.87” [225]
6.12” [156]
1.87” [48]
* Variable when configured with MFT options
† Rated Impulse Voltage 800V, Type of action 1.AA (1.AA.B for -S version), Control Pollution Degree 3.
Programmed for 70 sec motor run time. At 150 sec motor run time, transformer sizing is 8.5 VA and
power consumption is 6 W running / 3 W holding.
800-543-9038 USA
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
79
AFX24-MFT95-X1 Actuators, 0-135 Ω
Dimensions with G7 and G7D ANSI 125/250 Series 3-Way Valve
Valve Nominal
Size
Inches
G6 ANSI 125
G6 ANSI 125
G6 ANSI 250
G6 ANSI 250
G6C ANSI 125
G6C ANSI 125
2½”
3"
2½”
3"
2½”
3”
65
80
65
80
65
80
Dimensions (Inches [mm])
A
B
C
9.00” [229]
10.00” [254]
9.62” [244]
10.75” [273]
9.00” [229]
10.00” [254]
4.75” [121]
5.37” [136]
4.75” [121]
5.37” [136]
4.75” [121]
5.37” [136]
13.50” [343]
13.94” [354]
14.00” [356]
14.12” [359]
13.50” [343]
13.94” [354]
Valve Nominal
Size
Valve Body
G6 ANSI 125
G6 ANSI 125
G6 ANSI 250
G6 ANSI 250
G6C ANSI 125
G6C ANSI 125
G6C ANSI 125
65
80
65
80
100
125
150
A
B
C-2x
9.00" [229]
10.00" [254]
9.62" [244]
10.75" [273]
13.00" [330.2]
15.75" [400]
17.75" [451]
4.75" [121]
5.37" [136]
4.75" [121]
5.37" [136]
6.87" [175]
7.87" [200]
8.50" [216]
18.25" [464]
19.18" [487]
18.25" [464]
19.18" [487]
20.25” [514]
20.87” [530]
21.50” [546]
800-543-9038 USA
80
Dimensions (Inches [mm])
A
B
C
9.00” [229]
10.00” [254]
13.00” [330]
9.62” [244]
10.75” [273]
13.62” [346]
7.12” [181]
8.00” [203]
9.87” [251]
7.37” [187]
8.37” [213]
10.25” [260]
13.87” [352]
14.43” [367]
15.25” [387]
14.00” [356]
14.62” [371]
15.25” [387]
Dimensions (Inches [mm])
Inches DN [mm]
2½”
3”
2½”
3"
4"
5"
6"
Valve Body
G7 & G7D ANSI 125
G7 & G7D ANSI 125
G7D ANSI 125
G7 & G7D ANSI 250
G7 & G7D ANSI 250
G7D ANSI 250
Valve Nominal
Size
DN
Inches
[mm]
2½”
65
3”
80
4”
100
2½”
65
3”
80
4”
100
Valve Body
G7 ANSI 125
G7 ANSI 125
G7 ANSI 125
G7D ANSI 125
G7D ANSI 125
G7 ANSI 250
G7 ANSI 250
G7 ANSI 250
G7D ANSI 250
G7D ANSI 250
866-805-7089 CANADA
Valve Nominal Size
Inches DN [mm]
2½”
3”
4”
5”
6”
2½”
3”
4”
5”
6”
65
80
100
125
150
65
80
100
125
150
A
Dimensions (Inches [mm])
B
C-2x
9.00” [229]
10.00” [254]
13.00” [330.2]
12.00” [305]
14.12” [359]
9.62” [244]
10.75” [273]
13.62” [346]
12.87” [327]
14.50” [368]
7.12” [181]
8.00” [203]
9.87” [251]
10.50” [267]
11.12” [282]
7.37” [187]
8.37” [213]
10.25” [260]
11.00” [279]
11.50” [292]
203-791-8396 LATIN AMERICA
18.25” [464]
19.18” [487]
20.00” [508]
18.37” [467]
19.18” [487]
18.75” [476]
19.37” [492]
20.37” [517]
20.56” [522]
21.25” [540]
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
Valve Body
DN
[mm]
D
D167_GM_NG_3
GM NG
D167_GM_NG
G
G
Dimensions with G6/G6C ANSI 125 and G6 ANSI 250 Series 2-Way Valve
AFX24-MFT95-X1 Actuators, 0-135 Ω
Proportional Potentiometric Control - Wiring Diagrams
WARNING
G Live Electrical Components!
5
Actuators with plenum rated cable do not have numbers on wires; use color
codes instead. Actuators with appliance cables are numbered.
21
Provide overload protection and disconnect as required.
22
Actuators and controller must have separate transformers.
23
Consult controller instruction data for more detailed information.
24
Resistor value depends on the type of controller and the number of actuators. No
resistor is used for one actuator. Honeywell® resistor kits may also be used.
25
To reverse control rotation, use the reversing switch.
During installation, testing, servicing and troubleshooting of this product, it may be necessary
to work with live electrical components. Have a qualified licensed electrician or other individual who
has been properly trained in handling live electrical components perform these tasks. Failure to follow
all electrical safety precautions when exposed to live electrical components could result in death or
serious injury.
24 VAC Transformer
Line
Wire Colors
3 = White
4 = Pink
Red (2) + Hot
H205
Changeover
Controller
5 = Gray
6 = Orange
W018
Wiring Multiple Actuators to a Series 90 Controller
Damper Position
24 VAC Transformer
Damper Open
Damper Closed
Line
Volts
W015
Blk (1) Common
Volts
Red (2) + Hot
Shunting
Resistor
135 Ω
Gry (5)
Wht (3) R
Gry (5) B
Red (2) + Hot
R
Volts
B
B
W973, W7100
Controller
Red (2) + Hot
Line
Volts
Series 90
Controller
W
W
R
B
W016
B
R
:O\U[PUN
9LZPZ[VY
Series 90 low limit control
135 Ω for 0 to 50% control
280 Ω for 0 to 100% control
Volts
Org (6) ‘U5’ Output 2 to 10 VDC
Blk (1) Common
Red (2) + Hot
:O\U[PUN
9LZPZ[VY
W
R
R
R
B
W
Pnk (4) W
W
Wht (3) R
Gry (5) B
B
W973, W7100
T775
W
Line
Blk (1) Common
Volts
Red (2) + Hot
Pnk (4) W
Wht (3) R
Red (2) + Hot
Pnk (4) W
W
Wht (3) R
R
R
-MFT95-X1
Honeywell Q209A
Minimum Position
Potentiometer
Volts
-MFT95-X1
R
24 VAC Transformer
Line
Pnk (4) W
Wht (3) R
Gry (5) B
Blk (1) Common
B
Org (6) ‘U5’ Output 2 to 10 VDC
;VV[OLY
HJ[\H[VYZ
Org (6) ‘U5’ Output 2 to 10 VDC
Honeywell
T675A Morning
Warmup
-MFT95-X1
Line
Gry (5) B
-MFT95-X1
24 VAC Transformer
Series 90
Controller
H205 Change- Occupied
over Controller Contact
Org (6) ‘U5’ Output 2 to 10 VDC
High Limit Control
W
B
Gry (5) B
B
B
W
Wht (3) R
R
Red (2) + Hot
Series 90
Controller
Red (2) + Hot
Blk (1) Common
Volts
Blk (1) Common
Pnk (4) W
Wht (3) R
-MFT95-X1
S963A
Minimum Position
Potentiometer
Line
R
24 VAC Transformer
Pnk (4) W
No. of
actuators Resistance
2
1300 Ω
3
910 Ω
4
768 Ω
9LZPZ[VY2P[5VA.9
Gry (5) B
Org (6) ‘U5’ Output 2 to 10 VDC
To other
actuators
Red (2) + Hot
Pnk (4) W
Wht (3) R
Blk (1) Common
Volts
Wiring Multiple Actuators to a Series 90 Controller
using a Minimum Position Potentiometer
Low Limit Control
Blk (1) Common
-MFT95-X1
24 VAC Transformer
Honeywell T675A
Morning Warmup
W
Used with the W973 and W7100 controllers
Gry (5) B
Org (6) ‘U5’ Output 2 to 10 VDC
Controller
R
Wht (3) R
W017
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
Pnk (4) W
Occupied
Contact
Line
No. of
actuators Resistance
2
140 Ω
3
71.5 Ω
4
47.5 Ω
5
37.5 Ω
6
28 Ω
9LZPZ[VY2P[5VA.9
A
W
Line
W
-MFT95-X1
Volts
B
Blk (1) Common
Volts
-MFT95-X1
Shunting
Resistor
Org (6) ‘U5’ Output 2 to 10 VDC
Line
-MFT95-X1
Line
Gry (5) B
Org (6) ‘U5’ Output 2 to 10 VDC
24 VAC Transformer
Pnk (4) W
Wht (3) R
Y
Wht (3) R
B
Pnk (4) W
R
Series 90
Controller
Pnk (4) W
W
B
Red (2) + Hot
A
W
B
R
Line
W
R
B
The direction of rotation switch is set so that the fail safe position and the
position of the damper is closed with no signal at wire R.
24 VAC Transformer
R
Blk (1) Common
W019
Switch B
B
Org (6) ‘U5’ Output 2 to 10 VDC
Override
Switch A
Blk (1) Common
Volts
1 = Black
2 = Red
Q209A
Minimum Position
Potentiometer
W020
Typical wiring diagrams for multiple actuators
used with the W973, W7100 and T775 controllers
W
B
Gry (5) B
Org (6) ‘U5’ Output 2 to 10 VDC
;VV[OLY
HJ[\H[VYZ
Line
Blk (1) Common
Volts
Red (2) + Hot
Pnk (4) W
-MFT95-X1
Gry (5) B
Org (6) ‘U5’ Output 2 to 10 VDC
Org (6) ‘U5’ Output 2 to 10 VDC
800-543-9038 USA
Wht (3) R
Gry (5) B
Series 90 high limit control - 280 Ω
To other
actuators
-MFT95-X1
866-805-7089 CANADA
-MFT95-X1
203-791-8396 LATIN AMERICA
81
Wiring Diagrams for Multiple MFT95 Actuators
21
3
Actuators may also be powered by 24 VDC
5
Actuators with plenum rated cable do not have numbers on wires; use color codes
instead. Actuators with appliance cable are numbered.
21
Provide overload protection and disconnect as required.
23
Consult controller instruction data for more detailed information.
24 VAC Transformer
Blk (1) Common
Line
Volts
3
5
Master
W
R
B
Red (2) + Hot
23
Wht (3) W
Pnk (4) R
Gry (5) B
25
W234_2_B_AFX24_MFT95
AFX24-MFT95-X1 Actuators, 0-135 Ω
Org (6) U Output, 2 to 10 V
-MFT95
25
Slave
5
Blk (1) Common
To reverse control rotation, use reversing switch.
Red (2) + Hot
23
WARNING
G Live Electrical Components!
Wht (3) Y1 Input
25
During installation, testing, servicing and troubleshooting of this product, it may be
necessary to work with live electrical components. Have a qualified licensed electrician or
other individual who has been properly trained in handling live electrical components
perform these tasks. Failure to follow all electrical safety precautions when exposed to live
electrical components could result in death or serious injury.
Pnk (4) Y2 Input
Wiring multiple ...MFT actuators to a single shaft and/or on valves. All MFT
actuators are wired in master-slave configuration.
Org (6) U Output 2 to 10 V
CCW CW
-MFT
Multiple Actuators Mounted to One Control Shaft
MFT actuator configurations should also coordinate with each other. Meaning
the master input = controllers output. Master output = slave output. Slave
output = controller input.
Example
Master Feedback
Slave Input
Slave Feedback
0 to 135 Ω
2 to 10 VDC
2 to 10 VDC
2 to 10 VDC
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
Controller Output
800-543-9038 USA
82
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
Close-Off Pressures (psi)
G2/G3 Spring Return and Non-Spring Return
Non-Spring Return
NVD
2-way
G212(S)
G213(S)
G214(S)
G215(S)
G219(S)
G220(S)
G224(S)
G225(S)
G232(S)
G240(S)
G250(S)
NV
NVG
250
250
250
250
250
250
G315
G320
G325
G332
G340
G350
AM
NVFD
NVF
250
250
250
250
250
250
250
250
158
160
190
LF
250
250
250
250
250
250
242
250
250
250
185
250
250
250
250
250
250
250
250
250
250
250
250
AFX
169
93
230
127
169
93
230
127
250
250
250
250
250
158
250
250
250
250
250
250
250
N40021 - 06/11 - Subject to change. © Belimo Aircontrols (USA), Inc.
250
250
250
207
130
88
47
230
127
AF
250
250
158
250
250
158
NF
250
250
250
250
185
185
207
207
130
88
47
230
127
250
162
110
58
3-way Diverting
G315D
G320D
G325D
G332D
G340D
G350D
Spring Return
NM
250
250
250
250
242
242
250
250
162
110
58
3-way Mixing
G314
LM
800-543-9038 USA
866-805-7089 CANADA
203-791-8396 LATIN AMERICA
87
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
