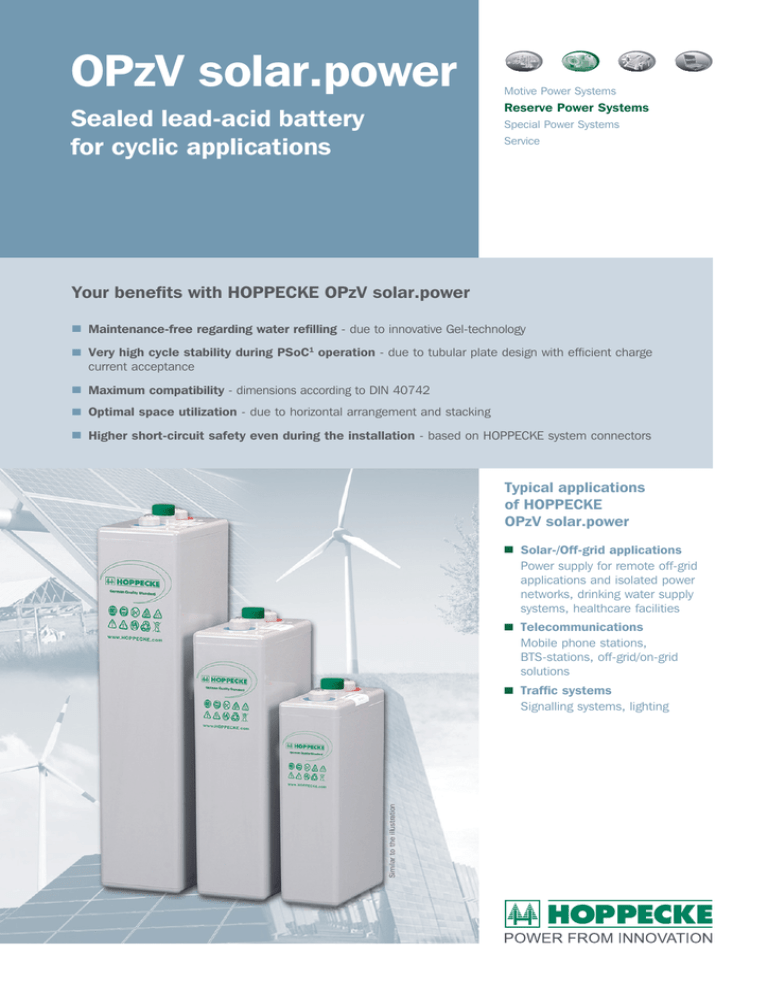

OPzV solar.power
Motive Power Systems
Reserve Power Systems
Sealed lead-acid battery
for cyclic applications
Special Power Systems
Service
Your benefits with HOPPECKE OPzV solar.power
■
Maintenance-free regarding water refilling - due to innovative Gel-technology
■
Very high cycle stability during PSoC1 operation - due to tubular plate design with efficient charge
current acceptance
■
Maximum compatibility - dimensions according to DIN 40742
■
Optimal space utilization - due to horizontal arrangement and stacking
■
Higher short-circuit safety even during the installation - based on HOPPECKE system connectors
Similar to the illustration
Typical applications
of HOPPECKE
OPzV solar.power
■
Solar-/Off-grid applications
Power supply for remote off-grid
applications and isolated power
networks, drinking water supply
systems, healthcare facilities
■
Telecommunications
Mobile phone stations,
BTS-stations, off-grid/on-grid
solutions
■
Traffic systems
Signalling systems, lighting
OPzV solar.power
Type overview
4 OPzV solar.power 250
5 OPzV solar.power 310
6 OPzV solar.power 370
5 OPzV solar.power 420
6 OPzV solar.power 520
7 OPzV solar.power 620
6 OPzV solar.power 750
8 OPzV solar.power 1000
10 OPzV solar.power 1250
12 OPzV solar.power 1500
12 OPzV solar.power 1700
16 OPzV solar.power 2300
20 OPzV solar.power 2900
24 OPzV solar.power 3500
250.0
310.0
370.0
440.0
560.0
660.0
810.0
1080.0
1350.0
1570.0
1720.0
2320.0
2930.0
3540.0
225.0
285.0
340.0
440.0
530.0
620.0
745.0
995.0
1245.0
1490.0
1675.0
2235.0
2795.0
3350.0
225.6
278.4
336.0
436.8
525.6
612.0
739.2
981.6
1228.8
1476.0
1658.4
2210.4
2760.0
3312.0
207.0
259.0
310.0
391.0
469.0
548.0
682.0
910.0
1140.0
1370.0
1520.0
2030.0
2540.0
3050.0
C5/1.77 V
Ah
max. Weight
kg
max.* Length L
mm
max.* Width W
mm
max.* Height H
mm
Fig.
188.5
235.5
283.0
347.0
416.0
484.5
595.0
795.0
990.0
1190.0
1275.0
1695.0
2125.0
2545.0
20.0
24.0
28.0
31.0
37.0
42.0
50.0
68.0
82.0
97.0
120.0
165.0
200.0
240.0
105
126
147
126
147
168
147
215
215
215
215
215
215
215
208
208
208
208
208
208
208
193
235
277
277
400
490
580
420
420
420
535
535
535
710
710
710
710
840
815
815
815
A
A
A
A
A
A
A
B
B
B
B
C
D
D
C100, C50, C24, C10 and C5 = Capacity at 100 h, 50 h, 24 h, 10 h and 5 h discharge
* according to DIN 40742 data to be understood as maximum values
Service life in cycles and Depth of Discharge
9000
Number of cycles [n]
8000
7000
6000
5000
4000
3000
2000
1000
0
0
10
20
30
40
50
60
70
80
90
Depth of Discharge [%]
Fig. D
H
Fig. C
W
W
W
W
Fig. B
Fig. A
L
4 OPzV solar.power 250 6 OPzV solar.power 750
L
L
8 OPzV solar.power 1000 12 OPzV solar.power 1700
L
16 OPzV solar.power 2300
20 OPzV solar.power 2900 24 OPzV solar.power 3500
Optimal environmental compatibility - closed loop for recovery of materials in an accredited recycling system.
IEC 60896-21
IEC 61427
1
Partial State of Charge
HOPPECKE Batterien GmbH & Co. KG
P.O. Box 1140 · D-59914 Brilon · Germany
Bontkirchener Straße 1 · D-59929 Brilon-Hoppecke
Phone: + 49 (0) 29 63 61-3 74
Fax:
+ 49 (0) 29 63 61-2 70
Email: [email protected]
Internet: www.hoppecke.com
Printed in Germany
C100/1.85 V C50/1.85 V C24/1.83 V C10/1.80 V
Ah
Ah
Ah
Ah
Form OPzV solar.power EN/04.11/2 K
Type
All details in this brochure are based on state-of-the-art technology. Our products are subject to constant development. We therefore reserve the right to make changes.
Capacities, dimensions and weights
