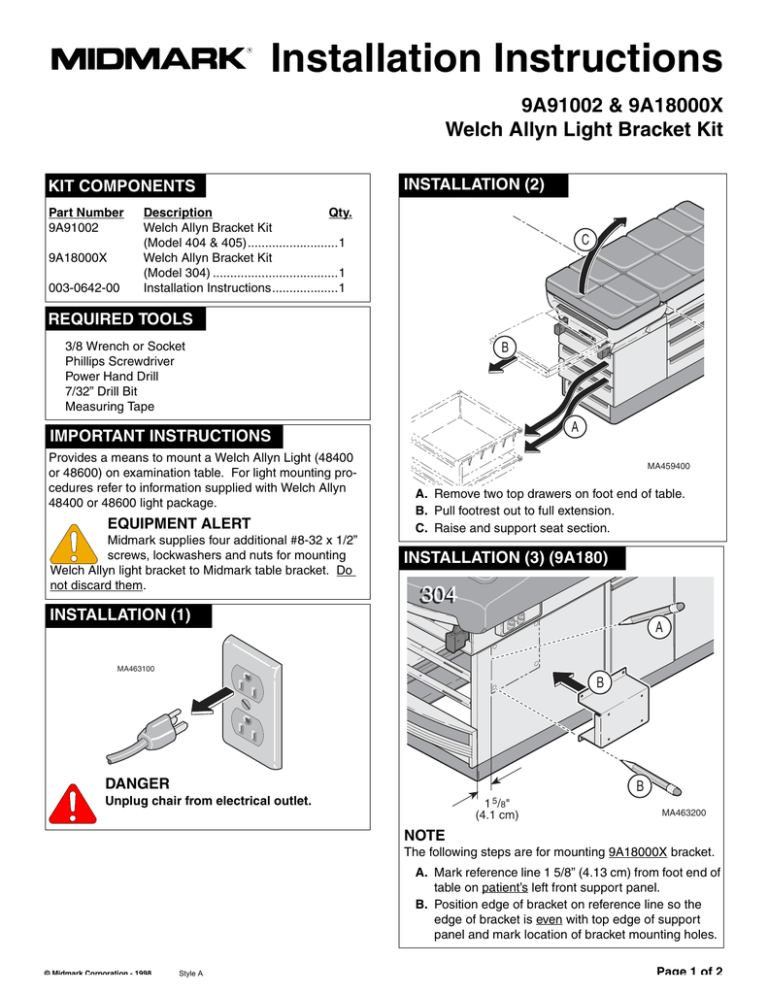

for 100 / 104 (-001 thru -034)
Installation Instructions
9A91002 & 9A18000X
Welch Allyn Light Bracket Kit
KIT COMPONENTS
Part Number
9A91002
9A18000X
003-0642-00
INSTALLATION (2)
Description
Qty.
Welch Allyn Bracket Kit
(Model 404 & 405)..........................1
Welch Allyn Bracket Kit
(Model 304) ....................................1
Installation Instructions...................1
C
REQUIRED TOOLS
3/8 Wrench or Socket
Phillips Screwdriver
Power Hand Drill
7/32” Drill Bit
Measuring Tape
B
A
IMPORTANT INSTRUCTIONS
Provides a means to mount a Welch Allyn Light (48400
or 48600) on examination table. For light mounting procedures refer to information supplied with Welch Allyn
48400 or 48600 light package.
EQUIPMENT ALERT
Midmark supplies four additional #8-32 x 1/2”
screws, lockwashers and nuts for mounting
Welch Allyn light bracket to Midmark table bracket. Do
not discard them.
MA459400
A. Remove two top drawers on foot end of table.
B. Pull footrest out to full extension.
C. Raise and support seat section.
INSTALLATION (3) (9A180)
304
304
INSTALLATION (1)
A
MA463100
B
DANGER
B
Unplug chair from electrical outlet.
1 5/8"
(4.1 cm)
MA463200
NOTE
The following steps are for mounting 9A18000X bracket.
A. Mark reference line 1 5/8” (4.13 cm) from foot end of
table on patient’s left front support panel.
B. Position edge of bracket on reference line so the
edge of bracket is even with top edge of support
panel and mark location of bracket mounting holes.
© Midmark Corporation - 1998
Style A
Page 1 of 2
INSTALLATION (4) (9A180)
INSTALLATION (6) (9A91)
A. Drill four 7/32” holes at location marks.
B. Install 9A180 bracket using four #10-24 x 3/8”
screws, starwashers and nuts.
A. Drill four 7/32” holes at location marks.
B. Install 9A91 bracket using four #10-24 x 3/8” screws,
lockwashers and nuts.
NOTE
When mounting the Welch Allyn universal light bracket
(not supplied with this kit) the larger space between the
bracket screw holes and the edge on the universal
bracket must be positioned upward.
NOTE
When mounting the Welch Allyn universal light bracket
(not supplied with this kit) the larger space between the
bracket screw holes and the edge on the universal
bracket must be positioned upward.
INSTALLATION (5) (9A91)
404 / 405
INSTALLATION (7)
B
A
A
MA459500
MA463400
NOTE
B
The following steps are for mounting a 9A91002 bracket.
The large holes in the mounting bracket should be over
the spot welds on the upper wrap assembly.
A. Position mounting bracket on patient’s left front support panel so top edge of bracket is even with top
edge of upper wrap and bracket’s top left corner
against seat support.
B. Mark location of bracket mounting holes.
MA460000
A. Push footrest in to stored position.
B. Install two top drawers and plug table into wall
outlet.
R
Midmark Corporation, Versailles, Ohio 45380 U.S.A.
(937) 526-3662
FAX (937) 526-5542
© Midmark Corporation - 1998
003-0642-00 Rev. E (7/08)
Page 2 of 2
SECTION VI
PARTS LIST
Welch Allyn Bracket
7
1
6
5
4
3
2
MA353600
Item
Part No.
Description
9A180002
Welch Allyn Bracket Assembly- Warm
Grey (Includes Items 1 thru 8) ..............
Welch Allyn Bracket Assembly- Sand
Grey (Includes Items 1 thru 8) ..............
Welch Allyn Bracket Assembly- Pearl
Grey (Includes Items 1 thru 8) ..............
• Welch Allyn Bracket (Pearl Grey) ........
• Welch Allyn Bracket (Warm Grey) .......
• Welch Allyn Bracket (Sand Grey) ........
9A180004
9A180006
1
• 050-2402-10
• 050-2402-20
• 050-2402-40
Qty.
1
1
1
1
1
1
Item
2
3
4
5
6
7
8
Part No.
Description
Qty.
• 040-0008-06
• 045-0001-19
• 041-0008-00
• 040-0010-75
• 042-0010-04
• 045-0001-31
• 041-0010-00
• 003-0642-00
• Screw ................................................. 4
• Lockwasher ........................................ 4
• Nut ...................................................... 4
• Screw (Field installed) ......................... 4
• Pop Rivets (Plant installed) .................. 4
• Lockwasher (Field installed) ................ 4
• Nut (Field installed) .............................. 4
• Installation Instructions ........................ 1
Always Specify Model & Serial Number
© Midmark Corporation 1998 SF-1571 Rev. 11/99
Page 9A180
Printed in U.S.A.
SECTION VI
PARTS LIST
Welch Allyn Bracket
4
3
2
7
6
1
5
Item
1
2
3
Part No.
Description
9A91002
Welch Allyn Bracket (Includes
Items 1 thru 8) ....................................... 1
• Welch Allyn Bracket (48400 Light) ........ 1
• Screw (Field installed) .......................... 4
• Pop Rivet (Plant installed) ..................... 4
• Lockwasher (Field installed) ................. 4
• 050-4454-10
• 040-0010-34
• 042-0010-04
• 045-0001-31
Qty.
Item
4
5
6
7
8
Part No.
Description
Qty.
• 041-0010-00
• 040-0008-06
• 045-0001-19
• 041-0008-00
• 003-0407-00
• Nut (Field installed) ............................... 4
• Screw .................................................. 4
• Lockwasher ......................................... 4
• Nut ....................................................... 4
• Installation Instructions (Not Shown) .... 1
Always Specify Model & Serial Number
© Midmark Corporation 1998 SF-1571 Rev. 11/99
Page 9A91
Printed in U.S.A.
