Sennheiser MZC 30, MZH 30 Specification

Sennheiser MZC 30, MZH 30 Specification

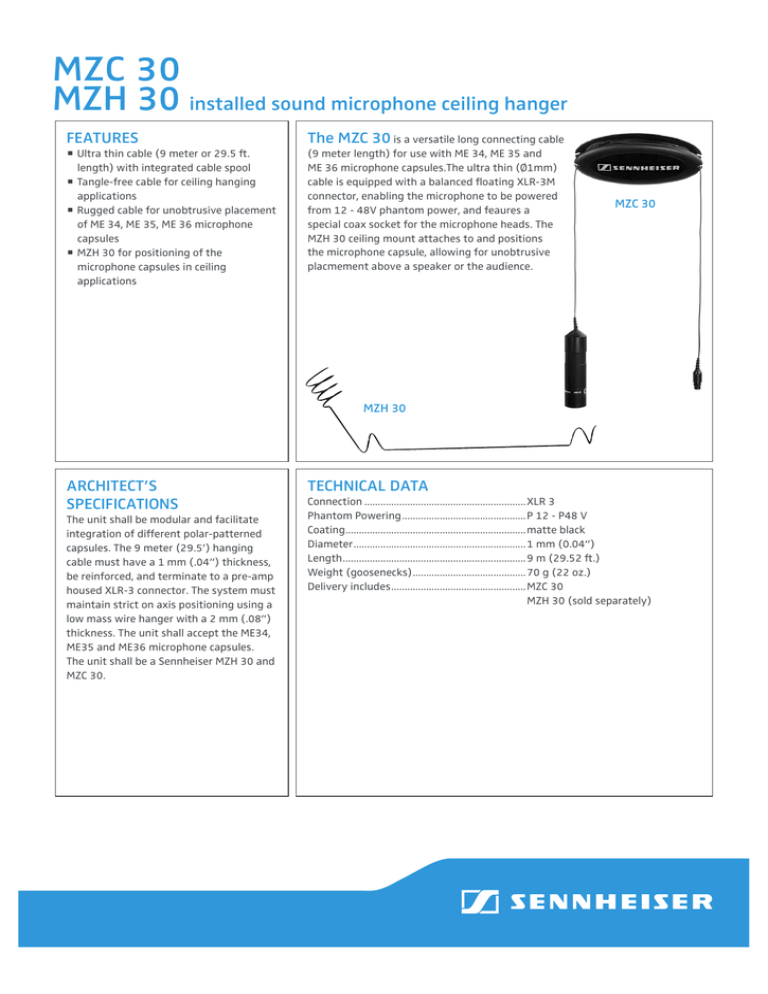

MZC 30
MZH 30 installed sound microphone ceiling hanger
FEATURES
Ultra
thin cable (9 meter or 29.5 ft.
length) with integrated cable spool
Tangle-free cable for ceiling hanging
applications
Rugged cable for unobtrusive placement
of ME 34, ME 35, ME 36 microphone
capsules
MZH 30 for positioning of the
microphone capsules in ceiling
applications
The MZC 30 is a versatile long connecting cable
(9 meter length) for use with ME 34, ME 35 and
ME 36 microphone capsules.The ultra thin (Ø1mm)
cable is equipped with a balanced floating XLR-3M
connector, enabling the microphone to be powered
from 12 - 48V phantom power, and feaures a
special coax socket for the microphone heads. The
MZH 30 ceiling mount attaches to and positions
the microphone capsule, allowing for unobtrusive
placmement above a speaker or the audience.
MZC 30
MZH 30
ARCHITECT’S
SPECIFICATIONS
The unit shall be modular and facilitate
integration of different polar-patterned
capsules. The 9 meter (29.5’) hanging
cable must have a 1 mm (.04”) thickness,
be reinforced, and terminate to a pre-amp
housed XLR-3 connector. The system must
maintain strict on axis positioning using a
low mass wire hanger with a 2 mm (.08”)
thickness. The unit shall accept the ME34,
ME35 and ME36 microphone capsules.
The unit shall be a Sennheiser MZH 30 and
MZC 30.
TECHNICAL DATA
Connection............................................................. XLR 3
Phantom Powering............................................... P 12 - P48 V
Coating.................................................................... matte black
Diameter................................................................. 1 mm (0.04“)
Length..................................................................... 9 m (29.52 ft.)
Weight (goosenecks)........................................... 70 g (22 oz.)
Delivery includes................................................... MZC 30
MZH 30 (sold separately)
MZC 30 MZH 30 installed sound microphone ceiling hanger
Mic –
Mic +
XLR-3
PRODUCT VARIANTS
MZC 30 - Black
MZH 30 - Black
MZC 30 W - White
MZH 30 W - White
RECOMMENDED ACCESSORIES
Cat.No. 005088
Cat.No. 005090
Cat.No. 005089
Cat.No. 005092
Contact your local Service Partner:
Sennheiser electronic GmbH & Co. KG
Am Labor 1, 30900 Wedemark, Germany
www.sennheiser.com
MZT 30, installation XLR3F connector
Cat.No. 005085
06/10 Sennheiser is a registered trademark of Sennheiser electronic GmbH & Co. KG. www.sennheiser.com. Copyright © 2010. All rights reserved. Errors and omissions excepted.
DIMENSIONS
