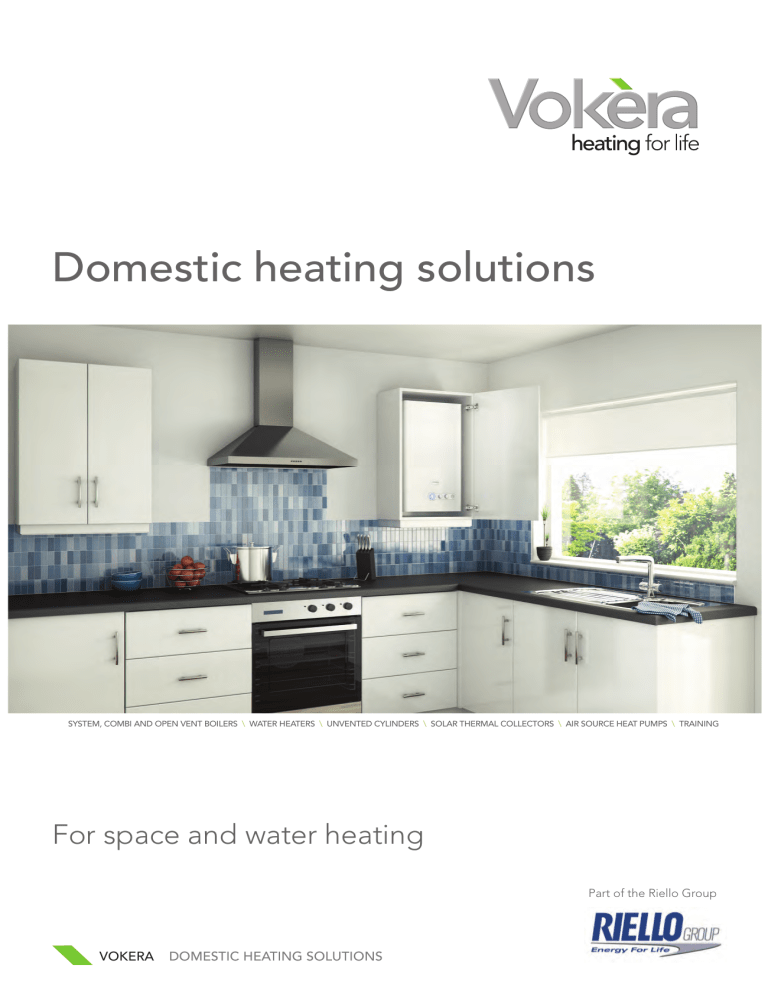

Domestic heating solutions

Domestic heating solutions

SYSTEM, COMBI AND OPEN VENT BOILERS \ WATER HEATERS \ UNVENTED CYLINDERS \ SOLAR THERMAL COLLECTORS \ AIR SOURCE HEAT PUMPS \ TRAINING

For space and water heating

Part of the Riello Group

VOKERA DOMESTIC HEATING SOLUTIONS

Vokèra products provide a trouble-free focal point for any central heating system.

Our extensive range offers the right choice for every home and application.

Choosing the right boiler shouldn’t have to mean limited choice. Our range comes in a variety of outputs suitable for any domestic application.

Versatile flueing options and natural gas/LPG flexibility means that virtually any home can enjoy the benefits of a Vokèra boiler.

And now you can couple a Vokèra boiler with Vokèra renewable technology products, harnessing the earths natural resources.

warmth

VOKERA

DOMESTIC HEATING SOLUTIONS

CONTENTS

Vokèra Home Heating Solutions

Gas Boiler Systems for Domestic Applications

Verve

Mynute i

High efficiency sealed system boiler

High efficiency sealed system boiler

Vision S

Vibe

Mynute VHE

Linea One

High efficiency sealed system boiler

High efficiency sealed system boiler

High efficiency open vent boiler

High efficiency combi boiler

Unica i

Vision C

Compact A

High efficiency combi boiler

High efficiency combi boiler

High efficiency combi boiler

Water Cylinders and Water Heaters

AquaFlow

AquaNova

Unvented single coil water cylinder

Instantaneous multipoint water heater

Domestic Boiler Feature Quick Reference Chart

Flue Guidance and Options

Choosing the right control

Renewable Energy Solutions - Solar Thermal Systems

Introducing Solar thermal technology and the Vokèra Zenith range

Zenith Evacuated Tube Solar thermal collectors

Zenith Flat Plate Inset and On Tile

AquaFlow Twin

Solar thermal collectors

Unvented twin coil water cylinder

Heat Pump Systems

Introducing air source pump technology and the Vokèra AriaPRO range

AriaPRO Air source heat pump

Vokèra Support

Pre Sales Support

Technical Training

Customer Care

Contact Us

efficiency

www.vokera.ie

42

42

43

43

40

41

36

37

38

39

26

27

28

29

33

4

16

18

20

22

24

8

10

12

14

Vokèra Domestic Heating Solutions

Quality and reliability

More than 1.5 million Vokèra boilers have been installed around the UK and Ireland demonstrating our wealth of experience in home heating. Vokèra is recognised for the quality and reliability of its products with one of the highest reliability statistics in the market coupled with a 30 year unblemished record of product quality. At every stage, from research and development through to production and after sales support, we build quality in as standard. Safety is our number one priority, Vokèra is ISO 9001 approved, supports the ‘benchmark’ initiative, are members of the Heating and Hot Water Industry Council, Association of Plumbing and Heating Contractors, the Energy Utilities

Alliance and Gas Safe Register.

In support of this we back our Vision boiler range with a 5 or 7 year warranty option, our Linea One, Unica i and Mynute i ranges with a

5 year warranty as standard and our other boiler ranges with a 2 year warranty as standard.

100

99

98

97

92

91

90

96

95

94

93

2007 2008 2009 2010 2011 2012 2013 2014

Vokèra base the monthly reliability factor on the number of products at risk, measured against the quantity of bona-fide warranty interventions carried out during the same period

Choice

Vokèra specialises in the domestic and light commercial market and provides products that fulfil modern requirements. Our product range incorporates a product for every domestic application, including high efficiency combination, system and open vent boilers, light commercial boilers and water heaters and unvented cylinders.

Vokèra renewable energy technology products are MCS approved demonstrating their quality and reliability. Renewable products available include the Zenith solar thermal range and AriaPRO air source heat pumps.

Versatility

Vokèra boilers are available in natural gas with kits available to allow simple conversion to LPG. A wide range of flue options means that

Vokèra appliances are extremely versatile – there is not a place in the home where they cannot be installed.

Service and support

Our support network incorporates a pre sales support advice service, Technical Training, Technical Support service and a Customer Care team dedicated to providing great service.

Vokèra employed engineers and approved agent network support every product, giving you peace of mind that should you need us, we are there. Our engineers boast a 95% first time fix rate, ensuring a rapid resolution should any Vokèra appliance develop a fault during the warranty period. We regularly publish our customer satisfaction results on our website, these not only demonstrate our commitment to continual improvement, but the high levels of 99% satisfaction we consistently achieve every year.

*

*Vokèra calculates its monthly customer satisfaction results by the total number of customer calls our engineers attend versus customer complaints.

4

VOKERA

DOMESTIC HEATING SOLUTIONS

DOMESTIC HEATING SOLUTIONS

High efficiency condensing technology

The latest technology is used to maximise the efficiency of all Vokèra products. All Vokèra high efficiency boilers conform to the Energy-related Product Directive (ErP). ErP is a mandatory piece of legislation, which aims to bring in minimum standards for space heating and hot water systems. In summary, the directive requires heating appliances with up to 400kW output to meet a set of requirements regarding their energy consumption, efficiency and carbon emissions. In a similar way to the ratings already found on domestic white goods, the Energy Labelling Directive means that space and water heating products and packages are to be given an efficiency rating and label, from A+++ to G.

Vokèra high efficiency appliances are amongst the most energy efficient boilers available today. These condensing boilers dramatically reduce wasted heat, saving money and helping to protect the environment. Most of these boilers can be fitted with additional energy saving controls to ensure they maximise energy efficiency and the overall ErP rating.

Radial heat exchanger

Starting from the raw materials this key component is designed and built in-house ensuring the highest quality, no compromise. This provides maximum control over the manufacturing process, ensuring excellent flexibility and reliability of the thermal and corrosion resistant properties of the heat exchanger.

The innovative heat exchanger, found in our higher specification products, is a single piece component manufactured from superior quality aluminium alloy that has been specifically chosen for its excellent corrosion resistant properties and high thermal transfer rate. The radial design and large cross-sectional area eliminate the risk of scaling or superheated areas. No welding or localised heat treatment is necessary during the manufacture of the heat exchanger, thereby maintaining maximum integral strength and thermal qualities of the aluminium alloy.

The Linea One and Unica i combination boilers utilise the latest version of the radial heat exchanger which has been developed to increase the time between any required maintenance of the heat exchanger. This has been enabled by increasing the ‘pitch’ of the coils thereby reducing the possibility of condense residues sticking to the outer wall of the exchanger.

Class leading 10:1 modulation ratio

By incorporating the most advanced technology available, an extremely high modulation ratio of 10:1 has been achieved in the higher specification products such as the Linea One, Unica i and Mynute i. The modulation ratio is a boiler’s ability to reduce its maximum output to its minimum output. The ability of an appliance to modulate its output to 10% of its maximum output has many benefits.

If a boiler has a maximum output of 38kW yet only has a modulation ratio of 4:1, it will only be able to modulate down to around 10kW. However, when most rooms have reached the required temperature and radiator TRVs have closed, the demand on the boiler will be considerably less than 10kW. This means that the minimum output of the boiler will be higher than it needs to be, so the boiler will constantly switch on and off, leading to fuel inefficiency.

This will also place unnecessary stress on the boiler’s components and parts.

Vokèra Unica i with

10:1 modulation ratio

A boiler with a high maximum output and a wide modulation ratio however, will be able to modulate down to an extremely low output, reducing wear and tear on primary components and increasing fuel efficiency resulting in cost savings for the end user.

Secondly, a combination boiler with a high modulation ratio is able to maintain a stable domestic hot water (DHW) flow temperature at a low flow rate, minimising any temperature fluctuations to provide a continuous flow of hot water, ensuring total end user comfort. This is particularly important for end users who prefer showers over baths or for those who require a constant DHW outlet temperature – for example, where there are young children or elderly people in a household, who are at a higher risk of scalding.

When selecting a combi boiler, it’s crucial to consider modulation ratios and to remember that performance is not just about kW output.

Installing a combi boiler with a high maximum output and a wide modulation ratio will deliver optimal efficiency and comfort.

Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk

Vokèra Magnetic Filter

High efficiency boilers offer excellent performance for heating systems, however this performance can be impaired if the central heating system is not cared for. Radiators usually account for the largest surface area of a central heating system where they act as heat emitters but they are usually made up of mild steel which can corrode easily if left untreated.

Even when a corrosion inhibitor is added to the system, low levels of corrosion can still occur, forming magnetite; a black sludge like substance. Magnetite particles can be dispersed throughout the system causing blockages or restrictions that can result in a loss of performance and homeowner comfort; and can also lead to premature failure of valves and pumps which can be costly.

The Vokèra Magnetic Filter is compatible with all Vokèra domestic boilers, it collects waterborne magnetite particles and any other debris that has been left within a system, offering additional protection and restoring efficiency without reducing the flow rate through the system.

Easy to install on both horizontal and vertical pipe runs, the Magnetic Filter’s base mounted isolation valve also aids servicing and the easy discharge of the particles collected.

Vokèra Fuelsaver

(combi boilers only)

The Vokèra Fuelsaver passive flue gas heat recovery system consists of a post heat exchanger device that is located between the boiler and the flue terminal and offers the potential to increase efficiency by capturing heat recovered from the flue exhaust gases that would normally be wasted. This captured heat is then used to pre-heat the incoming cold mains water supply before it enters the boiler, thereby reducing gas consumption and improving domestic hot water efficiency.

The addition of a Vokèra Fuelsaver can save up to 33% of the gas normally required for DHW; save up to 500kg carbon emissions annually and reduces cold water wastage by 5% annually due to the inlet water being pre-heated.

Intelligent controls

Vokèra boilers boast some of the latest innovations in technology, including OpenTherm, that help maximise efficiency. We are committed to making our controls as straight forward as possible so we have incorporated this technology into the complete Vokèra combination boiler range so that they are compatible with Vokèra OpenTherm controls and devices. The

OpenTherm 7 day programmable room thermostat has been configured for the Unica i range and has a Plug & Play Tyco connection on the receiver that enables the simplest of installation to the boiler. For installation to other Vokèra ranges the Tyco connection simply needs to be re-configured or removed.

The installation of a Vokèra intelligent control provides a more comfortable and stable room temperature for the end user, in addition to helping reduce fuel bills. When installed with the Unica i, the correct use of the Vokèra OpenTherm control can save up to

90/£67 of a home’s annual energy bill

*

.

Most of Vokèra’s current boiler range also comes with pre-configured weather compensating technology, allowing you to install the Vokèra weather compensation control with the simple addition of an external sensor.

Registered Gas Installers: For a step by step video on the installation of an

OpenTherm control visit the Vokèra YouTube channel, search Vokera Ltd.

For more information on the range of Vokèra controls see page 33.

* Energy saving based on average 18,000kWh per annum

Wireless OpenTherm Control - Transmitter

Wall mounted wireless RF Transmitter (shown)

Wireless OpenTherm Control - Receiver

Tyco Plug & Play connection on wireless OT Receiver and

Unica i boiler for a simple installation.

6

VOKERA

DOMESTIC HEATING SOLUTIONS

DOMESTIC HEATING SOLUTIONS

Zenith flat plate and evacuated tube solar thermal collectors

Renewable technology

Our MCS approved high grade Zenith solar thermal collectors maximise energy efficiency and meet the approved standard of BS EN12975 and have the Solar Keymark seal of approval.

Both the Zenith solar thermal collectors and AriaPRO range are MCS approved, demonstrating their quality and reliability.

The Zenith solar thermal flat plate collectors are backed by a 10 year warranty and the evacuated tube collectors and AriaPRO air source heat pumps with a 2 year warranty.

High Power Commercial Heating Products

The CondexaPRO, a long established product range within Vokèra, makes true plant-room efficiency simple. The high reliability of products, the availability of a comprehensive line of specific accessories, the ease of mounting and the maximum flexibility, make the

Vokèra CondexaPRO systems the best solution both for large domestic properties and commercial buildings, including hotels, schools, office-buildings, factories and sports centres.

CondexaPRO products are suitable both for new buildings, as a replacement of old floor-standing boilers, and thanks to their modularity they offer the highest efficiency at any time combined with the maximum peace of mind. The availability of two different heat exchangers, giving nominal outputs of 50kW and 128kW, offer a number of practical boiler variations and even more cascade configurations, up to 6.9MW, all available as natural gas or LPG.

The expert Vokèra service team are also able to provide a commissioning service for CondexaPRO boiler installations.

CondexaPRO wall hung condensing boilers

CondexaPRO box floor standing units. Available for internal and external installations.

Pre sales support for domestic renewable installations and commercial applications

The Vokèra pre sales support team offers advice on a range of products and applications to engineers, architects, specifiers and developers, ensuring you get the correct guidance and reassurance when choosing a solution for your project.

To ensure that your installation is reaching its energy efficiency potential the correct product and output must be specified. The

Vokèra pre sales team will carry out a complete survey of your project and provide a bespoke report detailing the energy efficiency and potential energy savings of the installation, a complete bill of materials, and they can also provide on-site assistance and support with product assembly and commissioning.

Contact the Vokèra pre sales team: [email protected]

Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk

Verve

High output heat only boiler

(1)

RADIAL HEAT

EXCHANGER

FAMILIAR

CHARACTERISTICS

TO DOMESTIC

BOILERS

EXCELLENT

POWER TO

WEIGHT RATIO

INTEGRAL

PUMP

CASCADES UP

TO

200

K

W

ENERGY SAVING CONTROLS AND OPTIONS

Description

Hydraulic separator

3 way valve kit for DHW

B23 air intake kit

Flue kit adaptor 80/80 - 60/100

Flue kit adaptor 80/80 - 80/125

24 litre expansion vessel

OpenTherm RF programmable room stat (2)

Weather compensation sensor (2)

Condense pump

Magnetic filter

Code

20028475

20028476

20028478

20028027

20028029

20043324

20050690

2359259

404

29450199

Fully compliant with the Energy-related Products Directive. Further savings can be achieved when installed with a weather compensation sensor or OpenTherm control.

Can be cascaded up to 200kW in wall hung, free standing linear or back to back installations. See the Vokèra Commercial Catalogue for more information and example configurations.

2 year parts and labour warranty.

(1)

Familiar characteristics to domestic boilers with a large output, enabling it to be installed in large domestic homes or small commercial properties.

Optional hydraulic separator enables the installer to separate the boiler from heating system.

Vokèra strongly recommends the addition of the optional hydraulic separator to ensure that the boiler operates at the required flow-rate, reducing component wear and tear and prevents nuisance shut down.

Isolating valve kit supplied as standard for simple servicing. The flow and return valve kit that enables the boiler to be isolated from the circuit – whether sealed or open-vent – eliminates any need to drain the whole system during servicing.

Addition of the optional three port valve enables the installer to configure different system circuits, including space heating, hot water and low temperature underfloor heating.

Vokèra’s unique radial design heat exchanger utilises an extruded aluminium alloy. Aluminium has excellent thermal transfer properties and our updated design incorporates a new profile that inhibits the build up of condense residues, thereby significantly reducing the frequency of cleaning.

The Verve comes with 80mm twin flue outlet allowing the flue to run up to

20m but can easily be converted to a 60/100mm concentric flue or

80/125mm concentric flue, making installations extremely flexible.

Incorporates Vokèra’s Cyclonic Separator, providing a significant improvement in the effectiveness of the ‘air separator‘ and can also capture particulates from the system water.

Simple installation with the Verve operating on a standard domestic gas supply, reducing installation preparation.

Low NOx - Class 5 performance.

Combustion analysis test point for easy servicing and maintenance.

Built-in SARA function for improved efficiency, anti-cycling for longer lasting component performance, frost protection and CO mode for simple servicing.

3.5 bar safety pressure relief valve.

Can be converted to LPG.

Built-in thermo-regulation, attach an energy saving control (1) to increase energy efficiency. Compatible with weather compensation sensor and

OpenTherm RF control.

No internal expansion vessel but a 24 litre expansion vessel is available as an optional extra and is adequate for most systems.

(1)

Subject to registration and annual service.

(2)

Contact Vokèra technical for advice.

8

VOKERA

VERVE 47KW HIGH OUTPUT HEAT ONLY BOILER

Flue gas analysis test point

High efficiency pump

Electric insulation IPX5D

Frost protection via PCB

VERVE

High output heat only boiler

Twin flue outlet

Aluminium radial heat exchanger

Condensate level sensor

Condense trap

Pressure switch

Safety valve

SPECIFICATIONS

Product order code

Central Heating

Heat input (kW)

Maximum heat output @ 80/60°C (kW)

Maximum heat output @ 50/30°C (kW)

Weight

Dry weight (kg)

Connection

Flow & return

Gas

Safety valve

Condense

Electrical

Voltage (V/Hz)

Flue Details (concentric)

Maximum horizontal flue length (60/100mm)

Maximum vertical flue length (60/100mm)

Maximum horizontal flue length (80/125mm)

Maximum vertical flue length (80/125mm)

Flue Details (twin pipes)

Maximum horizontal flue length (80mm/80mm)

Maximum vertical flue length (80mm/80mm)

Efficiency

ErP seasonal space heating energy efficiency class

SAP 2009 efficiency (%)

NOx class

Verve

20102705

47

45.8

49.9

39

1½”

22mm

15mm

21mm

230/50

1.85m

2.85m

4.85m

7.0m

20m/20m

20m/20m

A/92

88.9

5

DIMENSIONS AND CLEARANCES (MM)

283

553

*

600

100

* From casing or 25mm above flue elbow (whichever is applicable)

100

HIGH POWER DOMESTIC BOILER

The Verve boiler has been designed to provide domestic installers the opportunity to expand their scope of work into large domestic and light commercial applications without having to gain additional commercial qualifications.

Domestic characteristics include Vokèra’s unique in-house patented heat exchanger and a similar PCB to that of other

Vokèra domestic appliances, ensuring a familiar and simple installation.

Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk

Mynute i

High efficiency system boiler

(1)

BUILT

-

IN

ON

-

BOARD

RELAY

REAR

FLUE

OPTION

10:1

MODULATION

RATIO

FRONT

MOUNTED HEAT

EXCHANGER

COMPATIBLE WITH

SOLAR THERMAL

ENERGY SAVING CONTROLS AND OPTIONS

Description

OpenTherm RF programmable room thermostat (3)

Weather compensation sensor

(3)

Relay

(3)

(for use with weather compensation sensor)

Spacing frame

Mynute i LPG conversion kit

Pipe cover

Condensate pump

Magnetic filter

Code

20050690

2359259

29450144

2359689

20069593

518

404

29450199

Fully compliant with the Energy-related Products Directive. Further savings can be achieved when installed with a weather compensation sensor or OpenTherm control.

5 year parts and labour warranty.

(1)

Exceptional modulation ratio of 10:1 maximises efficiency and comfort for end user.

Simple to use back-lit LCD display ensures end-users can easily operate and adjust the appliance.

Rear flue option as well as the standard top flue option provides a versatile installation. Other flueing options available are; horizontal, vertical and twin flue.

Front mounted heat exchanger assists in simple maintenance. Our in-house patented heat exchanger incorporates a unique radial design utilising an extruded aluminium alloy. Aluminium has excellent thermal transfer properties and our updated design incorporates a new profile that inhibits the build-up of condense residues, thereby significantly reducing the frequency of cleaning.

Built-in relay enables use of a wide variety of external controls and switching devices.

Dual temperature range - easily configured to suit under-floor heating systems, with two built-in temperature ranges to suit either high or low temperature systems.

Low pressure loss reduces noise and increases pump performance.

Designed for easy installation with standard Vokèra pipework layout enabling trouble free replacement of older Vokèra models.

Simple commissioning, only minimal adjustments are required after installation and automatic modulation eliminates the need to range rate the boiler.

Low NOx - Class 5 performance.

Anti-seize function protects the pump from sticking during long periods of inactivity.

Anti-cycling control prevents energy wasteful on/off cycling and reduces wear and tear.

Built-in frost protection,which protects the appliance from damage during periods of cold weather.

Standard Autostop disabling function (2) that automatically changes the current operating mode and moves it permanently into the standby mode, helping Social Landlords fulfill their obligation of an annual gas safety check. Autostop will only operate after a pre-defined period of time has elapsed and if it has been activated during commissioning.

Built-in thermo-regulation; attach an energy saving control (4) to increase energy efficiency. Compatible with weather compensation sensor and

OpenTherm RF control.

Compatible with Vokèra’s MCS accredited Zenith solar thermal collectors.

Can be converted to LPG.

(1) Subject to registration and annual service. (2) Autostop activation device required.

(3) Can be used on heat only appliances, contact Vokèra Technical Helpline for advice.

10

VOKERA

MYNUTE i EASY TO INSTALL AND SIMPLE TO MAINTAIN

Cyclonic separator

Condensate level sensor

MYNUTE i

High efficiency system boiler

Flue gas analysis test point

Aluminium radial heat exchanger

Premix burner

Easy maintenance condensate syphon

High efficiency pump

Analogue pressure gauge

Electric insulation IPX5D

Frost protection via PCB

SPECIFICATIONS

Product order code

Central Heating

Heat input (kW)

Maximum heat output

@ 80/60°C (kW)

Modulation Ratio

Modulation ratio

Weight

Dry weight (kg)

Connections

Flow & return

Gas

Safety valve

Condensate

Electrical

Voltage (V/Hz)

Flue details (concentric)

Maximum horizontal flue length inc. rear flue (60/100mm)

Maximum vertical flue length

(60/100mm)

Maximum horizontal flue length

(80/125mm)

Maximum vertical flue length

(80/125mm)

Flue Details (twin pipes)

Maximum horizontal flue length

(80mm/80mm)

Maximum vertical flue length

(80mm/80mm)

Efficiency

ErP seasonal space heating energy efficiency (class/%)

SAP 2009 Efficiency (%)

NOx class

Mynute i20

20101253

20

19.6

10:1

36

22mm

15mm

15mm

21mm

230/50

7.8m

8.8m

20m

21m

50/50m

50/50m

A/93

89.5

5

Mynute i30

20101256

30

29.2

10:1

38

22mm

15mm

15mm

21 mm

230/50

7.85m

8.85m

14.85m

15.85m

38/38m

38/38m

A/93

89.1

5

DIMENSIONS AND CLEARANCES (MM)

338 (i20)

388 (i30)

400

*

600

12

*

From casing or 25mm above flue elbow (whichever is applicable)

12

EASY TO INSTALL AND SIMPLE TO MAINTAIN

The popular and respected Mynute HE range has been redeveloped to create the highly efficient Mynute i system boiler.

The Mynute i is extremely energy efficient and is the first Vokèra system boiler to incorporate a 10:1 modulation ratio which provides significant benefits to the end user with the primary advantages being running costs and user comfort.

The Mynute i is also the first Vokèra system boiler to incorporate a front mounted heat exchanger which ensures the range is easy to install and simple to maintain.

The versatile flue options simplify installation further and increase siting flexibility. Flue options include a rear flue option and horizontal or vertical flueing options, using Vokèra’s concentric or twin flue systems.

Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk

Vision S

High efficiency system boiler

(1)

DESIGNED

FOR EASY

INSTALLATION

LIGHTWEIGHT

WITH COMPACT

DIMENSIONS

REAR

FLUE

OPTION

BUILT

-

IN

ON

-

BOARD

RELAY

OPTIONAL

PIPE COVER

KITCHEN CUPBOARD FIT

ENERGY SAVING CONTROLS AND OPTIONS

Description

Rear flue terminal

Pipe cover

RF Room thermostat control

OpenTherm RF programmable room thermostat (4)

Weather compensation sensor (4)

Spacing frame

Control interface

(5)

Fuelsaver

Code

29450133

20012594

20059642

20050690

2359259

20030704

29450143

29450000

Fully compliant with the Energy-related Products Directive. Further efficiency can be achieved when installed with a weather compensation sensor or OpenTherm control.

Built-in on-board relay provides the simplest of connections to 230V controls or can be reconfigured for use with weather compensation where voltage-free controls are used.

5 or 7 year parts and labour warranty.

(1)

Lightweight at only 26kg for a 20S, its small dimensions enable the boiler to be sited almost anywhere in the home, including a kitchen cupboard.

Designed for easy installation with standard Vokèra pipework layout enabling trouble free replacement of older Vokèra models.

Low Nox - Class 5 performance. Only 19mg/kWh for 20S provides maximum credits available for a condensing boiler under the Code for

Sustainable Homes.

Rear flue option as well as the standard top flue option provides a versatile installation. Other flueing options available are; horizontal, vertical and twin flue.

Easy to understand diagnostic display on the facia aids the engineer in the unlikely event of a fault developing.

Standard Autostop disabling function (2) automatically changes the current operating mode and moves it permanently into the standby mode, helping registered social landlords fulfill their legal obligation of an annual gas safety check. Autostop will only operate after a pre-defined period of time has elapsed and if it has been activated during commissioning.

Attach the outside weather compensation sensor or OpenTherm RF programmable room thermostat to the Vision S boiler to further increase energy efficiency and comfort (heating only applications).

(3)

Simple commissioning; only minimal adjustments are required after installation and automatic modulation eliminates the need to range rate the boiler.

Additional built in functions include: SARA function for automatic temperature control and improved efficiency, anti-cycling for longer lasting component performance and CO mode for simple servicing.

Built-in frost protection, protects the appliance from damage during periods of cold weather.

Low temperature option for under floor heating.

Compatible with Vokèra’s unvented single and twin water cylinders.

Compatible with Vokèra’s MCS accredited Zenith solar thermal collectors.

Pipe cover (not shown) available as an option extra for a tidy installation.

Can be converted to LPG.

Vision combi boiler also available.

(1)

Subject to registration and annual service. 7 year warranty available for a promotional period.

(2)

Autostop activation device required.

(3)

Can be used on heat only appliances, contact Vokèra Technical Helpline for advice.

(4)

Contact Vokèra Technical Helpline for advice.

(5)

Required for use with OpenTherm and weather compensation controls.

12

VOKERA

VISION INSTALLER FRIENDLY AND FEATURE RICH

Premix burner

Aluminium heat exchanger

High efficiency pump

Electric insulation IPX5D

VISION S

High efficiency system boiler

Flue gas analysis test point

Cyclonic separator

Expansion vessel location allows for easy servicing maintenance

Frost protection via PCB

SPECIFICATIONS

Product order code - 5 year warranty

Product order code - 7 year warranty

Central Heating

Heat input (kW)

Maximum heat output @ 80/60°C (kW)

Maximum heat output @ 50/30°C (kW)

Weight

Dry weight (kg)

Connections

Flow & return

Gas

Safety Valve

Condensate

Electrical

Voltage (V/Hz)

Flue details (concentric)

Maximum horizontal flue length

(60/100mm)

Maximum vertical flue length

(60/100mm)

Maximum horizontal flue length

(80/125mm)

Maximum vertical flue length

(80/125mm)

Flue Details (twin pipes)

Maximum horizontal flue length

(80mm/80mm)

Maximum vertical flue length

(80mm/80mm)

Efficiency

ErP seasonal space heating energy efficiency (class/%)

SAP 2009 efficiency (%)

NOx class

Vision

20S

20099228

29450503

5.85m

6.85m

15.3m

16.3m

20

19.5

20.84

26

22mm

15mm

15 mm

21mm

230/50

45m/45m

45m/45m

A/93

89.2

5

4.85m

5.85m

12.8m

13.8m

40m/40m

40m/40m

Vision

25S

20099229

29450504

25

24.5

26.23

27

22mm

15mm

15mm

21mm

230/50

A/93

89.1

5

DIMENSIONS AND CLEARANCES (MM)

248 405

*

600

12

* From casing or 25mm above flue elbow (whichever is applicable)

12

INSTALLER FRIENDLY AND FEATURE RICH

The new Vision range has been designed to provide installers with a hassle free installation and end users with a simple to operate and reliable appliance.

The small dimensions and lightweight 26kg lift weight

(20S), make the Vision boilers very easy to install, even in tight spaces - including a kitchen cupboard. The rear flue option also simplifies installation and increases siting flexibility.

The upgraded Vision system boilers now come with a built in on-board relay which enables the simplest of connections to

230V controls and energy saving controls including the Vokèra weather compensation sensor.

Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk

Vibe

High efficiency system boiler

(1)

LIGHTWEIGHT

AND KITCHEN

CUPBOARD FIT

VERSATILE

FLUEING

OPTION

OPTIONAL

PIPE COVER

CAN BE

CONVERTED

TO LPG

DESIGNED

FOR EASY

INSTALLATION

KITCHEN CUPBOARD FIT

Fully compliant with the Energy-related Products Directive. Further efficiency can be achieved when installed with a weather compensation sensor or OpenTherm control.

2 year parts and labour warranty.

(1)

Built-in on-board relay provides the simplest of connections to 230V controls, including the use of weather compensation on system boilers and enables Y-plan compatibility and use of non ‘voltage-free’ controls.

Designed for easy installation. Standard Vokèra pipework layout enables trouble-free replacement of older Vokèra models.

Compact dimensions and low lift weight enable a flexible installation with the boiler able to be sited almost anywhere in the home.

Additional built-in functions include: SARA function for automatic temperature control and improved efficiency, anti-cycling for longer lasting component performance and CO mode for simple servicing.

Simple commissioning; only minimal adjustments are required after installation and automatic modulation eliminates the need to range rate the boiler.

Pipe cover available as an optional extra creates a neater installation.

Anti-cycling control prevents wasteful on/off cycling and reduces wear and tear.

Low NOx - Class 5 performance.

Built-in frost protection, which protects the appliance from damage during periods of cold weather.

Installation time saving features: Built-in condense trap with safety device and push-fit connection and no ventilation is required.

Combustion analysis test point for easy servicing and maintenance.

Can be converted to LPG.

Install with a Vokèra unvented cylinder to complete your installation.

Single and twin coil cylinders available.

Compatible with Zenith solar thermal.

CONTROL PANEL

Pipe cover available as optional extra.

14

VOKERA

VIBE COST CONSCIOUS SOLUTION

ACCESSORIES AND OPTIONS

Description Code

Pipe cover

Telescopic flue

Spacing frame

Vibe LPG conversion kit

20012594

29450121

20030704

20029055

Condense Pump

Magnetic filter

404

29450199

AquaFlow unvented single coil cylinder

(150 / 200 / 250 litre) capacities

AquaFlow Twin unvented twin coil cylinder (250 / 300 litre) capacities

863 / 864 / 865

924 / 925

(1) Subject to registration and annual service. Full details on water cylinders and Solar thermal products can be found in this catalogue see page 31

VIBE

High efficiency system boiler

Flue gas analysis test point

Cyclonic separator

Expansion vessel location allows for easy servicing maintenance

Premix burner

High efficiency pump

Advanced electronic control including frost protection via PCB

SPECIFICATIONS Vibe 20A

Product order code

Central Heating

Heat input (kW)

Maximum heat output @ 80/60°C (kW)

Maximum heat output @ 50/30°C (kW)

Weight

Dry weight (kg)

Connections

Flow & return

Gas

Safety Valve

Condensate

Electrical

Voltage (V/Hz)

Flue details (concentric)

Maximum horizontal flue length

(60/100mm)

Maximum vertical flue length

(60/100mm)

Maximum horizontal flue length

(80/125mm)

Maximum vertical flue length

(80/125mm)

Flue Details (twin pipes)

Maximum horizontal flue length

(80mm/80mm)

Maximum vertical flue length

(80mm/80mm)

Efficiency

ErP seasonal space heating energy efficiency (class/%)

NOx class

20099230

20

19.5

20.8

26

22mm

15mm

15mm

21mm

230/50

5.85m

6.85m

15.3m

16.3m

45m/45m

45m/45m

A/93

5

Vibe 25A

20099231

25

24.5

26.2

28

22mm

15mm

15mm

21mm

230/50

4.85m

5.85m

12.8m

13.8m

40m/40m

40m/40m

A/93

5

DIMENSIONS AND CLEARANCES (MM) - VIBE

248

600

12

*

From casing or 25mm above flue elbow (whichever is applicable)

12

ADDITIONAL INFORMATION

405

*

The Vokèra Vibe is a system boiler available in 20 or 25kW. Its compact dimensions mean the Vibe can be installed in a kitchen cupboard and has an optional pipe cover for a neat finish.

The Vibe has been derived from one of Vokèra’s most reliable high performance system boilers; the Mynute A. It has been redeveloped to provide a cost conscious, high efficiency system boiler.

Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk

Mynute VHE

High efficiency open vent boiler

(1)

IN

-

HOUSE

PATENTED

HEAT

EXCHANGER

(2)

KITCHEN

CUPBOARD FIT

REAR

FLUE

OPTION

(2)

TOP AND

BOTTOM PIPE

(2)

CONNECTIONS

VERSATILE

FLUEING

OPTIONS

Fully compliant with the Energy-related Products Directive.

2 year parts and labour warranty.

(1)

Aluminium heat exchanger provides excellent thermal transfer and anticorrosion properties and is fully recyclable.

Low pressure loss reduces noise and increases pump performance.

Simple commissioning; only minimal adjustments are required after installation and automatic modulation eliminates the need to range rate the boiler.

Top and bottom pipe connections on Mynute 15VHE for flexibility and ease of installation.

Low NOx - Class 5 performance.

Only requires one metre minimum static head.

Anti-cycling control reduces on/off cycling, increasing efficiency of the boiler and reducing fuel costs.

Built-in frost protection, which protects the appliance from damage during periods of cold weather. External pump must be connected directly to the boiler to ensure this function operates.

Versatile, horizontal, vertical or rear flueing * options enable the boiler to be sited almost anywhere in the home. Flue type certification also permits Mynute VHE to be used with Vokèra’s 80mm PP flexible flue liner and B23 applications.

Anti seize function protects the pump from sticking during long periods of inactivity.

Standard Autostop disabling function

(3) that automatically changes the current operating mode, and moves it permanently into the standby mode. Autostop will only operate after a pre-defined period of time has elapsed and if it has been activated during commissioning.

Intuitive control panel ensures end-users can easily operate and adjust the appliance.

Purge cycle feature. The boiler will automatically run a two minute purge cycle when the boiler is switched on for the first time before the burner ignites to expel any air that may be present in the system.

Compatible with Vokèra’s MCS accredited Zenith solar thermal collectors and unvented single twin coil cylinders.

REAR FLUE AND TOP AND BOTTOM PIPE CONNECTIONS (2)

(1) Subject to registration and annual service. (2) 15kW outputs only. (3) Autostop activation device required. Contact

Vokèra Technical for advice

16

VOKERA

MYNUTE VHE COMPACT AND FLEXIBLE

OPTIONS

Description

Rear flue terminal (15kW only)

White pipe cover 400mm (20kW only)

Spacing frame (20kW only)

Condensate pump

Magnetic filter

Code

533

518

2359689

404

29450199

Condensate level sensor

Easy maintenance condensate syphon

Electric insulation IPX5D

Frost protection via PCB

MYNUTE VHE

High efficiency open vent boiler

Flue gas analysis test point

Aluminium radial heat exchanger

Premix burner

SPECIFICATIONS

Product order code

Central Heating

Heat input (kW)

Maximum heat output

@ 60/80°C (kW)

Maximum heat output

@ 30/50°C (kW)

Min static head

Max static head

Min flow rate at max output

Weight

Dry weight (kg)

Connections

Flow & return

Gas

Condense

Electrical

Voltage (V/Hz)

Flue Details (concentric)

Maximum horizontal flue length (60/100mm)

Maximum vertical flue length (60/100mm)

Maximum horizontal flue length (80/125mm)

Maximum vertical flue length (80/125mm)

Flue Details (twin pipes)

Maximum horizontal flue length (80mm/80mm)

Maximum vertical flue length (80mm/80mm)

Efficiency

ErP seasonal space heating energy efficiency (class/%)

SAP 2009 efficiency (%)

NOx Class

7.8m

8.8m

25m

30m

40m/40m

40m/40m

A/93

89.3

5

Mynute

15VHE

884

15

14.6

15.74

1m

30m

500 l/h

25

22mm

15mm

21mm

230/50

7.8m

8.8m

20m

25m

40m/40m

40m/40m

A/91

88.8

5

Mynute

20VHE

886

20

19.7

21.16

1m

30m

500l/h

29

22mm

15mm

21mm

230/50

DIMENSIONS AND CLEARANCES (MM)

340

340

*

340

400

*

600

12

MYNUTE 15 VHE

12

600

12

MYNUTE 20 VHE

*

From casing or 25mm above flue elbow (whichever is applicable)

CONTROL PANEL

12

No pipe cover available for 15kW outputs.

Pipe cover for 20kW output available as optional extra.

Need to upgrade your cylinder as well as your boiler?

You can install this boiler with a Vokèra AquaFlow unvented single coil cylinder - See next page for details

Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk

Linea One

High efficiency combi boiler

(1)

10:1

MODULATION

RATIO

BUILT

-

IN

FILLING LOOP

IN

-

HOUSE

PATENTED HEAT

EXCHANGER

OPTIONAL

PIPE COVER

WEATHER

COMPENSATION

SENSOR

SUPPLIED

ENERGY SAVING CONTROLS AND OPTIONS

Description Code

OpenTherm RF programmable room thermostat

Wiring Kit for use with OpenTherm

Telescopic flue terminal

Spacing frame

Condense pump

Linea One LPG conversion kit

Magnetic filter

20050690

1221179

29450121

435

404

20031415

29450199

(1) Subject to registration and annual service.

advice

(2) Autostop activation device required. Contact Vokèra technical for

18

VOKERA

LINEA ONE HIGHEST TECHNOLOGY

Fully compliant with the Energy-related Products Directive. Further efficiency can be achieved when installed with a weather compensation sensor or OpenTherm control.

5 year parts and labour warranty (1) .

Flow rate of up to 15.6 l/min results in quick delivery of hot water and meets NHBC performance requirements for combi boilers in properties with multiple bathrooms.

Weather compensation control, supplied as standard, can increase

ErP space heating efficiency by a further 2%

DHW memory function memorises the DHW usage pattern over the past seven days and uses the stored data to plan the pre heat function for the duration of the following week. The standard pre heat function is therefore only enabled when necessary, maximising energy savings.

Fully modulating pump can be controlled using several modes of operation and can reduce electrical consumption by up to 50%.

Exceptional modulation ratio of 10:1 maximises efficiency and comfort for end user.

Designed for easy installation. A pre-fixing jig and built-in filling loop allows the system to be connected and tested without the boiler needing to be in place.

The easy to use appliance interface and controls permits the end user to view, change and adjust the operating modes of the boiler.

Versatile flue options with concentric flue lengths up to 12m and twin flue lengths up to 30m.

Use the Vokèra push fit telescopic flue for a quick and simple installation.

Built-in frost protection, protects the appliance from damage during periods of cold weather.

Simple commissioning; only minimal adjustments are required after installation and automatic modulation eliminates the need to range rate the boiler.

Anti-seize function protects the pump and motorised valve from sticking during long periods of inactivity.

Self-start programming protects the pump and motorised valve from sticking during long periods of inactivity.

Vokèra’s unique radial design heat exchanger utilises an extruded aluminium alloy. Aluminium has excellent thermal transfer properties and our updated design incorporates a new profile that inhibits the build-up of condense residues, thereby significantly reducing the frequency of cleaning.

Easy to understand diagnostic display speeds installation and commissioning and aids the service engineer in the unlikely event of a fault developing.

Enhanced Autostop disabling function with four optional modes of operation, including: service reminder, reducing the output of the boiler, supply DHW only and moving the boiler into standby mode (no heat or

DHW) (2) .

Can be converted to LPG.

Low NOx – Class 5 performance with only 19mg/kWh.

Flue thermostat

Aluminium radial heat exchanger

Easy maintenance condensate siphon

Analogue pressure gauge

Anti-seize function on 3-way valve

Innovative hydraulic manifold in composite material for quick and easy maintenance

Automatic by-pass

Electric insulation IPX5D

LINEA ONE

High efficiency combi boiler

Flue gas analysis test point

Cyclonic separator

Condensate level sensor

Premix burner

Fully modulating pump

DHW flow meter

Frost protection via PCB

SPECIFICATIONS

Product order code

Central Heating

Heat input (kW)

Maximum heat output @ 80/60°C (kW)

Maximum heat output @ 50/30°C (kW)

Minimum heat output @ 80/60°C (kW)

Minimum heat output @ 50/30°C (kW)

Domestic Hot Water

Maximum heat input (kW)

Minimum heat input (kW)

Flow Rate - 35°C rise (l/min)

Minimum flow rate (l/min)

Weight

Dry weight (kg)

Connections

Flow & return

Gas

DHW inlet & outlet

Safety valve

Condense

Electrical

Voltage (V/Hz)

Flue Details (concentric)

Maximum horizontal flue length (60/100mm)

Maximum vertical flue length (60/100mm)

Maximum horizontal flue length (80/125mm)

Maximum vertical flue length (80/125mm)

Flue Details (twin pipes)

Maximum horizontal flue length (80mm/80mm)

Maximum vertical flue length (80mm/80mm)

Efficiency

ErP seasonal space heating energy efficiency class

ErP water heating efficiency (XL profile) (class/%)

SAP 2009 efficiency (%)

NOx class

Linea One

38HE

20023491

44

22mm

15mm

15mm

15mm

21mm

230/50

3.85m

4.85m

10m

12m

30m/30m

30m/30m

A/93

A/83

89.2

5

30

29.3

32

3.8

3.8

38.1

3.8

15.6

2.0

DIMENSIONS AND CLEARANCES (MM)

358

453

600

12

25

*

From casing or 25mm above flue elbow (whichever is applicable)

ENVIRONMENTALLY FRIENDLY

Vokèra is committed to creating the most environmentally friendly products available and continue to invest in limiting emissions such as CO

2 and NOx. The Linea One boasts both impressive energy efficiency ratings and has the best class for NOx emissions.

Up to 93% efficient, the Linea One is an industry leader and one of the most energy efficiency combination boilers currently available.

With up to 93% of the fuel used being converted into heat, emissions are kept to a minimum.

To achieve maximum credits with a condensing boiler, under the Code for Sustainable Homes the NOx must be below 40mg/kWh. Significant research and development have enabled the

Linea One to declare a NOx emissions of only

29mg/kWh.

Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk

Unica i

High efficiency combi boiler

(1)

PLUG

&

PLAY

CONNECTION TO

OPENTHERM

THERMOSTAT

10:1

MODULATION

RATIO

REAR

FLUE

OPTION

PRE

-

FIXING JIG

AND BUILT

-

IN

FILLING LOOP

FRONT MOUNTED

IN

-

HOUSE

PATENTED HEAT

EXCHANGER

ENERGY SAVING CONTROLS AND OPTIONS

Description

Rear flue terminal

Telescopic flue terminal

OpenTherm RF programmable room thermostat with ‘Plug & Play’ connection to the Unica i

Weather compensation sensor

White pipe cover 400mm

Spacing frame

Magnetic filter

Fuelsaver

Code

29450133

29450121

20050690

2359259

518

435

29450199

29450000

Fully compliant with the Energy-related Products Directive. Further efficiency can be achieved when installed with a weather compensation sensor or OpenTherm control.

5 year parts and labour warranty.

(1)

Energy Saving Trust endorsed product.

Rear flue option as well as the standard top flue option provides a versatile installation. Other flueing options available are; horizontal, vertical and twin flue, enabling the boiler to be sited almost anywhere in the home.

Versatile flue options with concentric flue lengths up to 20m and twin flue lengths up to 45m.

Exceptional modulation ratio of 10:1 maximises efficiency and comfort for end user. Other energy saving features, including low power consumption, making the Unica i extremely efficient.

Compatible with energy saving controls including outside weather compensation sensor and OpenTherm programmable thermostat with

‘Plug & Play’ connection for a simple installation. Unica i32 achieves an ErP A+ system rating with these controls

(see page 35 for further information)

.

Designed for easy installation. A pre-fixing jig and built-in filling loop allows the system to be connected and tested without the boiler needing to be in place.

Improved fixing jig that can be discarded once the pipework is in place, providing greater flexibility when connecting the pipework to the boiler which is especially beneficial when there are uneven wall surfaces.

Standard Autostop disabling function

(3) that automatically changes the current operating mode and moves it permanently into the standby mode, helping Registered Social Landlords fulfill their legal obligation of an annual gas safety check.

Front mounted heat exchanger assists in simple maintenance.

Vokèra’s unique radial design heat exchanger utilises an extruded aluminium alloy. Aluminium has excellent thermal transfer properties and our updated design incorporates a new profile that inhibits the build-up of condense residues, thereby significantly reducing the frequency of cleaning.

Simple to use back-lit LCD display ensures end-users can easily operate and adjust the appliance.

Easy to understand diagnostic display aids the service engineer in the unlikely event of a fault developing.

Built-in frost protection protects the appliance from damage during periods of cold weather.

Low NOx - Class 5 performance provides maximum credits available for a condensing boiler under the Code for Sustainable Homes.

Can be converted to LPG.

Compatible with Vokèra Fuelsaver passive flue gas heat recovery device.

Heat recovered from the flue exhaust gases is used to pre-heat the incoming cold mains water supply before entering the boiler, thereby reducing gas consumption and improving domestic hot water efficiency.

(1)

Subject to registration and annual service.

(2)

Energy saving based on average 18,000kWh per annum.

(3) Autostop activation device required. Contact Vokèra technical for advice.

20

VOKERA

UNICA i ADVANCED ENERGY SAVING CREDENTIALS

Cyclonic separator

Condensate level sensor

UNICA i

High efficiency combi boiler

Flue gas analysis test point

Aluminium radial heat exchanger

Premix burner

Easy maintenance condensate syphon

DHW plate heat exchanger

High efficiency pump

Automatic by-pass

Analogue pressure gauge

Electric insulation IPX5D

Frost protection via PCB

SPECIFICATIONS

Unica i28

20097273 Product order code

Central Heating

Heat input (kW)

Max heat output @ 80/60˚C (kW)

Domestic Hot Water

Heat input (kW)

Flow Rate - 35˚C rise (l/min)

Weight

Dry weight (kg)

Connections

Flow & return

Gas

DHW inlet & outlet

Safety valve

Electrical

Voltage (V/Hz)

Flue Details (concentric)

Maximum horizontal flue (5) length inc. rear flue (60/100mm)

Maximum vertical flue

(5) length (60/100mm)

Maximum horizontal flue length (80/125mm)

Maximum vertical flue length (80/125mm)

Flue Details (twin pipes)

Max horizontal (80mm/80mm)

Max vertical (80mm/80mm)

Efficiency

ErP seasonal space heating energy efficiency (class/%)

ErP water heating efficiency

(XL profile) (class/%)

SAP 2009 efficiency (%)

NOx class

20

19.6

28

11.5

40

22mm

15mm

15mm

15mm

230/50

7.8m

8.8m

20m

25m

45m/45m

45m/45m

A/93

A/85

89.6

5

Unica i32

20097274

25

24.6

32

13.1

42

22mm

15mm

15mm

15mm

230/50

30

29.3

36

14.7

45m/45m

45m/45m

45m/45m

45m/45m

A/94

A/84

89.6

5

7.8m

8.8m

20m

25m

Unica i36

20097275

41

22mm

15mm

15mm

15mm

230/50

7.8m

8.8m

14.85m

19.85m

A/93

A/84

89.2

5

DIMENSIONS AND CLEARANCES (MM)

*

*

From casing or 25mm above flue elbow (whichever is applicable)

ADDITIONAL ENERGY SAVING OPTIONS

The Unica i combi range is compatible with the Vokèra Fuelsaver passive flue gas heat recovery device.

The Fuelsaver consists of a post heat exchanger device that is located between the boiler and the flue terminal and offers the potential to increase efficiency by capturing heat recovered from the flue exhaust gases that would normally be wasted. This captured heat is then used to pre-heat the incoming cold mains water supply before entering the boiler, thereby reducing gas consumption and improving domestic hot water efficiency.

The addition of a Vokèra Fuelsaver can:

Save up to 33% of the gas normally required for DHW

Saves up to 500kg carbon emissions annually

Reduces cold water wastage by 5% annually due to the inlet water being pre-heated

(5)

Deduct 3.85m from the maximum flue length when installed with Fuelsaver.

Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk

Vision C

High efficiency combi boiler

(1)

LIGHTWEIGHT

WITH COMPACT

DIMENSIONS

BUILT

-

IN

FILLING LOOP

REAR

FLUE

OPTION

BUILT IN

7

DAY

DIGITAL CLOCK

COMPATIBLE

WITH VOKERA

FUELSAVER

KITCHEN CUPBOARD FIT

ENERGY SAVING CONTROLS AND OPTIONS

Description

Rear flue terminal

Pipe cover

RF Room thermostat control

OpenTherm RF programmable room thermostat (4)

Weather compensation sensor (4)

Spacing frame

Magnetic filter

Fuelsaver

Code

29450133

20012594

20059642

20050690

2359259

20030704

29450199

29450000

Fully compliant with the Energy-related Products Directive. Further efficiency can be achieved when installed with a weather compensation sensor or OpenTherm control.

(1)

5 or 7year parts and labour warranty.

(2)

Simple to use built-in 7 day digital clock with three modes of operation and back-lit LCD display enables full control of heating times over a seven day period, maximising control and saving energy.

Flow rate of up to 12 l/min results in quick delivery of hot water.

DHW Pre-Heat function that is easily activated by the end user.

Small dimensions enable the boiler to be sited almost anywhere in the home, including within a kitchen cupboard.

Rear flue option as well as the standard top flue option provides a versatile installation. Other flueing options available are; horizontal, vertical and twin flue.

Lightweight at only 27kg for the 25C enables the boiler to be lifted into place easily, even in tight spaces.

Designed for easy installation. Standard Vokèra pipework layout enables trouble-free replacement of older Vokèra models.

Standard Autostop disabling function (3) that automatically changes the current operating mode and moves it permanently into the standby mode, helping Registered Social Landlords fulfill their legal obligation of an annual gas safety check.

Simple commissioning; only minimal adjustments are required after installation and automatic modulation eliminates the need to range rate the boiler.

Additional built-in functions include: SARA function for automatic temperature control and improved efficiency, anti-cycling for longer lasting component performance, frost protection and CO mode for simple servicing.

If the boiler is to be installed in a location that is difficult to access then

Vokèra’s optional RF room thermostat control can be installed in a convenient location so the heating temperature can easily be adjusted.

Anti-cycling control prevents wasteful on/off cycling reduces wear and tear for longer lasting component performance.

Low NOx - Class 5 performance. Only 19mg/kWh for 25C provides maximum credits available for a condensing boiler under the Code for

Sustainable Homes.

Can be converted to LPG.

Vision system boiler also available.

Compatible with Vokèra Fuelsaver passive flue gas heat recovery device which is listed on the PCDB and validated for SAP 2009.

(1) The addition of an energy saving control will override the built-in digital control settings on the

Vision Combi. For Vision System boilers please contact Vokèra technical for advice, controls heat only.

(2)

Subject to registration and annual service, 7 year warranty offer valid for a promotional period, terms and conditions apply.

(3) Autostop activation device required. (4) Control Interface required for use with

OpenTherm and weather compensation controls. Code 29450143

22

VOKERA

VISION INSTALLER FRIENDLY AND FEATURE RICH

VISION C

High efficiency combi boiler

Flue gas analysis test point

Cyclonic separator

Expansion vessel location allows for easy servicing maintenance

Premix burner

Aluminium heat exchanger

High efficiency pump

Electric insulation IPX5D

DHW plate heat exchanger

Frost protection via PCB

SPECIFICATIONS

Vision

25C

Vision

30C

DIMENSIONS AND CLEARANCES (MM)

Product order code - 5 year warranty

Product order code - 7 year warranty

Central Heating

Max heat input (kW)

Maximum heat output @ 80/60°C (kW)

Domestic Hot Water

Maximum heat input (kW)

Flow Rate - 35°C rise (l/min)

Weight

Dry weight (kg)

Connections

Flow & return

Gas

DHW inlet & outlet

Safety valve

Flue details (concentric)

Maximum horizontal flue length (5) inc. rear flue (60/100mm)

Maximum vertical flue length

(5)

(60/100mm)

Maximum horizontal flue length

(80/125mm)

Maximum vertical flue length

(80/125mm)

Flue Details (twin pipes)

Maximum horizontal flue length

(80mm/80mm)

Maximum vertical flue length

(80mm/80mm)

Efficiency

ErP seasonal space heating energy efficiency (class/%)

ErP water heating efficiency

(XL profile) (class/%)

SAP 2009 efficiency (%)

NOx class

20097278

29450501

20

19.5

25

10.2

27

22mm

15mm

15mm

15mm

5.85m

6.85m

15.3m

20.3m

45m/45m

45m/45m

A/93

A/85

89.1

5

20099224

29450502

25

24.5

29

12

28

22mm

15mm

15mm

15mm

4.85m

5.85m

12.8m

17.8m

40m/40m

40m/40m

A/93

A/84

89.0

5

600

248

12

405

* From casing or 25mm above flue elbow (whichever is applicable)

ADDITIONAL ENERGY SAVING OPTIONS

12

The Fuelsaver consists of a post heat exchanger device that is located between the boiler and the flue terminal and offers the potential to increase efficiency by capturing heat recovered from the flue exhaust gases that would normally be wasted. This captured heat is then used to pre-heat the incoming cold mains water supply before entering the boiler, thereby reducing gas consumption and improving domestic hot water efficiency.

The addition of a Vokèra Fuelsaver can:

-

-

Save up to 33% of the gas normally required for DHW

Saves up to annually

500kg carbon emissions

Reduces cold water wastage by 5% annually due to the inlet water being pre-heated

*

The Vision combi range is compatible with the Vokèra Fuelsaver passive flue gas heat recovery device.

(5) Deduct 3.85m from the maximum flue length when installing with the Vokèra Fuelsaver passive flue gas heat recovery device.

Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk

Compact A

High efficiency combi boiler

(1)

LIGHTWEIGHT

WITH COMPACT

DIMENSIONS

KITCHEN

CUPBOARD FIT

REAR

FLUE

OPTION

PLUG

&

PLAY

CONNECTION TO

PROGRAMMABLE

THERMOSTAT

OPTIONAL

PIPE COVER

ENERGY SAVING CONTROLS AND OPTIONS

Description

Rear flue terminal

Pipe cover

7 day RF programmable room thermostat

OpenTherm RF programmable room thermostat (2)

Weather compensation sensor

(2)

Compact A 24 hour analogue clock kit

Telescopic flue terminal

Spacing frame

Compact 25A LPG conversion kit

Compact 29A LPG conversion kit

Magnetic filter

Code

29450133

20012594

20059643

20050690

2359259

20025085

29450121

20030704

20045569

20029055

29450199

Fully compliant with the Energy-related Products Directive. Further efficiency can be achieved when installed with a weather compensation sensor or OpenTherm control.

Small dimensions enable the boiler to be sited almost anywhere in the home, including within a kitchen cupboard.

Rear flue option as well as the standard top flue option provides a versatile installation. Other flueing options available are; horizontal, vertical and twin flue, enabling the boiler to be sited almost anywhere in the home.

Easy to understand diagnostic display aids the service engineer in the unlikely event of a fault developing.

2 year parts and labour warranty.

(1)

Energy Saving Trust endorsed product.

Compact dimensions and low lift weight at only 26kg for the 25A enables a flexible installation allowing the boiler to be lifted into place easily, even in tight spaces.

Attach the RF 7 day programmable room thermostat, with a Tyco Plug &

Play connection for a simple installation, to increase efficiency and maintain optimum room temperature.

Designed for easy installation. Standard Vokèra pipework layout enables trouble-free replacement of older Vokèra models.

Hot water survivor function: If the hot water thermistor fails it will use the primary thermistor to provide hot water to ensure the end user has access to a supply of warm water.

Simple commissioning; only minimal adjustments are required after installation and automatic modulation eliminates the need to range rate the boiler.

Anti-cycling control prevents wasteful on/off cycling and reduces wear and tear.

Low NOx - Class 5 performance.

Built-in frost protection, protects the appliance from damage during periods of cold weather.

Plated heat exchanger reduces the risk of scaling and comes with

5 year anti-scale warranty.

Installation time saving features:- Built-in condense trap with safety device and push-fit connection and no ventilation is required.

Combustion analysis test point for easy servicing and maintenance.

Can be converted to LPG.

Selectable pre-heat function enables end-users to manually select the pre-heat function according to their own individual tastes and requirements, improving end-user comfort.

Compatible with Vokèra Fuelsaver passive flue gas heat recovery device which is listed on the PCDB and validated for SAP 2009.

(1) Subject to registration and annual service. (2) Control Interface required for use with OpenTherm and weather compensation sensor. Code 29450143.

24

VOKERA

COMPACT A COST CONSCIOUS SOLUTION

COMPACT A

High efficiency combi boiler

Flue gas analysis test point

Cyclonic separator

Expansion vessel location allows for easy servicing maintenance

Premix burner

Aluminium heat exchanger

High efficiency pump

Electric insulation IPX5D

DHW plate heat exchanger

Frost protection via PCB

SPECIFICATIONS

Product order code

Central Heating

Heat input (kW)

Max heat output @ 80/60°C (kW)

Domestic Hot Water

Maximum input (kW)

Flow Rate - 35°C rise (l/min)

Weight

Dry weight (kg)

Connections

Flow & return

Gas

DHW inlet & outlet

Safety valve

Electrical

Voltage (V/Hz)

Flue details (concentric)

Maximum horizontal flue length (3) inc. rear flue (60/100mm)

Maximum vertical flue length

(3)

(60/100mm)

Maximum horizontal flue length

(80/125mm)

Maximum vertical flue length

(80/125mm)

Flue Details (twin pipes)

Maximum horizontal flue length

(80mm/80mm)

Maximum vertical flue length

(80mm/80mm)

Efficiency

ErP seasonal space heating energy efficiency (class/%)

ErP water heating efficiency

(XL profile) (class/%)

SAP 2009 Efficiency (%)

NOx class

Compact

25A

20099226

20

19.5

25

10.2

26

22mm

15mm

15mm

15mm

230/50

5.85m

6.85m

15.3m

20.3m

45m/45m

45m/45m

A/93

A/85

89.1

5

Compact

29A

20099227

25

24.5

29

11.9

27

22mm

15mm

15mm

15mm

230/50

4.85m

5.85m

12.8m

17.8m

40m/40m

40m/40m

A/93

A/84

89.0

5

DIMENSIONS AND CLEARANCES (MM)

600

248

12

405

* From casing or 25mm above flue elbow (whichever is applicable)

PLUG & PLAY CONNECTION FOR RF CONTROL

12

The 7 day RF programmable room thermostat allows easy control over boiler heating timings and temperatures over a 7 day period.

This wall mounted, battery operated, digital thermostat control enables versatile siting and ensures end user accessibility.

The receiver is easily connected to the boiler using the ‘Plug & Play’ Tyco socket ensuring the simplest of installation.

See page 34 for more information.

*

(3) Deduct 3.85m from the maximum flue length when installing with the Vokèra Fuelsaver.

Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk

AquaFlow

Unvented single coil cylinder

(1)

WRAS

APPROVED

25

YEAR

(1)

WARRANTY ON

INNER TANK

FOR USE WITH

MYNUTE VHE

,

MYNUTE i

AND

VISION S BOILERS

For use with Vokèra Mynute VHE open vent boiler, Mynute i system boiler and Vision S boiler.

Inner tank guaranteed for 25 years, made from stainless steel.

2 year warranty on ancillary components.

(1)

High performance mains pressure to all hot water outlets.

Up to 50 litre per minute flow rate.

WRAS Approved.

No need for ‘sacrificial anode’ due to excellent anti-corrosion properties.

Compact dimensions.

TPRV, EV, Tundish, 2-port motorised valve supplied as standard.

3kW immersion heater and energy cut-out device supplied as standard.

Optional secondary return connection if required.

Thermal insulation and energy efficient coil meet Part L Requirements.

(1) Subject to registration and annual service.

18

17

16

15

14

13

12

11

19

1

6

7

2

3

4

5

8

9

10

1.

Hot water outlet

2.

Pressure reducing valve

3.

Expansion/check valve

4.

Flexible connection

5.

TPR valve

6.

Tundish

7.

Discharge pipe

8.

Cylinder thermostat

9.

Cold feed tube

10. Drain cock

SPECIFICATIONS

Product order code

Capacity

Height

Depth (diameter)

Weight (when full)

Coil rating

Average recovery time

Energy loss (kW/day)

Maximum working pressure

ErP water heating efficiency

(XL Profile) class

AquaFlow 150

863

150 litres

900mm

580mm

190kg

12kW

30 min

1.78

8-bar

B

11. Motorised valve

12. Flow connection

13. Junction box

14. Cable Entry

15. Commissioning drain valve

16. Secondary return

17. Return connection

18. Tee Piece

19. Immersion Element

AquaFlow 200

864

200 litres

1150mm

580mm

240kg

26.5kW

26 min

2.04

8-bar

C

AquaFlow 250

865

250 litres

1400mm

580mm

300kg

26.5kW

28 min

2.45

8-bar

C

26

VOKERA

AQUAFLOW COMPACT AND FLEXIBLE

AQUANOVA

Water Heater

AquaNova

Instantaneous multipoint water heater

(1)

INSTANTANEOUS

HOT WATER

HIGH FLOW

RATE

SIMPLE

INSTALLATION

AND

COMMISSIONING

Suitable for domestic and small light commercial applications.

2 year warranty on ancillary components.

(1)

Provides instant hot water to multiple outlets, such as to a kitchen and bathroom.

Ideal for replacement installations for properties that require hot water supply only due to existing electric, convector or gas wall heating appliances.

AquaNova has a 28kW heat output and high flow rate of 11.8 litres per minute.

Simple installation and commissioning. All connections are easily accessible and the appliance features a built-in fly lead.

Continuous gas modulation and electronic temperature sensing gives accurate temperature control.

AquaNova can be flued horizontally or vertically using Vokèra’s concentric

Uni flue or twin flue systems.

Simple to service. No diaphragm or water section. This reduces maintenance requirements.

Electronic ignition eliminates the need for a constantly running fan or energy wasteful pilot light.

DIMENSIONS AND CLEARANCES (MM) - AQUANOVA

245

400

600

50 50

* From casing or 25mm above flue elbow (whichever is applicable)

(1) Subject to registration and annual service.

SPECIFICATIONS

Product order code

Performance

Heat input

Rated output to DHW (kW)

Flow rate

Hot water flow rate - 35 °C rise (l/min)

Weight

Dry weight (kg)

Connections

Cold water inlet

Hot water outlet

Gas

Electrical

Voltage (V/Hz)

Power consumption (W)

Maximum flue length (concentric)

Maximum horizontal flue length 60/100mm

Maximum vertical flue length 60/100mm

Maximum flue length (twin)

Maximum horizontal flue length 80/80mm

Maximum vertical flue length 80/80mm

Efficiency

ErP water heating efficiency (XL profile) (class/%)

NOx class

AquaNova

965

32

28.8

11.8

20

15mm

15mm

15mm

230/50

85

2.4m

3.6m

5m/5m

5m/5m

A/80.1

3

Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk

Domestic Boiler Feature Reference Chart

Use this product feature reference chart to quickly identify what Vokèra product provides the ideal solution for your heating and domestic hot water requirements.

PRODUCT FEATURES

Feature

5 year warranty

Back lit LCD display

History recall information function

DHW preheat ON/OFF function

External second pump connection

DHW memory function option

DHW comfort function option

Modulating pump

Advanced Autostop function - 4 modes operation

Autostop function - 1 mode operation

OpenTherm control option

Cyclonic air and particle separator

Built in filling loop

Pre-heated hot water

Pre-fixing jig

Full hot water flame modulation +/- 1 o

C max fluctuation

Automatic by-pass

Digital diagnostic code display

High efficiency air/gas modulation system

Weather compensation control option

Compartment ventilation not required

Built-in frost protection

LPG model / conversion kit available

Anti seize function

‘Anti cycle’ heating control

Electrical insulation to IPX5D

Fault diagnostic display

Telescopic flue system

Twin flue system

Vertical flue option

Rear flue option

Combustion analysis function

Electronic burner ignition

Pipe space through back of boiler

Domestic heat exchanger:

5 year guarantee against scaling of DHW

(1) Plug & Play connection on OpenTherm and Unica i

(2)

Contact Vokèra Technical for advice

(3) Weather compensation control supplied as standard

(4)

Mynute 15VHE only

8

✓ (2)

8

8

8

Vision

System

8

8

8

8

8

8

8

✓ (2)

OPT

8

✓ (2)

8

8

8

Mynute i

8

8

8

8

8

8

✓ (2)

OPT

N/A N/A

Verve

8

8

8

8

✓ (2)

8

8

8

8

8

8

8

8

8

8

8

✓ (2)

Vibe

8

8

8

8

8

8

8

8

8

8

8

8

8

8

OPT

N/A

✓ (4)

8

8

8

8

8

8

8

Mynute

VHE

8

8

8

8

8

8

8

8

8

N/A

N/A

8

✓ (3)

8

Linea

One

OPT

✓ (2)

8

8

Compact

A

8

8

8

8

8

8

8

✓ (2)

OPT

✓ (2)

8

8

8

8

8

Vision

Combi

8

✓ (2)

OPT

✓ ✓

8

8

8

Unica i

8

✓ (1)

OPT

28

VOKERA

BOILER FEATURE QUICK REFERENCE CHART

FLUE GUIDANCE AND OPTIONS

Flue Options

Vokèra offers a wide range of flue systems that are able to meet the majority of applications. There are concentric flue systems and a parallel (twin) flue system that can be used in either horizontal or vertical configurations.

60/100mm CONCENTRIC

Our 60/100 condensing range (for HE appliances) are the most widely used and will suit most applications that are usually encountered.

All Vokèra flue systems incorporate simple to use, push-fit connections that are designed to enable a fast and simple method of installation. The attractive white finish complements the modern design of our appliances.

80/125mm CONCENTRIC

The 80/125 range is suitable for use on specific appliances and suits applications where a slightly longer concentric flue system is required.

80mm + 80mm PARALLEL (twin)

The 80mm + 80mm parallel (twin) range can be utilised where an extremely long flue run is envisaged, or required.

Uni-flue 60/100mm CONCENTRIC

The Uni-flue range is suitable for use on the Aquanova water heater and standard efficiency appliances that are only to be used on applications where a condensing boiler is not suitable.

TERMINAL POSITIONS

R

P

F

L

I

G

A

I

M

N

B

Q S

T

D E

C

I

H

H

V

W

J

K

FLUE EXIT CLEARANCES

S

T

Q

R

V

A

B

Flue Exits

Below an opening *

C

D

Above an opening *

To the side of an opening *

E

F

Below gutters, drain pipe etc

Below eaves

G

H

I

J

Below balcony, carport roof etc

To side of a vertical soil/drain pipe etc

From internal or external corner or boundary

Above ground, roof or balcony level

K

L

From a surface or boundary facing a terminal

From a terminal facing a terminal

From an opening in the carport into the building

M Vertically from a terminal on the same wall

N

P

Horizontally from a terminal on the same wall

From a structure to the side of a vertical terminal

From the top of a vertical terminal to the roof flashing

To the side of a boundary

To the side of an opening / window on a pitched roof

Below an opening / window on a pitched roof

From a vertical terminal to an adjacent opening *

Minimum distance

300mm

300mm

300mm

25mm

25mm

25mm

25mm (60mm for 80/125 flue)

25mm (60mm for 80/125 flue)

300mm

600mm **

1200mm

1200mm

1500mm

300mm

300mm

As determined by fixed collar of vertical terminal

300mm

600mm

2000mm

Call Vokèra Technical for advice

W From a vertical terminal to an adjacent vertical terminal 300mm (only if both terminals are same height)

Flue systems and terminal locations should be located and installed in accordance with current Building

Regulations (UK) or I.S. 813 (ROI).

The terminal should be located where the dispersal of combustion products is not impeded and with due regard for the damage and/or discolouration that may occur to building products located nearby.

The terminal must not be located in a place where it is likely to cause a nuisance. Water vapour may condense on leaving the terminal.

The effect of such plumeing must be considered.

*

Term ‘opening’ includes window, air brick etc

** Minimum clearance ensures the boiler works safely, however consideration should be made for nuisance factor.

Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk

Flue Options

HORIZONTAL & VERTICAL CONCENTRIC SYSTEMS HORIZONTAL & VERTICAL PARALLEL (TWIN) SYSTEMS

ALSO AVAILABLE - 80MM FLEXIBLE PP FLUE SYSTEM

The 80mm Flexible PP Flue System range consists of Polypropylene components and a flexible Polypropylene liner. A full range of flue components and accessories to facilitate different flue requirements are available.

The flexible PP flue system is suitable for multiple applications and is for use with high efficiency appliances, including Linea One,

Unica i, Vision combi and system boilers, Mynute i, Mynute VHE and Compact A.

The range includes several different connectors that enable flexible PP to be connected to rigid PP / flexible PP to flexible PP when off-cuts may be required to be joined together.

For further information and advice please contact the Vokèra Technical Helpline.

MAXIMUM FLUE LENGTHS

Concentric 60/100mm (4’’)

Linea One

Unica i28

Unica i32

Unica i36

Vision 25C

Vision 30C

Compact 25A

Compact 29A

Verve 47kW

Mynute i20

Mynute i30

Mynute 35HE

Vision 20S / Vibe 20A

Horizontal

3.85m

7.8m

*

7.8m

*

7.8m

*

5.85m

*

4.85m

*

5.85m

*

4.85m

*

1.8m

7.8m

7.85m

7.8m

5.85m

Vertical

4.85m

8.8m

*

8.8m

*

8.8m

*

6.85m

*

5.85m

*

6.85m

*

5.85m

*

2.8m

8.8m

8.85m

8.8m

6.85m

Vision 25S / Vibe 25A

Mynute 15VHE

Mynute 20VHE

Aquanova

4.85m

7.8m

7.8m

N/A

5.85m

8.8m

8.8m

N/A

12.8m

25m

20m

N/A

Reductions for additional bend/s (reduction for PMK = 4.0 metres)

45-deg 1m 1m 1m

Horizontal

10.0m

20m

20m

14.85m

15.3m

12.8m

15.3m

12.8m

4.8m

20m

14.85m

20m

15.3m

90-deg 1m 1m 1m

Concentric 80/125mm (5’’)

Vertical

12.0m

25m

25m

19.85m

20.3m

17.8m

20.3m

17.8m

7.0m

21m

15.85m

25m

16.3m

13.8m

30m

25m

N/A

1m

1m

Parallel (twin)

80mm + 80mm

Flexible PP Flue

Horizontal/Vertical Horizontal/Vertical

30m + 30m 12m + 12m

45m + 45m

45m + 45m

16m + 16m

14m + 14m

45m + 45m

45m + 45m

40m + 40m

45m + 45m

40m + 40m

20m + 20m

40m + 40m

40m + 40m

40m + 40m

45m + 45m

40m + 40m

40m + 40m

40m + 40m

7m + 7m

14m + 14m

8m + 8m

8m + 8m

8m + 8m

8m + 8m

8m + 8m

16m + 16m

16m + 16m

16m + 16m

8m + 8m

8m + 8m

16m + 16m

16m + 16m

N/A

1m

1m

N/A

N/A

Concentric Uni-flue

60/100mm (4”)

Horizontal

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

2.4m

Vertical

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

3.8m

1m

1.5m

1m

1.5m

* Deduct 3.85m from the maximum flue length when installed with Fuelsaver.

30

VOKERA

FLUES

FLUE GUIDANCE AND OPTIONS

80MM PARALLEL (TWIN) FLUE SYSTEMS

Code

310

430

0225805

0225810

0225820

0225825

0225830

0225835

0225840

0225845

0225850

0225855

0225765

29450178 *

29450176

29450177

Adaptor kit for SE range and Aquanova

Adaptor kit for all condensing boilers

Horizontal terminal & convertor box

Vertical terminal & convertor box

250mm extension (pair)

500mm extension (pair)

1000mm extension (pair)

2000mm extension (pair)

45-deg bend (pair)

90-deg bend (pair)

Double pipe bracket 80mm X 80mm (5-OFF)

Single pipe bracket 80mm (5-OFF)

Flat roof flashing plate (390mm Dia)

Condense trap kit for SE range and Aquanova

Vertical collector for SE range and Aquanova

Horizontal collector for SE range and Aquanova

*When ordering this product you will need to also order either the

29450176 or 29450177, depending on your installation requirements.

The 80mm + 80mm parallel (twin) system enables greater flue lengths to be achieved and can be used in either a horizontal or vertical configuration.

However the parallel system must be converted back to a concentric system at the point of termination. Dedicated flue kits are available for this purpose.

An adaptor kit is required to convert the appliance flue outlet from a concentric configuration into a parallel configuration.

When used in the horizontal plane, the flue system should be installed so that it has a 1˚ – minimum – fall back to the boiler. This will enable any condensate fluid that may form, to drain via the condensate connection/trap.

The exhaust pipe can reach very high temperatures and so must be adequately protected to avoid contact with persons and/or materials that could be damaged as a result.

The air inlet pipe should be insulated to reduce the possibility of condense forming on the outside of the pipe.

Vokèra can advise that the Gas Safe Technical Bulletin, TB 008 ed2.1, gives specific advice on the requirements for new installations with a flue routed within a void, where appropriate means for the gas engineer to visually check the flue must be incorporated (this is normally achieved by inspection hatches located in the ceiling).

The flue system installation options as detailed below are not generic for all concentric flues. Please see the boiler and flue compatibility tables for information on a specific appliances suitability with the different concentric flue systems.

FLUE SYSTEM OPTIONS

Configuration

1

2

3

4

Description

Horizontal Concentric

Vertical Concentric

Horizontal parallel system

Vertical parallel system

Compatible with

All appliances

All appliances

All appliances

All appliances

N.B. A boiler top adaptor/kit is required when using the 80/125mm concentric and 80mm parallel systems.

White nose cone

60/100mm concentric flue system

Code: 29450130

Telescopic horizontal flue terminal

60/100mm concentric flue system

Code: 29450121

Plume management kit

60/100mm concentric flue system

Code: 522

Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk

Boiler and Flue Compatibility

Concentric flue ranges

The 60/100 condensing range is suitable for all current Vokèra high efficiency (condensing) appliances. A flue kit adaptor is required to use the 60/100 concentric flue on the Verve 47kW domestic system boiler.

When used in the horizontal plane, the flue system (excluding horizontal terminal) should be installed so that it has a 1˚ - 3˚ fall back to the boiler (17mm - 51mm per-metre). This will enable any condensate fluid that may form, to drain via the condensate connection/trap.

It can also be used as a replacement flue system on older/obsolete Vokèra HE appliances, however you should contact the Vokèra

Technical Helpline for specific advice.

60/100MM CONCENTRIC FLUE SYSTEMS

Code

29450121

29450120

522

29450131

29450123

29450124

29450125

29450126

29450127

29450128

529

29450122

531

532

533

29450133

534

(4)

535

(4)

29450130

487

20028027

Description

Telescopic horizontal flue terminal

Horizontal flue terminal

Plume management kit

Plume management kit extension

90-deg bend

45-deg bend (pair)

500mm extension

1000mm extension

2000mm extension

Telescopic extension

Wall brackets (5 x 100mm)

Vertical flue terminal

Pitched roof flashing plate

Flat roof flashing plate

Telescopic rear flue

Telescopic rear flue

Brick red nose cone

Beige nose cone

White nose cone

45-deg-plume diverter

Flue kit adaptor for Verve

Verve

47kW

8

8

8

8

8

Mynute i

8

Vision

Range

8

8

(1)

Vibe

8

8

8

(1) Includes both Vision combi and system boilers (2) Contact Vokèra Technical for advice (3) 15kW output only (4) Available as special order only. Minimum order quantities apply

Linea

One

8

8

8

8 (2)

8

(2)

Mynute

VHE

8

✓ (3)

✓ (3)

Unica i

8

8

8

8 (2)

8

(2)

The 80/125 range can be utilised only with certain specific appliances. A flue kit adaptor is required to use the 80/125 concentric flue on the Verve 47kW domestic system boiler. An adaptor is also required for other appliances to convert the flue outlet from 100mm to 125mm.

Compact

A

8

8

8 (2)

8

(2)

When used in the horizontal plane, the flue system (excluding horizontal terminal) should be installed so that it has a 1˚ - 3˚ fall back to the boiler (17mm - 51mm per-metre). This will enable any condensate fluid that may form, to drain via the condensate connection/trap.

80/125MM CONCENTRIC FLUE SYSTEMS

Code Description

418

419

420

421 (2)

422 (2)

423

413

414

415

416

417 (2)

424

425 (2)

426

532

531

20028558

Horizontal terminal

Vertical terminal

90-deg bend

45-deg bend (single)

250mm extension

500mm extension

1000mm extension

2000mm extension

3000mm extension

Telescopic extension

Wall brackets (5 x 125mm)

Boiler top adaptor for HE appliances

Fixed offset

Silicon lubricant

Flat roof flashing plate

Pitched roof flashing plate

Flue kit adaptor for Verve

(1) Includes both Vision combi and system boilers (2) Available by special order

32

VOKERA

FLUES

Verve

8

Mynute i

8

Vision

Range

(1)

8

Vibe

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

Mynute

VHE

8

Linea

One

8

Unica i

8

Compact

A

8

INTELLIGENT CONTROLS

Choosing the Right Control

Intelligent controls

Maximise energy and fuel savings

With the introduction of condensing technology, boilers have continued to increase in efficiency with most current appliances able to reach over 90% efficiency. However, the technology within boilers is now so advanced that, even with future developments, there is little chance of boiler efficiency percentages increasing much further.

The one area that can still help maximise the efficiency and overall performance of the boiler is the correct use of a control. Even with average efficiencies now reaching over 90%, this can be increased by a further 2% - with the simple addition of a weather compensation control for example.

Choosing the right control

There are a number of different controls available so establishing the most suitable one for your heating requirements may be confusing.

Vokèra provide a range of controls that can be used be with combi and system boilers, including; room thermostats, programmable room thermostats and the Vokèra ‘Intelligent Control’ range that incorporates the most advanced technology available, such as weather compensation and OpenTherm.

The Vokèra Vision combi boilers come with a built-in 7 day digital clock which enables different settings for each day of the week. Additional controls can be added to a Vision combi if it needs to be sited in a difficult to access location or for energy saving purposes.

Intelligent controls

Outside weather compensation sensor

The Vokèra outside weather compensation sensor manages the central heating flow outlet temperature by regulating the boiler in line with external weather conditions, providing a consistent and comfortable room temperature. For example, when the central heating is timed to come on, the external sensor measures the outside temperature and the boiler calculates the required flow temperature needed to maintain the set room temperature.

Code: 2359259 - This control is supplied as standard with the Linea One combi boiler.

711 OpenTherm RF programmable room thermostat

Vokèra’s OpenTherm programmable room thermostat incorporates the most advanced technology; the basic principle of OpenTherm is that it takes over the management of the flow outlet temperature and raises or lowers the flow temperature of the boiler in order to maintain a certain room temperature that has been requested or set by the end user.

set-point the efficiency of the appliance is increased as the control constantly endeavours to maintain a low outlet temperature, this means an even lower return temperature and condensing boilers are at their peak efficiency when operating with a low return temperature.

When you connect the OpenTherm to a boiler, the boiler’s own internal management of the set point becomes redundant and the OpenTherm control takes over. By allowing the OpenTherm to manage the

A saving of around 15% can be achieved when using the OpenTherm programmable room thermostat when compared to a typical on/off room thermostat, this equates to a

90/£67 saving on an annual fuel bill (energy saving based on average 18,000kwh per annum). Not only is the OpenTherm designed to reduce fuel costs it is also designed to improve end user comfort, it achieves this by significantly reducing or eliminating temperature ‘undershoot’ or ‘overshoot’, meaning that a stable room temperature is achieved and maintained.

You can install the OpenTherm alongside the weather compensation control to benefit from even further energy savings. Weather compensation technology ‘fine tunes’ the heating system to the outside temperature condition, where the flow temperature increases/decreases in response to external weather conditions. Effectively it takes into consideration the external temperature and works with the OpenTherm control to tell the boiler what it needs to do to compensate for the outside weather conditions, so if it is a warm day, it tells the boiler it will not need to work as hard to achieve the room set point.

Configured for use with the Unica i combi boiler with the receiver being easily connected to the boiler using the Plug & Play Tyco socket.

The Tyco connection can be re-configured or removed to facilitate use with other compatible Vokèra high efficiency combi boilers.

OpenTherm RF programmable room thermostat - colour white. Code: 20050690 (Black version also available. Code: 20050691)

Gas Safe Registered Installers: For a step by step installation video visit the Vokèra YouTube channel, search Vokera Ltd.

Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk

Choosing the Right Control

Energy saving controls

Energy Saving Controls

Room thermostats control the ambient room heating temperature. Programmable room thermostats can have different set temperatures for different periods of the day, offering greater flexibility and a simple solution to boiler control. For maximum comfort it is recommended that your thermostat is set between 18 - 21 o C.

7 day RF programmable room thermostat

This on/off programmable room thermostat allows easy control over boiler heating timings and temperatures over a 7 day period. A typical heating programme is pre programmed so the time and day of the week only need to be set before the programmer is fully operational.

Configured for use with the Compact A combi boiler with the receiver being easily connected to the boiler using the Plug & Play Tyco socket. The Tyco connection can be re-configured or removed to facilitate use with other compatible Vokèra high efficiency combi boilers.

Wireless version product code: 20059643

Hard-wired version also available, product code: 20063874

Tyco connection from receiver to boiler

RF room thermostat control

This on/off room thermostat has similar characteristics to the above as it can be used to adjust the set room temperature. It is ideal for the Vision combi boilers as it allows easy control over the heating temperatures but it will not interfere with any programmed heating timings that have been set on the built in digital clock.

Wireless version product code: 20059642

Hard-wired version also available, product code: 20063869

CONTROLS COMPATIBILITY

Code Control

20050690 OpenTherm RF programmable room thermostat

2359259 Outside weather compensation control

20059643 7 Day RF Programmable room thermostat

20063874 7 Day HW Programmable room thermostat

20059642 RF room thermostat control

20063869 Hard-wired (HW) room thermostat control

20025081 Compact A 24 hour analogue clock kit (7)

Verve Mynute Vision i System

✓ (2)

(2)

✓ (2)

(2)

✓ (2)

(2)

✓ (2)

(2)

8

✓ (2)

(2)

8

✓ (2)

(2)

8

Vibe

8

8

✓ (2)

(2)

✓ (2)

(2)

8

Mynute

VHE

8

8

✓ (2)

(2)

8

8

Linea

One

✓ (1)

(5)

Unica i

✓ (6)

8

Vision Compact

Combi A

✓ (3)

(3)

✓ (3)

(3)

8

(1) Requires wiring kit - code 1221179 - contact Vokèra Technical for advice.

(2) . Can be used on heating only applications - contact Vokèra Technical for advice.

(3) Requires control interface - code 29450143 - contact Vokèra Technical for advice. The addition of an energy saving control will override any settings that have been programmed into the built in digital clock on the Vision Combi.

(4) Can be used on internal installations - contact Vokèra Technical for advice.

(5) Outside weather compensation control is supplied in the box with every Linea One.

(6) Wiring needs to be reconfigured - contact Vokèra Technical for advice.

(7) Compact A 24 hour analogue clock kit includes a pipe cover that the analogue clock is incorporated into.

34

VOKERA

ENERGY SAVING CONTROLS

CONTROLS

Choosing the Right Control

Providing energy saving solutions for the future brings to the package .

The r e a r e eight

Class I: Room Thermostat: A room thermostat that controls the on/off operation of a heater. Performance parameters, including switching differential and room temperature control accuracy are determined by the thermostat’s mechanical.

Class II: Weather compensator control, for use with modulating heaters: A heater flow temperature control that varies the set point of the flow temperature of water leaving the heater dependent upon prevailing outside temperature and selected weather compensation curve.

Control is achieved by modulating the output of the heater.

Class III: Weather compensator control, for use with on/off output heaters: A heater flow temperature control that varies the set point of the flow temperature of water leaving the heater dependent upon prevailing outside temperature and selected weather compensation curve. Heater flow temperature is varied by controlling the on/off operation of the heater.

Class IV: TPI room thermostat, for use with on/off output heaters: An electronic room thermostat that controls both thermostat cycle rate and in-cycle on/off ratio of the heater proportional to room temperature. TPI control strategy reduces mean water temperature, improves room temperature control accuracy and enhances system efficiency.

Class V: Modulating room thermostat, for use with modulating heaters: An electronic room thermostat that varies the flow temperature of the water leaving the heater dependent upon measured room temperature deviation from room thermostat set point. Control is achieved by modulating the output of the heater.

Class VI: Weather compensator and room sensor, for use with modulating heaters: A heater flow temperature control that varies the flow temperature of water leaving the heater dependent upon prevailing outside temperature and selected weather compensation curve. A room temperature sensor monitors room temperature and adjusts the compensation curve parallel displacement to improve room comfort.

Control is achieved by modulating the output of the heater.

Class VII: Weather compensator and room sensor, for use with on/off output heaters: A heater flow temperature control that varies the flow temperature of water leaving the heater dependent upon prevailing outside temperature and adjusts the compensation curve parallel displacement to improve room comfort. Heater flow temperature is varied by controlling the on/off operation of the heater.

Class VIII: Multi-sensor room temperature control, for use with modulating heaters: An electronic control, equipped with 3 or more room sensors that varies the flow temperature of the water leaving the heater dependent upon the aggregated measured room temperature deviation from room sensor set points. Control is achieved by modulating the output of the heater.

Unica i32 plus Class VI controls (711 RF programmable thermostat plus weather compensation sensor) achieves an ErP A+ (98%) space heating package rating.

CONTROLS AND ERP CLASSIFICATIONS

Code Description

20059642 RF room thermostat control

20063869 Hard-wired room thermostat control

20101743 RF programmable room thermostat

20063874 7 day HW programmable room thermostat

20050690 OpenTherm RF programmable room thermostat (white)

20050691 OpenTherm RF programmable room thermostat (black)

29450145 RF outside weather compensation sensor (photovoltaic)

2359259 Outside weather compensation sensor

Kit Code 711 and outside weather compensation sensor kit

Package / system efficiency label - uplift

Class I

8

8

8

8

8

1%

Class II

8

8

8

8

8

8

8

2%

Class III Class IV

8

8

8

8

8

8

8

8

8

1.5%

8

8

8

8

8

8

8

8

8

2%

Class V

8

8

8

8

8

8

8

3%

Class VI Class VII Class VIII

8

8

8

8

8

8

8

8

4%

8

8

8

8

8

8

8

8

8

3.5%

8

8

8

8

8

8

8

8

8

5%

Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk

Renewable Technology

Solar thermal

Solar thermal has become one of the most cost efficient renewable technologies currently available for reducing CO

2 emissions, harnessing the sun’s natural energy to heat water.

Solar thermal collectors absorb the sun’s energy, which is absorbed by the heat transfer fluid that circulates around the collector and pipework to a twin coil cylinder that heats the domestic hot water. The water is then stored ready for supply to the taps. When the system does not heat to the required temperature the boiler steps in to make up the difference.

By installing solar thermal you can expect to save on average around 350 - 400kg of CO

2 per year.

Financial returns will depend on a number of factors including, among others, location of property, positioning of collectors on the roof, weather conditions and which fossil fuel you are replacing.

Fig 1 shows the annual average solar radiation falling on one m 2 measured in kW hours. (UK and Ireland).

Fig 1 - Source: Solar Trade Association

Zenith solar thermal systems

Our high grade MCS approved solar collectors maximise energy efficiency and meet the approved standard of

BS EN12975 and have the Solar Keymark seal of approval.

Zenith ‘Evacuated Tube’ collectors

- Vokèra Zenith evacuated tubes are made up of 14 double sleeve evacuated glass tubes. The vacuum inside the double sleeved glass tubes provides effective thermal insulation and permits the collectors to generate heat from the sun even in bad weather and during winter months. Zenith evacuated tubes can be more efficient than flat plate collectors in colder, less sunny parts of the UK and are suitable for retro fit and new build applications.

Zenith ‘On Tile’ collectors and ‘Inset’ collectors

- Vokèra Zenith on tile flat plate collectors and inset flat plate collectors are of high build quality and are designed to use both direct sunlight and daylight to gain the maximum amount of energy throughout the whole year. Zenith on tile collectors are more suited to retro fit applications and inset collectors to new build applications or for those requiring a more discreet finish.

Design and Installation

The Vokèra renewable portfolio can be incorporated to form many different heating system layouts that fulfil all heating and domestic hot water requirements.

The below diagrams show how the Vokèra Zenith range can be teamed with Vokèra boilers to further reduce reliance on fossil fuels and maximise the benefits of renewable energy. For a solar efficiency and suitability report contact the Vokèra Pre Sales team.

Zenith solar system

Mynute i sealed system boiler

Aquaflow unvented twin coil cylinder

Zenith Solar system

Mynute VHE regular open vent boiler

Aquaflow unvented twin coil cylinder

36

VOKERA

INTRODUCING SOLAR THERMAL

ZENITH EVACUATED TUBE

Solar thermal collectors

Zenith Evacuated Tube

Product specifications

SOLAR KEYMARK

SEAL OF

APPROVAL

MANUFACTURED

IN HOUSE

IDEAL FOR

RETRO FIT AND

NEW BUILD

APPLICATIONS

PRE SALES

SUPPORT

AVAILABLE

TECHNICAL SPECIFICATIONS

Total area

Exposed area

Effective absorption area

Dimensions H x

W x

D (mm)

Empty weight

Liquid content

Recommended flow rate of panel (per m 2 /h)

Absorption ( )

Emissions (ß)

Maximum permitted pressure

Maximum temperature

Evacuated Tube

Collector

2.77 m 2

2.40 m

2

2.69 m 2

1730 x 1600 x 145

52 kg

2.05 litres

30 litres

> 94%

< 7%

10 bar

236 o

C

MCS approved demonstrating the quality and reliability of the Zenith solar thermal collector range.

Evacuated tube technology provides better efficiency in cooler parts of the UK due to their ability to absorb and retain solar radiation, with the tubes working on the same principle as a vacuum flask.

High build quality designed to use both direct sunlight and daylight maximising energy performance even on cloudy days.

Ideal for retro fit and new build applications.

Evacuated tube collectors are easy to install as, if necessary, the tubes can be removed prior to the frame being fitted onto the roof. The tubes can then be positioned within the collector frame.

Zenith solar thermal packages include an intelligent controller for increased functionality and flexibility.

Evacuated tube collectors have greater application flexibility, this is due to the wide range of angles the collector can be positioned in, while maintaining effective absorption.

Easy replacement of glass tubes without having to empty the solar heating circuit.

As a guide 1m

2 of solar collector is required per person in a household.

Up to six collectors can be connected in a series.

Zenith solar thermal collector systems are pressurised which provides greater flexibility for siting the collector and a faster reaction time to daylight and sunlight, maximising upon the sun’s energy.

Integrated CPC mirrors maximise absorption even in oblique light.

A highly selective finish on the copper absorber plate within each tube guarantees exceptional absorption performance.

14 individual tubes in each collector.

Long working life, with no metal parts passing through the glass tubes to cause loss of vacuum.

Solar Keymark seal of approval.

Pre Sales service available to provide advice and assistance on suitability and free design service.

EVACUATED TUBE COLLECTOR PACKAGE CODES

Description

Evacuated tube pitched roof package

Evacuated tube flat roof package

Code

29450193

29450194

EVACUATED TUBE COLLECTOR PACKAGE INCLUDES

Evacuated tube solar collectors (x2)

Roof kit (pitched or flat roof)

Glycol

Pump station

Air vent

Expansion vessel

Premium controller

Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk

Zenith Flat Plate ‘On Tile’ and ‘Inset’

Solar thermal collectors

10

YEAR

WARRANTY

SOLAR KEYMARK

SEAL OF

APPROVAL

MANUFACTURED

IN HOUSE

IDEAL FOR

RETRO FIT AND

NEW BUILD

APPLICATIONS

PRE SALES

SUPPORT

AVAILABLE

SPECIFICATIONS

Total area

Exposed area

Effective absorption area

Dimensions H x

W x

D (mm)

Empty weight

Liquid content

Recommended flow rate per m 2 (l/h)

Absorption ( )

Emissions (ß)

Maximum permitted pressure

Maximum temperature

Zero loss collector efficiency (

ηο

)

Collector heat loss efficiency a1 W/(m 2 K)

Flat Plate Collector

2.43 m

2

2.20 m 2

2.15 m

2

2046 x 1186 x 90

40 kg

1.6 litres

30 litres

95%

5%

10 bar

204 o C

0.798

4.27

FLAT PLATE COLLECTOR PACKAGE CODES

Description

On tile pitched roof package

On tile flat roof package

Inset slate roof package

Inset tile roof package

Code

29450195

29450196

29450191

29450192

FLAT PLATE COLLECTOR PACKAGE INCLUDES

Flat plate solar collectors (x2)

Roof kit

Glycol

Pump station

Air vent

Expansion vessel

Premium controller

38

VOKERA

FLAT PLATE COLLECTORS

ON TILE COLLECTORS -

Ideal for retro fit applications with solar collectors sitting on top of the roof tiles, therefore requiring minimal adaptation to the roof.

INSET COLLECTORS -

Ideal for new build applications with collectors sitting in the roof, therefore requiring less roof tiles and resulting in a neat and discreet finish.

MCS approved demonstrating the quality and reliability of the Zenith solar thermal collector range.

High build quality, designed to use both direct sunlight and daylight, and a highly selective finish on the copper absorber plate maximises energy performance even on cloudy days.

The collectors have an aluminium body, with a single piece copper absorber plate to create a greater reflective surface, maximising energy performance.

Flat plate collectors achieve optimum performance when positioned on a south facing roof at an angle of 35 o and 45 o . If this position is not possible, a split system could be used whereby one collector would be placed on the east facing side of the roof and another on the west.

The collectors are ultrasonically welded together to ensure high build quality and product longevity.

Heat transfer fluid flows through 12 individual copper pipes in the collector to create a large surface area for absorption.

As a guide, 1m 2 of solar collector is required per person in a household. Up to six collectors can be connected in a series.

Zenith solar thermal collector systems are pressurised which provides greater flexibility for siting of the collector and a faster reaction time to daylight and sunlight, maximising upon the sun’s energy.

The bottom and walls of the collector tray are lined with 4cm of rock wool insulation to maximise heat retention and energy efficiency.

Low iron oxide content for high energy transmission and to minimise corrosion.

Each collector is protected with tempered glass to withstand extreme weather conditions, such as hail stones.

A well installed Zenith system will provide a reliable and extremely efficient service with a life expectancy of approximately 20+ years.

Pre Sales service available to provide advice and assistance on suitability and free design service.

Domestic property with a Vokèra Zenith Inset installation

AQUAFLOW TWIN

Unvented Twin coil cylinder

AquaFlow Twin

Unvented twin coil water cylinder

(1)

COMPATIBLE WITH

SOLAR THERMAL

WRAS

APPROVED

(1)

25

YEAR

WARRANTY ON

INNER TANK

FOR USE WITH

MYNUTE VHE

,

MYNUTE i

AND

VISION S BOILERS

Install the Aquaflow Twin with a Zenith solar thermal system and a system or open vent boiler to benefit from solar thermal energy.

Inner tank guaranteed for 25 years, made from stainless steel.

Cylinder manufactured from high grade corrosion resistant stainless steel.

Easy and quick to install.

Balanced cold water supply point.

Secondary return facility on all units as standard.

No need for ‘sacrificial anode’ due to excellent anti-corrosion properties.

No cold water feed tanks required means a dry roof space.

Twin coil units supplied with one two port motorised valve.

Twin coil units are supplied with one low level immersion heater factory fitted and hard wired complete with surface mounted thermostat.

Twin coil cylinders have two thermostats, upper for boiler heating and lower for Solar pre-heater.

Cylinders are supplied with all mandatory valves and fittings.

(1) Subject to registration and annual service.

1

18

17

16

15

14

13

12

11

19

2

3

4

5

6

7

1.

Hot water outlet

2.

Pressure reducing valve

3.

Expansion/check valve

4.

Flexible connection

5.

TPR valve

6.

Tundish

7.

Discharge pipe

8.

Cylinder thermostat

9.

Cold feed tube

10. Drain cock

11. Ret 3/4 inch

12. Sensor Boss 1/2 inch

13. Cable entry

14. Flow 3/4 inch

15. Flow 3/4 inch

16. Secondary return 1/2 inch

17. Ret 3/4 inch

18. Sensor Boss 1/2 inch

19. Immersion element

8

9

10

SPECIFICATIONS

Product order code

Capacity

Approximate weight fully flooded

Height

Diameter

ErP water heating efficiency

(XL Profile) (class/%)

AquaFlow Twin 250

924

250 litres

312kg

1400mm

580mm

C

AquaFlow Twin 300

925

300 litres

364kg

1600mm

580mm

C

Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk

Renewable Technology

Air source heat pumps

Air source heat pumps utilise air to generate heat in order to heat water using compression technology, providing a great source of renewable energy.

Air source heat pumps work by extracting heat from the outside air, even when it’s below 0 o C. The extracted heat is then transferred to a plate-heat exchanger that heats the central heating and domestic water in a traditional way.

Air source heat pump technology is best suited to low temperature or under-floor heating systems as they require a lower flow temperature but some models are also able to achieve higher temperatures that are suitable for traditional central heating systems and domestic hot water (when connected to a water cylinder). Vokèra recommend that the AriaPRO is installed with an additional back up heat source, for example an immersion heater, to ensure all domestic heating and hot water requirements are satisfied.

AriaPRO air source heat pumps

The Vokèra AriaPRO can reach a CoP (Co-efficient of Performance) of 4.2

* , i.e. 1kW of electrical energy can provide 4.2kW of heat output or £1 of electricity can provide over £4 of heat. The appliance can be effective in temperatures ranging from -20 o C to +30 o C and so will continue to provide heat even in the cold winter months.

Sited outside a property without the requirement for extensive installation preparation the AriaPRO is an ideal renewable solution for both new build and retrofit applications.

*

Dependent on ambient outside temperature

Design and Installation: AriaPRO air source heat pump system

The Vokèra renewable portfolio can be incorporated to form many different heating system layouts that fulfil all heating and domestic hot water requirements. The below diagram shows how the Vokèra AriaPRO air source heat pump can be teamed with Vokèra cylinders to further reduce reliance on fossil fuels and maximise the benefits of renewable energy.

Domestic hot water terminal

AriaPRO air source heat pump

AquaFlow single coil cylinder

Underfloor heating

A Vokèra boiler can be teamed with the AriaPRO air source heat pump to make up any differential in heat requirements, ensuring maximum end user comfort.

40

VOKERA

INTRODUCING AIR SOURCE HEAT PUMPS

ARIAPRO

Air source heat pumps

AriaPRO

Air source heat pump

INTEGRATED

MODULE

FOR EASY

INSTALLATION

IDEAL FOR

UNDERFLOOR

HEATING

MCS approved demonstrating the quality and reliability of the

AriaPRO range.

Extracts heat from ambient air, even when outside temperature is below 0 o

C, which is then transferred to a heat exchanger that heats the central heating and domestic hot water in a traditional way.

Co-efficient of Performance (CoP) of up to 4.2 i.e. 1.0kW of electrical energy required to generate 4.2kW of heat output (£1 of electricity can provide over £4 of heat) at EN 14511 reference conditions.

Designed for a simple installation as the integrated hydronic module requires the addition of only a few external components.

Mono-block design means that the refrigerant circuit is located in the outdoor equipment only, enabling the AriaPRO to remain outside the scope of the F-Gas directive for installation; so no F-Gas certification is necessary to install the product.

Latest inverter technology with twin rotary compressor managed by both

PAM and PWM logic control ensures both temperature and efficiency is optimised at all times leading to fuel efficiency, lower noise emissions and improved comfort.

Built-in frost protection, protects the appliance from damage during periods of cold weather.

Both central heating and domestic hot water can be provided when connected to a water cylinder.

The Vokèra heat pump system can incorporate Vokèra Zenith solar thermal to further minimise reliance on fossil fuels.

AriaPRO can be installed with most Vokèra boilers in a bivalent system to ensure maximum end user comfort during extreme weather conditions.

SPECIFICATIONS

AriaPRO

4kW

AriaPRO

6kW

AriaPRO

8kW

AriaPRO

12kW

AriaPRO

15kW

20099423 20099424 20099425 20099426 20099427 Product order code

Co-efficient of Performance (1) *

Nominal capacity (kW)

Power input (kW)

CoP 0/35 o C

4.1

1.01

4.06

5.8

1.37

4.24

7.2

1.84

3.95

Energy class

Co-efficient of Performance (2)

A

*

A B

Typical UK and Ireland conditions

Nominal capacity (kW)

Power input (kW)

CoP 0/45 o C

Energy class

3.9

1.21

3.2

A

5.8

1.93

3.01

B

7.4

2.34

3.16

B

11.9

3.04

3.94

B

12.95

4.3

3.01

B

Dimensions and weights

Height (mm)

Width (mm)

Depth (mm)

Empty weight (kg)

Sound levels

Sound pressure * * (db)

Electrical

Voltage (V/Hz)

821

908

350

61

42

230/50

821

908

350

61

42

230/50

821

908

350

71

44

230/50

1363

908

350

105

47

230/50

14.5

3.57

4.06

A

14.5

4.36

3.21

B

1363

908

350

105

48

230/50

*

CoP (1) - outside air +7 o c / water 30-35 o

C.

* CoP (2) - outside air +7 o c / water 40-45 o C.

**

Sound pressure measured in a hemispheric field 4 meters in front of the fan.

Sited outside a property without the requirement for extensive installation preparation.

Flexible application, suitable for both new build and retrofit applications.

Effective in outside air temperatures ranging from -20 o C to +30 o C.

Flow outlet temperature ranging up to +60 o C, making the

AriaPRO ideal for a number of domestic applications including underfloor heating, central heating and domestic hot water.

Electronically controlled variable speed helical fan ensures exceptionally low noise levels as low as 42 dBa (4 and 6kW outputs).

Supplied with built-in external sensor, a supplementary external sensor and remote control, to maximise efficiency.

Integral 2 litre expansion vessel supplied with the 4kW,

6kW, 8kW and 3 litre expansion vessel supplied with the

12kW and 15kW. Additional expansion capacity may be necessary dependant on the system.

If required, Vokera offer a low loss header (1) for systems that cannot guarantee sufficient flow through the heat pump at all times.

(1) When fitting a low loss header, an external pump is required.

Vokèra Ireland: 056 7755055 UK Sales, General Enquiries: 0844 391 0999 [email protected] www.vokera.ie www.vokera.co.uk

Vokèra Support

Vokèra prides itself in providing support from concept to completion

Our support network incorporates a Pre Sales support advice service, technical training, technical support service and a Customer Care team dedicated on providing great service.

Pre Sales support

The Vokèra Pre Sales support team offers advice on a range of products and applications to engineers, architects, specifiers and developers.

The technology available to heat buildings is changing rapidly therefore support is critical to ensure correct solutions are provided for the application. Pre Sales support ensures you get the correct guidance and reassurance when choosing a solution for your project.

PRE SALES CONDEXAPRO PROJECT

CONTACT PRE SALES

Email: [email protected]

* A cost may be incurred for some Pre Sales activities.

Depending on the technology used and the complexity of the installation, the advice and level of support you need will differ, from basic advice to a full bespoke solution. The Pre Sales support team not only offer advice and guidance but can also provide on-site assistance and support with product assembly and commissioning * .

Vokèra Pre Sales support offers you practical, sound advice and will advise you if a solution is not fit for purpose, ensuring the correct products are recommended for the application.

‘It was the specification support, reliability, guarantees and back up service offered by Vokèra that made it the perfect solution.

Project Manager - Pre Sales Customer

The Pre Sales support service is available for all renewable technology installations, domestic and light commercial condensing gas appliances and any integrated technology heating solution.

Technical training

Vokèra technical training delivers real value to Registered Gas Installers. Our technical training focuses on the need of the engineer to become familiar with the product, to enable quick and simple installation or repair. Our technical training is structured to ensure you cover: the appliance range, installation, operation, wiring, flueing, benchmark, fault finding and commissioning.

Vokèra Product Courses

High Efficiency Product Course (inc. fault finding)

Standard Efficiency Product Course (inc. fault finding)

Solar Overview Product Course

To attend you must be RGII registered.

The one day Solar Overview Product Course provides you with an insight into the theory of Solar Domestic Hot Water and an understanding of the Vokèra Zenith Solar product and package. It is both theory and workshop based and will give you a good understanding on the principles of solar domestic hot water, installation, commissioning and fault finding on our products.

For further information on all courses view our course profiles at: www.vokera.ie

or book now: 056 7755055 (option 1)

42

VOKERA

SUPPORT

CUSTOMER CARE

Rock solid support you can depend on

Customer Care

Customer care team

We pride ourselves on providing a first class after sales service with dedicated regional customer care centres in Ireland and the UK, supported with 41 factory trained Vokèra field engineers along with 85 service agents, which are able to support customers nationwide.

Every engineer carries a full complement of spare parts to help ensure a high first time fix rate

Real time data field reports for service contracts

Full monthly reports can be provided to monitor call outs

One point of contact to report and discuss service issues

Full audit trail to track service calls

Technical Support

Our fully trained, Gas Safe and RGII technical team provides technical help to support the Installer.

Product Warranty

As with all domestic gas boilers, an annual service is recommended to maintain optimum performance, efficiency and safety. In addition to a free 5 year warranty with the Mynute i, Vision

*

, Mynute VHE, Linea One and Unica i ranges and a free 2 year warranty offered on all other Vokèra boilers, we also make a promise to all our customers:-

Our dedicated customer service team and RGII registered engineers are available 5 days a week to support the needs of every single Vokèra boiler installation. They aim to respond to every call within 48 hours or less, or at a time agreed with the householder. They will make every effort to solve any technical problem over the phone, answering quickly, politely and at all times acting in the best interest of our customers.

CONTACT US

Department

Eire Sales and General Enquiries

Customer Care / After Sales Service

Spares and Deliveries Team

Technical Support

Technical Training

Customer Relations

Pre Sales

Marketing Support

Email [email protected]

[email protected]

[email protected]

[email protected]

[email protected]

[email protected]

[email protected]

[email protected]

Telephone

056 7755055 (option 1)

056 7755055 (option 2)

056 7755055 (option 3)

056 7755055 (option 4)

056 7755055 (option 1)

0844 391 0999 (option 1)

0844 391 0999 (option 4)

0844 391 0999 (option 1)

Fax

056 7755060

056 7755060

056 7755060

056 7755060

0844 391 0998

0844 391 0998

0844 391 0998

0844 391 0998

UK Sales, General Enquiries: 0844 391 0999 Vokèra Ireland: 056 7755055 [email protected] www.vokera.co.uk www.vokera.ie

Registered address:

Vokèra Limited

Borderlake House

Unit 7 Riverside Industrial Estate

London Colney

Herts AL2 1HG [email protected] www.vokera.co.uk

www.vokera.ie

Sales, General Enquiries:

T 0844 391 0999

F 0844 391 0998

Vokèra Ireland

West Court, Callan

Co Kilkenny

R95 PW40

T 056 7755055

F 056 7755060

Vokèra Limited reserve the right to change specification without prior notice.

Consumers statutory rights are not affected.

E&0E

Company Reg No: 1047779

Search Vokera Ltd

Issue 08/15/NP

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
