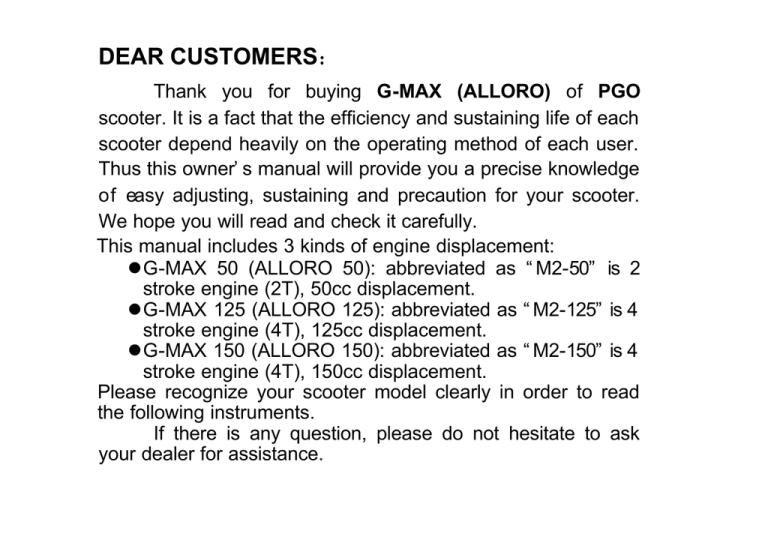

DEAR CUSTOMERS

Thank you for buying G-MAX (ALLORO) of PGO scooter. It is a fact that the efficiency and sustaining life of each scooter depend heavily on the operating method of each user.

Thus this owner’s manual will provide you a precise knowledge of easy adjusting, sustaining and precaution for your scooter.

We hope you will read and check it carefully.

This manual includes 3 kinds of engine displacement: stroke engine (2T), 50cc displacement.

G-MAX 125 (ALLORO 125): abbreviated as “M2-125” is 4 stroke engine (4T), 125cc displacement.

G-MAX 150 (ALLORO 150): abbreviated as “M2-150” is 4 stroke engine (4T), 150cc displacement.

Please recognize your scooter model clearly in order to read the following instruments.

If there is any question, please do not hesitate to ask your dealer for assistance.

CONTENT

Warranty Card.....................................................1

Scooter safety........................................................2

Part location..........................................................4

Identification.........................................................6

The function of switch & controller ...................9

Main switch....................................................9

Speedometer .................................................. 1 0

Handlebar Controls ........................................ 1 3

Steering Lock ................................................. 1 4

Seat Lock ....................................................... 1 4

Fuel Tank Cap................................................ 1 5

Kick Starter Lever.......................................... 1 5

Luggage Compartment .................................. 1 6

Pre-riding inspection........................................... 1 7

Brake .............................................................. 18

Brake Fluid .................................................... 19

Engine Oil ...................................................... 20

Air Cleaner..................................................... 22

Tire................................................................. 24

Throttle Grip .................................................. 25

Lamp & Signal Light ..................................... 25

Switches ......................................................... 25

Fuel ................................................................ 25

Catalyst .......................................................... 26

Notation for operation and riding ...................... 27

Starting the engine ......................................... 27

Warming up the engine.................................. 28

Brake operation.............................................. 29

Engine initial run- in....................................... 30

Parking vehicle .............................................. 31

Periodical maintenance ..................................... 32

Periodical maintenance table ....................... 33

Exhaust control system................................ 36

The air cleaner ............................................. 37

The spark plug ............................................. 38

Brake adjustment ......................................... 39

Brake fluid check ......................................... 40

Front fork check........................................... 41

Fuse replacement ......................................... 42

Battery.......................................................... 42

Specification....................................................... 43

Wire diagram..................................................... 46

Periodical maintenance record......................... 48

Check List before Delivery

Name:

Address:

Tel: Age: Sex:

Model: Engine No: VIN No:

Delivery date: Year Month day

NO Check Item

1 Steering of Handle Bar

2 Gap of Brake Lever

Dealer:

Y

N

NO

Check Item

Y

7 Tire Pressure

8 Confirm Engine No & Document

N

3 Lights and Horn 9 Owner’s Manual

4 Fuel Tank and Fuel Kind 10 Operating Method Introduction

5 Engine Oil

6 Disk Brake fluid

11 Periodic Maintenance introduction

12 Warranty Introduction

Staff Signature: Customer Signature:

Suggestion:

※Please Sign both customer & service Staff.

Mail this chart to agent, and then the Warranty will be effective.

2

Name

PGO Warranty Card

Telephone

Registration date

~1~

Address

Model

Displacement

CC

Engine NO.

Customer Signature

VIN.

Dealer Signature

3

SCOOTER SAFETY

WARNING

.Scooter riding requires special afford on your part to ensure your safety.

Know these requirements before you ride:

SAFE RIDING RULES

1. Always make a pre-ride inspection(page 13) and perform any needed adjustments or repairs before you ride the scooter.

2. Many accidents involve inexperienced riders. Most countries require a special scooter riding test or license.

Make sure you are qualified before your ride.

NEVER lend your scooter to an inexperienced rider.

3. Many automobile/scooter accidents happen because the automobile driver does not "see" the motorcyclist.

Make yourself conspicuous to help avoid the accident that wasn't your fault:

- Wear bright or reflective clothing.

- Don't ride in another motorist's "blind spot"

4. Obey all national and local laws and regulations.

- Excessive speed is a factor in many accidents. Obey the speed limits, and NEVER travel faster than conditions warrant.

- Signal before your make a turn or lane change. Your size and maneuverability can surprise other

- motorists.

~2~

4

5. Don't let other motorists surprise you. Use extra caution at intersections , parking lot entrances and exits, and driveways.

6. Keep both hands on the handlebars and both feet on the floorboards while riding. A passenger should hold on to the scooter or the feet on then passenger foot pegs.

7. Never leave your scooter unattended with the engine running.

8. Moderate your speed when ridding over bumpy roads. Avoid hitting road hazards, such as sharp bumps and holes, in the road surface. These hazards can cause loss of control or structural damage to the vehicle.

~3~

5

Part location:

BACK MIRROR

THROTTLE GRIP

FRT BRAKE LEVER

REAR BRAKE LEVER

HEAD LAMP

FRT SIGNAL LAMP

SEAT

REAR RACK

REAR LAMP

FUEL CAP

AIR CLEANER

KICK STARTER

MAIN STAND

SIDE STAND

IDENTIFICATION

1. Recognize your vehicle model according to license document or manufacturing document.

Because this manual is suitable for all G-MAX (ALLORO) serial models, there are many different operations between every model. Once you see a model indication bar appears above the page, for example:

The “ M2-50 “ model button lights on, and the lower bar is filled, that means this page is suitable for

M2-50 “.

~6~

IDENTIFICATION

2.Engine No. is located (stamped) on the rear side of the left crankcase.

50 CC 125 / 150 CC

NOTE:

The upper row is model type, the lower row is the production serial numbers.

Your dealer need this number for ordering the parts, please write down the engine no. for the ir reference.

~7~

IDENTIFICATION

3.Vehicle Identification Number (VIN) is located (stamped) inside the inner front cover.

NOTE:

The first 9 digitals are model type, the last 8 digitals are production serial numbers.

Your dealer need this number for ordering the parts, please write down the engine no. for the ir reference.

~8~

THE FUNCTION OF SWITCHES

1. MAIN SWITCH

The main switch controls the ignition and lighting system, followings are the operation instruction.

The power is on, engine can be started.

The key can not be pulled out at this position.

All the power is cut off. The key can be pulled out at this position.

All the power is cut off, and the handle bar is locked at this position.

PUSH THE KEY AND TURN COUNTERCLOCKWISE

This operation can open the seat, no matter the key is at or or or position.

PUSH THE KEY AND TURN CLOCKWISE

This operation can open the fuel cap.

Please refer to following pages for the detail operation instructions.

~9~

2.1 SPEEDOMETER

1 SIGNAL INDICATOR (GREEN)

When the blinker switch is shifted, this indicator will flash and tickling.

2 HIGH BEAM INDICATOR (BLUE)

When the HI/LO beam switch is set on ‘HI’, this indicator will light on

3.ENGINE-OFF INDICATOR

If this ind icator lights, the engine can not be started.

4.SPEED INDICATOR

5.FUEL GAUGE

The fuel gauge shows the approximate fuel supply available. At F (full) there. are 7.0 liters approximately, including the reserve supply.

When the meter pointer reaches to the first point of the red band, there is only 1 liter fuel residual in the tank, refill the tank as soon as possible.

1 4 8 9

~10~

2.2 SPEEDOMETER

6. ENGINE SPEED INDICATOR

Multiply the indicated digital by 1,000 rpm.

7 b a 2 5 3 6

(round per minute)

7. DIGITAL CLOCK

this clock is powered by vehicle battery, there is not any individual battery inside it.

Once replace the battery, you have to settle the present time again

a. CLOCK MODE BUTTON

Press to switch different displays, after setting the parameter, also press it to confirm.

b. CLOCK ADJUSTING BUTTON

Press to increase the parameter one by one.

8. ACCUMALATED MILEAGE

9.OIL WARNING INDICATOR

Fill the 2T oil as soon as this indicator lighting.

(only for 2T engine)

1 4 8 9

~11~

2.3 SPEEDOMETER

1. SIGNAL INDICATOR

(GREEN)

When the blinker switch is shifted, this indicator will flash and tickling.

2. Engine oil replacement indicator

When appear Red color, replace the 4T engine oil as soon as possible.

3. Insert the key to reset the engine oil replacement counter, it will become Green color again.

4. For the other indicators, please refer 2.1 & 2.2 descriptions.

2 3

1

~12~

HANDLE-BAR CONTROLS

1. HI/LO BEAM SWITCH

HI-The high beam is on

LO-The low beam is on

Press the lower part to make a passing signal.

2. Turn Signal Switch

Move to ← to signal a left turn, → to signal a right turn.

Press to turn signal off.

3. Horn Button

When the horn button is pressed, the horn will sound.

4. ENGINE RUN/OFF Switch

Press lower part to stop the engine, and press upper part to run the engine .

5. HEADLIGHT Switch

ON-Headlight, position light, taillight and meter light will be on, when the engine is running.

6. STARTER BUTTON

The starter button is below the headlight switch .

When the starter button is pressed, the starter motor cranks the engine.

~13~

4

5

6

2

3

1

STEERING LOCK

To lock the steering, turn the handle all the way to left and turn the key from

to then remove the key.

NOTE:

Do not turn the key to , while riding.

The scooter loss of control will occur.

SEATLOCK

Push the key and turn counterclockwise to open the seat.

~14~

FUEL TANK CAP

l Insert the key into ignition switch, and keep in position. Push the key and turn clockwise to open the fuel cap. l Push the cap forward to lock it

KICK STARTER LEVER

Swing the lever outwardly. Kick the lever down slowly till the gear stop, then kick the lever down strongly to star the engine.

KICK STARTER

~15~

LUGGAGE COMPARTMENT

The luggage compartment is under the seat.

Whenever the seat is opened, there is a lamp inside the luggage will light on.

NOTE:

1.The max loading weight is 5 KGS.

2.If engine has been operating over a long time.

The luggage compartment become hot. Do not put luggage in the temperature

3.Do not put important or fragile goods for security reason.

4.Raining or wash may cause luggage wet inside.

Please use water-resistant material for luggage wrapping.

5.Please lock the cover when leaving the scooter.

~16~

PRE-RIDING INSPECTION

Please do the inspection as following before riding:

ITEM PROCEDURE

FRONT BRAKE

REAR BRAKE

Check the brake function, clearance , brake oil level, see if it is leaking.

If necessary, may refill FMVSS DOT3(4) OR SAEJ 1703 brake oil.

Check the brake function and clearance, proper adjustment if necessary.

THROTTLE GRIP Check if it is smooth, put some lubricant .

LUBRICANT Adjustments if necessary.

Check the oil level/according to the request to refill oil .

TIRE

CONTROLLER

/GAUGE CABLE

Check the pressure , the wear out situation.

Check if smooth operation. Add lubricant if necessary.

BRAKE LEVER

(HANDLE)

Check if smooth operation. Add lubricant if necessary.

CENTRAL STAND Check if smooth operation. Add lubricant if necessary.

ASSEMBLY

/FITTING

FUEL TANK

Check all the assembling parts, fixing & adjusting if necessary.

Check the fuel level. Refill up if necessary.

LAMP

/SIGNAL LIGHTS

Check if it is operating good condition.

PAGE

29,40

39

25

20

24

18

10

25

~17~

BRAKE

Adjustment:

1.Measure the distance of the rear brake lever play before the brake starts to take hold.

Free play should be:10∼20mm.

2.Make free play adjustments by turning the adjusting nut at the brake arm.

Make sure the cutout on the adjusting nut is seated on the brake arm pin after making final free play adjustment.

3.Apply the brake several times and check for free wheel rotation when released.

FRONT BRAKE

The front brake will be on function when hold the handle and pull the right hand lever.

NOTE:

If the pre-riding inspection is not performed, severe personal injury or vehicle damage may result. Inspect your scooter, and perform any needed adjustments or repairs, Every day before you ride it. The items listed above will only take a few minutes to check and, in the long run, can save time, expense, and possible your life.

~18~

BRAKE (Please refer to page35)

1.Front /Rear brake levers

Inspect the free play of levers. Make sure the function is well.

Please check the brake at low speed, adjust the free play if it is not correct.

CAUTION

If the brake lever feels soft when operating,

Which means the brake system has problem.

Do not ride the scooter before the problem is ruled out.

2.BRAKE FLUID (Disk Brake)

Check the fluid level. Refill it if necessary.

Fluid Spec. FMVSS Dot3 or SAE J1703

3.DISK BRAKE PAD

Please refer to page 36. Please go to the PGO

Dealer when this brake needed repairing.

BRAKE FLUID LEAKAGE

INSPECTION

Hold the brake level for few minutes to check if there is any fluid leaks from the hose connector or main cylinder.

CAUTION

Go to the PGO dealer immediately when find the brake fluid is leaking.

The leakage means the braking system has deadly dangerous problem.

~19~

ENGINE OIL for

2T Engine

This lamp will make self test (light ON) for about 2 seconds whenever turn on the main key, if it lights on again after self test, that reminds you have to fill the oil as soon as possible. carefully

~20~

ENGINE OIL

1. 4T Engine (125 / 150 CC)

l Engine oil shall be replaced per 1,000 kilometers. l Engine oil volume must be examined after engine warn- up 2∼3 minutes. Be sure to execute on flat road. l Draw out and examine the oil gauge. Please refill if the volume below the low warning line.

~21~

AIR-CLEANER

The air filter will keep dust away from the engine and also protect it against wearing out.

Please ask the dealer to check & clean the filter periodically, or by yourself.

(ref:page 33)

1. 4T Engine (100 / 125 CC)

Wet paper filter element

~22~

AIR-CLEANER

The air filter will keep dust away from the engine and also protect it against wearing out.

Please ask the dealer to check & clean the filter periodically, or by yourself.

(ref:page 33)

2. 2T Engine (50 CC)

Sponge filter element

~23~

TIRE

To secure the best performance & extend life-span, please pay your attention to the following:

1.TIRE PRESSURE

Be sure that tire pressure in accordance with the standard pressure.

2.SIMPLE CHECK:

Check the tire appearance before riding.

Please ask your dealer for repairing or replacing if the appearance has been detected significant worn out or stabbed by nails, or glass.

3.INSPECTION FOR THE DEPTH OF

NOTE:

The inside temperature of tire must be even to outside or else pressure need to be adjusted. Besides the factor of loading, weight even cruising speed should take into consideration before adjusting.

THE TIRE GROOVE:

The appearance will become slippery due to significant worn out dusty or wet road riding.

Please replace the tire if the depth is less than

0.8mm, see the following picture for reference.

The normal tire pressure:

Front: 1.5kg/cm

2

Rear: 1.75kg/cm

2

~24~

THROTTLE GRIP

position.

Ask your dealers for adjusting advice if necessary.

LAMPS & SIGNAL LIGHTS

Make sure the front lamp, rear lamp, brake lamp, turn signal lamp, tail lamp and all other indicator lights working well.

SWITCHES

Make sure the switch of head lamp, turn signal lamp, brake lamp , horn, start button, and over take lamp working well.

FUEL

Be sure sufficient fuel in tank.

Tank capacity: 7.5 L

CAUTION:

1. Please fill the unleaded gas if your scooter is equipped with catalyster.

2. Do not fill up the gas over the neck of gas entrance , otherwise it will be spilling out due to the hot temperature.

3. It may cause inflammable if gas is split onto the engine or muffler.

~25~

CATALYSTER (OPTIONAL DEVICE)

Catalyst device is designed for decreasing air pollution from exhaust system and it is mounted inside the muffler.

1. Make sure to park your scooter away from flammable material, pedestrian or child to avoid danger due to yielding hot from muffler cover.

2. Don’t try to use any fuel if it is not unleaded gas.

3. Don’t try to turn off the main switch when riding.

4. Don’t try to ride, idle or stop on the surface of inflammable.

5. Please keep your engine in good function all the time, otherwise high temperature will yield from catalyst device due to short circuit ignition, or fuel system working abnormal.

6.Please periodically maintain your scooter to ensure exhaust control system and catalyst device working well.

~26~

NOTATION FOR OPERATION & RIDING

1. Please make sure you are familiar with all the operation system & function before riding. Please contact with your dealers if there’s any question.

2. Do not start the engine in a closed place due to potential gas, threat from poisonous exhaust amassed.

3. Please be noted the side stand must be withdrawn from the ground before riding, otherwise dangerous situation may occur due to your ignore.

STARTING ENGINE

1.Turn the main switch to

2.When the throttle is totally loosed, hold the brake lever and push the start button, or use the kick starter to start the engine.

CAUTION:

If the engine can’t be started, you should loose the start button to avoid losing significant electric power.

Please do not push the button over 5 seconds per each time. Try kick starter to start the engine if the start button is not working properly.

~27~

WARMING UP THE ENGINE

To protect the engine, please warm up the engine 1∼3 minutes before riding. Do not immediately accelerate when the engine is cold.

NOTE:

Please read the instruction “engine initial run- in” page26 before initial riding. l Scooter riding (after warning up the engine):

1. Hold the brake lever and push down the central stand. l Accelerating (throttling):

Use the throttle grip control your cruise turning it to wards your side will speed up, and reversing it will slow down.

2. Adjust the angle of rear view mirrors within visible field.

3. Try the function of signal light before riding.

4. Turn the throttle grip gradually then close the signal light during riding.

~28~

BRAKE OPERATION

1. Release the throttle grip.

2. Press front and rear brake levers gradually.

REAR

NOTE:

1. Sudden stop will cause sliding or falling down.

FRONT

2. Use the braking carefully while you are turning, improper use of brake may cause sliding.

3. Slow down the speed when riding on the iron plate, railway track, wet road.

4. Braking on the wet road is difficult.

5. Slow down the speed when sloping down.

~29~

ENGINE INITIAL RUN-IN

0~1,000 km riding will be the critical period regarding scooter life span. The new engine can’t afford too much loading during the first 1,000kms. Every part of the engine will be run- in to obtain the correct clearance in this period. Be sure to avoid prolonging the throttling out totally or any operation causing high temperature in the engine. Please read careful the following information.

1 .0~150 km

Avoid over 1/2 throttling operation. Cool down the engine 5~10 min/ hour. Do not cruise by constant speed for riding.

2 .150~500 km

Avoid over 1/2 throttling operation for long riding.

3. 500~1,000 km

Avoid over 3/4 throttling operation.

NOTE:

Change gear & engine oil after 500 km.

4. OVER 1,000 KM

Avoid full throttling in a long riding.

NOTE:

Please contact your dealers if any problem takes place during above periods.

~30~

PARKING:

Turn off the engine and pull out the key when parking the scooter.

NOTE:

1. Please park your scooter away from the child & pedestrians if the muffler is hot. Do not park your scooter on a slop or soft ground to avoid falling down.

~31~

2. This scooter is equipped with side stand safety switch, whenever you park it with side stand, then the engine can not be started for your safety.

PERIODICAL MAINTENANCE

To secure the most safe & effective performance, please check, adjust and lubricate your scooter periodically.

Periodical maintenance and lubrication should be acknowledge as an important instruction.

Meanwhile, please pay your attention to the environment, climate, geography and riding status in order to set up a proper maintenance interval.

NOTE:

This scooter is designed to be riding on normal paved road. If under a dirt & wet condition, please clean the air-cleaner frequently, otherwise the engine will be worn out quickly.

If you are not familiar with the inspection & maintenance, please contact to your dealers.

~32~

PERIODICAL MAINTENANCE TABLE

In order to achieve safe riding, good performance and reduce pollution, please execute the recommended maintenance accordingly.

Item

Engine oil

Engine oil*

Oil Filter

Model

2T or 4T

2T

4T

Checking Content

Add

Replace (800cc, total 900cc)

ALL Replace

MONTHS/DISTANCE(IN KM)FOR CHECKING

1 or 3 or 6 or 9 or 12 or 15 or 18 or

300 km 2500k 5000k 7500k 10000k 12500k 15000k

According to Oil warning light

Replace it per 1000km

Clean it per 5000km or replace it if required

Coarse oil filter* (on oil draining bolt)

Air cleaner

Air filter

Gear oil*

Disk & drum brake

Clutch shoes*

Rear brake arm

Tires

Wheel bearing*

Front fork*

4T

Clean or replace it if necessary

Clean it per 3000km or replace it if required

ALL Clean or replace it if necessary

ALL Clean or replace it if required

ALL Replace (90cc, total 110 cc)

ALL Leaking and function check

ALL Check or replace it if necessary

ALL Function check and adjustment

ALL Worn-out check or replace it if necessary

ALL Fasten tightly if loosen

ALL Leaking and function check

Steering head bearing* ALL Check looseness. Adjust it if required

NOTE:1.Items with “*” mark indicate our recommendation to have it done by PGO dealer.

~33~

Item

Rear absorber*

Main/Side Stand

Nuts, bolts, fasteners

Battery

Model

2T or 4T

Checking Content

ALL Leaking and function check

ALL Function check or replace it if required

ALL Tighten it if required

ALL Make sure that the voltage stayed over 12.8V. Recharge the battery it required.

Clear the poles.

MONTHS/DISTANCE(IN KM)FOR CHECKING

1 or 3 or 6 or

300 km

2500k

5000k

○ ○ ○

9 or

12 or

7500k 10000k

15 or 18 or

12500k 15000k

○ ○

○ ○

Valve gap*

Carbon cleaning *

Spark plug*

V belt*

Fuel feeding system*

Engine idle speed*

4T

2T

Check and adjust when engine is cool (0.08mm for IN & EX)

Clean combustion carbon when engine output reduced

ALL Clear or replace if required

ALL Worn out check or replace if necessary.

ALL Crack and blockage check.

Replace it if necessary.

ALL 2T engine: 1900±100 rpm

4T engine: 1700±100 rpm

ALL Check and adjust referring to

CO/HC Percentage.

Adjust it when necessary

Carburetor idle A/F

Adjustment*

NOTE

○ ○ ○ ○ ○ ○

1. Items with “*” mark indicate our recommendation to have it done by PGO dealer.

2. “A” denotes that function check or replace it when the engine performance reduces significantly.

~34~

NOTE 1

For 4T engine, the engine oil shall be changed completely after run- in period 300km or one month later.

This can make sure the engine runs smoothly.

NOTE 2

The exchange of brake fluid

1. After disassembling of brake main cylinder or caliper, do change the new fluid.

2. Check the fluid level often, Refill if necessary.

3. Change the oil seal of main cylinder and caliper every two years.

4. Change the brake fluid hose every four years.

~35~

Exhaust control system (only be valid for the bike equipped catalyst):

Catalyster will not be possible to be withdrawn individual, the only you have to do is to maintain fuel, ignition, intake/exhaust system periodically.

1. Maintenance procedure of air clearer (see page 33).

2. Spark plug’s checking: please repair or replace if spark plug is dirty.

3. Fuel system’s checking: please repair or replace if fuel pipe is jammed or broken.

4. Muffler’s checking: please fix tightly once or renew a gasket if it is leaking.

5. Idle rpm’s checking: please fix tightly once or renew a gasket if throttle cable.

6. Exhaust density checking while idle: please left the job to any service center of anti-pollution inspection for carburetor adjusting.

~36~

THE AIR-CLEANER

4T Engine(125/150 cc) 2T Engine (50 cc)

If there is too much accumulation of dust inside the air cleaner, it will reduce the output of engine performance and cause abnormal consumption of fuel.

Procedures of changing the air element:

1. Take off the cover of filter.

2. Draw the core of filter.

3. Clean and dry by air compressor, or replace it if necessary.

4. Put the cover back carefully to make sure fitted to the cover without leakage.

NOTE

Please do not start the engine before the air-cleaner is assembled, otherwise the piston/main case will be badly worn out.

~37~

THE SPARK PLUG

Spark plug is one of the important parts of the engine and it is easy to be checked. According to spark plug condition, you may infer the situation of the engine. The ideal color of the electrode should be light brown. If there’s any problem, please ask your dealers to check will be corroded & worn out due to the hotness and dirt for the time being. If happened, please change a new spark plug.

•Standard spark plug: For 4T Engine C7HSA(NGK) ; CR7HSA for EEC specification

•Spark plug gap : 0.6~0.7mm

For 2T Engine BP7HS(NGK) ; BPR7HS for EEC specification

When checking the spark plug, please cleaning the surface of the washer and screw, the fasten it.

•Toroue: 1.2kgf- m

NOTE:

If there is no wrench or torque gauge can be used, please wrenching it by your fingers turn 1/4∼1/2 and later use the wrench to fix it to the standard torque once available.

EXCHANGE OF GEAR OIL

recommended to change the gear oil every 2,500∼3,000 kms.

~38~

BRAKE ADJUSTMENT

The clearance of lever

(a) Front brake: 10~20 mm

(b) Rear brake: 10~20 mm

Adjust the nut if necessary.

NOTE:

Please contact to PGO dealer if the clearance is incorrect.

Rear brake check (only for Drum brake model)

The indicator will help you to easily screen the status of brake function. Please replace the shoe of rear brake

if indicator reaches the warning line.

1. Brake indicator

2. Warning line

~39~

Front brake check

Please acting the brake for checking. If the indicator almost reach the disk, please ask your dealers to change it.

NOTE: If the brake area is wet (getting water), the brake will be out of order and jeopardizing you.

M2-50

BRAKE FLUID CHECK

Insufficient brake fluid will make the air into the brake system and may cause the brake out of control. Please check the brake fluid level all the time and refill it if necessary.

1.When checking the oil level, please turn the handle bar assuring the brake oil on the horizontal position.

M2-125/150

2.Use correct brake oil, otherwise the oil seal will be defected. This will cause the oil leaking & losing the brake function. Standard brake oil: FMVSS DOT3 or SAE J1703.

3. Refill same kind of brake oil. Mixing with different oils will yield a bad reaction and cause the brake out of order.

~40~

4.To avoid the water getting into the main cylinder, otherwise the boiling temperature of the brake oil will be declining make the air be obstructed.

5.Brake oil could reode the painting surface and plastic parts. If any oil were spilled out, please clean it immediately.

6.If the brake oil can’t be refilled to the standard level, please check with your dealers.

FRONT FORK CHECK

NOTE:

In order to avoid falling down, please park you scooter firmly will be safe.

1.Eyes checking:

If any scratched, broken or leaking inside the pipe by vision.

2.Function check:

Park the scooter on flat place.

(A) Hold the handle and keep the scooter in vertical position, and then hold the front brake lever.

(B) Move up & down the front fork for several times.

NOTE:

If found the front fork is not smooth or broke, please contact your dealers.

~41~

FUSE REPLACEMENT

1. The fuse is located beside the battery.

2. Open the battery cover.

3. If the fuse is burned out, turn off the main switch and related switches, replace a correct fuse, then turn on and check the circuit function, please contact with your dealers if the problem remains.

NOTE:

Do not use a higher ampere fuse than the standard one. A different (abnormal) fuse will damage circuit system and

BATTERY

The battery is in free- maintenance type (MF), so it won’t be necessary to check or refill the liquid. If the liquid is leaking, please contact with your dealers A.S.A.P.

NOTE:

Please do not try to take off the sealed rubber even when charging the battery , that will damage your battery.

~42~

M2-50

Periodic Maintenance Record

Plan km

300

1,000

2,000

3,000

4,000

5,000

6,000

7,000

8,000

9,000

10,000

11,000

12,000

Actual km

Date

Dealer

Sign.

Plan km

14,000

15,000

16,000

17,000

18,000

19,000

20,000

21,000

22,000

23,000

24,000

25,000

26,000

Actual km

Date

13,000 27,000

Please decrease maintenance period when often driving in dusty areas.

Copy the blank table to use when odometers is over the above table planned.

~43~

Dealer

Sign.

TYPE

DIMENSION

overall length overall width overall height axles distance

DRY WEIGHT

ENGINE

type model no. cooling cylinder array displacement start system lubrication system lubricant capacity spark plug clutch type gear shift type

SPECIFICATIONS

M2-50

1855mm

730mm

1170mm

1365 mm

M2-125

1855mm

730mm

1170mm

1365 mm

M2-150

1855mm

730mm

1170mm

1365 mm

105KG

2 stroke

P2 forced air cooling single

49 c.c electric and kick separated pump

SAE30

(FC class)

1.0 L

130KG

4stroke

C1M forced air cooling single

124.9 c.c electric and kick compress spray

SAE15W40

0.9 L

132KG

4stroke

C5M forced air cooling single

147.5 c.c electric and kick compress spray

SAE15W40

0.9 L

BP7HS(NGK)

DRY TYPE CVT

C7HSA(NGK)

DRY TYPE CVT

C7HSA(NGK)

DRY TYPE CVT

AUTOMATIC (V BELT) AUTOMATIC (V BELT) AUTOMATIC (V BELT)

TYPE

GEAR OIL

model min. volume total volume

AIR CLEANER

FUEL:

gasoline capacity of tank

TIRE

size ( front)

( rear)

ELECTRIC SYSTEM

ignition system generator system

BATTERY TYPE

capacity

M2-50

SAE 140

90cc

110cc

SPONGE

UNLEADED ONLY

7.5L

120/70-12

130/70-12

C.D.I

AC FLYWHEEL

MAGNET

YTX4L-BS

12V 3AH

SPECIFICATIONS

M2-125

SAE 140

90cc

110cc

PAPER ELEM ENT

UNLEADED ONLY

7.5L

120/60-13

130/60-13

C.D.I

AC FLYWHEEL

MAGNET

YTX7L-BS

12V 6AH

M2-150

SAE 140

90cc

110cc

PAPER ELEMENT

UNLEADED ONLY

7.5L

120/60-13

130/60-13

C.D.I

AC FLYWHEEL

MAGNET

YTX7L-BS

12V 6AH

TYPE

BULB

VOL / WATT * Q’TY head lamp ( HI /LO) rear lamp / stop lamp position lamp signal lamp speedometer indicator high beam indicator signal indicator oil warning indicator

SPECIFICATIONS

M2-50 M2-125 M2-150

12V 35W / 35W * 1

12V 5W /

21W * 1

12V 3W * 4

12V 10W * 4

12V 1.7W * 2

12V 1.7W * 1

12V 1.7W * 2

12V 1.7W * 1

12V 35W / 35W * 1

12V 5W /

21W * 1

12V 3W * 4

12V 10W * 4

12V 1.7W * 2

12V 1.7W * 1

12V 1.7W * 2

NA

12V 35W / 35W * 1

12V 5W /

21W * 1

12V 3W * 4

12V 10W * 4

12V 1.7W * 2

12V 1.7W * 1

12V 1.7W * 2

NA

~45~

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
