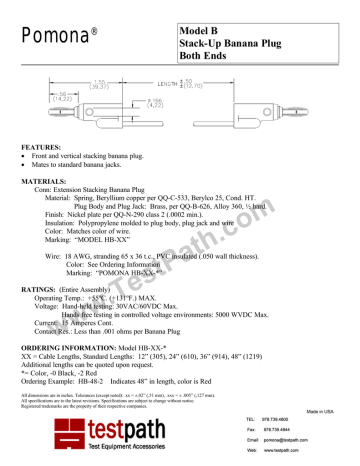

Pomona
®
Model B
Stack-Up Banana Plug
Both Ends
FEATURES:
• Front and vertical stacking banana plug.
• Mates to standard banana jacks.
MATERIALS:
Conn: Extension Stacking Banana Plug
Material: Spring, Beryllium copper per QQ-C-533, Berylco 25, Cond. HT.
Plug Body and Plug Jack: Brass, per QQ-B-626, Alloy 360, ½ hard.
Finish: Nickel plate per QQ-N-290 class 2 (.0002 min.).
Insulation: Polypropylene molded to plug body, plug jack and wire
Color: Matches color of wire.
Marking: “MODEL HB-XX”
m
o
c
h.
t
a
tP
Wire: 18 AWG, stranding 65 x 36 t.c., PVC insulated (.050 wall thickness).
Color: See Ordering Information
Marking: “POMONA HB-XX-*”
s
e
.T
RATINGS: (Entire Assembly)
Operating Temp.: +55ºC. (+131ºF.) MAX.
Voltage: Hand-held testing: 30VAC/60VDC Max.
Hands free testing in controlled voltage environments: 5000 WVDC Max.
Current: 15 Amperes Cont.
Contact Res.: Less than .001 ohms per Banana Plug
w
w
w
ORDERING INFORMATION: Model HB-XX-*
XX = Cable Lengths, Standard Lengths: 12” (305), 24” (610), 36” (914), 48” (1219)
Additional lengths can be quoted upon request.
*= Color, -0 Black, -2 Red
Ordering Example: HB-48-2 Indicates 48” in length, color is Red
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies.
Made in USA
08/31/99
Sales: 909-469-2900 Fax: 909-629-3317
Technical Assistance: 800-241-2060
SY/EH/LS
R:\Release\DataSheet\To_Marketing_99C\DB_1_01.doc
PomonaACCESS 90534 (800) 444-6785 or (949) 253-3858
More drawings available at www.pomonaelectronics.com
