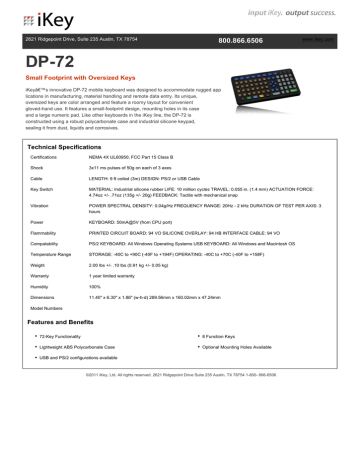

DP 72
2621 Ridgepoint Drive, Suite 235 Austin, TX 78754
800.866.6506
www.ikey.com
DP-72
Small Footprint with Oversized Keys
iKey’s innovative DP-72 mobile keyboard was designed to accommodate rugged app
lications in manufacturing, material handling and remote data entry. Its unique,
oversized keys are color arranged and feature a roomy layout for convenient
gloved-hand use. It features a small-footprint design, mounting holes in its case
and a large numeric pad. Like other keyboards in the iKey line, the DP-72 is
constructed using a robust polycarbonate case and industrial silicone keypad,
sealing it from dust, liquids and corrosives.
Technical Specifications
Certifications
NEMA 4X UL60950, FCC Part 15 Class B
Shock
3x11 ms pulses of 50g on each of 3 axes
Cable
LENGTH: 9 ft coiled (3m) DESIGN: PS/2 or USB Cable
Key Switch
MATERIAL: Industrial silicone rubber LIFE: 10 million cycles TRAVEL: 0.055 in. (1.4 mm) ACTUATION FORCE:
4.74oz +/- .71oz (135g +/- 20g) FEEDBACK: Tactile with mechanical snap
Vibration
POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3
hours
Power
KEYBOARD: [email protected] (from CPU port)
Flammability
PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94 HB INTERFACE CABLE: 94 VO
Compatability
PS/2 KEYBOARD: All Windows Operating Systems USB KEYBOARD: All Windows and Macintosh OS
Temperature Range
STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F)
Weight
2.00 lbs +/- .10 lbs (0.91 kg +/- 0.05 kg)
Warranty
1 year limited warranty
Humidity
100%
Dimensions
11.40" x 6.30" x 1.86" (w-h-d) 289.56mm x 160.02mm x 47.24mm
Model Numbers
Features and Benefits
72-Key Functionality
8 Function Keys
Lightweight ABS Polycarbonate Case
Optional Mounting Holes Available
USB and PS/2 configurations available
©2011 iKey, Ltd. All rights reserved. 2621 Ridgepoint Drive Suite 235 Austin, TX 78754 1-800- 866-6506
