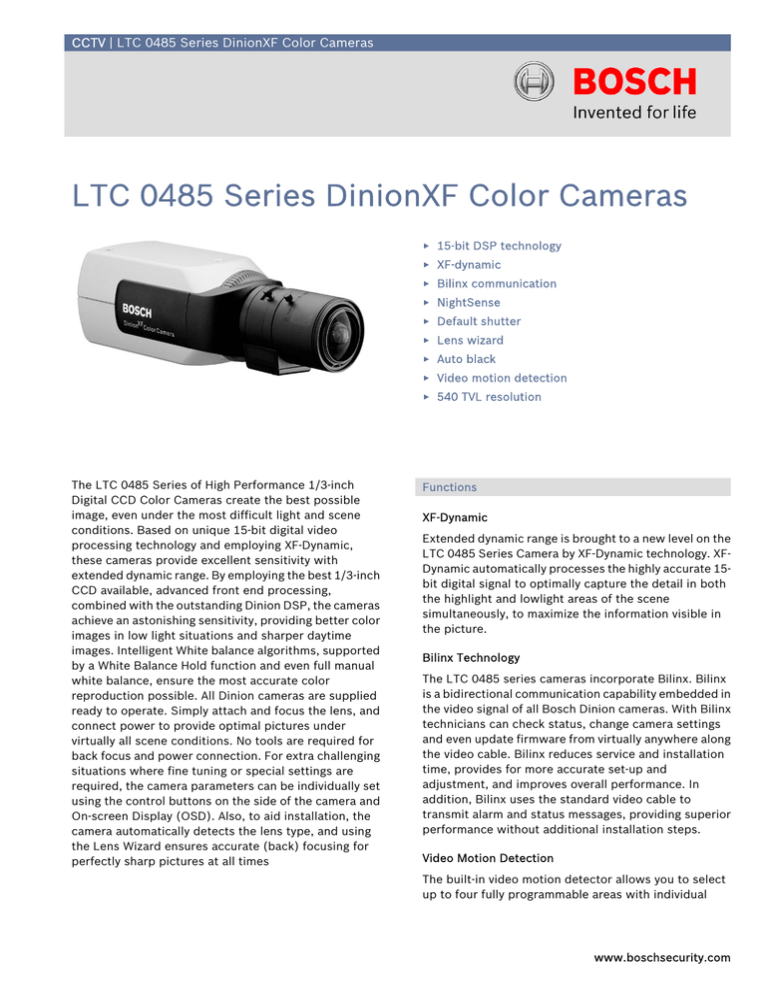

LTC0485/51
CCTV | LTC 0485 Series DinionXF Color Cameras
LTC 0485 Series DinionXF Color Cameras
▶ 15-bit DSP technology
▶ XF-dynamic
▶ Bilinx communication
▶ NightSense
▶ Default shutter
▶ Lens wizard
▶ Auto black
▶ Video motion detection
▶ 540 TVL resolution
The LTC 0485 Series of High Performance 1/3-inch
Digital CCD Color Cameras create the best possible
image, even under the most difficult light and scene
conditions. Based on unique 15-bit digital video
processing technology and employing XF-Dynamic,
these cameras provide excellent sensitivity with
extended dynamic range. By employing the best 1/3-inch
CCD available, advanced front end processing,
combined with the outstanding Dinion DSP, the cameras
achieve an astonishing sensitivity, providing better color
images in low light situations and sharper daytime
images. Intelligent White balance algorithms, supported
by a White Balance Hold function and even full manual
white balance, ensure the most accurate color
reproduction possible. All Dinion cameras are supplied
ready to operate. Simply attach and focus the lens, and
connect power to provide optimal pictures under
virtually all scene conditions. No tools are required for
back focus and power connection. For extra challenging
situations where fine tuning or special settings are
required, the camera parameters can be individually set
using the control buttons on the side of the camera and
On-screen Display (OSD). Also, to aid installation, the
camera automatically detects the lens type, and using
the Lens Wizard ensures accurate (back) focusing for
perfectly sharp pictures at all times
Functions
XF-Dynamic
Extended dynamic range is brought to a new level on the
LTC 0485 Series Camera by XF-Dynamic technology. XFDynamic automatically processes the highly accurate 15bit digital signal to optimally capture the detail in both
the highlight and lowlight areas of the scene
simultaneously, to maximize the information visible in
the picture.
Bilinx Technology
The LTC 0485 series cameras incorporate Bilinx. Bilinx
is a bidirectional communication capability embedded in
the video signal of all Bosch Dinion cameras. With Bilinx
technicians can check status, change camera settings
and even update firmware from virtually anywhere along
the video cable. Bilinx reduces service and installation
time, provides for more accurate set-up and
adjustment, and improves overall performance. In
addition, Bilinx uses the standard video cable to
transmit alarm and status messages, providing superior
performance without additional installation steps.
Video Motion Detection
The built-in video motion detector allows you to select
up to four fully programmable areas with individual
www.boschsecurity.com
2 | LTC 0485 Series DinionXF Color Cameras
thresholds. The global scene change detector minimizes
false alarms caused by sudden lighting condition
changes, such as switching on or off the indoor or
security lighting. When motion is detected alarms may
be displayed in the video signal, the output relay can be
closed in addition to alarm message transmission on
Bilinx.
SensUp
By increasing the integration time on the CCD up to 10
times, the effective sensitivity is dramatically enhanced,
especially useful where there is no artificial lighting and
you rely on the moon, stars and scattered radiation.
Certifications and Approvals
Auto Black
The automatic black level feature, enhances contrast by
removing veiling glare from the picture or when contrast
is reduced by fog or mist.
Electro Magnetic Compatibility
Emission
EN55022 class B, FCC class B part 15
Immunity
EN50130-4 Alarm Systems, Part 4
Vibration
Camera with 500 gr (1.1 lbs) lens according to
IEC60068-2-27
Default Shutter
When viewing moving objects a fast shutter speed is
required. When using a fast shutter speed the lens
opening or gain control needs to be increased to
maintain the video signal. The camera sensitivity is
limited by the fast shutter speed. The default shutter
setting of the LTC 0485 offers the best of all worlds, fast
shutter speed as long as there is sufficient light, however
as the light level falls, when other adjustments have
been exhausted, the shutter reverts to the standard
setting maintaining the cameras excellent sensitivity.
Safety
LTC 0485/11 and LTC 0485/51: EN60065
LTC 0485/21 and LTC 0485/61: UL6500, cUL CAN/CSA E60065-00
Installation/Configuration Notes
Back Light Compensation (BLC)
Offering a fully programmable BLC area of interest, and
a variable BLC level, the camera can be easily set up for
even the most challenging entrance applications.
Lens Wizard
The LTC 0485 series automatically detects the type of
lens installed. The Lens Wizard will focus the lens at the
maximum lens opening, to ensure that focus is
maintained throughout the entire 24-hour day/night
cycle. No special tools or filters are required.
Programmable Modes
The camera supports three independent operating
modes. The 3 modes are preprogrammed for typical
applications, but are fully programmable for individual
situations. Switching between modes is easy via Bilinx
or the external alarm input.
NightSense
The LTC 0485 cameras feature NightSense. With
NightSense the sensitivity is increased by 9 dB in
monochrome mode. NighSense can be automatically
activated in low light situations, or remotely using Bilinx.
Dimensions in mm (inches)
Parts Included
Quantity
Components
1
LTC 0485 Series DinionXF Color Camera
1
Spare male 4 – pin lens connector
Lens not included
LTC 0485 Series DinionXF Color Cameras |
Technical Specifications
Cable Compensation Up to 1000 m (3000 ft) coax without external amplifiers
(automatic set-up in combination with coaxial communication)
Electrical
Model No.
Voltage Range
LTC 0485/11
12 - 28 VAC
11 - 39 VDC
45 - 65 Hz
LTC 0485/21
12 - 28 VAC
11 - 39 VDC
45 - 65 Hz
LTC 0485/51
85 - 265 VAC
45 - 65 Hz
LTC 0485/61
85 - 265 VAC
45 - 65 Hz
Power Consumption 4 W
Imager
Interline transfer CCD
1/3-inch format
Active Pixels
PAL
752 H x 582 V
NTSC
768 H x 492 V
3
Sensitivity (3200 k)
Sensitivity (Full
Video)1)
2.4 lux (0.24 fc)
Sensitivity 50 IRE1)
0.59 lux / 0.24 lux (NightSense)
(0.059 fc / 0.024 fc (NightSense))
Minimum Illumination1)
0.24 lux / 0.10 lux (NightSense)
(0.024 fc / 0.01 fc (NightSense))
Minimum
0.024 lux / 0.010 lux (NightSense)
Illumination with Sens (0.0024 fc / 0.0010 fc (NightSense))
Up
Camera ID
16 character editable string, position selectable
Lens Types
Manual, DC- and Video-iris auto-detect with override DCiris drive: max. 50 mA continuous Video-iris: 11.5 ± 0.5
VDC, max. 50 mA continuous
Remote Control
Bi-directional coaxial communication
1) F1.2, 89% reflection, SensUp Off
Mechanical
Dimensions
(H x W x L)
59 x 67 x 122 mm (2.28 x 2.6 x 4.8 inch)
without lens
Weight
450 g (0.99 lbs) without lens
Tripod Mount
Bottom (isolated) and top 1/4-inch 20 UNC
Lens Mount
Cand CS
Controls
OSD with softkey operation
Environmental
Operating Tempera- -20 °C to +50 °C(-4 °F to +122 °F)
ture
Storage Temperature -25 °C to +70 °C(-13 °F to +158 °F)
Operating Humidity
20% to 93% RH
Storage Humidity
up to 98% RH
Horizontal Resolution 540 TVL
Ordering Information
Signal-to-Noise-Ratio > 50 dB
Model | Description
Video Output
1 Vpp, 75 ohm
Y/C Output
Y: 1 Vpp / C: 0.3 Vpp
Synchronization
Internal, line lock, HV-lock and genlock
(Burst lock) selectable
LTC 0485/11 DinionXF Color Camera
1/3-inch, high performance, 540 TVL, PAL, DSP, 12 – 28 VAC/11 – 39 VDC,
50 Hz
Electronic Shutter
Auto (1/60 (1/50) to 1/500000), fixed,
flickerless, default
Sensitivity up
Off, automatic continuous up to 10x
Auto Black
On, off selectable
Range
32x dynamic range enhancement
Dynamic Noise Reduction
Auto, off selectable
Contour
Sharpness enhancement level selectable
BLC
Off, area and level selectable
Gain
Auto (maximum level selectable to 28 dB) or fixed level
selectable
White Balance
ATW (2500 - 10000 K), AWB hold, Manual WB selectable
VMD
4 area, sensitivity selectable
Alarm Output
VMD or Bilinx
Alarm Input (TTL)
Profile switching, +5 V nominal, +40 VDC max.
Alarm Output
Relay
max. 30 VAC or +40 VDC, max. 0,5 A
continuous, 10 VA
External Synchronal- 75 ohm or High Impedance selectable
Input
LTC 0485/21 DinionXF Color Camera
1/3-inch, high performance, 540 TVL, NTSC, DSP, 12 – 28 VAC/
11 – 39 VDC, 60 Hz
LTC 0485/51 DinionXF Color Camera
1/3-inch, high performance, 540 TVL, PAL, DSP, 85 – 268 VAC, 50 Hz
LTC 0485/61 DinionXFColor Camera
1/3-inch, high performance, 540 TVL, NTSC, DSP, 85 – 265 VAC, 60 Hz
Hardware Accessories
LTC 3364/21 Varifocal Lens IR corrected
1/3-inch, 2.8 – 6 mm, DC-iris, CS-mount F1.4-200, 4-pin
LTC 3364/31 Varifocal Lens
1/3-inch, 3.5 – 8 mm, DC-iris, CS-mount F/1.4-200, 4-pin
LTC 3364/40 Varifocal Lens
1/3-inch, 2.8 – 12 mm, DC-iris, CS-mount F1.4-360, 4-pin
LTC 3374/20 Varifocal Lens
1/3-inch, 5 – 50 mm, DC-iris, CS-mount F1.4-185, 4-pin
LTC 3384/21 Zoom Lens
1/3-inch, 6 – 60 mm, DC-iris, CS-mount F1.4-360, 4-pin
TC 120PS Power Supply Unit
110-120 VAC/15 VDC, 50/60 Hz, 300mA
TC 220PS Power Supply Unit
230 VAC/15 VDC, 50 Hz, 10 VA
www.boschsecurity.com
4 | LTC 0485 Series DinionXF Color Cameras
Ordering Information
Model | Description
TC 220PSX-24 Power Supply Unit
230 VAC/20 VAC, 50 Hz, 20 VA
TC 1334 Power Supply Unit
120 VAC/24 VAC, 60 Hz, 30 VA
Software Options
VP-CFGSFT Configuration Software
for cameras using Bilinx, includes VP-USB Adaptor
Americas:
Bosch Security Systems
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: +1 585 223 4060
Fax: +1 800 289 0096
[email protected]
www.boschsecurity.us
Europe, Middle East, Africa:
Bosch Security Systems B.V.
P.O. Box 80002
5600 JB Eindhoven, The Netherlands
Phone: +31 (0) 40 27 83955
Fax: +31 (0) 40 27 86668
[email protected]
www.boschsecurity.com
Asia-Pacific:
Bosch Security Systems Pte Ltd
38C Jalan Pemimpin
Singapore 577180
Phone: +65 6319 3450
Fax: +65 6319 3499
[email protected]
www.boschsecurity.com
© Bosch Security Systems, 2005 | Data subject to change without notice | 28. Nov. 2005
