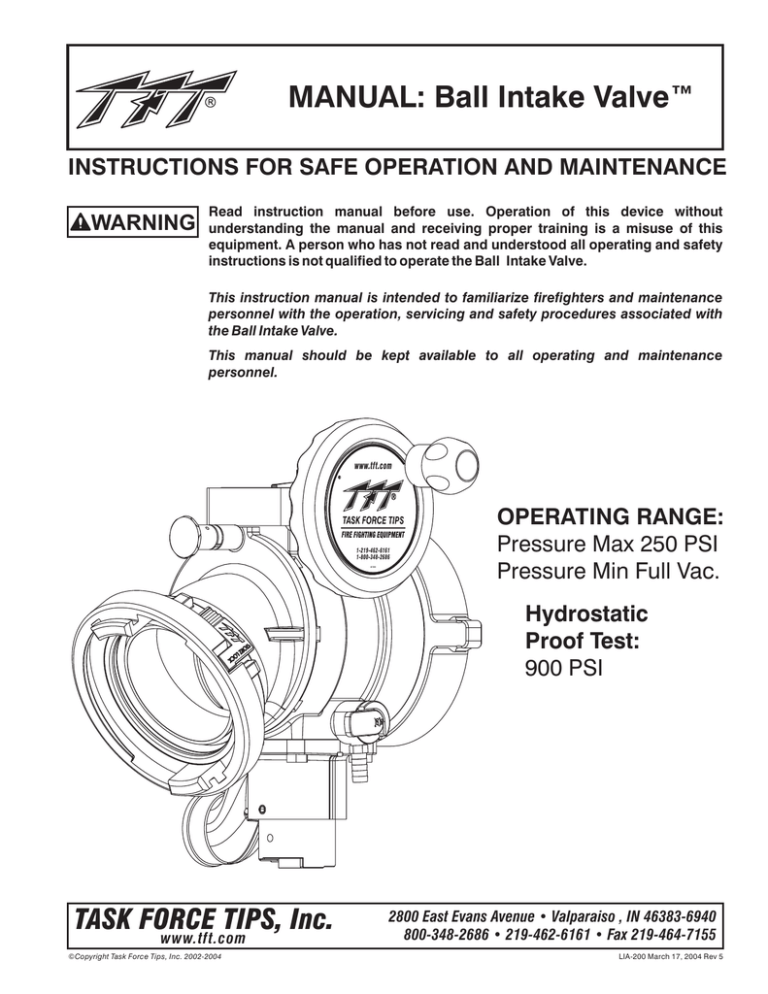

MANUAL: Ball Intake Valve™
INSTRUCTIONS FOR SAFE OPERATION AND MAINTENANCE
WARNING
Read instruction manual before use. Operation of this device without
understanding the manual and receiving proper training is a misuse of this
equipment. A person who has not read and understood all operating and safety
instructions is not qualified to operate the Ball Intake Valve.
This instruction manual is intended to familiarize firefighters and maintenance
personnel with the operation, servicing and safety procedures associated with
the Ball Intake Valve.
This manual should be kept available to all operating and maintenance
personnel.
www.tft.com
®
1-219-462-6161
1-800-348-2686
A1306
OPERATING RANGE:
Pressure Max 250 PSI
Pressure Min Full Vac.
Hydrostatic
Proof Test:
900 PSI
TASK FORCE TIPS, Inc.
www.tft.com
©Copyright Task Force Tips, Inc. 2002-2004
2800 East Evans Avenue • Valparaiso , IN 46383-6940
800-348-2686 • 219-462-6161 • Fax 219-464-7155
LIA-200 March 17, 2004 Rev 5
TABLE OF CONTENTS
1.0 MEANING OF SIGNAL WORDS
6.0 AIR VENT AND WATER DRAIN
2.0 SAFETY
7.0 PRESSURE RELIEF VALVE
7.1 SETTING PRESSURE
3.0 GENERAL INFORMATION
7.2 FLOW vs. PRESSURE CURVE
3.1 CORROSION
8.0 DRAWINGS AND PARTS LISTS
3.2 USE WITH SALT WATER
9.0 MAINTENANCE
4.0 INSTALLATION
10.0 BALL INTAKE VALVE PRESSURE LOSS
4.1 MOUNTING ON TRUCK
4.2 CHANGING HANDWHEEL TO LEFT SIDE 11.0 WARRANTY
5.0 USE
5.1 INTAKE ELBOW
5.2 VALVE POSITION INDICATOR
5.3 STORZ SUCTION GASKET REQUEST
1.0 MEANING OF SIGNAL WORDS
A safety related message is identified by a safety alert symbol and a signal word to indicate the level of risk involved
with a particular hazard. Per ANSI standard Z535.4-1998 the definitions of the three signal words are as follows:
DANGER
DANGER indicates an imminently hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING
WARNING indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury.
2.0 SAFETY
WARNING
Injury or death can result from burst hoses and fittings. Be sure the pressure
relief valve is set at the proper pressure for the type of hose and equipment you
are using. See NFPA 1961 and NFPA 1962.
WARNING
This equipment is intended for use by trained personnel for firefighting. Its use
for other purposes may involve hazards not addressed by this manual. See
appropriate guidance and training to reduce risk of injury.
WARNING
Kinks in supply hose may reduce water flow and cause injury or death to persons
dependant on water flow. When this valve is used on a hydrant or fire truck it is
recommended that it be used with an elbow to minimize risk of hoseline kinks.
CAUTION
Maximum operating pressure 250 PSI (17 bar). Do not exceed 250 PSI on either
side of the valve.
CAUTION
Valve must be properly connected. Mismatched or damaged connectors may
cause leaking or uncoupling under pressure and could cause injury.
2
©Copyright Task Force Tips, Inc. 2002-2004
LIA-200 March 17, 2004 Rev 5
3.0 GENERAL INFORMATION
Valve Position Indicator
The Ball Intake Valve is intended for use on the intake
manifold of a fire engine. The valve is kept closed while
the water supply from a hydrant or another pumper to
the engine is being established. This prevents the pump
from sucking air through the intake manifold and losing
its prime. Once the supply hose is filled and under
pressure, and the air has been vented from the hose, the
valve may be opened to connect the pump to the water
supply. An adjustable pressure relief valve mounted on
the bottom of the valve opens to relieve any excess
pressure that may damage the hose or the pump. The
Task Force Tips Ball Inlet Valve has a unique patented
half ball, with a thermo-plastic rubber seat, and acts
much like a gate valve.
3.1 CORROSION
Shot Pin
Knob
Intake Elbow Swivel
www.tft.com
®
1-219-462-6161
1-800-348-2686
Handwheel
A1306
Outlet
Air Vent & Drain
Pressure Relief Valve
Hose couplings are attached using polymer bearing rings
which provides electrical insulation to help prevent galvanic
corrosion. In the past some valves were made of bare
aluminum. Task Force Tips is using a three-step process to fight corrosion. The cast aluminum parts in this valve have
been impregnated to fill the microscopic pores in the cast aluminum. The parts are then hard anodized, and finally
powder coated, inside and out, to help prevent corrosion. The effects of corrosion can be minimized by good
maintenance practice. See section 9.0 for maintenance.
3.2 USE WITH SALT WATER
Use with salt water is permissible provided valve is thoroughly cleaned with fresh water after each use. The service
life of the valve may be shortened due to the effects of corrosion and is not covered under warranty.
4.0 INSTALLATION
4.1 MOUNTING ON TRUCKS
Screw the large coupling to the pump inlet manifold. The valve position indicator should be clearly visible, but need not
be level.
4.2 CHANGING HAND WHEEL TO LEFT SIDE
SMALL BUSHING
NUTS
LARGE
BUSHING
SHAFT ASSEMBLY
KEY
The handwheel is shipped from the factory on
the right hand side of the valve. The hand wheel.
can be switched to the left hand side for
convenience or if it interferes with other
equipment on the pump panel.
To move the hand wheel to the opposite side,
unscrew the jam nuts on the end of the shaft.
Pull the shaft out of the gear box. As the shaft is
withdrawn, grasp the small key on the shaft so it
does not fall and get lost. Remove and switch
the two plastic bushings that come out of the sides of the gearbox. The
bushing with the large hole is installed on the same side as the
handwheel. Look through the gear box and note approximate position
of the keyway in the worm inside the gear box. Slide the shaft into the
gearbox on the opposite side of the gear box with the key oriented the
same as the keyway. A small dab of grease will keep the key place.
Rotate the shaft until the key finds the keyway and push the shaft in until
it stops. Screw on the nut until it is 1/6 turn past finger tight. Tighten the
second nut against the first one. If you over tighten the first nut, the
crank will be hard to turn.
3
©Copyright Task Force Tips, Inc. 2002-2004
LIA-200 March 17, 2004 Rev 5
5.0 USE
5.1 INTAKE ELBOW
The intake elbow swivels 360 degrees to help prevent hose kinks, and make connection of suction lines easier. The intake
can be turned forward or backward to help make connections in tight places if the water supply is in front of or behind the
truck. To turn the elbow, pull the shot pin knob on top of the elbow. The elbow will lock into a detent every 45 degrees.
There is a hole on the side of the elbow that can be used to attach the lanyard or chain of a cap by use of a key ring . The
elbow may be swivelled to any of eight positions by pulling the shot pin knob.
5.2 VALVE POSITION INDICATOR
To open the valve turn the hand wheel until the valve position says "OPEN". To close the
valve turn the hand wheel the opposite way until the valve position indicator says "CLOSED".
2
3
4
1
1
4
2
3
4
1
4
CLOSED
If your application of this product requires drafting, you may need a suction gasket, please
call 1-800-348-2686 to receive a free suction gasket by mail.
Part Numbers: 4” STORZ - item # A4216, 5” STORZ - item # A4221
OPEN
CLOSED
OPEN
1
5.3 STORZ ‘SUCTION GASKET’ REQUEST
6.0 AIR VENT AND WATER DRAIN
This valve is equipped with an Air Vent/Drain which will allow the air to escape from the valve when the hose is charged.
The Air Vent/Drain is opened by turning the knob counter clockwise and closed by turning it clockwise.
To drain the water out of the valve after use open the Air Vent/Drain. A 1/2” diameter plastic tube may be used to run the
drain behind the pump panel.
7.0 PRESSURE RELIEF VALVE
CAUTION
Loss of prime can interrupt water flow and cause injury or death. Always bleed
out air with air valve to prevent possible loss of prime.
There is a pressure relief valve on the bottom side of the valve. It may be set to any pressure between 50 and 200 p.s.i.. Its
function is to protect the pump and the supply hose from excess pressure. The relief valve may be mounted with its
opening facing the front, back, right or left. A piece of hose or tubing may be mounted on the round spout to direct the
water coming out of the relief valve away from the pump panel. To change the orientation of the relief valve, remove the
four 7/16 bolts on the corners of the relief valve flange, orient the valve the way you want it, and replace the bolts. Use a
drop of thread locking compound on the threads of the bolt to prevent them from coming loose.
7.1 RELIEF VALVE SETTING PRESSURE
To set the relief valve pressure turn the adjusting screw on the relief valve housing until the surface of the screw is even
with the desired pressure. Do not cap or plug discharge opening.
4
300
275
250
225
200
175
150
125
100
75
50
25
0
0
100
200
300
400
500
600
PRESSURE RELIEF VALVE PERFORMANCE
700 FLOW (LPM)
20
15
200 PSI SETTING
10
125 PSI SETTING
5
PRESSURE (BAR)
PRESSURE (PSI)
7.2 RELIEF VALVE FLOW vs. PRESSURE CURVE
Adjusting
Screw
Relief Valve
Discharge Opening
50 PSI SETTING
0
25
©Copyright Task Force Tips, Inc. 2002-2004
50
75
100
125
150
175
0
200 FLOW (GPM)
LIA-200 March 17, 2004 Rev 5
8.0 DRAWINGS AND PARTS LISTS
18
16
15
14
22 21
23
17
60
20
59
14
13
10
25
28
11
24
58
27
30
9
29
31
68
67
69
32
61
33
37
36
62 63
62
38
65
54
42
43
7
6
5
4
3
2
44
66
47
45 46
48
8
64
49
1
1
56
53
2
3
9
4
57
52
50
51
5
7
6
8
9
11
12
13
14
15
5
©Copyright Task Force Tips, Inc. 2002-2004
LIA-200 March 17, 2004 Rev 5
8.0 DRAWINGS AND PARTS LISTS
Index
1
2
3
4
5
6
7
8
9
10
11
13
14
15
16
17
18
20
21
22
23
24
25
27
28
29
30
31
32
33
36
37
38
42
43
44
45
46
47
48
49
50
6
Ball Intake Valve Parts List
Description
BGIV BODY - POWDER COAT
O-RING-161 5 1/2 ID X 3/32 C/S
BACK RING STAINLESS STEEL
VALVE SEAT
PLASTIC STRIP 7.00"
SEAL RETAINER
COUPLING 5.0"NHF X PSF7.0-NFS
COUPLING 6.0"NHF X PSF7.0-NFS
GASKET - 5.0" HOSE COUPLING
GASKET - 6.0" HOSE COUPLING
PORT PLUG
1/2-20 JAM HEX NUT
SMALL BUSHING
GEAR BOX
3/8-16 X 1 1/4 SOCKET HEAD CAP SCREW
5/32 X 7/8 HDP SPIROL PIN #12437
POSITION INDICATOR
LABEL; BGIV GEARBOX
1/4 X 1-3/8 HDP SPIROL PN
KNOB
WASHER .812 OD X .406 ID X .065 THICK
CRANK BUSHING
3/8-16 X 1.5 BUTTON HEAD CAP SCREW
CRANK SHAFT
KEY, 1/8" X 1.00"
THIN WASHER
12 DP WORM
INTERNAL WORM GEAR TRUNNION
GEAR THRUST WASHER
GEAR SPACER
3/8-16 X 5/16 SOCKET SET SCREW CUP POINT P
1/4" BALL - 302 STAINLESS STEEL
CUP SEAL 6.0” ID X 3/16 C/S
HALF BALL STAINLESS STEEL
ELBOW 4" (4” STORZ ONLY)
ELBOW 5"
½ BARB X ¼ NPT FITTING
DETENT PIN
SPRING
DETENT PIN HOUSING
DETENT PIN KNOB
SPIROL PIN
LOCKING LEVER - MOLDED
SPRING TORSION
SPOUT 4”NHM X PSF5.25
SPOUT 4.5”NHM X PSF5.25
SPOUT 5”NHM X PSF5.25
COUPLING 4.0”NH X PSF5.25
COUPLING 4.5”NH X PSF5.25
COUPLING 5.0”NH X PSF5.25
COUPLING 6.0”NH X PSF7.0
MATE PSF5.25 X PSM7.0
PLASTIC STRIP 5.25"
CUP SEAL 5.25 X 4.750 X ¼
LABEL; PORT COVER
BALL 7/16" STAINLESS
COUPLING HEAD STORZ 4" X 4.25PSF
INSERT RING STORZ 4”
O-RING 155 4” ID X 3/32 C/S
COUPLING HEAD STORZ 5" X 5.25PSF
INSERT RING STORZ 5”
O-RING 250, 5” ID X 1/8 C/S
QTY
1
1
1
1
1
1
1
1
1
1
1
2
1
1
4
1
1
1
1
1
2
1
1
1
1
2
1
1
1
1
2
72
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Part #
A1015
VO-161
A1201S
A1520
A1290
A1521S
A1261NT
A1266NX
V3220
V3240
A1299
VT50B20JNT
A1525
A1505
VT37-16SH1.2
V1900
A1517
AL010
VP250X1.375H
A1512
VW812X406-65
A1513
VT37-16BH1.5
A1510
X225
A1530
X220
A1501
A1502
A1511
VT37-16SS312
V2125
A1545
A1043S
A1071
A1054
XX329
A1560
X345
A1570
A1575
VP125X750H
A4171
A4230
A4620N
A4625N
A4630N
A4660N
A4665N
A4670N
A1266NX
A4745
A1291
A1296
A1298
VB.437
A4114
A4164
VO-155
A4115
A4165
VO-250
Continued on Next Page
©Copyright Task Force Tips, Inc. 2002-2004
LIA-200 March 17, 2004 Rev 5
8.0 DRAWINGS AND PARTS LISTS
Index
50
51
52
53
54
56
57
58
59
60
61
62
63
64
65
66
67
68
69
Description
COUPLING HEAD STORZ 6" X 5.25PSF
INSERT 6.0"BSPM X PSF5.25
COUPLING HNDL 4.0"NHF X PSF5.25
COUPLING HNDL 4.5”NHF X PSF5.25
COUPLING SH 5.0"NHF X PSF7.0 NFS
MATE PSF5.25 X PSM7.0-NFS
PLASTIC STRIP 5.25"
CUP SEAL 5.25 X 4.750 X ¼
LABEL; PORT COVER
BALL 7/16" STAINLESS
COUPLING SH 6.0"NHF X PSF7.0-NFS
MATE PSF5.25 X PSM7.0-NFS
PLASTIC STRIP 5.25”
CUP SEAL 5.25 X 4.750 X ¼
LABEL; PORT COVER
BALL 7/16" STAINLESS
GASKET 4” PRESSURE (4” STORZ ONLY)
GASKET 4” PRESSURE (4” STORZ ONLY)/VACUUM
GASKET 5” PRESSURE (5” STORZ ONLY)
GASKET 5” PRESSURE (5” STORZ ONLY)/VACUUM
GASKET 6” PRESSURE (6” STORZ ONLY)/VACUUM
GASKET 4.0” HOSE COUPLING
GASKET 4.5” HOSE COUPLING
GASKET 5.0” HOSE COUPLING
GASKET 6.0” HOSE COUPLING
PLASTIC STRIP 4.25" (4” STORZ ONLY)
PLASTIC STRIP 5.25"
CUP SEAL 4.25X3.750 X 1/4 (4” STORZ ONLY)
CUP SEAL 5.25 X 4.750 X 1/4
BALL 7/16" STAINLESS 302
HOLLOW TRUNNION
7/16-14 X 1 HEX HEAD BOLT
LONG BUSHING
HANDWHEEL
NAMEPLATE
DRAIN BODY
O-RING-115
DRAIN SLEEVE
DRAIN LEVER
DOG POINT SCREW
O-RING-110
O-RING-128
O-RING-214
SET SCREW
QTY
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
4
1
1
1
1
2
1
1
1
1
1
1
1
Part #
*X696SX-LOCK
A4765
A4560N
A4565N
A1261NT
A4745
A1291
A1296
A1298
VB.437
A1266NX
A4745
A1291
A1296
A1298
VB.437
A4215
A4216
A4220
A4221
A4226
V3198
V3210
V3220
V3240
A1292
A1291
A1297
A1296
VB.437
A1514
VT43-14HX1.0
A1526
X281
A1306
A1543
VO-115
A1541
A1542
H515
VO-110
VO-128
VO-214
VT31-18SS375
QTY
1
1
1
1
1
1
1
1
2
1
1
1
1
1
Part #
VT50-13BH1.0
VO-236
A1169
A1150
VT31-18SS375
A1168
A1160
VO-231
VOQ-4222
A1166
A1170
V4210
A1167
A1164
Relief Valve Parts List
Index
1
2
3
4
5
6
7
8
9
11
12
13
14
15
Description
1/2-13 X 1.0 BUTTON HEAD CAP SCREW
O-RING-236 3-1/4 ID 1/8 C/S
DEBRIS WASHER
HOUSING W/OUT THDS
5/16-18 X 3/8 SOCKET SET SCREW CUP POINT
VALVE SEAT
PISTON -HARDCOAT
O-RING-231 2-5/8 ID 1/8 C/S
QUAD RING 422 1.5 ID X 1/8 C/S
SPRING SEAT
RELIEF SPRING
SMALLEY RING
ADJUSTING SCREW
SPRING HOUSING
7
©Copyright Task Force Tips, Inc. 2002-2004
LIA-200 March 17, 2004 Rev 5
9.0 MAINTENANCE
This valve should be disconnected, cleaned and visually inspected inside and out at least once per month. Moving parts
such as hand wheels, valve ball/seat and couplings should be checked for smooth and free operation and greased as
needed. A silicone based grease such as Dow Corning 112 will exclude moisture and retard the effects of corrosion. Any
scrapes that expose bare aluminum should be cleaned and touched up with enamel paint such as Rust-Oleum. Replace
any missing or damaged parts before returning valve to service.
CAUTION
Dissimilar metals coupled together can cause galvanic corrosion that can result
in the inability to unscrew the threads of complete loss of thread engagement
over time. Per NFPA 1962 (1998 edition), if dissimilar metals are left coupled
together an anti-corrosive lubricant should be applied to the threads. Also the
coupling should be disconnected and inspected at least quarterly.
CAUTION
Any alterations to the Ball Intake Valve and its markings could diminish safety
and constitutes a misuse of this product.
10.0 BALL INTAKE VALVE PRESSURE LOSS
30
0
1000
2000
3000
4000
5000
6000
7000
FLOW (LPM)
2
4 INCH COUPLING
20
15
1.5
1
LOSS (BAR)
LOSS (PSI)
25
10
0.5
5
0
5 INCH COUPLING
0
200
400
600
0
800 1000 1200 1400 1600 1800 2000 FLOW (GPM)
11.0 WARRANTY
Task Force Tips, Inc., 2800 East Evans Avenue, Valparaiso, Indiana 46383 ("TFT") warrants to the original purchaser of its Ball Intake Valve
("equipment"), and to anyone to whom it is transferred, that the equipment shall be free from defects in material and workmanship during the
five (5) year period from the date of purchase.
TFT's obligation under this warranty is specifically limited to replacing or repairing the equipment (or its parts) which are shown by TFT's
examination to be in a defective condition attributable to TFT. To qualify for this limited warranty, the claimant must return the equipment
to TFT, at 2800 East Evans Avenue, Valparaiso, Indiana 46383, within a reasonable time after discovery of the defect. TFT will examine the
equipment. If TFT determines that there is a defect attributable to it, TFT will correct the problem within a reasonable time. If the
equipment is covered by this limited warranty, TFT will assume the expenses of repair.
If any defect attributable to TFT under this limited warranty cannot be reasonably cured by repair or replacement, TFT may elect to refund the
purchase price of the equipment, less reasonable depreciation, in complete discharge of its obligations under this limited warranty. If TFT
makes this election, claimant shall return the equipment to TFT free and clear of any liens and encumbrances.
This is a limited warranty. The original purchaser of the equipment, any person to whom it is transferred, and any person who is an
intended or unintended beneficiary of the equipment, shall not be entitled to recover from TFT any consequential or incidental damages
for injury to person and/or property resulting from any defective equipment manufactured or assembled by TFT. It is agreed and
understood that the price stated for the equipment is in part consideration for limiting TFT's liability. Some states do not allow the
exclusion or limitation of incidental or consequential damages, so the above may not apply to you.
TFT shall have no obligation under this limited warranty if the equipment is, or has been, misused or neglected (including failure to provide
reasonable maintenance) or if there have been accidents to the equipment or if it has been repaired or altered by someone else.
THIS IS A LIMITED EXPRESS WARRANTY ONLY. TFT EXPRESSLY DISCLAIMS WITH RESPECT TO THE EQUIPMENT ALL IMPLIED
WARRANTIES OF MERCHANTABILITY AND ALL IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE. THERE IS
NO WARRANTY OF ANY NATURE MADE BY TFT BEYOND THAT STATED IN THIS DOCUMENT.
This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
TASK FORCE TIPS, Inc.
www.tft.com
©Copyright Task Force Tips, Inc. 2002-2004
2800 East Evans Avenue • Valparaiso , IN 46383-6940
800-348-2686 • 219-462-6161 • Fax 219-464-7155
LIA-200 March 17, 2004 Rev 5
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
