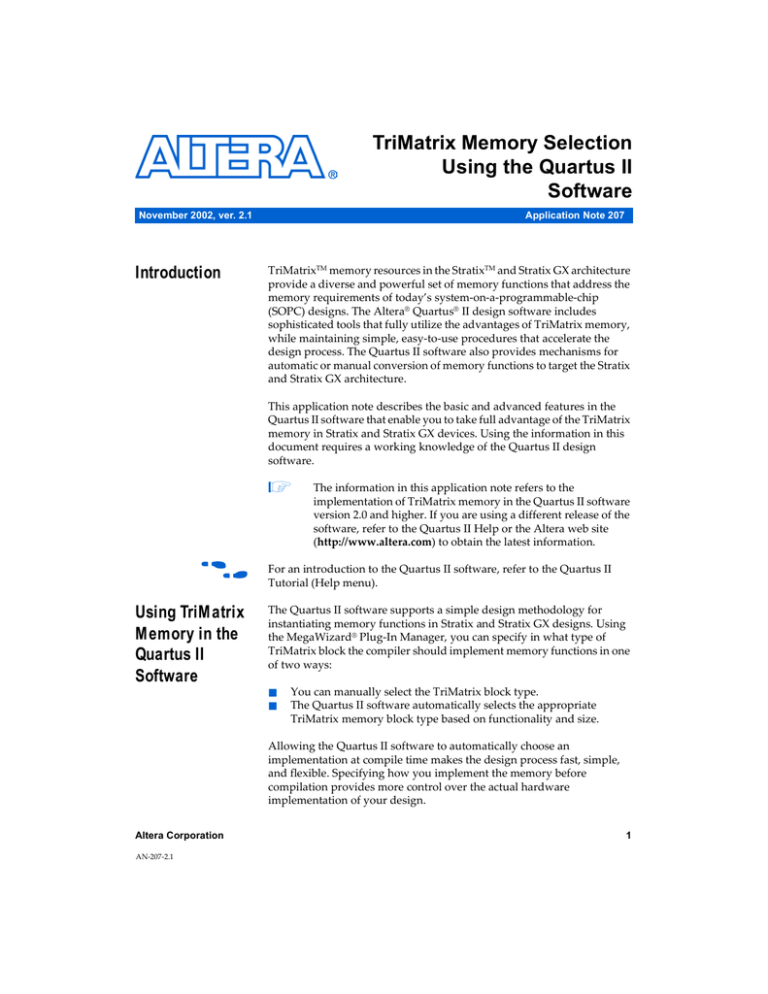

TriMatrix Memory Selection

Using the Quartus II

Software

Application Note 207 November 2002, ver. 2.1

Introduction

TriMatrix TM memory resources in the Stratix TM and Stratix GX architecture provide a diverse and powerful set of memory functions that address the memory requirements of today’s system-on-a-programmable-chip

(SOPC) designs. The Altera ® Quartus ® II design software includes sophisticated tools that fully utilize the advantages of TriMatrix memory, while maintaining simple, easy-to-use procedures that accelerate the design process. The Quartus II software also provides mechanisms for automatic or manual conversion of memory functions to target the Stratix and Stratix GX architecture.

This application note describes the basic and advanced features in the

Quartus II software that enable you to take full advantage of the TriMatrix memory in Stratix and Stratix GX devices. Using the information in this document requires a working knowledge of the Quartus II design software.

1

The information in this application note refers to the implementation of TriMatrix memory in the Quartus II software version 2.0 and higher. If you are using a different release of the software, refer to the Quartus II Help or the Altera web site

(http://www.altera.com) to obtain the latest information.

f

For an introduction to the Quartus II software, refer to the Quartus II

Tutorial (Help menu).

Using TriMatrix

Memory in the

Quartus II

Software

The Quartus II software supports a simple design methodology for instantiating memory functions in Stratix and Stratix GX designs. Using the MegaWizard ® Plug-In Manager, you can specify in what type of

TriMatrix block the compiler should implement memory functions in one of two ways:

You can manually select the TriMatrix block type.

The Quartus II software automatically selects the appropriate

TriMatrix memory block type based on functionality and size.

Allowing the Quartus II software to automatically choose an implementation at compile time makes the design process fast, simple, and flexible. Specifying how you implement the memory before compilation provides more control over the actual hardware implementation of your design.

Altera Corporation

AN-207-2.1

1

AN 207: TriMatrix Memory Selection Using the Quartus II Software

Specifying a Type of TriMatrix Memory

Stratix and Stratix GX TriMatrix memory consists of three types of blocks:

M512, M4K, and M-RAM blocks. The three TriMatrix memory block types provide you with the resources to efficiently address memory needs for your SOPC design. Each of the TriMatrix memory block types is well suited to a variety of memory functions. The most apparent difference between the M512, M4K, and M-RAM blocks is size (see

Figure 1 on page 4 ).

Table 1

summarizes the features supported by the three sizes of TriMatrix memory.

Table 1. Summary of TriMatrix Memory Features (Part 1 of 2)

Feature

Performance

Total RAM bits (including parity bits)

Configurations

M512 Block

312 MHz

576

512

×

1

256

×

2

128

×

4

64

×

8

64

×

9

32

×

16

32

×

18

M4K Block

312 MHz

4,608

4K

×

1

2K

×

2

1K

×

4

512

×

8

512

×

9

256

×

16

256

×

18

128

×

32

128

×

36

Parity bits

Byte enable

Single-port memory

Simple dual-port memory

True dual-port memory

Embedded shift register

ROM

FIFO buffer

Simple dual-port mixed width support

True dual-port mixed width support

Memory initialization (.mif)

Mixed-clock mode

Power-up condition v v v v v v v v v

Outputs cleared v v v v v v v v v v v v

Outputs cleared

M-RAM Block

300 MHz

589,824

64K

×

8

64K

×

9

32K

×

16

32K

×

18

16K

×

32

16K

×

36

8K

×

64

8K

×

72

4K

×

128

4K

×

144 v v v v v v v v v

Outputs unknown

2 Altera Corporation

AN 207: TriMatrix Memory Selection Using the Quartus II Software

Table 1. Summary of TriMatrix Memory Features (Part 2 of 2)

Register clears

Feature

Same-port read-during-write

Mixed-port read-during-write

M512 Block

Input and output

registers

(1)

New data available at positive clock edge

Outputs set to unknown or old data

M4K Block

Input and output

registers

(2)

New data available at positive clock edge

Outputs set to unknown or old data

M-RAM Block

Output registers

New data available at positive clock edge

Unknown output

Notes to Table 1

:

(1) The rden

register on the M512 memory block does not have a clear port.

(2) On the M4K block, asserting the clear port of the rden

and byte enable registers drives the output of these registers high.

M512 Blocks

The M512 blocks incorporate high-performance dedicated shift register circuitry, and are suited for small, high-performance memory functions.

Stratix and Stratix GX devices have a large number of M512 blocks, enabling efficient implementation of many separate memory functions.

M4K Blocks

M4K blocks provide a larger capacity and wide configuration options, making them useful for storing larger data blocks. The M4K blocks also have dedicated high-performance shift register circuitry. They are also useful in conjunction with Stratix and Stratix GX digital signal processing

(DSP) blocks, where you can use them to store data used in multiplyaccumulate functions.

M-RAM Blocks

The high-density M-RAM blocks offer an ideal high-speed memory solution for an on-chip microprocessor, such as Altera’s Nios TM embedded processor. M-RAM blocks are also useful in many applications requiring large amounts of data storage, such as payload storage of packetized data while packet headers are processed in networking applications.

Altera Corporation 3

AN 207: TriMatrix Memory Selection Using the Quartus II Software

Figure 1

shows the M512, M4K, and M-RAM memory blocks.

Figure 1. M512, M4K & M-RAM Block Sizes

M512 Blocks

M4K Blocks

D

M-RAM Blocks

D

A A

D

A

D

A

512 bits per block

Up to 1,118 blocks

Rake receiver correlator

Shift register

Small FIFO buffers

Finite impulse response (FIR) filter delay line

D

A

D

A

4 Kbits per block

Up to 520 blocks

Typical Applications

ATM cell packet processing

Header/cell storage

Channelized functions

Program memory for processors

512 Kbits per block

Up to 12 blocks

IP packet buffering

System cache

Video frame buffers

Echo canceller data storage processor code storage

Using the MegaWizard Plug-In Manager to Define Memory

Functions

The MegaWizard Plug-In Manager is a graphical user interface that enables you to quickly and easily specify the parameters of Altera-specific functions. For Stratix and Stratix GX designs, it enables the parameterization of memory functions. For the Stratix and Stratix GX architecture, the altsyncram

megafunction supports all Stratix and

Stratix GX single- and multi-port RAM and ROM memory functions. For first-in first-out (FIFO) functions, use the lpm_fifo

or lpm_fifo+ megafunctions. The MegaWizard Plug-In Manager generates a design module that instantiates the altsyncram

megafunction with the specified parameters. You can then instantiate this module in your design files.

4 Altera Corporation

AN 207: TriMatrix Memory Selection Using the Quartus II Software

You can use the altsyncram

megafunction for single- and multi-port

RAM and ROM Stratix and Stratix GX TriMatrix memory functions.

However, you can use other MegaWizard Plug-Ins to generate the parameterized altsyncram

megafunction instantiation. For example, the lpm_fifo

, lpm_ram_dp+

, and lpm_rom

MegaWizard Plug-Ins are capable of producing memory functions that target a Stratix device or other Altera devices. Using the lpm_rom

MegaWizard Plug-In, for example, to implement a ROM function in a Stratix device produces an altsyncram

megafunction instance with

OPERATION_MODE = ROM

.

Using the same MegaWizard Plug-In to implement a ROM function in another Altera device generates a lpm_rom

megafunction instance.

When using the altsyncram

megafunction, you are prompted to select the type of TriMatrix memory block to use to implement the memory function. Choosing Auto allows the Quartus II software to choose the

TriMatrix block type during compilation. Alternately, you can specify the

TriMatrix block type by selecting M512, M4K, or M-RAM in the

MegaWizard Plug-In Manager. Allowing the Quartus II software to choose the memory type gives the compiler the flexibility to place the

memory function in any available memory resource. Figure 2 illustrates

how you can select a TriMatrix block type or use the Auto setting.

Figure 2. TriMatrix Memory Block-Type Selection Using the altsyncram MegaWizard Plug-In Manager

Altera Corporation 5

6

AN 207: TriMatrix Memory Selection Using the Quartus II Software

1

Choosing a TriMatrix memory resource, or instructing the

Quartus II software to do so in the MegaWizard Plug-In

Manager, determines the value of the

RAM_BLOCK_TYPE parameter in the resulting altsycnram

instantiation. If you manually instantiate an altsycnram

function, the settings for the

RAM_BLOCK_TYPE

parameter are Auto, M512, M4K, or

M-RAM

. If you are using the MegaWizard Plug-In Manager to instantiate altsycnram

, it automatically sets this parameter.

How Quartus II Compiles Memory

Feature differences between the various TriMatrix memory block types may restrict memory functions with specific functional requirements to certain TriMatrix memory resources. For example, because the M-RAM blocks do not support an initialized state at power up, selecting a MIF in the MegaWizard Plug-In Manager restricts the resulting memory function that is implemented to either a M512 or M4K block.

When designing functions that are intended to use specific TriMatrix memory resources, you must understand the functional differences among the different types of TriMatrix memory blocks. f

For details on the functionality of each TriMatrix memory block, refer to

AN 203: Using TriMatrix Embedded Memory Blocks in Stratix & Stratix GX

Devices

, the

Stratix Programmable Logic Device Family Data Sheet

, and the

Stratix GX FPGA Family Data Sheet

.

Intelligent TriMatrix Block Type Selection

During compilation, the Quartus II software selects the appropriate

TriMatrix memory resource for each memory function in the design. The

MegaWizard Plug-in Manager restricts the TriMatrix memory block type choices to allow only valid combinations of functionality and block type.

Similarly, if you do not specify a block type

(e.g.,

RAM_BLOCK_TYPE = AUTO

), the Quartus II Compiler automatically eliminates invalid block types.

1

If you manually instantiate an

ALTSYCNRAM

megafunction with functionality that is not supported in the specified block type

(e.g., an initialized memory function using a M-RAM block), the compiler generates an error message and compilation will not succeed.

Altera Corporation

Advanced

Features

Altera Corporation

AN 207: TriMatrix Memory Selection Using the Quartus II Software

Based on the size and configuration of a memory function, the Quartus II software attempts to implement the function in a single TriMatrix memory block. The Quartus II software first attempts to implement each memory function in the smallest memory block type that meets the size and functional requirements.

Memory Implementation, Flexibility & Efficiency

If a memory function does not fit in a single memory block, the Quartus II software partitions the memory function into multiple pieces, implementing it in more than one TriMatrix memory block. The

Quartus II software implements memory functions in TriMatrix memory blocks, partitioning a memory function among multiple blocks as necessary, to successfully fit all of the memory functions of a design into the targeted device. For example, if the requirement for a ROM function is

512

×

18, the Quartus II software can implement it using two M4K blocks.

Similarly, the Quartus II software can implement a 32K

×

36 RAM function by combining two M-RAM blocks, each configured in

32K

×

18 mode. See

Figure 3 .

Figure 3. Examples of Combining TriMatrix Memory Blocks

MegaRAM Block

32K

×

36

M4K Block

32K

×

18

512

×

9

MegaRAM Block

M4K Block

32K

×

18

512

×

18

512

×

9

Additionally, the M4K blocks are capable of implementing multiple memory functions in a single M4K block for increased memory resource utilization.

For most designs, setting the memory function’s block type to

AUTO

and allowing the Quartus II software to choose what block type and location to use produces acceptable results. However, for design optimization it is useful for you to instruct the compiler to use a specific TriMatrix memory block type and location before compilation. The Quartus II software provides simple, easy-to-use mechanisms for delivering these instructions to the compiler.

7

8

AN 207: TriMatrix Memory Selection Using the Quartus II Software

Making LogicLock & Location Assignments

To optimize performance, the Quartus II software implements memory functions in the appropriate physical memory structures (locations). For more direct control on the memory placement, you can make LogicLock TM region or location assignments to memory function instantiations.

LogicLock regions give you more flexibility in the types of location constraints that are made and also enable powerful design techniques such as an incremental design flow. Location assignments are less flexible, but are useful for final timing closure in some designs. Altera recommends using LogicLock regions for constraining memory implementations. f

For more information on the LogicLock design methodology, refer to

AN 161: Using the LogicLock Methodology in the Quartus II Design Software

.

M512 and M4k memory structures are organized in columns; M-RAM

memory structures span multiple columns. Figure 4

shows an example of the general layout of the EP1S60 device, including the relative positions of the M512, M4K, and M-RAM blocks. f

For detailed descriptions about the physical layout of the Stratix or

Stratix GX device family, refer to the

Stratix Programmable Logic Device

Family Data Sheet

or the

Stratix GX FPGA Family Data Sheet

, respectively.

Altera Corporation

Figure 4. EP1S60 Device

DSP

Blocks

M512

Blocks

AN 207: TriMatrix Memory Selection Using the Quartus II Software

M4K

Blocks LABs

DSP

Blocks

M-RAM

Block

M-RAM

Block

M-RAM

Block

M-RAM

Block

M-RAM

Block

M-RAM

Block

Altera Corporation

LogicLock region and location assignments use coordinate representations of the Stratix or Stratix GX device to restrict design entities to specific locations on the device. You can make location assignments directly in the Current Assignments Floorplan or through the

Assignment Organizer

by using a Custom Region. A LogicLock region or Custom Region should include the coordinate of the intended

TriMatrix block for location assignments of memory functions.

9

AN 207: TriMatrix Memory Selection Using the Quartus II Software

TriMatrix memory block locations are represented by a single row/column coordinate, which signifies the bottom left-hand corner of the memory block. This coordinate represents the entire memory block that spans several other logical coordinates, because TriMatrix memory blocks are larger than logic array blocks (LABs) or logic cells. For example, the coordinate M512_X4_Y1 represents the M512 memory block located in column 4, row 1.

1

A LogicLock or custom region containing any portion of a

M-RAM or M4K block contains the entire M-RAM or M4K block.

The LogicLock or custom region does not necessarily need to include the bottom-left coordinate that is used to represent the block for location assignments.

For a visual representation of the physical layout of the device, use the

Quartus II Floorplan Editor. For detailed information on location naming conventions and how to use location names in LogicLock region or location assignments, refer to the Quartus II Help.

Migrating Non-

Stratix Memory

Functions to

Stratix Devices

Because of the differences between the Stratix and Stratix GX TriMatrix memory architecture and the memory architectures of other Altera devices, conversion is necessary when migrating a design from another family’s memory architecture to a Stratix or Stratix GX architecture. The

Quartus II software provides tools that make this conversion easy.

Using The MegaWizard Plug-In Manager for Memory Migration

For memory functions that were originally created for another architecture, you can migrate your existing functions to the Stratix or

Stratix GX architecture by re-running the MegaWizard Plug-In Manager.

The MegaWizard Plug-In Manager defaults to parameters that are compatible with the original function (if possible), simplifying the process. By using the MegaWizard Plug-in Manager to convert the memory function, you verify that Stratix or Stratix GX devices support all of the functionality of the original memory function.

f

For details on the differences between APEX TM and Stratix memories and complete instructions for converting APEX memory functions to Stratix memory functions, refer to

AN 206: Understanding the Differences Between

Stratix and APEX Memory Architecture

and

AN 210: Converting Memory from

Asynchronous to Synchronous for Stratix & Stratix GX Designs .

10 Altera Corporation

Altera Corporation

AN 207: TriMatrix Memory Selection Using the Quartus II Software

Using Automatic Migration

If you attempt to compile a design targeting a Stratix or Stratix GX device that contains non-Stratix memory functions, the Quartus II software attempts to automatically implement these functions in Stratix or

Stratix GX resources. This feature is useful for estimating the utilization and performance of a design that was originally targeted for another architecture.

In some cases, where the original functionality is fully supported by the

TriMatrix memory architecture, the automatic conversion performed by the Quartus II software is sufficient for design migration. However, if a functional change is required, the Quartus II software generates an error or warning message and may require user intervention.

Performing a Fitting Evaluation on APEX Designs to Target Stratix or

Stratix GX Devices

Any memory function targeted to another Altera device architecture is automatically converted to a TriMatrix memory function for fitting- evaluation purposes if that memory function contains at least one clock.

Because TriMatrix memory requires that you register all input signals, the

Quartus II software modifies any memory functions with unregistered inputs so that all inputs are registered using an available clock. In this case, because the resulting memory is not functionally equivalent to the original memory, the Quartus II software issues a warning explaining that modifications to the memory function were made, and no programming file will be generated.

1

You must manually convert purely asynchronous memories

(with no clock inputs) to target the Stratix or Stratix GX architecture. For more information, see

AN 210: Converting

Memory from Asynchronous to Synchronous for Stratix & Stratix GX

Designs

.

You can use the results of a compilation where previously unregistered inputs are registered for fitting-evaluation purposes to estimate the likely utilization and performance of the Stratix or Stratix GX device design.

1

Fitting-evaluation results are estimates only. Consider that you can improve performance by pipelining memory functions. The design may also require some modifications to implement the memory function in TriMatrix memory blocks, which also affects the performance and utilization.

11

AN 207: TriMatrix Memory Selection Using the Quartus II Software

Converting Memory Functions To Target TriMatrix Memory

For synchronous memory functions with all input signals registered (or if only read-enable signals are unregistered), the Quartus II software can generate a compatible memory implementation in a Stratix device. The

Quartus II software implements memory functions that are compatible with the original design and issues warnings about any differences between the functionality in the original implementation and the

TriMatrix memory implementation. These differences are minor and will not affect most designs. Once you have confirmed that these functional differences do not affect your design, you can disable these warning messages by setting the

SUPPRESS_MEMORY_CONVERSION_WARNINGS parameter to

ON

in the Assignment Organizer. You can apply this parameter to individual entities or for an entire project.

Table 2

lists the functional differences that can affect a non-Stratix memory function implemented in Stratix and Stratix GX devices. Ensure that these functional differences will not adversely affect the functionality of your design.

Table 2. Functional Differences

Functionality

Power-up conditions

Mixed-port readduring-write

(2)

Read enable

Affected in Memory

Functions

Behavior in APEX Devices Behavior in Stratix &

Stratix GX Devices

All memory functions.

Where the same memory location is written to on one port, and simultaneously read from a different port using the same clock for both.

Where an unregistered Readenable is used.

Memory powers up reading data at read address.

Memory powers up to the idle state.

(1)

Read port shows old data during the first half of the read cycle; read port shows new data on second half of the read cycle (after falling edge).

For M512 and M4K blocks, read port outputs old data; for M-RAM blocks, read port outputs unknown data.

Read enable can be unregistered and can asynchronously enable the read port.

Read enable is registered and data is available on read ports after the next rising clock edge.

Notes to Table 2

:

(1) Registered outputs are cleared. Unregistered outputs on M512 and M4K blocks output zero. Unregistered outputs on M-RAM blocks output unknown values until a location that has been written to is read.

(2) Using a single clock, this functionality results from the behavior of the q_a

and q_b

outputs when reading a memory location that is written from the other port.

12 Altera Corporation

AN 207: TriMatrix Memory Selection Using the Quartus II Software

Conclusion

Revision

History

TriMatrix memory resources in the Stratix and Stratix GX architecture provide you with a diverse and powerful set of memory resources that address the memory requirements of today’s SOPC designs. The

Quartus II software gives you a complete set of tools to easily take advantage of the TriMatrix memory architecture of Stratix and Stratix GX devices.

The information contained in AN 207: TriMatrix Memory Selection Using the

Quartus II Software version 2.1 supersedes information published in previous versions.

Version 2.1

The following changes were made to AN 207: TriMatrix Memory Selection

Using the Quartus II Software version 2.1:

Updated text on

page 1

.

Changed figure on

page 4

.

Updated text on

page 6

.

Updated text on

page 8.

Updated text on

page 11

Updates text on

page 12 .

101 Innovation Drive

San Jose, CA 95134

(408) 544-7000 http://www.altera.com

Applications Hotline:

(800) 800-EPLD

Literature Services: [email protected]

13

Copyright © 2002 Altera Corporation. All rights reserved. Altera, The Programmable Solutions Company, the stylized Altera logo, specific device designations, and all other words and logos that are identified as trademarks and/or service marks are, unless noted otherwise, the trademarks and service marks of Altera

Corporation in the U.S. and other countries. All other product or service names are the property of their respective holders. Altera products are protected under numerous U.S. and foreign patents and pending applications, maskwork rights, and copyrights. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera Corporation. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services

.

Altera Corporation

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
