ATTENTION
ATTENTION
ATTENTION
If the VXA tape drive does not load or eject tape cartridges, the bezel may have been reinstalled incorrectly.
CAUTION: Attempting to force the door open with the bezel installed incorrectly may result in damage to both the bezel
and drive requiring factory repair.
To correct this problem, remove and reinstall the bezel.
Bezel removal and improper reinstallation of the bezel can permanently damage the drive.
Follow these bezel installation instructions to ensure trouble-free insertion and ejection of tape cartridges.
ATTENTION
ATTENTION

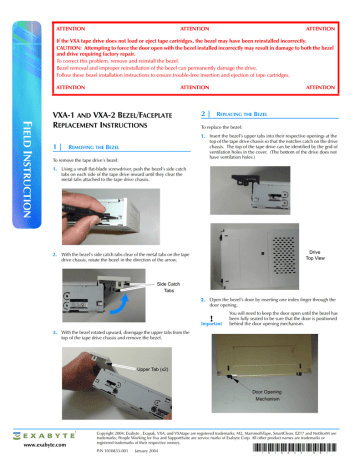

VXA-1 AND VXA-2 BEZEL/FACEPLATE
REPLACEMENT INSTRUCTIONS
ATTENTION
2 | REPLACING THE BEZEL
To replace the bezel:
1. Insert the bezel’s upper tabs into their respective openings at the
top of the tape drive chassis so that the notches catch on the drive
chassis. The top of the tape drive can be identified by the grid of
ventilation holes in the cover. (The bottom of the drive does not
have ventilation holes.)
1 | REMOVING THE BEZEL
To remove the tape drive’s bezel:
1. Using a small flat-blade screwdriver, push the bezel’s side catch
tabs on each side of the tape drive inward until they clear the
metal tabs attached to the tape drive chassis.
Drive
Top View
2. With the bezel’s side catch tabs clear of the metal tabs on the tape
drive chassis, rotate the bezel in the direction of the arrow.
Side Catch
Tabs
2. Open the bezel’s door by inserting one index finger through the
door opening.
Important
You will need to keep the door open until the bezel has
been fully seated to be sure that the door is positioned
behind the door opening mechanism.
3. With the bezel rotated upward, disengage the upper tabs from the
top of the tape drive chassis and remove the bezel.
Upper Tab (x2)
Door Opening
Mechanism
www.exabyte.com
Copyright 2004. Exabyte , Exapak, VXA, and VXAtape are registered trademarks; M2, MammothTape, SmartClean, EZ17 and NetStorM are
trademarks; People Working for You and SupportSuite are service marks of Exabyte Corp. All other product names are trademarks or
registered trademarks of their respective owners.
P/N 1010833-001
January 2004
#1010833-001#
3.
With the bezel door open and the upper tabs inserted in their slots, slowly
rotate the bezel down in the direction of the arrow, ensuring that the side
catch tabs clip on the inside of the metal drive chassis.
Side Catch Tab
(x2)
4. Ensure that the chassis tabs located on the bottom edge of the metal drive
chassis fit into the notches on the bottom of the bezel.
Chassis Tabs
5. After the bezel is installed on the tape drive, make sure that the front door
opens and closes without resistance. If the door appears stuck when you
try to open it, the bezel is installed improperly. Remove the bezel and
follow the instructions in this section again, making sure that the door is
kept open when you install the bezel.
Attempting to force the door open with the bezel installed
incorrectly may result in damage to both the bezel and the tape
drive requiring factory repair.
Caution
2 of 2
